Toshiba PDR-M11 Mounting instructions

DIGITAL STILL CAMERA PDR-M11
SOFTWARE MANUAL
MODE D ’EMPLOI DU LOGICIEL
SOFTWARE-ANLEITUNG
Cover1,2/M11(SOFT)-EFG 01.6.12, 1:34 PM1

Cover1,2/M11(SOFT)-EFG 01.6.12, 1:34 PM2

DIGITAL STILL CAMERA
PDR-M11
ENGLISH
SOFTWARE MANUAL
00Tobira PDRM11soft-E 01.6.12, 1:35 PM1

IMPORTANT
You should read this first before you use this software.
Notice and Request Regarding Software and Instruction Manual
(1) Copying or duplication of the software and Instruction Manual packaged with this Software
Application in part or in whole is not allowed without the prior permission of Toshiba Corporation.
(2) Use of the software and Instruction Manual packaged with this Software Application is allowed only
on one personal computer.
(3) Toshiba Corporation is not liable whatsoever for any damages to the user or a third party as a result
of use of a device by the software and Instruction Manual packaged with this Software Application.
(4) Every effort has been made in assuring the quality during production of the CD-ROM contained in
this package. If for any reason the CD-ROM has been damaged during production and within the
warranty , the disk will be replaced free of charge. For all other nonconformities or damages made
other than during the production of the CD-ROM, Toshiba Corporation will not be held liable
whatsoever.
(5) The contents of the software, Design, Specifications and Instruction Manual packaged with this
Software Application are subject to change without notice.
(6) The personal computer screens shown in this Instruction Manual are examples, and may differ from
actual screens.
(7) Toshiba Corporation is not liable whatsoever for any compensation arising from errors in descriptions
in this Instruction Manual.
(8) Do not play back the CD-ROM packaged with this Software Application on a regular CD player.
Doing so might damage the headphones or speakers, or injure your ears.
00Tobira PDRM11soft-E 01.6.12, 1:35 PM2

Operations in
Image Expert
When Using
Windows
Getting Ready
- 1 -
Before ReadingThis Manual
This Instruction Manual describes how to install the software provided and a brief explanation of how to use the
Software Application.
To ensure that you use this Software Application correctly, read this Instruction Manual carefully before you start
using the Software Application.
This document has been written assuming that you basically understand how to use the Toshiba PDR-M11 Digital
Still Camera and your personal computer that the Software Application is running on.
For basic details on the PDR-M11 and your personal computer, refer to the Toshiba PDR-M11 Digital Still Camera’s
Instruction Manual or the Instruction Manual for your personal computer.
Trademark Information
•Windows is a registered trademark of the Microsoft Corporation of the U.S. registered in the USA and other
countries.
Windows is an abbreviated term referring to the Microsoft Windows Operating System.
•Image Expert is a registered trademark of Sierra Imaging Inc.
•SmartMediaTM is a trademark of Toshiba Corporation.
•FlashPath is a registered trademark of SmartDisk Corporation of the USA.
• Other companies or product names are trademarks or registered trademarks of the respective companies.
Conventions Used In This Manual
IMPORTANT
• Indicates items or details that you should observe to prevent loss of data, malfunction and impaired performance.
Also indicates information relating to specifications and functions.
Memo
• Indicates extra useful information.
☞Indicates another page to refer to for extra information.
01-09 PDRM11soft-E 01.6.12, 1:35 PM1

Operations in
Image Expert When Using
Windows Getting Ready
- 2 -
Before Reading This Manual (continued)
Abbreviations Used In This Manual
• Windows 98
This refers to the Microsoft®Windows®98 operating system.
• Windows 2000
This refers to the Microsoft®Windows®2000 Professional operating system.
• Windows ME
This refers to the Microsoft®Windows®ME operating system.
• Images
This refers to still images.
01-09 PDRM11soft-E 01.6.12, 1:35 PM2

Operations in
Image Expert
When Using
Windows
Getting Ready
- 3 -
Before ReadingThis Manual (continued)

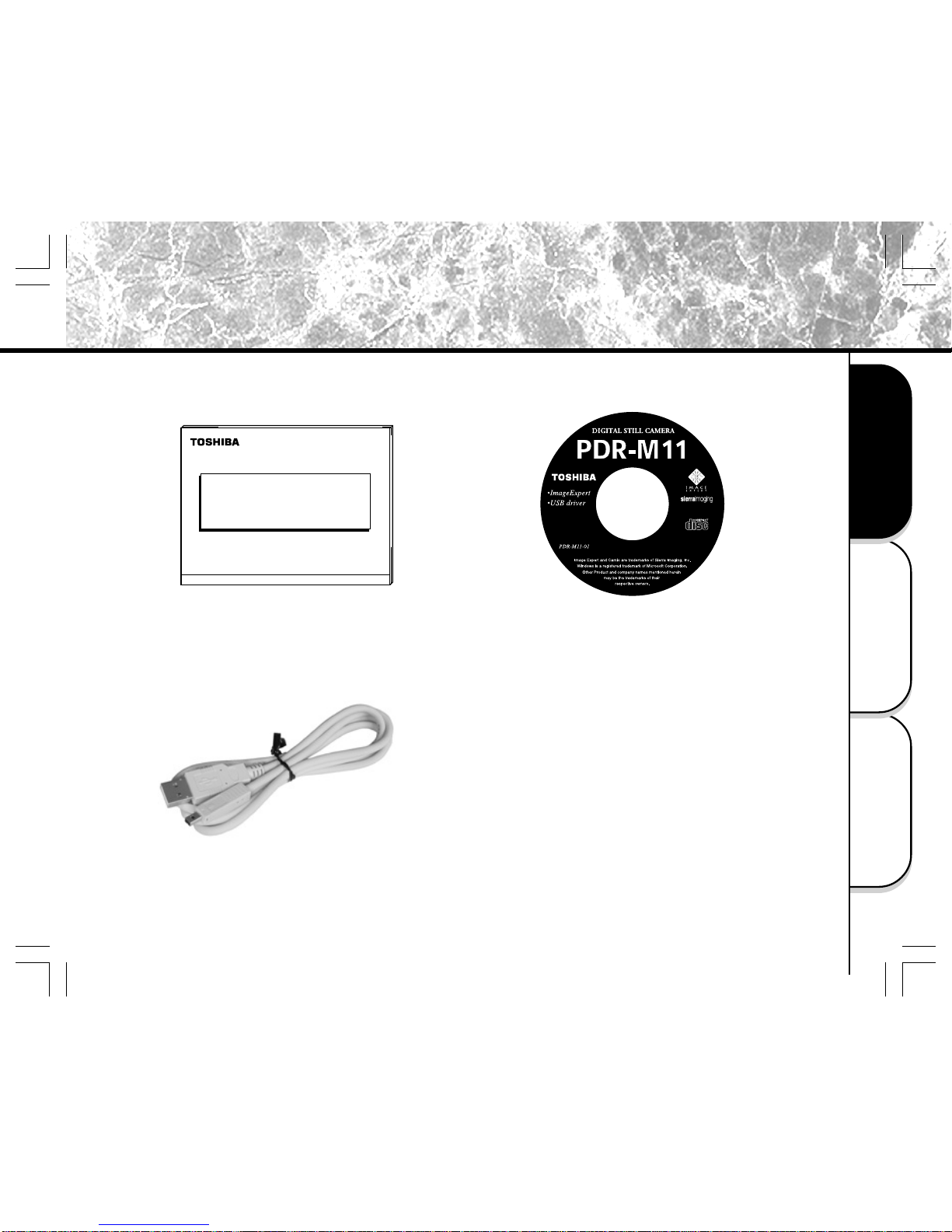

Make sure that you have all of the items below before you start using your software application.
USB cable (5.9 ft <1.8 m>)
CD-ROM (1 disk)
DIGITAL STILL CAMERA PDR-M11
S OFTWARE M ANUAL
M ODE D ’EMPLOI DU LOGICIEL
S OFTWARE- A NLEITUNG
Software Manual
(this manual)
01-09 PDRM11soft-E 01.6.12, 1:35 PM3

Operations in
Image Expert When Using
Windows Getting Ready
- 4 -
Contents
Getting Ready
■Before Reading This Manual........................ 1
■Contents....................................................... 4
■Features of This SoftwareApplication.......... 5
■About Files ................................................... 6
■About the Software....................................... 8
■Pre-installation Checks ................................ 9
When Using Windows
■Installation Procedure (for Windows) ......... 10
■Using the USB Cable
(Windows 98/2000/ME).............................. 12
■Using the Floppy Disk Adapter
(Windows 98/2000/ME).............................. 16
■Using the PC Card Adapter
(Windows 98/2000/ME).............................. 19
■Changing the Camio Viewer Settings......... 22
Operations in Image Expert
■Button Functions ........................................ 24
■Pasting Images to Other Applications
(Windows) .................................................. 26
■How to Access the Service and Support.... 27
■Global Contacts.......................................... 28
01-09 PDRM11soft-E 01.6.12, 1:35 PM4

Operations in
Image Expert
When Using
Windows
Getting Ready
- 5 -
Features ofThis Software Application
If you install the software and drivers on your personal computer, you can perform the following:
•Importing Images
You can import images taken on the Toshiba PDR-M11 Digital Still Camera into your personal computer.
To import images, you need to use the USB cable (packaged with this camera), or the FlashPath floppy disk
adapter, or PC card adapter.
•Editing Images
You can edit imported images using Image Expert, or print them out on a printer connected to the personal
computer you are using.
•Saving Images
You can save imported images or edited images on the personal computer you are using.
When You Use SmartMedia™on Your Personal Computer
•When you use SmartMedia™on your personal computer, do not change or delete the folder or names of files
(image data) on the SmartMedia™. Otherwise, you may no longer be able to use the SmartMedia™on the
PDR-M11.
•Format the SmartMedia™on the PDR-M11.
•To edit image data, first copy the image data to the personal computer’s hard disk, and edit the copied image data.
01-09 PDRM11soft-E 01.6.12, 1:35 PM5

Operations in
Image Expert When Using
Windows Getting Ready
- 6 -
About Files
File Structure of SmartMedia™
The images taken on the Toshiba PDR-M11 Digital Still Camera are stored to the SmartMedia™as shown below.
root DCIM 100TOSHI
Picture data
101TOSHI
.
.
.
.
.
.
01-09 PDRM11soft-E 01.6.12, 1:35 PM6

Operations in
Image Expert
When Using
Windows
Getting Ready
- 7 -
About Picture Data
On the PDR-M11, image data is saved in Exif format. This format is JPEG data that includes a thumbnail image and
the photographic settings.
Image data is saved as follows as shown on page 6:
Folder name : XXXTOSHI (XXX is any number within the range 100 to 999)
File name : PDRMXXXX (XXXX is any number within the range 0001 to 9999)
About Files (continued)
01-09 PDRM11soft-E 01.6.12, 1:35 PM7

Operations in
Image Expert When Using
Windows Getting Ready
- 8 -
About the Software
You can install the following software from the CD-ROM:
•Image Expert
This software allows you to edit and print imported still images.
•USB driver
Install this driver when you use the USB connector on your personal computer to import images.
Install this driver when you are using the USB Software Application (CD-ROM).
01-09 PDRM11soft-E 01.6.12, 1:35 PM8

Operations in
Image Expert
When Using
Windows
Getting Ready
- 9 -
Pre-installation Checks
To install the software supplied on the CD-ROM, your personal computer must conform to the system requirements
in the table below. Check the following items before you install the software.
Windows
Windows 98/2000/ME
16 MB min.
256 or more colors (640 x 480 dot min.)
32,000 or more colors recommended
Required
20 MB min.
CPU i486 or higher processor
OS
Memory
Free space on
hard disk
Color monitor
CD-ROM drive
1*
*1 When you handle images, first make sure that you have enough free space on hard disk.
Minimum system requirements
When connecting by USB cable
When using the floppy disk adapter or PC Card adapter
Compatible
Personal
Computers
Windows
Windows 98/2000/ME
pre-installed PC
Compatible
Personal
Computers
Windows
Windows 98/2000/ME
pre-installed PC
01-09 PDRM11soft-E 01.6.12, 1:35 PM9

- 10 -
Operations in
Image Expert When Using
Windows Getting Ready
Installation Procedure (for Windows)

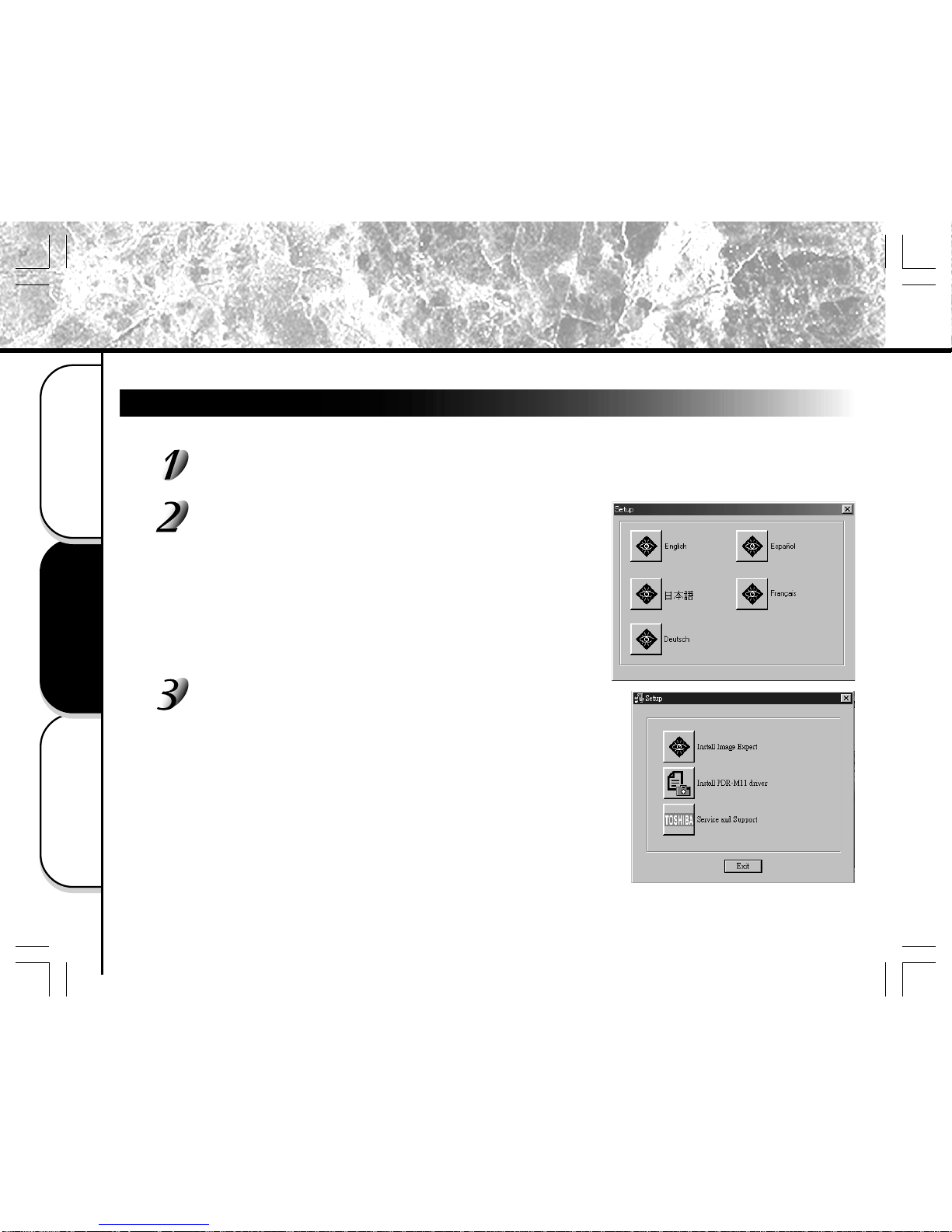

Before installing the Image Expert, install the USB driver.
Installing the USB Driver (for Windows 98,Windows 2000 or Windows ME)
Install this driver when the USB cable (provided) is used.
Insert the CD-ROM supplied with this software package into the CD-ROM drive.
The screen for selecting the display language appears.
Click “English”.
Click“Install PDR-M11 driver”.
Follow the on-screen instructions to continue the setup.
10-23 PDRM11soft-E 01.6.12, 1:36 PM10

- 11 -
Operations in
Image Expert
When Using
Windows
Getting Ready

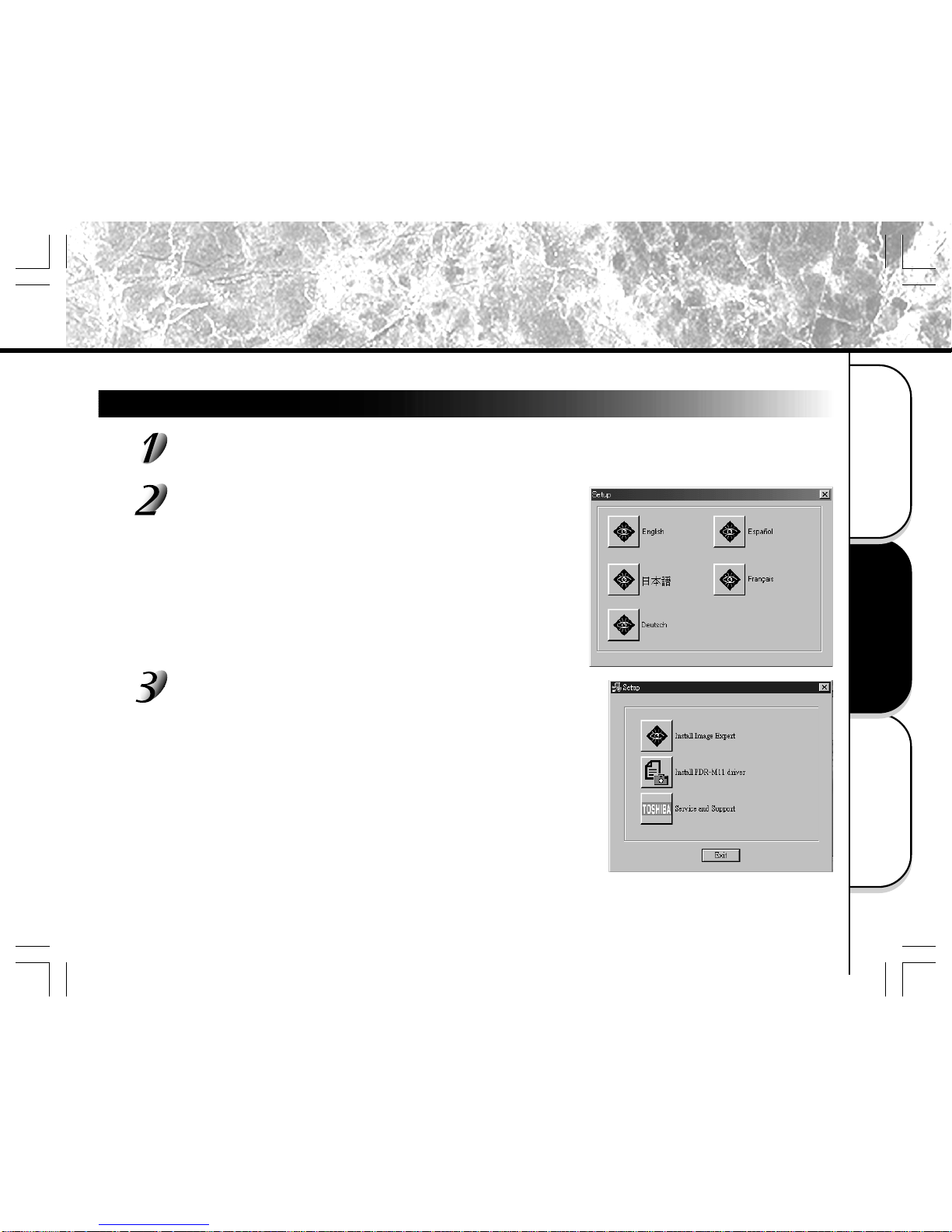

Before installing the Image Expert, install the USB driver.
Installing Image Expert
Insert the CD-ROM supplied with this software package into the CD-ROM drive.
The screen for selecting the display language appears.
Click “English”.
Click “Install Image Expert”.
Follow the on-screen instructions to continue the setup.
Installation Procedure (for Windows) (continued)
10-23 PDRM11soft-E 01.6.12, 1:36 PM11

- 12 -
Operations in
Image Expert When Using
Windows Getting Ready
Using the USB Cable (Windows 98/2000/ME)
To enable importing of images on the PDR-M11 to your personal computer, the PDR-M11 must be connected to
your personal computer by USB cable (provided).
When you connect the PDR-M11 to your personal computer by USB cable, the connection can only be made with
both the PDR-M11 and your personal computer turned ON. The PDR-M11 Mode Dial must be turned to the PC
Connection Setting for the computer to recognize the camera USB connection.
Connectable personal computer: Windows 98/2000/ME pre-installed machine
IMPORTANT
• If the camera’s power is turned OFF while image data is being transferred to the PC, the data may be damaged. When
the PDR-M11 is connected to the personal computer, use the AC adapter.
• When the camera is in the [ ] PC mode, the Auto Power OFF function does not work.

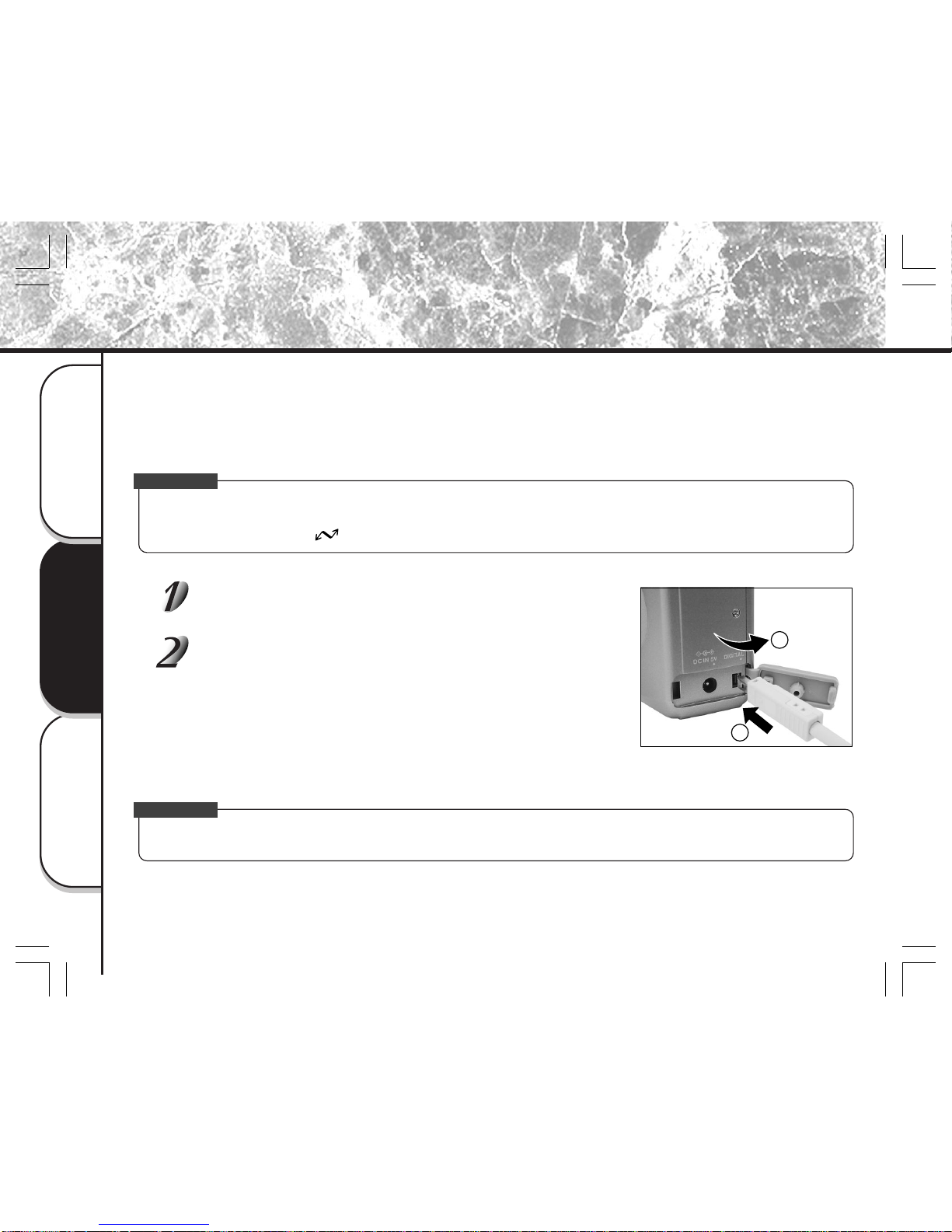

Connect the small end of the USB cable to the
DIGITAL terminal on the PDR-M11.
Connect the large end of the USB cable to the USB
port on your personal computer.
Connect the USB cable with Windows already booted up.
2
1
IMPORTANT
• When connecting the USB cable, pay attention to insert the connector in a proper direction.
10-23 PDRM11soft-E 01.6.22, 2:38 PM12

- 13 -
Operations in
Image Expert
When Using
Windows
Getting Ready
Using the USB Cable (Windows 98/2000/ME) (continued)

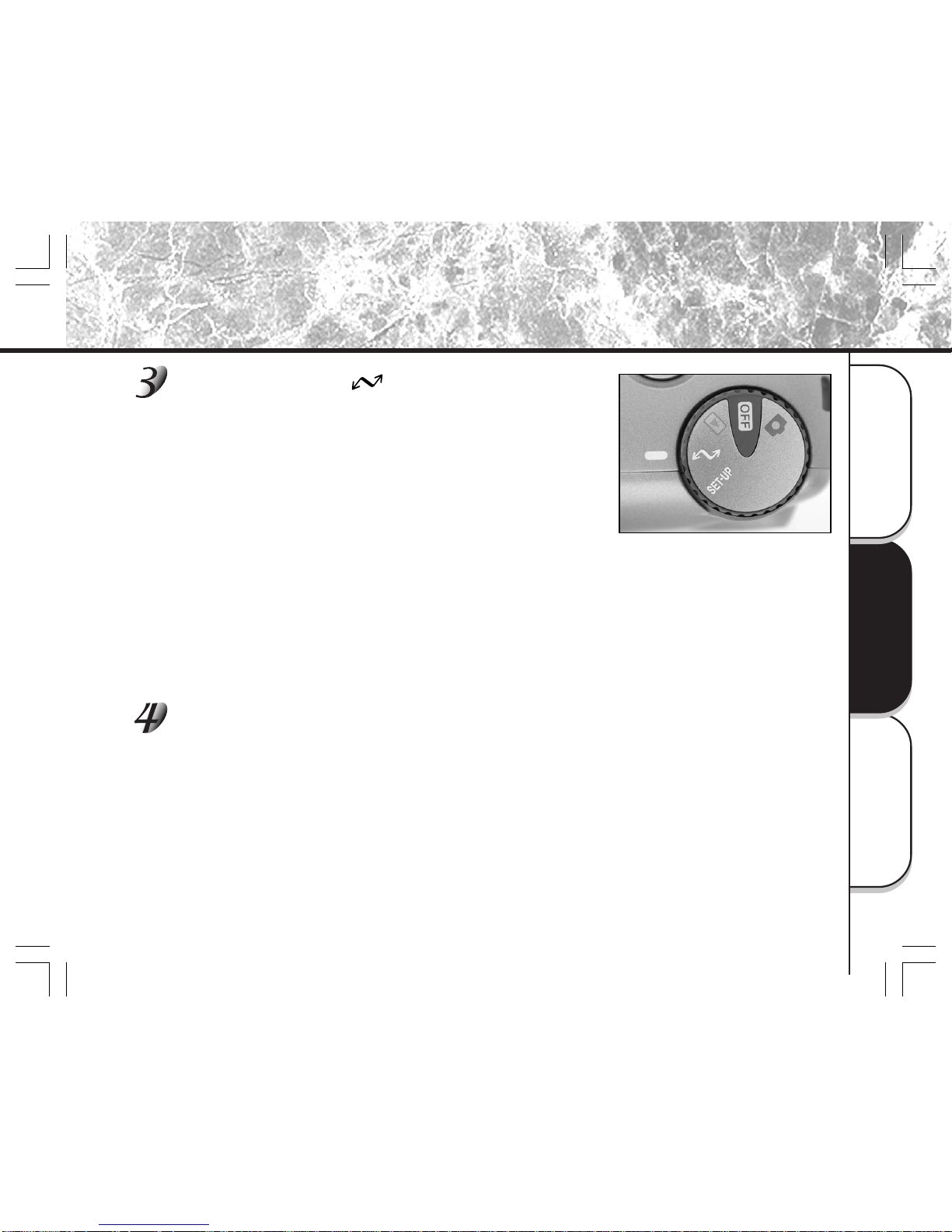

Set the mode dial to [ ].
The “Add New Hardware Wizard” screen appears.
Perform the following operation with Windows 98/2000/ME already booted up.
If this is the first time for an image to be imported using the USB cable, the Add New Hardware Wizard
screen appears.
Close wizard screen, then install the USB driver.
☞Installing the USB driver ➲P.11
Start up Image Expert.
Click [Start] - [Program] - [Image Expert] on the Windows task bar.
10-23 PDRM11soft-E 01.6.28, 3:46 PM13

- 14 -
Operations in
Image Expert When Using
Windows Getting Ready

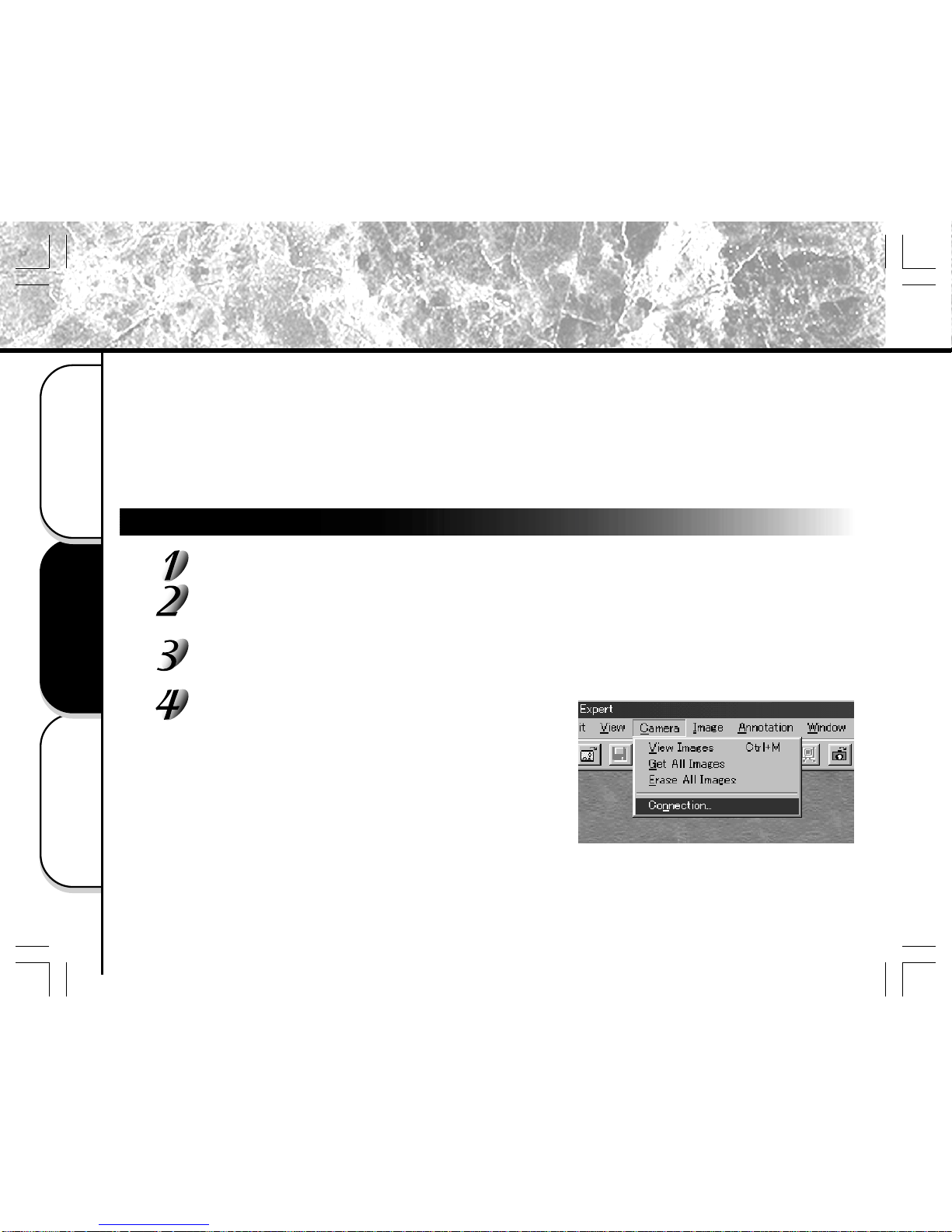

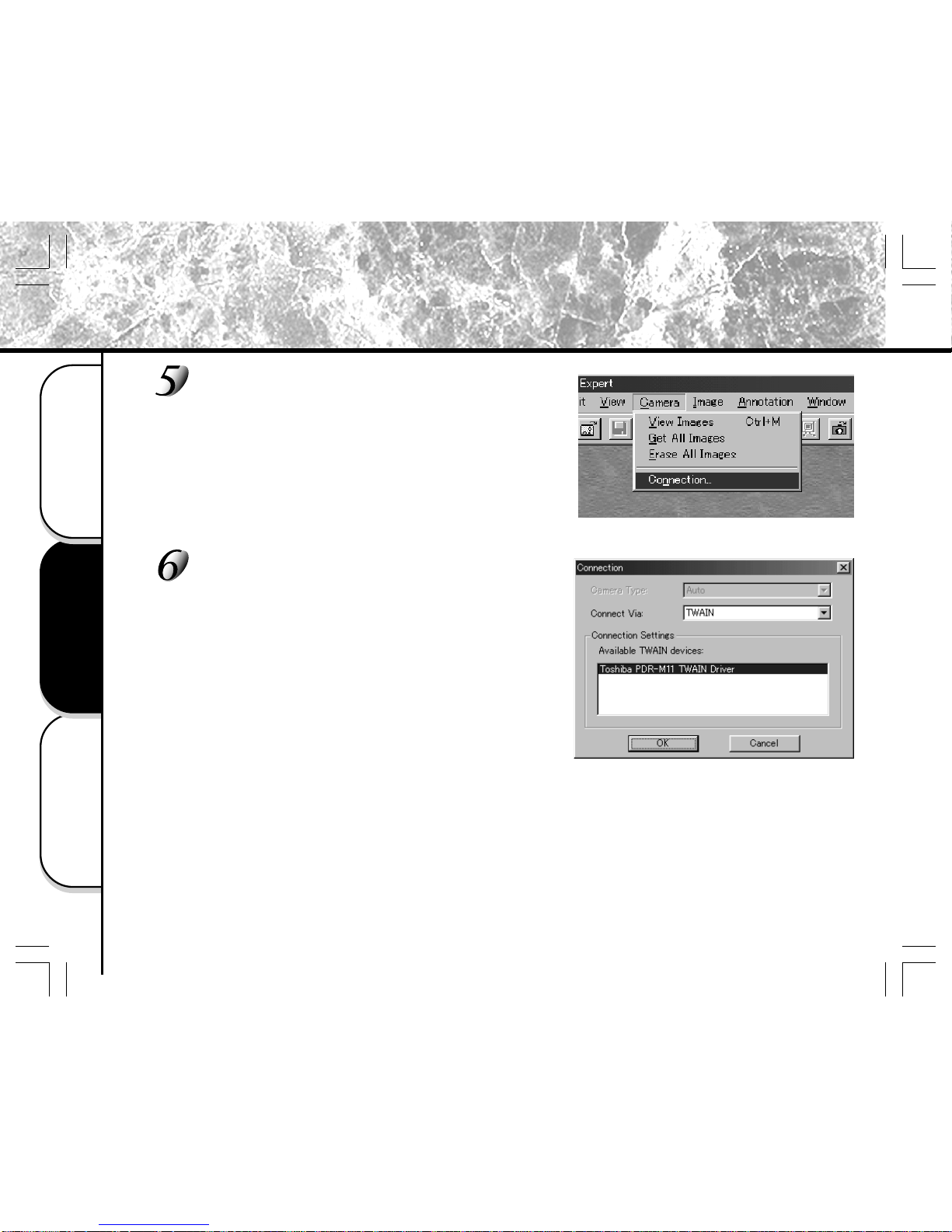

Click “Connection”in the Camera menu.
Set Connect Via to “TWAIN”, Available TWAIN
devices in Connection Settings to“Toshiba
PDR-M11TWAIN Driver”and click OK.
Using the USB Cable (Windows 98/2000/ME) (continued)
10-23 PDRM11soft-E 01.6.12, 1:36 PM14

- 15 -
Operations in
Image Expert
When Using
Windows
Getting Ready
Using the USB Cable (Windows 98/2000/ME) (continued)

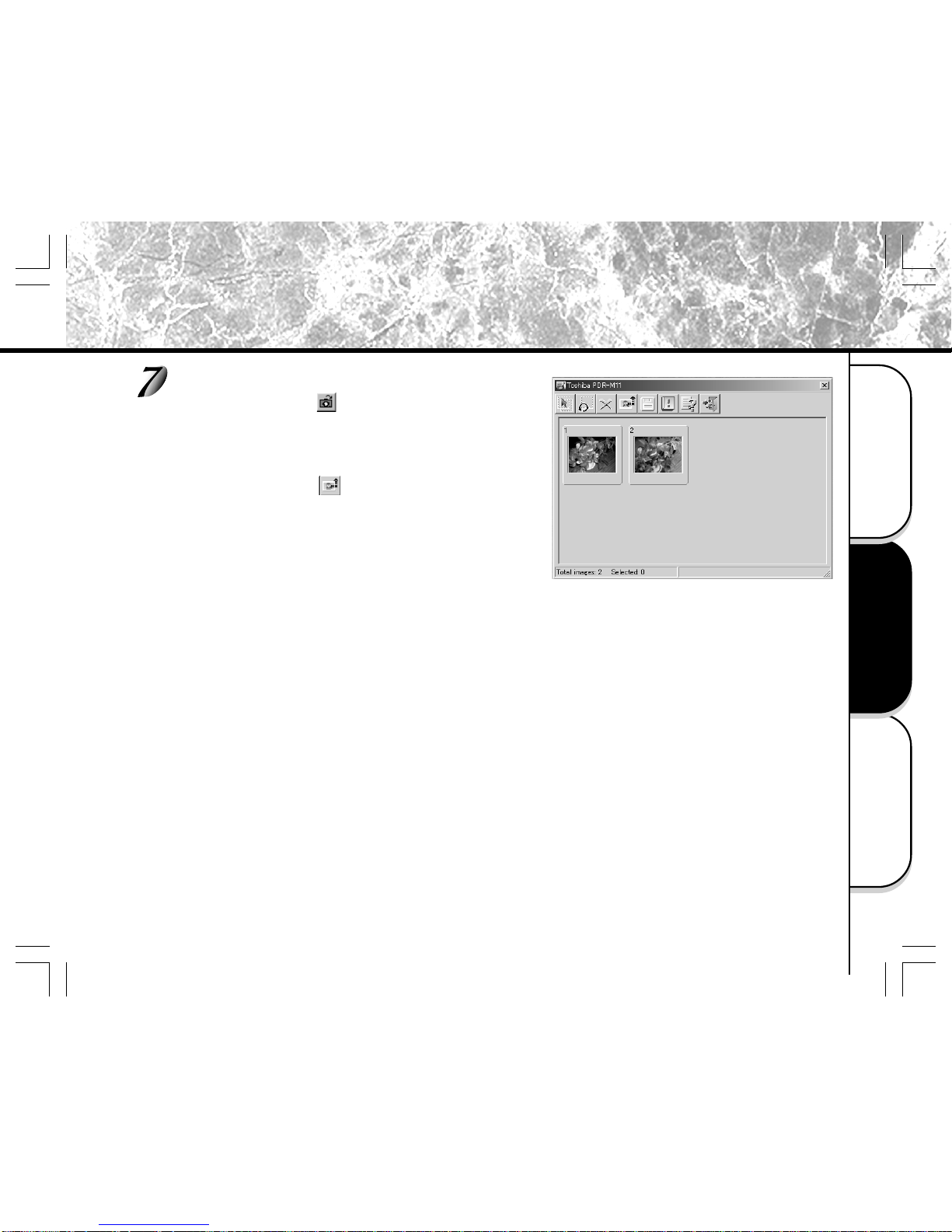

Download the images.
Click the camera icon on the tool bar, the Select
Album screen appears.
Either select an album, or enter a new album name and
click Open, the thumbnail images are displayed
simultaneously. Select the images you want to download
to the album and click , the selected images are
downloaded to the album.
10-23 PDRM11soft-E 01.6.12, 1:36 PM15

- 16 -
Operations in
Image Expert When Using
Windows Getting Ready
Using the Floppy Disk Adapter (Windows 98/2000/ME)
You can use a sold separately floppy disk adapter (FlashPath) to import images stored on SmartMedia™to your
personal computer from the floppy disk drive.
The floppy disk adapter is a 3.5" adapter for SmartMedia™that is to be inserted into the floppy disc drive on your
personal computer.
☞For details ➲Instruction Manual for Floppy Disk Adapter
Starting Up Image Expert and Importing Images
Insert the SmartMedia™containing the images into the floppy disk adapter.
Insert the floppy disk adapter into the floppy disk drive on your personal
computer.
Start up Image Expert.
Click [Start] - [Program] - [Image Expert] on the Windows task bar.
Click “Connection”in the Camera menu.
10-23 PDRM11soft-E 01.6.12, 1:36 PM16
