Air to Water Heat Pump Engineering Data Book
Contents
1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-1. System Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2-2. Hydro Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2-3. Outdoor Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2-4. Hot Water Cylinder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2-5. Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. SYSTEM SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4. HYDRO UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4-1. Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4-2. Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4-3. Piping Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4-4. Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4-5. Capacity Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4-6. Water Pump Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4-7. Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5. OUTDOOR UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5-1. Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5-2. Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
5-3. Piping Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5-4. Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5-5. Sound Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5-6. Operation Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6. HOT WATER CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
6-1. Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
6-2. Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
6-3. Piping Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
6-4. Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7. HYDRO UNIT INSTALLATION MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
8. OUTDOOR UNIT INSTALLATION MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
9. OWNER’S MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

2
1. INTRODUCTION

1.INTRODUCTION Engineering Data book
3
to
a
te
Heat Pump System
Introducing To shiba’s super-efficient space heating and hot water supply system for homes and businesses. Estía
represents breakthrough thinking in intelligent heat pump and inverter technologies, by efficiently transferring
ambient thermal heat from outside air to heat water indoors. Based on Toshib a’s proven light commercial air
conditioning system, the Super Digital Inverter, this innovative unit features DC twin rotary compressor, DC
inverter and R410A refrigerant, providing the highest coefficient of performance (COP) in its class. This means
more power from less energy consumption, and the ideal ecological and economical solution for your home.
World-leading energy efficiency –– COP of 4.66*
Comfortable heating and hot water supply
Versatile installation and operation
Outdoor unit
Hydro unit
Hot water cylinder
Outdoor unit
8 kW 11 / 14 kW
Hot water cylinder Hydro unit
Welcome Estía to your home!
Air-to-water Heat Pump System
* 11 kW model

1.INTRODUCTION Engineering Data book
4
1
Advantages
One system, multiple
solutions The right temperature at the right time
Easy
World-leading energy efficiency - COP of 4.66*
to install Environment conscious
With its best in class COP performance, Estía air to water heat pump system delivers more heating
power with less energy consumption.
Estía uses high quality components and material which contribute to the overall savings in energy
consumption.
With the Toshiba advanced inverter, Estía air to water heat pump system only delivers the heating
capacity required; thus consuming only the necessary electricity.
The hot water temperature is also optimized thanks to Toshiba advanced control depending on
the outside air temperature. The milder outside, the air-to-water systems automatically produces
lower water temperature to anticipate decreased needs of space heating. The same control logic
allows to anticipate as well increasing heating needs when weather conditions become extreme;
this overall temperature management gives the best conditions of comfort.
All this s
reducing the CO2emissions in the atmosphere.
aving has a positive impact on the personal electricity bill and the whole community by
Estía heat pump sys
combination with different types of emitters:
tems can be used in
existing heating l
floor heating or fan coil units.
ow temperature radiators,
f
It can produce water at different temperatures
or several applications simultaneously.
Toshiba Estía air to water heat pump system operates smoothly
both with low outdoor air temperature down to -20 ˚C in winter
and up to 43 ˚C in the summer season. The system has a unique
anti-ice build-up protection embedded.
Quick and easy to install. The hydro module
unit can be placed safely in the most suitable
place within the house.
There’s no need for chimney or underground
captors which require additional works on site.
The compact outdoor unit can be placed anywhere outside the
house or on a balcony, thanks to extensive piping options.
T
to the reduction of global CO2emissions in the
he use of Toshiba Estía heat pump contribute
atmosphere and limit the use of fossil fuels or
other non-renewable energy primary sources.
Whenever required for maintenance purpose,
all the R410A refrigerant (non ozone depleting) can be
completely sucked back to the outdoor unit through the
powerful embedded Toshiba “pump down” operation.
*11kW model

1.INTRODUCTION Engineering Data book
5
Outdoor unit
Hydro unit
1 zone
1 zone
1 zone
1 zone
Outdoor unit
Hydro unit
Hot water tank
Shower Bath Kitchen
Conventional boiler
Outdoor unit
Hydro unit
Shower Bath Kitchen
Panel radiator
2 zones
Outdoor unit
Hydro unit
Panel radiator
2 way valve
Hot water
tank
Fan coil
2 zones
Conventional boiler
Outdoor unit
Hydro unit
Panel radiator
Floor heatingTemp. sensor
Hot water
tank
Shower Bath Kitchen
Outdoor unit
Hydro unit
Panel radiator
Floor heatingTemp. sensor
Mixing
valve
Hot water
tank
Shower Bath Kitchen
Floor heating
Floor heating
HEATING ONLY
HEATING
COOLING
tank
Buffer
Buffer
tank
Buffer tank
Buffer tank
Mixing valve
I

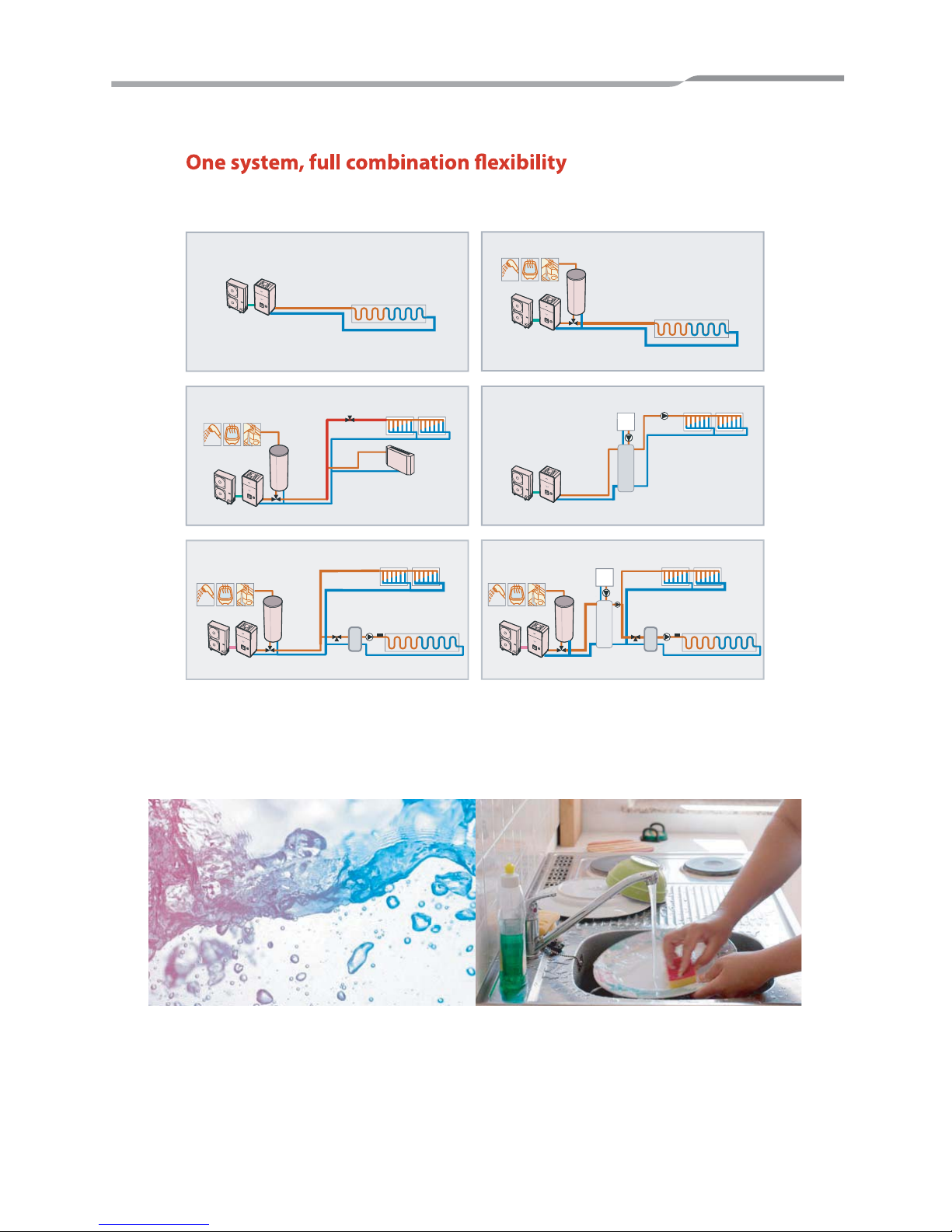

For new houses or refurbishment Estía heat pump offers a variety of combinations, some examples are shown below:
n existing dwellings already equipped with traditional gas or
fuel boilers, Toshiba Estía air to water heat pump system can be
combined with the existing heating system to cover exclusively
and in an optimized way all the heating needs, all year round.
Then, the boiler is only used as a back-up source during some
extreme weather days of the winter.
T
most efficient way.
he intelligent Toshiba control balances the energy source in the
1 zone heating
1 zone heating / cooling with domestic hot water
2 zone heating with domestic hot water
1 zone heating with domestic hot water
1 zone heating with boiler backup
2 zone heating with domestic hot water and boiler backup

6
2. SYSTEM OVERVIEW

2.SYSTEM OVERVIEW Engineering Data book
7
2-1. System Combination
Combination
2-2. Hydro Unit
Outdoor unit
HWS-802H-E HWS-1102H-E HWS-1402H-E
Hydro unit
HWS-802XWHM3-E ––
HWS-802XWHT6-E ––
HWS-1402XWHM3-E –
HWS-1402XWHT6-E –
HWS-1402XWHT9-E –
Hot water cylinder
HWS-1501
CSHM3-E
HWS-2101
CSHM3-E
HWS-3001
CSHM3-E
HWS-1501
CSHM3-UK
HWS-2101
CSHM3-UK
HWS-3001
CSHM3-UK
Hydro unit
HWS-802XWHM3-E

HWS-802XWHT6-E
HWS-1402XWHM3-E
HWS-1402XWHT6-E
HWS-1402XWHT9-E
Hydro Unit Model Description
HWS-802XWHM3-E 8 kW Hydro Unit (3 kW 230 V ~ back up heater)
HWS-802XWHT6-E 8 kW Hydro Unit (6 kW 400 V 3N ~ back up heater)
HWS-1402XWHM3-E 11 & 14 kW Hydro Unit (3 kW 230 V ~ back up heater)
HWS-1402XWHT6-E 11 & 14 kW Hydro Unit (6 kW 400 V 3N ~ back up heater)
HWS-1402XWHT9-E 11 & 14 kW Hydro Unit (9 kW 400 V 3N ~ back up heater)
Hydro Unit HWS-
802XWHM3-E
HWS-
802XWHT6-E
HWS-
1402XWHM3-E
HWS-
1402XWHT6-E
HWS-
1402XWHT9-E
Back up heater capacity 3 kW 6 kW 3 kW 6 kW 9 kW
Power supply
for backup heater 230 V ~ 400 V 3N ~ 230 V ~ 400 V 3N ~ 400 V 3N ~
for hot water cylinder
heater (option) 230 V ~
Leaving water
temperature
Heating (°C) 20 to 55
Cooling (°C) 10 to 25
For use with HWS-802H-E HWS-1102H-E/HWS-1402H-E
Dimension HxWxD (mm) 925 x 525 x 355

2.SYSTEM OVERVIEW Engineering Data book
8
2
2-3. Outdoor Unit
2-4. Hot Water Cylinder
2-5. Options
Outdoor unit HWS-802H-E HWS-1102H-E HWS-1402H-E
Type Inverter
Function Heating & Cooling
Heating
Capacity (kW) 8.0 11.2 14.0
Input (kW) 1.96 2.40 3.15
COP 4.08 4.66 4.45
Cooling
Capacity (kW) 6.0 10.0 11.0
Input (kW) 2.13 3.52 4.08
EER 2.82 2.84 2.69
Power supply 230 V ~
Refrigerant R410A
Dimension HxWxD (mm) 890 x 900 x 320 1,340 x 900 x 320
Hot water cylinder (option) HWS-1501CSHM3-E
HWS-1501CSHM3-UK
HWS-2101CSHM3-E
HWS-2101CSHM3-UK
HWS-3001CSHM3-E
HWS-3001CSHM3-UK
Water volume litres 150 210 300
Max water temperature (°C) 75
Electric heater (kW) 2.75 (230 V ~)
Height (mm) 1,090 1,474 2,040
Diameter (mm) 550
Material Stainless steel
No. Part name Model name Application Remarks
1External output board TCB-PCIN3E
Boiler-linked output, Alarm output Up to two boards (according
to applications)
Defrost signal output, compressor operation signal
output
2External input board TCB-PCMO3E Cooling/heating thermostat input Up to two boards (according
to applications)
Forced-stop signal input

9
3. SYSTEM SPECIFICATION

3.SYSTEM SPECIFICATION Engineering Data book
10
3
* Rated condition capacity and power input are the data at rated compressor operating frequency.
* Power input does not include water pump power.
* Capacity and power input are measured in accordance with EN14511.
Outdoor unit HWS-802H-E HWS-1102H-E HWS-1402H-E
Hydro unit HWS-802XWH**-E HWS-1402XWH**-E
Rated heating
condition
TO (DB/WB)=7/6°C
LWT=35°C dT=5deg
Capacity kW 8.0 11.2 14.0
Power input kW 1.96 2.4 3.15
COP W/W 4.08 4.66 4.45
Rated water flow /min 22.9 32.1 40.1
Rated heating
condition
TO (DB/WB)=7/6°C
LWT=45°C dT=5deg
Capacity kW 8.0 11.2 14.0
Power input kW 2.40 2.95 3.95
COP W/W 3.33 3.80 3.54
Rated water flow /min 22.9 32.1 40.1
Rated cooling
condition
TO=35°C
LWT=7°C dT=5deg
Capacity kW 6.0 10.0 11.0
Power input kW 2.13 3.52 4.08
EER W/W 2.82 2.84 2.69
Rated water flow rate /min 17.2 28.7 31.5
Rated cooling
condition
TO=35°C
LWT=18°C dT=5deg
Capacity kW 6.0 10 11
Power input kW 1.42 2.35 2.65
EER W/W 4.23 4.26 4.15
Rated water flow /min 17.2 28.7 31.5
Power supply 1~ 230V 50Hz
Maximum current A 20.8 22.8 22.8
TO : Outdoor temperature (°C)
LWT : Leaving water temperature (°C)
dT : Delta temperature (deg)
Leaving water temperature - return water temperature (Heating)
Return water temperature - leaving water temperature (Cooling)

11
4. HYDRO UNIT

4.HYDRO UNIT Engineering Data book
12
4
4-1. Specification
4-1-1. Hydro unit specifications
Hydro unit HWS-
802XWHM3-E
HWS-
802XWHT6-E 1402XWHM3-E 1402XWHT6-E 1402XWHT9-E
Back up heater
back up heater kW36369
Power supply 1 ~ 230V 50Hz 3N~ 400V 50Hz 1 ~ 230V 50Hz 3N~ 400V 50Hz 3N~ 400V 50Hz
Maximum current A 13 13 (13A*2P) 13 13 (13A*2P) 13 (13A*3P)
Hot water
cylinder heater*
Power supply 1 ~ 230V 50Hz
Maximum current A 12.0
Appearance Color Silky shade (Muncel 1Y8.5-0.5)
Material Pre-coated material
Outer
dimension
Height mm 925
Width mm 525
Depth mm 355
Unit weight kg 50 54
Packing
dimension
Height mm 1070
Width mm 608
Depth mm 456
Total weight Unit and packing kg 56 60
Heat
exchanger
Type Brazed plate
Water volume litres 0.67 1.18
Minimum flow rate /min 13 17.5
Water pump
(3 speed)
Power input W 125 / 95 / 65 190 / 180 / 135
Delivery head m 6.5 / 6.1 / 4.5 8.3 / 8.1 / 7.2
Expansion
vessel
Volume litres 12
Initial pressure MPa(bar) 0.1 (1)
Pressure relief
valve Operating pressure MPa(bar) 0.3 (3)
Sound pressure level dBA 29
Operation
water temp.
Heating °C 20~55
Cooling °C 10~25
Water pipe Outlet mm 34.92
Inlet mm 34.92
Refrigerant
pipe
Gas mm 15.9
Liquid mm 9.5
Drain port mm 16.0 inner diameter for drain hose
Note * The electric heater, incorporated in the hot water cylinder, requires separete supply
to hydro unit.

4.HYDRO UNIT Engineering Data book
13
4-1-2. Power Wiring specifications
4-1-3. External Device specifications
4-1-4. External Device Wiring specifications
4-1-5. External Output specifications
Description POWER SUPPLY Maximum current Installation fuse
rating Cable size Connection destination
Outdoor unit
power
14 kW 230 V ~ 50 Hz 22.8 A 25 A 2.5 mm² or more
,
11 kW 230 V ~ 50 Hz 22.8 A 25 A 2.5 mm² or more
8 kW 230 V ~ 50 Hz 20.8 A 25 A 2.5 mm² or more
Outdoor-Hydro – – 1.5 mm² or more , ,
Hydro inlet heater
power
3 kW 230 V ~ 50 Hz 13 A 16 A 1.5 mm² or more , (TB02)
6 kW 400 V 3N ~ 50 Hz 13 A (13 A x 2P) 16 A 1.5 mm² or more , , ,
(TB02)
9 kW 400 V 3N ~ 50 Hz 13 A (13 A x 3P) 16 A 1.5 mm² or more
Hydro cylinder heater power 230 V ~ 50 Hz 12 A 16 A 1.5 mm² or more , (TB03)
Hydro - cylinder – 12 A – 1.5 mm² or more , (TB03)
Power Maximum current Type
Motorized 3-way valve
(for hot water) AC 230 V 100 mA
Spring return type
Note: 3-wire SPST and SPDT type can be used by changing the
DPSW 13-1.
Motorized 2-way valve
(for cooling) AC 230 V 100 mA spring return type (normally open)
Motorized mixing valve
type 1 (for 2-zone) AC 230 V 100 mA
60 sec 90º. SPDT type
Note: SPST and 20 to 240 sec type can be used by changing the
function code.
Description Line spec Maximum current Maximum length Cable size Connection
destination
3-way valve control 2 line or 3 line 100 mA 12 m 0.75 mm² or more , ,
(TB05)
Mixing valve control 3 line 100 mA 12 m 0.75 mm² or more
, , or
, ,
(TB04)
2-zone thermo sensor 2 line 100 mA 5 m 0.75 mm² or more , (TB06)
Cylinder thermo sensor 2+GND(shield wire) 100 mA 5 m 0.75 mm² or more , (TB06)
Second remote controller 2 line 50 mA 50 m 0.75 mm² or more , (TB07)
Description Output Maximum
current Max voltage Maximum length
External pump No.1 AC230V 1 A – 12 m
External boost heater AC230V 1 A – 12 m Output as required when outdoor air
temperature is -20°C or less
Boiler control Non-voltage
contacts
0.5 A AC230 V 12 m Output as required when outdoor air
temperature is -10°C or less
1 A DC24 V 12 m
ALARM Output Non-voltage
contacts
0.5 A AC230 V 12 m
1 A DC24 V 12 m
Compressor Operation Output Non-voltage
contacts
0.5 A AC230 V 12 m
1 A DC24 V 12 m
Defrost Output Non-voltage
contacts
0.5 A AC230 V 12 m
1 A DC24 V 12 m

4.HYDRO UNIT Engineering Data book
14
4
4-1-6. External Input specifications
Description Input Maximum length
Emergency stop control Non-voltage 12 m
Cooling thermostat input Non-voltage 12 m
Heating thermostat input Non-voltage 12 m

4.HYDRO UNIT Engineering Data book
15

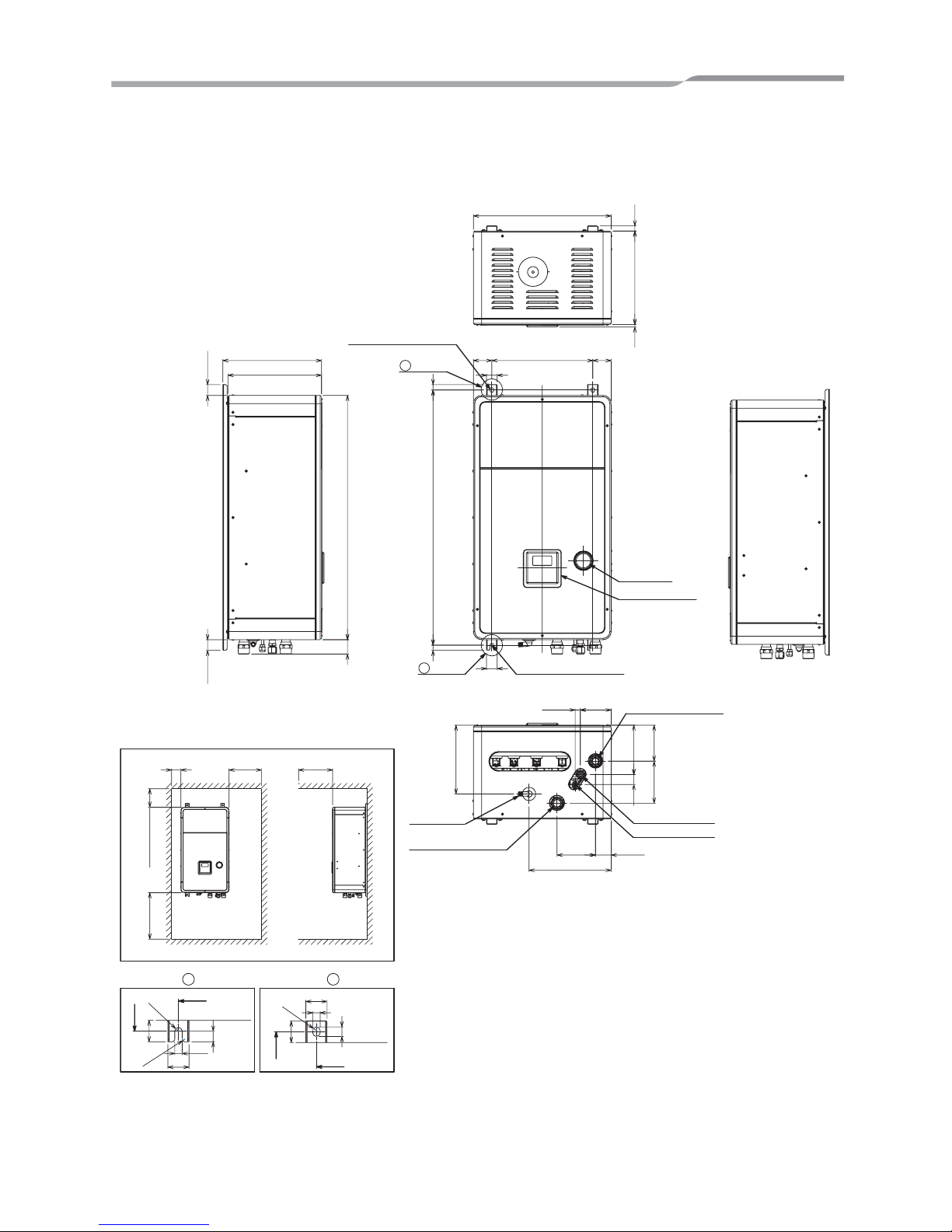

4-2. Dimension
▼Hydro unit
960
Anchor bolt long hole pitch
B leg part
40
380
40
2020
72.5 72.5
2-dia.12x17 long hole
(for dia.8-10 anchor bolt)
2-dia.12x17 U-shape hole
(for dia.8-10 anchor bolt)
A leg part
Remote controler
135.5
158
186.5
59.5144.5
11619.5
352
37.5 19.5
92554
Hot water outlet
connecting pipe 1 1/4"
Water inlet
connecting pipe 1 1/4"
Gas line dia.15.88
Liquid line dia.9.52
309.5
259
Drain nipple
525
371.5
355
40.540.5
9
Anchor bolt
long hole pitch
Manometer
81
R14
80
960
40
Outside line
of product
2-R10
380
Detailed A leg part Detailed B leg part
Outside line
of product
80
R14
36
960
28
380
28
81
Service space
200 or more
100 or more 350 or more
500 or more
500 or more

4.HYDRO UNIT Engineering Data book
16
4
▼External output board (TCB-PCIN3E)
▼External input board (TCB-PCMO3E)
69
79
63 73
4- 4Øhole
Terminal (Screw M3)
Size (mm) : H22 x L73 x W79
Weight (g) : 57
55.5
45.5
60 50
4-Ø4 hole
Terminal (Screw M3)
NCC-1214 TCB-PCMO2
TCB-PCMO2E
PJ17
Size (mm) : H18 x L55.5 x W60
Weight (g) : 20

4.HYDRO UNIT Engineering Data book
17
4-3. Piping Diagram
Water system diagram
M
M
Fan coil unit
Radiator unit
Floor heating
By-pass valve
(locally procured)
By-pass valve
(locally procured)
Moterized mixing valve
(locally procured)
AC230V
Buffer tank (locally procured)
AC pump
(locally procured)
AC pump
Strainer
(locally procured)
40 mesh
Motorized 3-way valve
(locally procured)
AC230V
Booster heater (locally procured)
2-way valve for cooling mode (locally procured) AC230V
Boiler
(locally procured)
Drain cock for water charge
(locally procured)
Cylinder heater
Ø1
:
2.75kW
Relief valve (UK)
90 °C
Water outlet
Water inlet
Water heat exchanger
Reducing valve
Pressure relief
Backup heater
Ø1
:
3kW
Ø3
:
6kW
Ø3
:
9kW Flow sw
set
:
13 /min
Thermal cut-out
(manual reset)
82+3-2
°C
Thermal protector
(auto)
set : 75±3
°C
Thermal protector
single operation
set : 95±5
°C
Pressure sensor
Pressure sw 4.15MPa
Expansion vessel set : 1bar Pressure relief valve
set : 3bar
Menometer
gage : ~6bar
10bar
Air vent valve
Outdoor unit
8,11,14kw
zone1 zone2
TFI
TTW
TC
TWO
THO
TWI
Hot water cylinder
Local hot water system
set
:
17.5 /min
Water vent valve

4.HYDRO UNIT Engineering Data book
18
4
Refrigeration cycle system diagram
P
Outdoor unit Hydro unit
TWO
THO
TWITC
TE
TO
TS TD
Heating / Hot-water supply Defrosting / Cooling
Pulse motor valve
4-way valve Plate-type water
heat exchanger
Backup heater
Expansion vessel
Manometer
Water vent valve
Air vent valve
Low Pressure sensor
Pressure Switch
Flow switch
Safety valve
Circulating pump
Compressor
Outdoor heat exchanger
Accumulator

4.HYDRO UNIT Engineering Data book
19

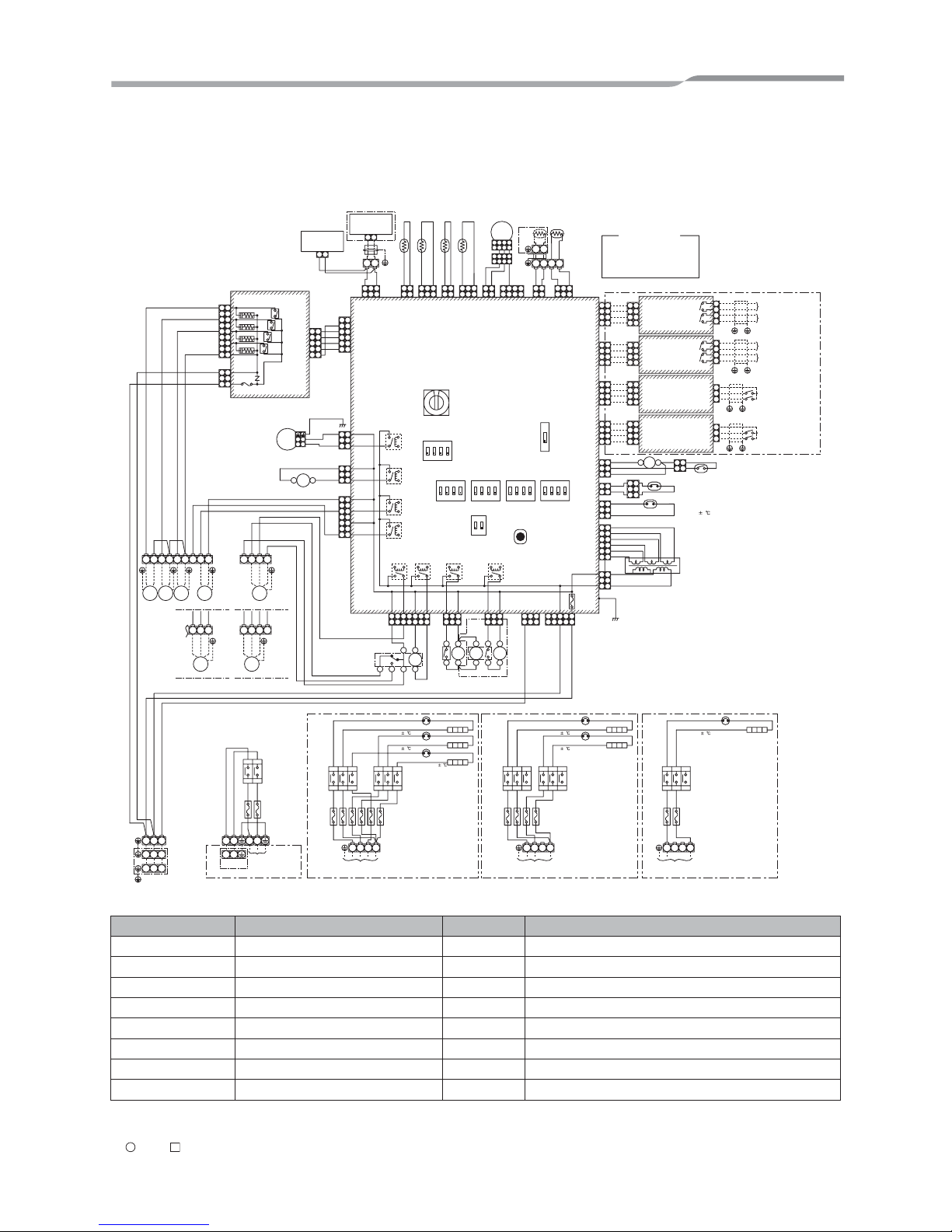

4-4. Wiring Diagram
4-4-1. Hydro unit
1. The one-dot chain line indicates wiring at the local site, and the dashed line indicates accessories sold separately and service
wires, respectively.
2. , and indicates the terminal board and the numberals indicate the terminal numbers.
Symbol Parts name Symbol Parts name
WPM Water pump motor TC Water heat exchanger temperature sensor
3WV 3-way valve (locally procured) TWI Water inlet temperature sensor
2WV 2-way valve (locally procured) TWO Water outlet temperature sensor
MIXV Mixing valve (locally procured) THO Heater outlet temperature sensor
BH Booster heater TTW Hot water cylinder temperature sensor
RY01~RY06 Relay01~Relay06 TFI Floor heating inlet temperature sensor
LPS Low pressure sensor TB Terminal block
Backup heater1, 2, 3 Heater AC230V, 3kW
Remote
controller
(HWS-AMS11E)
AB
GRY
WHI
AB
Remote
controller
(HWS-AMS11E)
*Option
TB 07
GRY
WHI
BLK BLK BLK BLK BLK BLK BLK BLK
13
2
13
2
1
12
23
1
13
12
12
1
1
23
321
21
2
21 4
313
2
13
12
12
*Option
THOTWOTWITC
LPS
RED RED
BRW BRW
RED
WHI
BLK
21 4
3
234
TFI
TTW
TB 06
BA
CN208
(BLU)
CN213
(WHI)
CN214
(WHI)
CN206
(WHI)
CN205
(RED)
CN204
(BRW)
CN203
(YEL)
CN41
(BLU)
CN501
(YEL)
CN207
(BLU)
CN212
(WHI)
CN102
(WHI)
CN101
(WHI)
CN202
(YEL)
CN201
(WHI)
CN200
(RED)
CN211
(BLK)
CN210
(RED)
CN209
(GRN)
RY607RY606RY605RY604
RY601RY600RY603 RY602
CN601
(RED)
CN603
(YEL)
CN602
(WHI)
WHI
YEL
WHI
RED
RED
BRW
BLU
WPM
BLK
RY
05
A1
A2
L
NN
L11
33
11
33
P.C.board
(MCC-1511)
SW10 SW 11 SW12 SW13
SW06
SW07
SW14
SW01
SW02
12 43
ON
4321
ON
1234
ON
3214
ON
4123
ON
21
ON
OFF
ON
55
11
3
77
TB 04
MIXV
TB 04TB 05
RED RED
ORN
PNK
WHI WHI YEL
RED
ORN
WHI
PNK
WHI WHI
YEL BLU BRW
WHI
RED WHI YEL
BH 3WV
2WV
WPM
TB 05
5251535456
555759 5842
414344
44
43
42
41
MIXV
59
58
57
3WV
RED
PNK
ORN
86
4
2
7
5
RY
06
A1
A2
6
4
8
7
A2
A1
4
6
RY
01
WHI WHI
RY
02 RY 04
RY
03
*1
*1HWS-802XWHT6-E : Installed
HWS-1402XWHT6-E : Installed
HWS-1402XWHT9-E : Installed
HWS-802XWHM3-E : Not installed
HWS-1402XWHM3-E : Not installed
RED
WHI
GRY
RED
WHI
BLK
YEL
WHI
ORN
WHI
PNK
CN604
(BLU)
CN605
(YEL)
CN606
(BLU)
CN305
(GRN)
CN100
(WHI)
31
31
7
75
5
3
1
13
13
13
1
3
33
3
1
1
5
F100
Fuse
T5A
250V~
WHI
WHI
P100 BLK
ORN
ORN
RED
RED
BRW
BRW
BLK
BLK
RED
YEL
GRN
BLK
BLK
11
33
1
2
3
4
5
6
1
4
5
6
2
3
11
3
2
3
11
33
22
11
2
33
1
2
1
Transformer
22
33
44
11
44
11
22
33
4444
11
22
33
11
33
22 3
1
2
3
1
2
3333
4444
22
11
22
11
1111
22
44
33
22
44
3
4
3
1
2
4
3
1
2
3
GRN
GRN
GRN
GRN
GRN
GRN
GRN
GRN
YEL
YEL
YEL
YEL
YEL
YEL
YEL
YEL
*Option p.c.board
11
22
Hot water cylinder
thermostat I/P
Emergency stop I/P
Cooling thermostat I/P
Heating thermostat I/P
Operation O/P
Defrost O/P
Boiler control O/P
Alerm O/P
78
RY
01 Flow switch
High pressure
switch 4.15MPa
Thermal protector
(auto)75 3
95 5 95 5
95 5
95 5
95 5
PJ20 TB1
K1
K2
K1
K2
PJ20 TB1
PJ17 TB1
PJ17 TB1
Photocoupler input
p.c.board
(MCC-1214)
Relay
p.c.board
(MCC-1217)
Relay
p.c.board
(MCC-1217)
Photocoupler input
p.c.board
(MCC-1214)
BLK : BLACK
BRW : BROWN
GRY : GRAY
PNK : PINK
WHI : WHITE
BLU : BLUE
GRN : GREEN
ORN : ORANGE
RED : RED
YEL : YELLOW
Color identification
WHI RED GRY
Power supply
230V~ 50Hz
TB 01
Outdoor unit
21 3
3
12
123
11 133
12 N
L
12
TB 03
Power supply
230V~ 50Hz
Hot water cylinder
*Option
BRW BLU
BRW
BLU
BRW
BLU
YEL/GRN
F1 F2
F1, F2
Fuse
AC250V
T30A
RY05
2T1
1L1
4T2
3L2
2T1
1L1
4T2
3L2
6T3
5L3
6T3
2T1 4T2
3L21L1 5L3
F3~8
Fuse
AC250V
T30A
F3~6
Fuse
AC250V
T30A
F3,F4
Fuse
AC250V
T30A
RY02
F3 F4 F6
F5 F8
F7
BLU
GRY
GRY
BLU
BLU
BLU
BRW
BLU
BRW
BLU
BLK
BLK
TB 02
L1 L2 L3 N
Power supply
400V 3N~ 50Hz HWS-1402XWHT9-E
RY04
Backup heater 2
Backup heater 1
Backup heater 3
Thermal protector
(Single operation)
Thermal protector
(Single operation)
(Single operation)95 5
Thermal protector
BRW
BLU
BRW
BLU BLU
BLK
BLK
BLU
RY02
6T3
5L3
4T22T1 6T3
3L21L1 5L3 1L1 3L2
2T1 4T2
RY04
F3 F6
F5
F4
TB 02
Power supply
400V 3N~ 50Hz
L2L1 L3 N
HWS-802XWHT6-E
HWS-1402XWHT6-E
Thermal protector
(Single operation)
(Single operation)
Thermal protector
Backup heater 1
Backup heater 2
RY02
6T32T1 4T2
5L31L1 3L2
Thermal protector
(Single operation) Backup heater 1
F4
F3
BRW
BLU
BRW
BLU
LN
TB 02
Power supply
230V~ 50Hz HWS-802XWHM3-E
HWS-1402XWHM3-E
3
4
2
6
5
1
5
4
3
2
1
55
11
4
3
22
3
4
RED
BLU
GRN
ORN
BRW
CN02
(WHI)
Relay
p.c.board
(MCC-1431)
F01 (5A)
CN01
(WHI)
3
11
2
3
2
11
3
55
4
6
9
7
8
7
9
RED
WHI
WHI
BLU
BRW
YEL
CN10
(WHI)
RY
10
CR10
CR11
CR12
CR13
RY
11
RY
12
RY
13
1
6 D
6 C
6 B
6 A
7 B
7 A
Type 1
(3-wire SPST type)
Type 1
(2-wire spring return)
Type 2
(3-wire SPDT type)
Type 2
(3-wire SPST type)
Type 3
(3-wire SPDT type)
24
3
234
*See DIP SW13_1
