Toshiba HWS-804XWHM3-E1 User manual

AIR TO WATER HEAT PUMP
Hydro Unit
Model name:
HWS-804XWHM3-E1
HWS-804XWHT6-E1
HWS-804XWHT9-E1
HWS-1404XWHM3-E1
HWS-1404XWHT6-E1
HWS-1404XWHT9-E1
Owner’s Manual
English

–1–
Hydro Unit Owner’s Manual
Contents
1 Safety precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Names and functions of parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 How to use functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 User maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Air to Water Heat Pump operations and performance . . . . . . . . . . . . . . . . . . . . . . . 12
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Thank you very much for purchasing TOSHIBA Air to Water Heat Pump.
Please read this owner’s manual carefully before using the system.
• Be sure to obtain the “Owner’s manual” and “Installation manual” from constructor (or dealer).
Request to constructor or dealer
• Please clearly explain the contents of the Owner’s manual before handing it over to the Customer.
ADOPTION OF NEW REFRIGERANT
This Air to Water Heat Pump is a new type which adopts a new refrigerant HFC (R410A) instead of the
conventional refrigerant R22 in order to prevent destruction of the ozone layer.
1-EN

–2–
Hydro Unit Owner’s Manual
1Safety precautions
DANGER
•Do not attempt to install this unit yourself.
•This unit requires a qualified installer.
•Do not attempt to repair the unit yourself.
•This unit has no components which you can repair.
•Opening or removing the cover will expose you to dangerous voltages.
•Turning off the power supply will prevent potential electric shock.
WARNING
Installation warnings
• Be sure to ask a dealer or a store specialized in electrical work to install the Air to Water Heat Pump.
• The Air to Water Heat Pump should be installed by a suitably qualified installer, if not; this may lead to problems such as
water leaks, electric shock, fire, etc.
• Ensure the correct grounding procedures are applied when installing the Air to Water Heat Pump.
• Do not connect the earth wire to gas pipes, water pipes, lightning rods or telephone earth wires.
• Should the Air to Water Heat Pump be improperly grounded, this could lead to an electric shock.
• Serious damage can occur if there is water leak. Therefore, the Hydro Unit is recommended to be installed in a room with
waterproof flooring and drainage systems.
• Products and parts to be used in combination with this product must be specified products and parts that meet prescribed
specifications. If unspecified products or parts are used, a failure, smoke, fire, or electric shock may be caused.
Operation warnings
• Avoid injury or damage to the outdoor unit by never inserting fingers or sticks into the air discharge or air intake of the
outdoor unit, during operation the fans run at a high speed.
• Should you notice something unusual with the Air to Water Heat Pump (such as a burning smell or low heating power),
immediately turn off the main switch and circuit breaker from the main power supply to stop the Air to Water Heat Pump,
and contact the dealer.
• If there is a suspected problem with the operation of the Air to Water Heat Pump, continuous operation is not recommended,
operational failures may lead to machine breakdown, electric shock, a fire, etc.
• Do not spill water or other liquid onto the Hydro Unit.
• If the unit is wet, it could cause an electric shock.
Warnings at movement and repair
• Do not attempt to move or repair the unit yourself.
• Due to the presence of high voltage, removal of any covers may result in an electric shock.
• Should there be any requirements for the Air to Water Heat Pump to be moved, always consult the dealer or qualified
installer.
• Should the Air to Water Heat Pump be improperly installed, it may lead to electric shock or fire.
• Whenever the Air to Water Heat Pump requires repair, request assistance from the dealer.
• Should the Air to Water Heat Pump be improperly repaired, the result may lead to electric shock or fire.
CAUTION
This appliance is not intended for use by person (including children) with reduced physical sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
To disconnect the appliance from the main power supply
This appliance must be connected to the main power supply using a circuit breaker or switch with a contact separation
of at least 3 mm.
Installation cautions
• Be sure to connect the Air to Water Heat Pump to a dedicated power supply using the rated voltage.
Failure to do so may cause the unit to break down or cause a fire.
• Do not install the unit in a place where there is a risk that flammable gas may leak.
• An accumulation of flammable gases around the unit may result in a fire.
Operation cautions
• To ensure satisfactory performance, please read this manual carefully before operating the Air to Water Heat Pump system.
• Do not install the Air to Water Heat Pump in special-purpose rooms such as a ship or any kind of vehicle.
Doing so could harm machine performance.
2-EN

–3–
Hydro Unit Owner’s Manual
• When the Air to Water Heat Pump is operated together with a combustion device in the same place, pay careful attention
to ventilation and let fresh air into the room.
Poor ventilation can cause an oxygen shortage.
• When the Air to Water Heat Pump is used in a closed room, pay careful attention to the ventilation of the room.
Poor ventilation can cause an oxygen shortage.
• Do not put a container with water, such as a vase, on the unit, should water enter the unit the result may lead to an electric
shock, this would be due to deterioration in the electric insulation.
• Perform occasional checks to the concrete supports underneath the outdoor unit.
If the base is left damaged or deteriorated, the unit may topple over which could result in possible injury.
• Check from time to time that the unit mounts are not damaged.
If the mounts are left damaged, the unit may drop or topple over, resulting in possible injury.
• Do not wash the unit with water. This could cause an electric shock.
• Do not use alcohol, benzene, thinner, glass cleaner, polishing powder, or other solvent for cleaning the unit because they
can deteriorate and damage the Air to Water Heat Pump.
• Before cleaning the unit, be sure to turn off the main switch or circuit breaker.
• Do not place anything, or step, on the unit, this could cause the unit to fall or topple over which may result in possible injury.
• To achieve maximum performance, the Air to Water Heat Pump must operate within the temperature range specified in the
instructions.
Failure to do so may cause malfunction, break down, or water to leak from the unit.
• Clear away snow before it accumulates on the outdoor unit.
Accumulated snow can lead to malfunction and damage.
• Do not locate other electric appliances or furniture underneath the unit.
Water may drip from the unit, which could lead to rust, unit failure and damage to property.
• Do not allow the obstruction of air flow around the outdoor unit; Do not place any items within the specified installation
service space requirements.
Obstructed air flow can lower performance and cause damage.
• Check for water leaks. In communal housing, leaking water may damage lower floors.
Check for water leaks everyday.
• Do not touch the water pipes, refrigerant pipes, or joints. These may become extremely hot.
Do not drink water produced by the Air to Water Heat Pump.
• After extended use, fresh water may become contaminated by the Hydro Unit, due to deterioration of pipe materials, etc.
• If fresh water contains solid matter, is discolored, turbid or smells, DO NOT DRINK IT.
• Call for equipment inspection immediately.
• Use source water that satisfies water quality standard.
• When the unit will not be used for a long period of time, ask your dealer or a qualified service shop to drain the water inside
the Hydro Unit in order to prevent the water quality from changing.
• When restarting use, ask your dealer or a qualified service shop to charge the unit with water and perform a test run.
• Ask your dealer or a qualified service shop to periodically clean the strainer.
• Ask your dealer or a qualified service shop to confirm that the relief valve is operating correctly.
• Do not hit the manometer, because it is made of glass. It is breakable.
3-EN

–4–
Hydro Unit Owner’s Manual
2Names and functions of parts
Buttons
NOTE
Some functions are not provided depending on the
system specifications in use.
For details, contact the installation company.
17
16
1
10
2
3
4
76
89 11
12
15
14
13
5
▼Fig. 2-01
1. TEMP. button: Changes the set temperature for
each operation mode (ZONE1/2
hot water) by 1 °C step.
2. SCHEDULE
button: Sets the current time and
scheduled weekly operation.
3. TIME button: Changes time for current time
setting and scheduled weekly
operation setting with and
buttons.
4. SET button: Determines the entered current
time setting and scheduled weekly
operation setting.
5. CL button: Clears settings for the current time
and scheduled weekly operation.
Cancels audible alarm in the event
of a system fault.
6. DAY button: Sets days of the week for current
time setting and scheduled weekly
operation setting.
7. STEP button: Specifies switching STEP number
in a day for weekly schedule.
8. TEST button:
Used for test run or service.
9. FROST
PROTECTION
button:
Controls minimum operation for
unused period (going out, absence,
etc.) for anti freezing.
10. NIGHT button: Controls the night set back
operation.
11. AUTO TEMP.
button:
Switches setting temperature
automatically according to outside
temperature. (Pressing this button
long changes the mode to data
setting mode.)
12. OPERATE MODE
button: Selects ZONE1/2 operation mode
(heating or cooling).
13. ZONE1, 2 button: Turns on/off the zone (floor
heating/radiator/Fan Coil Unit)
operation.
14. ANTI BACTERIA
button:
Regularly increases the hot water
temperature in the tank for
sterilization. (Pressing this button
long changes the mode to data
setting mode.)
15. HOT WATER
BOOST button: Boosts boiling when high tapping
temperature is required
temporarily.
16. HOT WATER
button: Turns on/off hot water operation.
17. SELECT button: Selects an operation mode when
changing the set temperature of
each operation mode.
4-EN

–5–
Hydro Unit Owner’s Manual

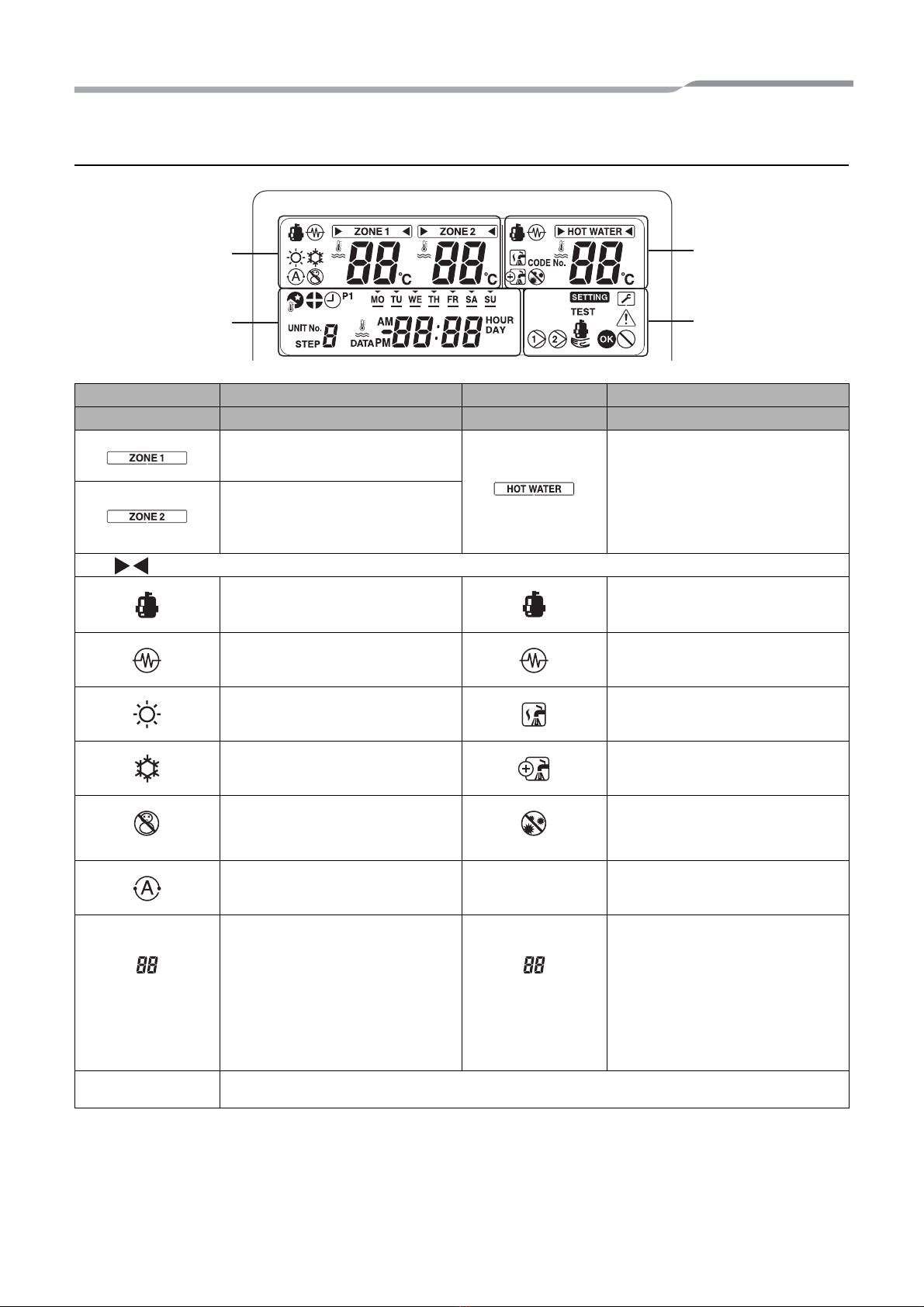

Meaning of Indication
Heating side [ZONE1, 2] Hot water side
18. Indication Description 20. Indication Description
Lights when floor heater or radiator is
connected (when the system has floor
heater or radiator). Lights when hot water supply system
is connected (when the system has
hot water supply).
Lights when controlling the second
temperature.
(It may not light depending on the
system)
The [ ] mark lights for operation mode for which temperature is to be changed.
Lights during heating or cooling
operation using the heat pump.
Lights when hot water supply
operation is performed by heat pump.
Lights when the electric heater, inside
the hydro unit, is energised during a
heating operation.
Lights when the electric cylinder
heater is energised during hot water
operation.
Lights when heating is selected. Lights during hot water supply
operation.
Lights when cooling is selected. Lights while hot water boost is
activated.
Lights when the FROST
PROTECTION button is pressed and
goes out when the button is pressed
again.
Lights when the ANTI BACTERIA
button is pressed and goes out when
the button is pressed again.
Lights when Auto operation is
selected.
Displays heating/cooling set
temperature.
(Heating: 20 to 55 °C, factory default:
Auto, cooling: 7 to 25 °C)
Goes out when Auto operation is
selected.
When room temperature control is
selected with optional second remote
controller, it displays set room
temperature. *
Displays hot water set temperature.
(40 to 75 °C, factory default: 65 °C)
°C Lights when the set temperature or sensor's water temperature is displayed with the 7-segment
indicator.
* Ask your installer about room temperature control setting.
18
19 21
20
▼Fig. 2-02
5-EN

–6–
Hydro Unit Owner’s Manual

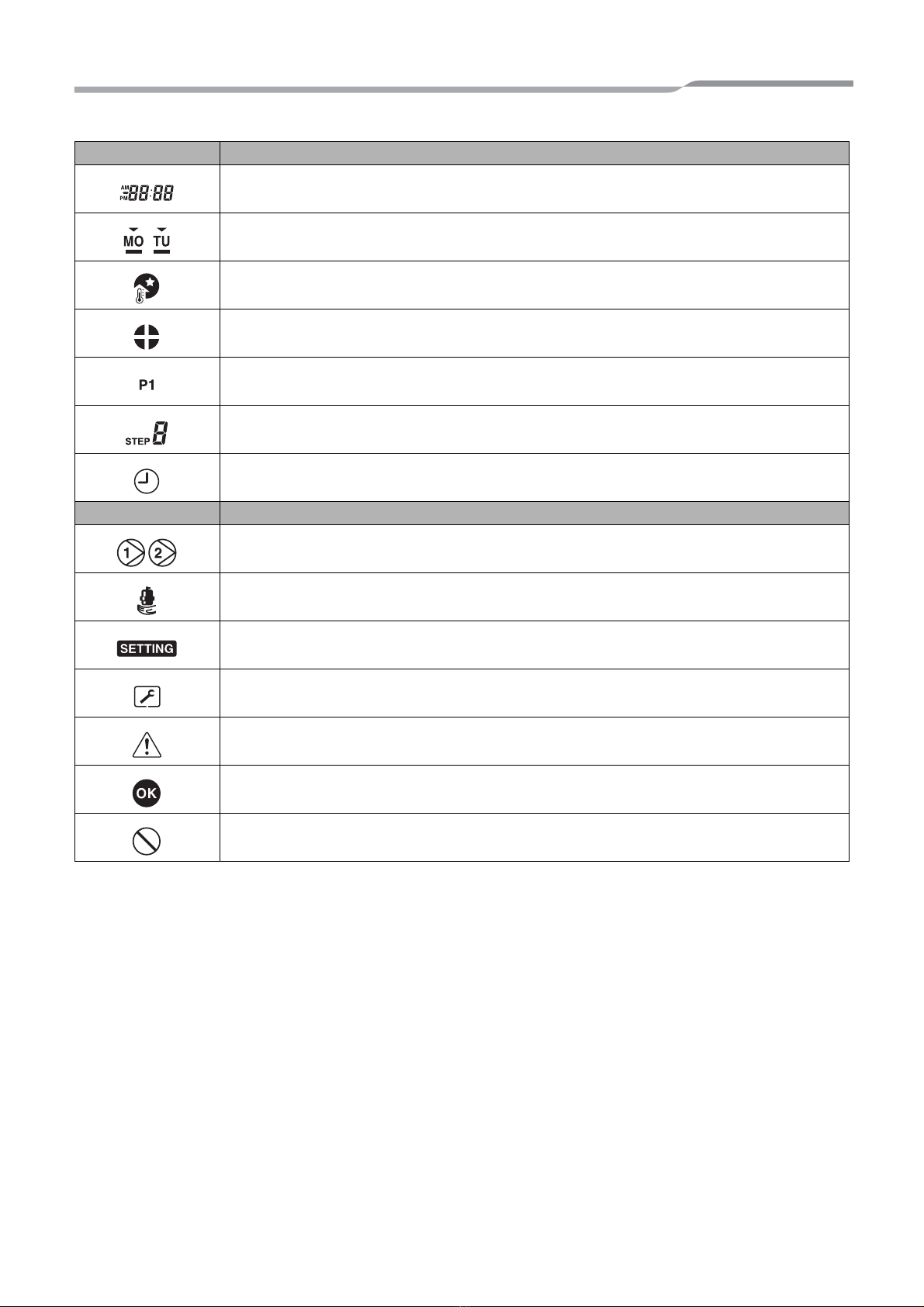

19. Indication Description
Clock: Displays the current time (AM or PM).
Displays days of the week (Sunday to Saturday).
Lights when the NIGHT button is pressed and goes out when the button is pressed again.
Lights when nighttime quiet operation is set.
Indicates scheduled operation 1 status (including setting time).
Displays the scheduled operation step when the scheduled operation STEP1-5 program is set.
Lights during time setting and scheduled operation setting.
21. Indication Description
Lights while internal pump (pump 1) or expansion pump (pump 2) is driven.
Lights when the auxiliary boiler or external booster heater supports the heat pump operation.
Lights when the unit enters the data set mode and goes out when the unit exits the data set mode.
Lights when the unit enters the service mode and goes out when the unit exits the service mode.
Lights when an error occurs and goes out when the error is cleared.
Lights for two seconds when settings are completed.
Lights for two seconds when settings failed.
6-EN

–7–
Hydro Unit Owner’s Manual
3How to use functions
Timer setting
Function not available on follower remote controller
First, set the current time on the remote controller.
Procedure to set the current time and day of the week
(If day/time is not set, the indication of time and day of
the week blinks.)
(1) Press the TIME or button for 4 seconds or
more to enable the time setting mode.
• The SETTING segment blinks.
(2) Set the current day of the week with the DAY
button.
• Each time the button is pressed, the segment
shifts cyclically pointing MO →TU →…→SU →
MO.
(3) Set the current time with the TIME and
buttons.
• If you press the buttons long, the current time can
be set in units of 10 minutes.
(4) Press the SET button to determine the setting.
Heating or cooling operation
Performing heating or cooling operation
• Press the ZONE1, 2 button to start heating
or cooling operation.
The set temperature appears under on
the remote controller. (When ZONE2 is provided, the
set temperature appears simultaneously under
.)
• During the heat pump operation or while the internal
heater or backup heater is energized, is
displayed.
• Use the OPERATE MODE button to select
cooling operation or heating operation.
Each time this button is pressed, heating and
cooling are switched alternately.
• To stop heating or cooling, press the ZONE1, 2
button. The set temperature and go
out and the heating or cooling operation stops.
Setting temperature
• Press the SELECT button to move
and select or .
• Change the set temperature with the TEMP.
button.
• The ZONE2 setting temperature must be equal to or
lower than the ZONE1 setting temperature.
When room temperature control is selected with second remote
controller, the set temperature will be set room temperature.
7-EN

–8–
Hydro Unit Owner’s Manual

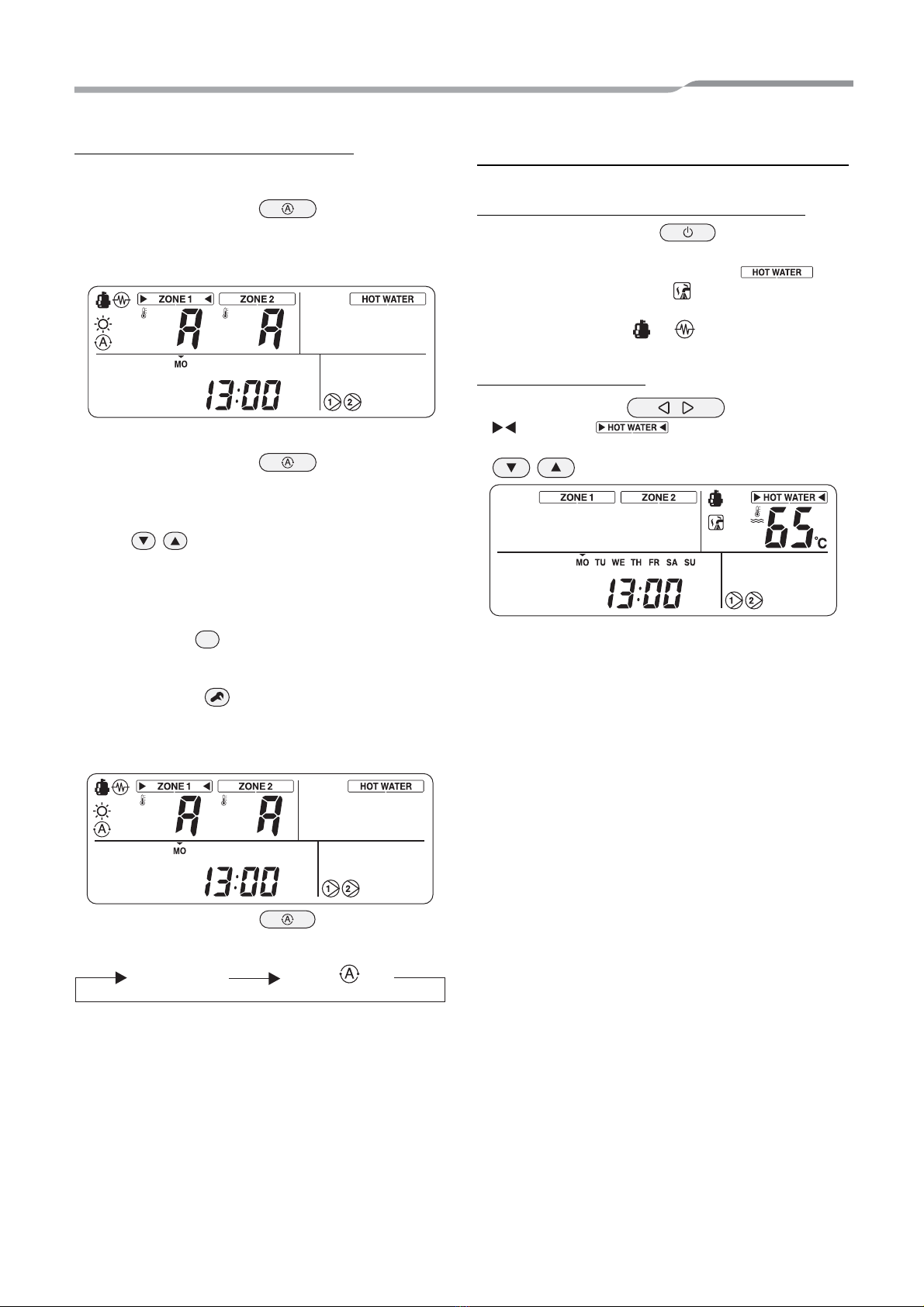

Performing Auto mode operation
• The setting temperature can be set automatically
according to the outside temperature.
• Press the AUTO TEMP. button.
• The temperature indication changes to “A” and the
water temperature is automatically set according to
the outside temperature.
To correct the set value for the Auto mode
• Press the AUTO TEMP. button for 4
seconds or more to enter the auto curve adjusting
mode.
• The function code setting screen appears. Press the
TIME button to display a temperature
between -5 to +5 °C.
In this case, temperature is displayed as -5, -4, -3,
-2, -1, 0, 1, 2, 3, 4, or 5.
Only ZONE1 temperature is displayed.
When the SET button is pressed after the
temperature is changed, the set temperature is
registered.
• When the TEST button is pressed, the
registered data is determined. The unit exits the
function code setting mode and “A” appears on the
display.
• Each time AUTO TEMP. button is pressed,
the mode changes as follows:
Hot water
Performing hot water supply operation
• Press the HOT WATER button to start the
hot water supply operation.
• The set temperature appears under on
the remote controller, and lights.
• During the heat pump operation or while the internal
heater is energized, or is displayed.
Setting temperature
• Press the SELECT button to move
and select .
• Change the set temperature with the TEMP.
button.
No indication
(cancel) Auto
8-EN

–9–
Hydro Unit Owner’s Manual
Useful functions
Frost protection
This function performs operation with the minimum
capacity to prevent pipes from freezing in case the unit
is not used for a long period due to absence.
• When the FROST PROTECTION button is
pressed during heating (ZONE1 or ZONE2),
appears on the remote controller and the
temperature indication changes to “F“. The frost
protection operation starts with the set minimum
capacity (target water temperature: 15 °C).
• The frost protection mode can be stopped by either
setting the end day and time using function codes or
by pressing the FROST PROTECTION button
again on the remote controller.
• This function takes precedence over the Night
setback quiet operation that is set separately. Ask
the installation company for the minimum capacity
setting.
• Cancel schedule timer to start frost protection
operation. When frost protection is operated with
schedule timer on, it may stop during its operation.
Setting the end days and time for the frost
protection operation
Press the FROST PROTECTION button for 4
seconds or more while the frost protection operation is
enabled ( is displayed on the remote controller), to
enter the setting mode.
• The setting mode is indicated on the remote
controller.
• Select the code number to be set with the TEMP.
buttons, and set the start time and end
time with the TIME buttons.
Code No. 12: End days (default 00)
13: End times (default 00)
ex)
Code No. 12: 05
13: 13 = 5 days 13 hours
• Press the SET button to determine the end days
and times.
• Press the TEST button to exit the setting mode.
Night setback
This function is used to save heating operation during
specified time zone (sleeping hours, etc.) at night.
• When the NIGHT button is pressed during
heating (ZONE1 or ZONE2), appears on the
remote controller and the night setback operation is
reserved. The set temperature is lowered by 5 °C
between the set start time and end time.
• To stop the night setback operation, press the
NIGHT button again to delete the mark
on the remote controller.
Setting the start time and end time for the
night setback operation
Press the NIGHT button for 4 seconds or
more while the night setback operation is enabled (
is displayed on the remote controller), to enter the
setting mode.
• The setting mode is indicated on the remote
controller.
• Select the code number to be set with the TEMP.
buttons, and set the start time and end
time with the TIME buttons.
Code No. 0E: Start time (default 22)
0F: End time (default 06)
• Press the SET button to determine the start time
and end time.
• Press the TEST button to exit the setting mode.
Hot water boost
This function is used when temporarily giving priority to
the hot water supply operation.
The hot water supply operation is performed in
preference to other operations with a target of the
preset time (60 minutes) or the preset temperature
(75 °C). Use this function when hot water is not used
for a long time or before using a large amount of hot
water.
• When the HOT WATER BOOST button is
pressed, the mark appears on the remote
controller and the hot water boost operation starts.
When the set time period has passed or the water
temperature has reached the set temperature, the
hot water boost operation ends automatically.
• The preferential time and temperature settings can
be changed to values within a range of 30 to 180
minutes and 40 to 80 °C. Ask the installation
company to make the required changes to the
settings.
9-EN

–10–
Hydro Unit Owner’s Manual
Anti bacteria
This function performs anti-bacteria operation of the
hot water tank.
• When the ANTI BACTERIA button is
pressed, the mark appears on the remote
controller and the anti-bacteria operation is
reserved.
• The anti-bacteria operation is performed to maintain
the preset temperature (75 °C) for the set time period
(30 minutes) when the preset start time (22:00)
comes according to the preset interval (7 days).
• The settings of these interval, start time, and
temperature maintaining time period can be
changed, but ask the installation company to make
the required changes to the settings.
Schedule timer
(Disable with second remote controller)
Operations can be scheduled in eight STEPs for each
day of the week.
(Example)
• Monday
• Tuesday to Saturday: Same as Monday
• Sunday
Setting the schedule function
Press the SCHEDULE button and press the
SET button within five seconds while the mark
is blinking. The mark changes to lighting and the
schedule function starts working.
Cancelling the schedule function
Press the SCHEDULE button and press the
CL button within five seconds while the mark is
blinking. The mark disappears and the schedule
function is cancelled.
Setting schedule
Press the SCHEDULE button for 4 seconds or
more to enter the schedule setting mode.
Perform the following procedure to set the
schedule
• First schedule setting
Procedure: 1→2→3→4→5→6
STEP1 04:00 ZONE1 Heating 45 °C, hot water 50 °C
STEP2 07:00 ZONE1 Heating 50 °C, hot water 45 °C
STEP3 10:00 ZONE1
Heating disabled, hot water 45 °C
STEP4 16:00 ZONE1 Heating 50 °C, hot water 50 °C
STEP5 23:00 ZONE1 Heating 40 °C, hot water 45 °C
STEP1 04:00 ZONE1 Heating 45 °C, hot water 50 °C
10-EN

–11–
Hydro Unit Owner’s Manual

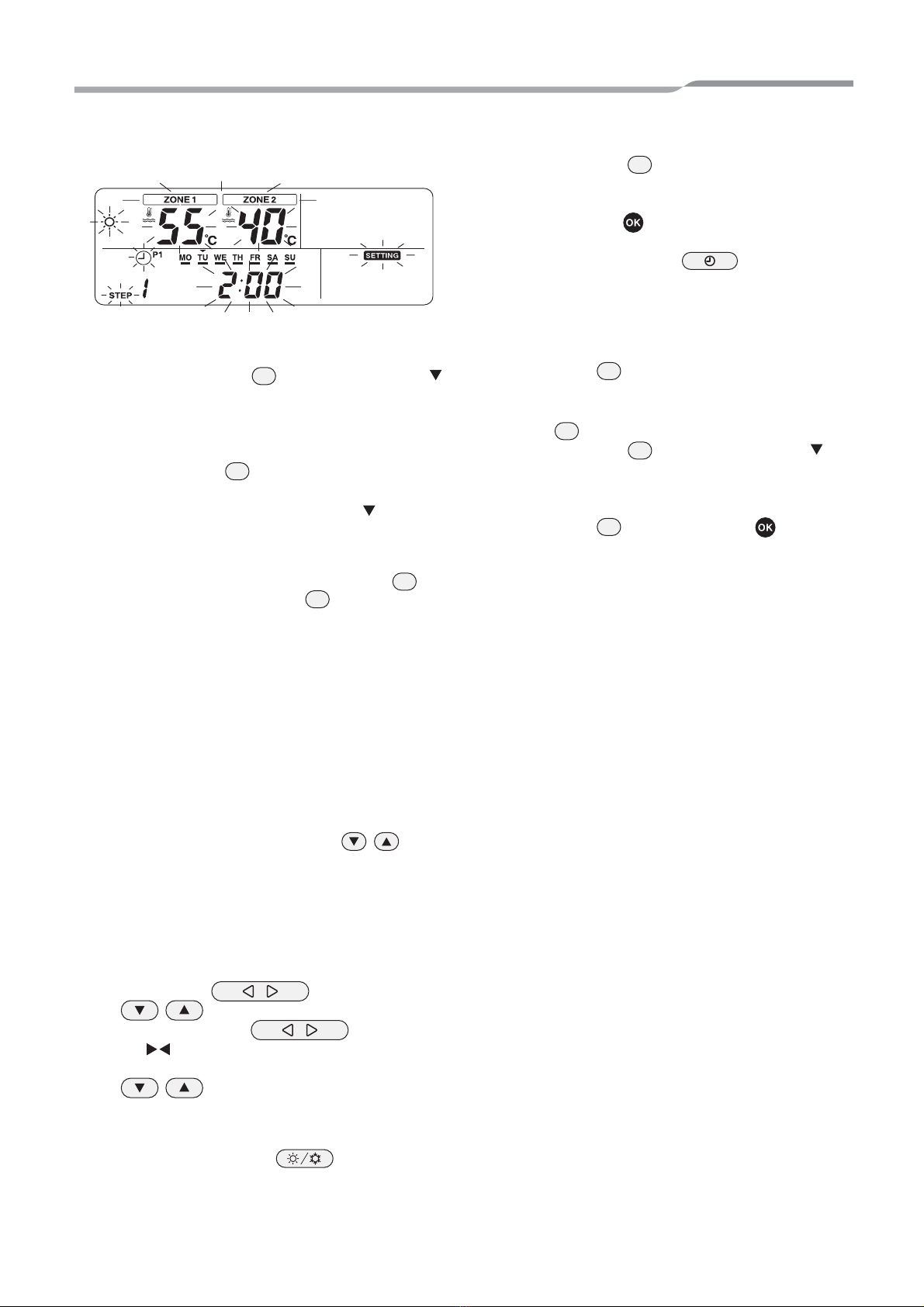

• Existing schedule setting
Procedure: 2→3→4→5→6
1Set days of the week.
• Each time the DAY button is pressed, the
mark blinking on the current day of the week at
intervals of 1 Hz shifts sequentially.
• When all days are set at a time, all days (MO to
SU) blink.
• Press the SET button to determine the set
days of the week.
• When the setting is completed, the mark
changes to lighting.
2Set STEP.
• Select a STEP to be set with the STEP
button, and press the SET button to
determine the selected STEP.
1 →2 →3 →4 →5 →6 →7 →8 →C →L →
1 →….
•1 to 8: Operation program STEP number
•C (Copy):
Set s the operation mode for a day (0:00 to
23:59) simultaneously.
•L (Deletion):
Deletes all the current program operation
settings (for entire week).
3Set the start time.
• Set the start time with the TIME
buttons.
• When the preset start time is retained, the start
time is displayed.
• If no start time is set, “--’-- --” is displayed.
4Set temperature.
• Set the temperature for ZONE1 or ZONE2 with
the SELECT button and TEMP.
buttons.
• Press the SELECT button so that
the mark lights for the zone to be changed.
• Enter setting temperature with the TEMP.
buttons.
5Set operation mode.
• Set the operation mode (heating or cooling) with
the OPERATE MODE button.
6Determine the settings.
• Press the SET button to determine the
settings.
• The “__” mark lights under the set day of the
week and the “ ” mark appears on the display
for 4 seconds.
• Press the SCHEDULE button to end
the settings.
Copying data
When “C” is selected during the STEP setting, the
setting of the specified day of the week can be copied.
• Press the SET button to determine the copy
mode.
• Specify the day of the week of copy destination with
the DAY button.
• Each time the DAY button is pressed, the
mark on the specified day of the week blinks
sequentially. When all days of the week are blinked,
the data can be copied to all days of the week.
• Press the SET button. When the “ ” mark
appears on the remote controller for 4 seconds, the
setting is completed.
11-EN

–12–
Hydro Unit Owner’s Manual
4User maintenance
Periodic maintenance (once a year) is necessary for this product. Consult the installation company.
If a problem occurs, contact the installation company or dealer.
5Air to Water Heat Pump operations and
performance
3 minutes protection function
3-minutes protection function prevents the air to water heat pump from starting for initial 3 minutes after the main
power switch/circuit breaker is turned on for re-starting the air to water heat pump.
Power failure
Power failure during operation will stop the unit completely.
• To restart the operation, we should mention Auto restart function.
Heating characteristics
Defrosting operation
If the outdoor unit is frosted during the heating or hot water supply operation, defrosting starts automatically (for
approximately 2 to 10 minutes) to maintain the heating capacity.
• During the defrosting operation, the defrosted water will be drained from the bottom plate of the outdoor unit.
Heating capacity
In the heating operation, the heat is absorbed from the outside and brought into the room. This way of heating is
called heat pump system. When the outside temperature is too low, it is recommended to use another heating
apparatus in combination with the air to water heat pump.
Attention to snowfall and freeze on the outdoor unit
• In snowy areas, the air intake and air discharge of the outdoor unit are often covered with snow or frozen up.
If snow or freeze on the outdoor unit is left as it is, it may cause machine failure or poor warming.
• In cold areas, pay attention to the drain hose so that it perfectly drains water without water remaining inside for
freeze prevention. If water freezes in the drain hose or inside the outdoor unit, it may cause machine failure or
poor warming.
Air to water heat pump operating conditions
For proper performance, operate the air to water heat pump under the following temperature conditions:
If air to water heat pump is used outside of the above conditions, safety protection may work.
Cooling operation Outdoor temperature : 10 °C to 43 °C
Room temperature : 18 °C to 32 °C (Dry bulb temp.)
Hot water Outdoor temperature : –20 °C to 43 °C (Heater operation in more than 35 °C)
Room temperature : 5 °C to 32 °C
Heating operation Outdoor temperature : –20 °C to 25 °C
Room temperature : 5 °C to 32 °C
12-EN

–13–
Hydro Unit Owner’s Manual
General Specifications
Single Phase model
3 Phase model
80 class
112,140,160 class
Outdoor unit HWS-804H-E1 HWS-1104H-E1 HWS-1404H-E1
Power supply 220-230 V ~ 50 Hz
Type INVERTER
Function Heating & Cooling
Heating
Capacity (kW) 8.0 11.2 14.0
Input (kW) 1.79 2.30 3.11
COP 4.66 4.88 4.50
Cooling
Capacity (kW) 6.0 10.0 11.0
Input (kW) 1.94 3.26 3.81
EER 3.10 3.07 2.89
Refrigerant R410A
Dimension HxWxD (mm) 890x900x320 1,340x900x320
Outdoor unit
with Cord heater
HWS-
1104H8-E1
HWS-
1404H8-E1
HWS-
1604H8-E1
HWS-
1104H8R-E1
HWS-
1404H8R-E1
HWS-
1604H8R-E1
Power supply 380-400 V 3N~ 50 Hz
Type INVERTER
Function Heating & Cooling
Heating
Capacity (kW) 11.2 14.0 16.0 11.2 14.0 16.0
Input (kW)2.343.163.722.343.163.72
COP 4.804.444.304.804.444.30
Cooling
Capacity (kW) 10.0 11.0 13.0 10.0 11.0 13.0
Input (kW)3.263.814.803.263.814.80
EER 3.07 2.89 2.71 3.07 2.89 2.71
Refrigerant R410A
Dimension HxWxD (mm) 1,340x900x320
Cord heater (W) – 75
Hydro Unit HWS-804XWHM3-E1 HWS-804XWHT6-E1 HWS-804XWHT9-E1
Back up heater capacity 3.0 6.0 9.0
Power supply
for back up heater 220-230 V~ 50 Hz 380-400 V 3N~ 50 Hz 380-400 V 3N~ 50 Hz
for hot water cylinder heater
(option) 220-230 V~ 50 Hz
Leaving water
temperature
Heating (°C) 20-55
Cooling (°C) 7-25
Hydro Unit HWS-1404XWHM3-E1 HWS-1404XWHT6-E1 HWS-1404XWHT9-E1
Back up heater capacity 3.0 6.0 9.0
Power supply
for back up heater 220-230 V~ 50 Hz 380-400 V 3N~ 50 Hz 380-400 V 3N~ 50 Hz
for hot water cylinder heater
(option) 220-230 V~ 50 Hz
Leaving water
temperature
Heating (°C) 20-55
Cooling (°C) 7-25
13-EN

–14–
Hydro Unit Owner’s Manual
6Troubleshooting
If a problem occurs, contact the installation company or dealer.
If you have any questions, contact the installation company.
Hot water cylinder (option) HWS-1501CSHM3-E
HWS-1501CSHM3-UK
HWS-2101CSHM3-E
HWS-2101CSHM3-UK
HWS-3001CSHM3-E
HWS-3001CSHM3-UK
Power supply 220-230 V~ 50 Hz
Water volume (liter) 150 210 300
Max water temperature (°C) 75
Electric heater (kW) 2.7
Height (mm) 1,090 1,474 2,040
Diameter (mm) 550
Material Stainless steel
Problem Check Action
Nothing is displayed on the remote controller. • Check whether power is supplied.
• Is the circuit breaker switch turned on?
Time indication is blinking. • Date/time setting is not made.
• Set date and time.
An error code is displayed on the remote
controller.
• Contact the installation company.
Room is not cooled or heated.
• Is scheduled operation set?
• Check whether scheduled operation is set.
• Is night setback operation set?
• Check the setting on the remote controller.
• Is the air to water heat pump operating in Auto mode?
• In Auto mode, the target value is set automatically according to the
outdoor unit temperature.
• The Auto mode can be adjusted. Contact the installation company.
Hot water is not supplied.
• Is the main water supply cock closed?
• Check valves.
• Are you using too much hot water?
• If hot water exceeding the storage capacity is used, water at a
temperature lower than the set hot water temperature is supplied.
14-EN

EF99908301
Information according to EMC Directive 2004/108/EC
(Name of the manufacturer) TOSHIBA CARRIER CORPORATION
(Address, city, country) 336 Tadehara, Fuji-shi, Shizuoka-ken,
416-8521 Japan
(Name of the Importer/Distributor in EU) Toshiba Carrier UK Ltd.
(Address, city, country) Porsham Close, Belliver Industrial Estate, PLYMOUTH,
Devon, PL6 7DB. United Kingdom
