Toshiba Chromebook CB30 Series Guide

User Information Guide
TOSHIBA CB30

2User Information Guide
English
Check the Components
Your computer comes with:
■AC adaptor (2-pin or 3-pin)
■Several documents, including Instruction Manual for Safety and Comfort.
If any of the items are missing or damaged, contact your dealer immediately.
All product specifications, configurations, prices, system/component/options
availability are all subject to change without notice.
Charging Your Computer
Your computer contains a rechargeable battery that may need to be charged prior to use.
Depending on the model, either a 2-pin or 3-pin AC adaptor will be bundled with the
computer.
1. Connect the provided AC adaptor to the computer.
2. Plug the AC adaptor into a wall outlet. The DC IN/
Battery indicator should glow amber.
The computer can not be powered on if the
battery power is completely exhausted. It is
recommended to charge the battery pack by
connecting the AC adaptor for 30 minutes
before turning on the power.
2pin 3pin
2pin 3pin 2pin 3pin

User Information Guide 3
English

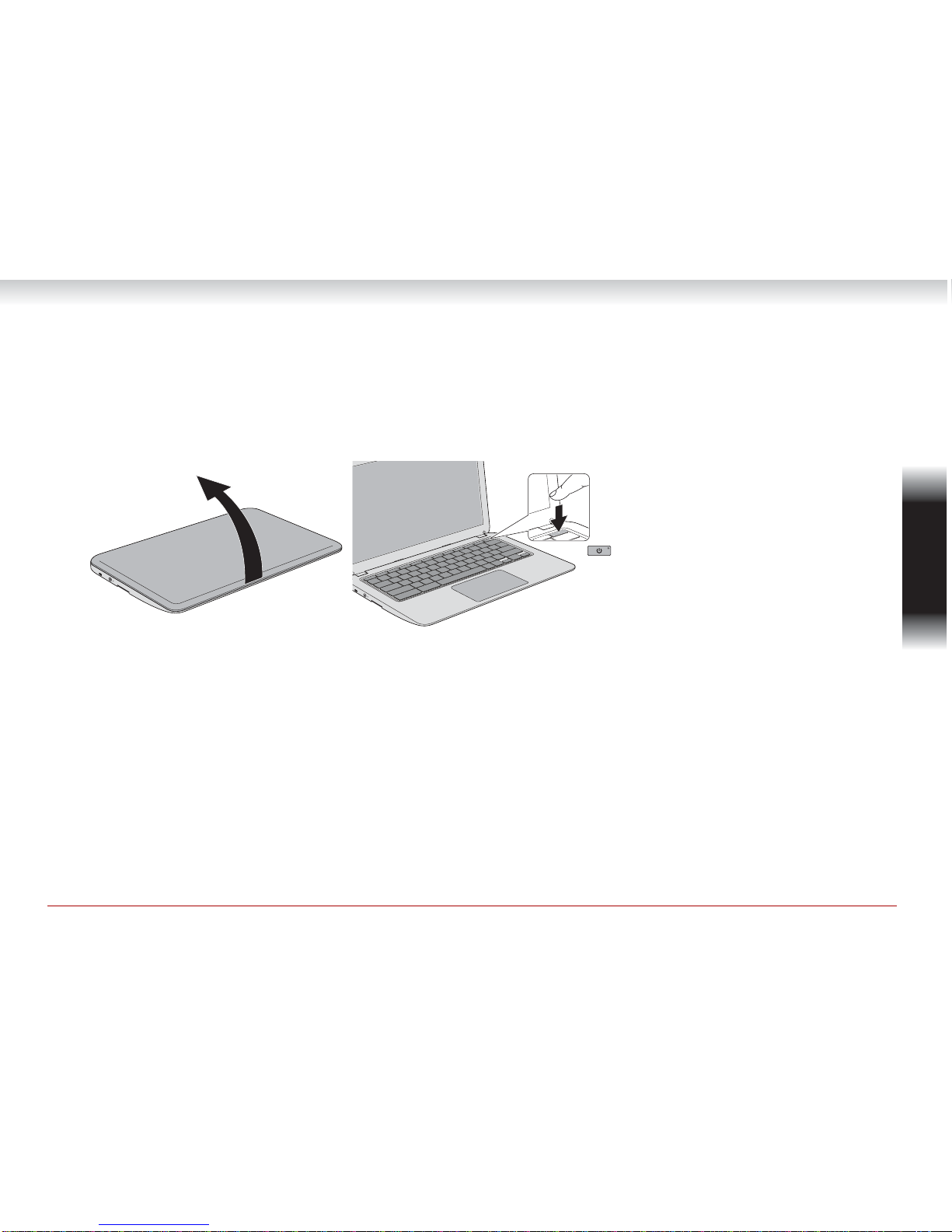

Turning on/off the Power
You can turn on the power by opening the display panel or by pressing the Power button.
The Power indicator located on the Power button glows white when the computer is on.
To open the display, slowly lift the
display panel while holding down
the palm rest with one hand.
Then adjust the angle of the
display panel for optimum clarity.
To turn the computer off:
■Shut down: press and hold
the Power button until the Power
indicator is off.
■Sleep mode: close the
display panel.
Automatic Sleep Mode
By default, the system is set to automatically enter sleep mode after some minutes of inactivity to save
power. The Power indicator then flashes white to indicate that the computer is in the sleep mode.
To manually enter sleep mode, you can just close the display panel. To resume from sleep mode, simply
open the display panel or press any key on the keyboard.

4User Information Guide
English
Initial Setup
When using the computer for the first time, there are a few basic steps to go through before the
computer is ready for use.
1. Choose your preferred system language. If there are more than one keyboard for this language,
you’ll need to select one from the drop-down list.
2. Connect your computer to a nearby Wi-Fi network for Internet connection.
3. Once the computer gets connected, click Continue. You’ll need to accept the terms of service and
the system will then download any available updates so you automatically get the latest features.
4. Sign in with a Google Account. If you don’t have one, click create a Google Account and follow
the instructions to complete the creation. You can also use the computer without a Google
Account, that is, as a guest by clicking browse as Guest.
5. Choose a picture or take a photo with the built-in web camera to represent your account, and you
will be logged in with your Google account.
Getting More Tips
To find more tips on using your computer, please follow the steps below:
1. Connect your computer to a nearby Wi-Fi network with Internet access.
2. Sign in with a Google Account. If you don’t have one, register a new Google Account.
3. Press on the keyboard which brings up the App list and then click Get Started app.

User Information Guide 5
English
Quick Tour
1
6
5
12
8
9
6
7
2
3 4
13
11
14
15 10
1. Wireless communication
antennas (not shown)
2. Microphone
3. Web Camera LED
4. Web Camera
5. Display screen
6. Display hinges
7. Keyboard
8. Power button
9. Power indicator
10. Touch Pad
11. Touch Pad control button
12. Security lock
13. DC IN 19V jack
14. DC IN/Battery indicator
15. Memory media slot
Product appearance depends on
the model you purchased.

6User Information Guide
English
2 431
5 5
66
1. Headphone/Microphone
combo jack
2. USB 3.0 port
3. USB 3.0 port
4. HDMI port
5. Speakers
6. Cooling vents
Product appearance depends on
the model you purchased.
Right side
Underside

User Information Guide 7
English
Keyboard Features
The keyboard on your computer provides several buttons to help you quickly access common functions.
Button Description Button Description
Go to the previous page. Decrease screen brightness.
Go to the next page. Increase screen brightness.
Reload your current page. Mute the sound.
Maximize your window. Decrease the volume.
Go to the thumbnails of all your
open apps. Increase the volume.
■Power on/off the computer.
■Lock the screen: press until the
sign-in screen appears.
Search the apps from the App list.

8User Information Guide
English
DC IN/Battery Indicator
The DC IN/Battery indicator on the left side of the computer indicates the power conditions as detailed in
the following table.
Battery Charging & Exhausting Time
The approximate time required to fully charge a discharged battery is as follows:
Power off (sleep, shut down): about 3 hours
When you turn off the power of your computer with the battery fully charged, the battery will be
exhausted within the following approximate period:
Power off (sleep, shut down): about 43 days
Power on: up to 9 hours
The computer’s battery is not accessible by the user.
Amber Indicates the AC adaptor is connected and the battery is charging.
Green Indicates the AC adaptor is connected and the battery is fully charged.
No light Under any other conditions, the indicator does not light.

User Information Guide 9
English
Connecting Peripheral Devices
Memory media
The computer is equipped with a memory media slot that can accommodate some kinds of memory
media such as Secure Digital (SD) Card and MultiMediaCard (MMC).
Please note that not all memory media have been tested and verified to work correctly.
Therefore, it is not possible to guarantee that all memory media will operate properly.
The following instructions apply to all types of supported media devices. To insert memory media, follow
the steps below:
1. Turn the memory media so that the contacts (metal
areas) face down.
2. Insert the memory media into the memory media
slot on the computer.
3. Press the memory media gently until it clicks into
place.

10 User Information Guide
English
HDMI device
HDMI (High-Definition Multimedia Interface) port digitally transfers both video and audio data without
reducing the quality.
To connect an HDMI-compatible display device, follow the steps as detailed below:
1. Plug one end of the HDMI cable into the HDMI in port of the
HDMI display device.
2. Plug the other end of the HDMI cable into the HDMI port on
your computer
3. Turn the HDMI display device's power on.
Not all the port operations of HDMI display devices have been confirmed, some HDMI
display devices may not function properly.
Security lock
A security lock enables you to anchor your computer to a desk or other heavy object in order to help
prevent unauthorized removal or theft. To connect a security cable to the computer, follow the steps as
detailed below:
1.Turn the computer so its left side faces you.
2.Align the security cable with the lock slot and secure it in
place.
