1.1 Features
The 430CDT/430CDS (430 Series) are two of the lightest and most advanced portable
computers available. Utilizing advanced technology and high-speed components, the 430
series offers multimedia functions, excellent display legibility, battery operation and IBM PC/
AT compatibility. The 430 series system unit has the following features:
❑Microprocessor
Uses an Intel Pentium processor with Voltage Reduction Technology (VRT) that
operates at 120 MHz and 3.3/2.9 volts.
❑Disk storage
An internal 1.3 billion byte (1.26 GB) Hard Disk Drive (HDD). A 3.5-inch Floppy
Disk Drive (FDD) supports 2HD (1.44 MB) floppy disks and 2DD (720 KB) floppy
disks. The FDD can also be installed in an attachment for connection as an external
device.
❑CD-ROM Drive
A full-size, ten-speed (average) CD-ROM drive module can be installed instead of the
FDD module. The CD-ROM drive contains an ATAPI (AT attachment packet inter-
face) interface controller, and supports the following formats: audio CD, photo CD,
CD-plus, and ISO 9660.
❑Memory
Standard with 16 MB of CMOS RAM. This includes 640 KB of conventional
memory and 15360 KB of extended memory, which can be utilized as expanded
memory compatible with the Lotus/Intel/Microsoft Expanded Memory Specification
(LIM-EMS).
❑Display
The 430CDT has an 11.3-inch, Thin Film Transistor (TFT) color LCD with 800 x 600
pixels. The 430CDS has an 11.3-inch Dual-scan Supertwist Nematic (DSTN) color
LCD with 800 x 600 pixels. The built-in display controller supports 800 x 600
resolution with 16M colors capability and up to 1280 x 1024 resolution with 256
colors on an external CRT.
❑Keyboard
An-easy-to-use 82/84-key keyboard provides a numeric keypad overlay for fast
numeric data entry or for cursor and page control. The keyboard supports software
that uses a 101- or 102-key enhanced keyboard.
❑Batteries
Three different batteries: a lithium-ion (Li-Ion) main battery, a backup battery (for
memory backup), and an RTC battery (for Real Time Clock).

1-2
430 Series
❑Expansion memory slot
An optional 8, 16, or 32 MB memory module can be installed in the memory slot.
❑Parallel port
Can be used to connect a Centronics compatible printer or other parallel device. The
port supports ECP (Extended Capabilities Port) conforming to IEEE·1284.
❑Serial port (9-pin)
The serial controller is 16550UART compatible. This port can be used to connect
such serial devices as a serial printer, serial mouse, or external modem.
❑External monitor port
The female, 15-pin, D-shell connector can be connected to an external SVGA moni-
tor.
❑PS/2 mouse/keyboard port
Either a PS/2 compatible keyboard or a PS/2 compatible mouse can be connected to
this port. The computer automatically recognizes which device is connected.
❑FDD port
This port enables a connection of the external FDD attachment if the CD-ROM
module is installed inside the system unit.
❑PC card slot
A PC card slot accommodates two 5mm cards (Type II) or one 10.5mm (Type III)
card, which support PCMCIA Release 2.01 cards. These slots also support advanced
cards, including PC Card 16 multifunction cards as well as the Zoomed Video (ZV)
port, which is dedicated to high-performance video data transfer such as MPEG video
play back.
❑Enhanced Port Replicator port
This port enables connection of an Enhanced Port Replicator. The Enhanced Port
Replicator has two PC card slots (Type III), and expands connections to the following
devices: PS/2 keyboard, PS/2 mouse, serial port, parallel port, external CRT, joystick/
MIDI port, audio line-in, audio line-out, headphone, external FDD, AC-in, AC-out,
and rotary switch (ID select switch).
❑AccuPoint
A pointer control stick, located in the center of the keyboard, provides convenient
control of the cursor without requiring desk space for a mouse.
❑Infrared port
Incorporates an IrDA1.0 (115.2Kbps supported) standard infrared transmitter and
receiver.

430 Series
1-3
❑Sound System
A Sound Blaster Pro compatible sound system provides capability to record sound
and play it back with a built-in microphone and speaker. The sound system is
equipped with a volume control dial, headphone jack, microphone jack, and audio
line-in jack.
The 430 series Personal Computer is shown in Figure 1-1.
Figure 1-1 430 series personal computer
The 430 series system configuration is shown in Figure 1-2.

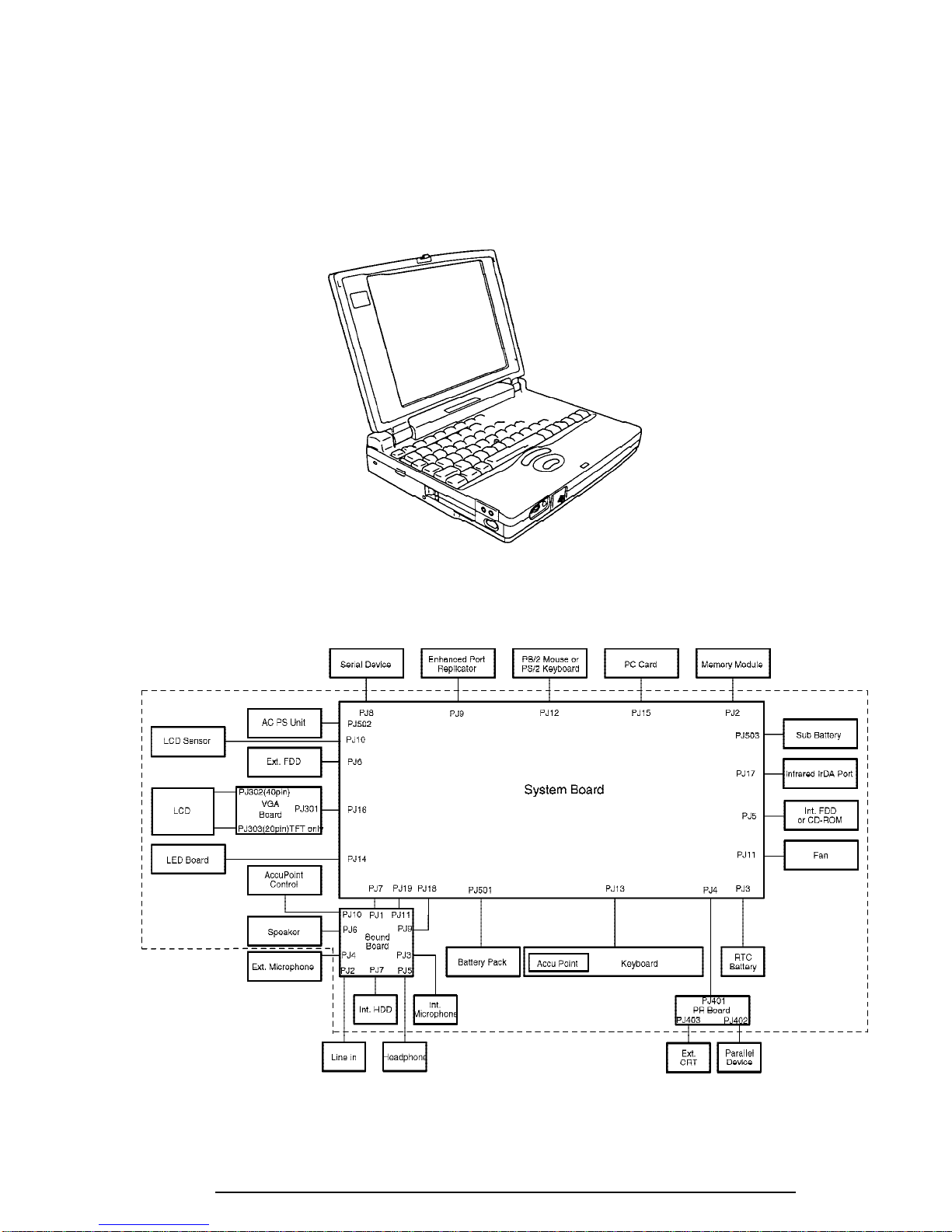

Figure 1-2 430 series system unit configuration

1-4
430 Series
1.2 System Unit Block Diagram
Figure 1-3 is a block diagram of the 430 series system unit.

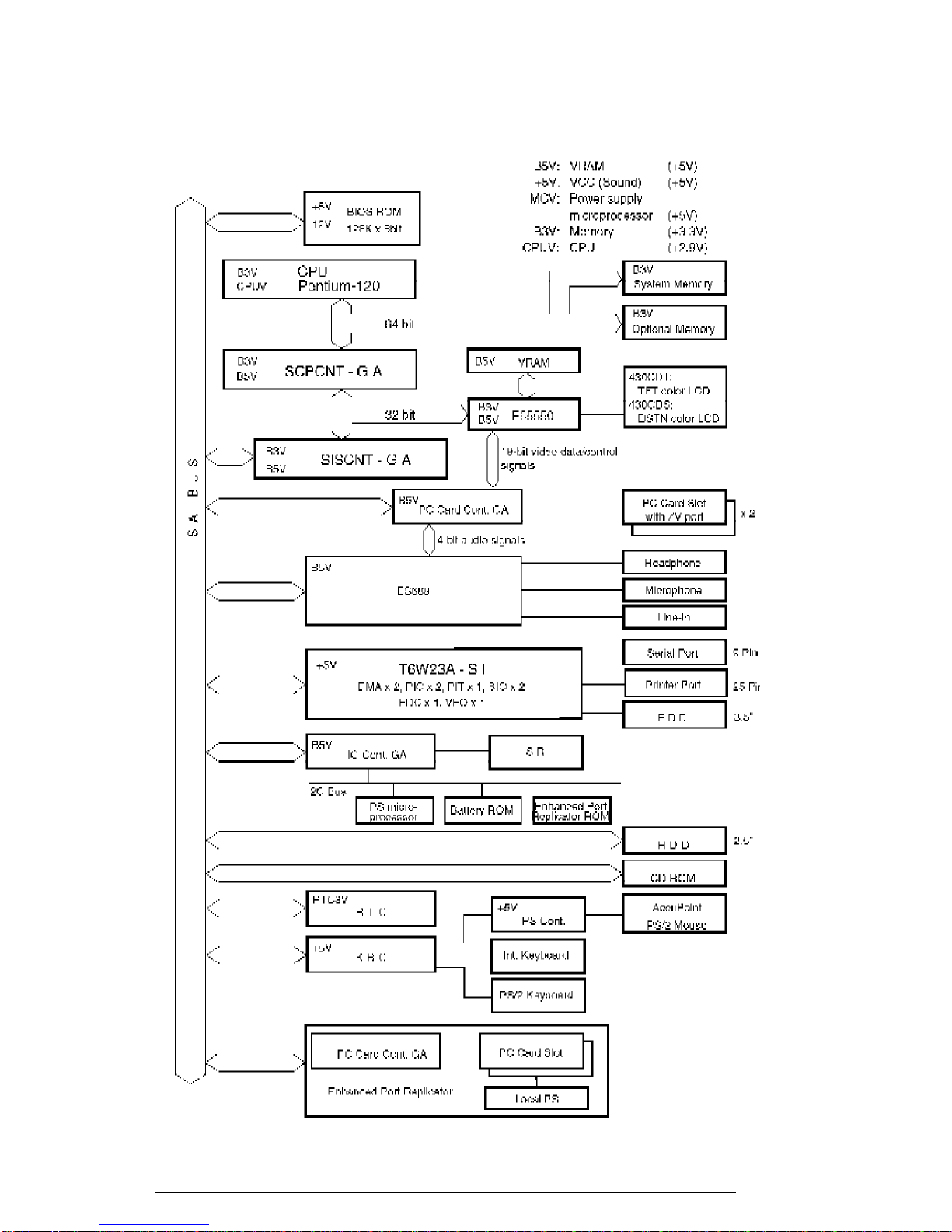

Figure 1-3 430 series system board block diagram

430 Series
1-5
The 430 series system board is composed of the following major components:
❑Microprocessor
One Intel Pentium processor with VRT 64-bit microprocessor
Intel Pentium processor which operates at 120 MHz and 3.3/2.9 volts.
❑Standard RAM
16 MB, eight 1Mx16-bit chips
3.3 volt operation
No parity bit
Access time 60 ns
Data transfer is 64-bit width
EDO (extended data output) supported
❑BIOS ROM (Flash EEPROM)
128 KB (one 128Kx8-bit chip) memory
64 KB in the ROM are used for system BIOS
40 KB in the ROM are used for VGA BIOS
24 KB in the ROM are reserved
Access time 150 ns
Data transfer is 8-bit width
❑Video RAM
2 MB (Four 256Kx16-bit DRAM)
5 volt operation
❑Optional memory
One expansion memory slot is available for 8, 16, and 32 MB memory modules,
which consist of 1 MBx16-bit chips.
Total maximum memory size is 48 MB (if a 32 MB memory module is installed).
3.3 volt operation
No parity bit
Access time 60 ns
Data transfer is 64-bit width
EDO (extended data output) supported
❑One super integration (SI)
The following components:
- Two DMACs 82C37 equivalent
- Two PICs 82C59 equivalent
- Two UART 16550 equivalent
- One PIT 82C54 equivalent
- One FDC TC8565 equivalent
- One VFO TC8568 equivalent
- One I/O port decode
- One SIO port control
- One printer port control supported ECP
- One FDD control
- One speaker control
- One power communication control

1-6
430 Series
❑System Controller Gate Array (SCPCNT-GA)
This gate array has the following functions:
•CPU control
-SMI control
-CPU clock control
•Memory control
-64-bit bus memory control
-32-bit bus memory control
•Bus control
-64-bit data bus <==>32-bit data bus
-32-bit local bus control
•Address latch control
•I/O register control
•Processing speed control
❑ISA Bus Controller Gate Array (SISCNT-GA)
This gate array has the following functions:
•Bus control
-32-bit data bus <==> 16-bit data bus
-ISA bus interface control
-ISA bus access control
-DMAC control
-DMA address generation
-I/O control
-Suspend/Resume sequence
•Memory control
-ISA bus interface control
-Refresh address generation
•I/O register control
•Suspend/Resume sequence
❑PC Card Controller Gate Array
This gate array has the following functions:
•PCMCIA memory card control
•PCMCIA I/O card control
❑I/O Controller Gate Array (IOCNT-GA)
This gate array has the following functions:
•Internal Communication controller
-KBC, main CPU communication register file
-KBC interrupt controller
-KBC communication controller
-I2C bus control
•Others
-Speaker volume adjust PWM control
-Sound board interface
-BIOS-ROM interface
-SMI control
-IrDA (SIR) control

430 Series
1-7
❑Video Controller
Chips & Technologies F65550 is used.
This video controller controls internal TFT/DSTN color LCD and external SVGA
compatible CRT.
❑Keyboard Controller (KBC)
One M38802M4 chip is used.
This KBC includes the keyboard scan controller and keyboard interface
controller. The KBC controls the internal keyboard, external keyboard, and
PS/2 mouse.
❑AccuPoint Controller (IPSC)
One KPAAC0062A chip is used.
This controller provides simultaneous control of both the AccuPoint and a
PS/2 mouse.
❑Real Time Clock (RTC)
One T9934 chip is used.
The T9934 has 128 bytes of memory. Fourteen bytes of memory are used for the
calendar and clock. The remaining 114 bytes are used for the system configuration
data.

1-8
430 Series
1.3 3.5-inch Floppy Disk Drive
The 430 series 3.5-inch removable FDD is a thin, high-performance reliable drive that sup-
ports 720-KB (formatted) 2DD and 1.44-MB (formatted) 2HD disks. When a CD-ROM is
installed in the Selectable Bay, an FDD attachment can be used to connect the FDD to an
external FDD port.
The 430 series FDD is shown in Figure 1-4.
Figure 1-4 3.5-inch FDD
The specifications for the FDD are listed in Table 1-1.
Table 1-1 3.5-inch FDD specifications
Item 2-MBmode 1-MBmode
Storagecapacity(KB)
Unformatted 2,000 1,000
Formatted 1,475 737
Numberofheads 2 2
Numberofcylinders 80 80
Access time (ms)
Track to track 3 3
Average 181 181
Head settling time 15 15
Recordingtrackdensity(tpi) 135 135
Datatransferrate(Kbps) 500 250
Rotationspeed(rpm) 300 300
Recordingmethod ModifiedFrequencyModulation(MFM)

430 Series
1-9
1.4 2.5-inch Hard Disk Drive
The Hard Disk Drive (HDD) is a random access non-volatile storage device. It has a non-
removable 2.5-inch magnetic disk and mini-winchester type magnetic heads.
The 430 series supports the 1.3 billion byte (1.26GB) HDD which is shown in Figure 1-5.
Figure 1-5 2.5-inch HDD
Specifications for the HDD are listed in Table 1-2.
Table 1-2 2.5-inch HDD specifications
Toshiba IBM Seagate
Items MK1301MAV DMCA-21440 ST91350AG
Formattedcapacity(byte) 1,358,880,768 1,445,068,800 1,350,107,136
Number of disks 3 2 3
Logicalheads 16 16 16
Logicalcylinders 2,633 2,800 2,616
Bytes per sector 512 512 512
Rotationspeed(rpm) 4,200 4,000 4,500

1-10
430 Series
1.5 Keyboard
The 82-(USA) or 84-(European) key keyboard is mounted on the 430 series system unit. The
keyboard is connected to the keyboard controller on the system board through a 25-pin flat
cable. The pointer control stick, located in the center of the keyboard, provides convenient
control of the cursor without requiring desk space for a mouse. The keyboard is shown in
Figure 1-6.
See Appendix E for optional keyboard configurations.
Figure 1-6 Keyboard

430 Series
1-11
1.6 CD-ROM Drive
The 430 series internal CD-ROM drive accommodates either 12 cm (4.72-inch) or 8 cm
(3.15-inch) CDs. It provides high-performance, ten-speed play (reads about 1,500KB per
second). This drive supports the following formats:
Audio CD
Photo CD
ISO 9660
CD Plus
The CD-ROM drive is shown in Figure 1-7.

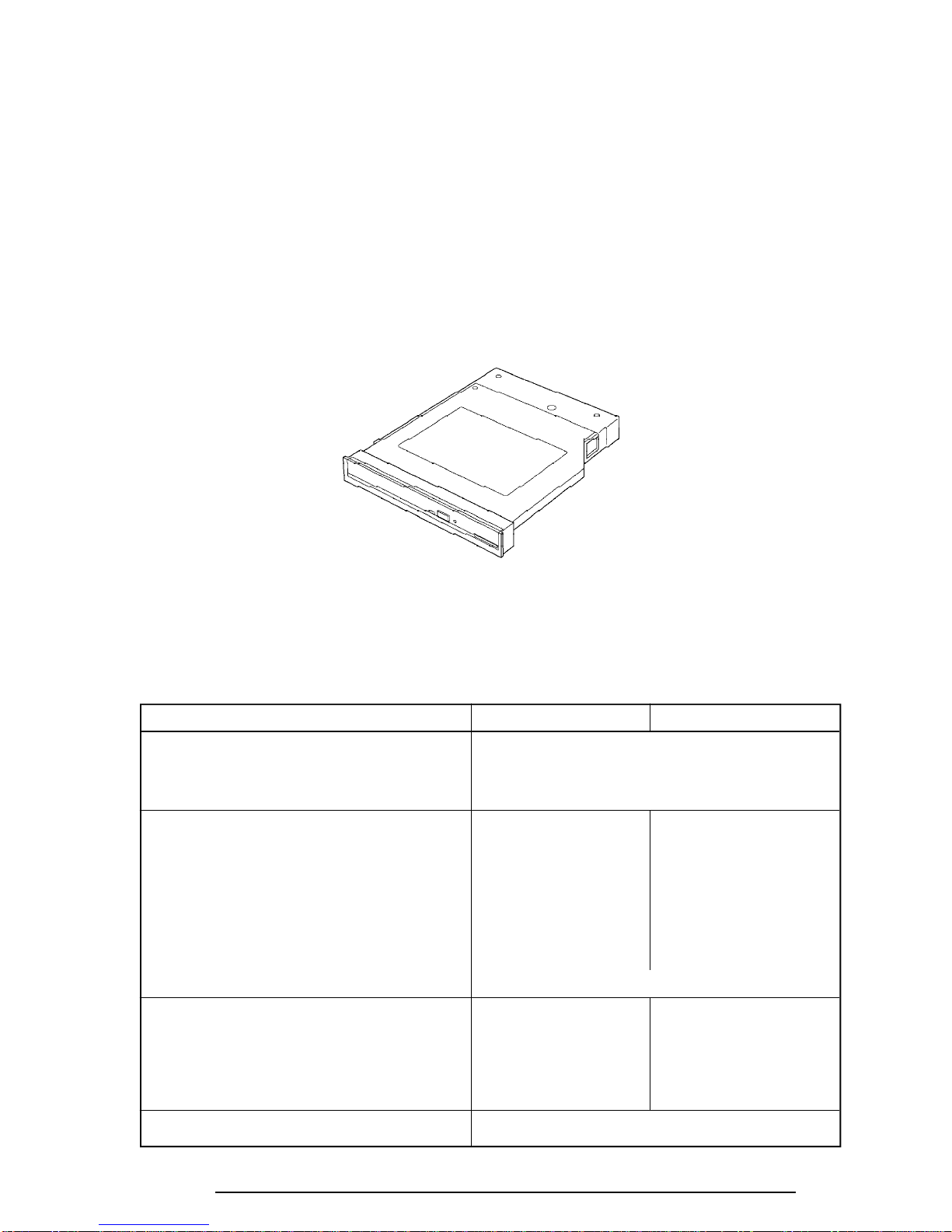

Figure 1-7 CD-ROM drive
The specifications for the CD-ROM drive are listed in Table 1-3.
Table 1-3 CD-ROM drive specifications
Item 1X mode 10X(ave.)mode
DataCapacity(bytes/block)
Mode1 2,048
Mode2 2,336
RotationalSpeed(rpm) 200 to 530 2,200to3,500
TransferRate
Sustained Block Transfer (blocks/s) 75 750
SustainedDataTransfer(Kbytes/s)
Mode1 150 1,200
Mode2 171 1,710
ATAPI Burst (Mbytes/s) 8.33(PIO mode 2)
Access Time (ms)
AverageRandomAccess 350 180
AverageRandomSeek 230 150
Average Full Stroke Access 500 320
DataBufferCapacity (Kbytes) 128

1-12
430 Series
1.7 DSTN Color LCD (430CDS)
The DSTN Color Liquid Crystal Display (LCD) contains an LCD module, a Fluorescent
Lamp (FL), and an FL inverter board.
1.7.1 DSTN Color LCD Module
The DSTN color LCD is backlit and supports 800x600 pixels with built-in display controller.
This controller includes the functions of Video Graphics Array (VGA) and Super VGA
(SVGA) for external display.
A display controller is F65550. This controller enables an LCD display of a maximum 64K
colors.
The DSTN LCD is shown in Figure 1-8.
Figure 1-8 DSTN color LCD
The specifications for the LCD are listed in Table 1-4.
Table 1-4 DSTN color LCD specifications
Item Specifications
NumberofDots (dots) 800x600
Dot pitch (mm) 0.288x0.288
Displayarea (mm) 229.2(W)x171(H)
Contrast (Typically) 27:1
FLcurrent (mA) 5.0/3.0
(Bright/Semi-bright)

430 Series
1-13
1.7.2 DSTN Color Fluorescent Lamp (FL) Inverter Board
The FL inverter board supplies high frequency current to light the LCD Fluorescent Lamp.
The specifications for the FL inverter are listed in Table 1-5.
Table 1-5 DSTN color FL inverter board specifications
Item Specifications
Input Voltage (V) 4 to 5.5
Power (W) 4.25
Output Voltage (Vrms) 1,100
Current (mA) 5.0/3.0
(Bright/Semi-bright)

1-14
430 Series
1.8 TFT Color LCD (430CDT)
The TFT Color Liquid Crystal Display (LCD) contains an LCD module, a Fluorescent Lamp
(FL), and an FL inverter board.
1.8.1 TFT Color LCD Module
The TFT color LCD is backlit and supports 800x600 pixels with built-in display controller.
This controller includes the functions of VGA and SVGA for external display.
A display controller is F65550. This controller enables an LCD display of a maximum 16M
colors.
The TFT LCD is shown in Figure 1-9.
Figure 1-9 TFT color LCD
The specifications for the LCD are listed in Table 1-6.
Table 1-6 TFT color LCD specifications
Item Specifications
Numberofdots (dots) 800x600
Dot pitch (mm) 0.288(W)x0.288(H)
Displayarea (mm) 229.2(W)x171(H)
Contrast(minimum) 100:1
FLcurrent (mA) 2.4/2.8/4.0/4.6
*NOTE: The FL currents at power on are:
Bright Semi-bright
AC cord connected 4.6 mA 2.8 mA
AC cord not connected 4.0 mA 2.4 mA
(The settings at power on do not change even if the AC cord connection changes.)

430 Series
1-15
1.8.2 TFT Color Fluorescent Lamp (FL) Inverter Board
The FL inverter board supplies high frequency current to light the LCD Fluorescent Lamp.
The specifications for the FL inverter are listed in Table 1-7.
Table 1-7 TFT color FL inverter board specifications
Item Specifications
Input Voltage (V) 4 to 5.5
Power (W) 4.25
Output Voltage (Vrms) 1,100
Current (mA) 2.4/2.8/4.0/4.6
*NOTE: The FL currents at power on are:
Bright Semi-bright
AC cord connected 4.6 mA 2.8 mA
AC cord not connected 4.0 mA 2.4 mA
(The settings at power on do not change even if the AC cord connection changes.)

1-16
430 Series
1.9 Power Supply
The power supply provides five kinds of voltages to the 430 series system board. The power
supply has one microprocessor, operates at 500 KHz, and performs the following functions:
1. Determines if the AC cable or battery is connected to the computer.
2. Detects AC output and circuit malfunctions.
3. Controls the LED icon and speaker.
4. Turns the battery charging system on and off and detects a fully charged battery.
5. Determines if the power can be turned on and off.
6. Provides more accurate detection of a low battery.
7. Calculates the remaining battery capacity.
The power supply output rating is specified in Table 1-8.
Table 1-8 Power supply output rating
DC Regulation
Usefor Name voltage tolerance
(%)
System logic, FDD, HDD, VCC +5 ±5
Display
CPU CPUV +2.9 ±5
Flash ROM, PC card 12V +12 ±5
CPU, RAM, GA B3V +3.3 ±0.3V
VRAM, GA B5V +4.7 ±5

430 Series
1-17
1.10 Batteries
The 430 series has three types of batteries:
❑Main battery pack
❑Backup battery
❑Real Time Clock (RTC) battery
Battery specifications are listed in Table 1-9.
Table 1-9 Battery specifications
Batteryname Material Outputvoltage Capacity
Mainbattery Lithium-Ion 10.8 V 3,600mAH
Backupbattery Nickel Metal Hydride 7.2 V 110mAH
RTCbattery NickelMetalHydride 3.6 V 30mAH
1.10.1 Main Battery
The removable main battery pack is the computer’s main power source when the AC power
cord is not attached. The main battery recharges the backup battery. The backup and main
battery maintain the state of the computer when you enable AutoResume.
❑BatteryIcon
The Battery icon is located on top of the back rim of the 430 series. The icon shows
the status of the removable battery pack.
The status of each can be determined by color:
Orange The battery is being charged. (AC power cord is attached.)
Green The battery is fully charged. (AC power cord is attached.)
Blink orange The battery is low when the power is on.
No light Under any other conditions, the LED does not light.
1.10.2 Battery Charging Control
Battery charging is controlled by a power supply microprocessor. The microprocessor
controls whether the charge is on or off and detects a full charge when the AC power cord
and battery are attached to the computer. The system charges the battery using quick charge
or trickle charge.

1-18
430 Series
❑Quick Battery Charge
When the AC power cord is attached, there are two types of charge: quick charge
when the system is powered off and trickle charge when the system is powered on.
Table 1-10 Time required for quick charges
Chargingtime
Power off About 2 to 3 hours
Power on About 5 to 8 hours
If one of the following occurs, the battery quick-charge process stops:
1. The battery becomes fully charged.
2. The battery is removed.
3. The battery or AC output voltage is abnormal.
4. The charge current is abnormal.
❑Trickle Battery Charge
When the main battery is fully charged and the AC power cord is attached, the power
supply microprocessor automatically changes from quick charge to trickle charge.
1.10.3 Backup Battery
The backup battery maintains data for AutoResume. The power source used to back up the
AutoResume data is determined according to the following priority:
AC power > Main battery > Backup battery
The backup battery is charged by the main battery or AC power cord. Table 1-11 shows the
charging time and data preservation period of the backup battery.
Table 1-11 Backup battery charging/data preservation time
Time
ChargingTime PowerOn 20 H
PowerOff 20H
Datapreservationperiod(fullcharge) 4 H

430 Series
1-19
1.10.4 RTC Battery
The RTC battery provides power to keep the current date, time, and other setup information
in memory while the computer is turned off. Table 1-12 shows the charging time and data
preservation period of the RTC battery.
Table 1-12 RTC battery charging/data preservation time
Time
ChargingTime WithACpower 48H
ormainbattery
Datapreservationperiod(fullcharge) 1month
