Toshiba 55L7200U User manual

Leading innovation _;>>
IntegratedHighDefinitionLED
TelevisionUser'sGuide:
42L6200U
47L6200U
55L6200U
47L7200U
55L7200U
It you need assistance:
Toshiba's Support Web site support.toshiba.corn
Toshiba Customer Support Center:
Calling within the United States at [phone]
Calling from outside the United States at [phone]
For more information, see "Troubleshooting" on page 176 in this guide.
Owner's Record
The model number and serial number are on the back and side of your television.
Record these numbers, whenever you communicate with your Toshiba dealer
about this Television.
Model name:
Serial number:
Register your Toshiba Television at register.toshiba.corn
I Note: Todisplay a High Definition I
picture, the TV mustBereceiving a I
High Definitionsignal (such as an over-I
the-air High DefimtionTV broadcast, a I
High Definition digital cableprogram,or I
a Righ Definition _igital satellite I
program). For details contactyour TV I
antenna installer cableprovider or I
sate te provder I
IGMA300007012 4/12

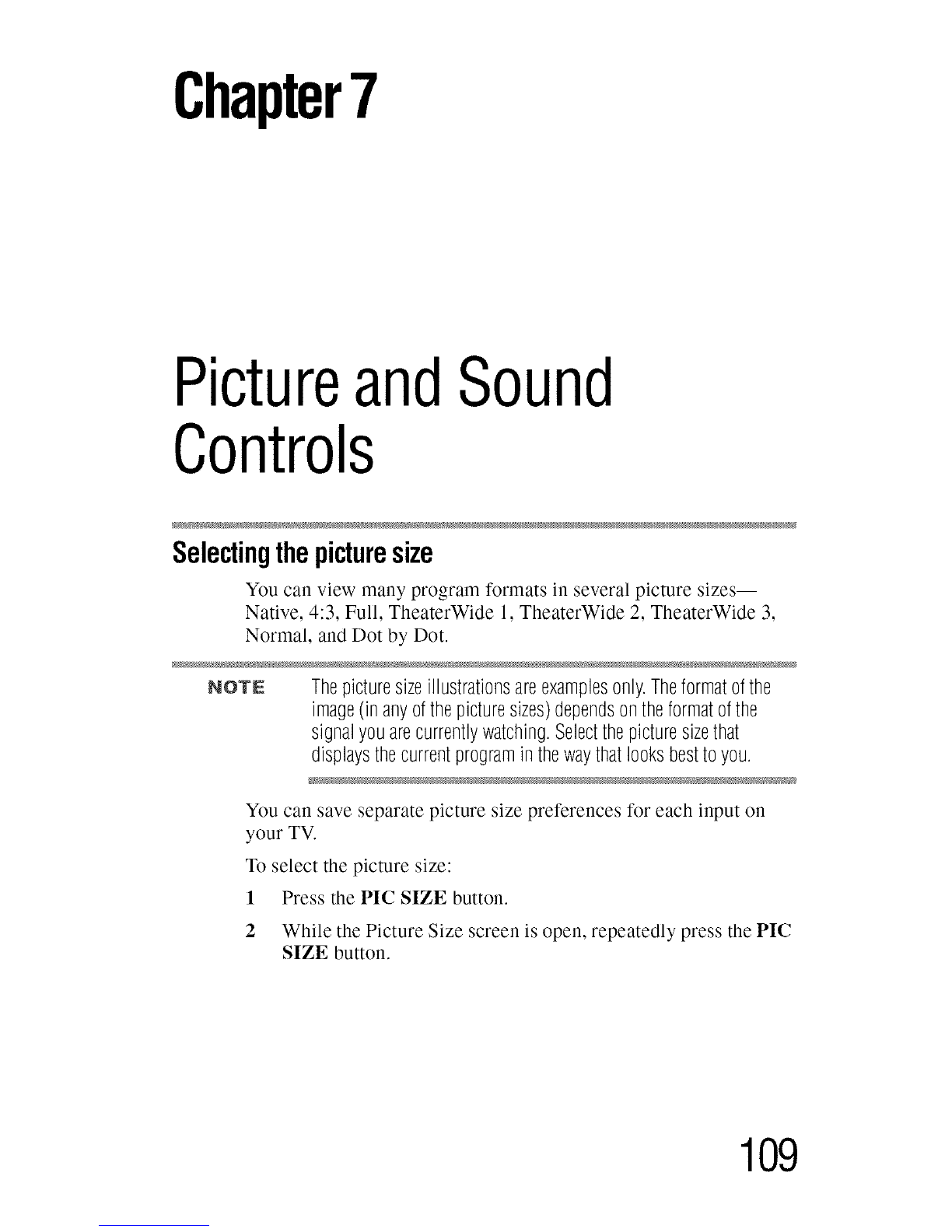

Chapter7
PictureandSound
Controls
Selectingthepicturesize
You can view many program formats in several picture sizes--
Native, 4:3, Full, TheaterWide 1, TheaterWide 2, TheaterWide 3,
Normal, and Dot by Dot.
NOTE Thepicturesizeillustrationsareexamplesonly.Theformatofthe
image(inanyofthepicturesizes)dependsontheformatofthe
signalyouarecurrentlywatching.Selectthepicturesizethat
displaysthecurrentprograminthewaythatlooksbesttoyou.
You can save separate picture size preferences for each input on
your TV.
To select the picture size:
1 Press the PIC SIZE button.
2 While the Picture Size screen is open, repeatedly press the PIC
SIZE button.
109

1 1 0 PictureandSoundControls
Selecting the picture size
NOTE o:.Usingthesefunctionstochangethepicturesize(i.e.,changing
theheight/widthratio)foranypurposeotherthanyourprivate
viewingmaybeprohibitedundertheCopyrightLawsofthe
UnitedStatesandothercountries,andmaysubjectyoutocivil
andcriminalliability.
o:o Therewill berestrictionsonthePictureSizesettingsfor2Dto
3Dmode,3Dmode,and2Dmode.
Somepicturesizesmaynotbeavailabledependingonthe
formatofthesignalbeingreceived.
IfyouselectaTheaterWidd'_picturesize,thetopandbottom
edgesofthepicture(includingsubtitlesor captions)maybe
hidden.Toviewtheseedges,adjustthePicturePositionor try
viewingtheprogramin4:3orFull,see"Scrollingthepicture"on
page113.
Native
These settings are for viewing in 480i (HDMF°), 480p (HDMF°),
720p, 1080i, and 1080p signal programs).
i(•.......
(Sample Illustration) Picture size -Native
fil)
'%,,, ,,_,,
If receiving a 1080i, 1080p, 720p, 480i (HDMI<'O),or 480p
(HDMI _'_)signal program, tile video is scaled to display tile
entire picture within the borders of the screen (i.e. no
overscanmng).
This is especially useful for external HD sources such as
DVHS movies, Video Games, or computer graphics.
None of the picture is hidden.
NOTE o:oThismodeissupportedonlyforHDMI®(1080i,1080p,720p,
48%and48%), ColorStream_ (1080iand72%),and
ANT/CABLE(digital)inputs(1080i,108%,and720p).
•:o Dependingontheinputsignal,thepicture'sbordermaybe
hidden,displayedinblack,or noisy.

PictureandSoundControls 1 1 1
Selecting the picture size

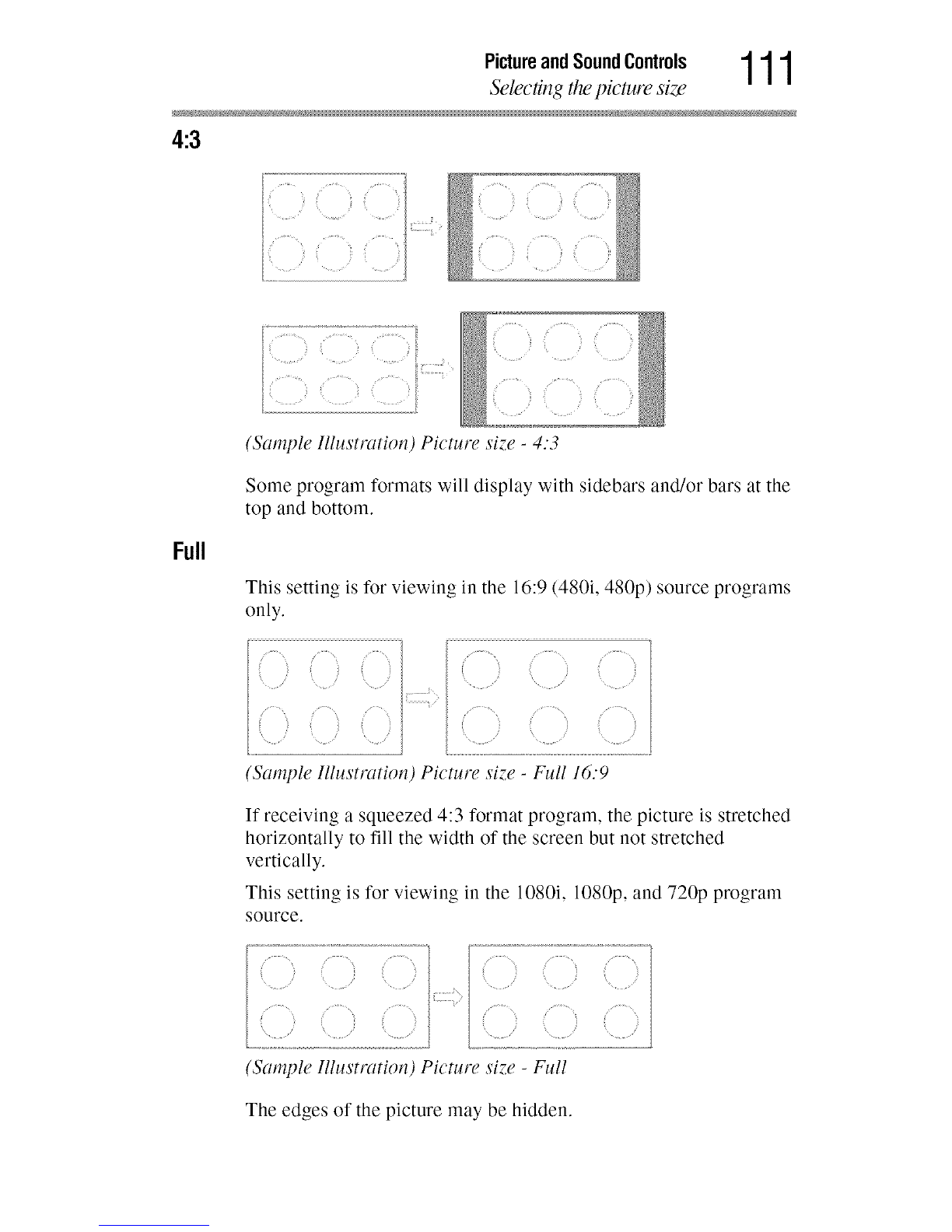

4:3
Full
(Sample Illustratio,_) Picture size -4:3
Some program formats will display with sidebars and/or bars at tile
top and bottom.
This setting is for viewing in the 16:9 (480i, 480p) source programs
only.
(Sample Illustratio,_) Picture size -Full 16:9
If receiving a squeezed 4:3 format program, tile picture is stretched
horizontally to fill tile width of tile screen but not stretched
vertically.
This setting is for viewing in the 1080i, 1080p, and 720p program
source.
(
(Sample Illustratio,_) Picture size -Full
Tile edges of tile picture may be hidden.

1 1 2 PictureandSoundControls
Selecting the picture size

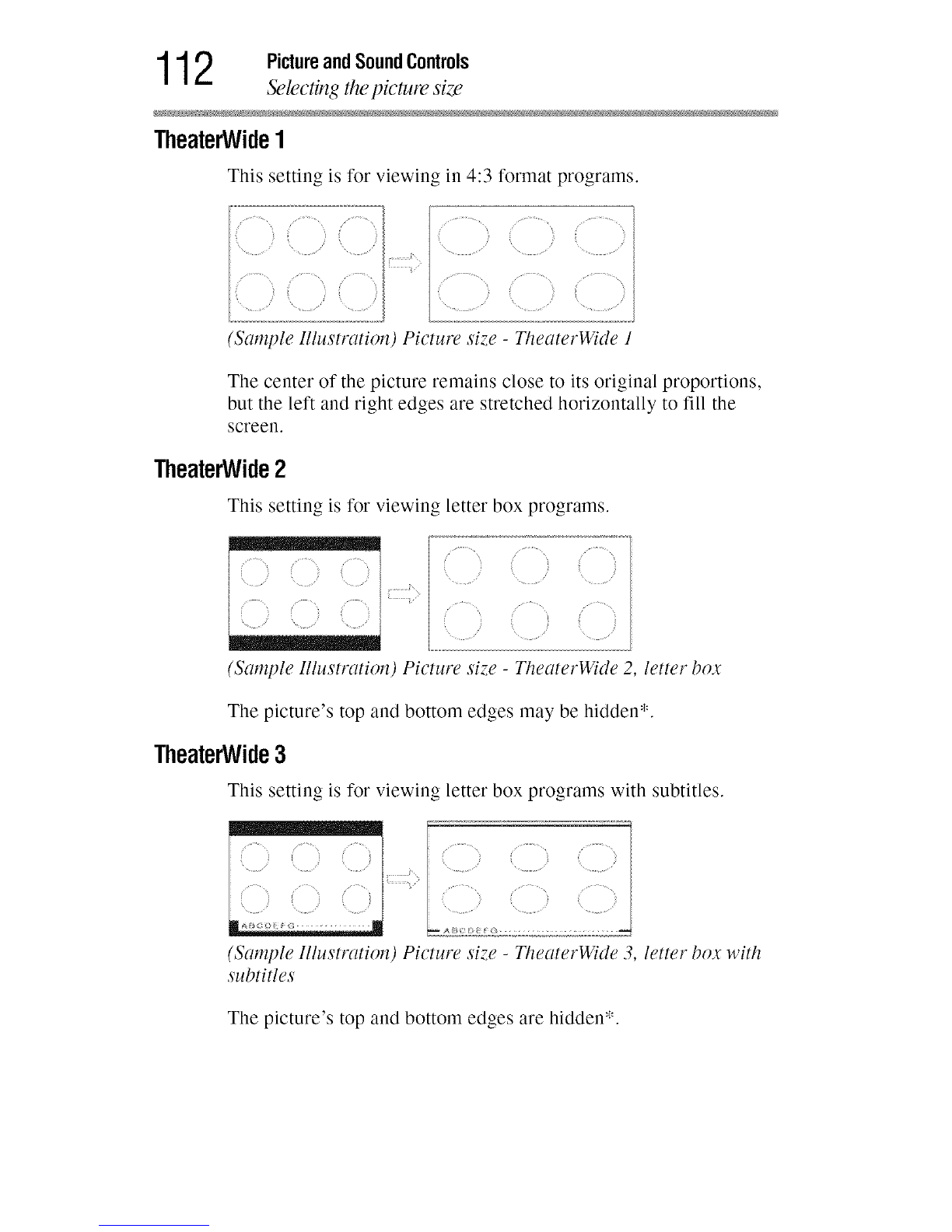

TheaterWide1
This setting is for viewing in 4:3 format programs.
(Sample Illustration) Picture size -TheaterWide 1
The center of the picture remains close to its original proportions,
but the left and right edges are stretched horizontally to fill the
screen.
TheaterWide2
This setting is for viewing letter box programs.
_( ,/
(Sample Illustration) Picture size -TheaterWide 2, letter box
The )icture's top and bottom edges may be hidden*.
TheaterWide3
This setting is for viewing letter box programs with subtitles.
(
(Sample Illustration) Picture size -TheaterWide 3, letter box with
subtitles
The picture's top and bottom edges are hidden*.

PictureandSoundControls 113
Scrolling the picture

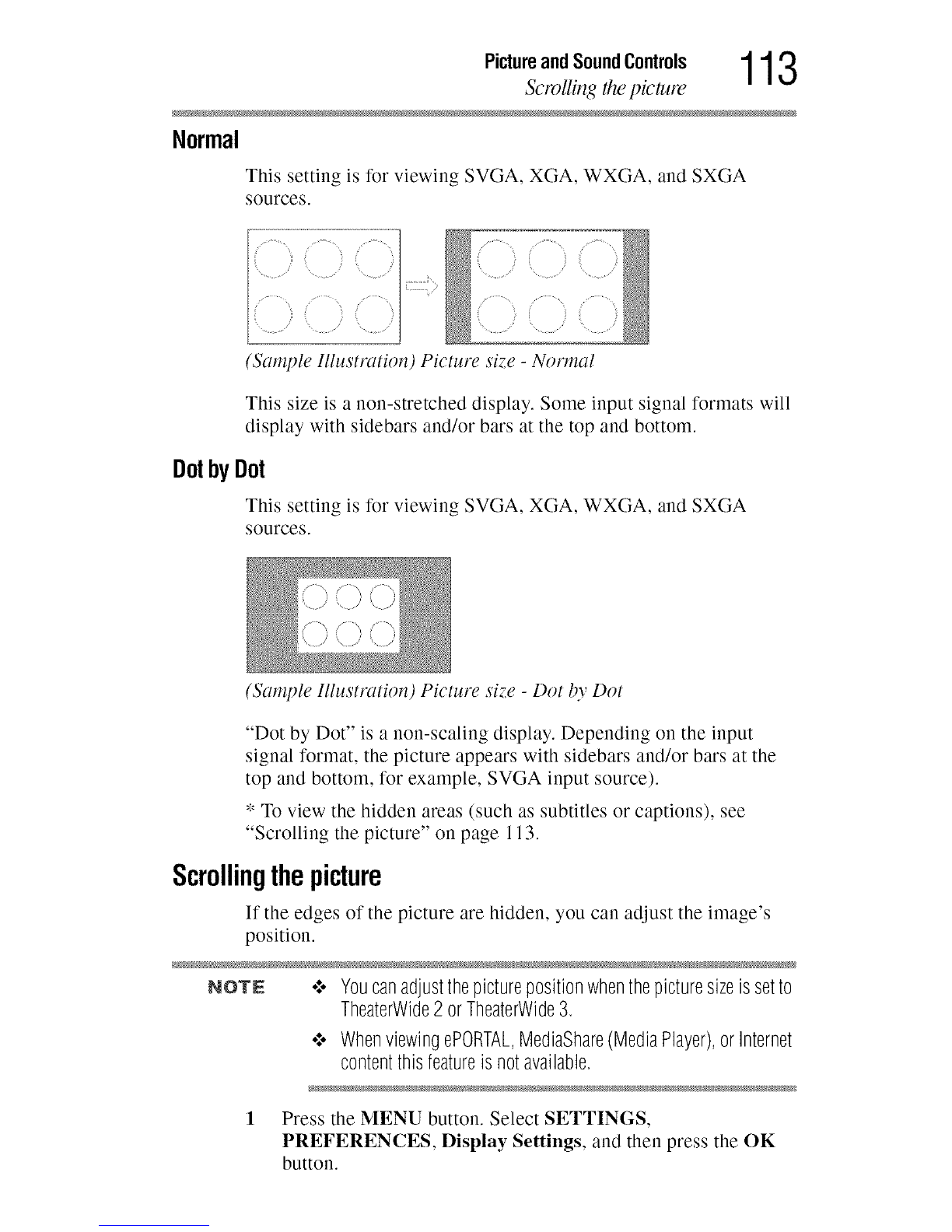

Normal
This setting is for viewing SVGA, XGA, WXGA, and SXGA
sources.
i i_ i_¸ /...... '_
(Sample Illustration) Picture size -Normal
This size is a non-stretched display. Some input signal formats will
display with sidebars and/or bars at the top and bottom.
DotbyDot
This setting is for viewing SVGA, XGA, WXGA, and SXGA
sources.
(Sample Illustmtio,d Picture size -Dot by Dot
"Dot by Dot" _s a non-scaling display. Depending on the input
signal format, the picture appears with sidebars and/or bars at the
top and bottom, for example, SVGA input source).
* To view the hidden areas (such as subtitles or captions), see
"Scrolling the picture" on page 113.
Scrollingthepicture
If the edges of the picture are hidden, you can adjust the image's
position.
NOTE o**oYoucanadjustthepicturepositionwhenthepicturesizeissetto
TheaterWide2 orTheaterWide3.
o'.. WhenviewingePORTAL,MediaShare(MediaPlayer),orInternet
contentthisfeatureisnotavailable.
1Press the MENU button. Select SETTINGS,
PREFERENCES, Display Settings, and then press the OK
button.

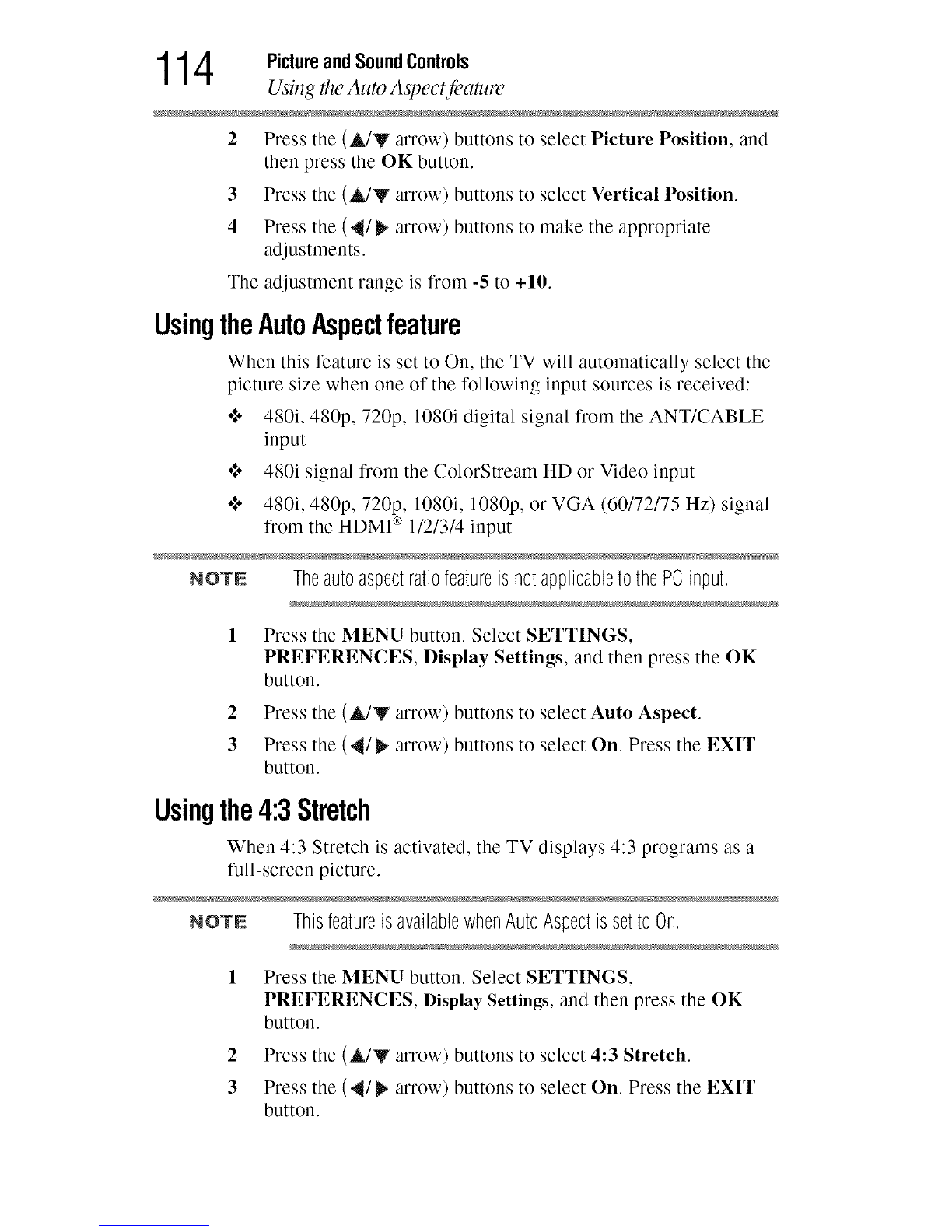

1 1 4 PictureandSoundControls
Using the Auto Aspectjeature
2 Press the (A/Y arrow) buttons to select Picture Position, and
then press the OK button.
3 Press the (A/Y arrow) buttons to select Vertical Position.
4 Press the (4/_ arrow) buttons to make the appropriate
adjustments.
The adjustment range is from -5 to +10.
UsingtheAutoAspectfeature
When this feature is set to On, the TV will automatically select the
picture size when one of the following input sources is received:
o:o 480i, 480p, 720p, 1080i digital signal from the ANT/CABLE
input
o:o 480i signal from the ColorStream HD or Video input
°:o 480i, 480p, 720p, 1080i, 1080p, or VGA (60172175 Hz) signal
from the HDMI _'_1121314input
NOTE Theautoaspectratiofeatureis notapplicabletothePCinput.
1 Press the MENU button. Select SETTINGS,
PREFERENCES, Display Settings, and then press the OK
button.
2 Press the (A/Y arrow) buttons to select Auto Aspect.
3 Press the (4/_ arrow) buttons to select On. Press the EXIT
button.
Usingthe4:3Stretch
When 4:3 Stretch is activated, the TV displays 4:3 programs as a
full-screen picture.
NOTE ThisfeatureisavailablewhenAutoAspectissettoOn.
Press the MENU button. Select SETTINGS,
PREFERENCES, Display Settings, and then press the OK
button.
2Press the (&/y arrow) buttons to select 4:3 Stretch.
3Press the (4/_ arrow) buttons to select On. Press the EXIT
button.

PictureandSoundControls 1 1 5
A4jusling #Tepiclure
Adjustingthepicture
Selectingthepicturemode
You can select your desired picture settings from the modes
described below.
Mode. Description."
AutoView_ Automaticallyadjustspicturesettingsbasedonambientlight
conditionsandinputsignalcontent
Dynamic Brightanddynamicpicture
Standard Standardpicturesettings
Movie Lowercontrastforadarkenedroom
Game Designedforplayingavideogamerequiringsplit-secondtiming
betweenthescreendisplayandinputfromthecontroller
PC Designedfortheviewingofcomputertablesanddocuments
NOTE PCmodeisavailableforHDMff'°andPCinputsonly(notdisplayed
forotherinputsources).
GamemodecannotbeturnedonwhentheANT/CABLEinput,
Internetcontent,orMediaShare(MediaPlayer)is selected.
1
2
Press the MENU button. Select SETTINGS, PICTURE,
Picture Mode.
Press the (4/_ arrow) buttons to select a mode. Press the
EXIT button.
NOTE Thepicturemodeyouselectaffectsthecurrentinputonly.Youcan
selecta differentpicturemodeforeachinput.
Adjustingthe picturequality
The adjustments you make to picture quality under a picture mode
are saved to that picture mode.
Selection Pressing (4) Pressing (_)
Backlight* Darker Lighter

1 1 6 PictureandSoundControls
Adjusting the pictwv
Selection Pressing( 4) Pressing(_ )
Contrast Lower Higher
Brightness Darker Lighter
Color Paler Deeper
Tint Reddish Greenish
Sharpness Softer Sharper
* Backlight: Adjusts the brightness of the entire screen. When in video mode
and no signal is input, this selection is set to 0. (Settings are stored in
memory.)
NOTE Somesettingscannotbeadjustedinthefollowingcases:
€, AutoViewisselected
€, TheaterLockis settoOn
To adjust the picture quality:
1 Press the MENU button. Select SETTINGS, PICTURE, the
setting you would like to adjust (Backlight, Contrast,
Brightness, Color, Tint, or Sharpness).
2 Press the (4/_ arrow) buttons to adjust the setting. Press the
EXIT button.
NOTE o*.oAnypicturesettingsthatyouadjustaffectthecurrentinputonly.
Youcanadjustthepicturequalityseparatelyforeachinput.
,¢. DependingonaSharpnessvalue,theEdgeEnhancereffectmay
bereduced.
To reset to the factory defaults:
1 Select the picture mode you want to reset.
2 Press the MENU button. Select SETTINGS, PICTURE,
Reset, and then press the ON button.
A confirmation screen appears.
3 Press the (4/_ arrow) buttons to select Yes, and then press the
ON button.

PictureandSoundControls 1 1 7

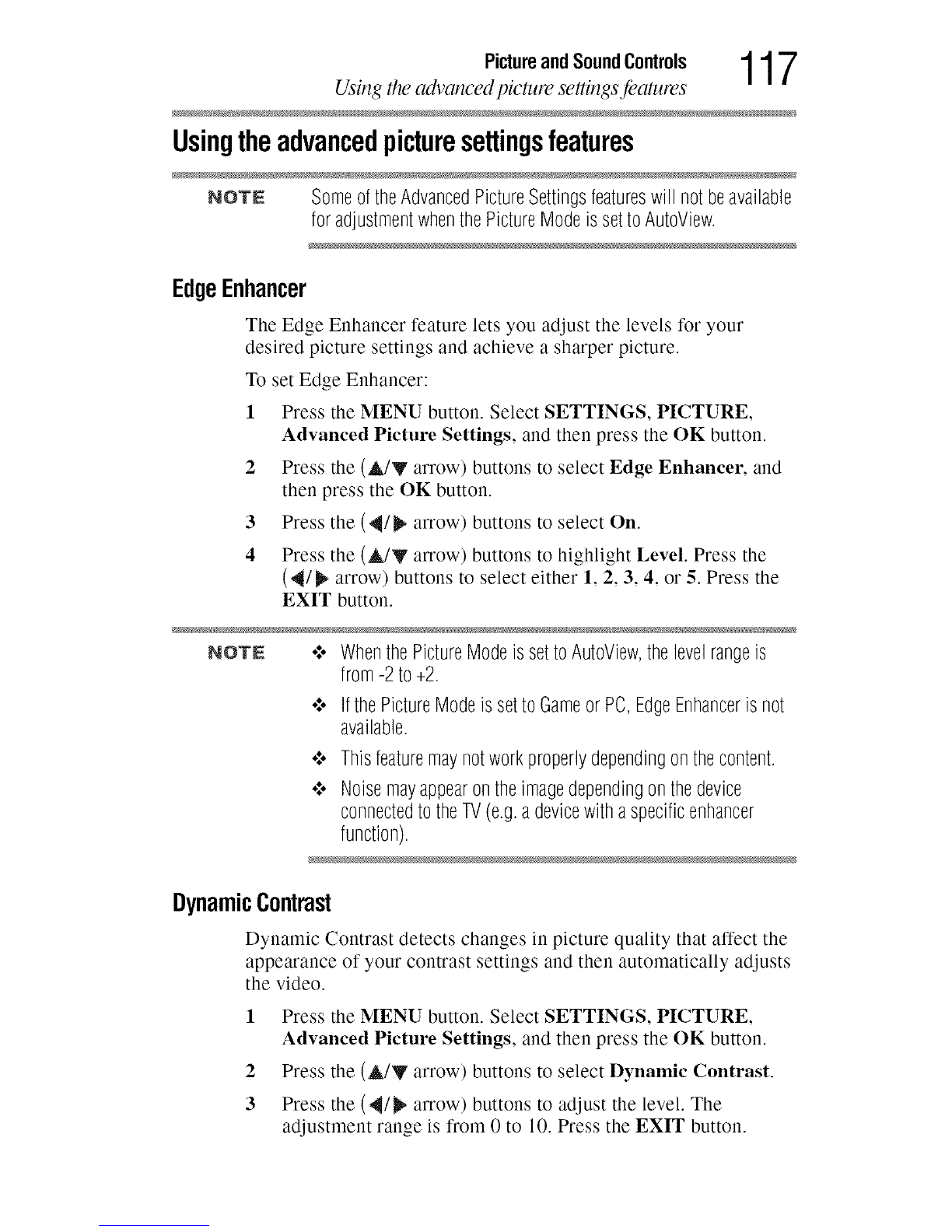

Using the advanced picture settings jeatures
Usingtheadvancedpicturesettingsfeatures
NOTE SomeoftheAdvancedPictureSettingsfeatureswillnotbeavailable
foradjustmentwhenthePictureModeissettoAutoView.
EdgeEnhancer
The Edge Enhancer feature lets you adjust the levels for your
desired picture settings and achieve a sharper picture.
To set Edge Enhancer:
1 Press the MENU button. Select SETTINGS, PICTURE,
Advanced Picture Settings, and then press the OK button.
2 Press the (A/Y arrow) buttons to select Edge Enhancer, and
then press the OK button.
3 Press the (,q/_ arrow) buttons to select On.
4 Press the (_y arrow) buttons to highlight Level. Press the
(4/_ arrow) buttons to select either 1, 2, 3, 4, or 5. Press the
EXIT button.
NOTE .:o WhenthePictureModeissettoAutoView,thelevelrangeis
from-2 to+2.
¢ IfthePictureModeissettoGameorPC,EdgeEnhancerisnot
available.
¢ Thisfeaturemaynotworkproperlydependingonthecontent.
¢ Noisemayappearontheimagedependingonthedevice
connectedtotheTV(e.g.a devicewithaspecificenhancer
function).
DynamicContrast
Dynamic Contrast detects changes in picture quality that affect the
appearance of your contrast settings and then automatically adjusts
the video.
1 Press the MENU button. Select SETTINGS, PICTURE,
Advanced Picture Settings, and then press the OK button.
2 Press the (A/V arrow) buttons to select Dynamic Contrast.
3 Press the (4/_' arrow) buttons to adjust the level. The
adjustment range is from 0 to 10. Press the EXIT button.
