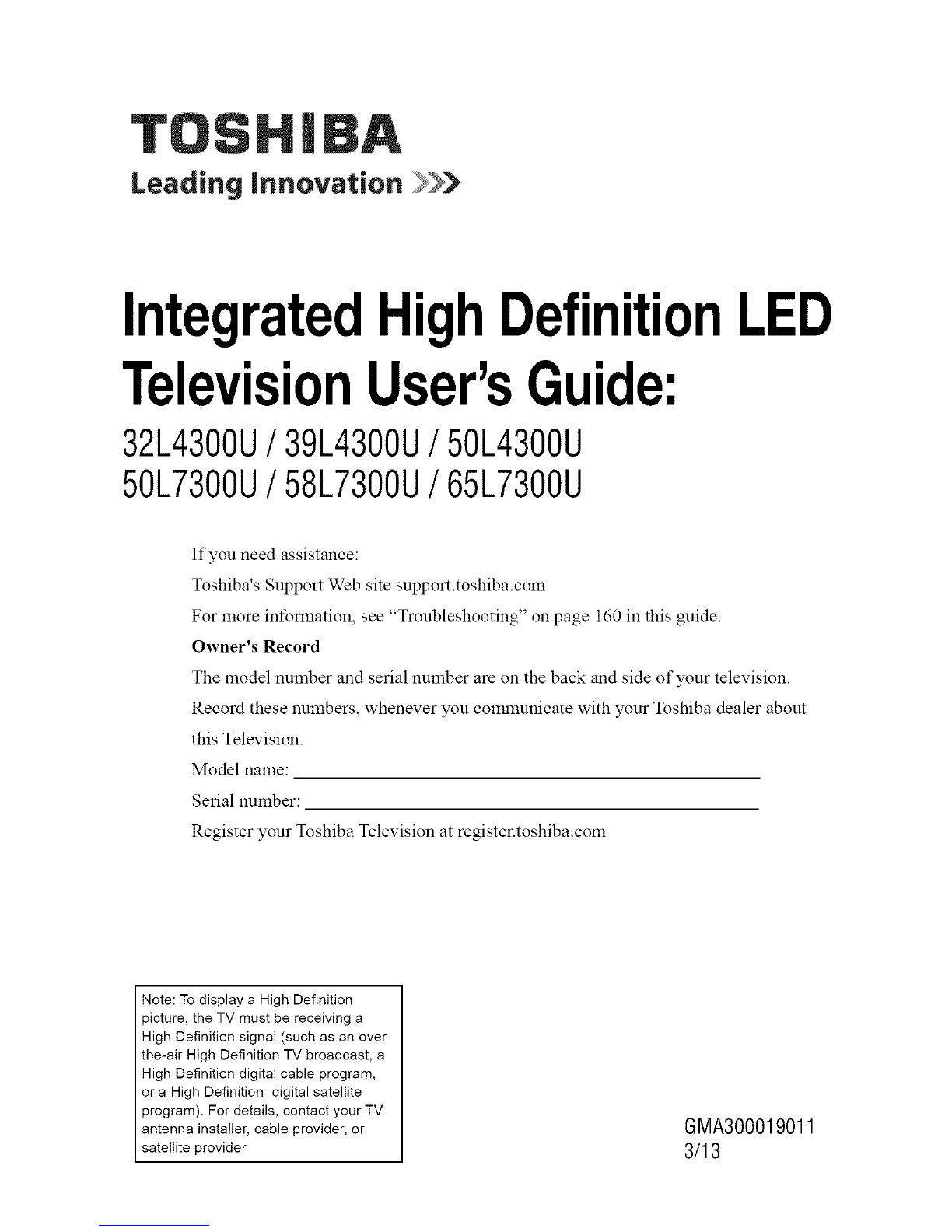

Toshiba 65L7300U User manual

Leading innovation
IntegratedHighDefinitionLED
TelevisionUser'sGuide:
32L4300U/39L4300U/50L4300U
50L7300U/58L7300U/65L7300U
If you need assistance:
Toshiba's Support Web site support.toshiba.com
For more infomlation, see "Troubleshooting" on page 160 in this guide.
Owner's Record
The model number and serial number are on the back and side of your television.
Record these numbers, whenever you communicate with your Toshiba dealer about
this Television.
Model name:
Serial number:
Register your Toshiba Television at register.toshiba.com
Note: To display a High Definition
picture, the TV must be receiving a
High Definition signal (such as an over-
the-air High Definition TV broadcast, a
High Definition digital cable program,
or a High Definition digital satellite
program). For details, contact your TV
antenna installer, cable provider, or
satellite provider GMA300019011
3/13

Chapter7
PictureandSound
Controls
Selectingthepicturesize
You can view many program formats in several picture sizes-- Native, 4:3,
Full, TheaterWide 1, TheaterWide 2, TheaterWide 3, Normal, and Dot by
Dot.
NOTN o**oThepicturesizeillustrationsareexamplesonly.Theformatofthe
image(inanyofthepicturesizes)dependsontheformatofthesignal
youarecurrentlywatching.Selectthepicturesizethatdisplaysthe
currentprograminthewaythatlooksbesttoyou.
¢ Usingthesefunctionstochangethepicturesize(i.e.,changingthe
height/widthratio)foranypurposeotherthanyourprivateviewing
maybeprohibitedundertheCopyrightLawsoftheUnitedStatesand
othercountries,andmaysubjectyoutocivilandcriminalliability.
¢ Somepicturesizesmaynotbeavailabledependingontheformatof
thesignalbeingreceived.
¢ IfyouselectaTheaterWide®picturesize,thetopandbottomedgesof
thepicture(includingsubtitlesorcaptions)maybehidden.Toview
theseedges,adjustthePicturePositionortryviewingtheprogramin
4:3orFull,see"Scrollingthepicture"onpage95.
91

2Picture and Sound Controls
Selecting the picture siz
You can save separate picture size preferences for each input on your TV.
To select the picture size using the Quick menu:
1 Press the QUICK button to open the Quick menu.
2 Select Picture Size, and then press the OK button.
3 Press the JI,/V (arrow) buttons to select the Picture Size, and then
press the OK button.
To select the picture size using the remote control :
1Press the PIC SIZE button.
2 While the Picture Size screen is open, repeatedly press the PIC
SIZE button.
Native ModeTM
This applies pixel-for-pixel image reproductions of Full HD content and
eliminating overscanning; you see all of the original picture within the
screen and eliminate scaling artifacts for a more accurate image.
These settings are for viewing in 480i (HDMIT'), 480p (HDMI'M), 720p,
1080i, and 1080p signal programs.
o OOQ
(Sample Illnstradon) Picture size -Nadve
o:. If receiving a 1080i, 1080p, 720p, 480i (HDMI'M),or 480p (HDMI T_')
signal program, the video is scaled to display the entire picture
within the borders of the screen (i.e. no overscanning).
ol. This is especially useful for external HD sources such as DVHS
movies, video games, or computer graphics.
°.*. None of the picture is hidden.
NOTN .:. Thismodeis supportedonlyforHDMITM (10801,1080p,720p,4801,
and480p),ColorStream®(1080iand720p),andANT/CABLE(digital)
inputs(1080i,1080p,and720p).
•".. Dependingontheinputsignal,thepicture'sbordermaybehidden,
displayedin black,or noisy.

Pictureand SoundControls QQ
,j i,../
Selecting thepicture size
4:3
0 000
ooo O0
oo O0
(Sample Illustration) Picture size -4:3
Some program formats will display with sidebars and/or bars at the top
and bottom.
Full
This setting is for viewing in the 16:9 (480i, 480p) source programs only.
I °°11°°°1
00_000
(Sample Illustration) Picture size -Full 16:9
If receiving asqueezed 4:3 format program, the picture is stretched
horizontally to fill the width of the screen but not stretched vertically.
This setting is for viewing in the 1080i, 1080p, and 720p program source.
iooollooo
000=>000
(Sample Illustration) Picture size -Full
The edges of the picture may be hidden.

4Pictureand SoundControls
Selecting the picture siz
TheaterWidel
This setting is for viewing in 4:3 format programs.
(Sample Illustration) Picture s&e- TheaterWidel
The center of the picture remains close to its original proportions, but the
left and right edges are stretched horizontally to fill the screen.
TheaterWide2
This setting is for viewing letter box programs.
©©©
©©©
(Sample Illustration) Picture size- TheaterWide2, letter box
The picture's top and bottom edges may be hidden*.
TheaterWide3
This setting is for viewing letter box programs with subtitles.
L J.......
(Sample Illustration) Picture size -TheaterWide3, letter box with
subtitles
The picture's top and bottom edges are hidden*.

Pictureand SoundControls (_
,j_j
Scrolling the picture

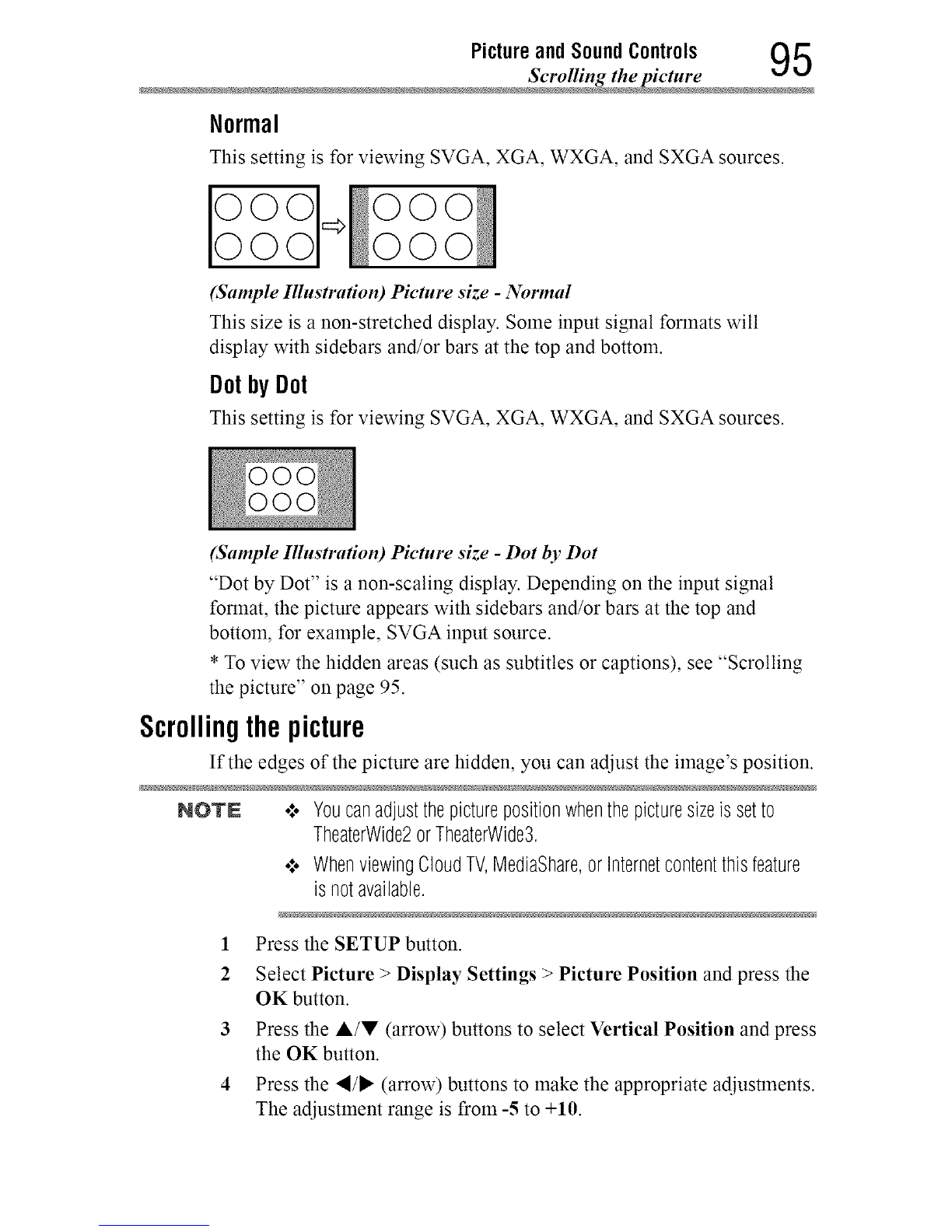

Normal
This setting is for viewing SVGA, XGA, WXGA, and SXGA sources.
iooooo1ooo
0 000
(Sample Illustration) Picture size -Nornud
This size is a non-stretched display. Some input signal formats will
display with sidebars and/or bars atthe top and bottom.
Dotby Dot
This setting is for viewing SVGA, XGA, WXGA, and SXGA sources.
(Sample Illustration) Picture size -Dot by Dot
"Dot by Dot" is anon-scaling display. Depending on the input signal
format, the picture appears with sidebars and/or bars atthe top and
bottom, for example, SVGA input source.
*To view the hidden areas (such as subtitles or captions), see "Scrolling
the picture" on page 95.
Scrollingthepicture
If the edges of the picture are hidden, you can adjust the image's position.
NOTN .:. Youcanadjustthepicturepositionwhenthepicturesizeissetto
TheaterWide2or TheaterWide3.
•".. WhenviewingCloudTV,MediaShare,or Internetcontentthisfeature
isnotavailable.
1Press the SETUP button.
2Select Picture >Display Settings > Picture Position and press the
OK button.
3 Press the &/V (arrow) buttons to select Vertical Position and press
the OK button.
4 Press the "_/1_ (arrow) buttons to make the appropriate adjustments.
The adjustment range is from -5 to +10.

6Pictureand SoundControls
Using the Auto Aspect feature
UsingtheAutoAspectfeature
When this feature is set to On, the TV will automatically select the picture
size when one of the following input sources is received:
o:o 480i, 480p, 720p, 1080i digital signal from the ANT/CABLE input
°_o 480i, 480p, 720p, 1080i, 1080p, or VGA (60/72/75 Hz) signal from
the HDMI TM 1/2/3/4 input
NOTN TheautoaspectratiofeatureisnotapplicabletothePCinput.
1 Press the SETUP button.
2 Select Picture > Display Settings > Auto Aspect and press the OK
button.
3 Press the A/V (arrow) buttons to select On.
4 Press the EXIT button.
Usingthe4:3Stretch
When 4:3 Stretch is activated, the TV displays 4:3 programs as a full-
screen picture.
NOTN ThisfeatureisavailablewhenAutoAspectissettoOn.
1 Press the SETUP button.
2 Select Picture > Display Settings > 4:3 Stretch and press the OK
button.
3 Press the A/V (arrow) buttons to select On.
4 Press the EXIT button.

Pictureand SoundControls Q7
,J/
Adjusting the picture
Adjustingthepicture
Selecting the picture mode
You can select your desired picture settings from the modes described
below.
Mode: Description:
AutoView_ AutomaticallyadjustsmultiplepicturesettingsincludingBrightness,
Contrast,Gamma,andSharpnessbasedonambientroomlightconditions
andincomingpicturecontenttocreatethebestpossiblepicturesettings
withoutanymanualadjustment.
Dynamic MaximizesContrast,ColorSaturation,Sharpness,GrayScaleand
Brightnesstocreatemorevividanddynamicimages
Standard Standardpicturesettings
Movie Lowercontrastfora darkenedroom
Game Optimizedforplayingvideogamesbydisplayingtheimagesin their
purestform(4:4:4)withoutthelossofcolorinformation.Theresultis
superiorimagequalityandshortersignaltoscreentimeforafastergaming
experience.
PC Optimizedforviewingyourpersonalcomputer
NOTN o:, PCmodeisavailableforHDMI'_andPCinputsonly(notdisplayedfor
otherinputsources).
•:, Gamemodeis notavailableinANT/CABLEinput.
1Press the SETUP button.
2 Select Picture >Picture Mode and press the OK button.
3 Press the A/V (arrow) buttons to select a mode.
4 Press the EXIT button.
NOTN Thepicturemodeyouselectaffectsthecurrentinputonly.Youcanselecta
differentpicturemodeforeachinput.

8Picture and SoundControls
Adjusting the picture

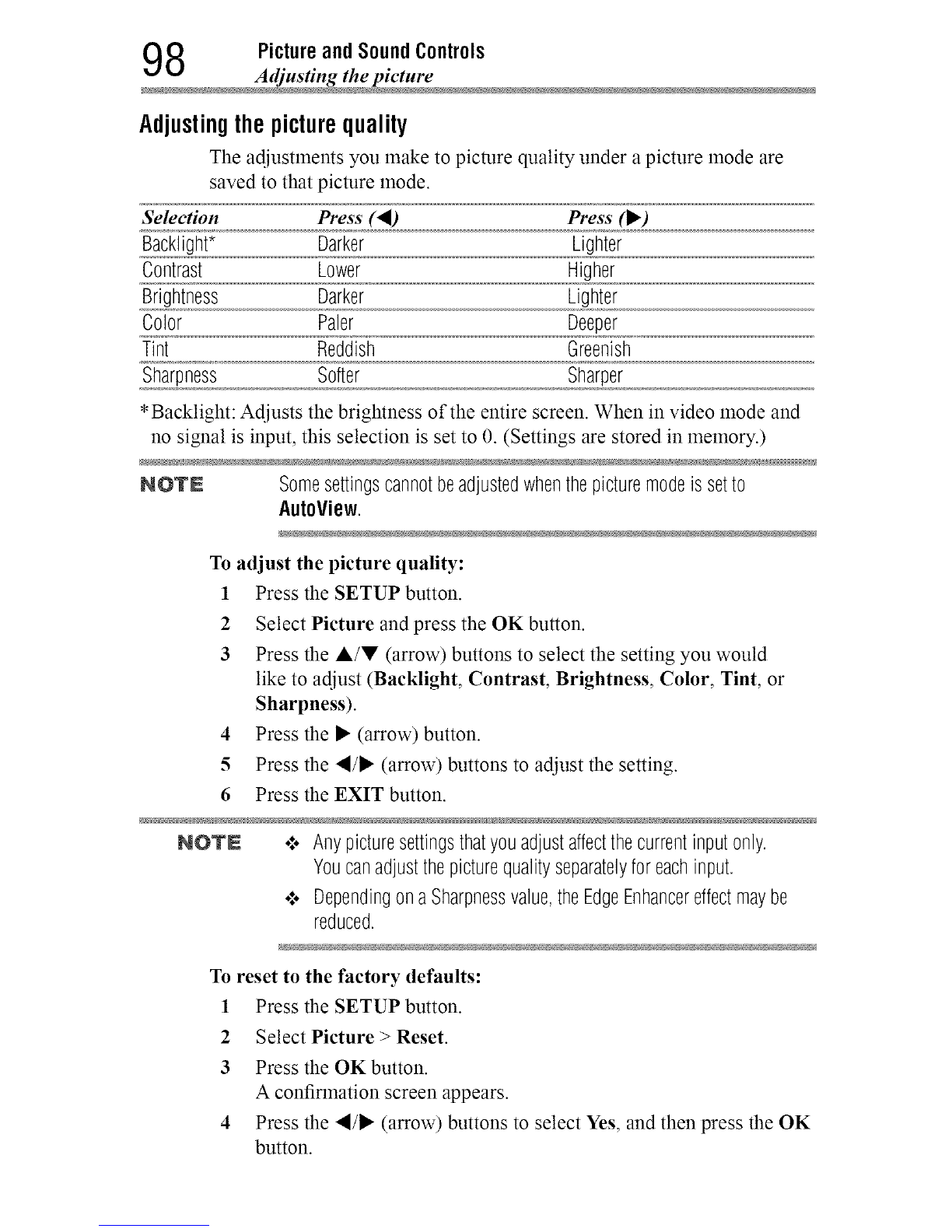

Adjusting the picture quality
The adjustments you make to picture quality under a picture mode are
saved to that picture mode.
Selection Press (<) Press (1_)
Backlight* Darker Lighter
Contrast Lower Higher
Brightness Darker Lighter
Color Paler Deeper
Tint Reddish Greenish
Sharpness Softer Sharper
*Backlight: Adjusts the brightness of the entire screen. When in video mode and
no signal is input, this selection is set to O. (Settings are stored in memory.)
NOTE Somesettingscannotbeadjustedwhenthepicturemodeissetto
AutoView.
To adjust the picture quality:
1 Press the SETUP button.
2 Select Picture and press the OK button.
3 Press the A/V (arrow) buttons to select the setting you would
like to adjust (Backlight, Contrast, Brightness, Color, Tint, or
Sharpness).
4 Press the I* (arrow) button.
5 Press the "4/I* (arrow) buttons to adjust the setting.
6 Press the EXIT button.
NOTN o:, Anypicturesettingsthatyouadjustaffectthecurrentinputonly.
Youcanadjustthepicturequalityseparatelyforeachinput.
•".. Dependingona Sharpnessvalue,theEdgeEnhancereffectmaybe
reduced.
To reset to the factory defaults:
1 Press the SETUP button.
2 Select Picture > Reset.
3 Press the OK button.
A confirmation screen appears.
4 Press the </1_ (arrow) buttons to select Yes, and then press the OK
button.

Pictureand SoundControls 99
Using the advanced picture settings feature
Usingtheadvancedpicturesettingsfeatures
NOTE SomeoftheAdvancedPictureSettingsfeatureswill notbeavailablefor
adjustmentwhenthePictureModeis settoAutoView.
EdgeEnhancer
If the Edge Enhancer set to On, the clarity levels can be adjusted
automatically.
1 Press the SETUP button.
2 Select Picture > Advanced Picture Settings > Edge Enhancer and
press the OK button.
3 Press the A/V (arrow) buttons to select On.
4 Press the EXIT button.
NOTE .:. IfthepicturemodeissettoAutoView,EdgeEnhancerisnot
available.
•:. Thisfeaturemaynotworkproperlydependingonthecontent.
•:. Noisemayappearontheimagedependingonthedeviceconnectedto
theTV(e.g.a devicewithaspecificenhancerfunction).
DynamicContrast
Dynamic Contrast detects changes in picture quality that affect the
appearance of your contrast settings and then automatically adjusts the
video.
1 Press the SETUP button.
2 Select Picture >Advanced Picture Settings > Dynamic Contrast
and press the OK button.
3 Press the A/V (arrow) buttons to select High, Middle, Low, or
Off.
4 Press the EXIT button.
