Toshiba GR-RB440WE-DMM(02) User manual

Owner’s Manual
Owner
REFRIGERATOR FREEZER
For Home Use Only
357468
GR-RB440WE-DMM(02)

1. Safety warnings
1.1 Warning
1.2 Meanings of safety warning symbols
1.3 Electricity related warnings
1.4 Warnings for using
1.5 Warnings for placement
1.6 Warnings for energy
1.7 Warnings for disposal
2. Proper use of the refrigerator
2.1 Placement
2.2 Door handle installation
2.3 Levelling feet
2.4 Door right-left change
2.5 Changing the Light
2.6 Starting
2.7 Energy saving tips
3. Structure and functions
3.1 Key components
3.2 Functions
4. Maintenance and care of the refrigerator
4.1 Overall cleaning
4.2 Cleaning glass shelf
4.3 How to take out the pearl cotton block inside
humidication shelf components
4.4 Defrosting
4.5 Out of operation
5. Trouble shooting
6. Disposal of your appliance
2
2
5
5
6
7
7
8
9
9
10
11
11
14
14
15
16
16
17
20
20
20
21
21
21
22
23
CONTENTS

2
READ SAFETY PRECAUTIONS BEFORE INSTALLATION
To prevent injury to the user or other people and property damage,
the following instructions must be followed. Incorrect operation due
to ignoring of instructions may cause harm or damage.
1.1
• WARNING: Risk of re disaster and explosion
The refrigerant of the appliance is ammable, please be care not to
damange the cooling pipes during installation and transportation.if
gas leakage happens, please contact the distributor or local service
agent, and the following precautions should be always taken:
1. Open the windows for ensuring good ventilation.
2. No re around and please do not use other electric appliance.
• This appliance is intended to be used in household and similar
applications such as sta kitchen areas in shops, oces and other
working environments; farm houses and by clients in hotels, motels
and other residential type environments; bed and breakfast type
environments; catering and similar non-retail applications.
• Children should be supervised to ensure that they do not play with
the appliance.
• WARNING: Risk of re disaster and electric shock
The power cord should be replaced when it has been damaged.
please contact the distributor or local service agent for
replacement.
• Please unplug the power plug from socket when clean the
appliance or leave the appliance nonuse for a long time.
• Do not use extension cord or ungrounded (two prong) adapters.
• WARNING: Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
1. Safety warnings

3
• WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• WARNING:Please abandon the refrigerator according to local
regulators for it use ammable blowing gas and refrigerant.
• WARNING: When positioning the appliance, ensure the supply cord
is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
• DANGER: Risk of child entrapment. Before you throw away your old
refrigerator or freezer:
-Take o the doors.
-Leave the shelves in place so that children may not easily climb
inside.
• The refrigerator must be disconnected from the source of electrical
supply before attempting the installation of accessory.
• Refrigerant and cyclopentane foaming material used for the
refrigerator are ammable.Therefore, when the refrigerator is
scraped, it shall be kept away from any re source and be recovered
by a special recovering company with corresponding qualication
other than be disposed by combustion, so as to prevent damage to
the environment or any other harm.

4
• For EN standard: This appliance can be used by children aged from
8 years and above and persons with reduce physical sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• For IEC standard: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.)
• Please do not use the appliance on trac means(such as ship and
so on).
• If noise, odor and smoking happens, please unplug the power plug
immediately,and contact the distributor or local service agent.
• Please do not put your hands under or behind the appliance to
prevent from being hurt.
• Please leave the packing materials and other parts out of the reach
of children to prevent from risk of suocation.

5

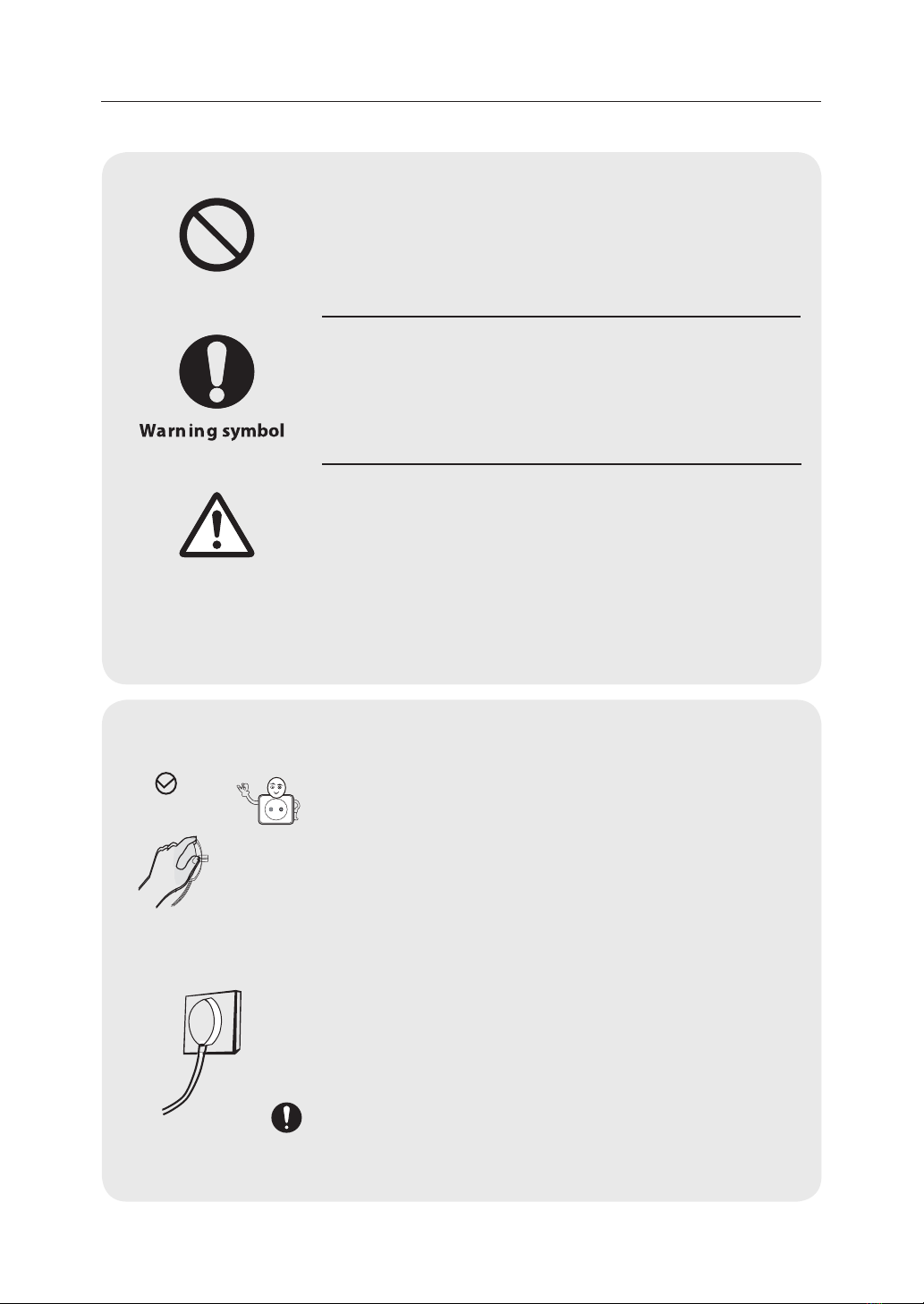

1.2 Meaning of safety warning symbols
This is a prohibition symbol.
Any incompliance with instructions marked with
this symbol may result in damage to the product
or endanger the personal safety of the user.
This is a warning symbol.
It is required to operate in strict observance
of instructions marked with this symbol; or
otherwise damage to the product or personal
injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require
special caution. Insucient caution may result
in slight or moderate injury, or damage to the
product.
This manual contains lots of important safety information which
shall be observed by the users.
1.3 Electricity related warnings
• Do not pull the power cord when pulling
the power plug of the refrigerator. Please
rmly grasp the plug and pull out it from
the socket directly.
• To ensure safe use, do not damage the
power cord or use the power cord when it is
damaged or worn.
• Please do not touch the power plug with
wet hand to prevent from electric shock.
• Please use a dedicated power socket and
the power socket shall not be shared with
other electrical appliances. The power plug
should be rmly contacted with the socket
or else res might be caused.
Cautioning symbol
Prohibition symbol

6
• Please ensure that the grounding electrode
of the power socket is equipped with a
reliable grounding line.
• Please ask for help from persons with
professional qualication to examine
whether the socket is with reliable grounding
line or not.
• It is the end-consumers' responsibility
to change the ungrounded socket into
grounded socket.
• Please turn o the valve of the leaking gas
and then open the doors and windows in
case of leakage of gas and other ammable
gases. Do not unplug the refrigerator and
other electrical appliances considering that
spark may cause a re.

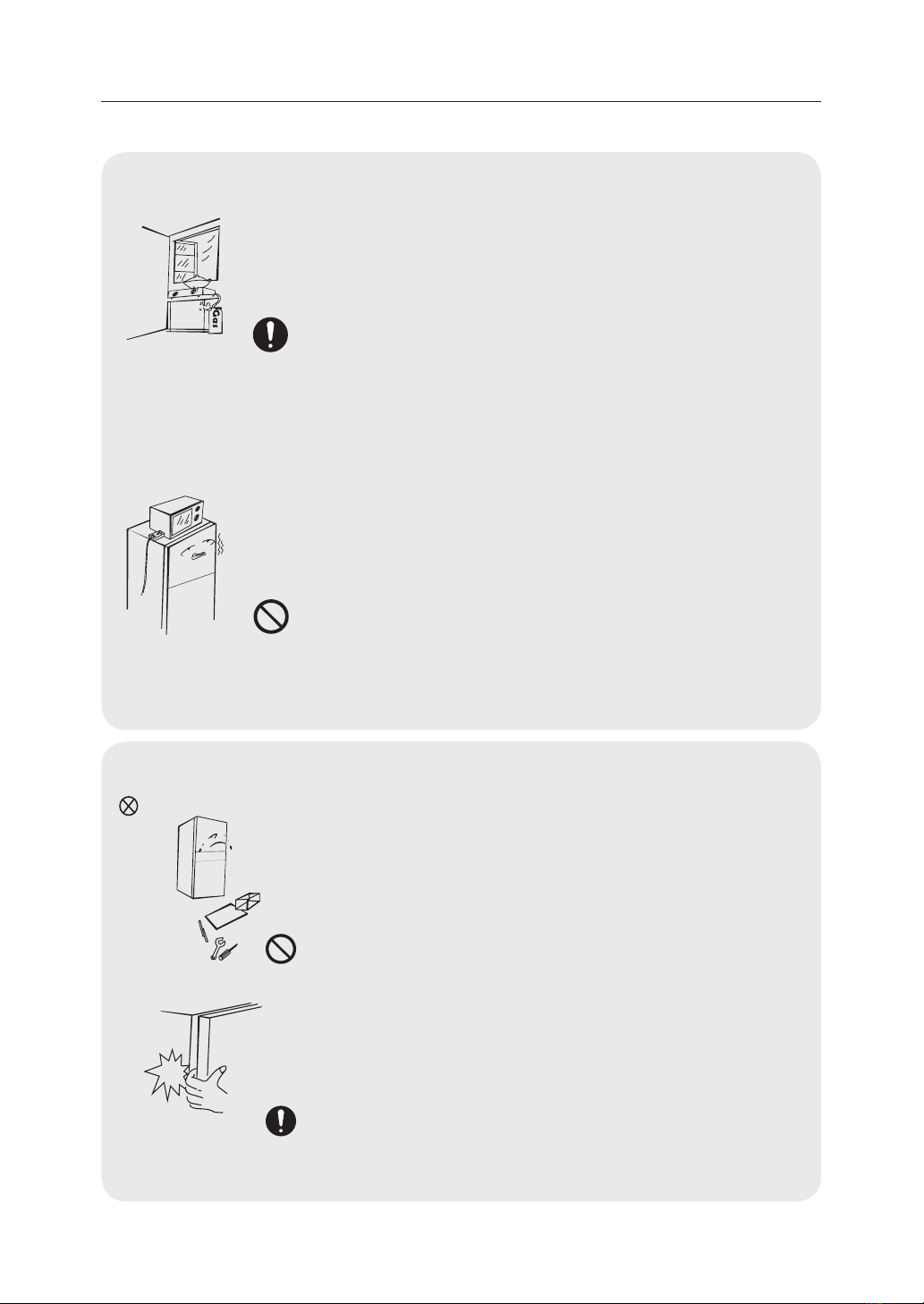

• Do not use electrical appliances on the top
of the appliance, unless they are of the type
recommended by the manufacturer.
1.4 Warnings for using
• Do not arbitrarily disassemble or reconstruct
the refrigerator, nor damage the refrigerant
circuit; maintenance of the appliance must
be conducted by a specialist.
• Damaged power cord must be replaced
by the manufacturer, its maintenance
department or related professionals in order
to avoid danger.
• The gaps between refrigerator doors and
between doors and refrigerator body are
small, be noted not to put your hand in these
areas to prevent from squeezing the nger.
Please be gentle when close the refrigerator
door to avoid falling articles.

7

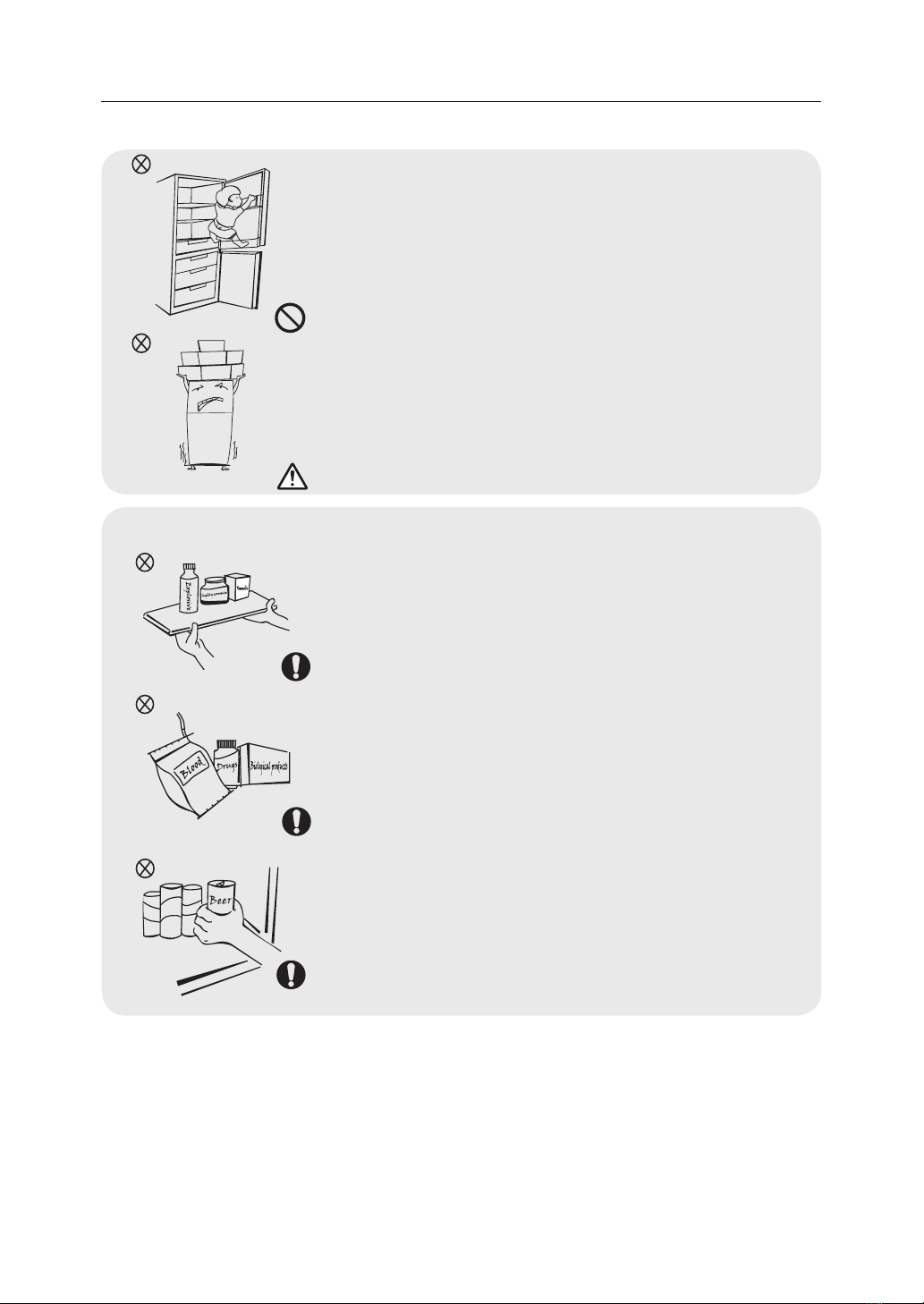

• Do not pick foods or containers with wet
hands in the freezing chamber when the
refrigerator is running, especially metal
containers in order to avoid frostbite.
• Do not allow any child to get into or climb
the refrigerator; otherwise suocation or
falling injury of the child may be caused.
• Please do not put heavy or dangerous objects
on top of the appliance(bottles,tableware,or
something containing liquid)
1.5 Warnings for placement
• Do not put ammable, explosive, volatile
and highly corrosive items in the refrigerator
to prevent damages to the product or re
accidents.
• Do not place ammable items near the
refrigerator to avoid res.
• The refrigerator is intended for household
use, such as storage of foods; it shall not be
used for other purposes, such as storage of
blood, drugs or biological products, etc.
• Do not store beer, beverage or other uid
contained in bottles or enclosed containers
in the freezing chamber of the refrigerator; or
otherwise the bottles or enclosed containers
may crack due to freezing to cause damages.
Freezing chamber

8
1.6 Warnings for energy
• Refrigerating appliances might not operate consistently
(possibility of defrosting of contents or temperature becoming
too warm in the frozen food compartment) when sited for an
extended period of time below the cold end of the range of
temperatures for which the refrigerating appliance is designed.
• The fact that eervescent drinks should not be stored in food
freezer compartments or cabinets or in low-temperature
compartments or cabinets, and that some products such as water
ices should not be consumed too cold;
• The need to not exceed the storage time(s) recommended by
the food manufacturers for any kind of food and particularly for
commercially quick-frozen food in food-freezer and frozen-food
storage compartments or cabinets;
• The precautions necessary to prevent an undue rise in the
temperature of the frozen food while defrosting the refrigerating
appliance, such as wrapping the frozen food in several layers of
newspaper.
• The fact that a rise in temperature of the frozen food during
manual defrosting, maintenance or cleaning could shorten the
storage life.
• The necessity that, for doors or lids tted with locks and keys, the
keys be kept out of the reach of children and not in the vicinity
of the refrigerating appliance, in order to prevent children from
being locked inside.
1.7 Warnings for disposal
• Refrigerant and cyclopentane foaming material used
for the refrigerator are ammable. Therefore, when the
refrigerator is scrapped, it shall be kept away from any
re source and be recovered by a special recovering
company with corresponding qualication other than
be disposed by combustion, so as to prevent damage
to the environment or any other harm.
• When the refrigerator is scrapped, disassemble the
doors, and remove gasket of door and shelves; put the
doors and shelves in a proper place, so as to prevent
trapping of any child.

9

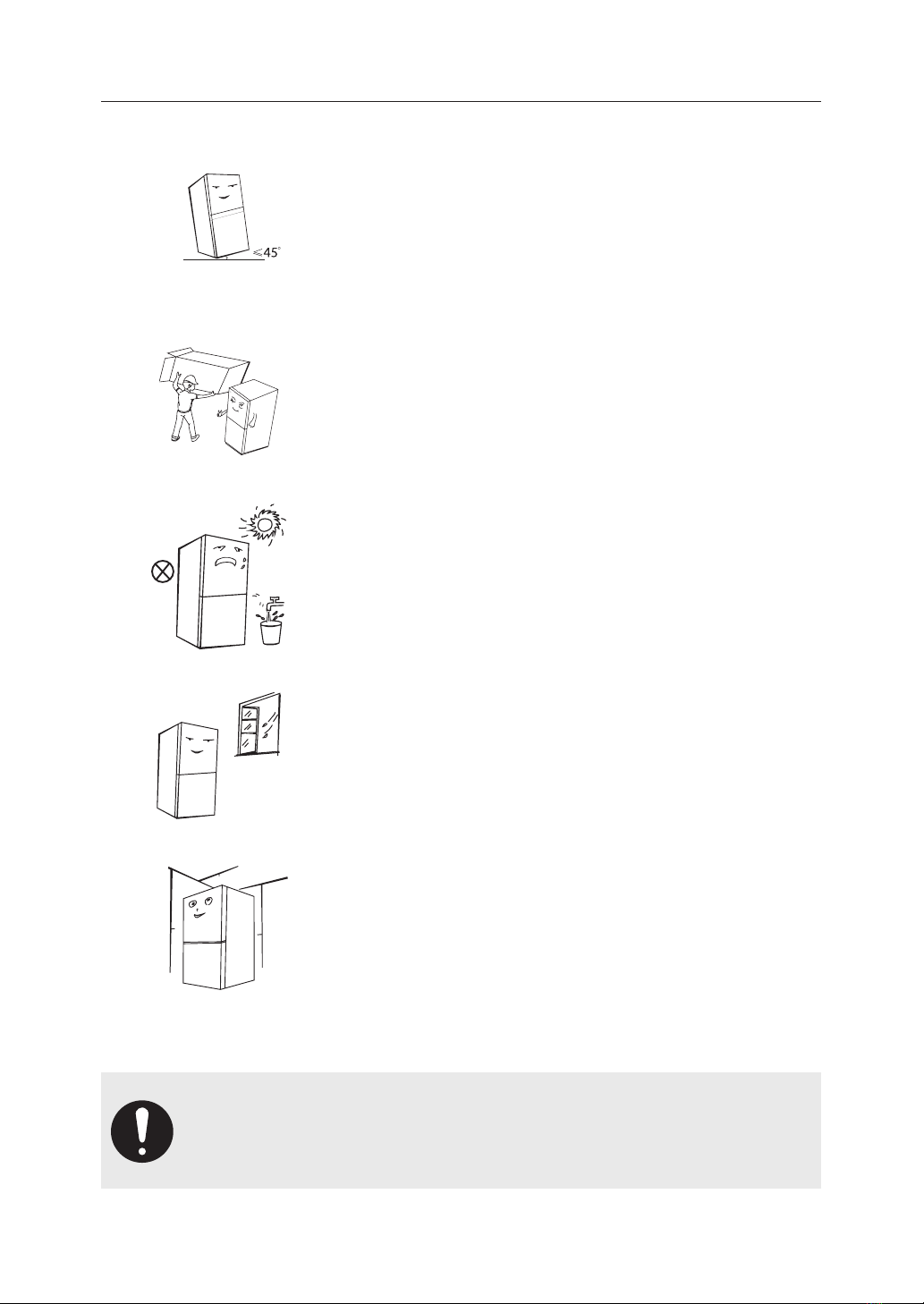

2.1 Placement
• Before initial start, keep the refrigerator still for half an hour
before connecting it to power supply.
• Before the refrigerator is moved, take all objects inside out,
x the glass partitions, vegetable holder, freezing chamber
drawers and etc. with tape, and tighten the leveling feet;
close the doors and seal them with tape. During moving, the
appliance shall not be laid upside down or horizontally, or be
vibrated; the inclination during movement shall be no more
than 45°.
• Before use, remove all packing materials, including bottom
cushions, foam pads and tapes inside of the refrigerator;
tear o the protective lm on the doors and the refrigerator
body. Keep away from heat and avoid direct sunlight. Do not
place the freezer in moist or watery places to prevent rust or
reduction of insulating eect.
• Do not spray or wash the refrigerator; do not put the
refrigerator in moist places easy to be splashed with water
so as not to aect the electrical insulation properties of the
refrigerator.
• The refrigerator is placed in a well-ventilated indoor place; the
ground shall be at, and sturdy (rotate left or right to adjust
the wheel for leveling if unstable).
• The top space of the refrigerator shall be greater than 30cm,
and the refrigerator should be placed against a wall with a
free distance more than 10cm to facilitate heat dissipation.
Precautions before installation:
Before installation or adjusting of accessories, it shall be ensured
that the refrigerator is disconnected from power. Precautions shall
be taken to prevent fall of the handle from causing any personal
injury.
2. Proper use of refrigerators
30cm
10cm
10cm

10
2.2 Door handle installation
precautions shall be taken to prevent fall of the handle from causing any personal injury.
List of tools to be provided by the user
Allen wrench
(1) Screw hole
(2) Screw
Assembly steps
a. Use allen wrench to x screws (2) into the screw hole (1) tightly.
b. The reverse operation is for disassembly.
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)

11

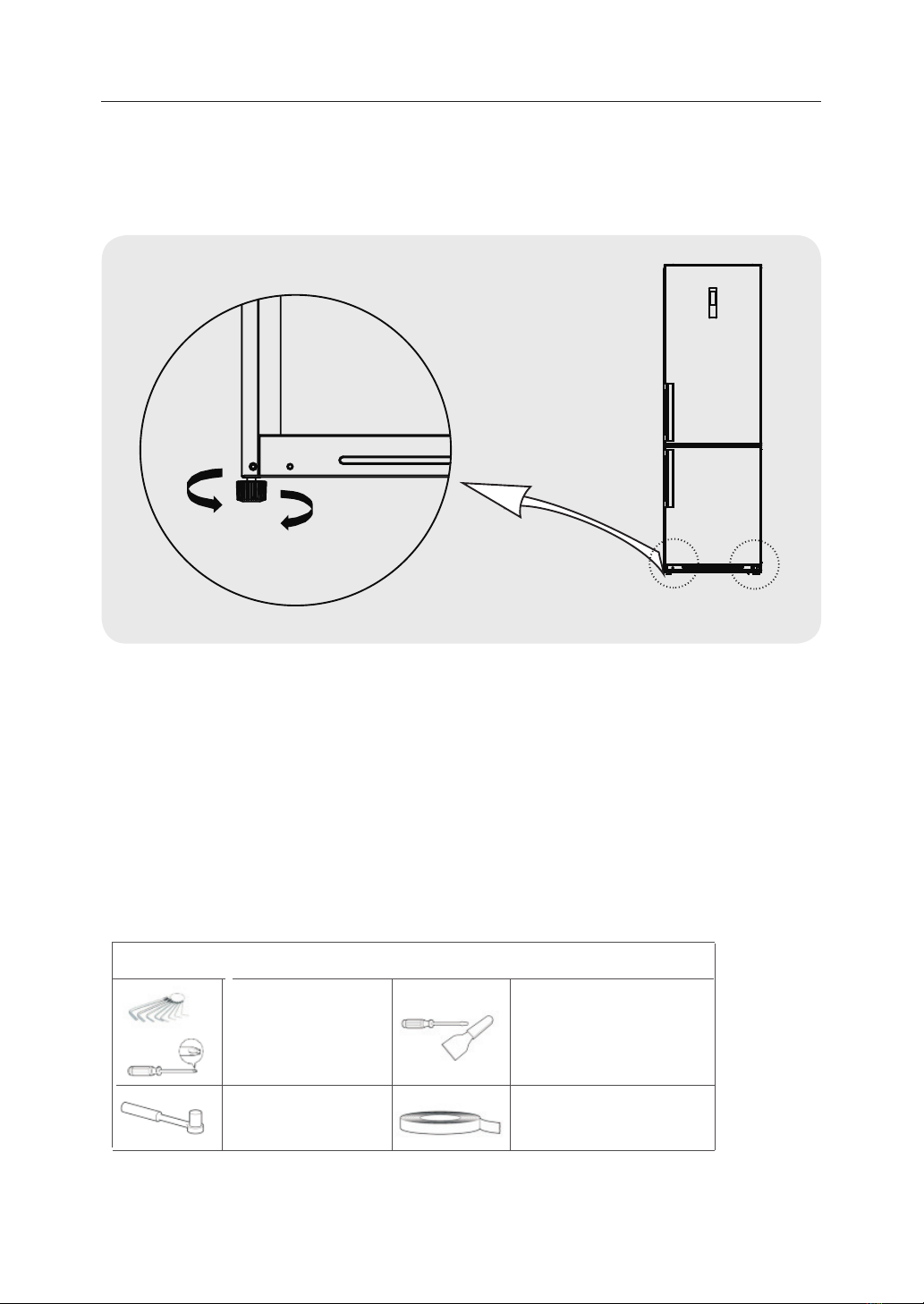

2.3 Leveling feet
Schematic diagram of the leveling feet
2.4 Door Right-Left Change
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)
Adjusting procedures:
a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.
List of tools to be provided by the user
Cross screwdriver Putty knife
thin-blade screwdriver
5/16″
socket and ratchet Masking tape
H
L

12
1) Please power o this appliance before conduct this operation. Remove all food from door
shelves. Fix the door by tapes.
2) Dismantle the upper decorative cover, screws and upper hinge.unplug the wiring connector
of the top right side of refrigerator ( (1),(2) wiring connector).
3) Take o refrigerating chamber door, middle hinge (use a allen wrench to remove the middle
hinge screw) and hole cap of other side.
4) Take o freezing chamber door, dismantle bottom hinge, hole caps, levelling foot, Install shaft
of bottom hinge on the other side and install the bottom hinge on the other side.
hole cap
shaft shaft
levelling foot
bottom hinge
(4)
(3) (1)
(2)
decorative cover
upper hinge
middle hinge
hole cap

13
6) Put freezing door on bottom hinge and install middle hinge, hole caps
5) a) Remove the upper cover of refrigerating chamber door and the left decorative cover, install
the upper hinge sleeve, door signal line to the other side and install the door upper cover.
Dismantle the stopper, self-locking and sleeve pipe of refrigerating chamber door. Take out
left self-locking of refrigerating chamber door and right decorative cover from accessory bag,
assemble the sleeve pipe,left self-locking and stopper on bottom left of door with screw, and
then install the right decorative cover.
b) Dismantle the stopper and sleeve pipe from the bottom right of freezing chamber door,
assemble the sleeve pipe, left self-locking and stopper on bottom left of door by screw.
door signal line
right decorative cover
sleeve pipe
sleeve pipe
sleeve pipe
stopper
stopper
self-locking
screw
self-locking
screw
door upper cover
left decorative cover
middle hinge
hole cap
7) Dismantle the right hinge cover from the decorative cover, then take out left hinge cover from
accessory bag, install left hinge cover on the left side of decorative cover.

14
8) Take out the top left hinge from accessory bag.
Put refrigerating chamber door on middle hinge, install top left hinge. Connect signal line
terminal (4) with signal line terminal (1) ,connect signal line terminal (2) with signal line
terminal(3); Install top hinge cover. (The following must be conrmed before installing the top
hinge cover. The screws that hold the hinge should be tightly pressed against the hinge surface to
ensure that the screw is not deected. After the hinge is installed, make sure there is no shaking)
For the assembly of handle, please refer to chapter 2.2.
decorative cover
hinge cover
(1)
(4)
(2) (3)
(The picture above is only for reference.The actual conguration will depend on the physical
product or statement by the distributor)
2.5 Changing the Light
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer,
2.6 Starting
•Before putting any fresh or frozen foods, the refrigerator shall
have run for 2-3 hours, or for above 4 hours in summer when
the ambient temperature is high.
•Spare enough space for convenient opening of the doors and
drawers or statement by the distributor.
700mm
600mm
1215mm
1080mm
125

15
2.7 Energy saving tips
• The appliance should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the
appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality,
or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the
appliance.This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making the appliance less ecient.
• Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.

16

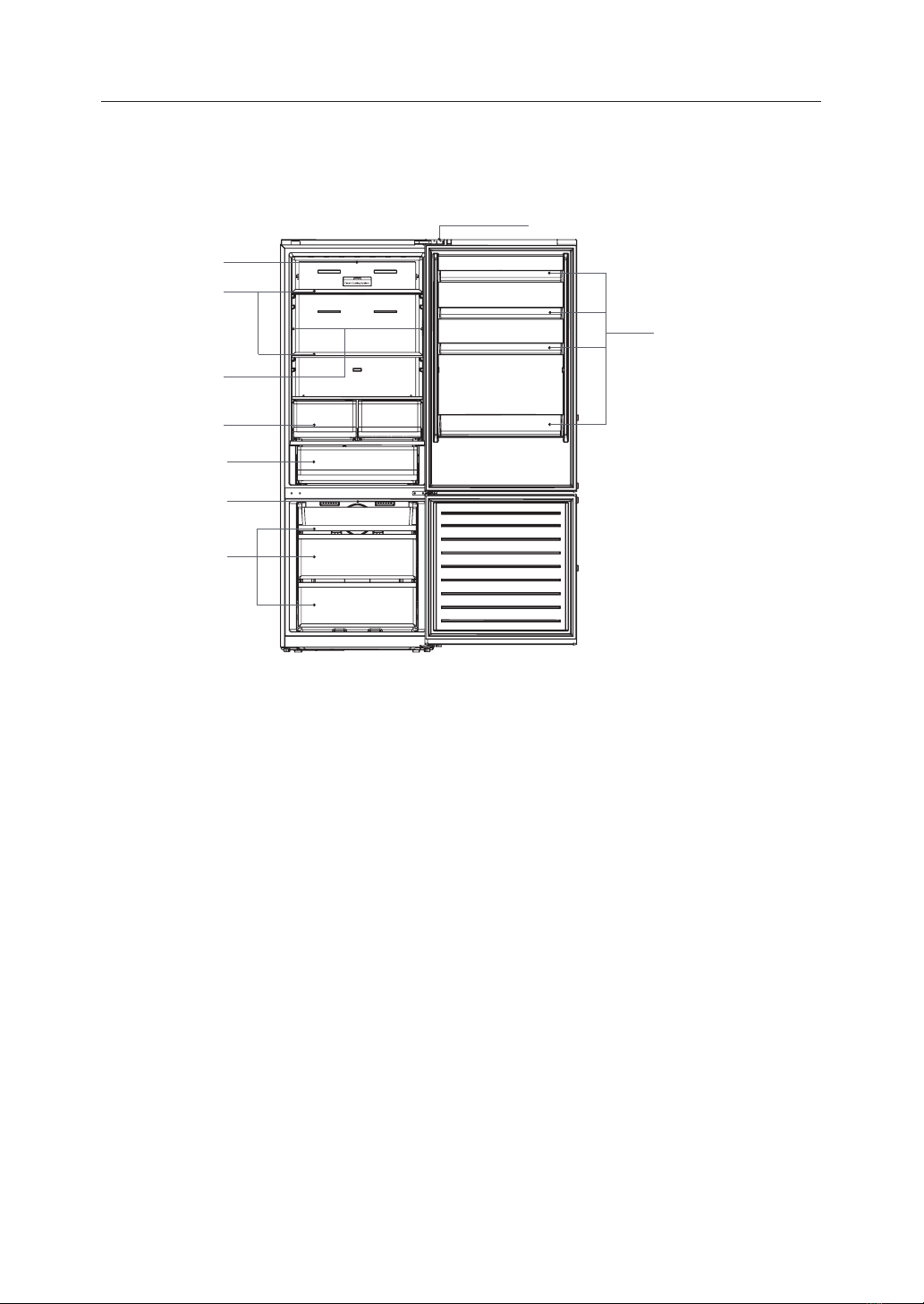

3.1 Key components
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)
Refrigerating chamber
• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages
and other food consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room
temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and
easy use.
Freezing chamber
• The low temperature freezing chamber may keep food fresh for a long time and it is mainly
used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, sh, rice balls and other foods not to
be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be
noted food shall be consumed within the shelf time.
3. Structure and functions
Magnetic door switch
Door tray
LED light
LED light
LED light
Drawer
Fruits and
vegetables box
Meat & Fish zone
Shelf

17
Meat&Fish zone
•
• Near to the back and bottom of the drawer, food may be frozen slightly, the food what
should not be frozen can not be placed in.
•
3.2 Functions

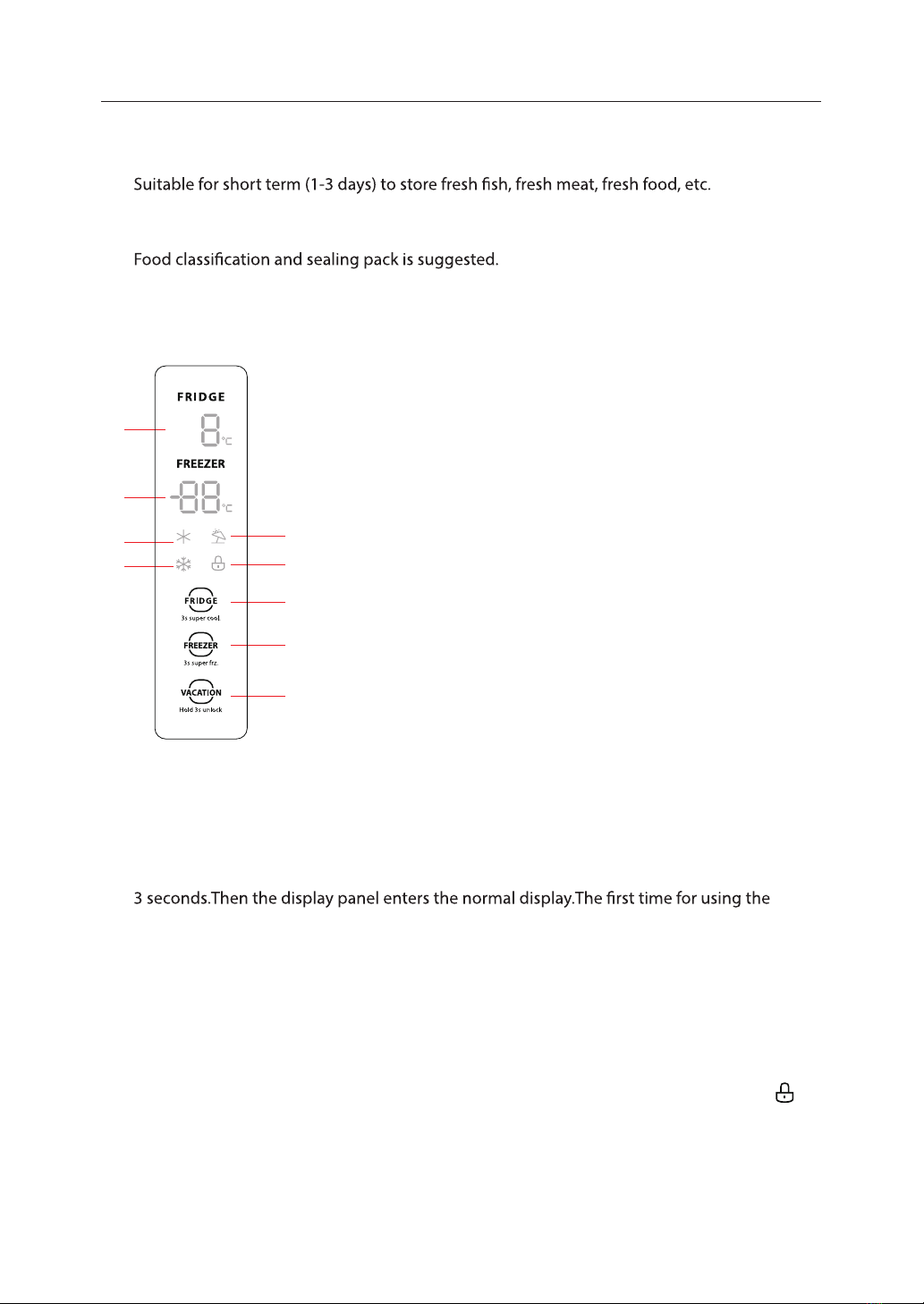

Display screen
1. Refrigerating chamber
temperature display area
2. Freezing chamber
temperature display area
3. Quick cool icon
4. Quick freeze icon
5. Vacation icon
6. Lock icon
Operation button
A. Temperature setting button
of refrigerating chamber
B. Temperature setting button
of freezing chamber
C. Vacation/lock button
(The picture above is only for reference.The actual conguration will depend on the physical
product or statement by the distributor)
Display
• When power on the refrigerator for the 1st time, the whole display panel will shine for
refrigerator,the default set temperatures of refrigerating chamber, freezing chamber is
5° C/-18 °C respectively.
• When the error occurs, the display panel shows the error code (see next page); during
normal running, the display panel shows the set temperature of refrigerating chamber,
freezing chamber.
• Under normal running, if there is no operation or opening door action within 30s, the
display panel will be locked,the light of display panel will go out after the locked state
continued for 30s.
1
2
3
4
5
6
A
B
C

18
Lock /unlock
In the unlock state, long press the lock button for 3 seconds, enter the lock state, the
icon lights up and buzzer sounds, it means the display panel is locked, at this time, button
operation cannot be implemented;
In the lock state, long press the lock button for 3 seconds, enter the unlock state, the
icon goes out and buzzer sounds, it means the display panel is unlocked, at this time, button
operation can be implemented.
Temperature setting of refrigerating chamber
Click the button to change the set temperature of refrigerating chamber, each click of
temperature adjusting button of the refrigerating chamber, the set temperature will be reduced
1° C. The temperature setting range of refrigerating chamber is 2~8 °C. When the set temperature
is 2° C, Click the button again, the set temperature of refrigerating chamber will switch to 8° C.
Temperature setting of freezing chamber
Click the button to change the set temperature of freezing chamber, each click of
temperature adjusting button of the freezing chamber, the set temperature will be reduced 1 °C.
The temperature setting range for freezing chamber is -24~ -16°C. When the temperature is
-24 °C, click the button again, the set temperature of freezing chamber will switch to -16 °C.
Mode setting
Quick cool mode
Long press the button for 3s to set Quick cool mode,The icon lights up. The
refrigerating chamber temperature displays 2 °C, it enters the Quick cool mode.
Under Quick cool mode, press and hold button for 3 seconds or press briey, the
icon goes out, it exits Quick cool mode. The set temperature of refrigerating chamber will
automatically switch back to set temperature before.
In Quick cool mode.When set vacation mode, it exits Quick cool mode.
Quick freeze mode
Long press the button for 3s to set Quick freeze mode,the icon lights up. The
freezing chamber temperature displays -24 °C, it enters the Quick freeze mode.
Under Quick freeze mode, press and hold button for 3 seconds or press briey,
the icon out, it exits Quick freeze mode. The set temperature of freezing chamber will
automatically switch back to set temperature before.
In Quick freeze mode.When set vacation mode, it exits Quick freeze mode.

19
Vacation mode
Click the button to set vacation mode, the icon lights up. The refrigerating
chamber temperature display goes out, the freezing chamber temperature displays -18 °C. Under
vacation mode, click the button again, the icon goes out, it exits vacation mode.
The set temperature of refrigerating chamber and freezing chamber will automatically switch
back to set temperature before vacation mode.
When set Quick cool mode and Quick freeze mode , it exits vacation mode.
Opening warning and alarm control
When open the refrigerator door, the door open music will play. If the door is not closed in two
minutes, the buzzer will sound until the door is closed. Press any one button to stop the buzzer
alarm.
when open the door, the display panel will wake up and internal lamp will light up.

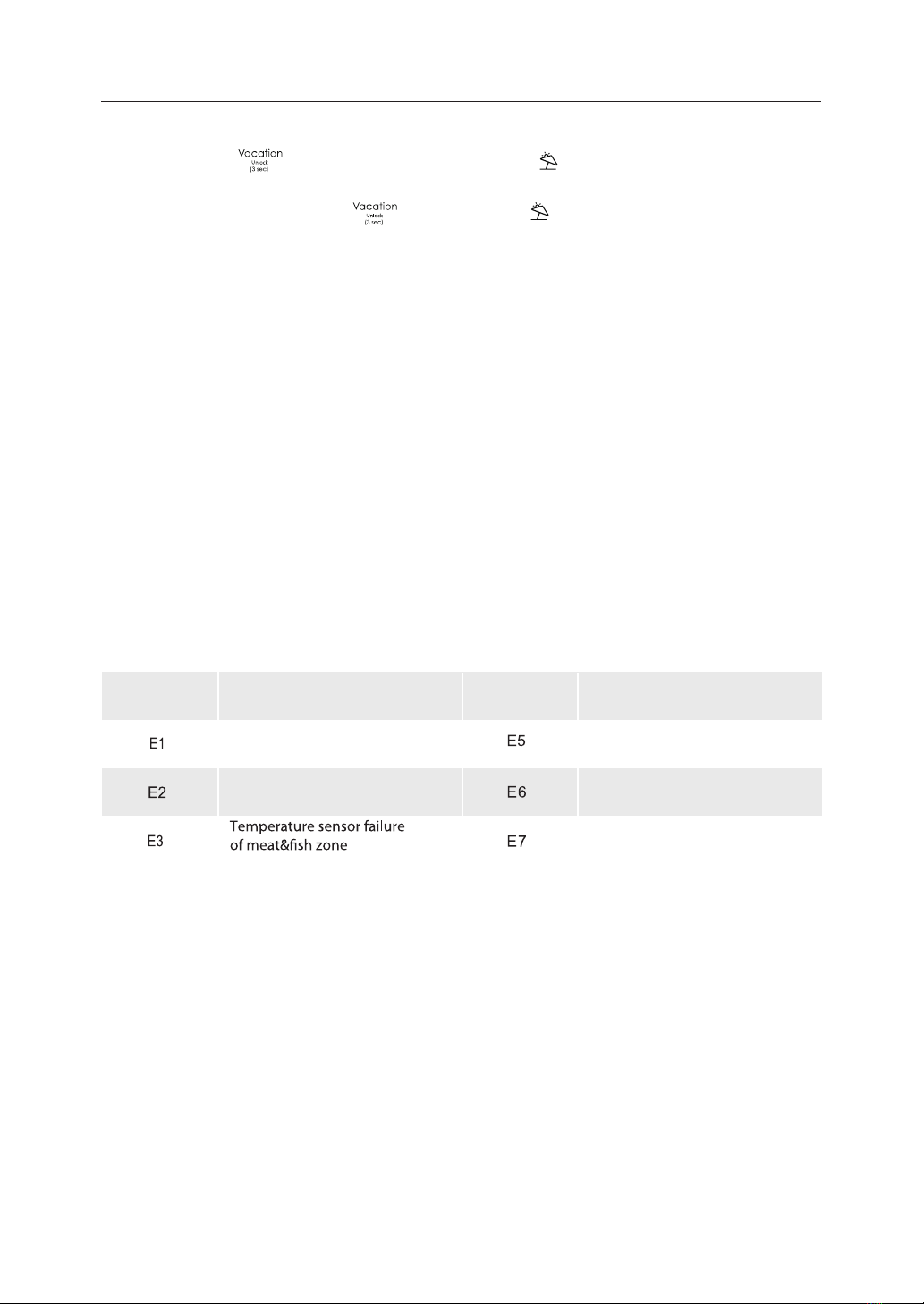

Fault indication
The following warnings appearing on the display indicate corresponding faults of the refrigerator.
Though the refrigerator may still have cold storage function with the following faults, the user
shall contact a maintenance specialist for maintenance, so as to ensure optimized operation of
the appliance.
Fault Code Fault Description Fault Code Fault Description
Temperature sensor failure
of refrigerating chamber
Temperature sensor failure
of freezing chamber
Freezing defrost sensor detection
circuit error
Communication error
Ambient temperature sensor error
