Owner’s Manual
REFRIGERATOR FREEZER
For Home Use Only
型号
Model
GR-B31MU
GR-A28MU / MS
GR-A25MU / MS
GR-B22MP
GR-A28HSZ
GR-A25HSZ
•
•
•
•
•
•Thank you very much for purchasing this TOSHIBA refrigerator.
•Read this Owner’s Manual and become completely familiar with
the refrigerator before use in order to use this product safely and correctly.
•Keep this Owner’s Manual in a handy place for future reference.
•Make sure that you received your warranty.
•This manual is available in other format such as soft copy, please contact TOSHIBA Service Center when you need it.
GR-B22HU
GR-B31SU
GR-A25SU

IMPORTANT SAFETY INFORMATION
Warning
Children should be supervised to ensure that
they do not play with the appliance.
Warning
Warning
Warning
Warning
Warning
Warning
Warning
Warning
This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear
of obstruction.
Do not use mechanical devices or other means
to accelerate the defrosting process, other than
those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the
food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
Do not store explosive substances such as
aerosol cans with a flammable propellant in
this appliance.
When disposing the refrigerator
and
flammable refrigerant
When the LED light is blown
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid
a hazard.
Warning
重要安全信息
本机不适用于身体、感官或精神能力有缺陷，或者缺
乏经验和知识的人士（包括儿童），除非受到对其安
全负责的人员有关使用本机的监督或指导。
请勿在本机中存放含可燃剂的气溶胶罐等易爆物质。
TOSHIBA
LED
如果 LED 照明灯损坏
When positioning the appliance, ensure
the supply cord is not trapped or damaged.
Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the
appliance.
Warning
Warning
安装设备时，请确保电源线没有被夹住或损坏。
请勿在设备后部放置拖板或延长插座。

-3-
SAFETY INSTRUCTIONS
All instructions described should be carefully read
and followed.
•
These instructions are precautions to prevent the risks of serious
injury or death of the user, and any damages to property.
MARKINGS
WARNING WARNING indicates high possibility of
serious injury (*1) or death of the user.
CAUTION CAUTION indicates a high possibility of
injury (*2) or property loss (*3).
,tnemtaertyhtgnel,noitazilatipsohseriuqerhcihwyrujni–yrujnisuoireS)1*(
or blindness, hot and cold skin burn, electric shock, broken bones or
poisoning.
eriuqertonseodhcihwkcohscirtceleronrubniks,yrujni–yrujnI)2*(
hospitalization or lengthy treatment.
slaminacitsemod,erutinruf,sesuohfossoldednetxe–ssolytreporP)3*(
or pets.
SYMBOLS
PROHIBITED!
PROHIBITED! Indicates prohibited actions.
Detailed instructions would be indicated on the
inside of the circle or around the symbol in figures
or in writing.
IMPORTANT
IMPORTANT Indicates mandatory actions.
Detailed instructions would be indicated on the
inside of the circle or around the symbol in figures
or in writing.
CAUTION
CAUTION Recommends to take precautions.
Detailed instructions would be indicated on the
inside of the triangle or around the symbol in figures
or in writing.
WARNING
220 - 240V. 220 - 240V.
Specification: Only connect to main voltage
220 - 240V.
Directly connect to the power socket, and do not use
multiple sockets. This may cause fire and electric
shock.
Prohibited!
The power supply cord or plug should not be
pressed or pinched by any objects in order to
prevent any damages or fraying.
Binding, bending, pressing with heavy objects
or applying pressure with the back panel of the
refrigerator on the cord and plug may cause fire or
electric shock.
Disconnect
plug
Disconnect power supply by unplugging the
power plug in case of malfunction or breakdown.
Continued use of appliance may cause fire, electric
shock, injury or skin burn.
Contact the distributor for service.
Disconnect
cord from plug
Disconnect power supply by unplugging from
the power plug.
Unplugging from the supply cords may damage the
wire insulation, which may cause fire and electric
shock.
•
*1
*2
*3
–
(*1)
(*2)
(*3)
–
–
220 - 240V.
Warning : Risk of fire / flammable material.
This appliance contains flammable refrigerant
R600a : iso-butane
警告：有着火/易燃材料的危险。

WARNING
Disconnect plug
Clean the plug
Clean and remove dust on power plug
periodically.
e.
Do not use
Do not use if the supply cord is damaged or
frayed, or if the power plug has loose connection.
.
Ventilation
Grounding
For safety reason, always ensure grounding to
the unit before use.
.
Avoid water
Do not install in a place where there’s water or
excess moisture.
.
Do not sprinkle
water
Do not sprinkle water to the body or the inside
of the refrigerator.
.
Do not
disassemble
Do not disassemble or attempt to service.
.
Warning
The refrigerator system behind and inside the
refrigerator contains refrigerant. Do not allow
any sharp objects to come into contact with the
refrigeration system.
In case the refrigerant circuit is damaged, do not
use any electric appliances or fire equipment
nearby, and open all windows to provide
good ventilation. Please also contact your local
maintenance agent to follow up.
Do not block the openings on the
circumstances of the refrigerator.
.
Warning
Disconnect the power plug while cleaning.
Children should be supervised to ensure that
the refrigerator should be used properly.
Warning

Prohibited!
Do not hang or stand on the door.
Do not store
Do not store medicines, chemicals or chemical
reagents.
Prohibited!
Do not place any heavy objects or liquid
containers on the refrigerator.
Do not eat
spoilt food
Do not eat any food which has changed color or
gives out strange odor.
The warning labels mentioned above should
be kept throughout the life of the refrigerator.
The user manual should be handed over to any
person who would use or handle the refrigerator
whenever the refrigerator would be transferred
to another location and delivered to a recycling
plant.
Plug in the
power cord
firmly
Connect the plug to power socket firmly
Hold designated
positions
Lift from the bottom of the refrigerator when
moving.
Install on level
surface
Install on a strong and even floor
Warning
WARNING
CAUTION
Move carefully
Please be careful.
.
Warning
Maintenance work shall only be carried out at
workshop by well-trained maintenance worker.
維修工作必須由受過訓練的技師在工場進行。

CAUTION
Use the handle
Use the handle when closing the refrigerator door.
.
Incorrect
(No Good)
Correct
(Good)
Secure
the doors
closed
Secure the door closed
Do not open
the door for
a long period
Do not leave the door opened for a long period of
time and/or do not frequently open and close the
doors in short intervals.
Dispose dew
and frost
Remove water droplets, frost (icing) or dew
attached in the inner compartment.
Do not touch
Do not stick your hands or feet under the
refrigerator.
Do not touch
with wet hands
Do not touch the freezing unit nor ice tray with
wet hands.
.
Do not store
Do not store bottles in the freezing unit.
Prohibited!
Secure
the doors
closed
/
CAUTION :

INSTALLATION
 Installation
Avoid any humid or wet place, for example, the neighborhood
of a kitchen sink. Such a place could cause corrosion or
electric leakage in the refrigerator. If installed directly on the
ground, your refrigerator will be liable to damage. Place a
board under the machine in such a case.
 Keep the refrigerator away from the sunlight, a gas range
or heater.
Placed in the sunlight or near a heat emitting object, the
refrigerator will have its cooling effect reduced and a failure
might be occured.
 Leave space around the refrigerator.
Select a well-ventilated place. Provide at least 30 cm(12 inches)
at top,10 cm(4 inches) at rear side and 5 cm(2 inches) on the
left and right of the refrigerator for proper air circulation.
 When you open the door of the refrigerator, there may be
a smell of plastics. This signifies nothing unusual.
 Switching off your refrigerator when not using.
If you switch your refrigerator off when you are going away
for an extended period, remove all food, clean the interior
thoroughly. Remove the power cord plug from the power
socket and leave all doors open.
at least 5 cm
INFORMATION
•Heat Generation by the Compressor
The refrigerator compressor will generate heat during normal
operation. Note that this is not a malfunction.
•Heat on Refrigerator Walls
The condenser is built on the outer shell and radiates heat
into the room air. The temperature of the outer shell may
reach high temperature during normal refrigerator operation.
This is not a malfunction.
•Refrigerator Operation
When the power is first turned on or ambient temperature
becomes high, it may happen that the refrigerator surface
getting warm or noise from the compressor.
When the refrigerator enters stable state, it will run normally.
Be careful before moving or installation.
If you have moving or installation, maybe impact
around PCB Box at rear side which have a damage
to refrigerator.
-7-
 Installation position for refrigerator.

-
-



5 cm
10 cm
at least 10 cm
30 cm


•
•
•
移动或安装前请小心。
PCB
Up
Down
Leg
30 cm
12 10 cm 4
5 cm 2
适当的空
Install your refrigerator on a strong and level floor. Turn the
adjustable leg and stabilize the refrigerator horizontally.
- Adjustable leg right side can be adjust up and
down.
- Turn adjustable leg clockwise to raise each side
of the refrigerator, or turn counter clockwise
lower it.
at least 30 cm
PCB Box
PCB

CAUTIONS FOR OPERATION
•
•
1
•
2
-
8
•
When moving and transporting
•Firstly, remove the food.
•
Put a piece of big cloth under the refrigerator, and lean the
refrigerator backwards to remove water from drain pan. (as figure 1)
•
When carrying, hold the positions shown as figure 2 .
(Never hold by the door or the handle.)
.gnivomnehwrotaregirferehtfomottobehtmorftfilesaelP-
After disconnecting the plug from the outlet, wait at least
8 minutes before reconnecting it.
•
If the plug is quickly reconnected, the compressor may not run
properly and produce a rattling noise.
2
Big cloth 1
REFRIGERATOR DETAILS AND PARTS
-8-
GR-A28MS, GR-A25MS
As figure for GR-A28MS, GR-A25MS
Twist
GR-B31MU
As figure for GR-B31MU
/
GR-A28MU GR-A25MU GR-A28MS GR-A25MS GR-A28HSZ GR-A25HSZ GR-B31MU GR-B31SU GR-A25SU GR-B22HUGR-B22MP
CONSUMPTION/MODEL
2 / pcs
–
2 / pcs
–
2 / pcs
–
2 / pcs
–
2 / pcs
– –
Small Pocket
制冰器
1/ pcs
Ice Maker
1/ pcs
1/ pcs 1/ pcs 1/ pcs 1/ pcs 1/ pcs
–
Egg Pocket
–
Meat Pan Door
1/ pcs
2 / pcs 1/ pcs 2 / pcs 1/ pcs 2 / pcs 1/ pcs 3/ pcs 1/ pcs
Refrigerator Shelf
2 / pcs 2 / pcs 2 / pcs 2 / pcs 2/ pcs 2/ pcs 2 / pcs
3/ pcs
2 / pcs
1/ pcs 1/ pcs
2 / pcs 2 / pcs2 / pcs
Freezer Door Pocket
GR-B22HU
As figure for GR-B22HU

HOW TO USE YOUR REFRIGERATOR
CORRECTLY AND EFFECTIVELY
How to Make Ice
Self-defrosting
This deodorizing device is built into the cold air passage
(the device cannot be seen from the outside) to
effectively remove unpleasant odors from compartments.
INFORMATION
•通常，将温度控制开关设定到中间位置。
如果觉得冷藏室不够冷，请将开关转向 “MAX” ,如果觉得太冷，
请将开关转向 “MIN” 。
•
MIN
•“MAX”
•
•
Temperature Controls
•For both the Freezer and Refrigerator Compartments
Normally set the temperature control switch tothe Middle position.
If the refrigerator does not seem cold enough, turn the switch
toward “MAX”, if it seems too cold, turn the switch toward “MIN”.
•Food may freeze in the refrigerator compartment
When the ambient temperature decreases excessively such as
to prevent from food freezing. Food that has a high moisture
content (e.g., tofu, vegetables) may freeze when it is placed at
the back of the refrigerator compartment.
•
• Changing the refrigerator compartment temperature control also
varies the temperature in the vegetable crisper.
•Do not obstruct the outlet and inlet of the cool air circulation with
food or containers, otherwise the food will be frozen or will not
be cooled consistently throughout refrigerator.
Middle position
“MIN” position “MAX” position
Middle position
“MIN” position “MAX” position
For the freezer, when storing ice cream, the temperature should be
set between Middle position and "MAX" position.
in the winter, set the temperature control switch to “MIN” position
Deodorizer
•
除臭剂
Fill the Ice Tray with water up to the water level line. If the
water exceeds the water level line, it will freeze over and
becomes hard to remove.
To remove ice, twist the Ice Tray as shown in the figure.
型号
Model 12
Water level line
Water level line
GR-B31MU
GR-A28MU
GR-A25MU
GR-A28HSZ
GR-A25HSZ
GR-B31SU
GR-A25SU
GR-A28MS
GR-A25MS
GR-B22MP
GR-B22HU

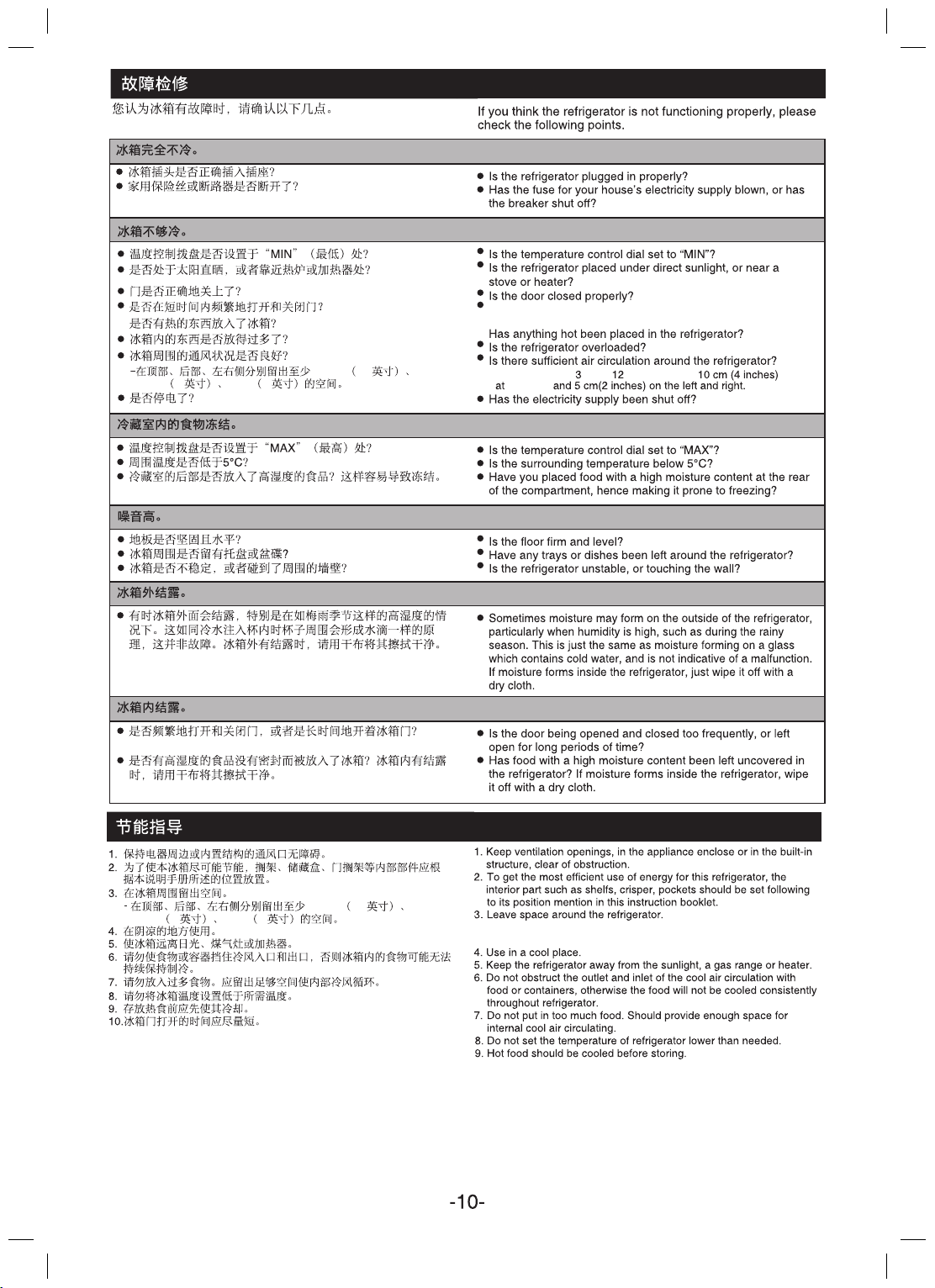

TROUBLESHOOTING
The refrigerator does not get cold at all.
The refrigerator does not get cold enough.
Food in the refrigerator compartment freezes.
The refrigerator makes a loud noise.
Moisture forms on the outside of the refrigerator.
Moisture forms on the inside of the refrigerator.
GUIDANCE FOR ENERGY SAVING
tsaeltaedivorP- 0 cm ( inches) at top,
rear side
30 cm 12
10 cm 4 5 cm 2
30 cm 12
10 cm 4 5 cm 2 - Provide at least 30 cm (12 inches) at top,10 cm (4 inches) at
rear side and 5 cm (2 inches) on the left and right.
Is the door being opened and closed too frequently in short
time ?
.elbissopsayfleirbsaroodrotaregirferruoynepO.01

HOW TO REMOVE ACCESSORY PARTS
PERIODIC MAINTENANCE
ll
Outside Surfaces
Pockets Meat Pan
Vegetable Crisper
Freezer Shelf
Door Packing
Interior Plastic Units
)
Refrigerator Shelf
and Crisper Shelf
pull it out.
until limit wide
until limit wide
,Lightly lift up the shelf then
pull it out.
11
2
2

EMQD-B
