GR-RB449WE-PMJ(06)
GR-RB500WE-PMJ(06)

Owners Manual
REFRIGERATOR FREEZER
For Home Use Only
GR-RB449WE-PMJ(06)
GR-RB500WE-PMJ(06)
・
Thank you very much for purchasing this Toshiba product.
Read this Owner ’s Manual and become completely familiar with the product
before use in order to use this product safely and correctly.
Keep this Owner ’s Manual in a handy place for future reference.
Make sure that you received your warranty.
・
・
・

1 Safety warnings
2 Proper use of the refrigerator
3 Structure and functions
4 Maintenance and care of the refrigerator
1 1 Warning
2 1 Placement
Door ight-left change
4 2 Cleaning the glass shelf
4 3 Defrosting
1-4
6-7
9
10
10-13
15-16
17-20
21
21
14
14
14
8
8
22
22
23
24
CONTENTS

1

2

3

4

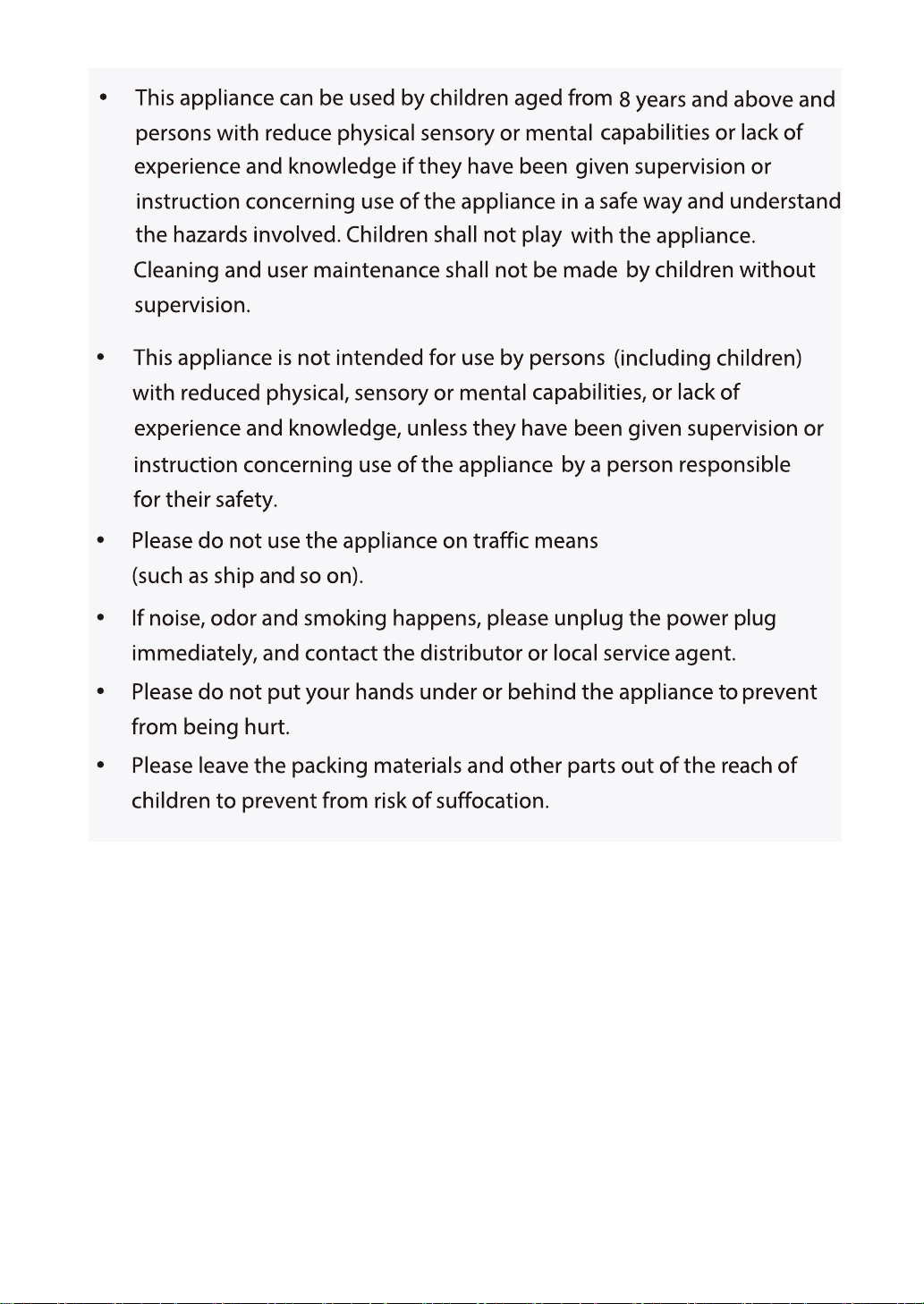

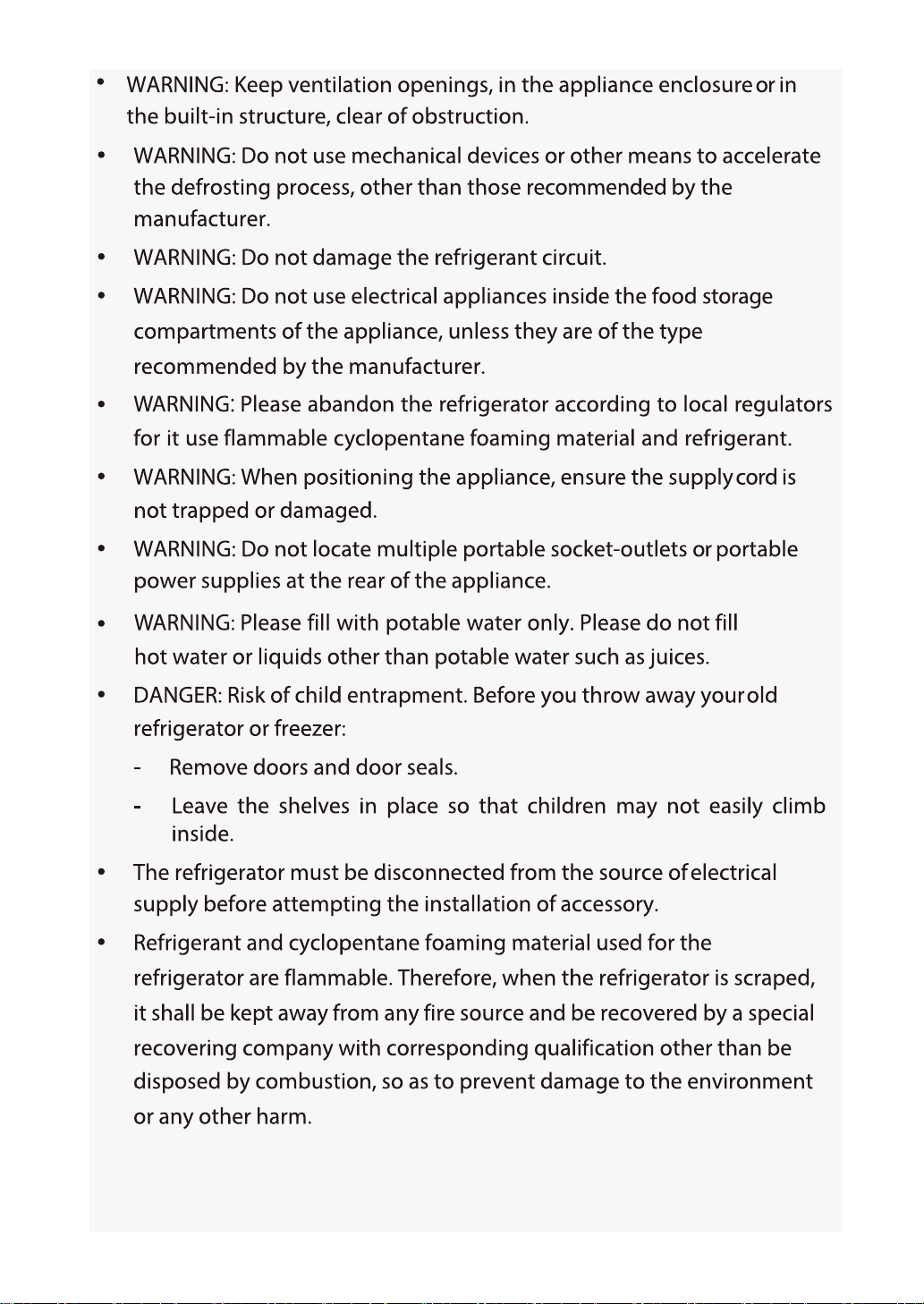

1.2 Meaning of safety warning symbols
Prohibition symbol
This is a prohibition symbol.
Any incompliance with instructions marked with this
symbol may result in damage to the product or
endanger the personal safety of the user.
Mandatory action
symbol
This is a mandatory action symbol.
It is required to operate in strict observance of
instructions marked with this symbol, otherwise
damage to the product or personal injury may be
caused.
Cautioning symbol
This is a cautioning symbol.
Instructions marked with this symbol require special
caution. lnsufcient caution may result in slight or
moderate injury, or damage to the product.
This manual contains lots of important safety information which shall
be observed by the users.
1.3 Electricity related warnings
•Do not pull the power cord when pulling the
power plug of the refrigerator.
rmly grasp the plug and pull out it
from the socket directly.
•To ensure safe use, do not damage the power
cord and do not use the power cord when it is
damaged or worn.
•Please do not touch the power plug with wet
hand to prevent from electric shock.
•Please use a dedicated power socket and the
power socket shall not be shared with other
electrical appliances. The power plug should
be contacted with the socket or else res
might be caused.
5

•Please ensure that the grounding electrode of the
power socket is equipped with a reliable
grounding line.
•Please ask for help from persons with professional
qualication to examine whether the socket is
with reliable grounding line or not.
•It is the users' responsibility to change the
ungrounded socket into grounded socket.
•Please turn of the valve of the leaking gas and
then open the doors and windows in case of
leakage of gas and other ammable gases. Do not
unplug the refrigerator and other electrical
appliances considering that spark may cause a
re.
•Do not use electrical appliances on the top of the
appliance, unless they are of the type
recommended by the manufacturer.
1.4 Warnings for using
•Do not arbitrarily disassemble or reconstruct the
refrigerator, or damage the refrigerant circuit;
maintenance of the appliance must be conducted
by a specialist.
•Damaged power cord must be replaced by the
manufacturer, its maintenance department or
related professionals in order to avoid danger.
•The gaps between refrigerator doors and
between doors and refrigerator body are small, be
noted not to put your hand in these areas to
prevent from squeezing the nger. Please close it
gentle when close the refrigerator door to avoid
falling contents.
6

Do not pick foods or containers with wet hands in
the freezing chamber when the refrigerator is
running, especially metal containers in order to
avoid frostbite.
Do not allow any child to get into or climb the
refrigerator; otherwise su ocation or falling injury
of the child may be caused.
Please do not put heavy or dangerous objects on
top of the appliance. (bottles, tableware, or
something containing liquid)

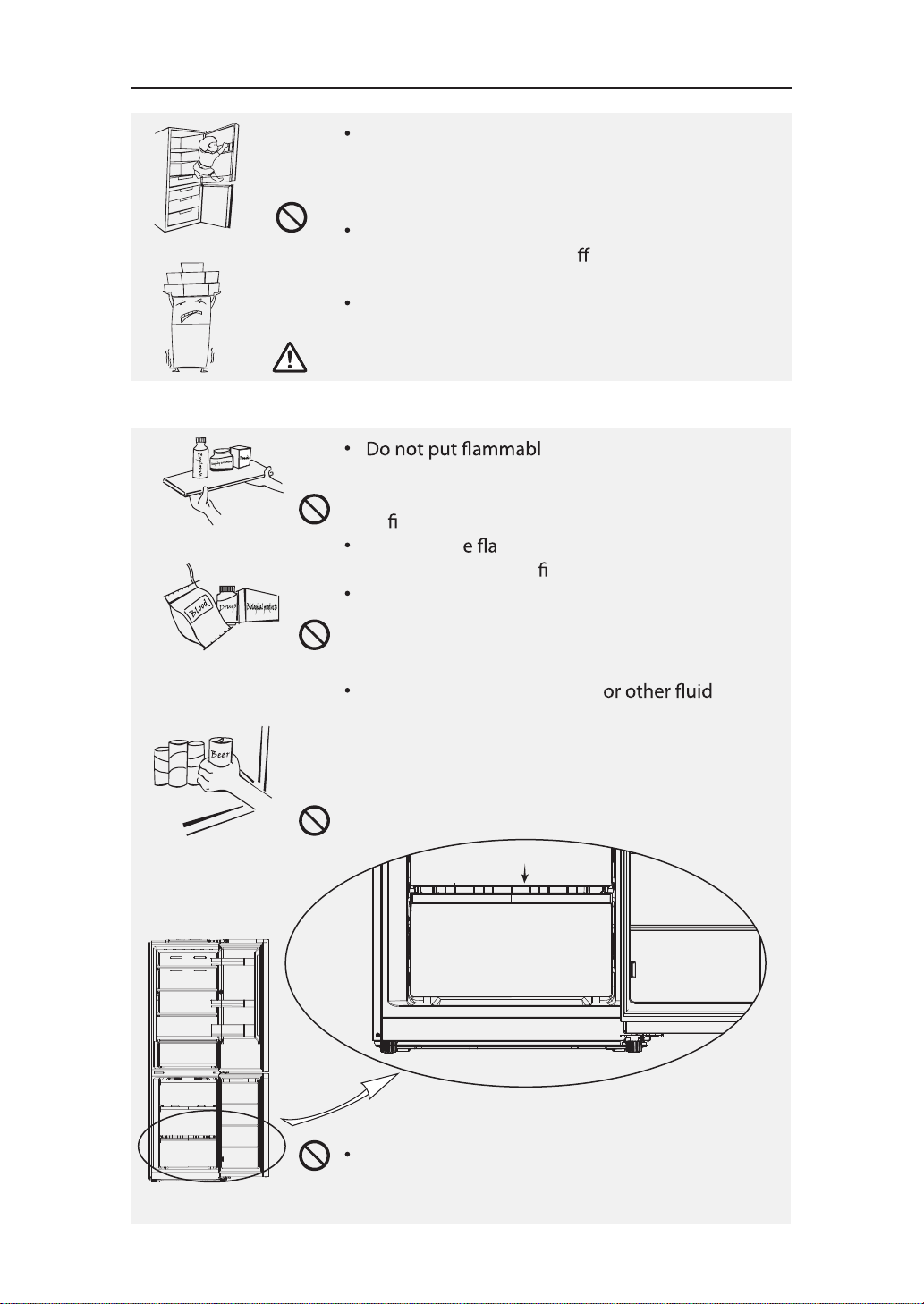

1.5 Warnings for placement
e, explosive, volatile and
highly corrosive items in the refrigerator to
prevent damages to appliances or stored articles
or re accidents.
Do not plac mmable items near the
refrigerator to avoid res.
The refrigerator is intended for household use,
such as storage of foods; it shall not be used for
other purposes, such as storage of blood, drugs or
biological products, etc.
Do not store beer, beverage
contained in bottles or enclosed containers in the
freezing chamber of the refrigerator; or otherwise
the bottles or enclosed containers may crack due
to freezing to cause damage to appliances or
stored articles.
Freezing chamber
7
Do not place foods and etc on Glass board
Glass board

1.6 Warnings for energy
•Refrigerating appliances might not operate consistently (possibility of
defrosting of contents or temperature becoming too warm in the
freezing chamber) when sited for an extended period of time below the
cold end of the range of temperatures for which the refrigerating
appliance is designed.
•Eervescent drinks should not be stored in food freezer compartments
or containers or in low-temperature compartments or containers, and
that should not be consumed too cold.
•Do not exceed the storage time(s) recommended by the food
manufacturers for any kind of food and particularly for commercially
quick-frozen food in food-freezer and frozen-food storage
compartments or containers.
•To prevent an undue rise in the temperature of the frozen food while
defrosting the refrigerating appliance, it should take precautions such
as wrapping the frozen food in several layers of newspaper.
•A rise in temperature of the frozen food during manual defrosting,
maintenance or cleaning could shorten the storage life.
1.7 Warnings for disposal
•Refrigerant and cyclopentane foaming material used for
the refrigerator are ammable. Therefore, when the
refrigerator is scrapped, it shall be kept away from any re
source and be recovered by a special recovering company
with corresponding qualication other than be disposed
by combustion, so as to prevent damage to the
environment or any other harm.
•When the refrigerator is scrapped, disassemble the doors,
and remove the seal; leave the shelves in a proper place,
so as to prevent trapping of any child.
8

2. Proper use of the refrigerator

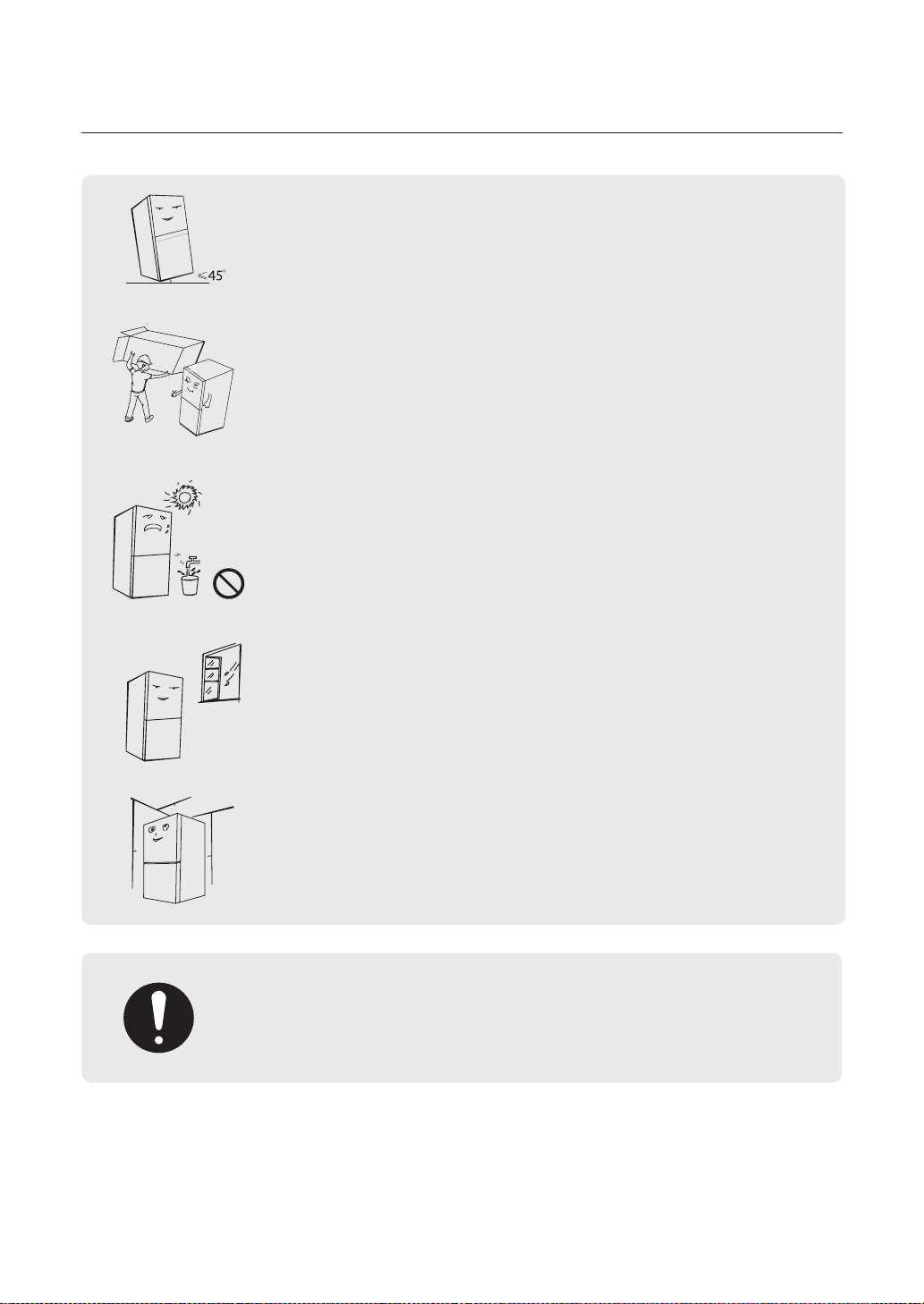

2.1 Placement
Before initial start, keep the refrigerator still for two hour before
connecting it to power supply.
・
Before the refrigerator is moved, take all objects inside out, fix the
glass shelves, freezing chamber drawers and etc. with tape, and
tighten the leveling feet; close the doors and seal them with tape.
During moving, the appliance shall not be laid upside down or
horizontally, or be vibrated; the inclination during movement
shall be no more than 45°.
・
Before use, remove all packing materials, including bottom
cushions, foam pads and tapes inside of the refrigerator; tear of
the protective film on the doors and the refrigerator body. Keep
away from heat and avoid direct sunlight. Do not place the
appliances in moist or watery places to prevent rust or reduction
of insulating effect.
・
Do not spray of liquid and etc. or wash the refrigerator; do not
put the refrigerator in moist places easy to be splashed with
water so as not to affect the electrical insulation properties of the
refrigerator.
・

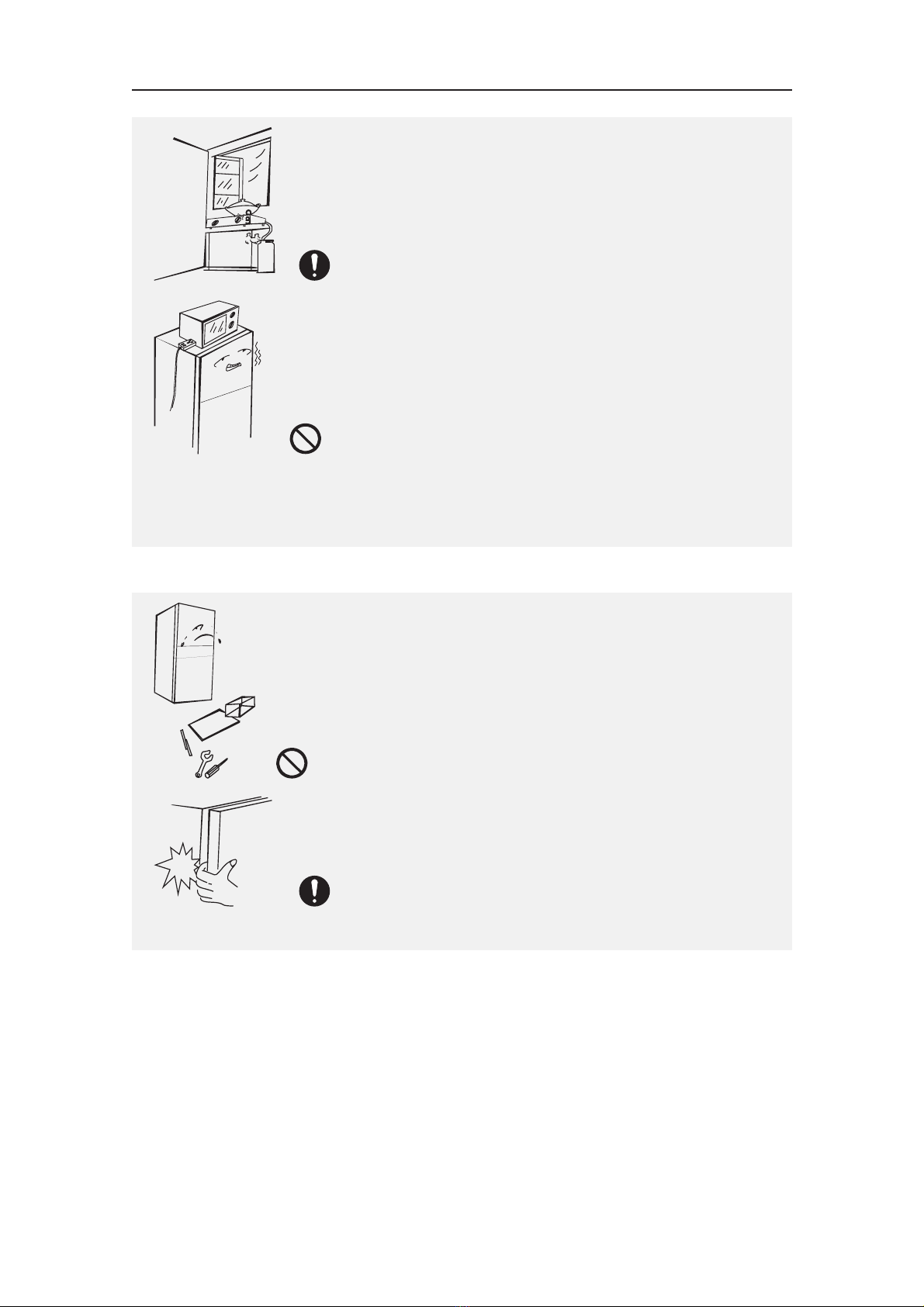

The refrigerator should placed in a well-ventilated indoor place;
the ground shall be fat, and sturdy (rotate left or right to adjust
the leveling feet for leveling if unstable).
・
The top space of the refrigerator shall be greater than 30cm, and
the refrigerator should be placed against a wall with a free
distance more than 10cm to facilitate heat dissipation.
・

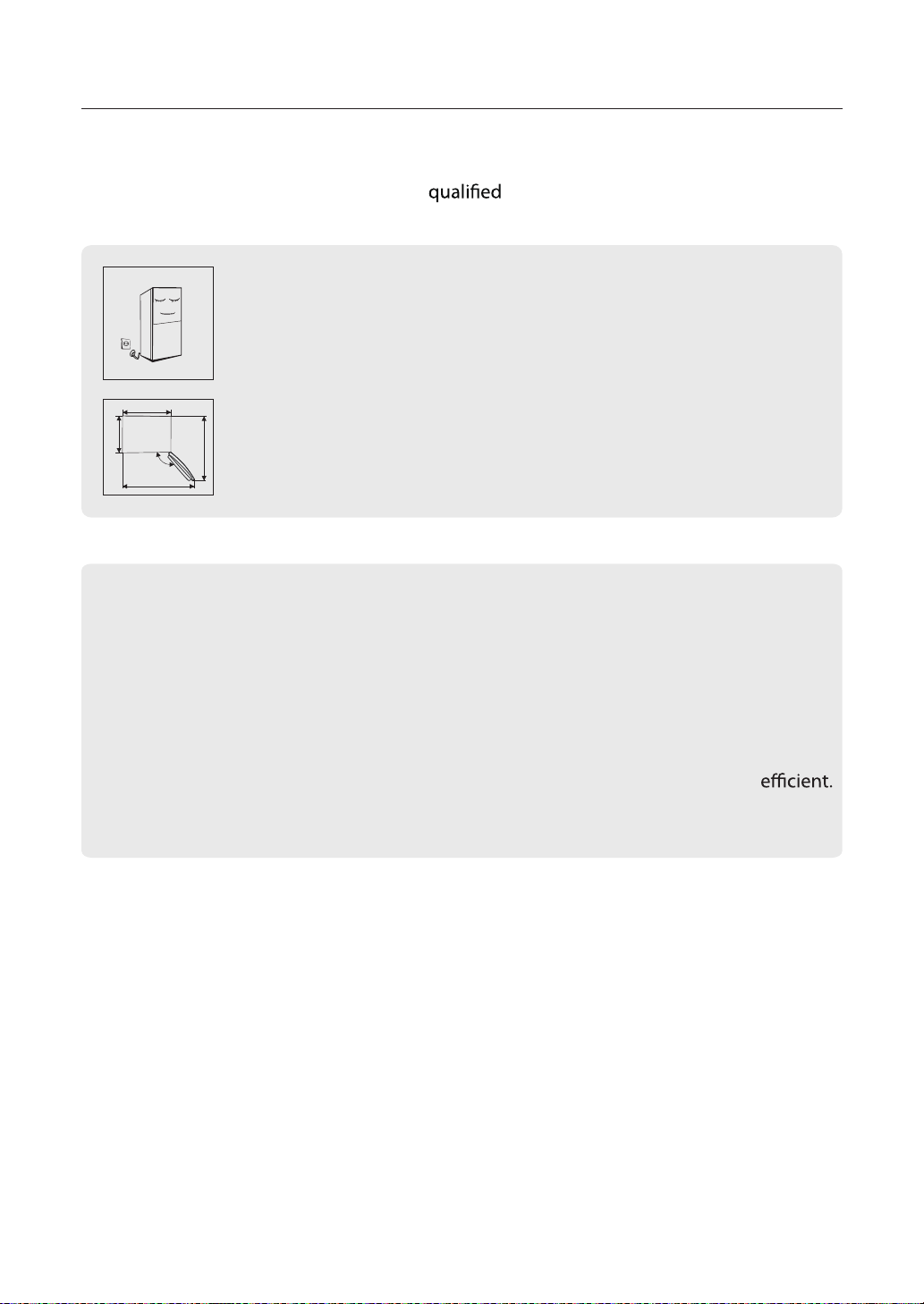

Precautions before installation:
Before installation or adjusting of accessories, it shall be ensured that
the refrigerator is disconnected from power. Precautions shall be taken
to prevent fall of the handle from causing any personal injury.
30cm
10cm
10cm
9

2.2 Leveling feet
Schematic dia gram of the leveling feet
(The picture above is only for reference. The actual configuration
will depend on the physical product or statement by the distributor)
Adjusting procedures:
a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a
horizontal level.
2.3 Door right-left change
List of tools to be provided by the user
Philips screwdriver
(Use to remove and fasten
Philips screw)
5/16" socket and ratchet
(Use to remove and fasten
hex screws)
Putty knife
thin-blade screwdriver
(Use to remove hole cap,
upper hinge cover)
Tape
(Use to temporary fix door)
1) Please power off this appliance,
before conduct this operation.
Remove all food from the inner
door liner.
Tape the door shut with masking tape.
H
L
10

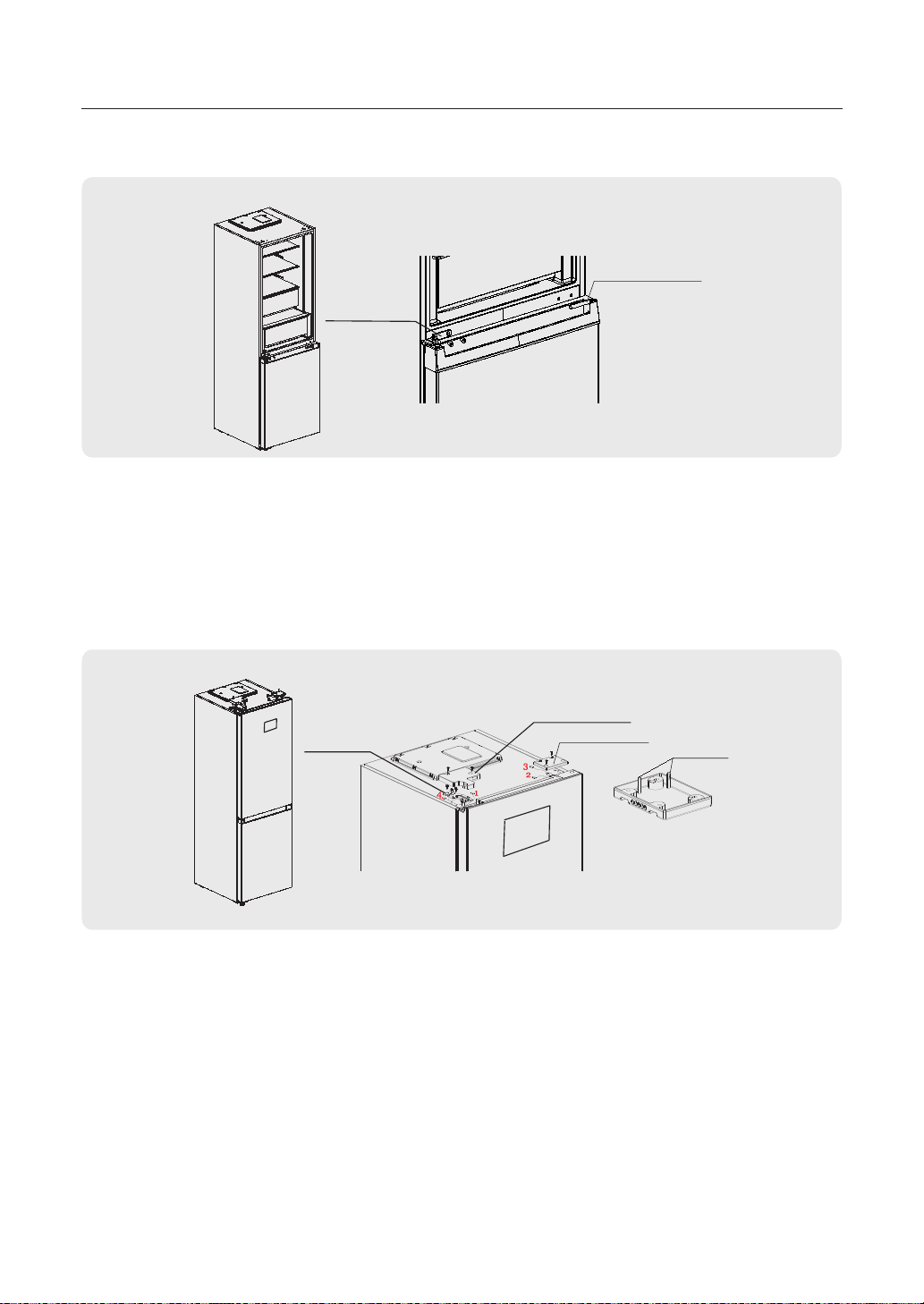

2. Remove the upper left hinge cover decorative cover, upper right hinge cover and
upper right hinge, and disconnect the right signal line (signal line terminal 1, 2) at
the top of the box body
3. Remove the refrigerated door body (be careful not to lose small parts such as the
shaft sleeve and stop on the door);
Remove the middle hinge and remove the decorative cover of hinge hole on the
other side.
4. Remove the freezing door body (be careful not to lose small parts such as the shaft
sleeve and stop on the door);
Remove the hinge and adjust the angle. Remove and install the lower hinge shaft to
the other side of the hinge, and install the modified lower hinge to the other side of
the box.
Middle hinge
Decorative cover
The angle
Lower hinge
1
2
3
4
1
2
Upper hinge
Upper hinge cover
Decorative cover
11

5. Change the refrigerator door:
1) Remove the cover plate of the upper end cover of the refrigeration door and the
left decorative cover. Install the upper shaft sleeve and the signal line of the door
body to the other side and cover the upper end cover plate. Take out the right
decorative cover from the accessory bag and install it to the other side of the upper
end cover.
2) Remove the door self-locking, door stop and shaft sleeve of the refrigeration door,
take out the left door self-locking from the accessory bag, install it on the left side of
the lower end cover of the refrigeration door, change the door stop and shaft sleeve
to the left side of the lower end cover of the refrigeration door.
6. Change the freezing door:
1) Remove the shaft sleeve and cap of the upper end cover of the freezing door and
install them at the left and right swap positions.
2) Remove the door self-locking, door stop and shaft sleeve of the freezing door, take
out the left door self-locking from the accessory bag, install it on the left side of the
lower end cover of the freezing door, change the door stop and shaft sleeve to the
left side of the lower end cover of the freezing door.
12

7. Install the replaced freezing door on the lower hinge, then install the
middle hinge and cover the hinge hole decorative cover.
8. Remove the upper left hinge cover and upper left hinge from the accessory bag.
Place the refrigerated door body on the middle hinge and install the upper left hinge.
Connect the refrigerator top signal line 4 to the door body signal line 1, and connect
the signal line 2 to the signal line 3.
Finally, replace the hinge decorative cover to the right side of the box body (note:
when replacing the hinge decorative cover to the right side of the box body, the two
inserts on the hinge decorative cover (as shown in the figure) shall be cut off ).
Decorative cover
Middle hinge
Decorative cover
Upper hinge cover
Upper hinge Inserts
13

2.4 Changing the Light
Any replacement or maintenance of the LED lamps is intended to be made by the
manufacture, its service agent or similar person.
2.5 Starting
920mm
595mm
1150mm
590mm
125°
Before initial start, keep the refrigerator still for two hours before
connecting it to power supply.
Before putting any fresh or frozen foods, the refrigerator shall have run
for 2-3 hours, or for above 4 hours in summer when the ambient
temperature is high.
・
・
Spare enough space for convenient opening of the doors and
drawers or spare statement by the distributor.
・
2.6 Energy saving tips
The appliance should be located in the coolest area of the room, away from heat
producing appliances or heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading
the appliance forces the compressor to run longer. Foods that freeze too slowly may
lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the
appliance. This cuts down on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper
toweling. Liners interfere with cold air circulation, making the appliance less
Organize and label food to reduce door openings and extended searches. Remove as
many items as needed at one time, and close the door as soon as possible.
・
・
・
・
・
14

3. Structure and functions
3.1 Key components
(The picture above is only for reference. The actual c ration
will depend on the physical product or statement by the distributor)
Drawers, food boxes, shelves, etc. placed according to the position in the picture
above are the most energy nt.
15
Shelf
Shelf
Meat h box
Drawer
Door tra
Glass board
(Do not place foods
and etc on Glass board.)
y
LED light
LED light
(for some models)
(for some models)
Door switch
Fruits &
vegetables box

Refrigerating chamber
The Refrigerating chamber is suitable for storage of a variety of fruits, vegetables,
beverages and other food consumed in the short term. suggested storage time 3days
to 5days.
Cooking foods shall not be put in the refrigerating chamber until cooled to room
temperature.
Foods are recommended to be sealed up before putting into the refrigerator.
The glass shelves can be adjusted up or down for a reasonable amount of storage
space and easy use.
・
・
・
・
Freezing chamber
The freezing chamber may keep food fresh for a long time and it is mainly used to store
frozen foods and making ice.
The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not
to be consumed in short term.
Chunks of meat are recommended to be divided into small pieces for easy access.
Please be noted food shall be consumed within the shelf time.
・
・
・
・
16
