SERVICE MANUAL
Color Television
34JH9UH
FILE NO. 070-200427
Sep. 2004 (YC/D)

- 2 -
TABLE OF CONTENTS
CHAPTER 1 GENERAL ADJUSTMENTS
SAFETY INSTRUCTIONS ........................................................................................................................................ 3
SET-UP ADJUSTMENT ............................................................................................................................................ 4
SERVICE MODE ...................................................................................................................................................... 6
DESIGN MODE ........................................................................................................................................................ 9
ELECTRICAL ADJUSTMENTS .............................................................................................................................. 10
CIRCUIT CHECK .................................................................................................................................................... 17
CHAPTER 2 SPECIFIC INFORMATIONS
SETTING & ADJUSTING DATA .............................................................................................................................. 18

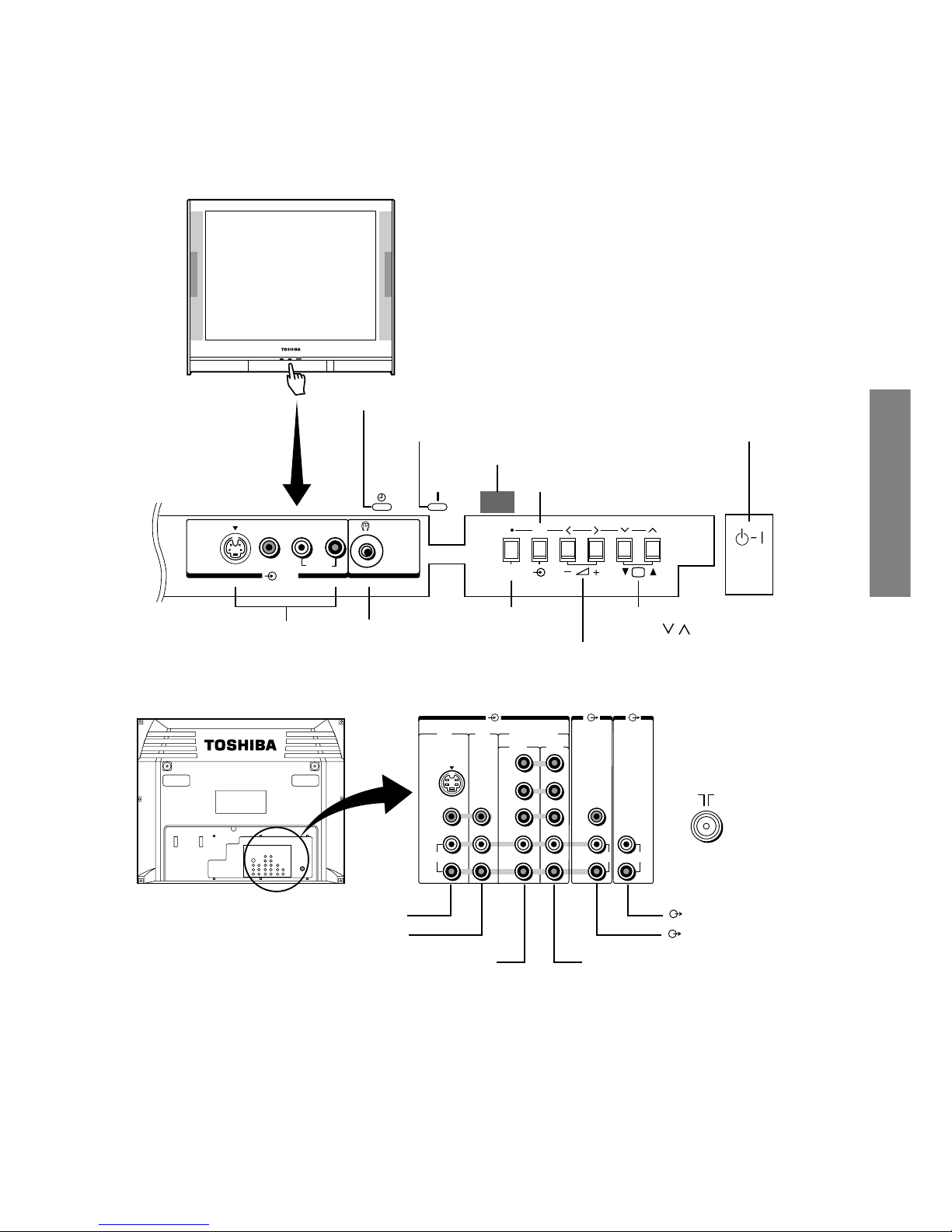

LOCATION OF CONTROLS ................................................................................................................................... 19
PROGRAMMING CHANNEL MEMORY ................................................................................................................. 21
CHASSIS AND REPLACEMENT PARTS LIST ...................................................................................................... 23
PC BOARDS TOP & BOTTOM VIEW ............................................................................................. ....................... 41
TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 55
CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 58
SPECIFICATIONS .............................................................................................................................................. END
APPENDIX:
CIRCUIT DIAGRAM

- 3 -
GENERAL ADJUSTMENTS
CHAPTER 1 GENERAL ADJUSTMENTS
SAFETY INSTRUCTIONS
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-
TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.
X-RAY RADIATION PRECAUTION
1. Excessive high voltage can produce potentially hazardous
X-RAY RADIATION. To avoid such hazards, the high volt-
age must not be above the specified limit. The nominal value
of the high voltage of this receiver is (A) kV at zero beam
current (minimum brightness) under a (C) V AC power source.
The high voltage must not, under any circumstances, ex-
ceed (B) kV.
Refer to table-1 for high voltage (A), (B) & AC voltage (C).
(See SETTING & ADJUSTING DATA on page 18)
Each time a receiver requires servicing, the high voltage
should be checked following the HIGH VOLTAGE CHECK
procedure in this manual. It is recommended that the read-
ing of the high voltage be recorded as a part of the service
record. It is important to use an accurate and reliable high
voltage meter.
2. The only source of X-RAY RADIATION in this TV receiver
is the picture tube. For continued X-RAY RADIATION pro-
tection, the replacement tube must be exactly the same
type tube as specified in the parts list.
3. Some part in this receiver have special safety-related char-
acteristics for X-RAY RADIATION protection. For contin-
ued safety, parts replacement should be undertaken only
after referring to the PRODUCT SAFETY NOTICE below.
SAFETY PRECAUTION
WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver.The following
are the necessary precautions to be observed before servicing this chassis.
1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is
performed on the receiver.
2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube
is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube
away from the unprotected body while handling.
3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; non-
metallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are
often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using
replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety char-
acteristics are identified in this manual and its supplements; electrical components having such features are identified by
the international hazard symbols on the schematic diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement
parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray
radiation or other hazards.

- 4 -
GENERAL ADJUSTMENTS
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-
TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF SERVICE MANUAL.
SET-UP ADJUSTMENT
■The following adjustments should be made when a complete realignment is required or a new picture tube is installed.
Perform the adjustments in order as follows :
1. Color Purity
2. Convergence
3. White Balance
Note: The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.
Refer to figure 1.
COLOR PURITY ADUSTMENT
(1) Let the screen face in the installing direction or toward the east (when it is to be moved), bring up the service mode
screen after demagnetizing (front, left, right, and top) with the degaussing coil, receive white signals by pressing the
[TV/VIDEO] button, and then the receiver should be operated for more than 40 minutes.
(2) Perform rough adjustment of the central convergence with the P/C magnet according to the adjustment item.
(3) Receive built-in green signals, loosen set screws on the deflection yoke, remove rubber wedges, and shift the deflec-
tion yoke to toward front.
(4) Move alternately the two 2-pole magnets of the P/C magnets so that the green raster can come to the center of the
screen.

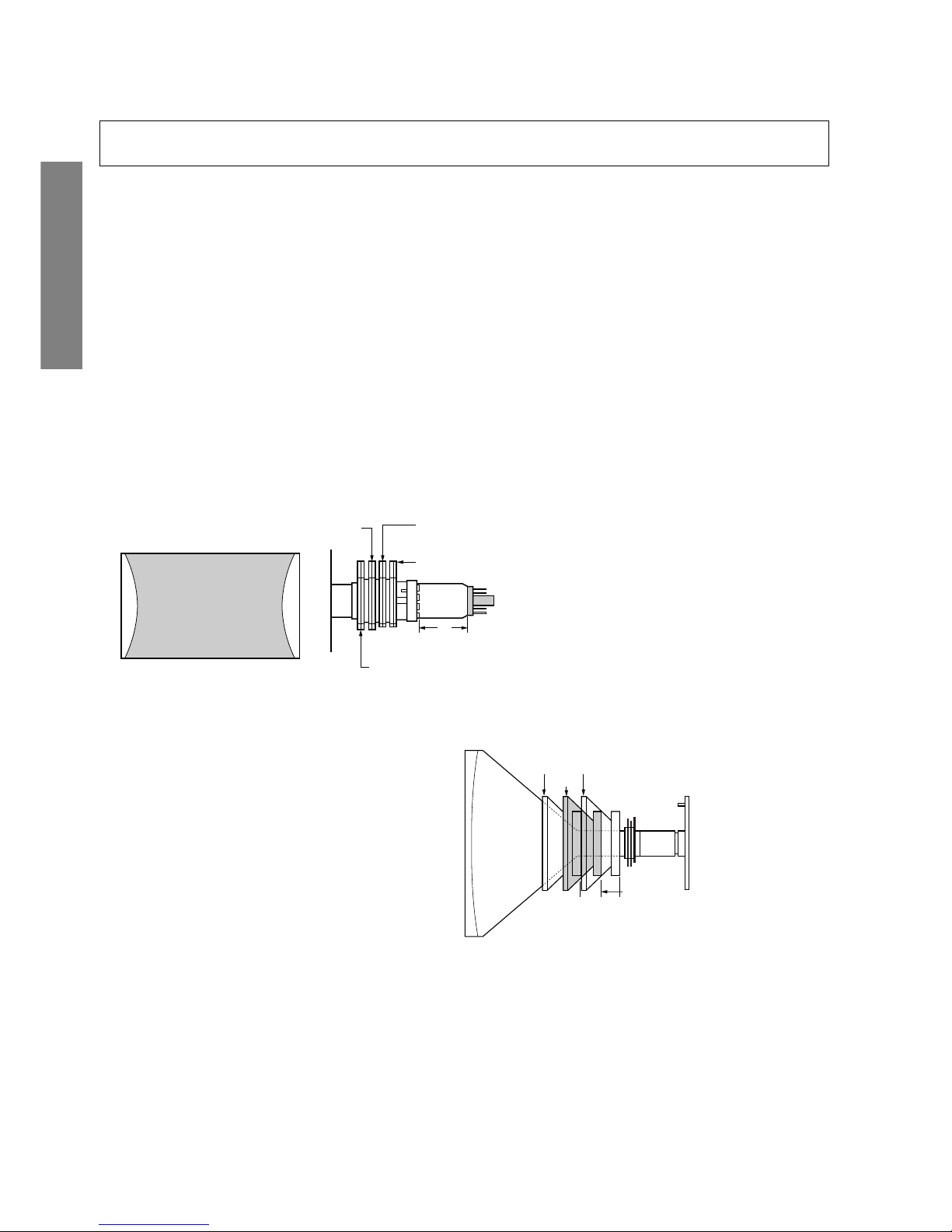

Figure 1.
(5) Receive built-in red and blue signals, check that there is no inclination of the single color raster toward one side, and if
each color tilts to a great extent, make adjustment with the 2-pole magnet so that the 3 colors will come to the center
evenly.
(6) Receive the green raster, shift the deflection yoke from
a foremost position (hitting against the picture tube) to a
backward position horizontally, stop the deflection yoke
at a position where it begins to become a green raster,
and perform accurate marking on the picture tube.
(7) Shift the deflection yoke further backward, and perform
accurate marking at a position where the green raster
begins to being luck.
(8) Fix the deflection yoke at a position 60% forward within
the range marked in items (6) and (7) above.
CONVERGENCE ADJUSTMENTS
* Adjust the convergence magnet to get vest convergence in the the order to (1) ~ (5).
■ CENTER CONVERGENCE:
(1) Receive the white crosshatch or dot pattern from the service signal generator.
(2) Use the 2 pieces of main 4-pole magnets of P/C magnets, change the open angle, and align the red and blue vertical
lines on the screen center.
(3) Freeze the open angle of the main 4-pole magnets, turn them simultaneously, and align the horizontal lines.
(4) Take the same steps for items (2) and (3) above and align red/blue with green on the screen center using two 6-pole
magnets.
A
P/C magnet installing position A
MAG-1108 : 37 mm
MAG-1113 : 39 mm
Green Belt
2-pole purity magnet
(27": Magnet is fixed with deflection yoke.)
6-pole convergence magnet
Sub-4-pole convergence magnet
Main 4-pole convergence magnet
Fix the deflection yoke at a position 60% forward from a
point between (6) and (7)
Picture tube
Shift deflection yoke
(6)
(8)
(7) Perform marking of each point
on the tape of picture tube
CRT-D board
P/C Mag
100 60 0%

- 5 -
GENERAL ADJUSTMENTS
(5)Adjust the sub-4-pole magnets only in case there is any deviation of Xv bow-shaped convergence. (To be usually set at
the initial position)
Align both sides with the sub-4-pole magnets and minimize the deviation of blue and red with the main 4-pole magnets.
blue
blue
red
red
Main 4-pole magnet
red/blue
red/blue
green
green
6-pole magnet
Xv bow-shaped deviation of convergence
blue
red
Sub-4-pole magnet

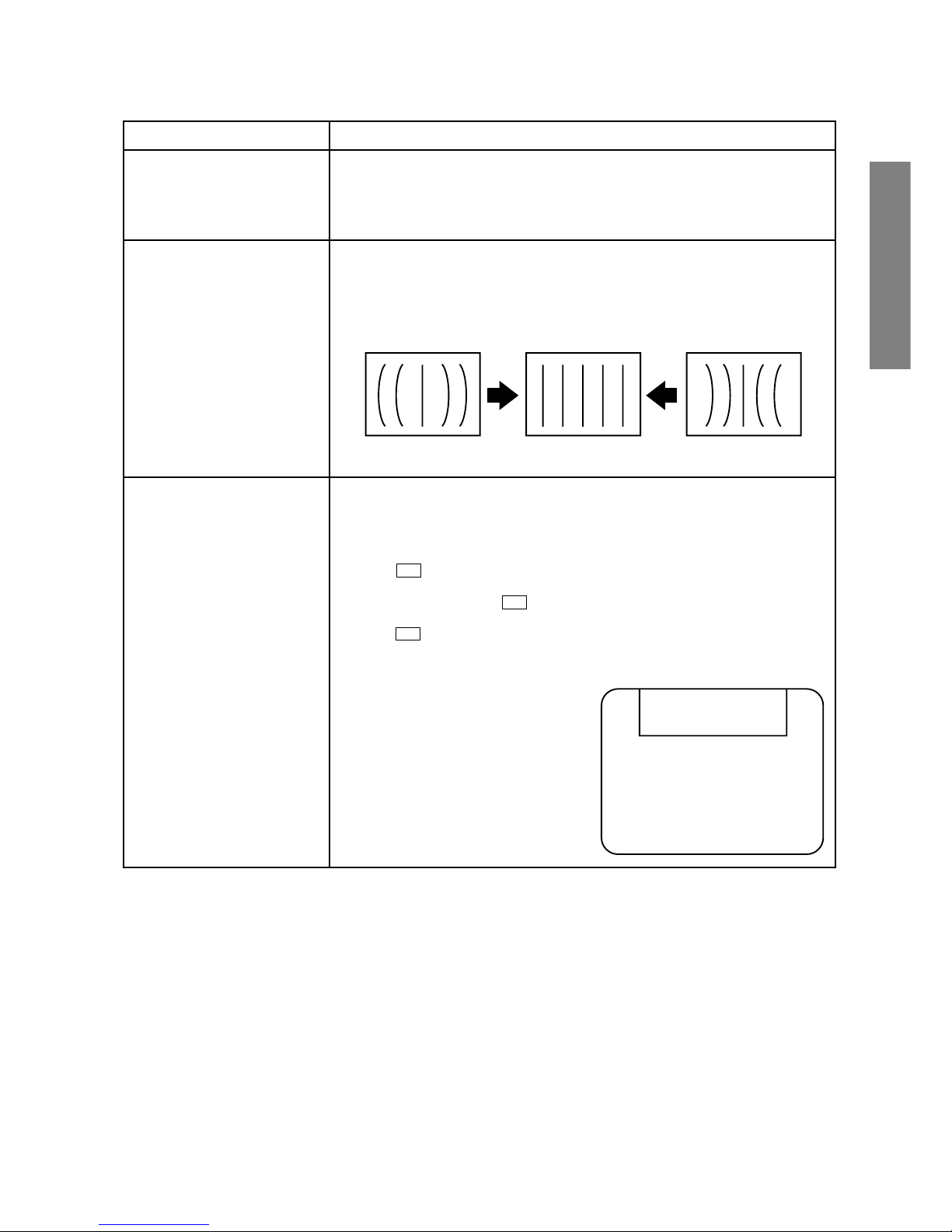

■CIRCUMFERENCE CONVERGENCE:
*Perform correction in the following manner.
A
D
E
F
A
B
C
B
C
S
N
D
E
F
A
B
C
D
E
F
N
S
YV YHC
GH
GH
blue
green
red
• Adjust coils and minimize deviation
(The 27” unit has coils underneath it)
blue
green
red
(Parts code:23 948 274) TC-S
Blue color or blue mark
*Insert the correction piece between the
picture tube and the deflection yoke.
Bonded surface
blue
green
red
(Parts code:23 948 464)
Transparent
Bonded surface
Red green blue Red
green
blue
Adjust (YHC) and minimize the deviation of YH.
Red
green
blue Red green blue
Adjust (YV) and minimize the deviation of YV.
Red
blue
green
Red
blue
green
Red
blue
green
Red
blue
green
Red
blue
green
blue
red
green
Red
blue
green
blue
red
green
Perform correction by insert-
ing the correction piece into
the clearance of terminal
board coils of the deflection
yoke.
Note:
Perform insertion by turning
the metal side to the terminal
board side of the deflection
yoke.
(Insertion position of correction
piece)

- 6 -
GENERAL ADJUSTMENTS

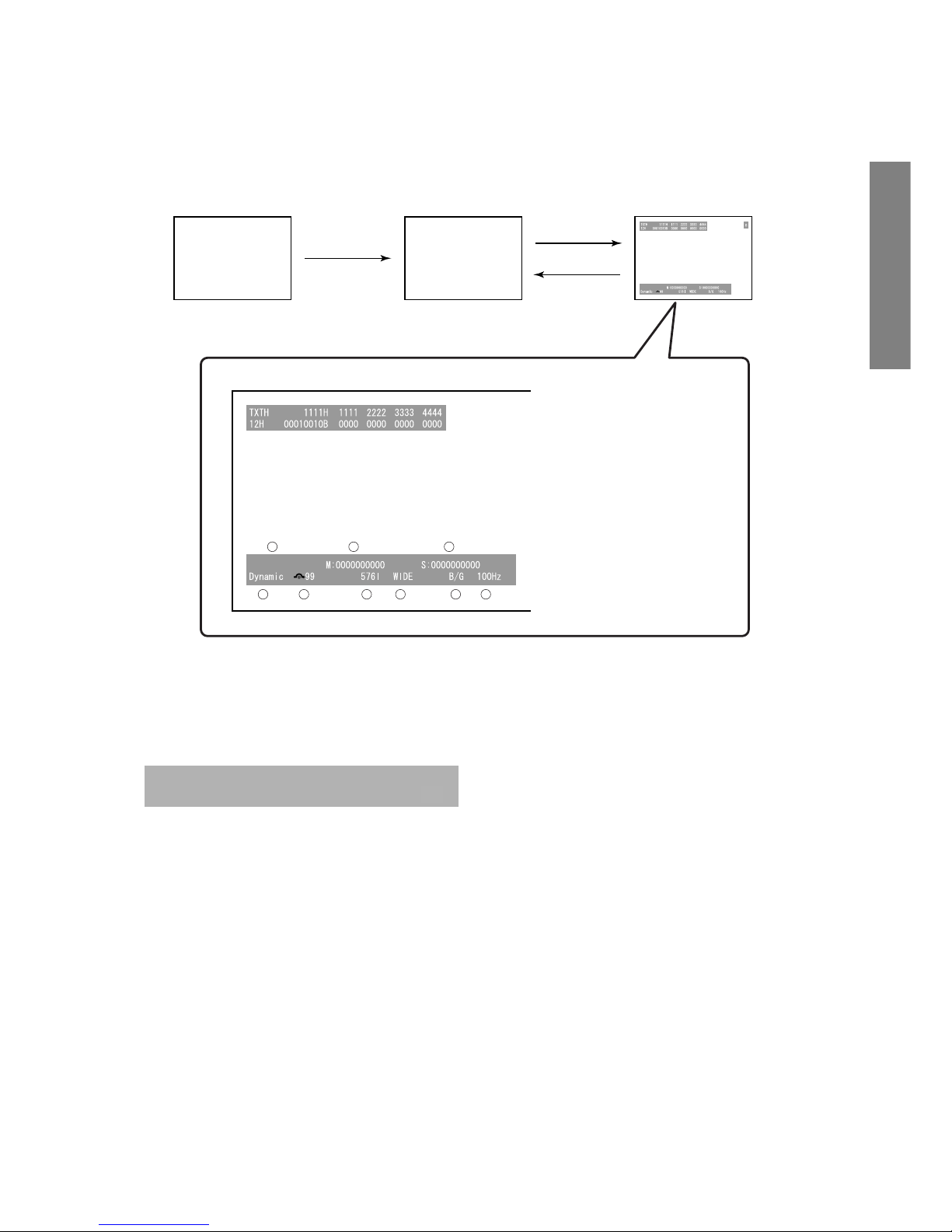

SERVICE MODE

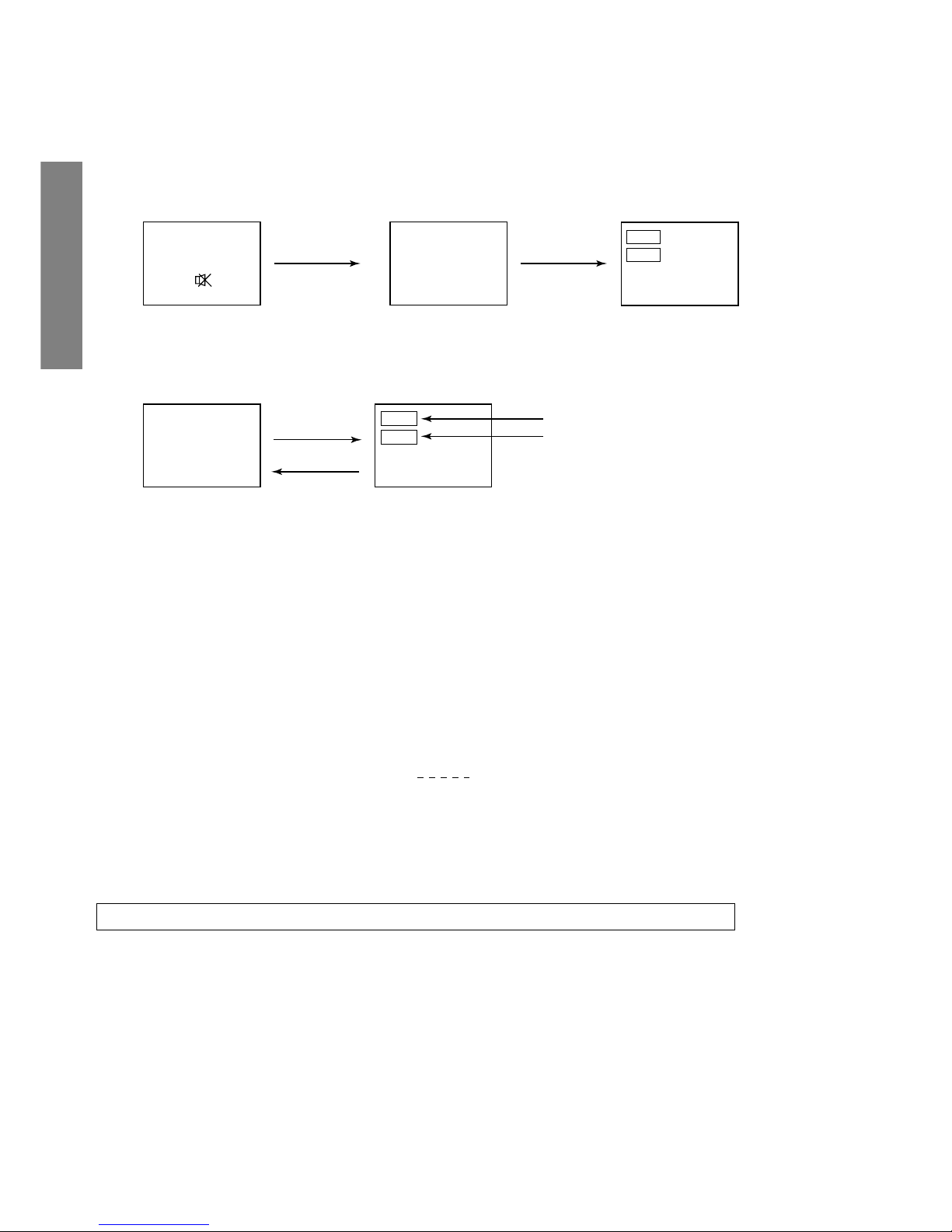

1. ENTERING TO SERVICE MODE
S
(Service mode display)
Item
Data
or Sound Mute
3) While pressing the obutton,
press MENU button on TV set.
2) Press obutton again to
keep pressing.
2. DISPLAYING THE ADJUSTMENT MENU
1) Press MENU button on TV.

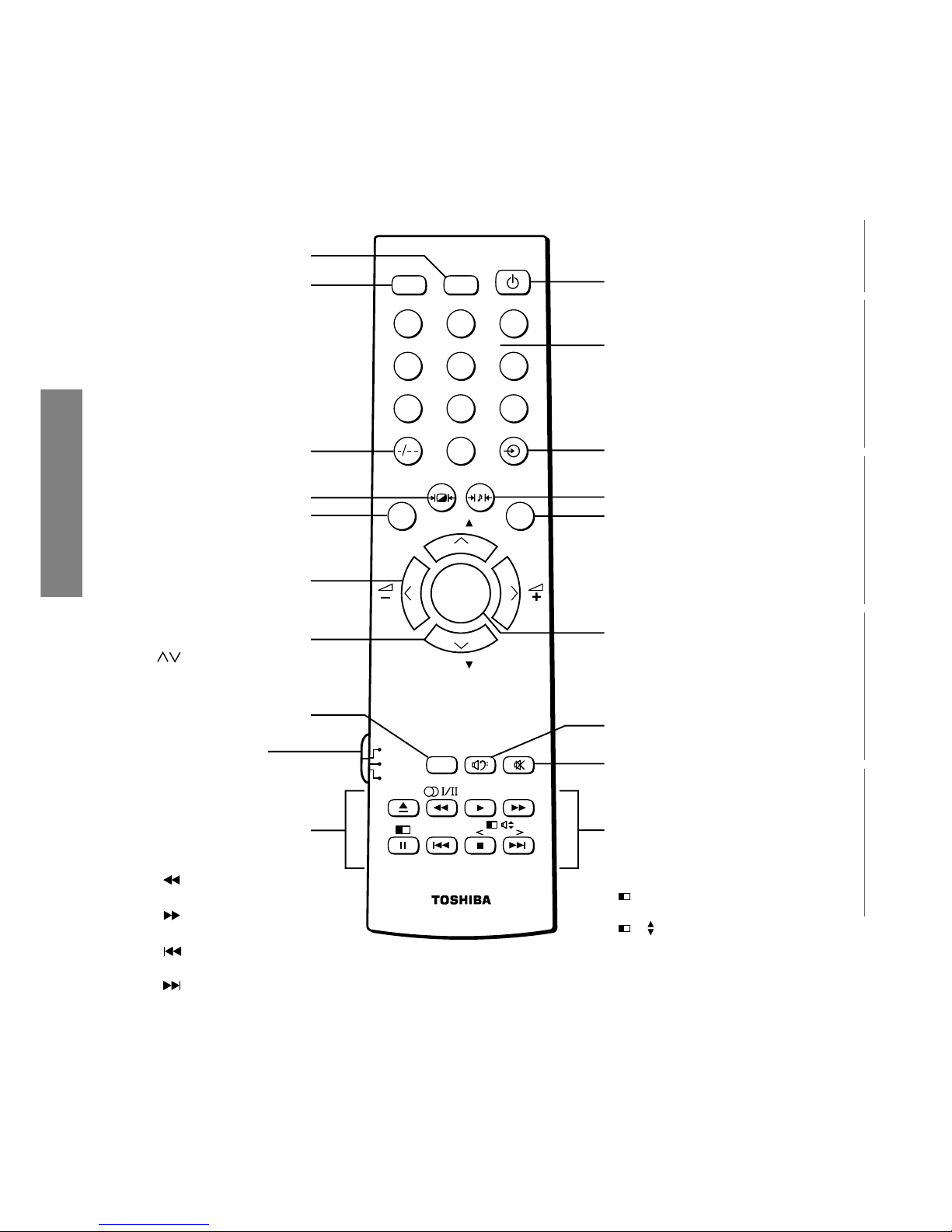

3. KEY FUNCTION IN THE SERVICE MODE
The following key entry during display of adjustment menu provides special functions.
Screen adjustment mode ON/OFF: -/-- button (on Remote)
Test signal selection : abutton (on Remote)
Selection of the adjustment items : Channel s/t(on TV or Remote)
Change of the data value : Volume ;+/– (on TV or Remote)
Adjustment menu mode ON/OFF : MENU button (on TV)
Initialization of the memory (QA02) : CALL + Channel button on TV (s)
Reset the count of operating protect
circuit to “00”: CALL + Channel button on TV (t)
“RCUT” selection : 1 button
“GCUT” selection : 2 button
“BCUT” selection : 3 button
“SCNT” selection : 4 button
“COLP” selection : 5 button
“TNTC” selection : 6 button
Convergence adj : YELLOW button
Self diagnostic display ON/OFF : 9 button
1) Press obutton once on
Remote Control.
Adjustment mode
Press
Press
Service mode
Item
Data
S
Color thickness correction
note: Displayed differently as shown below, de-
pending on the setting of the receiving color
system.
COLP (PAL)
COLC (NTSC)
COLS (SECAM)
CAUTION : Never try to perform initialization unless you have changed the memory IC.

- 7 -
GENERAL ADJUSTMENTS
4. SELECTING THE ADJUSTING ITEMS
1)Every pressing of CHANNEL sbutton in the service mode changes the adjustment items in the order of table-2.
(tbutton for reverse order)
Refer to table-2 for preset data of adjustment mode.
(See SETTING & ADJUSTING DATA on page 27)
5. ADJUSTING THE DATA
1) Pressing of VOLUME ;+/– button will change the value of data in the range from 00H to FFH. The variable range
depends on the adjusting item.
6. EXIT FROM SERVICE MODE
1) Pressing POWER button to turn off the TV once.
■INITIALIZATION OF MEMORY DATA OF QA02
After replacing QA02, the following initialization is required.
1. Enter the service mode, then select any register item.
2. Press and hold the CALL button on the Remote, then press the CHANNEL sbutton on the TV.The initialization of QA02 has
been complated.
3. Check the picture carefully. If necessary, adjust any adjustment item above.
Perform “Auto tune” on the owner’s manual.
CAUTION: Never attempt to initialize the data unless QA02 has been replaced.
7. TEST SIGNAL SELECTION
1) Every pressing of abutton on the Remote Control changes the built-in test patterns on screen as described below
in SERVICE MODE.
Signals Picture
• All White
Signal off ALL White
18)

- 8 -
GENERAL ADJUSTMENTS

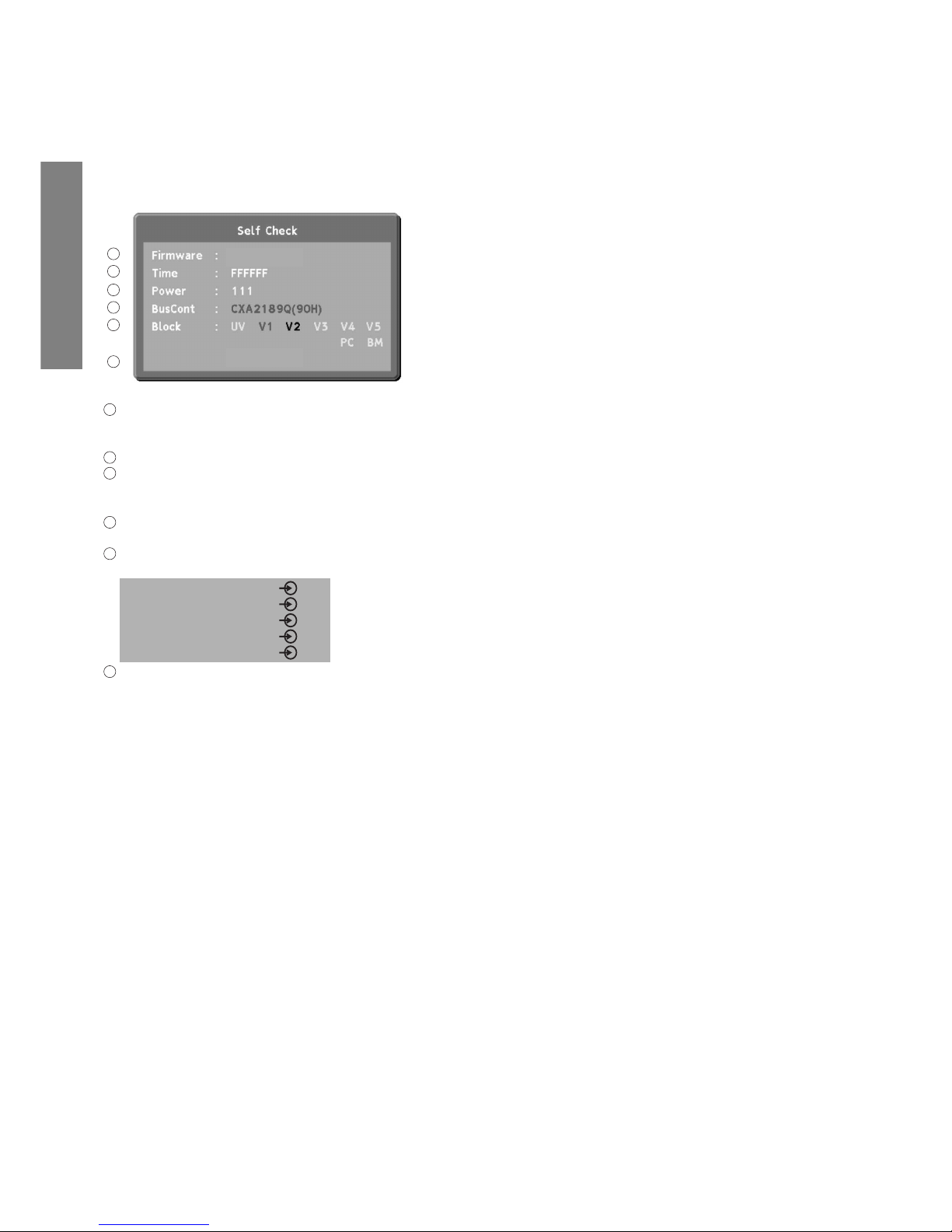

8. SELF DIAGNOSTIC FUNCTION
1) Press “9” button on Remote Control during display of adjustment menu in the service mode.
The diagnosis will begin to check if interface among IC’s are executed properly.
2) During diagnosis, the following displays are shown.
Firmware:
Version information of microprocessor
In case of file name : JH9 and Version : 1.00 indicates[JH9_100].
Time: Total hour of turn the TV on. (Unit : H)
Power : Operation number of protecting circuit ----"00" is normal.
When indication is other than "00", overcurrent apt to flow, and circuit parts may
possibly be damaged.
BusCont : --- "OK" is normal.
When type name of semiconductor indicates.
1
2
3
4
5
1
2
3
4
5
6
6
1)
2)
BLOCK
3)
UV : TV reception mode
C1)
V1 : VIDEO 1 input mode (
C2)
V2 : VIDEO 2 input mode (
V3 : VIDEO 3 input mode (
V4 : VIDEO 4 input mode (
V5 : VIDEO 5 input mode (
Model name (7 digit)
34JH9UH
JH9_000

- 9 -
GENERAL ADJUSTMENTS
DESIGN MODE
1. ENTERING TO DESIGN MODE
S D Press
(Design mode)
Press
2) While pressing CALL button on Remote
and press MENU button on TV.
1) Select the Service mode.
When QA02 is initialized, item “OPT3" of DESIGN MODE is set to the data of the representative model of this chassis family.
Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to
reset the data of item “OPT3".
2. SELECTING THE ADJUSTING ITEMS
Every pressing of CHANNEL tbutton in the design mode changes the adjustment items in the order of table-3.
(sbutton for reverse order)
Refer to table-3 for data of design mode.
(See SETTING & ADJUSTING DATA on page 27)
3. ADJUSTING THE DATA
Pressing of VOLUME sor tbutton will change the value of data.
Version information of
microprocessor
Main tuner information
Sub tuner information
Selectable picture information
Position information
Signal information
Screen size information
Sound system information
Scan mode information
q
w
e
r
t
y
u
i
o
q
rt yu io
we
3) The following displays
are shown on the screen
18)
JH9_039
JH9_039
1
45 67 89
23

- 10 -
GENERAL ADJUSTMENTS

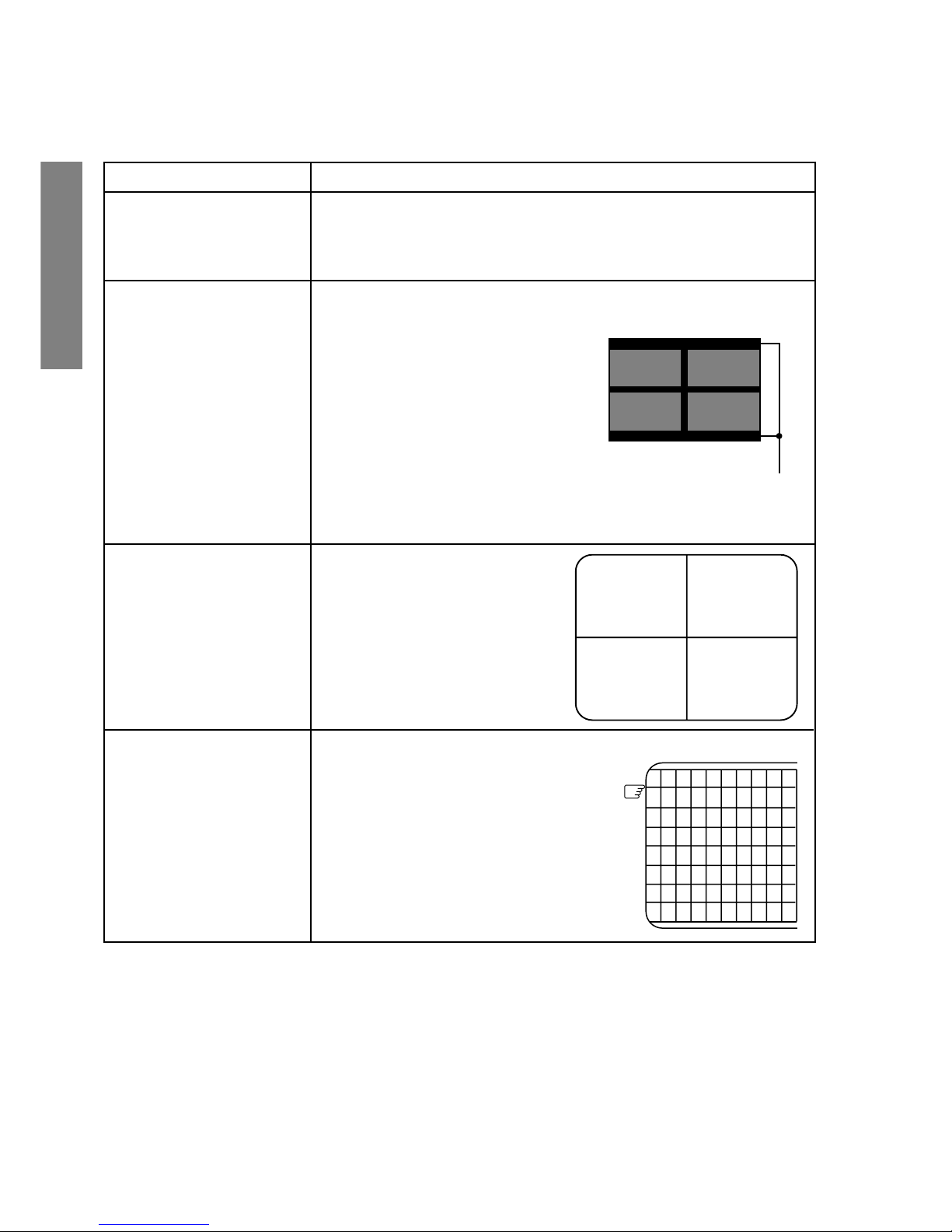

ELECTRICAL ADJUSTMENTS
1. Enter the service mode, then select any register item.
2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern ap-
pears on the screen.
3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture
screen.
FOCUS VR ADJ
SUB-BRIGHTNESS
(BRTC)
Note: Constrict the picture height
until the vertical retrace line
appears adjusting the item
HIT (HEIGHT).
1. Set CONTRAST to minimum, and
BRIGHTNESS to center by adjusting user
controls.
2. Set the TV in service mode to get Black
cross-bar of inside pattern.
3. Select BRTC (brightness correction), and
adjust the ;– /+ button to reduce the
value so that white portion of inside pat-
tern slightly light.
4. Adjust ;– /+ button to increase the data
value of BRTC, and set it just before the
difference between the belt of vertical re-
trace and the border of black portion of
inside pattern is visible.
After that, return vertical height and con-
trast.
ITEM ADJUSTMENT PROCEDURE
Belt of vertical retrace
HORIZONTAL POSITION
ADJUSTMENT (HPOS)
VERTICAL POSITION
ADJUSTMENT (VPOS)
1. Set the TV in service mode, and get
black cross-bar signal with VIDEO
button on remote hand unit.
2. Select either HPOS (Horizontal pic-
ture phase) or VPOS (Vertical picture
phase) with CHANNEL s,tbuttons,
and adjust horizontal or vertical pic-
ture position in the center of screen
with VOLUME ;– /+ buttons.
VERTICAL AMPLITUDE
ADJUSTMENT (HIT)
1. Set the TV in service mode, and get
black cross-hatch signal with VIDEO
button on remote hand unit.
2. Select HIT (Vertical amplitude) with
CHANNEL s,tbuttons, and adjust
vertical amplitude with VOLUME
;– /+ buttons so that vertical am-
plitude lacks a little.
3. Adjust vertical amplitude with VOL-
UME ;– /+ buttons so that the first
bar on cross-hatch signal touches
edge of screen.
The first

- 11 -
GENERAL ADJUSTMENTS
ITEM ADJUSTMENT PROCEDURE

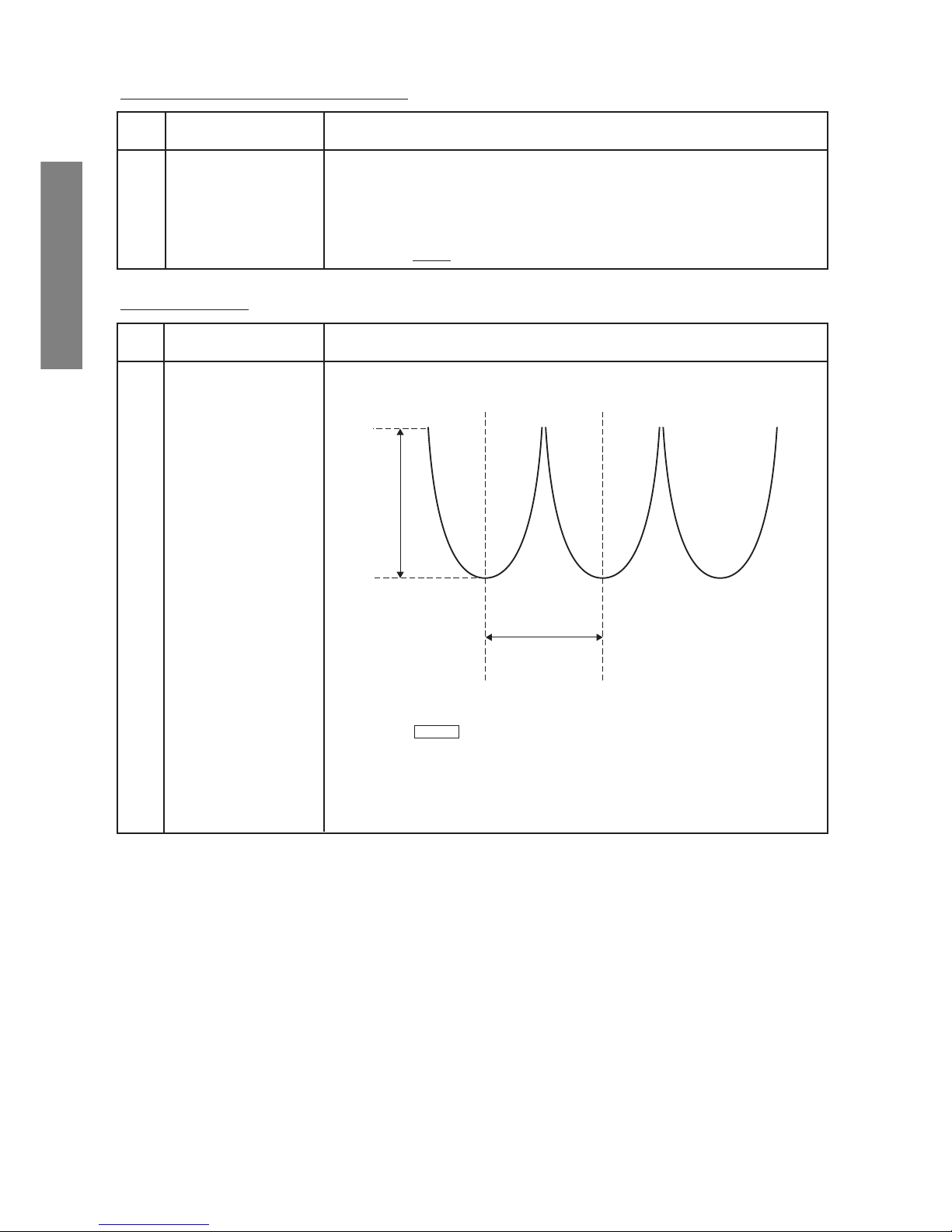

1. Call up the adjustment mode display, then select the item WID.
2. Press the ;– /+ button to get the picture so the left and rightedges of raster
begins to lack.
3. Press the ;– /+ button to advance the data by 7 steps.
Note : Check the horizontal picture position is correct.
1. Call up the adjustment mode display, then select the item PARA.
2. Press the abutton on Remote until the cross-hatch pattern appears on the screen.
3. Press the ;– /+ button to make vertical lines straight as shown below.
WIDTH
(WID)
E-W PARABOLA
(PARA)
WHITE BALANCE
ADJUSTMENT
•CUTOFF ADJUSTMENT
(RCUT)
(GCUT)
(BCUT)
•DRIVE ADJUSTMENT
(GDRV)
(BDRV)
1. Set Contrast to 40, and brightness to +20 by picture control.
2. Receive the Black and White pattern.
3. Select RCUT, GCUT and BCUT with CHANNEL s,tbuttons, to set individual
values to Initial reference data, and to set GDRV and BDRV to Initial reference
data with VOLUME ;– /+ buttons.
4. Press -/- - button on the remote control and rotate Screen VR to get one slight
horizontal line on screen.
Note: Every pressing of -/- - button provides Horizontal line picture and Normal
picture alternately.
5. Press -/- - button to release horizontal line picture, and select the two other colors
which did not light in the above step with CHANNEL s,tbuttons. Then tap VOL-
UME ;– /+ buttons so that three colors slightly light in the same level.
XTo correct white balance in light area,
select GDRV and BDRV with CHANNEL
s,tbuttons to adjust.
XTo correct white balance in dark area,
perform fine adjustment of RCUT, GCUT
and BCUT.
Light area check
(to show white)
Dark area check
(to show black)

- 12 -
GENERAL ADJUSTMENTS
ADJUSTMENT PROCEDURE
1) Setting to horizontal alignment, turn the screen VR to
stop where the brightness lines are slightly luminous.
(Adjustment shall be made so that they look almost
white.)
2) Cancel horizontal alignment.
3) Varying R, G and B CUTOFF, make white balance
adjustment in the dark area.
4) Adjusting G and B DRIVE, make white balance ad-
justment in the bright area.
5) Repeat procedures 3) and 4) if necessary.

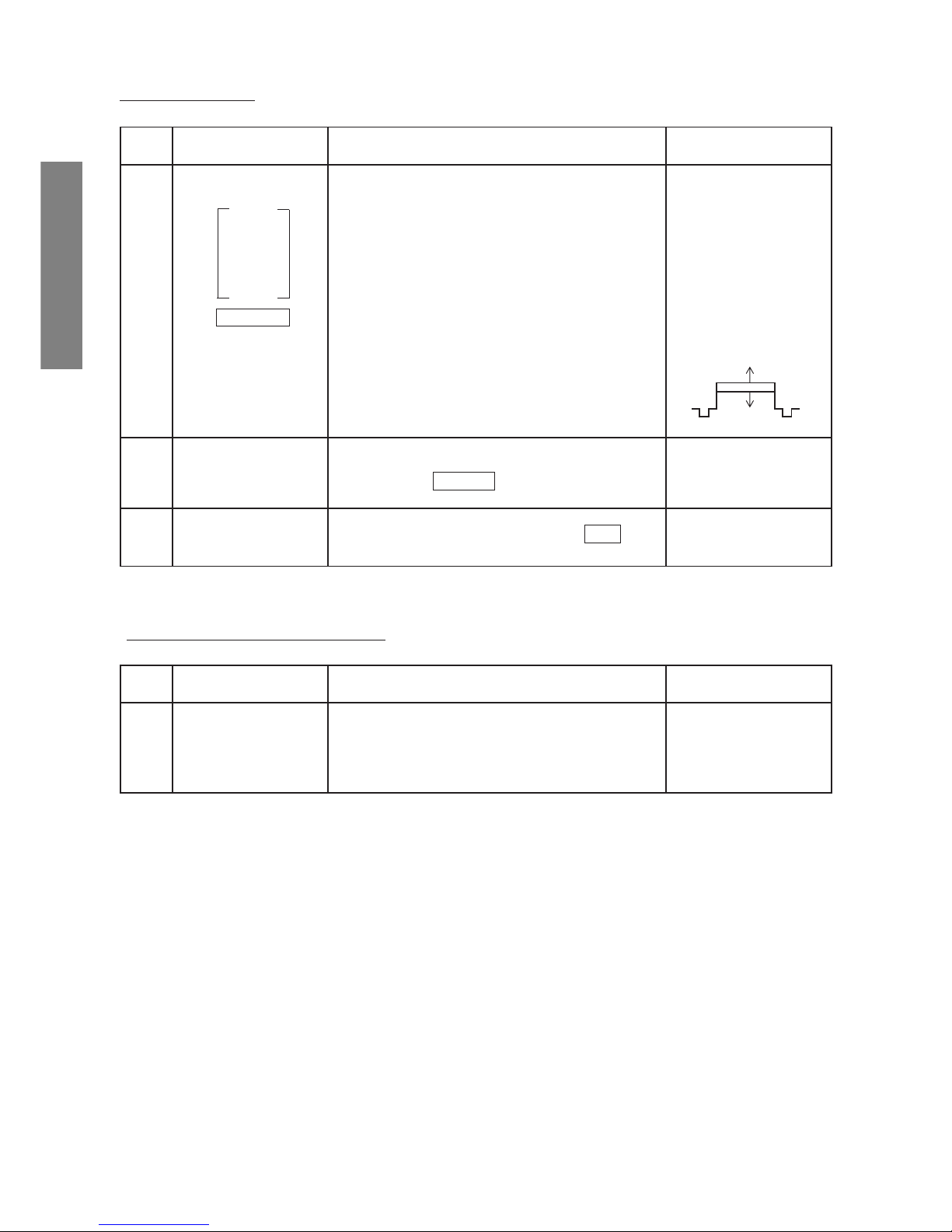

Adjustable value:
Bright area: 11500K+0.0075uV
(103cd/m2)
Dark area: 10500K+0.0105uV
(17cd/m2)
1) Select SCNT in the sub data adjustment mode.
2) With TP-Y, set the amplitude from pedestal level to
white peak to 0.70±0.03 V (0-p).
1) Select BRTC in the sub data adjustment mode.
Adjust the number of black solid lines to 4±1.5.
ADJUSTING ITEMS
AND POINTS
Cutoff adjustment and
white balance adjust-
ment
RCUT
GCUT
BCUT
GDRV
BDRV
Screen VR
Sub contrast adjustment
(SCNT)
Sub brightness adjust-
ment
(BRTC)
V/C system adjustment
No.
1
2
3
REMARKS
No outside lighting shall be
allowed.
Measurement shall be
performed at the center of
CRT.
Receiver shall be in the
standard state.
Total white signal
Varying the level of input
signal, adjust the
brightness.
J-2ch sub brightness signal
DYNAMIC
J-2ch sub brightness signal
DYNAMIC
ADJUSTMENT PROCEDURE
ADJUSTING ITEMS
AND POINTS
No. REMARKS
1) Select PCNT in the sub data adjustment mode.
2) With TP-Y, make adjustment so that the amplitude of
sub screen (right image) coincides with that of main
screen (left image).
DW sub screen contrast
adjustment
(PCNT)
4J-2ch for both main and sub
screens
Sub brightness signal
DYNAMIC
V/C system adjustment (Chassis adjusment)

- 13 -
GENERAL ADJUSTMENTS
ADJUSTMENT PROCEDURE
ADJUSTING ITEMS
AND POINTS
No.
Circuit Adjustment (Procedure Manual for Deflection Adjustment)
1 Focus Adjustment (1)
Static (main): T461
Dynamic : T461
Conditions : PAL RETMA ch
Screen Size : Wide
Presentation Mode : Dynamic
Only for 34-inch model
Adjustment Procedure:
1) Turn the static VR knob to the “MIN.” position and the dynamic VR knob to the
“MAX.” position.
2) Adjust the static VR knob to the “MAX.” direction to optimize the peripheral
focus.
3) Adjust the dynamic VR knob to “MIN.” direction to optimize the center focus.
4) Adjust the static VR knob and the dynamic VR knob alternately to optimize the
full screen focus.
Refer to the diagram below for the location of the static VR knob and dynamic VR
knob.
DYNAMIC VR knob
STATIC VR knob
SCREEN knob

- 14 -
GENERAL ADJUSTMENTS
ADJUSTMENT PROCEDURE

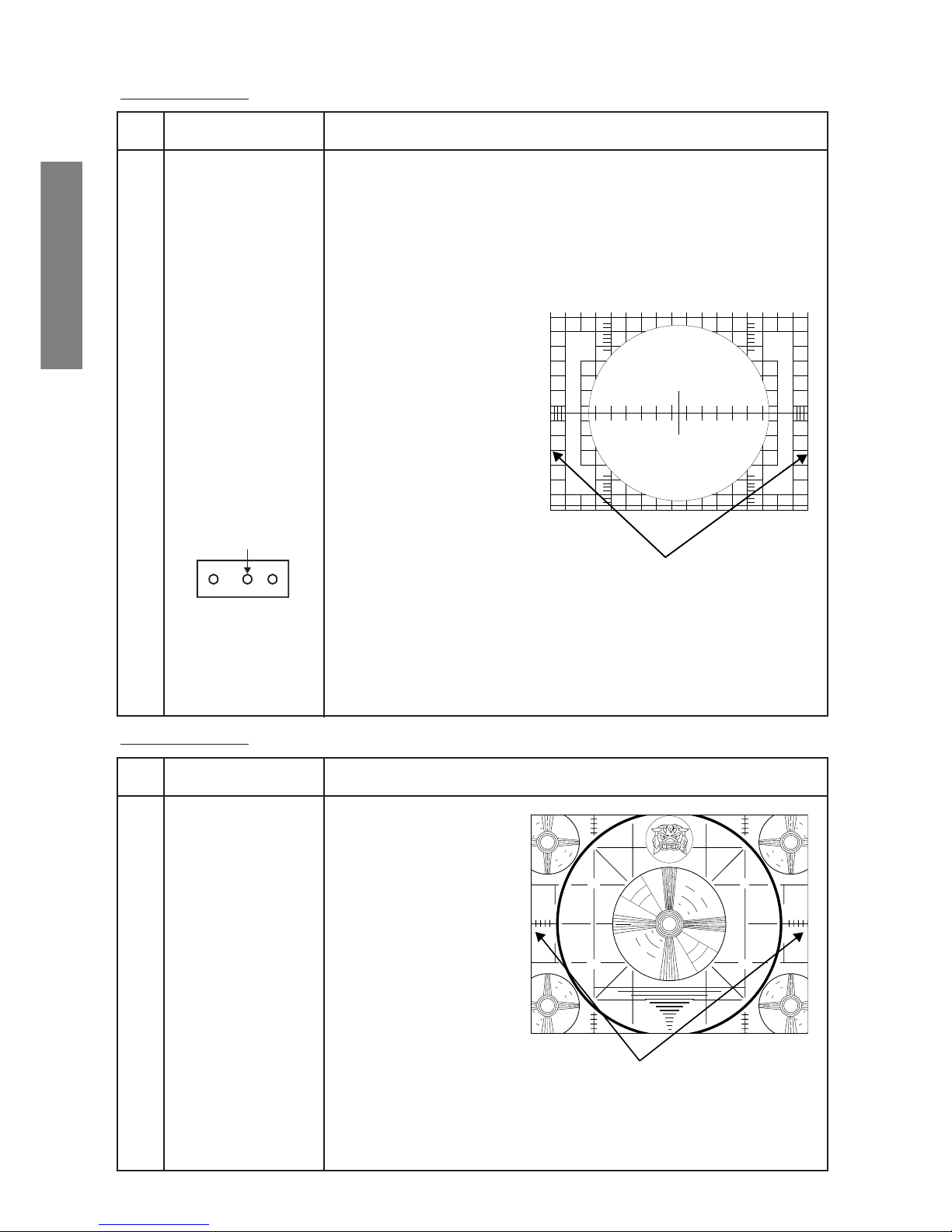

<Adjustment condition>
Horizontal adjusment shall be made using E-12CH Philips pattern and DY-
NAMIC image mode.
<Adjustment procedure>
1) Using WID data, reduce the horizontal amplitude until a part of it is dropped out.
2) Using WID data, adjust the horizontal amplitude so that horizontal raster inevitably
contacts with CPT mask.
3) Using the following (Note 1) horizontal screen positional switch, adjust the horizon-
tal raster position to the center position.
4) Using the horizontal amplitude
(WID) and horizontal phase
(HPOS), adjust the horizontal
amplitude so that the right and
left flags are just blinded.
5) Using PARA, TRAP, CNR and CPAR (or TCNR, BCNR or CSAW if necessary),
adjust the screen distortion.
6) If necessary, make the horizontal amplitude adjustment again.
ADJUSTING ITEMS
AND POINTS
For PAL/100 Hz/WIDE
Horizontal amplitude
(WID)
Side pin distortion
(PARA)
Trapezoidal distortion
(TRAP)
Corner distortion
(CNR)
Upper corner distortion
(TCNR)
Lower corner distortion
(BCNR)
CENT distortion
(CPAR)
Parallelogrammatic
distortion (CSAW)
Horizontal phase
(HPOS)
Note 1:
POW/DEF board: P451/
M450
Horizontal screen
positional switch
Screen position shall be
switched by inserting a
plug into the abo
(CENT should take the
first stage)
ve pin.
Horizontal adjustment *Deflection adjustment shall be made from PAL/100 Hz/WIDE mode.
Hori-
zontal
Right side Left side
CENT
The adjustment shall be made so that the right and left flags are just blinded.
ADJUSTMENT PROCEDURE
*NTSC adjustment shall be made after PAL adjustment.
1) With domestic 13ch, WIDE
mode and DYNAMIC, adjust the
right and left bars to the fifth
center for horizontal phase
(NHPO) and horizontal ampli-
tude (NWID).
2) With domestic 11ch, NPAR, NTRA, NCNR and NCPAR (or NTCNR, NBCNR or
NCSAW if necessary), adjust the screen distortion.
3) If necessary, make horizontal amplitude adjustment again.
ADJUSTING ITEMS
AND POINTS
For NTSC WIDE
Horizontal phase
(NHPO)
Horizontal amplitude
(NWID)
Side pin distortion
(NPAR)
Trapezoidal distortion
(NTRA)
Corner distortion
(NCNR)
CENT distortion
(NCPAR)
Parallelogrammatic
distortion (NCSAW)
Upper corner distortion
(NTCNR)
Lower corner distortion
(NBCNR)
Horizontal adjustment
Hori-
zontal
30
30
2
0
35
25
30
30
2
0
35
25
30
30
2
0
35
25
30
30
2
0
35
25
30
30
20
35
45
325
525 LINE
50
1
3
5
1
3
5
575 300
5
31
5
31
Right and left bars shall be adjusted
to the fifth center.

- 15 -
GENERAL ADJUSTMENTS
ADJUSTMENT PROCEDURE

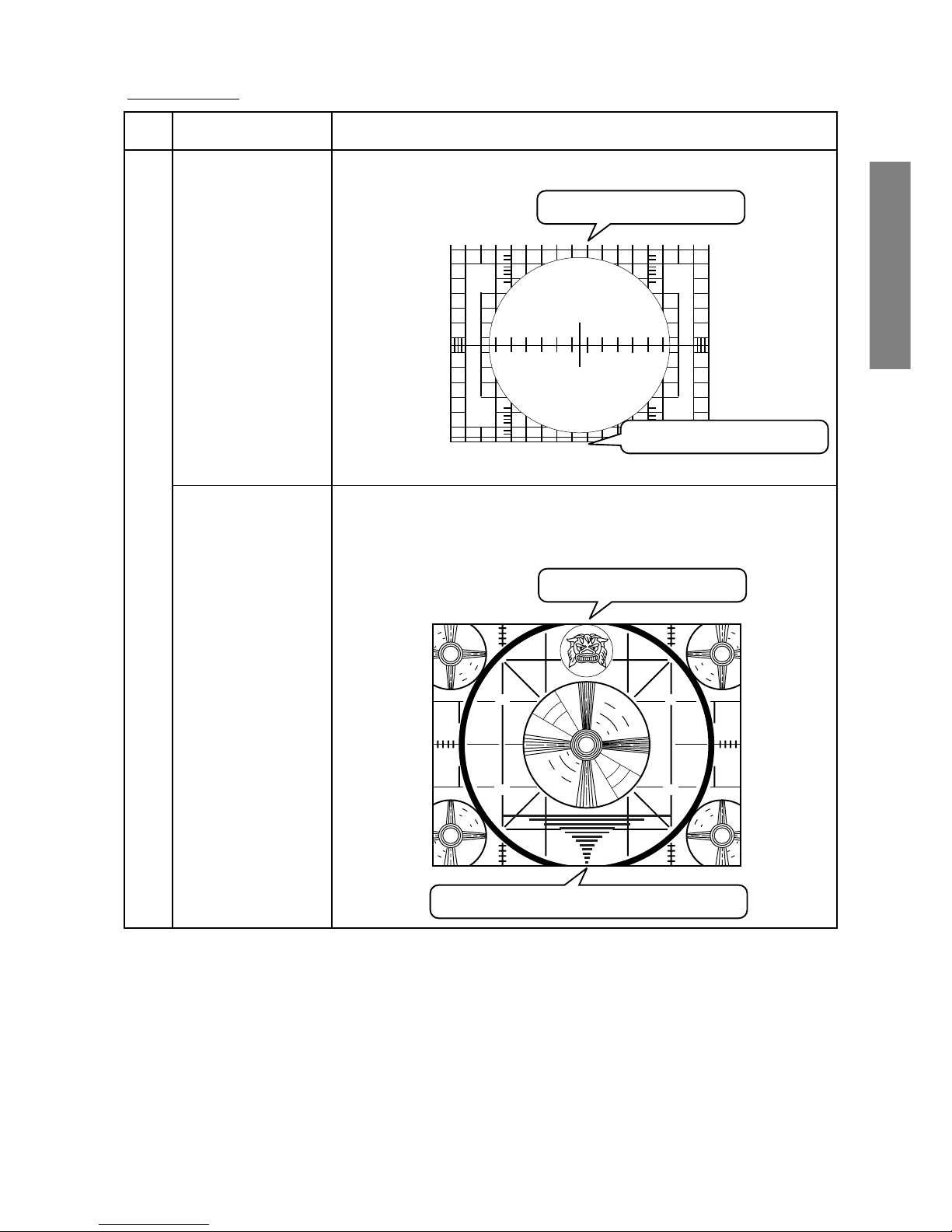

1) With E-12ch, WIDE mode, DYNAMIC and 100 Hz, adjust the vertical screen posi-
tion (VPOS) and amplitude (HIT) as shown in the following figure:
2) With vertical linearity (VLIN), control the upper and lower balances to be optimal.
*NTSC adjustment shall be made after the PAL adjustment.
With domestic 13ch, WIDE mode and DYNAMIC, adjust the vertical screen position
(NVPO) and amplitude (NHIT) as shown in the following figure:
ADJUSTING ITEMS
AND POINTS
For PAL WIDE
Vertical amplitude
(HIT)
Vertical screen position
(TCNR)
Vertical linearity
(VLIN)
For NTSC WIDE
Vertical amplitude
(NHIT)
Vertical screen position
(NVPO)
Vertical adjustment
Verti-
cal
Flags shall just be blinded.
Flags shall just be blinded.
30
30
2
0
35
25
30
30
2
0
35
25
30
30
2
0
35
25
30
30
2
0
35
25
30
30
20
35
45
325
525 LINE
50
1
3
5
1
3
5
575 300
5
31
5
31
The circle of lion shall contact
with mask.
The twelve center shall be adjusted to the mask.

- 16 -
GENERAL ADJUSTMENTS
ADJUSTMENT PROCEDURE
Conditions: User control for geomagnetic compensation: 0
Geomagnetic compensation coil: Unconnected
Perform voltage measurement at both ends of RJ06 and adjust the volt-
age to the following adjustable value with GMF of data adjustment mode:
0±1V
ADJUSTING ITEMS
AND POINTS
Output voltage control
(GMF)
Geomagnetic compensation (chassis adjustment)
1
ADJUSTMENT PROCEDURE
Measure the terminal voltage waveform of test pin (DF terminal) with 100:1 probe and
adjust the terminal voltage using L451 (horizontal amplitude coil: TLN2110AD).
Adjust the above waveform by turning the core of L451 so as to obtain the following
voltage: 34": 1000 Vp-p
Note: Because the vertical cycle parabolic waveform is also of superposition, the
above voltage value shall be measured on the waveform.
Adopted signal: PAL E-12ch
ADJUSTING ITEMS
AND POINTS
DQF output voltage
adjustment
Horizontal adjustment *DQF adjustment shall be made in PAL WIDE mode.
Hori-
zontal
Vp-p
1H

- 17 -
GENERAL ADJUSTMENTS
CIRCUIT CHECK
HIGH VOLTAGE CHECK
CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps below.
1. Connect an accurate high voltage meter to the second anode of the picture tube.
2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST controls to minimum (zero beam current).
3. High voltage must be measured below (B) kV.
Refer to table-1 for high voltage (B).
(See SETTING & ADJUSTING DATA on page 18)
4. Vary the BRIGHTNESS control to both extremes to be sure the high voltage does not exceed the limit under any conditions.

- 18 -
SPECIFIC INFORMATIONS
RESET 34JH9UH
OPT0 OPTION 0 FCH
OPT1 OPTION 1 00H
OPT2 OPTION 2 00H
OPT3 OPTION 3 00H
OPT4 OPTION 4 00H
OPT5 OPTION 5 00H
DATA
14H
←
←
←
←
←
34"
RCUT R CUTOFF 40H ←
GCUT G CUTOFF 40H ←
BCUT B CUTOFF 40H ←
GDRV/ R DRIVE 40H ←
RDRV
BDRV B DRIVE 40H ←
CNTX CONTRAST MAX 7FH ←
BRTC BRIGHTNESS CEN 80H ←
COLC SUB COLOR CEN NTSC 00H ←
TNTC SUB TINT CEN 00H ←
COLP SUB COLOR CEN PAL 03H 00H
COLS SUB COLOR CEN SECAM FDH ←
SCNT SUB CONTRAST 6AH 22H
VOLS MSP DEM VOLS 75H ←
FVOL MSP DEM FVOL 15H ←
NVOL MSP DEM NVOL 3CH ←
NICL MSP DEM NICL 03H ←
NICH MSP DEM NICH 0AH ←
IDL MSP DEM IDL 90H ←
IDH MSP DEM IDH A0H ←
HPOS 576i 100Hz 43H 41H
VPOS V-POSITION 8CH 94H
HIT HEIGHT 43H 41H
VLIN V-LINEARITY 0EH 0CH
34"
VPS V-SHIFT 40H ←
WID PICTURE WIDTH 45H 5CH
PARA E-W PARABOLA 1BH 31H
CNR E-W CORNER 14H ←
TRAP TRAPEZIUM 2AH 4CH
CPAR CENT PARABOLA 08H ←
TCNR EW TOP CORNER 14H 17H
BCNR EW BOTTOM CORNER 12H 15H
CSAW CENTER SAW 08H 07H
NHPO NTSC H-POSITION 09H ←
NVPO NTSC V-POSITION 7FH 98H
NHIT NTSC HEIGHT 39H 37H
NVLI NTSC V-LINEARITY 0EH 0DH
NVPS NTSC V-SHIFT 40H ←
NWID NTSC PICTURE WIDTH 3BH 52H
NPAR NTSC E-W PARABOLA 16H 29H
NCNR NTSC E-W CORNER 14H ←
NTRA NTSC TRAPEZIUM 36H 4CH
NCPAR NTSC CENT PARABOLA 07H 08H
NTCNR NTSC TOP CORNER 0FH 15H
NBCNR NTSC BOTTOM CORNER 12H 13H
NCSAW NTSC CENTER SAW 08H 07H
GMF Geomagnetic 00H 04H
PRE
SET
PRE
SET
Item Name of adjustment Item Name of adjustment
SETTING & ADJUSTING DATA
34"
HIGH VOLTAGE AT ZERO BEAM: (A) 30.5 kV
MAX HIGH VOLTAGE:
(B) 35.0 kV
AC VOLTAGE
(C) 220~240 V
CHAPTER 2 SPECIFIC INFORMATIONS
SAFETY INSTRUCTIONS
Table-1
SERVICE MODE
ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE:
Table-2
DESIGN MODE
ADJUSTING ITEMS AND DATAS IN THE DESIGN MODE:
Item Name of adjustment Note
Table-3

- 19 -
SPECIFIC INFORMATIONS
LOCATION OF CONTROLS
Front
Back
Remote sensor
7POWER indicator
rOn-timer indicator
a(3) Video 3 input
terminals Headphone jack
(ø3.5 mm)
Behind the door
– ; + Volume –+
Menu <>
f
-
7POWER switch
aInput source selection
OK
MENU
cChannel position ts
Menu
Press here to open
the door.
L/MONO R
AUDIO
VIDEO
(3) MENU
OK
CH
S-VIDEO
(MONITOR) (FIXED)
(1)(
2)
(C1)(
C2)
COMPONENT
VIDEO INPUT
L/MONO L/MONO
S-VIDEO
VIDEO VIDEO
AUDIO AUDIO
R R
AUDIO
R
L
Y
PB/
CB
PR/
CR
FIXED AUDIO output termina
ls
a(1) Video 1 input terminals
a(2) Video 2 input terminals
a(C1) COMPONENT VIDEO INPUT terminals
Antenna input
MONITOR output terminals
a(C2) COMPONENT VIDEO INPUT terminals

- 20 -
SPECIFIC INFORMATIONS
Remote Control
DVD
MENU
CH
CH
SEARCH
PIC SIZE
STILL
21 3
54 6
87 9
VCR
TV
DVD
0
STROBE
OK
FCALL
MENU EXIT
Sound mute
Input source selection
(a1 – a3, aC1, aC2)
EXIT
Selectable sound
Power on/Standby
(For Toshiba TV/VCR/DVD only)
Device switch
TV: To control TV
VCR: To control VCR
DVD: To control DVD
When in TV mode:
mI/II Stereo/Bilingual selection
STROBE Multi-Window strobe
SEARCH Multi-Window search
Double-Window on/off
STILL Picture STILL
n <> Double-Window picture/sound
selection
OK
When in VCR or DVD mode:
(For Toshiba VCR/DVD only)
cto EJECT
to REWIND
Sto PLAY
to FAST FORWARD
Jto PAUSE
to SKIP-REWIND
Rto STOP
to SKIP-FORWARD
Picture size selection
•CH (channel position) st
•Menu
MENU
Selectable picture
1 or 2 digit channel selection
F
CALL
•Volume
–+
•Menu <>
Super Woofer on/off
Number buttons (0-9)
