owner’s manual
colour television
42PW23P
TOSHIBA
The power to open people’s eyes

2
Contents
CONNECTING OTHER EQUIPMENT
SETTING UP
ADDITIONAL FEATURES
TELETEXT
USING YOUR TV
FOR YOUR GUIDANCE
OTHER INFORMATION
For your safety –Some do’s and don’ts for you to be aware of 3
Installation and other points to follow 4
Your new television’s remote control – an at-a-glance guide 5
Connecting and turning on your new TV 6
Choosing the language and system, Auto tuning 7
Manually tuning your TV – an alternative to Auto tuning 8
Sorting programme positions 9
Manual fine tuning, programme skip 10
General controls – changing programme position 11

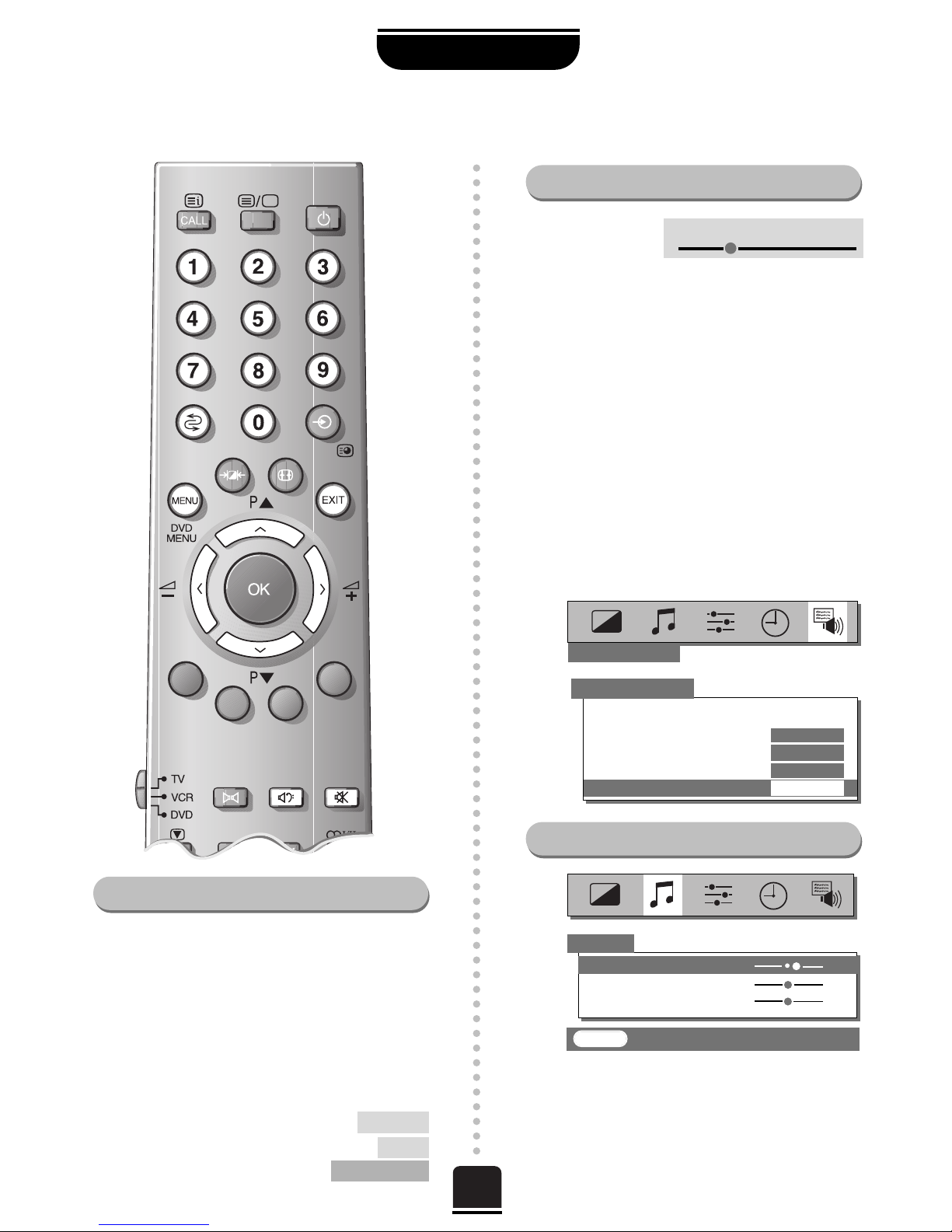

Sound controls – volume, sound mute, bass boost, bass/treble/balance 11
Widescreen viewing 12
Picture controls – adjusting the picture position, automatic format (widescreen),
picture preferences and noise reduction (NR) 13
The timer and time display – informing the TV to turn on/off and time display 14
Panel lock – disabling the buttons on the front of the TV 14
Stereo and bilingual transmissions – stereo or dual language broadcasts 14
AV connections and input selection – input and output sockets for connected equipment 15
Setting up 16
Auto and List modes 17
Control buttons 18
Front connections and controls 19
Back connections 20
The Menus – a display of the main on-screen menus for your reference 21
Questions and Answers 22
Index, Specifications and Accessories – information on your television 24
?
For television
operation queries,
please ring the
helpline…
Remember…
For UK only

3
For your safety
SETTING UP
This equipment has been designed and manufactured to meet international safety standards but, like any electrical
equipment, care must be taken if you are to obtain the best results and safety is to be assured. So, please read the
points below for your own safety. They are of a general nature, intended to help you with all your electronic
consumer products and some points may not apply to the goods you have just purchased.
DON'T remove any fixed cover as this may expose
dangerous voltages.
DON'T obstruct the ventilation openings of the
equipment with items such as newspapers,
tablecloths, curtains, etc. Overheating will cause
damage and shorten the life of the equipment.
DON'T allow electrical equipment to be exposed to
dripping or splashing or objects filled with liquids,
such as vases, to be placed on the equipment.
DON’T place hot objects or naked flame sources,
such as lighted candles or nightlights on, or close to
equipment. High temperatures can melt plastic and
lead to fires.
DON'T use makeshift stands and NEVER fix legs with
wood screws. To ensure complete safety, always fit the
manufacturer’s approved stand or legs with the fixings
provided according to the instructions.
DON'T listen to headphones at high volume, as such
use can permanently damage your hearing.
DON'T leave equipment switched on when it is
unattended, unless it is specifically stated that it is
designed for unattended operation or has a standby
mode. Switch off using the switch on the equipment
and make sure your family know how to do this.
Special arrangements may need to be made for
infirm or handicapped people.
DON'T continue to operate the equipment if you are
in any doubt about it working normally, or it is
damaged in any way – switch off, withdraw the mains
plug and consult your dealer.
ABOVE ALL – NEVER let anyone, especially
children, push anything into holes, slots or any
other openings in the case – this could result in a
fatal electric shock.
NEVER guess or take chances with electrical
equipment of any kind – it is better to be safe
than sorry.
Leave at least 10cm clearance around the television to
allow adequate ventilation. This will prevent the TV
from overheating and consequential possible damage
to the TV. Dusty places should also be avoided.
Damage may occur if you leave the TV in direct sunlight
or near a heater. Avoid places subject to extremely high
temperatures or humidity, or locations where the
temperature is likely to fall below 5°C (41°F).
The mains supply required for this equipment is 230v
AC 50Hz. Never connect to a DC supply or any other
power source. DO ensure that the TV is not standing
on the mains lead. DO NOT cut off the mains plug
from this equipment, this incorporates a special Radio
Interference Filter, the removal of which will impair its
performance. In the UK, the fuse fitted in this plug is
5A, and is approved by ASTA or BSI to BS1362. It
should only be replaced by a correctly rated and
approved type and the fuse cover must be
refitted. IF IN DOUBT PLEASE CONSULT A
COMPETENT ELECTRICIAN.
DO read the operating instructions before you attempt
to use the equipment.
DO ensure that all electrical connections (including the
mains plug, extension leads and inter-connections
between pieces of equipment) are properly made and
in accordance with the manufacturers’ instructions.
Switch off and withdraw the mains plug before making
or changing connections.
DO consult your dealer if you are ever in doubt about
the installation, operation or safety of your equipment.
DO be careful with glass panels or doors
on equipment.
Air Circulation… Do not…
Heat Damage…
Mains Supply…
Do…

Cleaning the screen and cabinet…
After turning off the power, clean the screen and cabinet with a soft, dry cloth. We
recommend that you do not use any proprietary polishes or solvents on the screen or cabinet
as this may cause damage.
Disposal…
When the set reaches the end of its useful life please dispose of it in accordance with Local
Government Regulations or at a recycling centre.
If stationary images generated by TELETEXT, CHANNEL IDENTIFICATION LOGOS, COMPUTER DISPLAYS, VIDEO
GAMES, ON SCREEN MENUS, etc. are left on the TV screen for any length of time, they will become
permanently ingrained.
If you use your television to display completely still images, or moving pictures which have a permanent still
image superimposed e.g. broadcast network logos, it is always advisable to reduce BOTH the brightness and
contrast settings.
THIS DAMAGE IS EXPENSIVE TO REPAIR AND IS NOT PROTECTED BY YOUR WARRANTY AS IT IS THE
RESULT OF MISUSE.
4
SETTING UP
Installation and
other points to follow
Locate the television away from direct sunlight and strong lights.
Soft, indirect lighting is recommended for comfortable viewing.
Place the TV directly on the floor or a sturdy platform. The
mounting surface should be flat and steady. If you install
the TV onto a soft floor covering, make sure that the
covering will not be damaged by the weight of the TV.
Use curtains or blinds to prevent direct sunlight
falling on the screen.
Always take great care when moving this TV as it
could mark polished floor surfaces or damage floor
coverings.
Where to install…
WARNING!
NEVER LEAVE A STATIONARY
IMAGE ON THE SCREEN.

5
SETTING UP

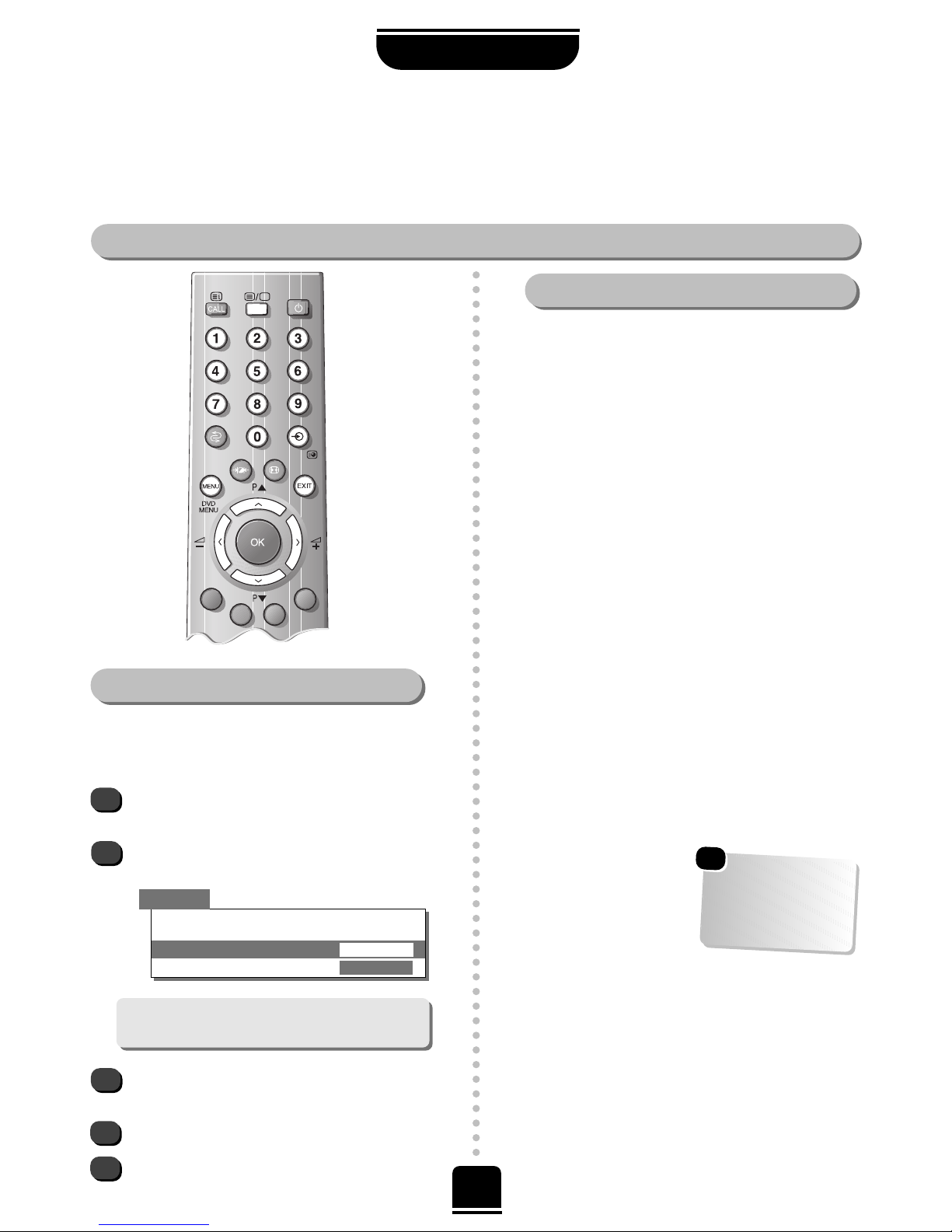

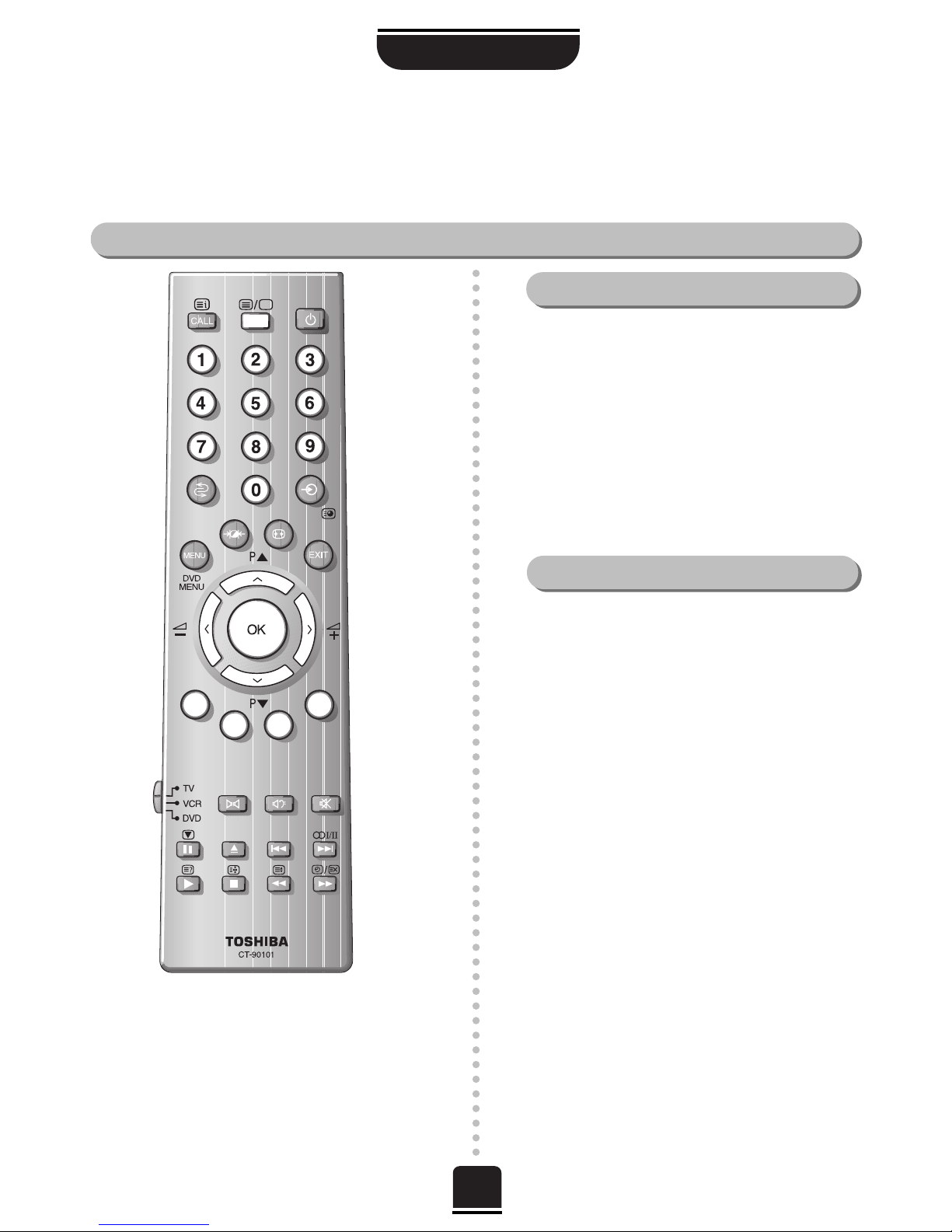

Your new television’s remote control
Remove the back cover to reveal the battery compartment and make sure you insert the batteries the
right way round.
Suitable battery types for this remote are R03 or AAA.
Do not throw your old batteries into a fire, dispose of them in a designated disposal area. Do not
combine a used, old battery with a new one or mix battery types.
The performance of the remote control will deteriorate beyond a distance of five metres or outside an
angle of 30 degrees from the centre of the TV.
The batteries... and the effective range of the remote…
Simple, at-a-glance reference of your remote control’s buttons…
… For quick reference
to topics, please see
the
INDEX
at the end of
this manual.
To mute the sound
Teletext control buttons
To exit Menus
Bass Boost/Super Woofer
No function on this model
To bring up on-screen information and
for the teletext initial/index function
To select input from external sources
To access sub-pages when in teletext
mode. This may operate in a
different way to your previous TV
– see page 16
To select mode
On-screen Menus
Selectable picture preferences Widescreen viewing
Number buttons
To return to the previous programme
For On/Standby mode
To display teletext
When in VCR or DVD mode:
press
mto PAUSE
presswto EJECT
press
l
qto SKIP-REWIND
presss
l
to SKIP-FORWARD
press rto PLAY
presspto STOP
press qto REWIND
presssto FAST FORWARD

To change programme positions and
teletext pages
To alter the volume
When using menus the arrows move the
cursor on the screen up, down, left or
right. OK to confirm your selection
When in TV mode:
uNo function on this model
OI/II Stereo/bilingual reception
When in Teletext mode:
rTo reveal concealed text
qTo hold a wanted page
sTo enlarge teletext display size
8
/
9To select a page whilst viewing a
normal picture

SETTING UP
6
Connecting and turning on your new TV
…and switching your new TV on…
WE RECOMMEND THAT YOU USE SCART
LEADS IN ADDITION TO AERIAL CABLES
WHEREVER POSSIBLE

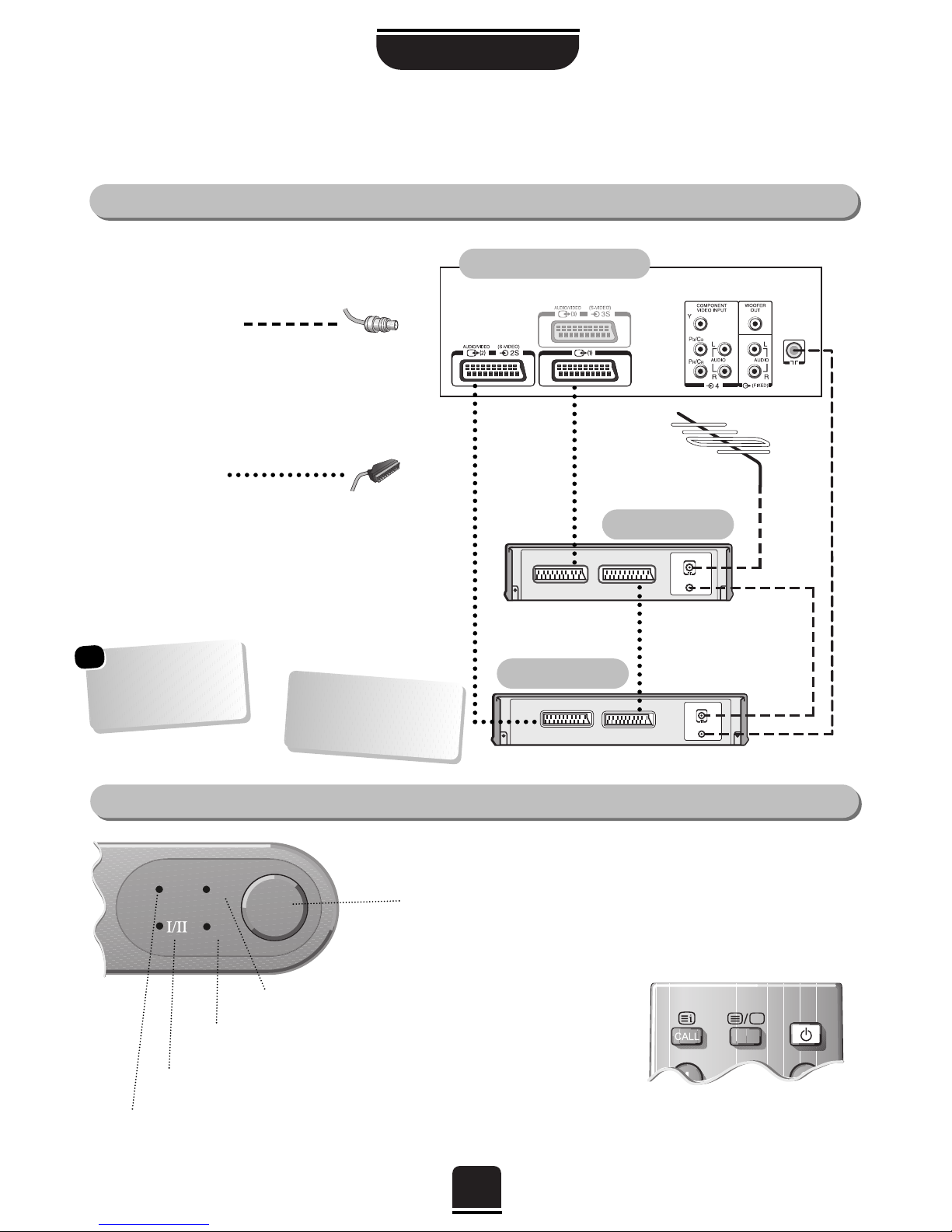

Aerial cables:
Connect the aerial to the socket on the rear of the
television. If you use a decoder* and/or a video
recorder it is essential that the aerial cable is
connected through the decoder and/or through the
video recorder to the television.
Scart leads:
Connect the video recorder IN/OUT socket to the
TV. Connect the decoder TV socket to the TV.
Connect the video recorder SAT socket to the
decoder VCR socket.
Before running Auto tuning put your decoder and
video recorder to Standby.
The TV back connections…
Before connecting any external equipment, turn off all main power switches.
IN
OUT
IN
OUT
the back of your TV
video recorder
decoder*
*a decoder could be:
Digital Satellite, Analogue
Satellite, or any other
compatible decoder.

SATIN/OUT
VCR
TV
We recommend Scart 1
for a decoder, Scart 2 for
a VCR and Scart 3 for
additional equipment.
N
N
ON
Y
ON
Y
RED = Power On
GREEN = On Timer is set
ORANGE = Bilingual transmission
being received
On the front of the TV…
If the red power-on light is unlit, press the POWER button on the front of the
TV to switch the set on and then press a number button on the remote
control to see the screen.
…and with the remote control:
Press the Standby Button i:
This allows you to put the set
into standby mode when leaving
the TV unattended for short
periods of time. To return to TV
mode press the ibutton, or any
of the numbered buttons on
the remote control. The picture
may take a few seconds to appear.
GREEN = Stereo transmission
being received
SCART 1
SCART 2
SCART 3

7
Choosing the language and system*,
Auto tuning
SETTING UP
Before running Auto tuning put your decoder and video recorder to Standby.
3
4
2
Set up


Language ENGLISH
Colour AUTO
Auto tuning
Manual tuning
Programme sorting
Teletext
NexTView set up
Set up
1

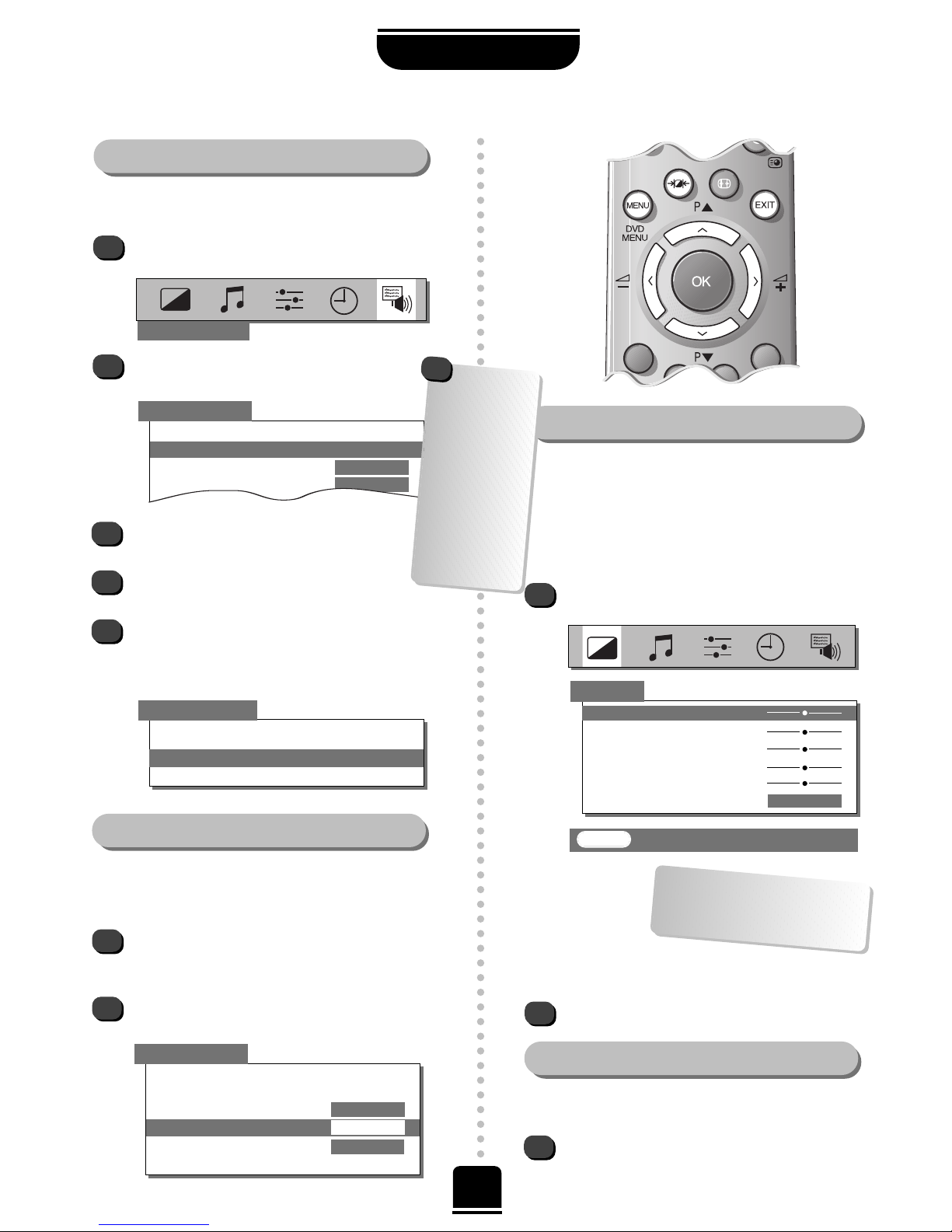

To choose your language, press the MENU
button, and use the Rbutton to select Set up
from the top bar.
Now press the Qbutton to highlight Language
in the Set up menu options.
Press the Sor Rbutton to view the language
options available. As you view each language,
the wording on the menus will automatically
change for you.
Now press the Qbutton to highlight Auto
tuning.
EXIT : To exit
Previous settings
will be lost!
EXIT for no change.
System I
START


Auto tuning

Press the Rbutton repeatedly to select your
System*. With the Qbutton highlight START
and then press the Rbutton.
The search will begin for all available stations.
xxxxxxxxxx
will flash and the bullet will move along
the line as the search progresses.
Allow the television to complete the search.
B/G – Continental Europe, D/K – Eastern Europe,
I – UK, L1, L 2 – France

Searching
Channel : 21
Station :
Auto tuning
  


EXIT :Toexit
8
7
9
6
When the search is complete the TV will
automatically return to programme position 1.
This may not be a clear picture, so you may wish
to change the station order, using Programme
sorting, on page 9.
If you cannot connect your television to the
decoder or video recorder using Scart leads,
you will need to allocate a programme position
on the television for each, use Manual tuning,
see page 8.
*
* For Continental Europe only.
For UK only: Press OK to start and go to step 8.
For Continental Europe: You will need to choose
the System*necessary for where you live.
5
Then the Rbutton to go to the Auto tuning
screen.
Set up


EXIT : To exit
Language ENGLISH
Colour AUTO
Auto tuning
Manual tuning
Programme sorting
Teletext

OK : To store EXIT : To exit
MENU : To return


System
0 I 60 0 VCR
Manual tuning
Press OK to select.
Press the Rbutton to select System and use
Por Qto change (if required, see page 7).
Press the Rbutton to select Search.
8
SETTING UP
Manual tuning
Manually tuning your TV
As an alternative to Auto tuning, you can tune-in your Toshiba television manually using Manual tuning.
For example: if you have used Auto tuning but wish to tune-in a station on another System (see page 7)
or if you are unable to connect the TV to your video/decoder with a Scart lead.
Station
Programme: The number to be pressed on the remote control.
System: Specific to certain areas. See page 7.
Search: Search up and down for a signal.
Programme skip: *means nothing has been stored or the facility
to skip the channel is ON. See page 10.
Channel: The channel number on which a station is being broadcast.
Manual fine tuning: Only used if you experience interference/weak signal.
See page 10.
Station: Station identification. You can use the
P
and Q or
S
and
R
buttons to enter up to seven characters.
Programme System Search Programme skip/
Channel
Manual fine
tuning
2
3
4
5
OK : To select EXIT : To exit
Manual tuning

Prog. Sys. Channel Station
0 I 60 VCR
1 I 22 BBC1
2 I 28 BBC2
3 I 25 ITV
4 I 32 CH4
5 I * 69

Using the Por Qbutton, highlight the
programme position you require e.g. we suggest
Prog. 0 for your video.
1
From the top menu bar select Set up and with
the Qbutton highlight Manual tuning and the
Rbutton to select.
…Your TV
may display
different
Channel
numbers…
Continues on the next page
If you CANNOT connect your television to the
decoder or video recorder using Scart leads: You
will need to allocate a programme position on
the television for each. Turn the decoder on to a
free channel, i.e. a channel you have not had to
pay for, insert a pre-recorded tape in the video
and press PLAY, then Manual tune…
!
These options will appear as you move across the screen.

Set up


Language ENGLISH
Colour AUTO
Auto tuning
Manual tuning
Programme sorting
Teletext

SETTING UP
9
Manually tuning your TV continued
Sorting programme positions
6
7
8
10
9
This TV has direct channel entry if
the channel numbers are known.
Select the Manual tuning screen in Step 3. Enter
the Programme number, the System, then the
Channel number. Press OK to store.
PLEASE NOTE
Press the Pbutton to begin the search. Searching
will flash and the television will show the channel
numbers whilst the search is progressing.
OK : To store EXIT : To exit
MENU : To return
OK : To store EXIT : To exit
MENU : To return


Manual tuning
On finding a signal it will show on the television,
if it is not your video recorder, press the
Pbutton again to restart the search.
When the signal from your video recorder is
found, press the Rbutton to move along to
Station. With the P, Q, Sand Rbuttons, put in
the required characters, e.g. VCR.
Now press OK to store.
Repeat for each programme position you
want to tune, e.g. to tune your decoder to
Programme Position 6 press the Por Q
button repeatedly to select 6then repeat from
step 4. Or, press MENU to return to the list of
channels and select the next number to tune.
Press EXIT when you have finished tuning in.
11
5
6
Press the MENU button and then the Sor Rbutton
to select the Set up option from the top bar.
Press Qto highlight Programme sorting and
Rto select.
The list of stations is now showing. With the
Qor Pbutton highlight the station you want to
move and press OK to select.
As you do so the selected station will be moved to
the right of the screen.
To sort programme positions
1
2
3
4
Set up
OK : To set EXIT : To exit
Programme sorting

Prog. Channel Station
122 BBC1
2 28 BBC2
3 25 ITV
4 32 CH4
5*69
6*69


Use the Qor Pbutton to move through the list
to your preferred position. As you do so the other
stations will move to make room.
Now press the OK button to set your move.
Repeat as necessary and then press EXIT.
Searching
0I
RRR
32 0
Manual tuning


Station
0 I 39 0 VCR
After tuning, if you want to change the position of
certain programmes you can. Program sorting is an
easy way of storing each channel on the programme
position of your choice.
EXIT : To exit

Set up

Language ENGLISH
Colour AUTO
Auto tuning
Manual tuning
Programme sorting
Teletext


OK :To select EXIT : To exit
Manual tuning

Prog. Sys. Channel Station
0 I 60 VCR
1 I 22 BBC1
2 I 28 BBC2
3 I 25 ITV
4 I 32 CH4
5 I * 69

Press the MENU button and from the top menu
bar select Set up.
With the Qbutton highlight Manual tuning.
And press the Rbutton to select the Manual
tuning screen.
Use the Por Qbutton to highlight the
programme position to be skipped and press OK
to select.
With the Rbutton move along to Programme
skip.
Use the Por Qbutton to turn Programme
skip : On. Press OK to store.
Then press the
MENU button and
either repeat from
Step 3 or press EXIT
to finish.
The skipped programme positions cannot now
be selected by the Pf(P) and Pe(Q) buttons
or by the controls on the front of the TV, but can
still be accessed by the number buttons on the
remote control. To turn Programme skip OFF,
repeat the procedure on the chosen channel.
SETTING UP
10
Manual fine tuning and programme skip
3
4
5
6
Programme skip
To prevent certain programmes from being viewed, for
example, a certain film by your children whilst you are out for
the evening, you can skip the programme position and take
the remote control with you. The television will still function
as normal using the controls on the front of it, but the set will
not show the skipped programme position.
OK : To store EXIT : To exit
MENU : To return
Manual fine tuning
Select Manual tuning from the Set up menu.
1
2
3
4
With the station highlighted, press OK.
Press the R
button repeatedly until the words
Manual fine tuning
are showing.
5
With the Por Qbutton adjust to get the best
picture and sound.
Press OK to store and then EXIT.
OK : To store EXIT : To exit
MENU : To return
OK : To select EXIT : To exit
Manual tuning

Prog. Sys. Channel Station
0 I 60 VCR
1 I 22 BBC1
2 I 28 BBC2
3 I 25 ITV
4 I 32 CH4
5 I * 69

Manual fine tuning should not be required unless you
experience interference or a weak signal.
1
2
Each programme
position has to be
INDIVIDUALLY selected and
set with Programme skip
On or Off.



Manual tuning
Manual tuning


Programme skip : On
2I
*
28 0 BBC2
Manual fine tuning
1 I 22 + 2 BBC1
*
on the screen
indicates a skipped
programme position.

11
USING YOUR TV
General and sound controls
Press the MENU button on the remote control, and the
Sor Rbutton to select the Sound option from the top bar.
Press the Qbutton to highlight Bass, Treble or Balance
from the Sound menu and then the Sor Rbutton to
change the setting.
Volume 32
Sound
Bass + 1
Treble 0
Balance 0
Volume
Press the j — (S)
or j + (R) button
to adjust the volume.
Sound Mute
Press the kbutton to turn the sound off.
Press it again and the sound will return.
Bass Boost – to enhance the depth of sound
Press the
nbutton repeatedly to turn the Bass Boost
on and off. Press the Sor Rbutton to adjust the effect.
The difference will only be noticeable on sound with a
strong bass.
When an active Super Woofer is connected the
n
button
will control it.
When you connect a Super Woofer, make sure you
choose Woofer EXT. from the AV connection option in
the Feature menu.
Sound control
Bass, treble and balance adjustments
EXIT : To exit
Selecting and changing programme position
Enter the desired programme position number using the
numbered buttons on the remote control.
For programme positions below 10 use 0 and the
required number e.g. 01 for programme position 1.
You can also change the programme position by using
the Pf(P) and Pe(Q) buttons.
Use the ^^button to revert to the previous programme
position.
The programme position will be displayed
on the screen with the Stereo/Mono
indicator, described on page 14.
1
BBC1
Stereo


AV connection





Back
EXT2 input AV
EXT3 input S-VIDEO
EXT2 output EXT 1
Woofer EXT.
Feature menu

USING YOUR TV
12
SUPER LIVE
SUPER LIVE
Press the
{
button
repeatedly to
view the options
available.
This setting will enlarge the image
to fit the screen by stretching
the image horizontally, holding
the correct proportions at the
centre of the image.
This set is capable of showing broadcasts in a number
of formats. Depending on the type of broadcast being
transmitted you may select between Super live,
Cinema, Subtitle, 14:9, Wide and 4:3.
Widescreen viewing
CINEMA
CINEMA
When watching ‘letterbox format’
films/video tapes, this setting will
eliminate or reduce the black bars
at the top and bottom of the screen
by zooming in and selecting the
image without distortion.
WIDE
SUBTITLE
SUBTITLE
SUBTITLE
WIDE
When subtitles are included on a
letterbox format broadcast, this
setting will raise the picture to
ensure that all the text is
displayed.
Use this setting when watching a
widescreen DVD, widescreen
video tape or a 16:9 broadcast
(when available). Due to the
range of widescreen formats
(16:9, 14:9, 20:9 etc.) you may
see black bars on the top and
bottom of the screen.
4:3
4:3
Use this setting to view a true 4:3
broadcast.
14:9
14:9
Use this setting when watching a
14:9 broadcast.
Experiment with
them all until you
find a style that
suits you…
Whenever the MENU button is
pressed the picture size setting will
change while the menus are ON the
screen. This is to ensure the menus do not
overlap the edges of the viewable area.
!

USING YOUR TV
13
Picture controls
When this TV receives a true Widescreen picture and Automatic
format is ON, it will automatically be displayed in Widescreen
format, irrespective of the TV’s previous setting.
Press the MENU button, and use either the Sor R
button to select the Feature menu. Use Qto
move down to Automatic format.
Using the Sor Rbuttons turn Automatic format
ON or OFF.
1
2
Adjustment to the position of the picture may be made to suit
your viewing preferences.
Press the MENU button, and use the
Rbutton to select Feature menu.
Now repeatedly press the Qbutton until Picture
position is highlighted.
1
2
Feature menu
Feature menu



AV connection
Picture position
Panel lock OFF
Automatic format ON

Feature menu




AV connection
Picture position
Panel lock OFF
Automatic format ON
Blue screen ON
Convergence
Picture position
3
4
5
Press the Rbutton to view the options available
for the picture format you have selected.
With the Pand Qbuttons, highlight an
option and with the Sor Rbutton select.
Now use the Sor Rbuttons to adjust the settings as
required and press EXIT when you have finished.
In Cinema:
Picture position


Back
Horizontal position
Vertical position

Automatic format (Widescreen)


NR – Digital Noise Reduction
Select NR from the Picture menu. Select between
ON and OFF to obtain the best picture. The
differences may not always be noticeable.
1
NR enables you to ‘soften’ the screen representation of a
weak signal.
2
This television offers you the choice of personalising the
picture style to suit your own preferences. By pressing
the
m
button you can view the different picture
styles available:
Picture preferences
Within this
Picture menu
you have the
options to
adjust the
Contrast, Brightness, Colour,
Tint and Sharpness.
Using the Sor Rbutton alter to suit your taste.
1
 
Contrast 50
Brightness 50
Colour 50
Tint 0
Sharpness 0
NR ON


EXIT : To exit
So, to set your own, choose Picture from the top
menu bar.
Picture mode-1 to 3for preset options and,
Picture mode-M is for your own settings:
The Tint can only be adjusted on a
signal from an NTSC video recorder or
DVD player when the television is in
AUTO colour mode.
The options
available to you
when in the
Picture position
screen will vary
depending upon
the widescreen
format you have
previously
chosen, as
detailed on
page 12.
!

14
Select the Timer option from the top menu bar.
Select the On timer (or the Off timer). If, for
example, you want the TV to turn ON (or OFF) in
one and a half hours time, enter 01:30 using the
numbered buttons on the remote control.
If setting the Off timer press EXIT. If setting the
On timer, you must enter the programme
position number you want to watch. You must
put the set into Standby mode by pressing the
ibutton.
Any equipment connected with Scart leads must
also be put into Standby mode to prevent them
being displayed when the timer switches on.
When the On timer has been set, the GREEN
On timer indicator on the front of the TV will be lit
(see page 6).
If the On timer has been set, you do not have to wait to
watch the television. You can bring the set back to life by
pressing the
i
button. However, the GREEN timer light
will stay on until the set time period has passed, at which
point the TV will go to the chosen channel. This feature
can help you avoid missing your favourite programmes.
If stereo or dual language broadcasts are transmitted the
word Stereo or Dual will appear on the screen,
disappearing after a few seconds. The display will
reappear each time you change programme positions,
provided that the broadcast is in stereo. If the broadcast is
not in stereo the word Mono will appear.
ADDITIONAL FEATURES
The timer, time display, panel lock
and stereo/bilingual transmissions
The time display facility allows you to see the current time
on the TV screen.
If you press the 8/9button on the remote control
whilst watching a normal TV broadcast you will see a
time display from the broadcaster.
It will remain on the screen for about 5 seconds.
1
2
1
3
4
The Time Display
Stereo… Choose the required programme number.
Press the OI/II button repeatedly, to select between
Stereo and Mono.
Bilingual… Bilingual transmissions are rare. If they are
transmitted the word Dual will display. Choose the
required programme number and if the word Dual does
appear press the OI/II button to select between Dual 1,
Dual 2 or Mono.
Panel Lock
From the Feature menu select Panel lock and
choose ON or OFF with the Sor Rbuttons.
Timer
0 – 9 : To set
EXIT : To exit
You can tell the TV to turn itself ON or OFF after a
certain time. Panel lock allows you to disable the buttons on the front
of the TV set. You can though, still use all of the
buttons on the remote control.
The Timer
Stereo and Bilingual transmissions
To cancel the On timer, enter zero in each
position including the programme position.
Off timer 00:00
On timer 01:30 P 2
Feature menu




AV connection
Picture position
Panel lock ON
Automatic format ON
Blue screen ON
Convergence

When Panel lock is ON, you will be reminded
on the screen when you press any of the front
panel buttons. Once the set has been switched
off it can ONLY be brought out of standby
using the remote control.

15
ADDITIONAL FEATURES
AV connections and input selection
Defining your INPUT and OUTPUT sockets so that your television recognises connected equipment.
Again, from the Feature menu select AV
connection.
Using the Sor Rbuttons change the EXT2
output option to:
MONITOR = The picture on screen
TV = The last television programme selection.
EXT 1 = The picture from equipment connected
to Scart 1.
EXT 3 = The picture from equipment connected
to Scart 3 or the front input sockets.
2
1
Selecting the OUTPUT signal for Scart 2
Selecting the INPUT signal
This feature allows you to specify the type of signal going
into Scarts 2 (EXT 2) or 3 (EXT 3) on the back of the
television and the sockets on the front (which are also
EXT 3). Please refer to the manufacturers instructions for
the connected equipment. If the colour is missing try the
alternative setting.
1
From the Feature menu select AV connection and
with the Sor
R
button select either AV or S-VIDEO
as the required input for EXT2 and EXT3.
This feature enables you to select the source to output
from Scart 2. e.g. If you connect a stereo decoder to
Scart 1 and a stereo video recorder to Scart 2, and
select EXT 1 as the EXT2 output (i.e. you will output
the signal received through Scart 1 directly out to
Scart 2), you will be able to record the stereo decoder
transmission in stereo.
Most video recorders and decoders send a signal
through the Scart lead to switch the TV to the correct
Input socket. Alternatively press the external source
selection button Brepeatedly until you see the picture
from your equipment. You must use this button to view
equipment connected using the COMPONENT VIDEO
INPUT (EXT 4).
An S e.g. EXT2S, indicates the input is set for an
S-Video signal.
…Please see page 20
for a clear view of the
back connection
recommendations…
Press the Bbutton to bring up EXT 1 on the
screen. This will display the signal coming in
through Scart 1.
Press the Bbutton again to select the equipment
connected to Scart 2 (EXT 2).
And press the Bbutton again for EXT 3
(Scart 3, I, on the back of the TV or J,
on the front of the TV) and again for EXT 4
(Component Video Input).
To return to TV mode simply press one of the
numbered buttons on the remote control.
To view the external equipment once again,
simply press the Bbutton until you see your
external source.
Input Selection
Using the Input Selection if the TV does not switch over
automatically.
1
2
3
4
AV connection





Back
EXT2 input AV
EXT3 input S-VIDEO
EXT2 output EXT 1
Woofer EXT.
AV connection





Back
EXT2 input AV
EXT3 input S-VIDEO
EXT2 output EXT 1
Woofer EXT.

Selecting the character set and viewing mode and general information
16
TELETEXT
Teletext – setting up
This TV has a multi-page teletext memory, which takes a few moments to load and it offers two ways of viewing
text – AUTO and LIST which are explained on the next page.
Teletext continued over the page…
The
6
/
7
button:
Pressing the
6
/
7button once will bring up the teletext
screen. Press again to superimpose the teletext over a
normal broadcast picture. Press again to return to normal
TV mode. You need to return to normal viewing if you
wish to change channels.
When you first press the
6
/
7
button to access the text
service, the first page you see will be the initial page.
In AUTO mode this displays the main subjects available and
their relevant page numbers.
In LIST mode you will see whichever page number is
currently stored on the RED button.
To access any teletext page, enter the 3 digit page number,
using the numbered buttons on the remote control,
e.g. 430, or to advance to the next page press the
P f( P) button, to go back to the previous page press the
P e( Q) button.
Sub-pages
Once in this chosen page, if there are sub-pages they will
automatically load into memory without changing the
one you are reading. Arrows will appear along side the
page number, indicating sub-pages which have loaded to
the left or right of the one on the screen. If there are many
sub-pages it will take a long time for them all to load and
this will depend on the speed with which the broadcaster
transmits them.
To access the sub-pages in
memory press the
XX(BB)
button, then use the
SS
and
RR
buttons to view
them.
Whilst in sub-pages mode an indicator will show in the
bottom left of the screen. After a short time of inactivity the
indicator will disappear. To access the sub-pages again press
the
X(B)
button.
These sub-pages will remain available to view until you
choose another page or, in normal TV mode, you change
channel.
About teletext
Selecting characters and modes
2
3
4
5
Teletext


To select the Mode, with the Qbutton highlight
Mode.
With the Sor Rbutton choose AUTO or LIST.
Press EXIT to finish.

Back
Character
CHARACTER 1
Mode AUTO
From the Set up menu, use the Por Qbutton to
highlight Teletext and then the Rbutton to select.
With Character highlighted, use the Rbutton to
select your required character set.
Before using teletext you can choose the correct alphabet
(Character)and whether to view in LIST or AUTO mode,
(explained on the next page).
1
To alter the volume
you will need to cancel
sub-pages mode by
pressing the
X(B)
button first.

CHARACTER 1 for Western European countries and Turkey
CHARACTER 2 for Eastern European countries

17
Teletext continued
– Auto and List modes
Moving around the teletext pages in AUTO and LIST modes and selecting favourite pages
Moving around
TELETEXT
The rest of the text control buttons are
explained on the next page…
In LIST mode, the four choices at the bottom of the
screen are now numbers – 100, 200, 300 and 400,
which have been programmed into the TV’s memory.
To view these pages use the coloured prompt buttons
e.g. press the GREEN button to view page 200.
If you want to change these stored pages press the
coloured button for the colour you want to change,
e.g. GREEN and enter the 3 digit number.
This number will change in the top left of the screen and
in the coloured highlight.
Now press OK to store your choice. The bars at the
bottom of the screen will flash white. Whenever you
press OK all four page numbers showing along the
bottom will be stored and the previous ones will
be lost.
If you do not press OK to confirm your change, you will
not have stored your choice and it will be forgotten when
you leave the teletext screen.
You may view other pages by simply entering the 3 digit
page number – but DO NOT press OK or you will lose
the favourite already stored.
Press the 6
/
7button to access teletext.
In AUTO mode, if FASTEXT,is available, you will see
four coloured titles at the base of the screen.
To access one of the four given subjects, press the
relevant coloured button on the remote control,
corresponding to the title.
For further information on your particular text system(s),
see the broadcast teletext index page or, consult your
local Toshiba dealer.
List
There are two Modes: AUTO will display FASTEXT, if
available. LIST will display your four favourite pages. In
either mode, as an alternative to the coloured buttons
you can access a page by entering a 3-digit number,
using the buttons on the remote control, or to advance to
the next page press the P f(P) button, to go back to
the previous page press the P e(Q) button.
Auto

To reveal concealed text:
Some pages cover topics such as quizzes and jokes. To discover
the solutions press the rbutton.
3
r
To display an index/initial page:
In AUTO-mode
Press the Tbutton to access index pages. The one displayed is
dependant on the broadcaster.
In LIST-mode
Press the Tbutton to return to your page currently stored on the
RED button.
T
1
Remember to
cancel text before
changing channels
– press the
6
/
7
button twice.

18
TELETEXT
Teletext continued
– control buttons
1
3
2
6
5
Using the buttons on the remote control
Now you have set up teletext, below is a guide to the remote control teletext buttons and their functions.
To hold a wanted page:
This feature is included as it is part of the broadcast teletext system
but you will not need it as this TV allows you to control the display
of sub-pages.
To display a page of teletext:
Press the 6
/
7button to display teletext.Press again to
superimpose the teletext over a normal broadcast picture. Press
again to return to normal TV mode. You cannot change
programmes until you return to normal TV.
q
6
/
7
2
To enlarge the teletext display size:
Press the
s
button once to enlarge the top half of the page, press
again to enlarge the bottom half of the page. Press again to revert
to the normal size.
5
4
6
To select a page whilst viewing a
normal picture:
When in teletext mode, if a page selection is made and then the
8/9button is pressed, a normal picture will be displayed. The
TV will indicate when the page is present by displaying the page
number at the top of the screen. Press the 6
/
7button to view
the page.
To display news flashes:
To view news flashes as they are broadcast, select
the news flash page for the particular teletext
service (see the index page of teletext service). Press
the 8/9button. The news flashes will be
displayed as and when they are broadcast. Press
the 8/9button to cancel the display.
8
/
9
s
4
You must
cancel the
news flash
page before
changing
channels.


CONNECTING OTHER EQUIPMENT
Front connections and controls
You can connect a wide variety of external equipment via the sockets located behind the flap on the front of
the TV. Press the centre of the flap to open it.
Before connecting any external equipment, turn off
all main power switches.
If you connect mono sound equipment to
Input 3, connect the audio output of the
equipment to the L/Mono socket on the TV.
To select the front Inputs, press the Bbutton
until the display shows EXT3 or EXT3S as
described on page 15.
Please note: Inserting the headphone jack will
mute the sound from all speakers.
Whilst all the necessary adjustments and controls for
your new TV are made using the remote control, the
buttons on the front of the TV may be used for
some functions…
Front connections
For example, to alter the volume press the —j+
buttons,
and to alter the programme position press the
eeFffbuttons…
…press the MENU button and control the sound and
picture options with the S,R,Qand Pbuttons.
Use EXIT to cancel the displays.
19
Front controls
BN
N
ON
Y
BN
N
ON
Y
N
N
DIGITAL CAMERA CAMCORDER
COMPUTER GAMES
HEADPHONES
DO NOT connect
equipment to both the front
and rear Jterminals at the
same time.
!
Please always refer to the
owner’s manual of the equipment
to be connected for full details.
!

20
Back connections
Before connecting any external equipment,
turn off all main power switches.
On the back of the TV are 3 Scart sockets and a
selection of other sockets, all of which will
enable you to connect a variety of external
equipment.
If connecting S-VIDEO equipment, set the
INPUT for EXT2 or EXT3 accordingly.
See page 15.
In addition there is a fixed external audio
output which enables the connection to a
suitable Hi-Fi unit and a phono socket to
enable an active Super Woofer to be
connected. When you connect a Super
Woofer, make sure you choose Woofer
EXT. from the AV connection option in the
Feature menu.
SCART 2
(EXT 2)
CONNECTING OTHER EQUIPMENT
Back connections
DIGITAL TELEVISION RECEIVER
DECODER
If your TV automatically switches over to monitor
the external equipment you can return to normal
TV simply by pressing the desired programme
position button.
To recall the external equipment, press the
Bbutton repeatedly to select between EXT1,
EXT2,EXT3 or EXT4.
We recommend Scart 1
for a Decoder, Scart 2 for
a VCR and Scart 3 for
additional equipment.
SCART 3
(EXT 3)
COMPONENT VIDEO INPUT
(EXT 4)
SCART 1
(EXT 1)
When you
connect a Super
Woofer, make sure
you choose Woofer
EXT. from the AV
connection option in
the Feature menu.

VIDEO
RECORDER
DVD/
GAMES CONSOLE
ACTIVE SUPER
WOOFER
Alternative connections
