Your TV comes with:
• Remote control and batteries.
• Several documents, including the Resource
Guide, and Standard Limited Warranty
(L3400U and L3400UM only).
• Pedestal stand and hardware.
• All other cables and adapters are sold separately.
• If any items are missing or damaged, notify
your dealer immediately.
• For the United States, the Standard Limited
Warranty is located at
support.toshiba.com/warranty.
• For Canada, the terms and conditions of
the Limited One (1) Year Warranty on Parts and
Labour can be found at
www.toshiba.ca/support Click on Televisions,
Select Warranty, then Select Standard Warranty
& Service Plans and Select Flat Panel
Television (bilingual).
The Resource Guide contains important safety precautions not included in this
document. Please review completely prior to using this product. Complete
instructions are contained in the User's Guide located on Toshiba's web site at :
For United States: support.toshiba.com
For Canada: www.toshiba.ca/support/ceg
For Mexico:
http://www.toshiba.com.mx/tdmConsumo/Informacion/Contacto.aspx?ID=SPT"
Register Your Toshiba Television
Enhance your ownership experience by taking a few minutes to register your Toshiba product at register.toshiba.com (for L3400U
and L3400UM series) or support.toshiba.ca/warranty/ (for L3400UC series). Completing product registration allows Toshiba to
provide you with product information updates, special offers and promotions. Failure to complete product registration will not
diminish your rights under the Standard Limited Warranty.

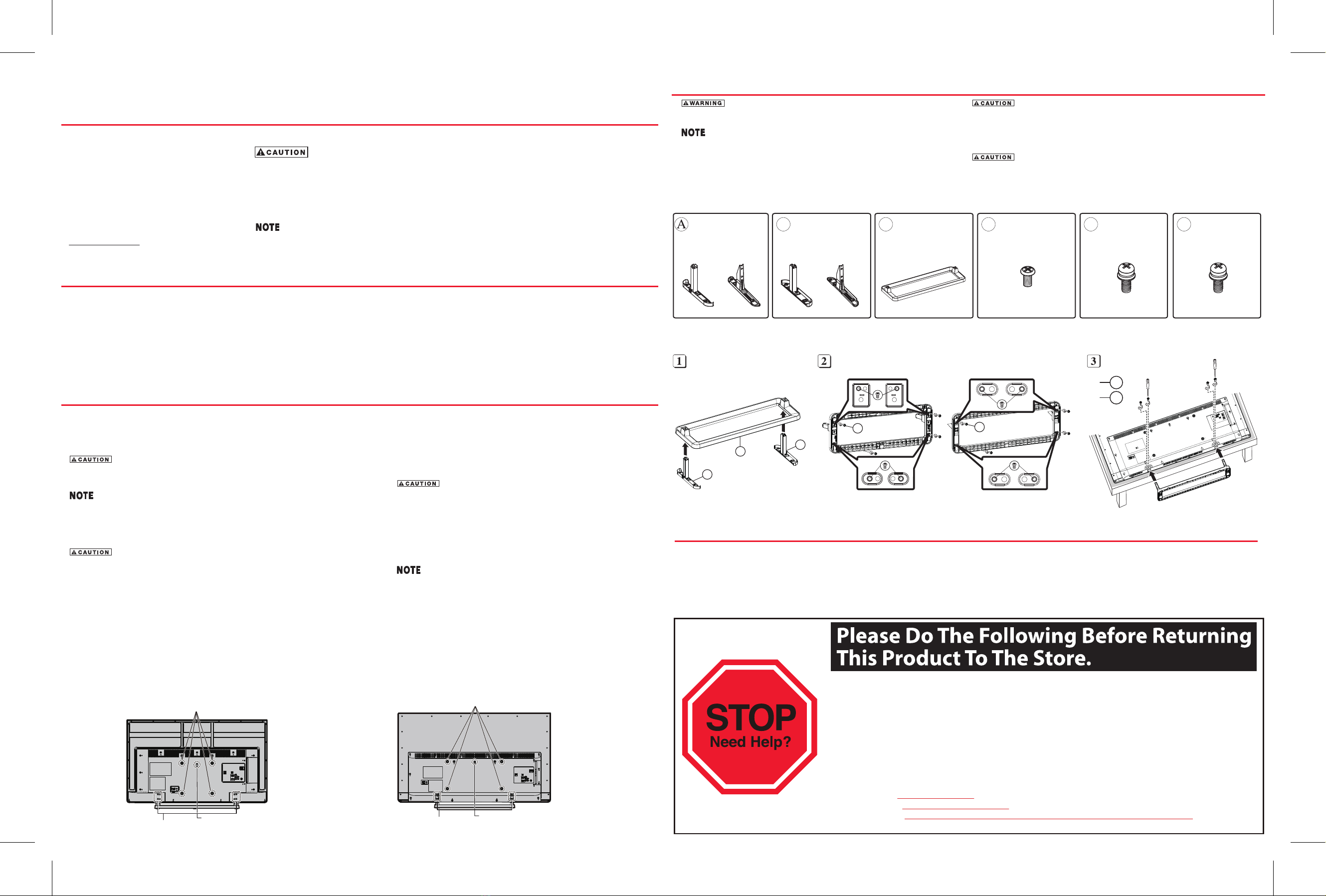

Pedestal Assembly Instructions
To prevent possible electric shock, protect the power
cord from being pinched when attaching the pedestal
stand.
Before beginning pedestal assembly, carefully lay the
front of the LCD Panel face down on a flat, cushioned
surface such as a quilt or blanket. Leave the bottom of the
unit protruding over the edge of the surface and assemble
pedestal as indicated below.
Two people are required for installation to avoid injury or
damage to the TV.
Extreme care should always be used when attaching the
pedestal stand to avoid damage to the LCD panel.
For safety information, please review the User’s Guide online:
For United States: support.toshiba.com
For Canada: www.toshiba.ca/support/ceg
For Mexico:
http://www.toshiba.com.mx/tdmConsumo/Informacion/Conta
cto.aspx?ID=SPT"
QUICK START
Check the components
Unpack the box
1. Remove the components and TV from
the box. Save the packing materials in
case you need them later.
2. Remove the documentation for
important information.
A High-Definition signal is needed to receive a High-Definition picture.
Once you have a High-Definition signal you need to connect it to a
High-Definition input on your TV. Not all channels are currently
broadcasting in HD. Standard analog TV channels and HD channels, even
on the same network, broadcast on different channels. (Example: ABC
analog may be on channel 4, while ABC-HD may be on channel 104.)
To display your TV using a Wall Bracket:
If you decide to wall mount your LED TV, always use a wall bracket
Listed by an independent laboratory (such as UL, CSA, ETL) that is
appropriate for the size and weight of the TV:
Two people are required for installation to avoid injury or
damage to the TV.
1. Unplug and remove any cables and/or other component connectors
from the rear of the TV.
2. Follow the instructions provided with your wall bracket. Before
proceeding, make sure the appropriate bracket(s) are attached to the
wall and the back of the TV as described in the instructions provided
with the wall bracket.
Always use the screws supplied or recommended by
the wall mount manufacturer.
VESA Mounting Pattern
TV Size Hole Pattern (H x V) Screw Size
40" 200mm x 200mm M6
50" 400mm x 200mm M8
L3400U/UC/UM Series
To display your TV on the included Pedestal Stand:
Observe the following safety precautions:
1. Read and follow the pedestal assembly instructions section in this document.
Before beginning pedestal assembly, carefully lay the TV facedown on a
flat, cushioned surface such as a quilt or blanket. Leave the bottom of the
unit protruding over the edge of the surface and assemble the pedestal as
indicated below.
Extreme care should always be used when attaching or removing the pedestal
stand to avoid damage to the display panel.
2. Assemble the pedestal stand with the hardware provided.
3. After assembling the pedestal, place the TV on a sturdy, level surface that can
support the weight of the TV.
4. Be sure to secure the TV to a wall stud, pillar, surface, or other immovable structure.
Choosing a location for your LED TV
40/50L3400U (United States model)
40/50L3400UC (Canada model) 40/50L3400UM (Mexico model)
Many questions regarding parts, service, and warranties can be answered by visiting the Customer Support Section
of our website:
THANK YOU
If you are experiencing a technical problem or have questions regarding operation, authorized service centers,
warranty or parts, please contact our Customer Support Center at:
Always place the TV on a sturdy, level, stable surface that can support
the weight of the unit. Secure the TV using one of the following
methods:
(1) Secure the TV with a mounting screw (Recommended).
• Place the TV on a sturdy surface that has a sufficient
thickness and screw the unit on the surface securely by using
the mounting screw and the fall-prevention screw hole.
• If secured to furniture or other movable objects, the furniture must
be secured to an immovable structure using the method shown in
item 2 below.
(2) Secure the TV with a sturdy strap to a wall stud, pillar, or
other immovable structure. When connecting the strap:
- attach the strap to the TV using the hooks on the back of
the TV, the clips on the pedestal, or the hole in the base of
the pedestal as available.
- make sure the strap is tight, secure, and parallel to the floor. For L3400U series (United States model):
[phone] From Inside the United States
[phone] From Outside the United States
For L3400UC series (Canada model):
1-800-268-3404 From within Canada
For L3400UM series (Mexico model):
9126-5165 and 9126-5166 for Mexico
01-800-712-67-64 lada 800 for Mexico
L3400U series: support.toshiba.com
L3400UC series: www.toshiba.ca/support/ceg
L3400UM series: http://www.toshiba.com.mx/tdmConsumo/Informacion/Contacto.aspx?ID=SPT"
Get detailed product information:
L3400U series: A comprehensive User's Guide for your model
is available at support.toshiba.com, as well as up-to-date
product information.
L3400UC series: For up-to-date product information,
visit www.toshiba.ca/support/ceg.
For detailed product specifications, Select Product, then
select Model and select Model Number.
L3400UM series:
A comprehensive User's Guide for your model is available at
http://www.toshiba.com.mx/tdmConsumo/Informacion/Co
ntacto.aspx?ID=SPT".
40” TV
VESA Mounting Pattern
Hook Sturdy strap
(as short as possible)
Two stand screws
(Sample illustration)
50” TV
Hook Sturdy strap
(as short as possible)Two stand screws
(Sample illustration)
VESA Mounting Pattern
• Subject to Change.
Product specifications, configurations, prices,
system/component/options availability are all
subject to change without notice.
Notice
40/50L3400U/UC/UM model
40”
50” F
E
D
40’’
A
B
C
D
50’’
40/50L3400U/UC/UM
B
40” 50”
RIGHT x 1
40” 50”
40/50L3400U/UC/UM
LEFT x 1
E40L3400U/UC/UM
x 4
M4 ; L12mm
F50L3400U/UC/UM
x 4
M5 ; L10mm
x 4
D40/50L3400U/UC/UM
M4 ; L8mm
x 1
C40/50L3400U/UC/UM

Consult the electronic User's Guide Call Toshiba Customer Support Center
If you are experiencing a technical problem or have questions with
regards to operation, authorized service centers, warranty or
parts, Toshiba Customer Support Center is ready to help.
3. DVI to HDMI®
Your HD cable box or HD satellite receiver
may have a DVI connection. This will be
connected to the HDMI®jack on the TV using an
HDMI®cable and an HDMI®to DVI converter.
DVI carries digital video only.
Navigating the menu system
You can use the buttons on the remote control to access
and navigate your TV’s onscreen menu system.
• Press MENU to open the menu system.
• When a menu is opened, use the arrow buttons ( )
on the remote control, to move in the corresponding
direction in the menu.
• Press OK to save your menu settings or select a
highlighted item. (A highlighted menu item appears in a
different color in the menu).
• All menus close automatically if you do not make a
selection within 30 seconds.
• To close a menu instantly, press EXIT.
Connecting to a High-Definition Input on your TV
2. HDMI®to HDMI®
HDMI®is the best connection
for HDTV. This is a digital
connection that carries both
digital video and digital audio.
4. Component Video Input
ColorStreamTM HD component may also be used
to receive HDTV. Use if no HDMI®or DVI jack
is available. There are three jacks color-coded
with red-green-blue on the back of the TV and
HD cable box or HD satellite receiver. This
connection will require a separate analog audio
connection (use the red and white audio
connections).
1. Antenna Input
To connect directly from
an antenna or basic cable:
connect the cable directly
to the antenna input on the
back of the TV.
You can connect directly from an antenna, or if you are using an HD cable box or HD satellite box, there are three standard connections that can be used to receive an HD signal.
INPUT
TV
OUTPUT
Cable box/Satellite box INPUT
TV
OUTPUT
Cable box/Satellite box
INPUT
TV
Receiving an HDTV Signal
There are three basic ways to receive an HDTV signal on your new TV:
1. Over-the-Air (Antenna)
Connect a high quality outside antenna (not
supplied) directly to the antenna input on
the TV (reception cannot be guaranteed and
is based on proximity to the local signal).
2. Cable or Phone Company HDTV Service
Cable or phone company HDTV service customers
will need to subscribe to High-Definition service from
your local provider. (Additional monthly subscription
cost may apply).
3. Satellite
Satellite customers will need a High-Definition
satellite receiver and appropriate dish hardware.
(Additional monthly subscription cost may apply).
© 2014 Toshiba America Information Systems, Inc.
Need Help? Most problems are easy to correct. Save time with one of these simple
solutions.
Quick Tour
INPUT
TV
• GMA501287011 • 1/14
OUTPUT
Cable box/Satellite box
L3400U series: [phone] From inside the United States
[phone] From outside the United States
L3400UC series:
L3400UM series:
ColorStream is a trademark of Toshiba America Information Systems, Inc.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks
or registered trademarks of HDMI Licensing LLC in the United States and other countries.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
Printed on recycled paper
L3400U series: To access the electronic User’s Guide please visit
support.toshiba.com
Type in your product model or serial number, press GO, and then click
Manuals & Specs.
L3400UC series: To access the electronic User’s Guide please visit
www.toshiba.ca/support/ceg
L3400UM series: To access the electronic User's Guide please visit
http://www.toshiba.com.mx/tdmConsumo/Informacion/Contacto.asp
x?ID=SPT"
1-800-268-3404 From within Canada
9126-5165 and 9126-5166 For Mexico
01-800-712-67-64 lada 800 For Mexico
(Sample Image)
Sound
Installation
Get Help
Timers
Picture Mode Standard
Reset
Backlight 55
Contrast 95
Brightness 0
Color 0
Tint 0
Sharpness 0
Advanced Picture Setting
Display Setting
Options
Network
Visit Toshiba's Support Web site
L3400U series: support.toshiba.com
L3400UC series:www.toshiba.ca/support/ceg
L3400UMseries: http://www.toshiba.com.mx/
tdmConsumo/Informacion/Contacto.aspx?ID=SPT"
Initial Setup
You must select a Language, either Home/Store mode, before you can exit out of the Setup Menu. The EXIT button will not function until these selections have
been made.
LAN
HDMI®IN
Back
Front
POWER button
Switches the function
of the VOL +/- buttons
to select the volume,
channel, or input mode.
Channel/
Volume increase/
decrease
USB port
For more information about the CH/INPUT button,
refer to the User's Guide.
Left side
Front
40L3400U/UC/UM Series
40L3400U/UC/UM Series
Left side
Back
50L3400U/UC/UM Series
40L3400U/UC/UM Series 50L3400U/UC/UM Series
50L3400U/UC/UM Series
ColorStreamTM HD /
VIDEO IN
DIGITAL AUDIO OUT
ANTENNA / CABLE
2 HDMI®IN
Power On/Standby LED
Remote sensor
Power On/Standby LED
Remote sensor
Power Cord Power Cord
1. Menu Language
Select a language.
2. Time Zone
Select a time zone
Press OK.
3. Store / Home Mode
Select Store or Home Mode.
Press OK.
4. ANT/CABLE in
Select Antenna or Cable.
Press OK.
Initial Setup
Menu Language
Time Zone
English
Eastern
Initial Setup
Menu Language
Time Zone
English
Eastern
ANT / CABLE in
Antenna
5. Start Scan
Select Start Scan.
Press OK.
Channel Program
Press EXIT for no change.
Start Scan
6. Network Setup
Please follow the on-screen
instructions to setup the
network.
Store / Home Mode
Home
To use this TV for display in a store showroom, please select [ Store ].
[ Home ] mode is recommended for normal use.
If you want to stop scanning,
press EXIT while scanning.
