MV13K2
Especificaciones generales
Instrucciones para el desensamble
Guía de abreviaturas
Lista de modos de servicio
Revisiones preventivas e intervalos de servicio
Nota en el reemplazo del IC de memoria
Herramientas e implementos de servicio
Preparación para el servicio
Ajustes mecánicos
Ajustes eléctricos
Diagrama a bloques
Placas de circuito impreso
Diagramas esquemáticos
Formas de onda
Vistas explotadas mecánicas
Lista de partes de reemplazo mecánico
Lista de partes de reemplazo eléctrico
Televisores a Color con Videograbadora
SERVICE MANUAL
COLOR TELEVISION/
VIDEO CASSETTE RECORDER
FILE NO. 140-200003
MV13K2
SERVICING NOTICES ON CHECKING
6. AVOID AN X-RAY1. KEEP THE NOTICES
As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.
3. USE THE DESIGNATED PARTS
5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE
In the condition that an explosion-proof cathode-
ray tube is set in this equipment, safety is
secured against implosion. However, when
removing it or serving from backward, it is
dangerous to give a shock. Take enough care to
deal with it.
Safety is secured against an X-ray by consider-
ing about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage pe-
ripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathode-
ray tube.
Please include the following informations when you order parts. (Particularly the VERSION LETTER.)
1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be
found at the end of the SERIAL NUMBER.
2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.
HOW TO ORDER PARTS
PERFORM A SAFETY CHECK AFTER
SERVICING
7.
Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.
(INSULATION CHECK PROCEDURE)
1.
2.
3.
4.
Unplug the plug from the AC outlet.
Remove the antenna terminal on TV and turn
on the TV.
Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note 1].
If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.
[Note 1]
If you have not the 500V insulation
resistance meter, use a Tester.
[Note 2]
External exposure metal: Antenna terminal
Earphone jack
2. AVOID AN ELECTRIC SHOCK
There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.
The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.
4. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING
There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.
GENERAL SPECIFICATIONS
G-1.Outline of the Product
13 inch( 335.4 mmV):Measured diagonally
Color CRT 90 degree deflection
2 -Speed 1/2" Video Cassette Recorder
VHS Recorder/Player
VHS-C Player
G-2.VCR Format
VHS Standard NTSC PAL SECAM PAL-M PAL-N
VHS Hi-Fi Audio System
G-3.Video Recording System :Rotary,slant azimuth two head helical scan system
Luminance Component :FM recording
Chrominance Component :Low frequency converted direct recording
G-4.Broadcasting System US System M
G-5.Color System NTSC PAL SECAM or Monochrome signal
G-6.NTSC Playback(PAL 60Hz) Yes No Not Applicable
G-7.MESECAM Yes No Not Applicable
G-8.Cassette Tape
VHS type video cassette tape Width 12.65mm (1/2 Inch)
VHS-C type video cassette tape Width 12.65mm (1/2 Inch)
G-9.Tape Speed
NTSC or PAL-M PAL or SECAM
SP 33.35 mm/sec SP 23.39 mm/sec
LP 16.67 mm/sec LP 11.69 mm/sec
SLP(EP) 11.12 mm/sec
G-10.Recording/Playback Time
NTSC or PAL-M
at SP Mode Max. 210 min. (with T-210 cassette)
at LP Mode Max. 420 min. (with T-210 cassette)
at SLP(EP) Mode Max. 630 min. (with T-210 cassette)
PAL or SECAM
at SP Mode Max. 300 min. (with E-300 cassette)
at LP Mode Max. 600 min. (with E-300 cassette)
G-11.Deck OVD-5 OVD-6 OVD-6S
G-12.Rewind/Fast Forward Time(Approx.)
FF:2'15" / Rew:1'48" (with T-120 cassette) (with E-180 cassette)
G-13.Search Speed
SP 3 and 5 Times
LP Times
SLP(EP) 9 and 15 Times
G-14.Slow Speed
SP Times
LP Times
SLP(EP) Times
G-15.Frame Advance
SP Times
LP Times
SLP(EP) Times
GENERAL SPECIFICATIONS
G-16.Antenna Input Impedance
VHF/UHF 75 ohm unbalanced
G-17.Tuner and Receiving channel 1Tuner System 2Tuner System BS Tuner
Tuner : Contactless Electric tuner
Oscar(W/O HYPER) Oscar(W/ HYPER) France CATV) Others
channel coverage 2~69, 4A , A-5 ~ A-1 , A ~ I , J ~ W , W+1 ~ W+84
Tuning System
Frequency syn. Voltage syn. Others
G-18.Preset Channel: -- channels
G-19.Intermediate Frequency
Picture(FP) 45.75 MHz MHz MHz
Sound (FS) 41.25 MHz MHz MHz
FP-FS 4.50 MHz MHz MHz
G-20. Stereo/Dual TV Sound
Yes( NICAM GERMAN USA JAPAN JAPAN BS) No
G-21.Video Signal
Input Level 1 Vp-p / 75 ohm
Output Level 1 Vp-p / 75 ohm
S/N Ratio 50 dB (Weighted)
Horizontal Resolution at SP Mode 220 Lines
G-22.Audio Signal
Input Level
Line - dB / - Kohm
RCA - 8 dB / 50 Kohm
Output Level
Line - dB / - Kohm
RCA - 8 dB/ 1 Kohm
(0dB=0.775 V rms)
S/N Ratio at SP Mode 38 dB
Harmonic Distortion : 1.5 % (1KHz)
Frequency Response : at SP Mode 100 Hz ~ 10 KHz
at LP Mode Hz ~ KHz
at SLP(EP) Mode 100 Hz ~ 4 KHz
Hi-Fi Model’s Spes NONE
Depth Multiplex Recording Rotary, Slant Azimuth Two Head
System Helical Scan System
Dynamic Range : More than -- dB
Wow And Flutter : Less than --- % Wrms
Channel Separation : More than -- dB
Harmonic Distortion : Less than -- %
G-23.Heads Video 2 Rotary Heads Track Width(SP/LP/SLP : 1ch 26 µm, 2ch 31 µm)
FM Audio Rotary Heads Track Width(SP/LP/SLP : 1ch µm, 2ch µm)
Audio / Control 1 Stationary Head ( Mono Stereo(L,R) )
Erase 1 Full Track Erase
G-24.Motor: 3 Motors
Tape/Cassette Loading
Cylinder (Direct Drive)
Capstan (Direct Drive)
G-25.Power Source
120 V AC 50Hz AC 60Hz
EXT DC Jack - V
GENERAL SPECIFICATIONS
G-26.Power Consumption: 75 W at AC 120 V 60 Hz(Approx.)
- WatDC - V
(at TV and VCR ON)
Stand by: 6 W at AC 120 V 60 Hz(Approx.)
Per Year: --- kWh / Year
G-27.Dimensions(Approx.) 362 mm(W) 369 mm(D) 382 mm(H)
G-28.Weight(Approx.) Net : 12.5 Kg ( 27.6 lbs)
Gross: 14.5 Kg ( 32.0 lbs)
G-29.Cabinet Material
Cabinet Front: PS 94HB DECABROM
ABS 94V2 NON-DECA
94V0
Cabinet Rear: PS 94HB DECABROM
ABS 94V2 NON-DECA
94V0
Jack Panel: PS 94HB DECABROM
ABS 94V2 NON-DECA
94V0
G-30.Cassette Loading System: Front Cassette Loading System Top Loading System
G-31.Tape Counter: Linear Time Tape Counter
G-32.Protector: Power Fuse Dew Sensor
G-33.Regulation
Safety
UL CSA SAA SI CE SEV
BS NF NEMKO FEMKO DEMKO IEC65
SEMKO NZ HOMOLO SABS CNS SISIR
NOM AS3159 DENTORI UNE GOST NONE
Radiation
FCC DOC FTZ PTT CE SEV
SABA SI NF NZ HOMOLO UNE
CNS CISPR13 DENTORI AS/NZS NONE
X-Radiation
DHHS HWC PTB DENTORI NONE
G-34.Temperature
Operation 5 ºC ~ 40 ºC
Storage -20 ºC ~ 60 ºC
G-35.Operating Humidity Less than 80 %RH
G-36.Clockand Timer
Calender : 1990/1/1 ~ 2081/12/31
Built-in 1 Month 8 Events Programmable Timer
One Touch Recording : Max Time 5 Hours
Sleep Timer Yes Max 120 Min.( 10 Min. Step) No
On/Off Timer Yes 1 Programs No
Wake Up Timer Yes Programs No
Auto Shut Off 15 Minutes
GENERAL SPECIFICATIONS
G-37.Timer back up Time
More than 1/12 Minutes (at Power Off Mode)
G-38.TerminalsVHF/UHF Antenna Input Din Type F-Type France Type
Front Video Input<RCAø8.3>
Front Audio Input<RCA ø8.3>
Rear Video Input<RCAø8.3>
Rear Audio Input<RCAø8.3>
Rear Video Output<RCAø8.3>
Rear Audio Output<RCAø8.3>
Ear Phone Jack(ø3.5) Head Phone Jack(Stereo & Mono, ø3.5)
DC Jack 12V(Center +) AC Inlet Ext Speaker
Diversity Ear Phone 21 Pin (x )
G-39.Indicator
Indicator Power Rec/OTR T-Rec On Timer CS NONE
(Red) (Red) (Red) ( )()
G-40.On Screen Display
Menu Timer Rec Set
Ch Set Up TV/CATV Auto Ch Memory
Add/Delete Guide Ch Set
TV Set Up V-Chip Set On/Off Timer
Picture Audio
Sap On/Off
Auto Repeat On/Off
System Set Up Clock Set( Calender 12H 24H)
Language Auto Clock On/Off
Standard Time Daylight Saving Time
G-CODE(or SHOWVIEW or PLUSCODE)No. Entry
Clock/Date CH/AV
Tape Counter Tape Speed
Sleep Time Tape In
Control Level (Vol,Bright,Cont,Color,Tint,Sharpness)
Control Level (Vol,Bright,Cont,Color,Sharpness)
Play/Stop/FF/Rew/Rec/OTR/T-Rec/Pause/Eject(Symble Mak)
Auto Tracking/Manual Tracking Caption/Text 1/2
Index Repeat
Add/Delete Auto Wide On/Off
Wide Select Picture Position
Tone 1/2 Stereo
Muting
G-41.OSD Language
Eng Ger Fre Spa Ita Por Jan
OSD Language Setting
Eng Ger Fre Spa Ita Por Jan Not Applicable
GENERAL SPECIFICATIONS
G-42.Speaker
Position Front Side Bottom
Size 1.5 x 2.5 inches
Imp. 8 ohm x 1 pcs
Output Max 1.25 W
10% 1.0 W (Typical)
G-43.EXT Speaker
Yes W Imp ohm No
G-44.Carton
Master Carton: Need No Need
Content: ---- Set
Material: ---- / ---- Corrugated Carton
Dimensions: ---- mm(W) ---- mm(D) ---- mm(H)
Description of Origin Yes No
Gift Box
Material Double/Brown Corrugated Carton ( with Photo Label)
Double/White Corrugated Carton ( with Photo Label)
Double Full Color Carton W/Photo
Dimensions: 447 mm(W) 423 mm(D) 443 mm(H)
Design: As Per BUYER 's
Description of Origin: Yes No
Drop Test Natural Dropping At 1 Corner / 3 Edges / 6 Surfaces
Height 25cm 31cm 46cm 62cm 80cm
Container Stuffing: 700 Sets / 40' container
G-45.Accessories
Channel Film Dew/AHC Caution Sheet
Owner's Manual ( W/Guarantee Card) [English]
Remote Control Unit AC Plug Adaptor
Rod Antenna ( One Pole Two Pole/ F-Type DIN Type France Type)
Loop Antenna( F-Type DIN Type France Type)
U/V Mixer Quick Set-up Sheet
DC Car Cord (Center+) Battery (UM- 4 x 2 )
Guarantee Card AC Cord
Warning Sheet AV Cord (2Pin-1Pin)
Circuit Diagram Registration Card
Antenna Change Plug PTB Sheet
Service Facility List 300 ohm to 75 ohm Antenna Adaptor
Important Safeguard Euro Warranty Information Sheet
ESP Card
G-46.Other Features
Auto Head Cleaning Index Search
Auto Tracking Auto Search
Auto Clock CS Kantan Record
VIDEO PLUS+(SHOWVIEW,G-CODE) Choke Coil
HQ (VHS Standard High Quality) BS
Auto Power On, Auto Play, Auto Rewind, Auto Eject
Forward / Reverse Picture Search SQPB
One Touch Playback CATV
Auto CH Memory CM Skip(30sec x 6Times)
Just Clock Function Area Code
Closed Caption Standby Power Save
TV Auto Shutt off Function Energy Star
NTSC Playback PAL TV (PAL 60Hz) Comb Filter
End Call TV Monitor
V-chip( USA CANADA) Program Extend
SAP
GENERAL SPECIFICATIONS
G-47.Switch
Front Power Channel Up Volume Up
Play Channel Down Volume Down
Pause/Still F.FWD/Cue Rew/Rev
System Select Eject/Stop Rec/OTR
One Touch Playback Main Power SW Inout Select
Rear Color On/Off (SECAM only) Degauss
Main Power SW AC/DC
G-48.Magnetic Field
BV : +0.45G BV : +0.35G BV : +0.25G
BH : 0.18G BH : 0.30G BH : 0.30G
BV : -0.15G BV : -0.25G BV : -0.50G
BH : 0.15G BH : 0.15G BH : 0.30G
G-49.Remote Control Unit:
Unit: RC-DA
Format : NEC
Custom Code : 40-BF/44-BB h
Glow in Dark Remocon Yes No
Power Source: D.C 3 V Battery UM - 4 x 2
Total 41 Keys
0 Power Tracking Auto
1 Rec/OTR Tracking Up/Set +
2 Play Tracking Down/Set -
3 F.Fwd Menu
4 Rew Enter
5 Pause/Still Cancel
6 Stop Muting
7 Eject Volume Up
8 Timer Rec Volume Down
9 TV/Caption/Text Ch Up
Sleep Timer Index Ch Down
Quick View Zero Return Input Select
TV Monitor Counter Reset Speed
Call CM Skip(Skip Search) Audio Select(for Hi-Fi)
Slow(for 4Head)
Program(without V+) VCR PLUS+/Program(with V+)
DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS
1-1: BACK CABINET (Refer to Fig. 1-1)
1.
2.
3.
4.
Remove the 4 screws 1.
Remove the 2 screws 2which are used for holding the
Back Cabinet.
Remove the AC cord from the AC cord hook 3.
Remove the Back Cabinet in the direction of arrow.
2
Fig. 1-1
1
1
1
1
2
Front Cabinet

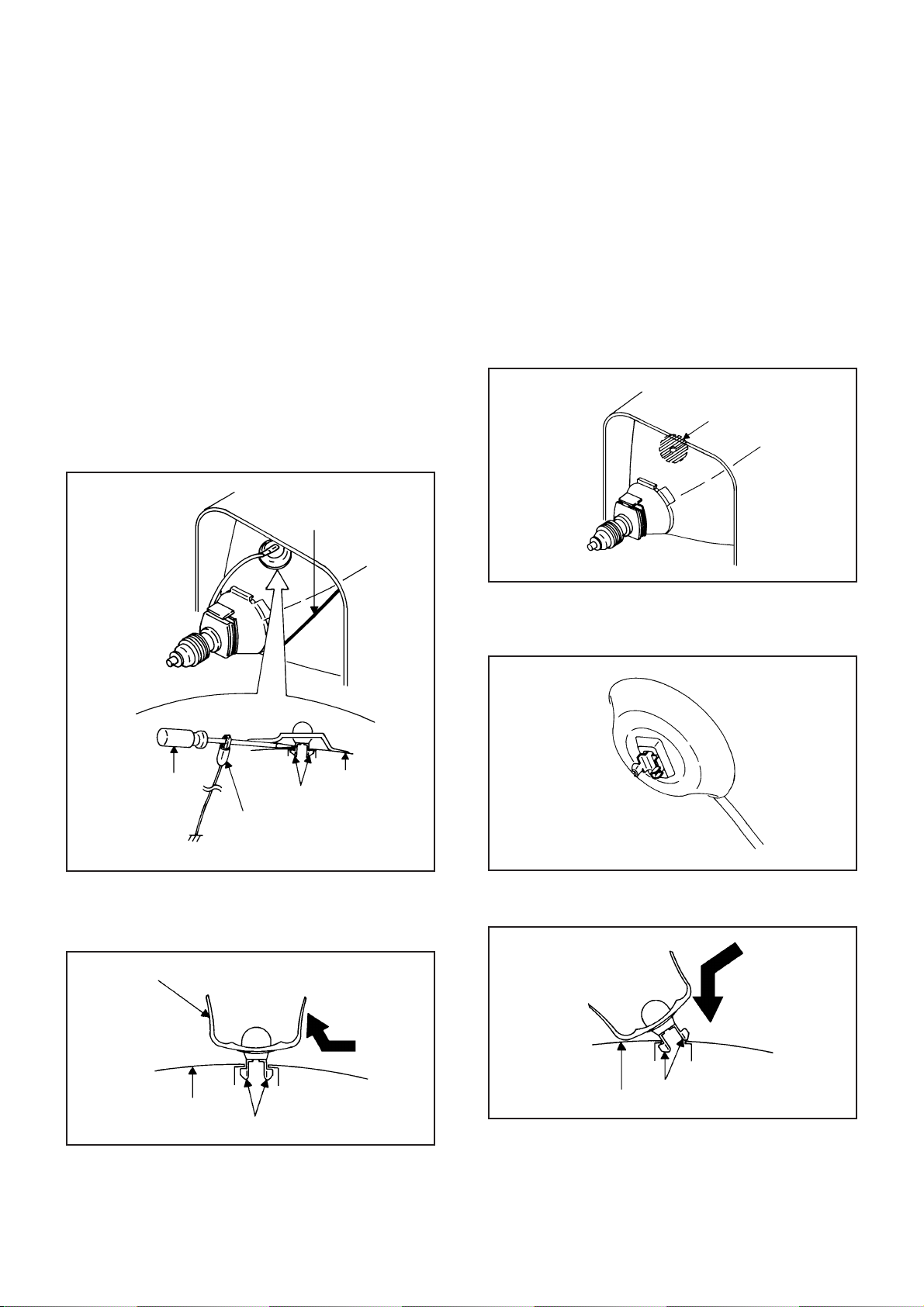

1-2: CRT PCB (Refer to Fig. 1-2)
CAUTION: BEFORE REMOVING THE ANODE CAP,
DISCHARGE ELECTRICITY BECAUSE IT
CONTAINS HIGH VOLTAGE.
BEFORE ATTEMPTING TO REMOVE OR
REPAIR ANY PCB, UNPLUG THE POWER
CORD FROM THE AC SOURCE.
1.
2.
3.
Fig. 1-2
1-3: TV/VCR BLOCK (Refer to Fig. 1-3)
1.
2.
3.
4.
Remove the 2 screws 1.
Disconnect the following connectors:
(CP355, CP353, CP401, CP502 and CP351).
Unlock the support 2.
Remove the TV/VCR Block in the direction of arrow.
Fig. 1-3
1-4: MAIN PCB (Refer to Fig. 1-4)
1.
2.
3.
4.
5.
6.
Remove the screw 1.
Remove the Main PCB Holder.
Remove the 2 screws 2.
Remove the 3 screws 3.
Disconnect the following connectors:
(CP810, CP820 and CP804).
Remove the Main PCB in the direction of arrow.
Main PCB
Fig. 1-4
3Back Cabinet
Front Cabinet CRT PCB
Remove the Anode Cap.
(Refer to REMOVAL OF ANODE CAP)
Disconnect the following connectors:
(CP801 and CP850).
Remove the CRT PCB in the direction of arrow.
2
UP TO
RELEASE
1
TV/VCR Block
Front Cabinet
1
2
2
333
Main PCB Holder
1
VCR Block
