Toshiba 55L7400 User manual

Leading innovation
IntegratedHighDefinitionLED
TelevisionUser'sGuide:
55L7400U
If you need assistance:
Toshiba's Support Web site support.toshiba.corn
For more information, see "Troubleshooting" on page 164 in this guide.
Owner's Record
The model number and serial number are on the back and side of your television.
Print out this page and write these numbers in the spaces below. Refer to these
numbers whenever you communicate with your Toshiba dealer about this Television.
Model name:
Serial number:
Register your Toshiba Television at register.toshiba.corn
Note: To display a High Definition
picture, the TV must be receiving a
High Definition signal (such as an over-
the-air High Definition TV broadcast, a
High Definition digital cable program,
or a High Definition digital satellite
program). For details, contact your TV
antenna installer, cable provider, or
satellite provider. GMA300036014
12/14

2
CHILD SAFETY:
PROPERTELEViSiON PLACEMENT MATTERS
TOSHIBA CARES
o Manufacturers, retailers and the restof the consumer electronics industry
are committed to making home entertainment safe and enjoyable.
o As you en oy your television, please note that all televisions - new and
old-must be supported on proper stands or installed according to the
etc., may fall over, resulting in injury.
TUNE IN TO SAFETY
_,ALWAYS follow the manufacturer's recommendations for the safe
installation ofyour television.
_,ALWAYS readand follow all instructions for plopel use of your television.
_, NEVER allow children to climb on or play on the tdevision or the
furniture on which the television is placed.
_, NEVER place the television on furniture that car/easily be used as steps,
such as a chest of drawers.
_,ALWAYS install the television where it cannot be pushed, pulled over or
knocked down.
_,ALWAYS route cords and cables connected to the television so that they
cannot be tripped over, pulled or grabbed.
WALL OR CEILING MOUNTYOUR TELEVISION
_,ALWAYS contact your retailer about professional installation if you have
any doubts about your ability to safely mount your television.
_,ALWAYS use a mount that has been recamrr_ended by the television
manufacturer and has a safety certification by an independent laboratory
(such as UL, CSA, ETL).
_,ALWAYS follow all instructions supplied by the television and mount
manufacturers.
_,ALWAYS make surethat the wall or ceiling where you are mounting the
television is appropriate. Same mounts are not designed to be mounted
to walls and ceilings with steel studsor cinder block construction. If you
are unsure, contact a professional installer.
_,Televisions can be heavy. A minimum of _a people is required for a
wall or ceiling mount ir/staJJation.
MOVING AN OLDER TELEVISION TO ANEW PLACE IN YOUR
HOME
_,Many new television buyers move their older CRT televisions into a
secondary room after the purchase of a flat-panel television. Special care
should be made ir/the placement of older CRT televisions.
_,ALWAYS place your older CRT television on furniture that is sturdy and
appropriate for itssize and weight.
_, NEVER place youl older CRT television on a dresser where children may
be tempted to use the drawers to climb.
_,ALWAYS make sure your older CRT television does not hang ovel the
edge of your furniture.
CE.org/safety e

3
Dear Customer,
Thank you for purchasing this Toshiba LED TV.
This document will help you use the many exciting
features of your new LED TV. Before operating your
LED TV, carefully read this document completely.

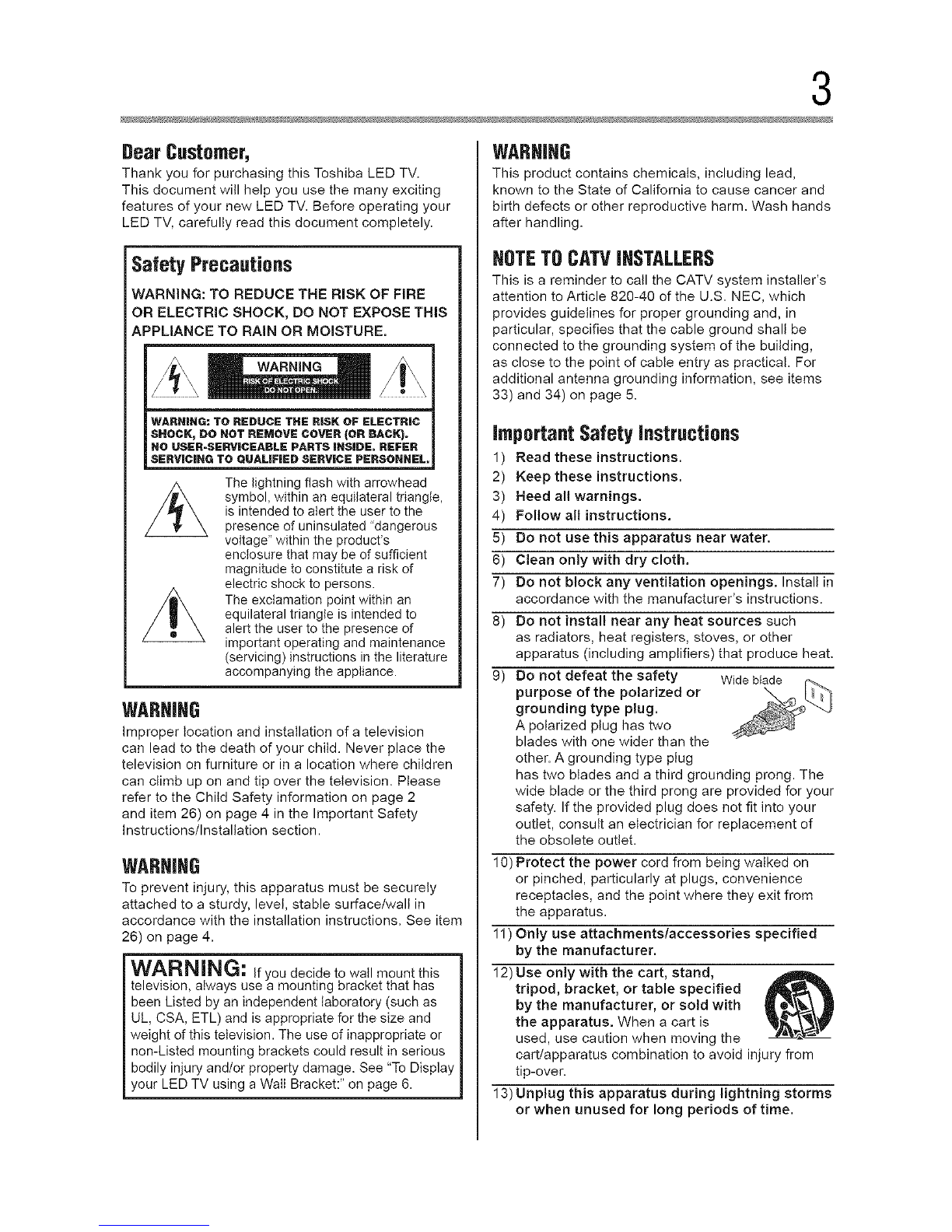

Safety Precautions
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
WARRING: TO REBUCE THE RISK OF ELECTRIC
SHOCK, OO HOT REMOVE COVER (OR RACK),
HO USER-SERVICEABLE PARTS IHSIOEo REFER
8ERVICIHG TO QUALIFIEO SERVICE PERSONHEL
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated "dangerous
voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
WARNING
Improper tocation and installation of a television
can lead to the death of your child. Never place the
television on furniture or in a location where children
can climb up on and tip over the television. Please
refer to the Child Safety information on page 2
and item 26) on page 4 in the Important Safety
Instructions/Installation section.
WARHIHG
To prevent injury, this apparatus must be securely
attached to a sturdy, level, stable surface/wall in
accordance with the installation instructions. See item
26) on page 4.
JWARNING: If you decide to wall mount this
television, always use a mounting bracket that has
been Listed by an independent laboratory (such as
UL, CSA, ETL) and is appropriate for the size and
weight of this television. The use of inappropriate or
non-Listed mounting brackets could result in serious
I bodily injury and/or property damage. See "To Display
your LED TV using a Wail Bracket:" on page 6.
WARNING
This product contains chemicals, including lead,
known to the State of California to cause cancer and
birth defects or other reproductive harm. Wash hands
after handling.
NOTET8 CATVIHSTALLERS
This is a reminder to call the CATV system installer's
attention to Article 820-40 of the U.S. NEC, which
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical. For
additional antenna grounding information, see items
33) and 34) on page 5.
Important Safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8) Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety
purpose of the polarized or
grounding type plug.
A polarized plug has two
blades with one wider than the
other. A grounding type plug
has two blades and a third grounding prong. The
wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your
outlet, consutt an electrician for replacement of
the obsolete outlet.
10) Protect the power cord from being walked on
or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified
by the manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is
used, use caution when moving the
cart/apparatus combination to avoid injury from
tip-over.
13) Unplug this apparatus during lightning storms
or when unused for long periods of time.

4
14) Refer a!l servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or ptug is damaged, liquid
has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or
has been dropped.
AdditionalSafetyPrecautions
14a) CAUTION: If the TV is dropped and the cabinet
or enclosure surface has been damaged or the
TV does not operate normally, take the following
precautions:
* ALWAYS turn off the TV and unplug the power
cord to avoid possible electric shock or fire.
* NEVER allow your body to come in contact with
any broken glass or liquid from the damaged
television. The LCD panel inside the TV contains
glass and a toxic liquid. If the liquid comes in
contact with your mouth or eyes, or your skin
is cut by broken glass, rinse the affected area
thoroughly with water and contact your doctor
immediately.
* ALWAYS contact a service technician to inspect
the TV any time it has been damaged or
dropped.
15) CAUTION:
, To reduce the risk of electric shock, do not
use the polarized plug with an extension cord,
receptacle, or other outlet unless the blades
can be inserted completely to prevent blade
exposure.
* To prevent electric shock, match wide blade of
plug to wide slot; fully insert.
16) CAUTION:
* Do not tet children swallow any small parts
included on or with the product or play with the
plastic bag. Keep the small parts and the plastic
bag out of the reach of children.
17) CAUTmON:
* Do not tet water or other liquids come into
contact with the product, as it may result in
damage.
18) WARNING:
* To prevent the spread of fire, keep candies or
other open flames away from this product at all
times.
* Keep the product away from direct sunlight, fire
or a heat source such as a heater. This may
reduce the product lifetime or result in fire.
installation, Care,and Service
InstaJJation
Follow these recommendations and precautions and
heed all warnings when installing your TV:
19) WARNmNG: NEVER expose batteries
to excessive heat such as sunshine,
fire etc.
20)ALWAYS ptug the product into an outlet that is
located in such a manner that it can be easily
unplugged in case the product requires service.
21) NEVER route the product's power cord inside a
walt or similar enclosed area.
22) Never modify this equipment. Changes or
modifications may void: a) the warranty, and b)
the user's authority to operate this equipment
under the rules of the Federal Communications
Commission.
23) DANGER: RISK OF
SERIOUS PERSONAL
INJURY, DEATH, OR
EQUmPMENT DAMAGE
Never place the TV on an unstable
cart, stand, or table. The TV may fall, causing
serious personal injury, death, or serious damage
to the TV.
24)When selecting a location for the TV,
*NEVER allow any part of the TV to hang over
the edge of the supporting furniture,
*NEVER place the TV on tall furniture (for
example, entertainment centers or bookcases)
without anchoring both the furniture and the TV
to a suitable support,
*Never place cloth or other material between the
TV and the supporting furniture.
*NEVER allow children to climb on the TV.
25) To avoid damage to this product, never place or
store the TV in direct sunlight; hot, humid areas;
or areas subject to excessive dust or vibration.
26)Always place the TV on a sturdy, level, stable
surface that can support the weight of the unit.
Secure the TV using one of the following methods:
(1) Secure the TV with a sturdy strap to a wail
stud, pillar, or other immovable structure. When
connecting the strap:
*attach the strap to the TV using the hooks on
the back of the TV, the clips on the pedestal, or
the hote in the base of the pedestal as available.
*make sure the strap is tight, secure, and parallel
to the floor.
Sturdy strap (as short as possible)
TVSide TV Top

5
(2) Secure the TV with the fall-prevention band
attached to the pedestal.
• Place the TV on a sturdy surface that has
sufficient thickness and screw the band onto the
surface.
• If secured to furniture or other movable objects,
the furniture must be secured to an immovable
object using the method shown in item (1)
above.
TVBack
Fall-preventionband
27) The apparatus shall not be exposed to dripping or
splashing, and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
28) Never block or cover the slots or openings in the
TV cabinet back, bottom, and sides. Never place
the TV:
• on a bed, sofa, rug, or similar surface;
• too close to drapes, curtains, or walls; or
• in a confined space such as a bookcase, built-in
cabinet, or any other place with poor ventilation.
29) Always leave a space of at least 4 (four) inches
around the TV. The slots and openings are
provided to protect the TV from overheating and
to help maintain reliable operation of the TV.
30) Never allow anything to rest on or roll over the
power cord, and never place the TV where the
power cord is subject to wear or abuse.
31) Never overload walt outlets and extension cords.
32) Always operate this equipment from a 120V AC,
60 Hz power source.
33)Always make sure the antenna system is properly
grounded to provide adequate protection against
voltage surges and built-up static charges (see
Section 810 of the National Electric Code).
34) DANGER: RISK OF SERIOUS
PERSONAL INJURY OR DEATH!
• When installing a rooftop antenna, use extreme
care to make sure you are never in a position
where your body (or any item you are in contact
with, such as a ladder or screwdriver) can
accidentally touch overhead power lines.
Never locate the antenna near overhead power
lines or other electrical circuits.
• Never attempt to install any of the following
during lightning activity: a) an antenna system;
or b) cables, wires, or any home theater
component connected to an antenna or phone
system.
Care
For better performance and safer operation of your
TOSHIBA TV, follow these recommendations and
precautions:
35) If you use the TV in a room whose temperature is
32 ° F (0° C) or below, the picture brightness may
vary until the LCD warms up. This is not a sign of
malfunction.
36) WARNING: RiSK OF SERIOUS
PERSONAL INJURY OR EQUIPMENT
DAMAGE!
• Never use chemicals (such as air fresheners,
cleaning agents, etc.) on or near the TV
pedestal. Studies indicate that plastics may
weaken and crack over time from the combined
effects of chemical agents and mechanical
stress (such as the weight of the TV). Failure to
follow these instructions could result in serious
injury and/or permanent damage to TV and TV
pedestal.
• Always unplug the TV before cleaning. Gently
wipe the display panel surface (the TV screen)
using a dry, soft cloth (cotton, flannel, etc.).
A hard cloth may damage the surface of the
panel. Avoid contact with alcohol, thinner,
benzene, acidic or alkaline solvent cleaners,
abrasive cleaners, or chemical cloths, which
may damage the surface. Never spray volatile
compounds such as insecticide on the cabinet.
Such products may damage or discolor the
cabinet.
37) Never hit, press, or place anything on the back
cover. These actions will damage internal parts.
38) WARNING:
RISK OF ELECTRIC SHOCK!
Never spill liquids or push objects of ally kind into
the TV cabinet slots=
39) During a lightning storm, do not touch the
connecting cables or product.
40) For added protection of your TV from lightning and
power surges, always unplug the power cord and

6
disconnect the antenna from the TV if you leave
the TV unattended or unused for long periods of
time.
41)Always unplug the TV to completely disconnect
from mains power. When the TV is turned off
using the on/off switch, it is not completely
disconnected from power and a minute amount of
current is still consumed.
42) During normal use, the TV may make occasional
snapping or popping sounds. This is normal,
especially when the unit is being turned on or off.
If these sounds become frequent or continuous,
unplug the power cord and contact a Toshiba
Authorized Service Provider.
43) WARNING: RiSK OF SERIOUS
PERSONAL INJURY OR EQUIPMENT
DAMAGE!
Never strike the screen with a sharp or heavy
object.
44). The LCD screen of this product can be damaged
by ultraviolet radiation from the sun. When
selecting a location for the television, avoid
locations where the screen may be exposed to
direct sunlight, such as in front of a window.
*Never touch, press, or place anything on the
LCD screen. These actions witl damage the
LCD screen. If you need to clean the LCD
screen follow the instructions in item 36) on
page 5.
Service
45) WARNING:
RISK OF ELECTRIC SHOCK!
Never attempt to service the TV yourself. Opening
and removing the covers may expose you to
dangerous voltage or other hazards. Failure
to follow this WARNING may result in death or
serious injury. Refer atl servicing not specified
in this manual to a Toshiba Authorized Service
Provider.
46) If you have the TV serviced:
* Ask the service technician to use only
replacement parts specified by the manufacturer.
* Upon completion of service, ask the service
technician to perform routine safety checks
to determine that the TV is in safe operating
condition.
Choosinga location for yourLEDTV
To Display your LED TV on the included Pedestal
Stand:
Observe the following safety precautions:
1) Read and follow the pedestal stand assembly
instructions included with the pedestal.
CAUTmON: Before beginning pedestal assembly,
carefully lay the front of the LCD Panel face down
on a flat, cushioned surface such as a quilt or
blanket. Leave the bottom of the unit protruding
over the edge of the surface and assemble the
pedestal as in the Quick Start Guide.
Note: Extreme care should always be used when
attaching the pedestal stand to avoid damage to
the LCD panel.
2) Place the TV on a sturdy, level surface that can
support the weight of the TV.
3) Be sure to secure the TV to a walt, pillar, surface,
or other immovable structure see item 26) on
page 4 for additional details.
ToDisplayyourLEDTVusingaWallBracket:
If you decide to wall mount your LED TV, always use
a watl bracket Listed by an independent laboratory
(such as UL, CSA, ETL) that is appropriate for the
size and weight of the TV:
1) CAUTION: Two or more people are required for
installation.
2) Unplug and remove any cables and/or other
component connectors from the rear of the TV.
3) Remove the screws of the VESA Mounting
Pattern shown in the table, if applicable.
CAUTION: Do not use the screws removed from
the back cover to attach the wall mount bracket to
the TV.
4) Always use the screws supplied or recommended
by the wall mount manufacturer.
5) Follow the instructions provided with your wall
bracket. Before proceeding, make sure the
appropriate bracket(s) are attached to the wall and
the back of the TV as described in the instructions
provided with the walt bracket.
6) After attaching the appropriate bracket(s) to the
wall and the back of the TV, remove the pedestal
stand from the TV, as described in this instruction
document.
7) VESA Mounting Pattern
RemovingthePedestalStand
1) Carefully lay the front of the unit face down on a
flat, cushioned surface such as a quilt or blanket.
Leave the stand protruding over the edge of the
surface.
Note: Extreme care should always be used when
removing the pedestal stand to avoid damage to
the LCD panel.
2) Remove the stand screws shown in the diagram.
This will allow removal of the pedestal stand.
3) Once you have removed all screws holding the
pedestal stand in place, remove the pedestal
stand from the TV.

7
CAUTION: Always place the TV on a sturdy, level,
stable surface that can support the weight of the
unit, To secure the TV, use a sturdy strap from the
hook(s) on the rear of the TV to a wall stud, pillar,
or other immovable structure, Make sure the strap
is tight, secure, and parallel to the floor,
55L7400U
Twostand screws Twoclips Two standscrews
(SampleIllustration)
FCCBec/aration of Conformity
Compliance Statement(Part 15):
Toshiba television model 55L7400U complies with
Part 15 of the FCC Rules.
Operation is subject to the _bllowing two conditions:
(1) This device may not cause harmfhl interference, and
(2) This device must accept any interference received,
including imerfcrence that may cause undesired operation.
The party responsible for compliance to these rules is:
Toshiba America In_Brmation Systems, Inc. 9740 Irvine
Blvd., Irvine, CA 92618. Phone: 800-d31-3811
Note: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These lirnits
are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular instaflation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by removing and applying
power to the equipment, the user is encouraged to
try to correct the interference by one or more of the
following measures:
" Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and
receiver.
. Connect the equipment imo an outlet on a circuit
diIt_'rem from that to which the receiver is connected.
. Consult the dealer or an experienced radioiTV technician
tBr help.
Caution: Changes or modifications to this equipment
not expressly approved by Toshiba could void the
user's authodty to operate this equipment.
Wireless Radio
For products aYailable in the USA Canada market,
only channel 1 ll can be operated. Selection of other
channels is not possible. The device can automatically
discontinue transmission in case of absence of infbrmation
to transmit, or operational thilure. Note that this is not
intended to prohibit transmission of control or signaling
infbrmation or the use of repetitive codes where required
by the technology. If this device is going to be operated in
5.15 5.25 GHz ti'equency range, then it is restricted to an
indoor environment only.
Important: Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to operate
this equipment. This device and its antenna(s) must
not be co-located or operating in conjunction with any
other antenna or transmitter.
FCC Radiation Exposure Statement: This equipment
complies with FCC radiation exposure limits set forth
for an uncontrofled environment. This equipment
should be instated and operated with minimum
distance 20cm between the radiator & your body.
importantnotesabout your TY
The following symptoms are technical limitations of
LCD Display technology and are not an indication of
malfunction; therefore, Toshiba is not responsible for
perceived issues resulting from these symptoms°
1) An afterimage (ghost) may appear on the screen
if a fixed, non-moving image appears for a long
period of time. The afterimage is not permanent
and wilt disappear in a short period of time.
2) The LCD panel contained in this TV is
manufactured using an extremely high level
of precision technology; however, there may
be an occasional pixet (dot of light) that does
not operate properly (does not light, remains
constantly lit, etc.). This is a structural property of
LCD technology, is not a sign of malfunction, and
is not covered under your warranty. Such pixels
are not visible when the picture is viewed from a
normal viewing distance.
Note: Interactive video games that involve shooting a
"gun" type ofjoystick at an on-screen target may not
work with this TM
To ensure protection of your personal data, Toshiba
recommends that you reset all TV settings when
you recycle your TV or transfer to others. To reset
your TV, please access via menu settings, selecting
"Reset TV". See "Resetting to Factory Defaults" on
page 91 for further details.

8
TrademarkInformation
. AutoView, ClearScan, ColorMaster, CotorStream,
CQ Engine, DynaLight, GameTimer, Native Mode,
Sonic Separation, TheaterWide, and TosLink are
trademarks or registered trademarks of Toshiba
America Information Systems, Inc., and/or Toshiba
Corporation.
. ActiveX is a registered trademark of the Microsoft
Corporation.
. Android, Google Play, and YouTube are trademarks
of Google Inc.
. Apple, iPhone, and iTunes are trademarks of Apple
Inc., registered in the U.S. and other countries.
, Blu-ray Disc TM, Btu-ray TM, and the Iogos are
trademarks of the Blu-ray Disc Association.
. DIRECTV and GENIE are registered trademarks of
DIRECTV, LLC.
. DivX ®,DivX Certified ®,DivX Plus®HD and
associated Iogos are trademarks of Rovi
Corporation or its subsidiaries and are used under
license.
Covered by one or more of the following U.S.
patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274
[_OOLB_ "Manufactured under license from
OlGmTALPLUS Dotby Laboratories. Dotby and the
double-D symbol are trademarks of
Dotby Laboratories.
_ I:ll'_ . For DTS patents, see http://patents.
P_mi_mS0,o_dts.com. Manufactured under license
from DTS Licensing Limited.
DTS, the Symbol, & DTS and the
Symbol together are registered
trademarks, and DTS Premium
Sound is a trademark of DTS, Inc.
© DTS, Inc. All Rights Reserved.
. The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
. Intel and the InteI logo are trademarks of Intel
Corporation in the U.S. and/or other countries.
. MPEG Layer-3 audio coding technology licensed
from Fraunhofer IIS and Thomson.
. Netflix is a registered trademark of Netflix, Inc.
. Designed with UEI Technology TM. Under License
from Universal Electronics Inc.
Portions © UEI 2010-2014.
.VUDU TM, and VUDU TM Movies & TV are trademarks
or registered trademarks of VUDU, Inc.
. Wi-Fi is a registered trademark of the Wi-Fi
Alliancd R_.
. Atl other brand and product names are trademarks
or registered trademarks of their respective
companies.
. THIS PRODUCT IS LICENSED UNDER THE
AVC PATENT PORTFOLIO LICENSE FOR THE
PERSONALAND NONCOMMERCIAL USE
OF A CONSUMER TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE AVC STANDARD
("AVC VIDEO") AND/OR (ii) DECODE AVC
VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONALAND NON-
COMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM AVIDEO PROVIDER LICENSED
TO PROVIDE AVC VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FORANY
OTHER USE. ADDITIONAL INFORMATION MAY
BE OBTAINED FROM MPEG LA, LLC. SEE
HTTP://WWW.MPEGLA.COM
. THIS PRODUCT IS LICENSED UNDER THE
VC-1 PATENT PORTFOLIO LICENSE FOR
THE PERSONALAND NONCOMMERCIAL USE
OF A CONSUMER TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE VC-1 STANDARD
("VC-1 VIDEO") AND/OR (ii) DECODE VC-I
VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONALAND NON-
COMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM AVIDEO PROVIDER LICENSED
TO PROVIDE VC-1 VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FORANY
OTHER USE. ADDITIONAL INFORMATION MAY
BE OBTAINED FROM MPEG LA, LLC. SEE
HTTP://WWW.MPEGLA.COM
. THIS PRODUCT IS LICENSED UNDER THE
MPEG-4 VISUAL PATENT PORTFOLIO LICENSE
FOR THE PERSONALAND NON-COMMERCIAL
USE OF A CONSUMER FOR (i) ENCODING
VIDEO IN COMPLIANCE WITH THE MPEG-
4 VISUAL STANDARD ("MPEG-4 VIDEO")AND/
OR (ii) DECODING MPEG-4 VIDEO THAT WAS
ENCODED BY A CONSUMER ENGAGED IN A
PERSONAL AND NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED BY MPEG LATO PROVIDE
MPEG-4 VIDEO. NO LICENSE IS GRANTED
OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION INCLUDING THAT
RELATING TO PROMOTIONAL,INTERNALAND
COMMERCIAL USES AND LICENSING MAY BE
OBTAINED FROM MPEG powered LA,LLC. SEE
HTTP://WWW.MPEGLA.COM

9
Copyright
_! 2014 by Toshiba America In_brmation Systems, Inc.
All rights reserved. Under the copyright iaws, this guide
cannot be reproduced in any _rm without the prior written
permission of Toshiba. No patent liability is assl_ed,
however, with respect to the use of the in_i_rmation
contained herein.
Notice
The in*brmation colrtained in this manual, including but 1rot
iimited to any product specifications, is su[ziect to change
without notice.
TOSHIBA CORPORATION, TOSHIBA AMERICA
INFOI_MATION SYSTEMS, INC., TOSHIBA OF
CANADA LIMITED AND TOSHIBA DE MEXICO,
S.A. DE. C.'_:. (COLLECTIVELY TOSHIBA)
PROVIDES NO V_2a.RRANTY WITH REGARD TO
THIS MAN[ AL OR ANY OTHER INFORMATION
CONTAINED HEREIN AND HEREBY EXPRESSL'_Z
DISCLAIMS ANY IMPLIED V_2:kRRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY
PARTICI_ LAR P[ RPOSE WITH REGARD TO
ANY OF THE FOREGOING. TOSHIBA ASSUMES
NO LIABILITY FOR ANY DAMAGES INCURRED
DIRECTLY OR INDIRECTLY FROM ANY
TECHNICAL OR TYPOGRAPHICAL ERRORS
OR OMISSIONS CONTAINED HEREIN OR FOR
DISCREPANCIES BETWEEN THE PRODUCT
AND THE MAN[ AL. IN NO EVENT SHALL
TOSHIBA BE LIABLE FOR ANY INCIDENTAL,
CONSEQI_ ENTIAL, SPECIAL, OR EXEMPLARY
DAMAGES, WHETHER BASED ON TORT,
CONTRACT OR OTHERWISE, ARISING OUT
OF OR IN CONNECTION VVITH THIS MAN[ AL
OR ANY OTHER INFORMATION CONTAINED
HEREIN OR THE USE THEREOF.

Contents
Chapter1 Introduction...................................................18
Safetyicons...............................................................18
Features....................................................................19
Overviewof installation,setup,and use....................20
TVfront andside panelcontrols and connections.....22
Frontpanel..........................................................22
Left side...............................................................22
TV backpanelcontrols andconnections...................23
Backpanelcontrols .............................................23
Backpanelconnections.......................................24
Chapter2: ConnectingYourTV.......................................25
Overviewof cabletypes.............................................25
Coaxialcable(F-type)........................................ 25
StandardAVcables(red/white/yellow).............. 25
Componentvideo cables(red/green/blue)......... 26
HDMI_cable (with HDMILogo) ........................ 26
Dual-wandIRblastercable................................ 26
Opticalaudiocable............................................ 27
Analog RGB(15-pin)computer cable................ 27
LANcable............................................................28
Aboutthe connection illustrations.......................28
10
