Total TB2066 User manual

600W
TB2066,UTB2066
TB2066-6,TB2066-8,TB2066S
ASPIRATOR BLOWER
One-Stop Tools Station

Important Safeguards
While using electrical appliances, in order to reduce the risk of fire, electric shock,
and/or injury to persons, basic safety precautions should be followed, including the
following:
Read all instructions carefully, even if you are familiar with the appliance.
To protect against the risk of electric shock, DO NOT IMMERSE the appliance,
cord set or plug in water or other liquids.
To clean, wipe the exterior with a damp cloth.
Close supervision is necessary when any appliance is used near children. Never
leave an appliance unattended when in use.
If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
Switch off and remove the plug from the power outlet when not in use before
assembling or disassembling parts, cleaning or carrying out any maintenance of
the appliance. Never pull the cord while unplugging out from power outlet.
Do not operate the appliance if its damage in any manner. Return the complete
appliance to your nearest authorized service facility for examination, electrical
repair, mechanical repair or adjustments to avoid any hazard.
The use of attachments or accessories not recommended or sold by this
appliance manufacturer may result in fire, electric shock or personal injury.
Do not let the cord hang over the edge of a table, counter, or touch hot surfaces.
Avoid touching hot surfaces, use handles and knobs.
Do not operate or place any part of this appliance on or near any hot surfaces
(such as gas or electric burner or in a heated oven).
Do not abuse the cord, Never carry the appliance by the cord or yank it to
disconnect it from the outlet; instead, grasp the plug and pull to disconnect.
When using an extension cord with your appliance, make sure the extension cord
is correctly wired, and rated for its use.
This product is intended for household use only.
Do not attempt to repair the appliance yourself; instead, take it to your Manufacture
-owned or Authorized Service Centre for repair.
- 2 -

Parts Identification
1. Nozzle
2. Blast Port
3. Trigger Switch
4. Variable Speed Knob
5. Lock-On Button
6. Suction Port
7. Dust Bag
Intended use
Your Blower has been designed for blowing & cleaning applications, as well as light
suction purpose.
- 3 -

General Safety Rules
Warning! Read all instructions. Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury. The term "power tool" in all of the
warnings listed below refers to your mains operated (corded) power tool or battery
operated (cordless) power tool. SAVE THESE INSTRUCTIONS.
1. Work area
a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
C. Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
3. Personal Safety
a. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b. Use safety equipment. Always wear eye protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Avoid accidental starting. Ensure the switch is in the off position before plugging in.
Carrying power tools with your finger on the switch or plugging in power tools that
have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on, Awrench or
a key left attached to a rotating part of the power tool may result in personal injury,
e. Do not overreach. Keep proper footing andbalance at all times. This enables better
control of the power tool unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
- 4 -

gloves away from moving parts. Loose clothes, jewellery or long hair can be caught
in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of these devices can reduce
dust related hazards.
h. Use clamps or another practical way to secure and support the workpiece to a
stable platform. Holding the work by hand or against your body leaves it unstable
and may lead to loss of control.
Before drilling into walls, floors or ceilings check for the location of wiring and pipes,
Avoid touching the tip of a drill bit just after drilling, as it may be hot.
4. Power tool use and care
a. DO not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job barter and safer at the rate for which it was
designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source before making any adjustments,
changing accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these Instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tools operation. If
damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc., in accordance with these
instructions and in the manner intended for the particular type of power tool, taking
into account the working conditions and the work to be performed Use of the power
tool for operations different from those intended could result in a hazardous
situation.
5. Service
a. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Additional Safety Instructions For Blowers
Do not collect still smoldering cigarette ashes,freshly cut metals shaving, screws,
nails and the like.
Never block suction inlet and outlet.
- 5 -

Warning Symbols
Read the operation manual and follow all warnings and safety instructions.
Do not use your saw in wet conditions or expose it to rain.
Always wear eye protection.
Always wear ear protection.
Beware of falling objects.
Keep bystanders away.
Do not touch the fan. The tines will continue to rotate for a short time after
switch off.
Conformance complies with Europe relevant standards.
Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use
separate collection facilities.
- 6 -

Electrical safety
This tool is double insulated; therefore no earth wire is required. Always
check that the power supply corresponds to the voltage on the rating plate.
Assembly
Warning! Before assembly, make sure that the tool is switched off and unplug.
Use
Mounting The Nozzle For Blowing Operations (Fig. A)
Insert the pin located inside the Nozzle into the notch provided on the Blast Port
(1).
To lock Nozzle in place, turn the Nozzle in the direction indicated.
To remove Nozzle, turn the Nozzle in the opposite direction.
Mounting The Nozzle And Dust For Dust Collection (fig. B)
For dust collection, mount the Dust Bag at the Blast Port (2) and Nozzle at the
suction Port (6).
To remove Dust Beg and Nozzle, simply pull out by first turning in the opposite
direction.
Empty the Dust Bag frequently to ensure maximum dust collecting efficiency.
Adjust Variable Speed Knob (4) for different speed requirement.
When continuous operation is required, first depress the switch and then the
lock-on button (5) and release to disengage lock, squeeze and release switch.
Warning:Continuous running of machine should not exceed 30 minutes.
Replacing Carbon Brushes (fig. D)
Use a screwdriver to remove the brush holder cap.
Take out the worn carbon brush, insert the new one and secure the brush hold
cap.
Warning!Remove and check the carbon brushes regularly. Replace when they wear
down to the limit mark.
Accessories
The performance of your tool depends on the accessory used. Manufacture and
Piranha accessories are engineered to high) quality standards and designed to
enhance the performance of your tool. By using these accessories you will get the
very best from your tool.
- 7 -

Maintenance
Your tool has been designed to operate over a long period of time with a minimum of
maintenance. Continuous satisfactory operation depends upon proper tool care and
regular cleaning.
Warning! Before performing any maintenance, switch off and unplug the tool.
Regularly clean the ventilation slots in your tool using a soft brush or dry cloth.
Regularly clean the motor housing using a damp cloth. Do not use any abrasive or
solvent-based cleaner.
Technical data
6602BTU6602BT:ledoM
Rated voltage: 220-240V 110-120V
Frequency: 50/60Hz 60Hz
Power input: 600W
-0:deepsdaol-oN 16000/min
Max blowing rate: 0-3.5m³/min
Insulation class:
Sound pressure level (according
to IEC 60745):
90 dB (A)
Sound power level (according to
IEC 60745):
103 dB (A)
Vibration level (according to IEC
60745):
3.5 m/s2
:thgieW gk6.1
- 8 -
TB2066-6
(ISRAEL plug) TB2066-8
(BS plug) TB2066S
(SAA plug)

TB2066,UTB2066,TB2066-6,TB2066-8,TB2066S Spare part list
- 9 -
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29a
29b
29c
No. Part Description QTY No. Part Description QTY
Blower pipe
Blower pipe ring
Left blower guard
Tapping Screw
Lock-nut with flang
Fan
Right blower guard
Tapping Screw
Washer
Bearing
Armature
Bearing
Tapping Screw
Stator
Handle cover
Tapping Screw
Switch
PCB switch
Tapping Screw
Cable clamp
Cord Jacket
Cord plug
Motor housing
Rating label
Brand label
Brush holder
Carbon Brush
brush cover
Dust bag Assm
Cloth
Steel wire
Dust bag ring
1
1
1
9
1
1
1
4
1
1
1
1
2
1
1
1
1
1
2
1
1
1
1
1
1
2
2
2
1
1
1
1

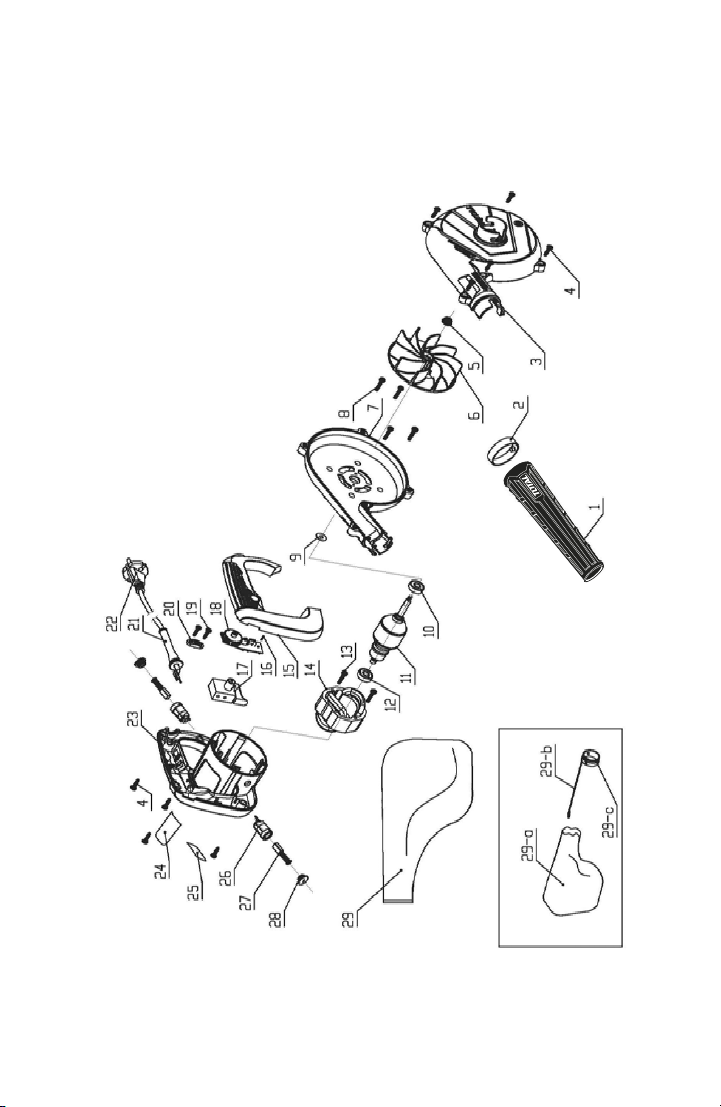

TB2066,UTB2066,TB2066-6,TB2066-8,TB2066S Exploding view
- 10 -

600W
ASPIRATOR BLOWER
T0416.V02
MADE IN CHINA
www.totaltools.cn
TOTAL TOOLS CO.,LIMITED
