Total TVLI2001 User manual

LITHIUM-ION VACUUM CLEANER
TVLI2001
20V
totaltoolsworld
TOTAL TOOLS WORLD

SAFETY REGULATIONS
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Warning! This vacuum cleaner is not intended for use by children and persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge. Otherwise, there is a danger of
operating errors and injuries. Supervise children. This will ensure that children do not play with the
vacuum cleaner.
Warning! Do not vacuum materials that are harmful to one’s health,e.g. dust from beech or oak wood,
masonry dust, asbestos. These materials are considered carcinogenic. Inform yourself about the valid
regulations/laws for your country concerning the handing of materials that are hazardous to one’s
health.
The product may only be repaired by qualified service personnel.
The product may not be taken apart nor be changed.
Do not place the product so that it may fall down into water or another liquid.
Do not put any items containing water on the product, for example a flower vase or a soda can.
Disconnect the battery pack when the vacuum cleaner is not in use.
Check the battery pack to make sure it matches the vacuum cleaner correctly.
The vacuum cleaner is not a toy, do not let children use it without supervision!
Never leave the vacuum cleaner unattended when it is turned on.
The vacuum cleaner is made for indoor usage; protect it form water and dampness.
Use the vacuum cleaner only after having received sufficient information on its usage. A thorough
introduction reduces operating errors and injuries.
The vacuum cleaner is suitable only for vacuuming dry materials. The penetration of liquids
increases the risk of an electric shock.
The vacuum cleaner may only be used and stored indoors. The penetration of rain or moisture into
the vacuum cleaner lid increases the risk of an electric shock.
Do not vacuum hot or burning dusts, and in rooms with and explosion hazard. Dust can ignite or
explode.
Do not use the vacuum cleaner in explosive environments.
WARNING
Remove the battery beforecleaning or performing maintenance on the vacuum cleaner, making
tools adjustments, charging accessories or storing the vacuum cleaner. The safety measure prevents the
vacuum cleaner from being started accidentally.
Have the vacuum cleaner repaired only through qualified specialists and only using original
spare parts. This ensures the the safety of your vacuum cleaner is maintained.

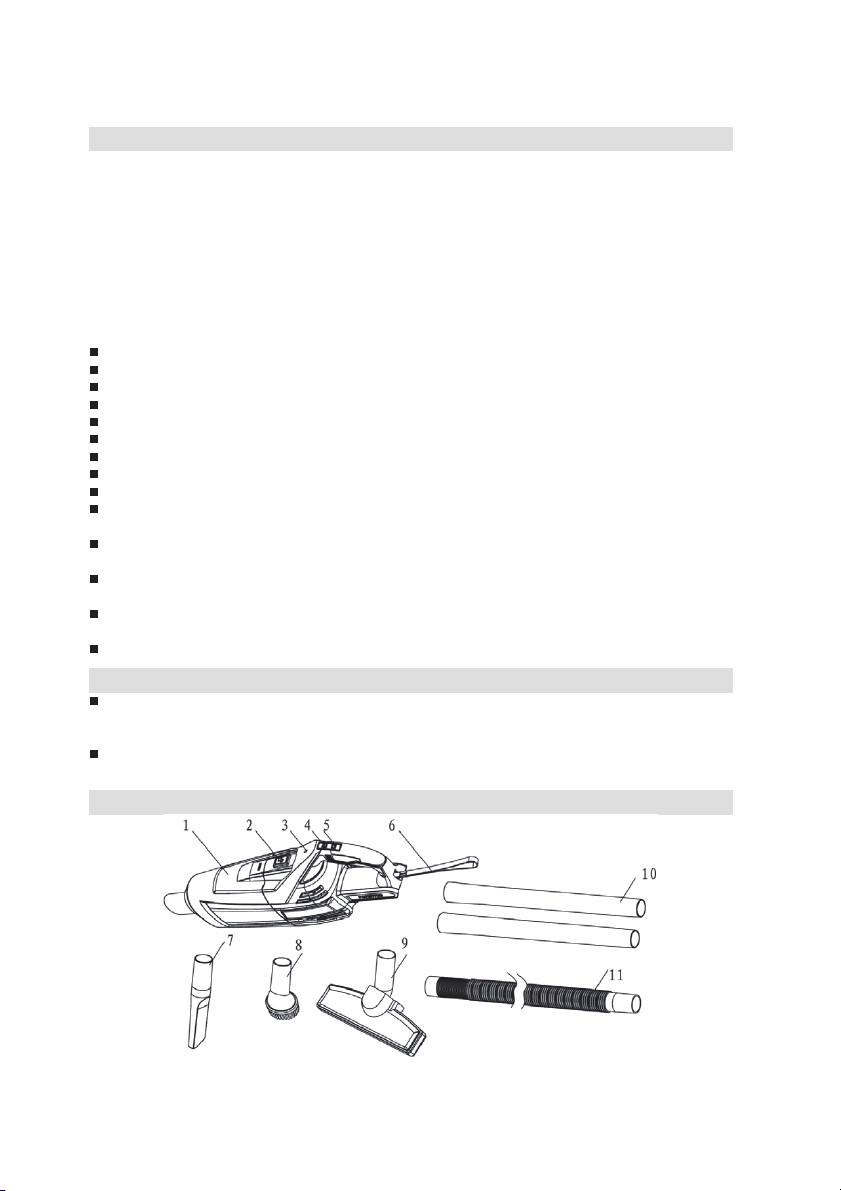

DESCRIPTION
(FIG.1)
2

OPERATION
Installing /Removing Battery Pack
Insert the battery pack into the product as shown. (FIG.2)
Make sure the latches on the battery pack snap into place and that battery pack is secured in the
product before beginning operation.
Make sure the on/off main switch is in the off(O) position before remove the battery pack.
Depress the latches to remove the battery pack.(FIG.3)
Warning! Battery tools are always in operating condition. Place the switch in the off position and
remove the battery pack when the product is not in use or when carrying at your side.
3

Check the filters
Press the release button for dust cup, open the dust cup.
FIG.4
Take out the dust cup cover from the dust cup(step1), turn off the filter net from the dust cup
cover(step2), check and turn tight the HEPA filter on the dust cup cover. (see FIG.5)
Turn tight the filter net on the dust cup cover(step3), put in the dust cup cover to the dust
cup(step4). (see FIG.5)
Put the dust cup on the product.
FIG.5
Mounting VAC Accessories(see FIG.6)
The vacuum cleaner accessories can be connected directly to the dust cup.
The combination possibilities of the various vacuum cleaner accessories can be viewed in the
figure. Connect the vacuum cleaner accessories firmly to the connection at the dust cup and in to
each other.
4

To switch on the vacuum cleaner, press the ON/OFF button; to switch off the vacuum cleaner,
press the ON/OFF button. (see FIG.7)
To adjust the vacuum cleaner running speed, press the speed adjustment switch; can select high
or low speed. (see FIG.8)
For safe and proper working, always keep the vacuum cleaner and ventilation slots clean.
Clean the vacuum cleaner housing from time to time using a cloth.
To maintain the optimum performance of the vacuum cleaner, clean the dust cup after each use.
Press the release button for dust cup, open the dust cup. (see FIG.9)
FIG.9
Take out the dust cup cover from the dust cup, and clean the dust cup/filter net/HEPA filter.(see
FIG.10)
5

If the HEPA filter is found to be damaged, replace the HEPA filter in time.
If the HEPA filteris used too many times, please replace the filter in time.
There is a sling on the vacuum cleaner that can be hung on a reliable hook.(see FIG.11)
6

TVLI2001 Exploded view
7

Sling 1
Switch lable 1
Switch stand 1
Spring 1
Release button for dust cup 1
Fixed cylinder 2
Motor 1
Motor seal 1
Motor cover 1
Dust cup cover 1
Filter 1
Filter net 1
Screw ST3 14 1
Gasket
Dust blocking board
Dust cup
PCB
Battery connector
Left shell
Right shell
Screw ST4 14
Crevice nozzle
Dust Brush
Extension tube
Flexible extension tube
Floor nozzle
1
1
1
1
1
1
1
8
1
1
2
1
1
NO. Part Description Qty NO. Part Description Qty
TVLI2001 Spare part list
8

T1119.V02
MADE IN CHINA
www.totaltools.cn
TOTAL TOOLS CO., PTE. LTD.
LITHIUM-ION VACUUM CLEANER
20V
