TotalPond UW16200 User manual

1
ITEM # UW16200
Pond and Landscape Light Kit
PACKAGE CONTENTS
WARNINGS AND CAUTIONS
WARNING
•To reduce the risk of electrical shock, connect only to a properly grounded, grounding type receptacle
(GFCI).
•Do not exceed the voltage shown on the transformer.
•Do not submerge the transformer and sensor.
•To reduce the risk of fire or injury, keep lamp away from materials that may burn.
•Always disconnect light from the power source before beginning any maintenance or work on the light.
•Inspect cord for damage before installation and/or maintenance. Replace the entire light/transformer
assembly if damage is found.
CAUTION
•Use a proper power source as indicated on the transformer label.
•Keep the cord away from high temperatures or other heat sources.
•Do not lift the light or the transformer by its power cord.
•This light assembly is not intended for use in swimming pools or hot tubs.
Part Description Quantity
A Light w/ sensor 1
B Transformer 1
C Color lenses 4
Questions, problems, missing parts?
Before returning to your
retailer, call our customer service department at
1-888-412-6001, 8 a.m.-6 p.m., EST, Monday-Friday, or email
us at [e-mail]. Or visit our
website www.totalpond.com.
REMINDER
CALL 1-888-412-6001
BEFORE RETURNING TO STORE.
A
B
C

2
PREPARATION
Before beginning assembly or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
•Estimated Assembly Time: 5 minutes
•No tools required for assembly.
ASSEMBLY INSTRUCTIONS

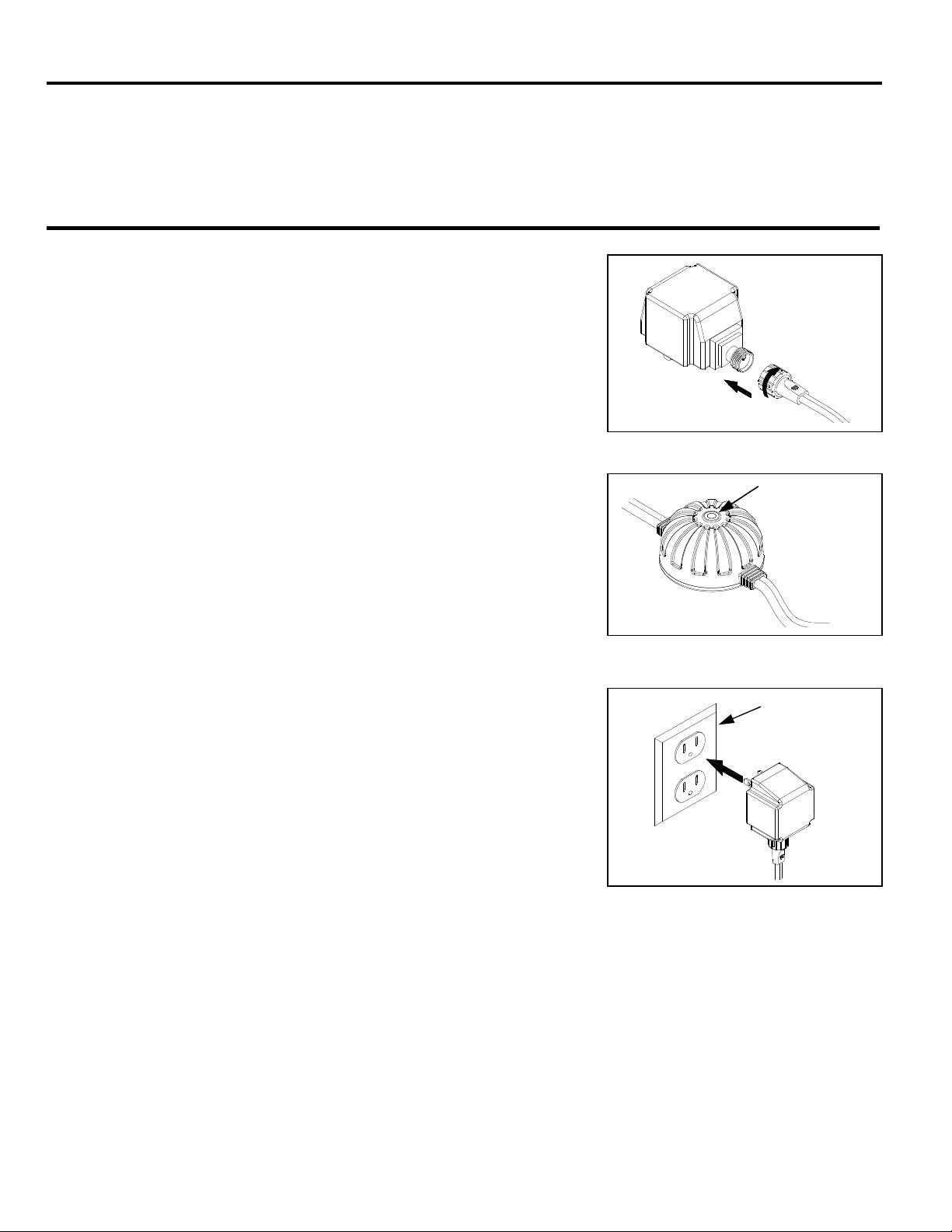

1. Connect the sensor to the transformer by pushing the plug
into the transformer socket until it is firmly seated. Hand
tighten the nut from the plug to the socket. Fig. 1
Fig. 1
2. Place the lights in or out of the water. Make sure that the
transformer and sensor are NOT submerged. Make sure that
the light sensor faces up. Fig. 2
NOTE: At night, the lights will automatically turn on.
At sunrise, they will automatically turn off.
Fig. 2
3. Plug the transformer into a properly grounded electrical outlet.
Fig. 3
Fig. 3
Sensor
(Must face up)
Transformer
Plug from
sensor
GFCI

3
TROUBLESHOOTING
•If light fails to illuminate, check that it is getting power by testing another appliance in the same
power outlet.
•The light is designed to turn on when it gets dark, and turn off when it gets light. To activate the
light during daylight hours, cover the sensor.
•If light does not turn off during daytime, check sensor. Make sure the sensor faces up and is not
covered by dirt or debris.
CARE AND MAINTENANCE
•Periodically, your light may require cleaning for optimal performance.
•Cleaning should only be done with warm soapy water. Be sure to use biodegradable soap.
•The frequency of cleaning depends upon the conditions of the environment where the light is used.
REPLAC
EMENT PARTS LIST
For replacement parts, call our customer service department
at 1-888-412-6001, 8 a.m.-6 p.m., EST, Monday-Friday.
Printed in China
Part Description
A Light w/ sensor
B Transformer
C Lens
D Lamp retaining ring
E O-ring
A
D
E
C
B

4
