OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 9. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1−1

’03 HIGHLANDER_U (L/O 0208)
22003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

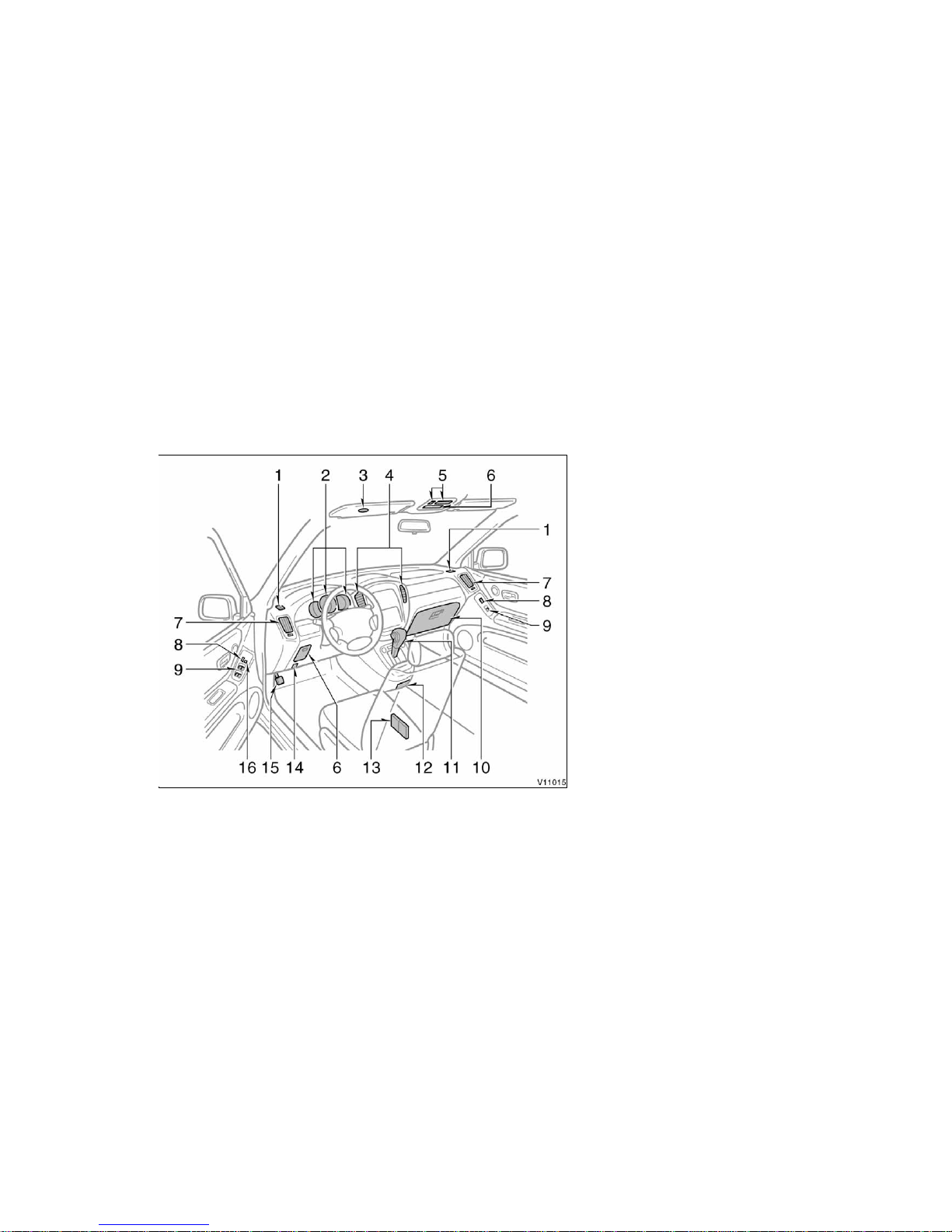

1. Side defroster outlets
2. Instrument cluster
3. Garage door opener
4. Center vents
5. Electric moon roof switch and personal
light
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Rear ashtray
13. Cup holder
14. Container
15. Front ashtray
16. Hood lock release lever
17. Parking brake pedal
18. Window lock switch
Instrument panel overview
"Vehicles with rear console

’03 HIGHLANDER_U (L/O 0208)
3
2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
1. Side defroster outlets
2. Instrument cluster
3. Garage door opener
4. Center vents
5. Electric moon roof switch and personal
light
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Ashtray
13. Cup holders
14. Hood lock release lever
15. Parking brake pedal
16. Window lock switch
"Vehicles without rear console

’03 HIGHLANDER_U (L/O 0208)
42003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

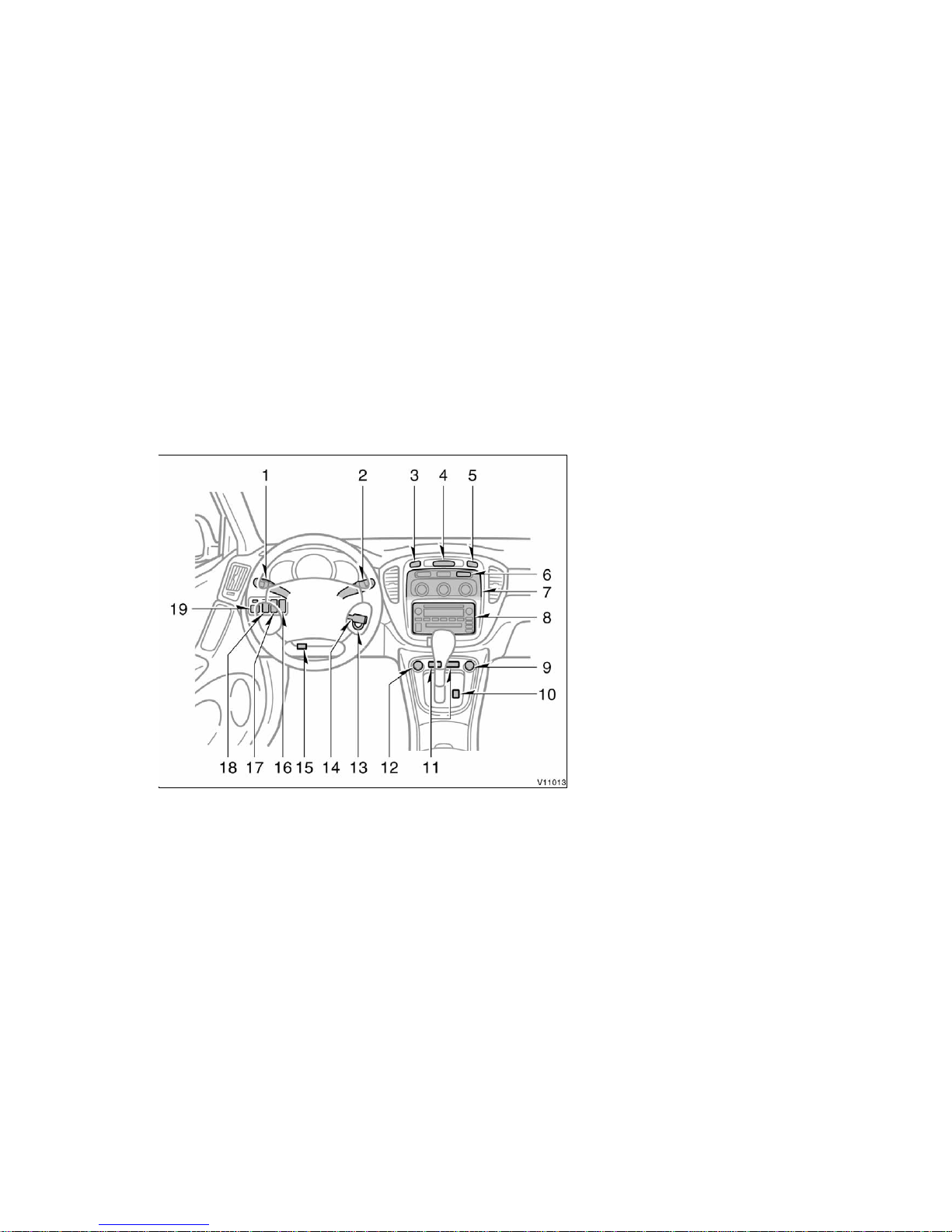

1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger’s seat belt reminder
light
6. Rear window defogger switch
7. Air conditioning controls
8. Car audio
9. Cigarette lighter (vehicles with rear
console) or power outlet (vehicles
without rear console)
10. Snow mode button
11. Seat heater switches
12. Power outlet (vehicles with rear
console) or cigarette lighter (vehicles
without rear console)
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. Traction control system off switch
(two−wheel drive models)
17. Outside rear view mirror defogger and
windshield wiper de−icer switch
"Vehicles with manual air conditioning controls

’03 HIGHLANDER_U (L/O 0208)
5
2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
18. Theft deterrent system/Engine
immobiliser system indicator light
19. Power rear view mirror control switches

’03 HIGHLANDER_U (L/O 0208)
62003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger’s seat belt reminder
light
6. Air conditioning controls and
multi−information display
7. Rear window defogger switch
8. Car audio
9. Cigarette lighter (vehicles with rear
console) or power outlet (vehicles
without rear console)
10. Snow mode button
11. Seat heater switches
12. Power outlet (vehicles with rear
console) or cigarette lighter (vehicles
without rear console)
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. Traction control system off switch
(two−wheel drive models)
"Vehicles with automatic air conditioning controls

’03 HIGHLANDER_U (L/O 0208)
7
2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
17. Outside rear view mirror defogger and
windshield wiper de−icer switches
18. Theft deterrent system/Engine
immobiliser system indicator light
19. Power rear view mirror control switches

’03 HIGHLANDER_U (L/O 0208)
82003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

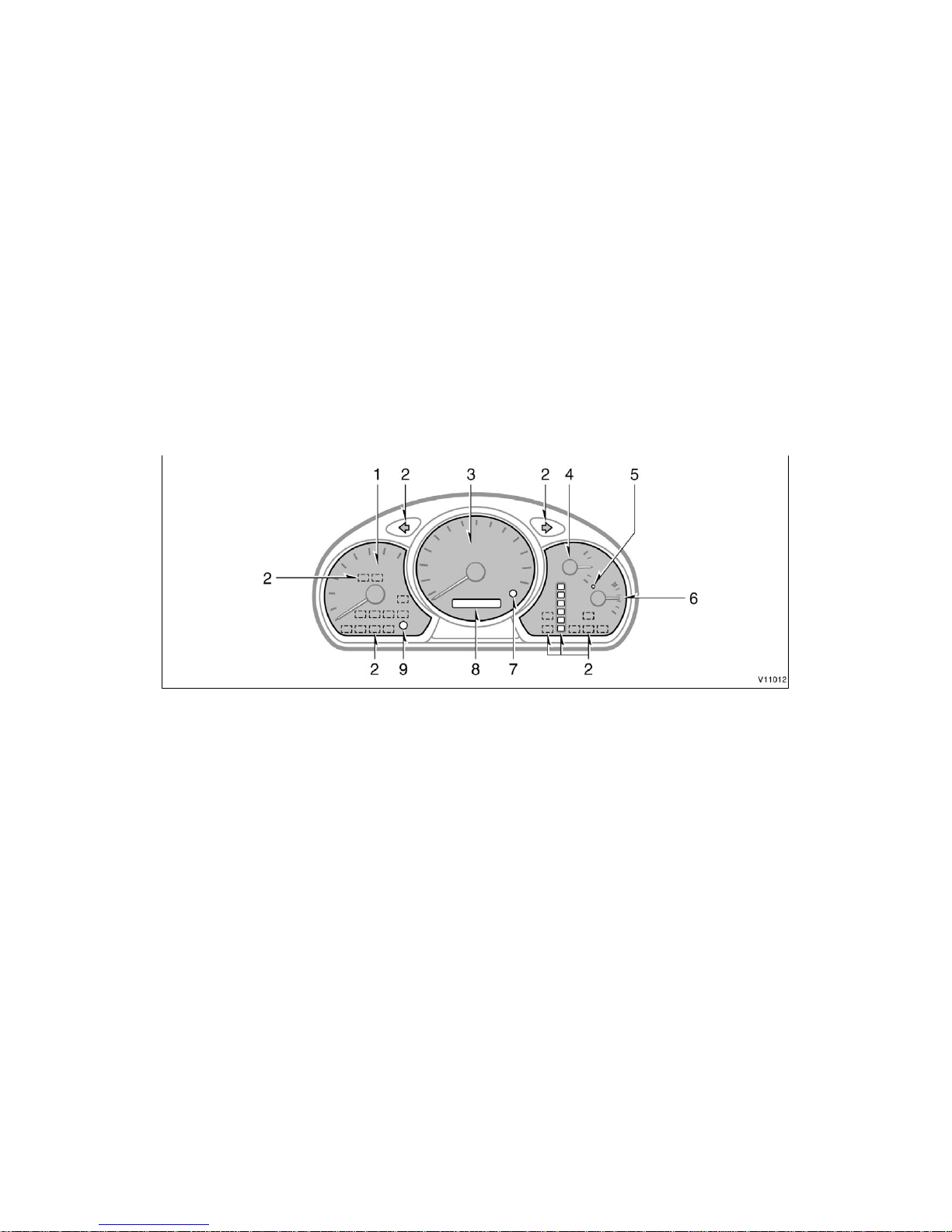

1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
9. Instrument panel light control knob
Instrument cluster overview

’03 HIGHLANDER_U (L/O 0208)
9
2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

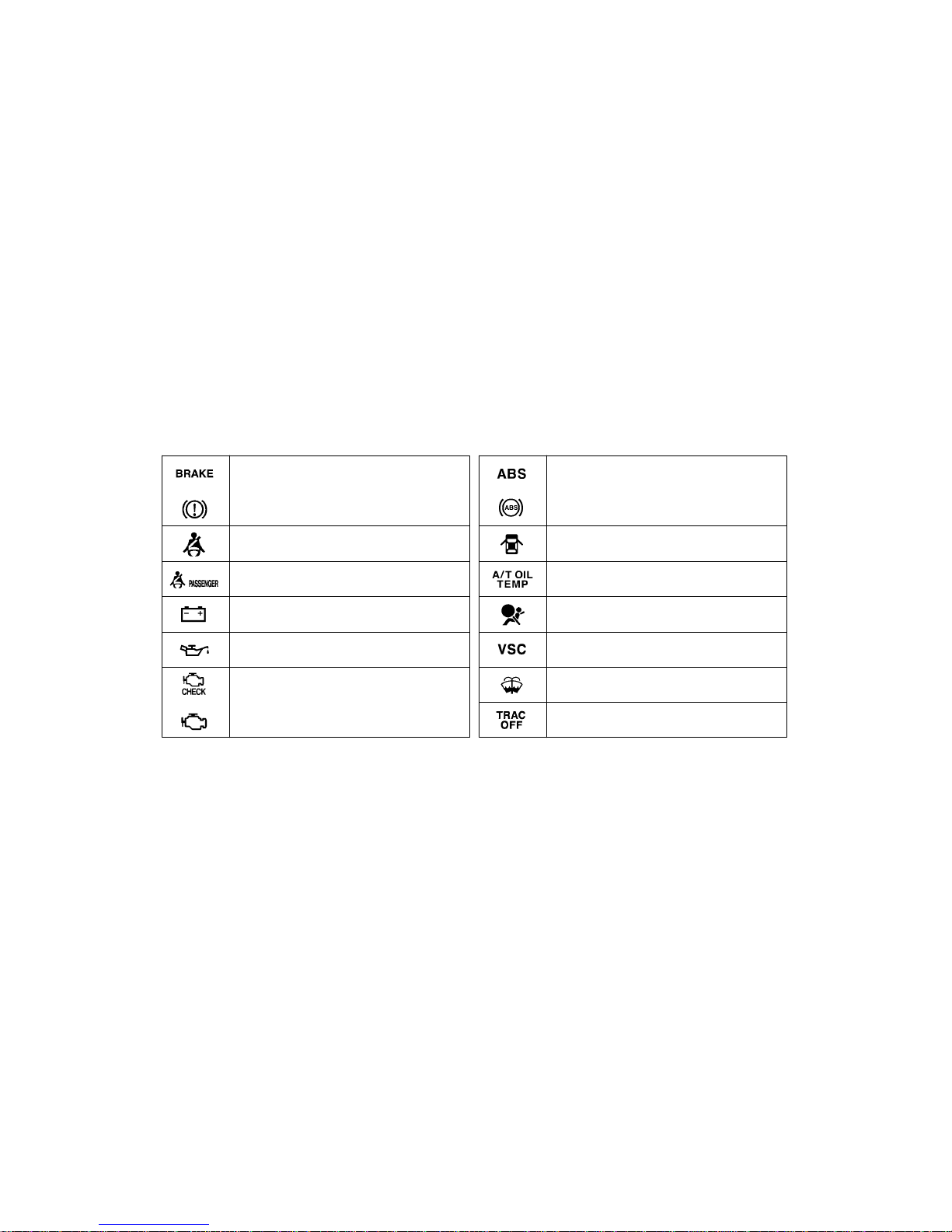

Brake system warning light∗1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
SRS warning light∗1
Driver’s seat belt reminder light∗1Open door warning light∗1
Automatic transmission fluid temperature warning
light∗1
or
Low windshield washer fluid level warning light∗1
or
Vehicle skid control system warning light∗1
Traction control system off indicator light
Anti−lock brake system warning light∗1
or
Front passenger’s seat belt reminder light∗1
Indicator symbols on the instrument panel

’03 HIGHLANDER_U (L/O 0208)
10 2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 105 in Section 1−5.
∗2: If this light flashes, see “Cruise control” on page 125 in
Section 1−6.
Cruise control indicator light∗2
Overdrive−off indicator light
Slip indicator light
Headlight high beam indicator light
Turn signal indicator lights
Automatic transmission indicator lights
Snow mode indicator light

’03 HIGHLANDER_U (L/O 0208)
11
2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1−2

’03 HIGHLANDER_U (L/O 0208)
12 2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
Your vehicle is supplied with two kinds
of keys.
1. Master keys—These keys work in ev-
ery lock.
2. Sub key—This key will not work in the
glove box.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—These keys work
in every lock. Your Toyota dealer will
need one of them to make a new key
with built−in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box.
Keys (without engine
immobiliser system) Keys (with engine immobiliser system)

’03 HIGHLANDER_U (L/O 0208)
13
2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
A transponder chip for engine immobiliser
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle. NOTICE

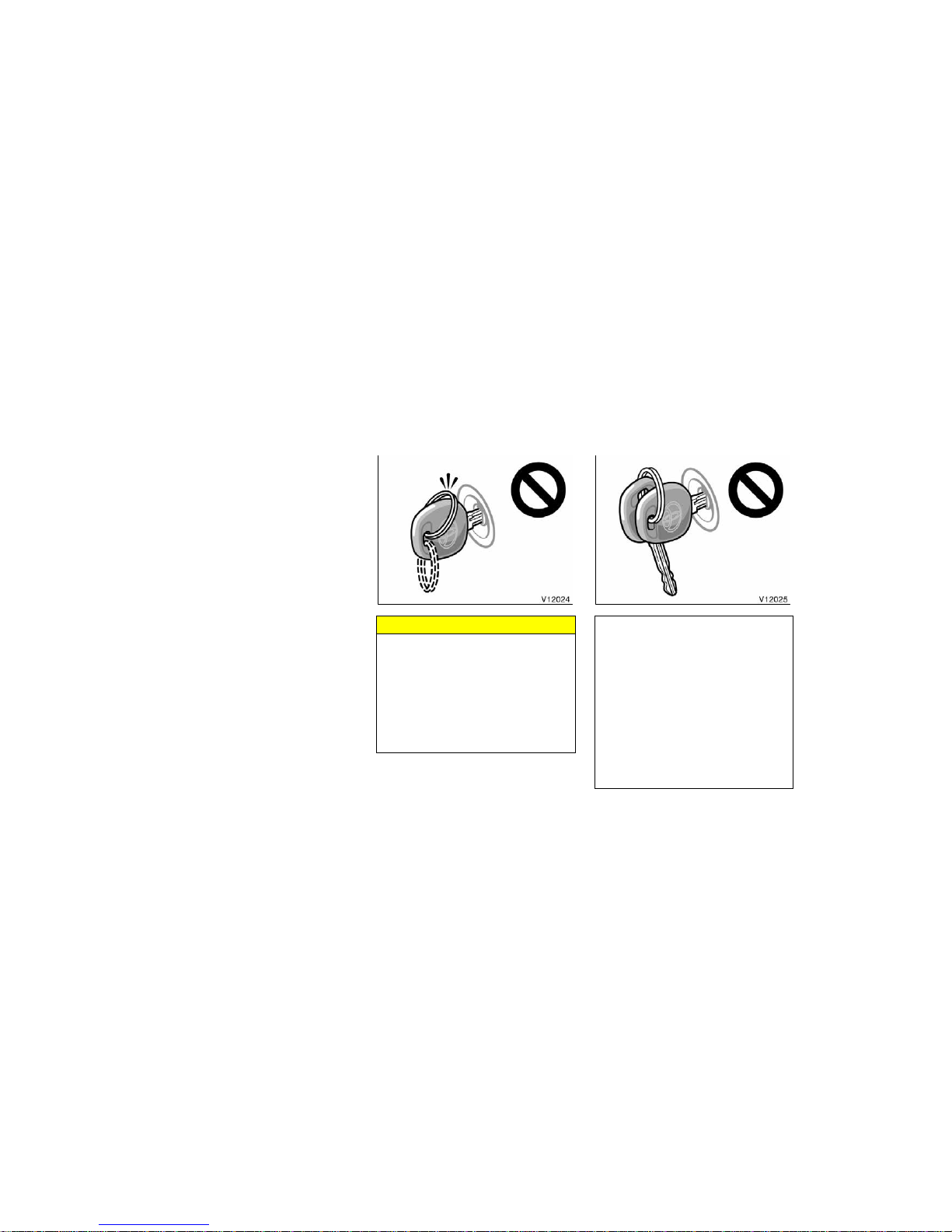

When using a key containing a trans-
ponder chip, observe the following
precautions:
zWhen starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
zWhen starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’03 HIGHLANDER_U (L/O 0208)
14 2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

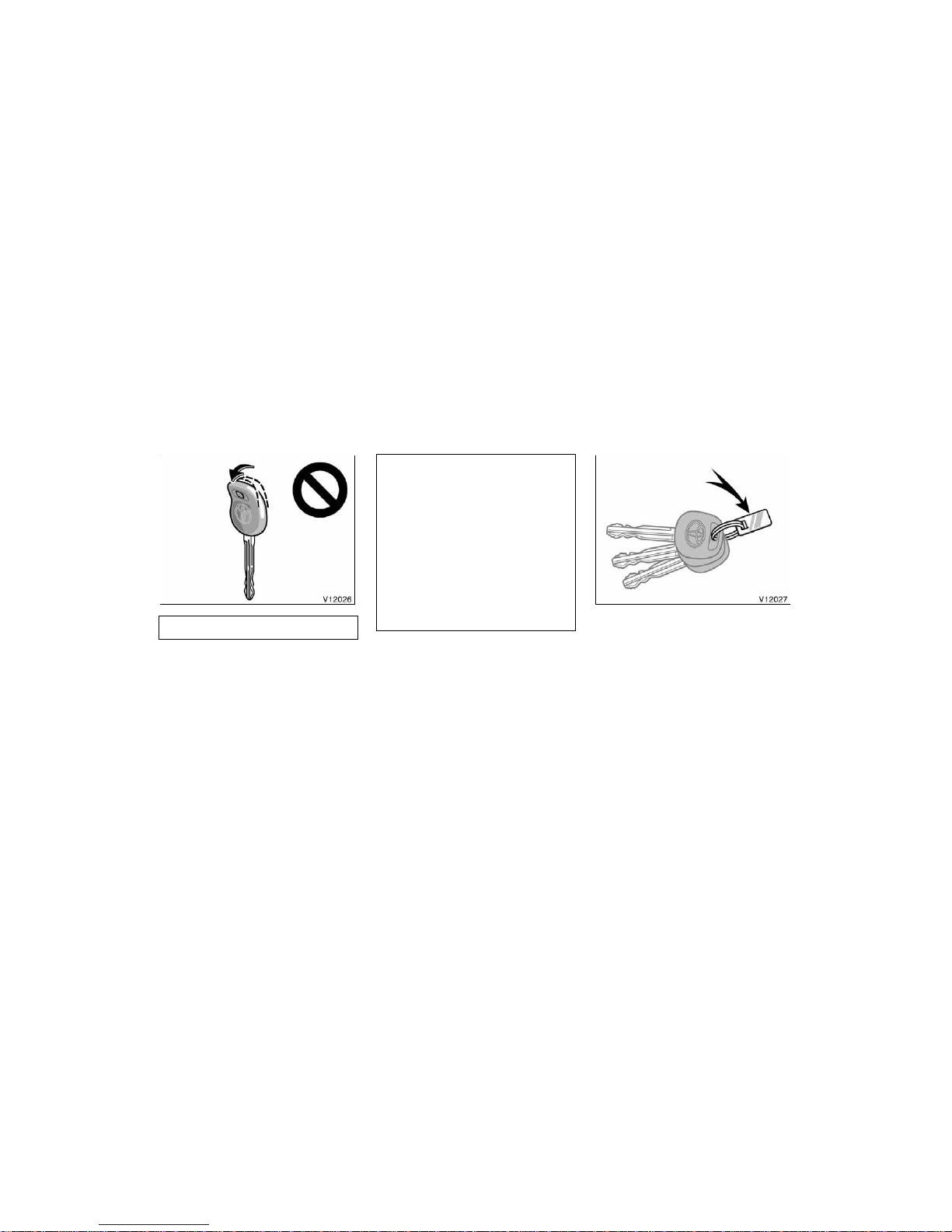

zDo not bend the key grip.
zDo not cover the key grip with any
material that cuts off electromagnet-
ic waves.
zDo not knock the key hard against
other objects.
zDo not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
zDo not put the key in water or
wash it in an ultrasonic washer.
zDo not use the key with electromag-
netic materials. KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.

’03 HIGHLANDER_U (L/O 0208)
15
2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

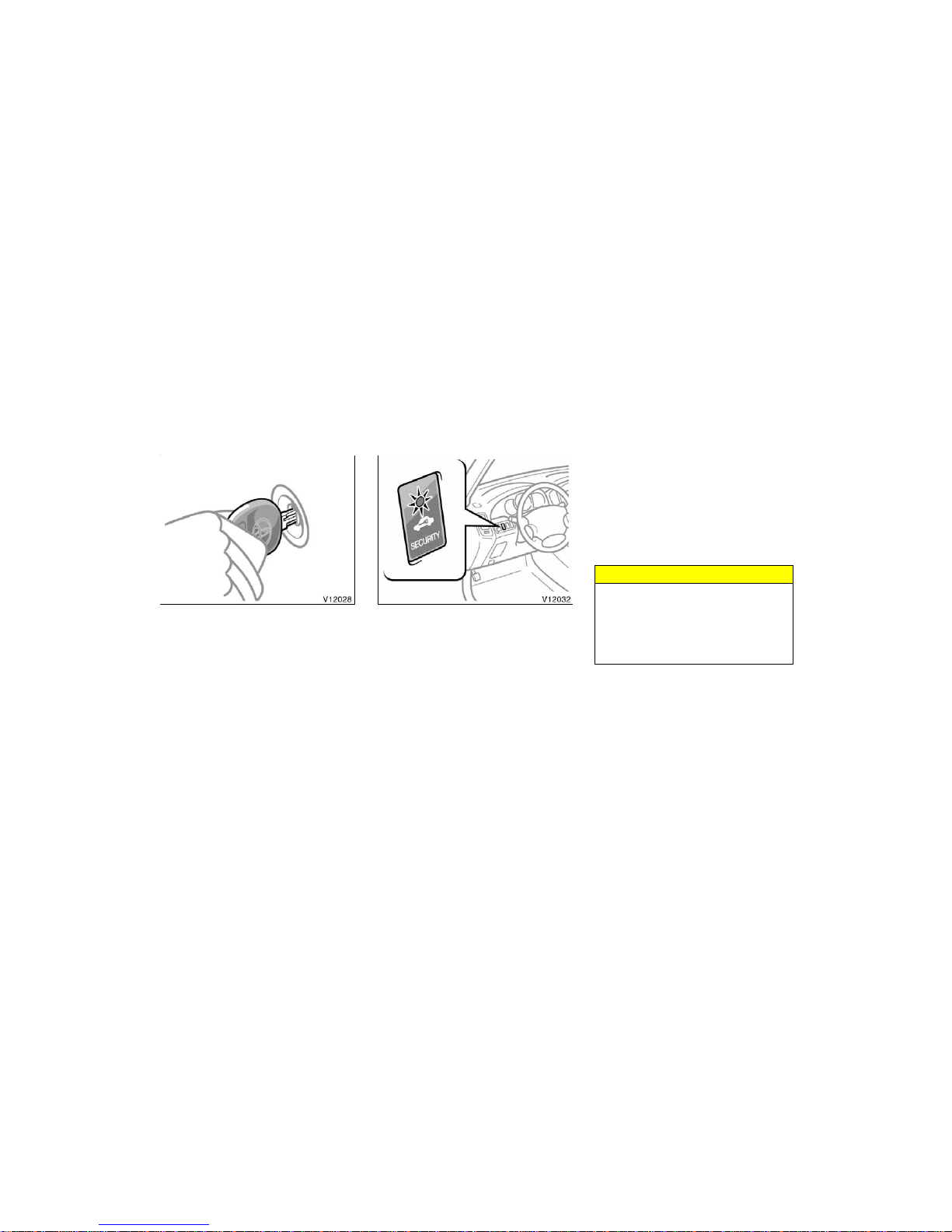

The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
In the following cases, contact your Toyota
dealer.
DThe indicator light stays on.
DThe indicator light does not start flash-
ing when the key is removed from the
ignition switch.
DThe indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
Engine immobiliser system

’03 HIGHLANDER_U (L/O 0208)
16 2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
For vehicles sold in U.S.A.
FCC ID: MOZ RI−14BTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
LOCKING AND UNLOCKING WITH KEY

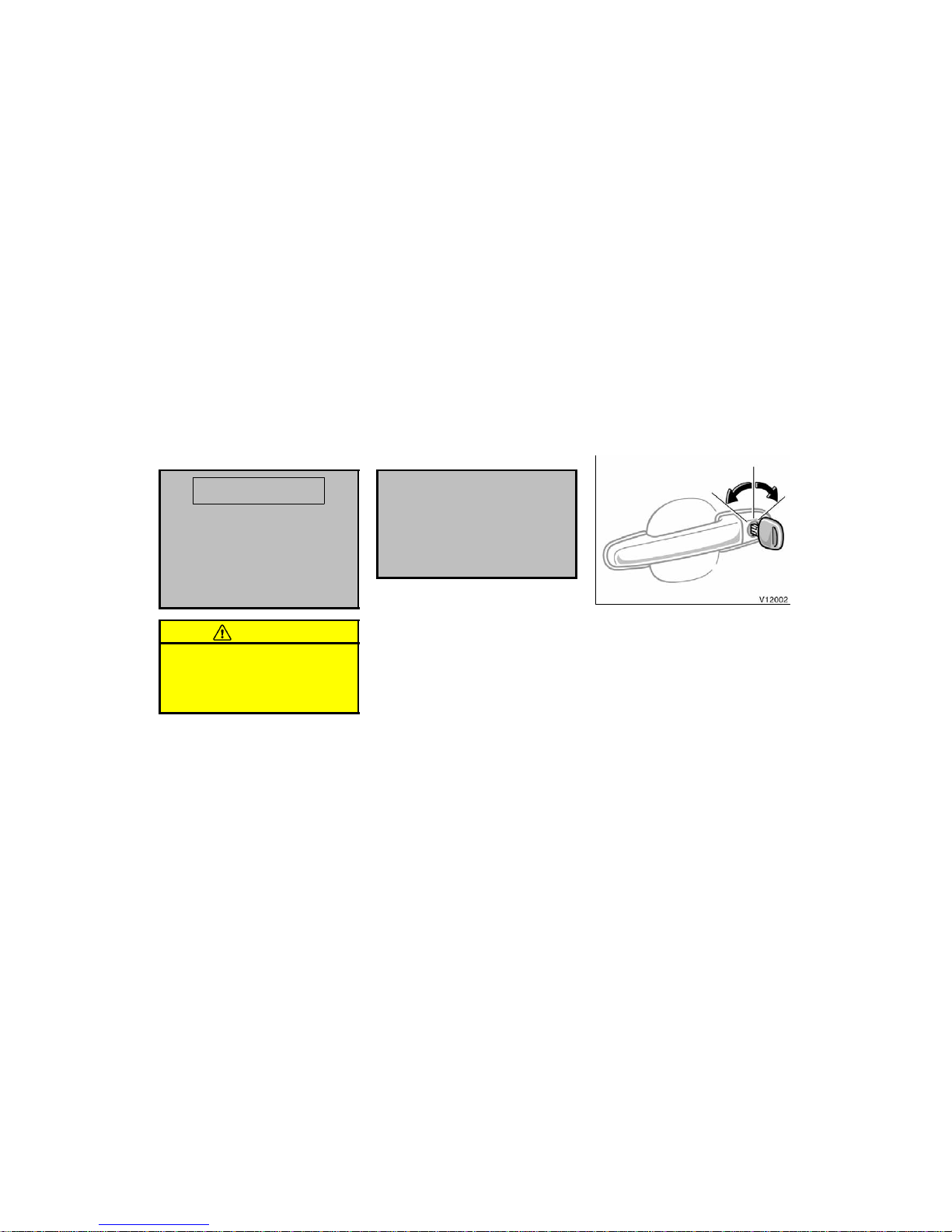

Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock
simultaneously with either front door. In
the driver’s door lock, turning the key
backward once will unlock the driver’s
door and twice in succession will unlock
all the side doors and back door simulta-
neously. In the front passenger’s door
lock, turning the key backward once will
unlock all the side doors and back door
simultaneously.
Side doors—

’03 HIGHLANDER_U (L/O 0208)
17
2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
When the driver’s door is unlocked by
turning a key in either of the front doors,
the interior light will come on and remain
on for about 15 seconds before fading
out. (For further information, see “Interior
lights” on page 94 and “Ignition switch
light” on page 95 in Section 1−4.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB

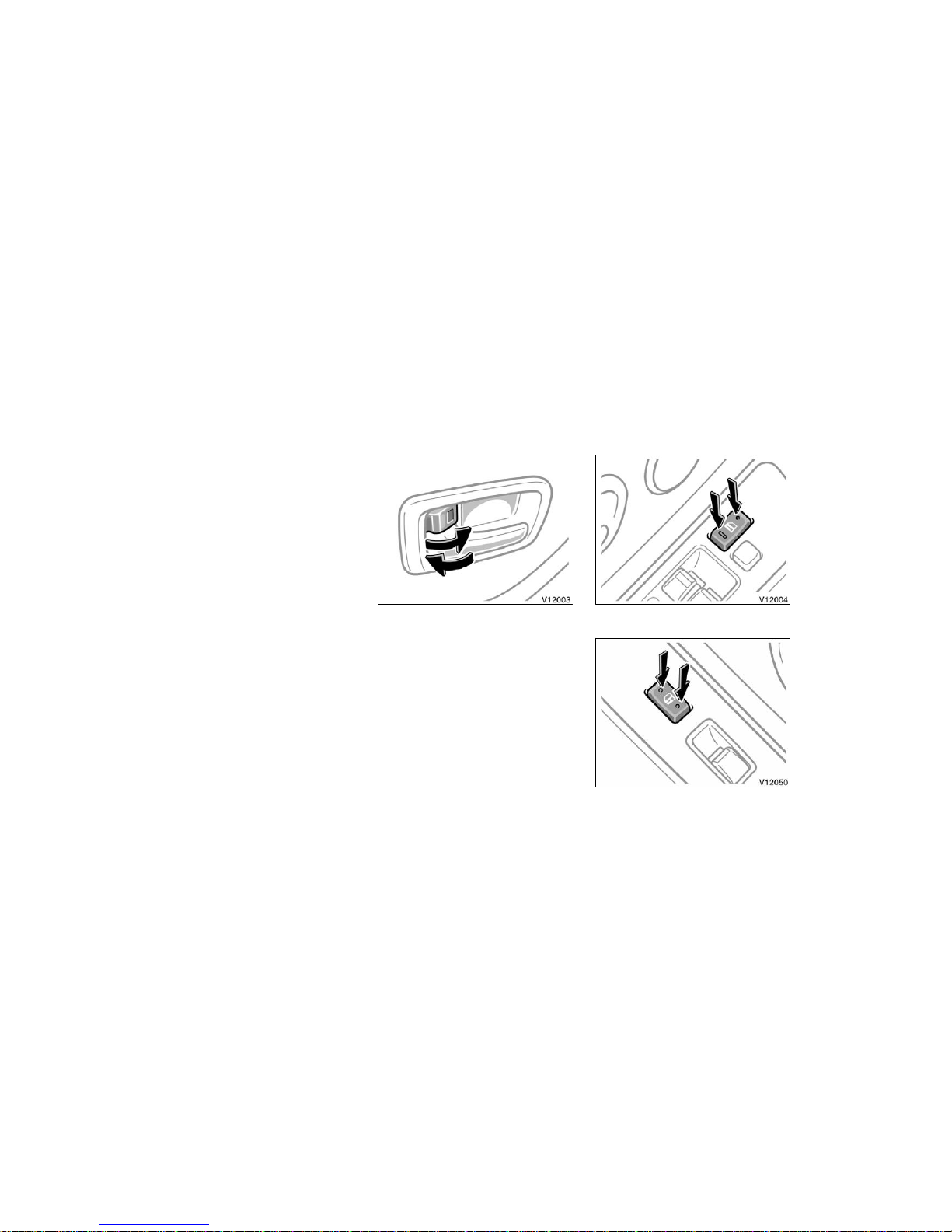

Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the side door with the lock knob
in the lock position will also lock the side
door. Be careful not to lock your keys in
the vehicle.
The side door cannot be locked if you
leave the key in the ignition switch and
the driver’s door is opened.
Driver’s side
Passenger’s side

’03 HIGHLANDER_U (L/O 0208)
18 2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
All the side doors and back door lock or
unlock simultaneously.
REAR DOOR CHILD−PROTECTORS

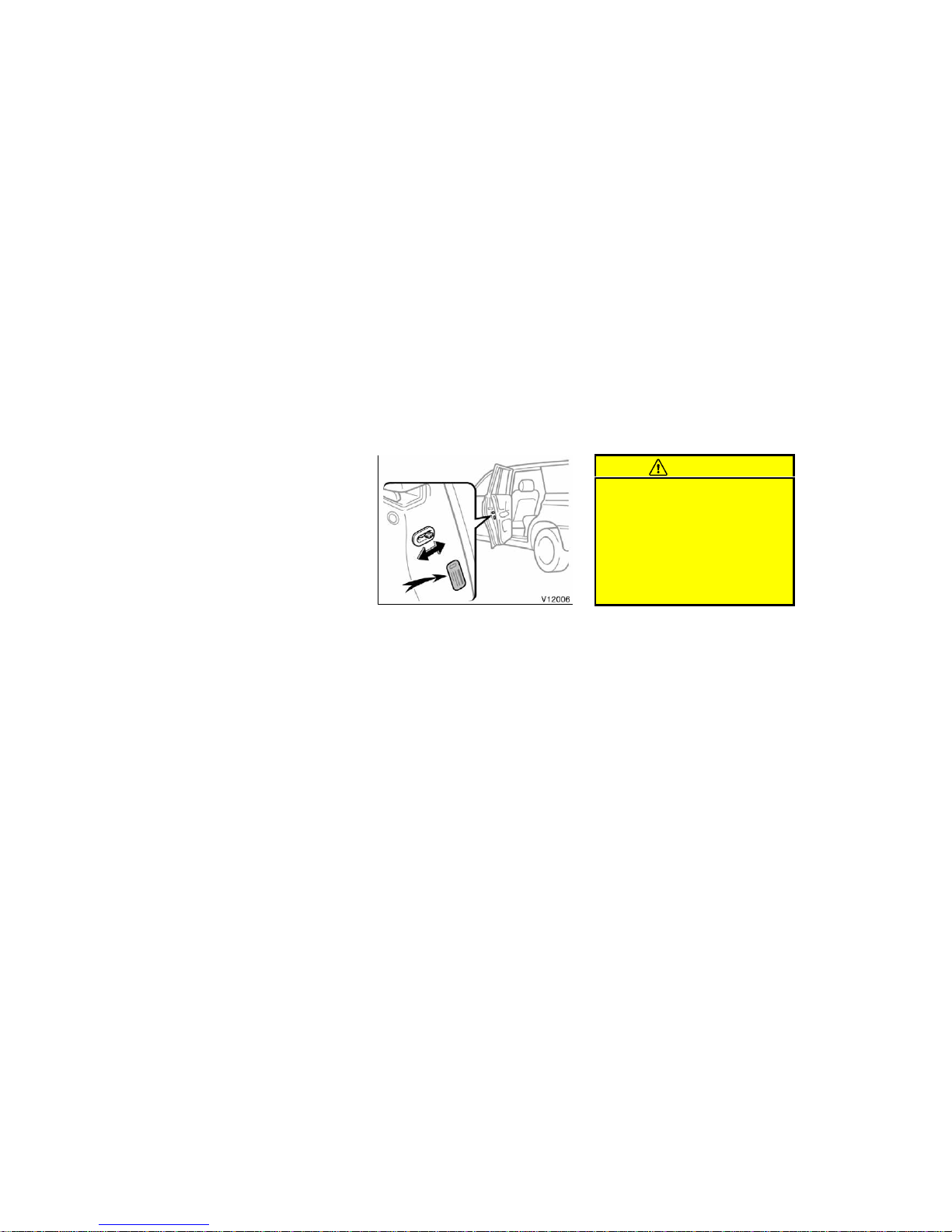

Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

’03 HIGHLANDER_U (L/O 0208)
19
2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
Locking operation
Unlocking operation
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
“PANIC” mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches of
the transmitter slowly and securely.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked si-
multaneously. At this time, one beep will
be heard, and the turn signal lights flash
once.
Check to see that all the side doors and
back door are securely locked.
If any of the side doors or back door is
not securely closed, locking cannot be
performed by the “LOCK” switch and a
beep will sound continuously for 10 sec-
onds. However, if the key is in the igni-
tion, a beep will not sound.
To stop the buzzer, close all the side
doors and back door securely or push the
“UNLOCK” switch.
The buzzer can be disabled. For details,
contact your Toyota dealer.
To unlock: Push the “UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. Each time the “UNLOCK”
switch is pushed, two beeps will be heard,
and the turn signal lights flash twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When the driver’s door is unlocked with a
wireless remote control transmitter, the in-
terior light and ignition switch light come
on for about 15 seconds and then fade
out, even if the door is not opened. (For
details, see “Interior lights” on page 94
and “Ignition switch light” on page 95 in
Section 1−4.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again. At this time, one beep
will be heard, and the turn signal lights
flash once.
The timing for the automatic door lock
function can be changed. For details, con-
tact your Toyota dealer.
—Wireless remote control

’03 HIGHLANDER_U (L/O 0208)
20 2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
The wireless door locking or unlocking
function can be erased. For details, con-
tact your Toyota dealer.
SWITCHING BEEP SOUND ON AND OFF
You can switch the beep on and off. (The
beep is on initially and after battery re-
placement.)
To switch the beep on and off:
With the driver’s door opened—
1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition
key again and turn it to the “ON” posi-
tion.
3. After 10 seconds, push the same
“LOCK”, “UNLOCK” or “PANIC” switch
twice within 10 seconds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected.
Check the beep ON/OFF operation by
pushing the transmitter switch after you
finish this procedure. If the beep does not
operate as expected, repeat this proce-
dure from step 1.
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
DPush the “PANIC” switch once again.
DUnlock any of side door or back door
with the key or wireless remote control
transmitter.
DTurn the ignition key from the “LOCK”
to “ON” position.
