Toyota 86 2017 User manual

QUICK REFERENCE GUIDE
86
2 0 17

2
Toyota 86
2017
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satised driving in your new
86.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of 86 operations. Every 86
owner should review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
11
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6
Light control-Instrument cluster 7
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 14
Automatic transmission 9
AUX/USB port 16
Clock 15
Cruise control 10
Cup/bottle holders 16
Door locks 15
Driving modes 10-11
Hill-start Assist Control (HAC) 11
Lights & turn signals 12
Manual transmission 9
Multi-Information Display (MID) 12
Parking brake 9
Power outlets 16
Rear view monitor system 17
Seat adjustments-Front 13
Seats-Fold down rear seats 13
Seats-Head restraints 13
Tilt steering wheel 14
Trunk release 15
Windows 14
Windshield wipers & washers 13
Floor mat installation 21
Seat belts 18
Spare tire & tools 19
Star Safety System™20-21
Tire Pressure Monitoring
(warning) System (TPMS) 18
PAIRING BLUETOOTH®PHONE FOR
THE FIRST TIME 22-23

22

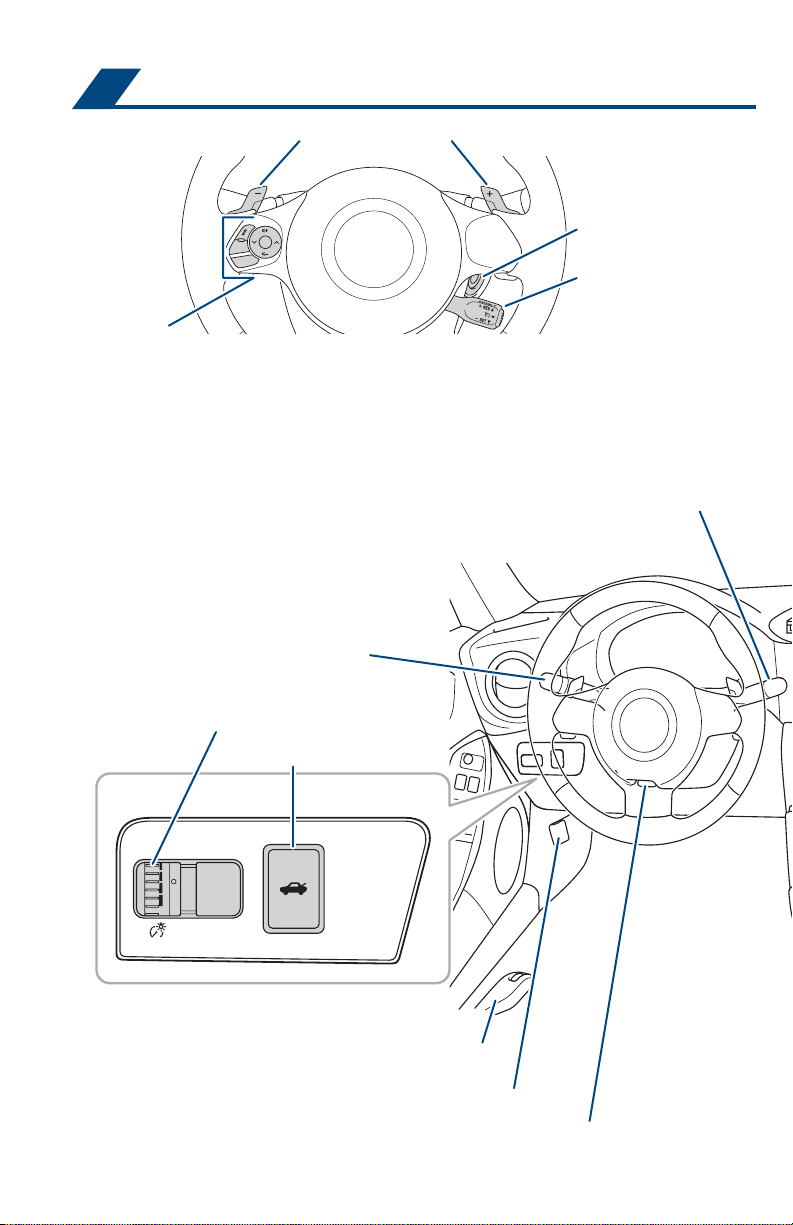

Instrument panel
Steering wheel controls
OVERVIEW
Paddle shift switches*
Audio control
switches
Ignition
Headlight and turn signal controls
Wiper and washer controls
Tilt and telescopic steering lock release
Hood release
Fuel filler door opener
Trunk opener
Instrument panel light control
Cruise control

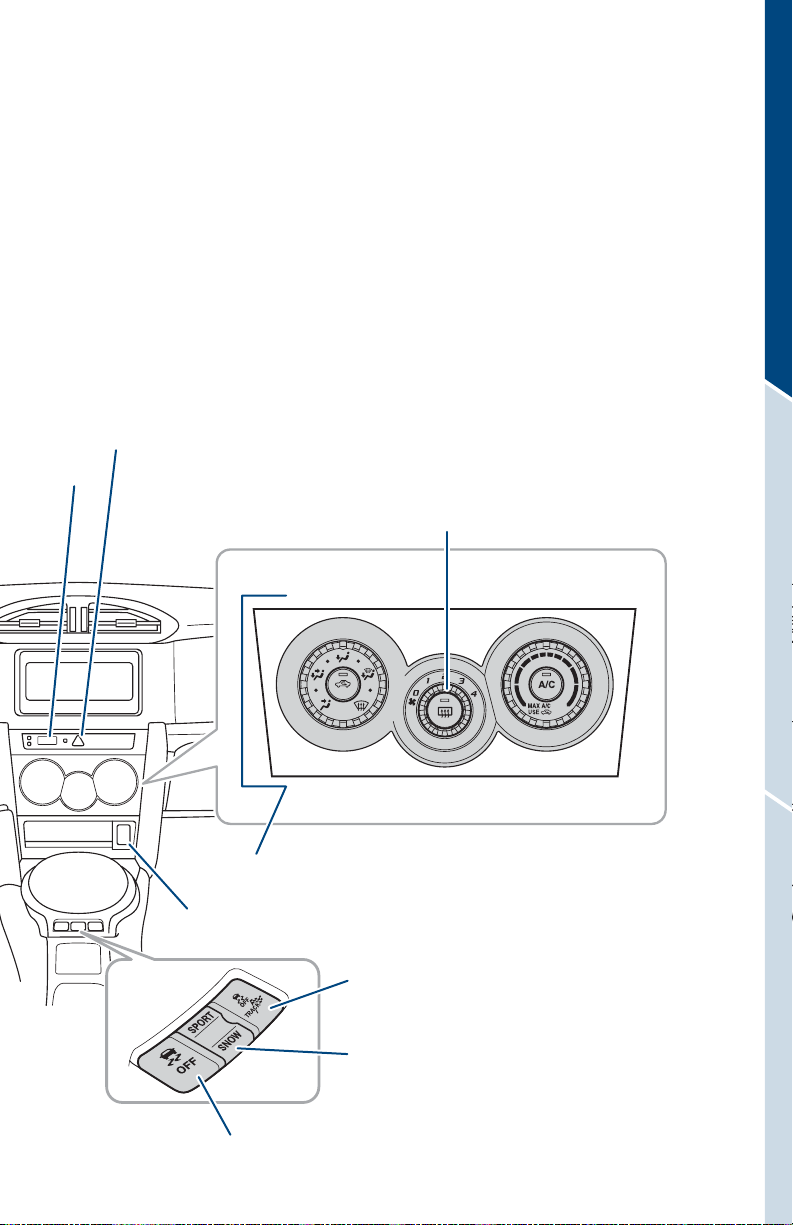

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
33
Clock
Emergency flasher switch
Rear window and outside rear
view mirror defogger switch
Air conditioning controls
Vehicle Stability Control (VSC) OFF switch
TRACK mode switch
SPORT or SNOW mode switch*
* If equipped
AUX/USB port

44
For details, refer to “Indicators and warning lights,” Section 2-2, 2017 Owner’s
Manual.
Anti-lock Brake System warning1
Brake system warning1
Airbag SRS warning1
Electric power steering system warning1
Fuel tank door position
Cruise control indicators2
Instrument cluster
Automatic Transmission fluid
temperature warning1
Hill-start assist control ON indicator
Headlight low/high beam indicators
Headlight low/high beam indicators
Charging system warning1
AIR BAG ON and AIR BAG OFF indicator
1 If indicator does not turn off within a few seconds of starting engine, there may be a malfunction.
Have vehicle inspected by your Toyota dealer.
Display switch
Indicator symbols
Analog speedometer
km/h MPH switch
Odometer/trip meter
display change switch
Tachometer Fuel gauge
Engine coolant temperature
Digital speedometer
Odometer/Trip meter
/Multi-Information Display
Service indicators and reminders
OVERVIEW

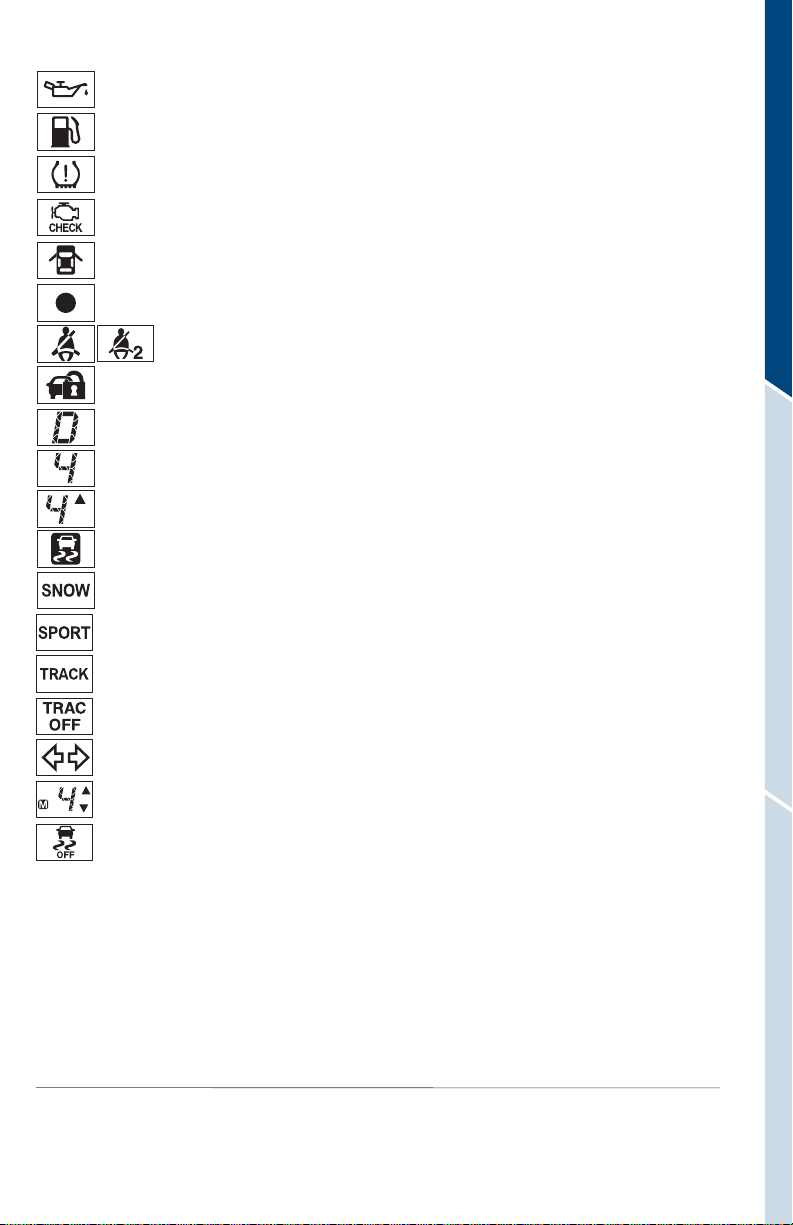

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
55
Low fuel level warning1
Low Tire Pressure Warning1
2If these lights come on in yellow, refer to “Cruise control” Section 2-4, 2017 Owner’s Manual.
3If equipped.
Slip indicator1
Vehicle Stability Control OFF indicator1
Traction Control OFF indicator1
SNOW indicator3
REV (engine RPM) indicator
Upshift/downshift indicator
Shift position indicator
Shift-up indicator
Shift position and shift range indicator
Security indicator
SPORT indicator3
Turn signal indicator
TRACK mode indicator
Open door warning
Seat belt reminder (alarm will
sound if speed is over 12 mph)
Malfunction/
Check Engine indicator1
Low engine oil pressure warning1

6

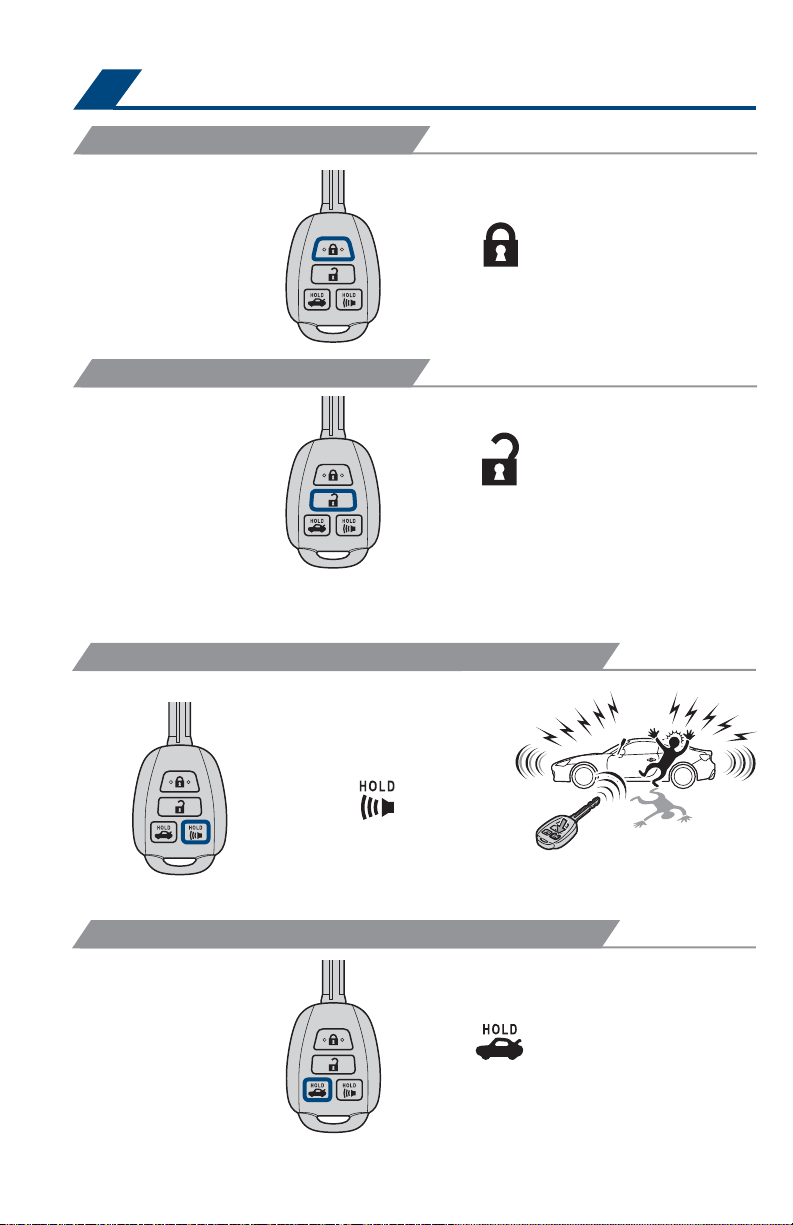

LOCKING OPERATION
UNLOCKING OPERATION
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Keyless entry
Push
Push
ONCE: Driver door
TWICE: All doors
PANIC BUTTON
TRUNK UNLOCKING OPERATION
Push and hold
Push and hold
OVERVIEW

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
7
Fuel tank door release & cap
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
Light control-Instrument cluster
Brightness control
Brighter
Darker
+
-
Pull up
Store
Turn to open

8

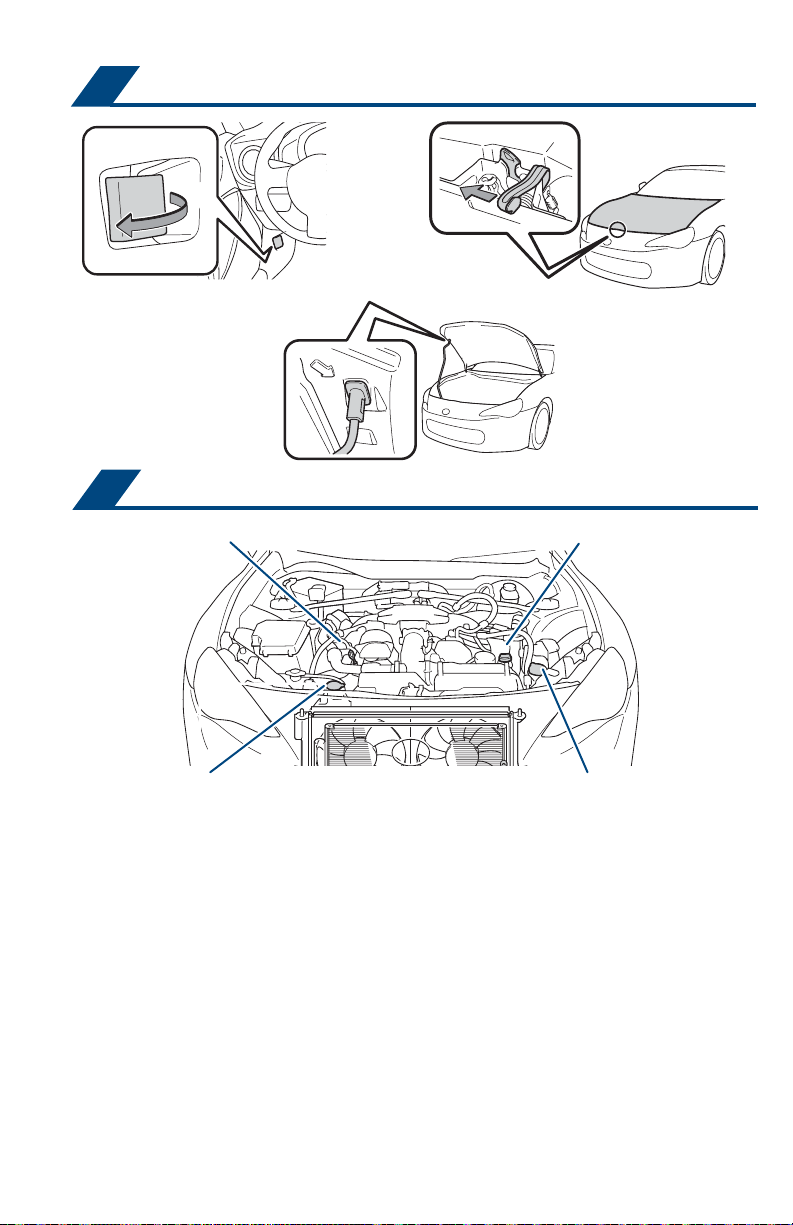

Hood release
Engage support rod
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
Engine maintenance
Pull up latch and raise hood
Pull
OVERVIEW

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
9
P
R
N
D
M
Park*
Reverse
Neutral
Drive
“M” mode
+ (“M” mode)
- (“M” mode)
+ (“M” mode)
- (“M” mode)
Paddle shift switches
Shift lever
* The ignition switch must be “ON” and the brake pedal depressed to shift from
Park.
Shift the shift lever to “M” position from “D” position.
+: Upshifting
-: Downshifting
Refer to the Owner’s Manual for more details.
Pull (2) Push
(1) Pull slightly
(3) Lower
Set Release
“M” (MANUAL) MODE
Automatic transmission (if equipped)
FEATURES & OPERATIONS
Lift up ring to shift into reverse
Manual transmission (if equipped)
Parking brake

1010
Normal mode
Sport mode
Use for sporty driving or when driving in mountainous regions with lots of curves.
Press this switch and the “SPORT” indicator illuminates.
Snow mode
Use for accelerating and driving on slippery road surfaces such as snow. Press this
switch and the “SNOW” indicator illuminates.
To cancel SPORT mode or SNOW mode, press the same side of the switch again
and it returns to normal driving mode.
Refer to the Owner’s Manual for more details.
Driving modes
Cruise control
1
The set speed may also be cancelled by depressing the brake pedal.
2The set speed may be resumed once vehicle speed exceeds 20 mph.
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
FEATURES & OPERATIONS
NORMAL SPORT SNOW
TURNING SYSTEM ON/OFF
AUTOMATIC TRANSMISSION (IF EQUIPPED)
FUNCTIONS

OVERVIEWSAFETY & EMERGENCY FEATURES
11
FEATURES & OPERATIONS
There are two types of control modes to accommodate various driving preferences.
Normal mode
Use for secure and smooth normal driving.
“TRACK” mode
Use for the feeling of added control and maneuverability. Press this switch and the
“TRACK” and “VSC OFF” indicators illuminate. To cancel and go back to normal
mode while in “TRACK” mode, press “TRACK” or “VSC OFF” switch again.
Refer to the Owner’s Manual for more details.
Hill-start Assist Control (HAC)
HAC helps to maintain braking force to assist starting off forward while facing uphill
or starting off backward while facing downhill. As HAC is initially disabled, enable
the system to make it operable. The enabled/disabled setting will be maintained the
next time the engine is started.
The hill-start assist control ON indicator will be illuminated when system is enabled
and flash while the system is operating.
To enable system, refer to the Owner’s Manual for limitations and more information.
MANUAL TRANSMISSION (IF EQUIPPED)

1212
Multi-Information Display (MID)
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Current fuel consumption
(3) Average fuel consumption
(4) Setting screen for the REV (engine RPM) indicator*
Push “ODO TRIP” to change information in the following:
(1) Odometer
(2) Trip meter
(3) Setting
(4) Setting screen for the REV (engine RPM) indicator*
* Only displayed when the vehicle is stopped.
For more details, refer to the Owner’s Manual.
Lights & turn signals
Parking lights
Low beam
Headlights
Right turn
Left turn
Lane change
Lane change
High beam
High beam flasher
AUTO
OFF
Automatic light cut off system Automatically turns lights off after 30-second delay,
or lock switch on remote may be pushed afterlocking.
FEATURES & OPERATIONS
HEADLIGHTS
TURN SIGNALS

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
13
Seats-Fold down rear seats
(1) Pull (2) Fold down
Height
Lock release button
Windshield wipers & washers
For more details, refer to the Owner’s Manual.
* Intermittent windshield wiper frequency adjustment.
Rotate to increase/decrease wipe frequency.
Seat position
(forward/backward)
Seatback angle
Height crank (diver side only)
Seatback lock release
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe Adjust frequency*
Seat adjustments-Front
Seats-Head restraints

1414
Windows
Automatic operation Push the switch completely down or pull it completely up
and release to fully open. To stop window midway, lightly push the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Window lock switch
Up
Down
FEATURES & OPERATIONS

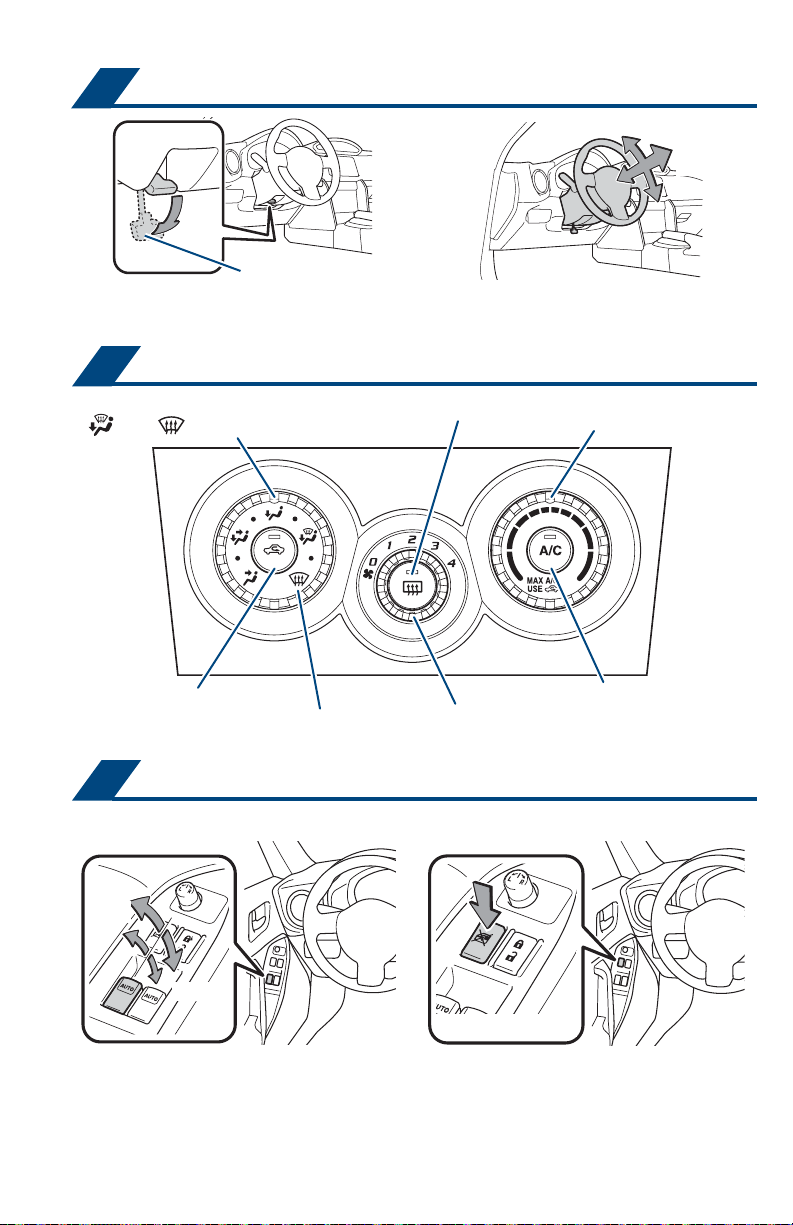

Air conditioning/heating
For more details, refer to the Owner’s Manual.
Driver door window controls
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt steering wheel
Lock release lever
Angle
Length
Airflow vent
“” and “ ” mode uses outside air only
Rear window defogger
Recirculate cabin air
(outside air when OFF) Windshield airflow
Air Conditioning ON/OFF
Fan speed
Temperature selector

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
1515
Door locks
Trunk release
Push and hold
Trunk opener
Clock
00
* The ignition switch must be “ON.”
Minute set
Hour set
Round off minutes
Lock
Unlock

1616

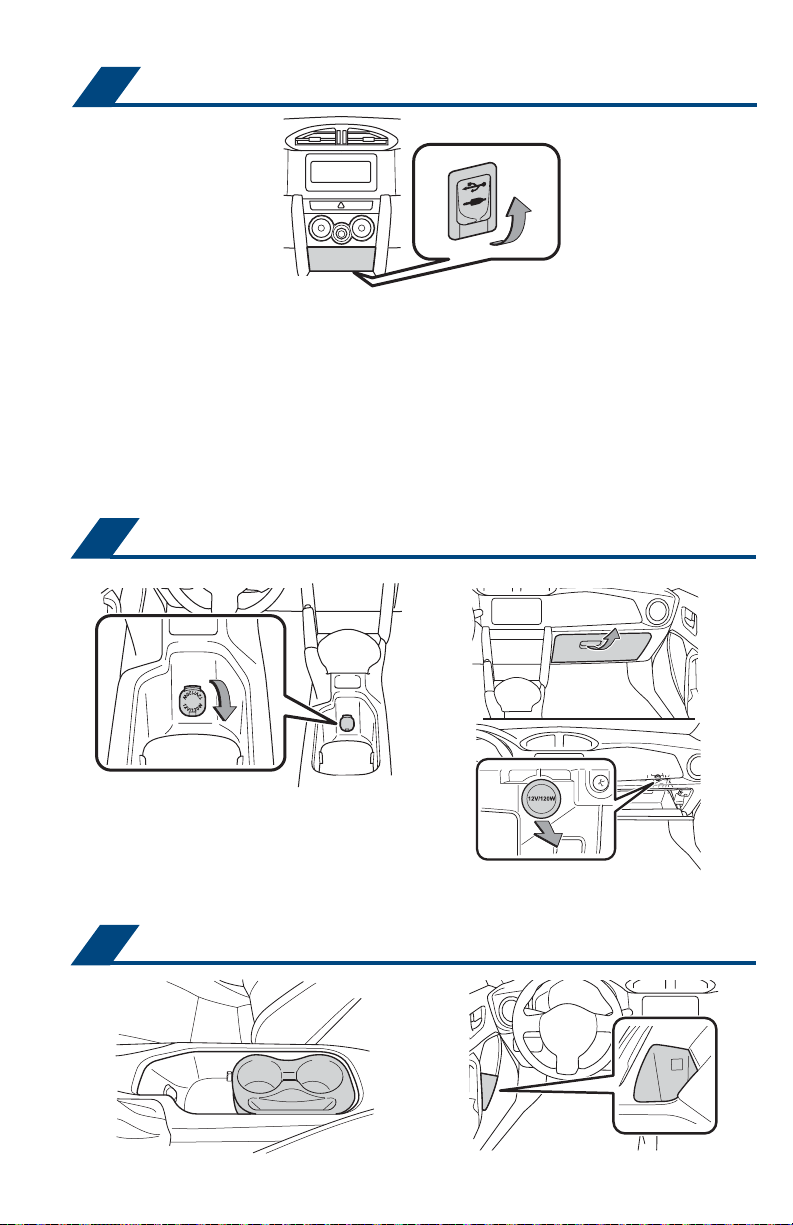

Power outlets
Cup/bottle holders
FEATURES & OPERATIONS
AUX/USB port
AUX port
By inserting a mini plug (not included) into the AUX port, you can listen to music
from a portable audio device through the vehicle’s speaker system while in AUX
mode.
USB port
By connecting a USB memory or USB-compatible portable audio device to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
Refer to the Toyota Audio Manual or Toyota.com for more details.
Designed for car accessories. Ignition switch must be in the “ACC” or “ON” position
to be used.
Console tray Glove box

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
1717
Rear view monitor system
The rear view monitor system assists the driver by displaying an image of the
camera’s view behind the vehicle when in reverse.
The backup camera does not provide a comprehensive view of the rear area of the
vehicle. You should also look around outside your vehicle and use your mirrors to
confirm rearward clearance. Environmental conditions may limit effectiveness and
view may become obscured.
For more details, refer to the Owner’s Manual details.
To see the camera’s image of the view behind the vehicle on the monitor screen,
the vehicle ignition switch must be in the ON position and the gear selector must be
in the REVERSE position.
If you shift the vehicle out of the “R” position, the screen returns to the previous
image.

1818

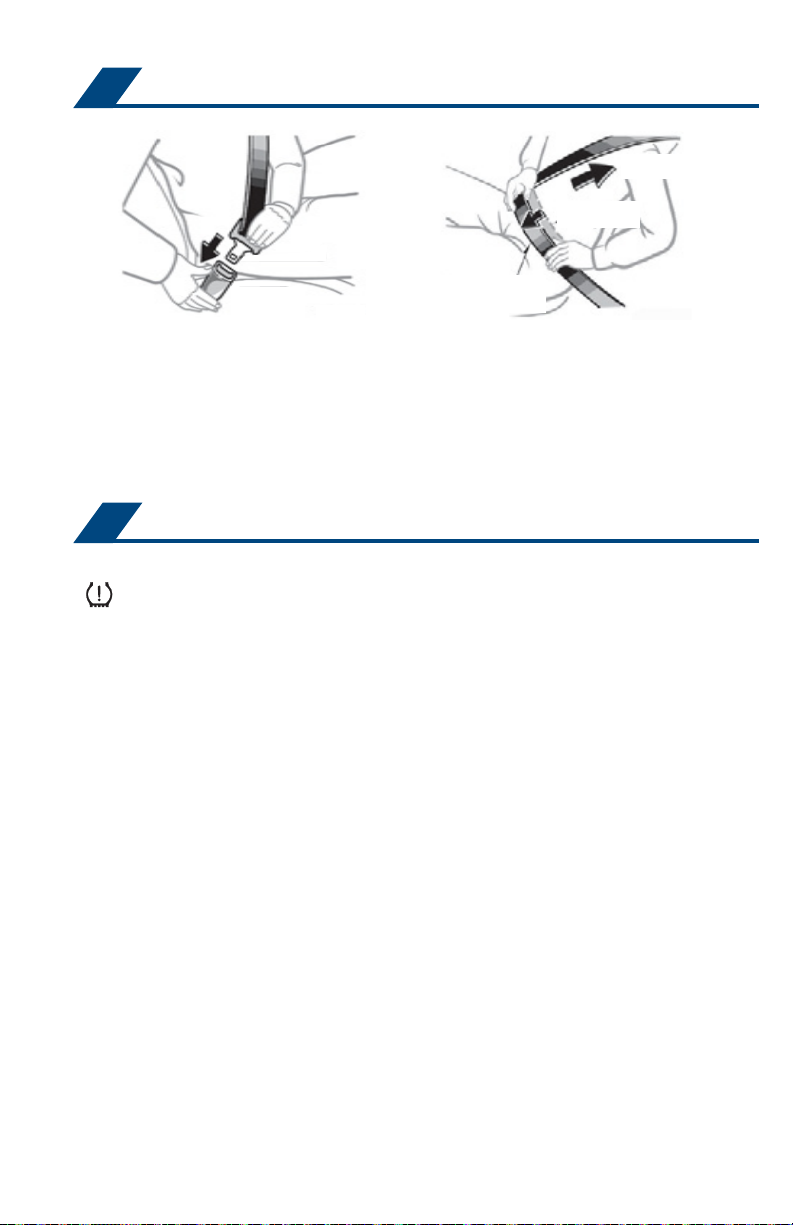

Seat belts
Tire Pressure Monitoring (warning) System (TPMS)
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic Locking Retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
SAFETY & EMERGENCY FEATURES
If tire pressure becomes critically low on any of the tires (excluding the spare),
“” indicator will illuminate. Correctly adjusting tire inflation will turn off the light
after a few minutes. If the light does not turn off, have the system checked by your
Toyota dealer.
Refer to the Owner’s Manual for more details.
