Toyota C-HR 2019 User manual

C-HR
2019
QUICK REFERENCE GUIDE

C-HR
2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
"NFSJDB*ODXJTIZPVNBOZZFBSTPGTBUJTmFEESJWJOHJOZPVS
new C-HR.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of C-HR operations. Every
C-HR owner should review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

1
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 9
Keyless entry1,2 6
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 16
Audio 18
Auxiliary storage 20
Blind Spot Monitor with Rear
$SPTT5SBGmD"MFSU#4.X3$5" 
Clock 14
Continuously variable transmission 10
Cup holders-Adjust size 20
Door locks 13
Driving mode select 15
Electric parking brake 11
Lights1& turn signals 12
Multi-Information Display (MID)115
Power outlet-12V DC 14
Rear view monitor system 21
Seat adjustments-Front 13
Seat heaters 16
Seats-Folding rear 13
Seats-Head restraints 13
Steering lock release 12
Steering wheel switches &
UFMFQIPOFDPOUSPMT#MVFUPPUI® 
Tilt & telescopic steering wheel 10
TRAC/VSC OFF switch 20
USB media/AUX port 21
Windows-Power 14
Windshield wipers & washers 22
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ P (TSS-P)
"VUPNBUJD)JHI#FBNT")# 
Full-Speed Range Dynamic Radar
$SVJTF$POUSPM%3$$ 
Lane Departure Alert with
4UFFSJOH"TTJTU-%"X4" 
Pre-Collision System with Pedestrian
%FUFDUJPO1$4X1% 
Quick overview-
Toyota Safety Sense™15441 23
Sensors 23
BLUETOOTH®DEVICE
PAIRING SECTION 40-42
Floor mat installation 38
Rear door chile safety locks 34
Seat belts 34
Seat belts-Shoulder belt anchor 34
Spare tire & tools 36
Star Safety SystemTM 
Tire Pressure Monitoring
XBSOJOH4ZTUFN51.4 

2
OVERVIEW
Instrument panel
Steering wheel controls
Audio control
switches
Meter control switches
Voice command switch Full-Speed Range Dynamic
Radar Cruise Control (DRCC)
switch
Ignition switch1
Hood lock release lever
Multi-Information Display (MID)
Meters Meters
Fuel tank door release switch
Instrument panel light control
Automatic High Beam (AHB) switch
Tilt and telescopic steering lock release lever
Full-Speed Range
Dynamic Radar Cruise
Control (DRCC)
Vehicle-to-vehicle
distance switch
Telephone
switches
Lane Departure Alert
with Steering Assist
(LDA w/SA) switch
Headlights/turn signals controls

3
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Air conditioning controls/seat heaters1
USB/AUX port
Windshield wiper and washer switch
Emergency flasher switch
Audio system1,2/Navigation system1,2
Electric parking
brake switch
VSC OFF switchBrake hold switch
“ENGINE START STOP” switch1
1If equipped.
2For details, refer to the “Navigation System Owner’s Manual” or visit www.toyota.com/entune
for additional audio/multimedia resources.

4
OVERVIEW
Instrument cluster
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2, 2019 Owner’s
Manual.
Automatic High Beam (AHB)
indicator
Electric power steering system
warning (red/yellow)1
BSM outside rear view mirror
indicators2
Charging system warning
Brake Override System/
Drive-Start Control
ECO MODE indicator
Eco Driving Indicator
Arrow direction indicates fuel tank
door position
Anti-lock Brake System (ABS)
warning1
Blind Spot Monitor (BSM)
indicator2
Brake system warning1
Brake system warning (yellow)1
Brake hold operated indicator1
Brake hold standby indicator1
“AIRBAG ON/OFF” indicator1
AIRBAG SRS warning1
Service indicators and reminders
BSM w/Rear Cross Traffic Alert
(RCTA) indicator2
Driver’s and front passenger’s seat belt
reminder (alarm will sound if speed is
over 12 mph)
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Tachometer
Outside temperature
Fuel gauge
Shift position and
shift range
Engine coolant
temperature gauge Odometer/
trip meter
Multi-Information Display
Speedometer

5
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Low fuel level warning
Turn signal indicator
Low Tire Pressure Warning1
Vehicle Stability Control
(VSC) OFF indicator1
Malfunction/Check Engine
indicator1
Low engine oil pressure
warning
High engine coolant
temperature warning
Smart Key system2
SPORT mode indicator
Parking brake indicator2
Headlight low/high beam
indicators
Pre-Collision System (PCS)
warning light1,2
Rear passengers’ seat belt
reminder indicator
Lane Departure Alert (LDA) with
steering assist indicator
Slip indicator indicator1,3
Security indicator
Low outside temperature indicator
1If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.
3If the indicator flashes, it indicates that the system is operating.
4If equipped.

6
OVERVIEW

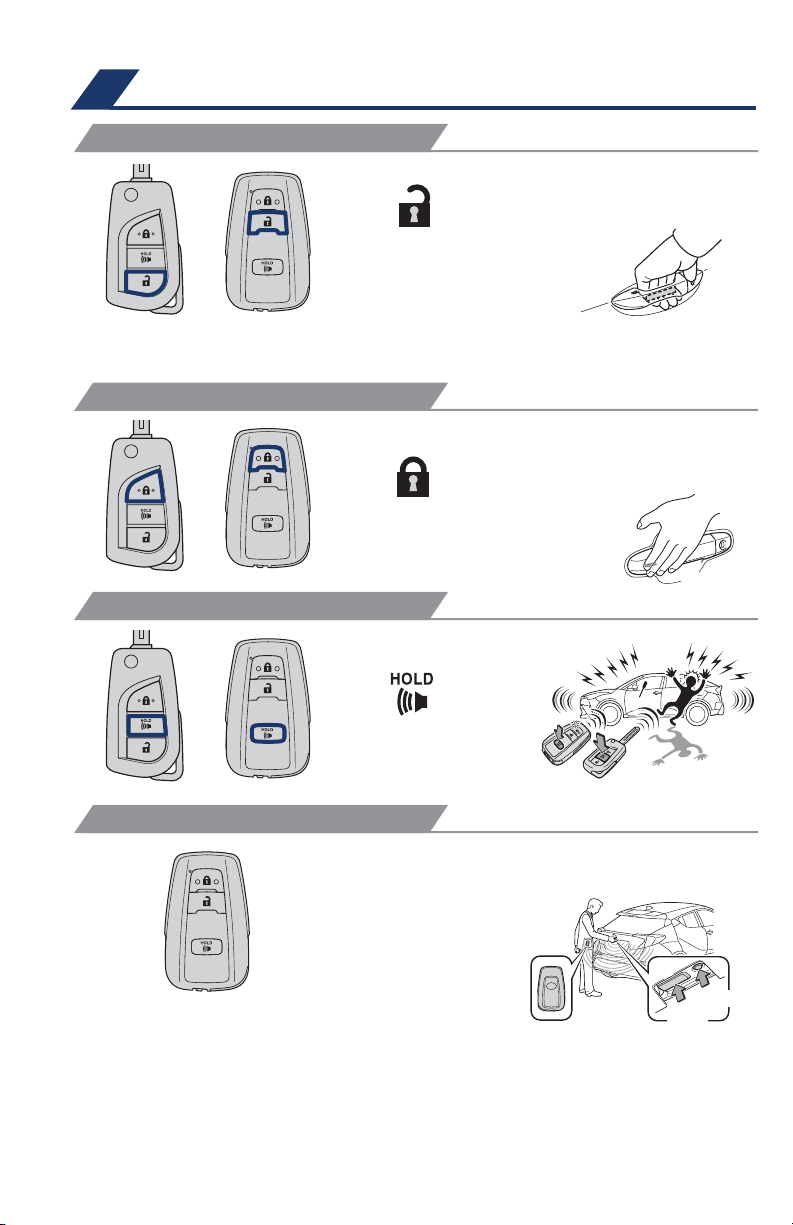

Keyless entry
Push
All-door lock
Touch
Carry Smart
Key remote
Carry Smart
Key remote
Carry Smart
Key remote
Grasp
Front door unlock*
Push
Push and hold
ONCE: Driver door
TWICE: All doors
Unlock
Open
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door only,
or all doors. In some models, grasping front passenger door handle will unlock all
doors. Please refer to the Owner’s Manual for more details on how to program the
doors.
NOTE: Doors may also be locked/unlocked using remote.

7
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Smart Key system (if equipped)
START FUNCTION
108&38*5)06545"35*/(&/(*/&
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the Engine Start
button.
Without depressing the brake pedal, press the engine switch firmly and it will
change the operation mode in succession from:
IGNITION ON
ACCESSORY

8

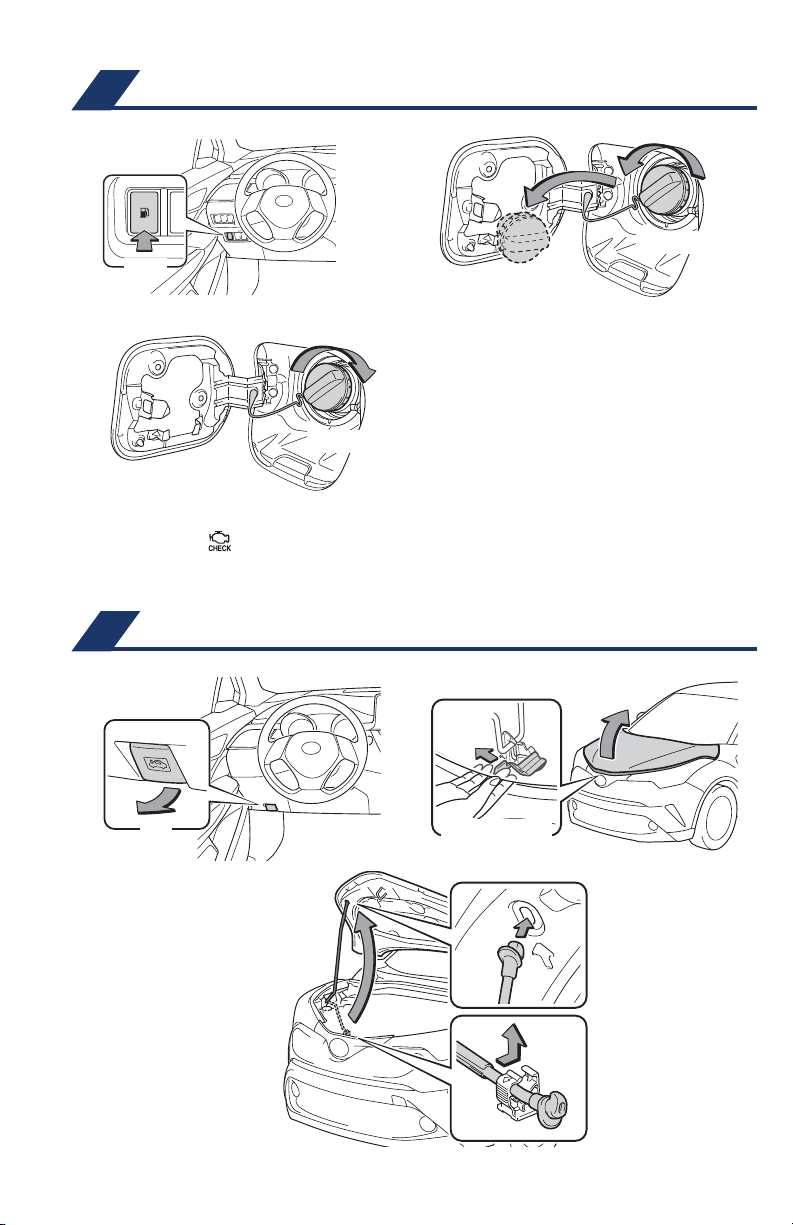

OVERVIEW
Pull up latch and
raise hood
Pull
NOTE: Tighten until one click is heard. If the cap is not locked or tightened,
Check Engine “ ” indicator may illuminate.
Push
Turn to open
Turn to close
Store
Insert rod to hold
hood open
Fuel tank door release & cap
Hood release

9
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Engine maintenance
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Instrument panel light control
Brightness
control
Brighter
Darker

10
Continuously variable transmission
*5IFi&/(*/&45"354501wTXJUDIJHOJUJPOTXJUDINVTUCFi*(/*5*0/0/ww0/w
and the brake pedal depressed to shift from Park.
4IJGUUIFTIJGUMFWFSUPi.wQPTJUJPOGSPNi%wQPTJUJPO
+: Upshifting
-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
JOUIFi%wQPTJUJPO
Refer to the Owner’s Manual for more details.
FEATURES & OPERATIONS
Tilt & telescopic steering wheel
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Angle
Length
Hold wheel, push lever down, set angle and length, and return lever.
41&&%410354&26&/5*"-4)*'5."5*$.0%&.104*5*0/
M
P
R
N
D
Park*
Reverse
Neutral
Drive
i.wQPTJUJPO
+ (M position)
- (M position)

11
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES

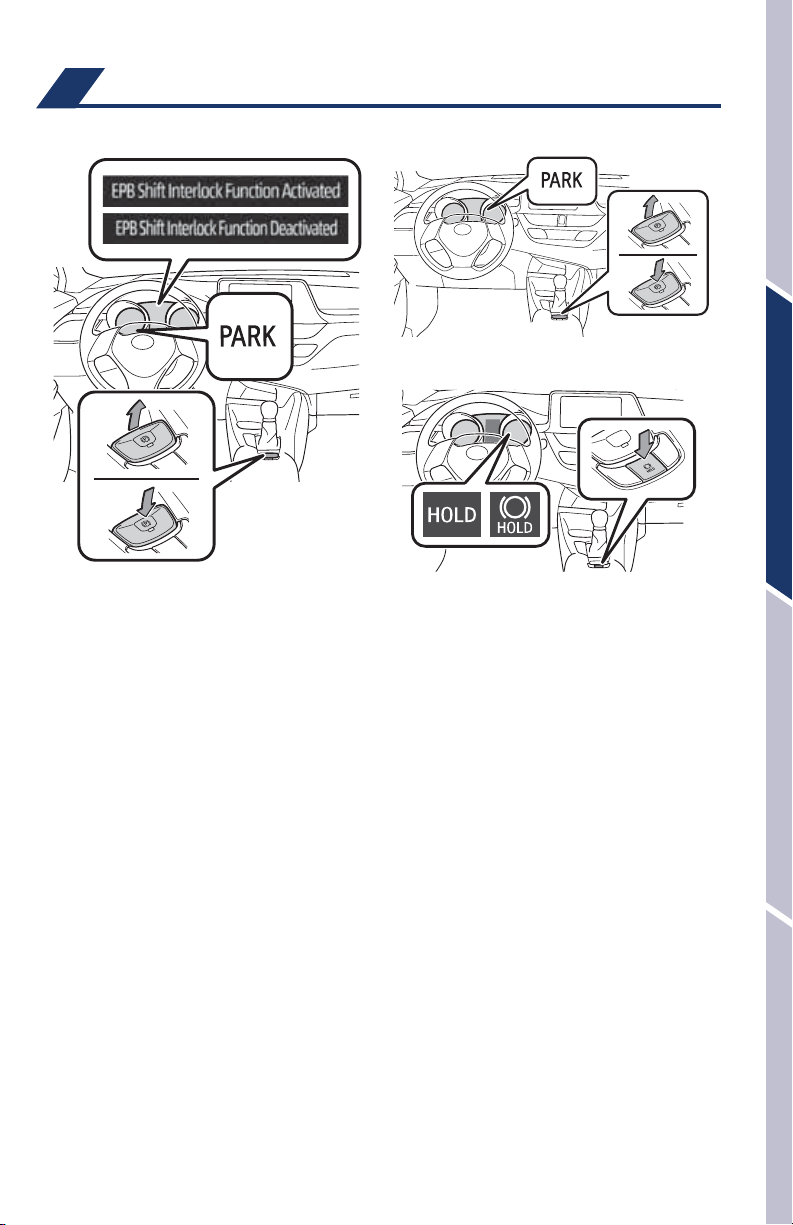

Electric parking brake
Driver side
Automatic mode Manual mode
Brake HOLD switch
Automatic (shift lever operation)
Manual
Brake HOLD switch
To turn automatic mode ON, while vehicle is stopped, pull and hold switch until
i&1#4IJGU*OUFSMPDL'VODUJPO"DUJWBUFEwEJTQMBZTJO.VMUJ*OGPSNBUJPO%JTQMBZ.*%
While depressing brake, shifting into P position will automatically set the brake
and turn the parking brake indicator and parking brake light on. To release brake,
depress brake and shift out of P. The indicator light and the light on the switch turn
off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
*OUFSMPDL'VODUJPO%FBDUJWBUFEwEJTQMBZTPOUIF.*%
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake light on. To release, press
the brake pedal and push switch. The indicator light turns off.
The brake hold system keeps the brake applied when the shift lever is in any
position other than P or R with the system on and the brake pedal has been
EFQSFTTFEUPTUPQUIFWFIJDMFZFMMPXJOEJDBUPSMJHIU5IFTZTUFNSFMFBTFTUIF
brake when the accelerator pedal is depressed with the shift lever in any position
PUIFSUIBO1PS/UPBMMPXTNPPUITUBSUPGGHSFFOJOEJDBUPSMJHIU
Refer to the Owner’s Manual for limitations and more details.

12
FEATURES & OPERATIONS
Daytime Running Light system (DRL)
Automatically turns on the headlights at a reduced intensity.
Automatic light cut off system
Automatically turns lights off after 30-second delay, or lock switch on remote may
be pushed after locking.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to provide the most light possible and enhance
forward visibility. Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the
Owner’s Manual for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for details.
High beam
or
Auto High Beam*
When starting the engine, the engine
TXJUDINBZTFFNTUVDLJOUIFi-0$,w
position. To free it, turn the key while
turning the steering wheel slightly left
and right.
The green indicator light on the engine
switch will flash and a message will be
shown on the multi-information display.
Press the engine switch while turning
the steering wheel left and right.
With Smart Key systemWithout Smart Key system
Push
Turn
Turn Turn
Steering lock release
Lights & turn signals
)&"%-*()54
563/4*(/"-4
Right turn
Lane change*
Lane change*
Left turn
* Move lever partway and release; signal will flash three times
High beam
flasher
Headlights
Parking lights
DRL OFF
AUTO
Low beam

13
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Door locks
Seat adjustments-Front
Front Rear centerRear outboard
Lock release button Lock release button Lock release button
Fold down
Seat belt
guide
Pull
Lock
Unlock
Seats-Folding rear
Seats-Head restraints
Seat position
(forward/backward)
Vertical height
adjustment
Seatback angle
Lumbar support
(if equipped)

14
FEATURES & OPERATIONS
5IFFOHJOFTXJUDINVTUCFJOUIFi"$$wPSi0/w"$$&4403:PS*(/*5*0/0/
position for use.
Adjusts the hour Adjusts the minutes
Windows-Power
Up
Down
Driver side
(1) (2)
Window lock switch
Automatic operation
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
Pull
Pull
Power outlet-12V DC
Clock

15
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Steering wheel switches
Multi-Information Display (MID)
Previous screen
Enter/set
Select
Use the the steering wheel meter control switches to operate the MID. See
above.
Driving mode select
“NORMALw4VJUBCMFGPSDJUZESJWJOH
“SPORTw4VJUBCMFGPSSPBETXJUINBOZDVSWFTOFFEJOHJNQSPWFEESJWJOHSFTQPOTF
“ECOw4VJUBCMFGPSJNQSPWFEGVFMFDPOPNZBOEFOFSHZTBWJOHDPOUSPMMFEBJS
heating.
1SFTTTUFFSJOHXIFFMTXJUDIFTi wUPGJOEBOETFMFDU in the MID.
1SFTTTUFFSJOHXIFFMTXJUDIFT“wTXJUDIFTBOETFMFDUi%SJWF.PEFwJOUIF.*%
4FMFDUBESJWJOHNPEF
5IFi41035wBOEi&$0wJOEJDBUPSTEJTQMBZJOUIF.VMUJ*OGPSNBUJPO%JTQMBZ.*%
Note: Operation of the LDA system and setting adjustments continues in the same
condition regardless of Ignition cycle until changed by the driver or the system is reset.
Refer to the Owner’s Manual for more settings and customizable features.
Push MID control switches to view or change information in the following:
/BWJHBUJPOTZTUFNMJOLFEEJTQMBZJGFRVJQQFE
Driving information
Driving assist system information
Audio system-linked display
Warning message display
Settings display

16
FEATURES & OPERATIONS
Seat heaters (if equipped)
Air conditioning/heating
Driver seat Front
passenger seat
“SYNC” button
ON: Synchronized
temperature settings for
driver and passengers.
OFF: Separate
temperature settings for
driver and passengers.
ECO mode switch**
Air conditioning
ON/OFF
Temperature display
Recirculate
cabin air
Climate
control OFF
Outside rearview mirror*/
Rear defogger
Windshield wiper
de-icer (if equipped)
Fan speed
High High
Medium Medium
Low Low
Windshield
airflow/defogger
Automatic climate control ON
Adjusting the temperature setting will
cause the airflow vents, air intake and
fan to adjust automatically.
Airflow vent
In “ ” or “ ” mode, use outside
air (“ ” indicator OFF) to reduce
window fogging.
Adjusters
UP: Increase temperature/fan
speed/change mode.
DOWN: Decrease temperature/
fan speed/change mode.
* Defoggers automatically turn off after a period of time.
** Air conditioning feature that helps lower fuel consumption by controlling and prioritizing functions like
reducing fan speed, etc.
5IFFOHJOFTXJUDINVTUCFJOi0/wi*(/*5*0/0/wNPEF

17
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA) (if equipped)
IndicatorIndicator Multi-Information Display
Buzzer
Indicators
The Blind Spot Monitor is a system that has two functions:
t5IF#MJOE4QPU.POJUPSGVODUJPOBTTJTUTUIFESJWFSJONBLJOHUIFEFDJTJPOXIFO
DIBOHJOHMBOFT
t5IF3FBS$SPTT5SBGGJD"MFSUGVODUJPOBTTJTUTUIFESJWFSXIFOCBDLJOHVQ
The system is designed to use radar sensors to detect vehicles traveling in the
vehicle’s blind spot and advises the driver of the vehicles’ presence via the outside
rear view mirror indicators.
Note: Use in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to the Toyota Owner‘s Manual for limitations and more details on this system
before attempting to use it.

18
FEATURES & OPERATIONS
Audio
ENTUNE™3.0 AUDIO PLUS
ENTUNE™3.0 AUDIO
ENTUNE™ 13&.*6."6%*08*5)"1146*5&"/%%:/".*$
/"7*("5*0/
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
9LVXDOO\PDWFK\RXUYHKLFOH·V(QWXQHTM 3.0 audio system to one featured in
this guide for the most accurate information.
Refer to the “Navigation System Owner’s Manual” or visit www.toyota.com/entune
for additional audio/multimedia resources.
Touch screen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volume Turn to tune radio stations
manually or select tracks or files
Access
Bluetooth
hands-free system
Seek
station/CD
track select
Access
HOME screen
Access
MENU screen
Access
APPS screen
Access
MAP screen
