Caution: High voltage components 2
Hybrid battery (traction battery)
air vent 2
Accessing your vehicle 3
Electric windows and windows lock 4
Child rear door protection lock 4
Seats 5
Steering wheel adjustment 6
nstrument Panel Overview 7
Multi-information display 8
nstrument cluster 9
Lights 9
Wipers 10
Power (ignition) switch 11
Heating, A/C and de-misting 12
Steering wheel climate control
switches 13
Setting of the clock 13
Gear change 14
Parking brake 14
Fuel tank opening 15
Bonnet opening 15
Eco-Driving 16
Introduc ng Pr us
+
Thank you for buying a Prius
+
. We trust this Brief Guide will enable you to become familiar with
your vehicle’s basic operations and assist you in enjoying your vehicle.
This brief guide does not replace or substitute the Owner’s Manual, which you will find in the
vehicle’s glove compartment. t is important that you review the full Owner’s Manual as well as
any further supplementary manuals as this will allow you to familiarise yourself with the
operating and safety instructions and to handle the vehicle within its limitations.
Please do read all documents in your pack as this will ensure you get maximum performance
from your car and learn about related services offered.
Your Centre and everyone at Toyota wish you many years of enjoyable driving in your new
Prius
+
.
NB: All information contained in this brief guide are current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

2
Caut on: H gh voltage components
Hybr d battery (tract on battery) a r vent

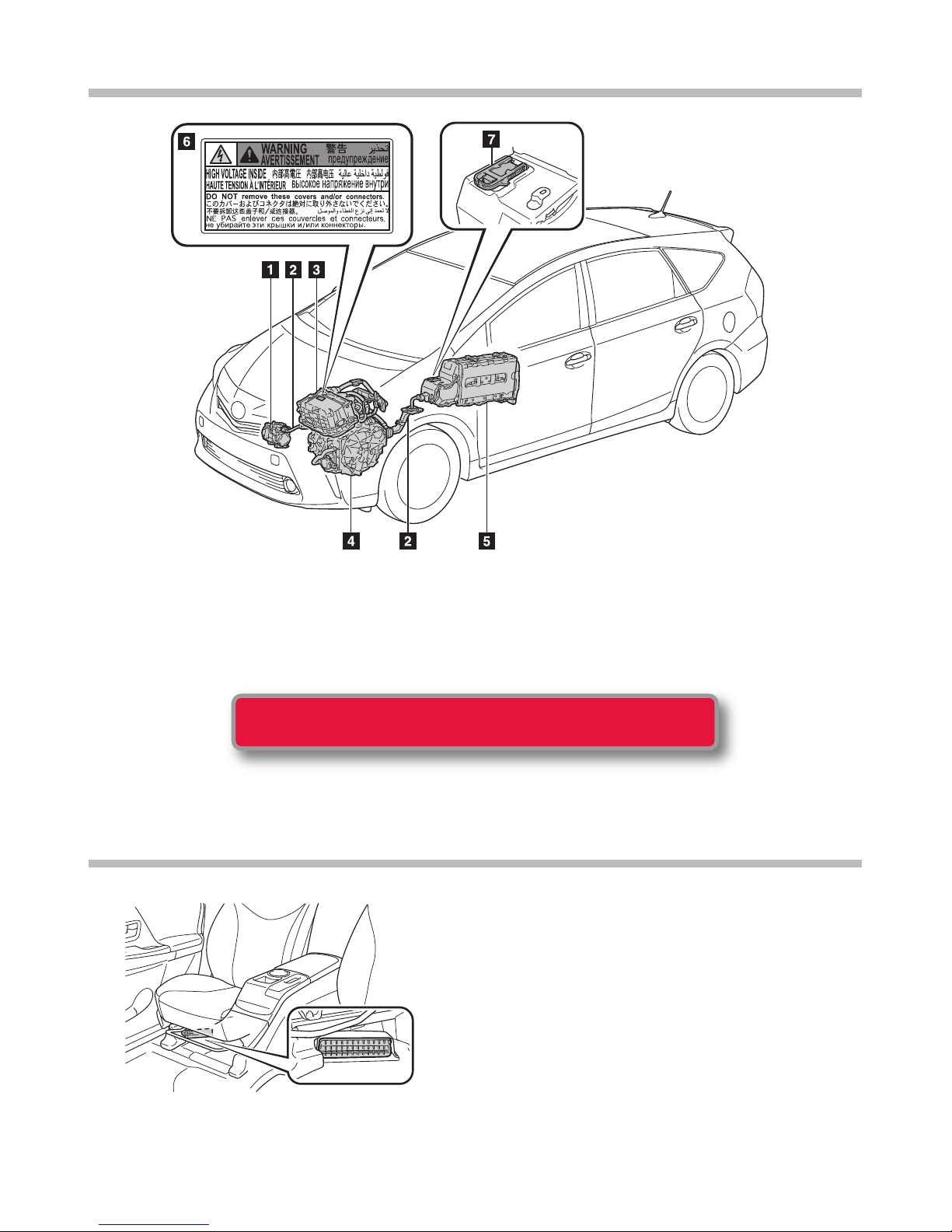

1. Air conditioning compressor.
2. High voltage cables (orange colour).
3. Power control unit and DC/DC converter.
4. Electric motor (Traction motor).
5. Hybrid battery (Traction battery).
6. Caution label.
7. Service plug.
There is an air intake vent under the right-hand front
seat to cool the hybrid battery. f it becomes blocked,
hybrid battery may overheat causing reduction of
battery output.
Take care when handling the hybrid system, as it contains a high
voltage system and some parts become extremely hot.

3
Unlocking and locking doors
The following operations can be performed simply by carrying the electronic key on your person.
(The driver should always carry the electronic key.)
The Mechanical Key is stored within the
Electronic Key
Smart entry & start system
1. Electronic keys
- Operating smart entry & start system
- Operating the wireless remote control function
2. Mechanical keys
3. Key number plate
The wireless remote control can be used to lock and
unlock your vehicle from the outside.
Unlock all doors and boot/rear door
Access ng your veh cle
1. Unlocks and locks the side doors.
2. Unlocks and locks the back door.
Press the lock button to lock the doors.
Lock all doors and boot/rear door

4
Ch ld rear door protect on lock
The door cannot be opened from inside the vehicle
when the locks are set.
These locks can be set to prevent children from
opening the rear doors. Push down the rear door
switches to lock the rear doors.
1. Unlock
2. Lock
Electr c w ndows and w ndows lock
The electric windows can be opened and closed as
follows:
1. Closing
2. One touch closing*
3. Opening
4. One touch opening*
Pressing the switch locks the passenger windows
preventing accidental opening or closing.
Keep fingers away from moving windows
*Pushing the switch in the opposite direction will
stop the window travel partway

5
Seats
Front seats
1. Seat position adjustment lever.
2. Seatback angle adjustment lever.
3. Vertical height adjustment lever*.
4. Lumbar support adjustment switch*.
*: For driver's side, if equipped.
Second seats
1. Seat back angle adjustment lever.
2. Seat position adjustment lever.
Seat back angle adjustment lever.
Third seats
For details, see your Owner's Manual chapter 1-4.

6
Steer ng wheel adjustment
After adjustment, pull the lever up to secure the
steering wheel.
Steering wheel must not be adjusted while the vehicle is in motion.
Steering wheel
Hold the steering wheel and press the lever down.
Adjust to the ideal position by moving the steering
wheel horizontally and vertically.

Parking brake pedal
Tilt and telescopic steering control lever
Windscreen wipers and
washer switch
Rear window wiper and
washer switch
Headlight switch
ndicator lever
Fog light switch
7

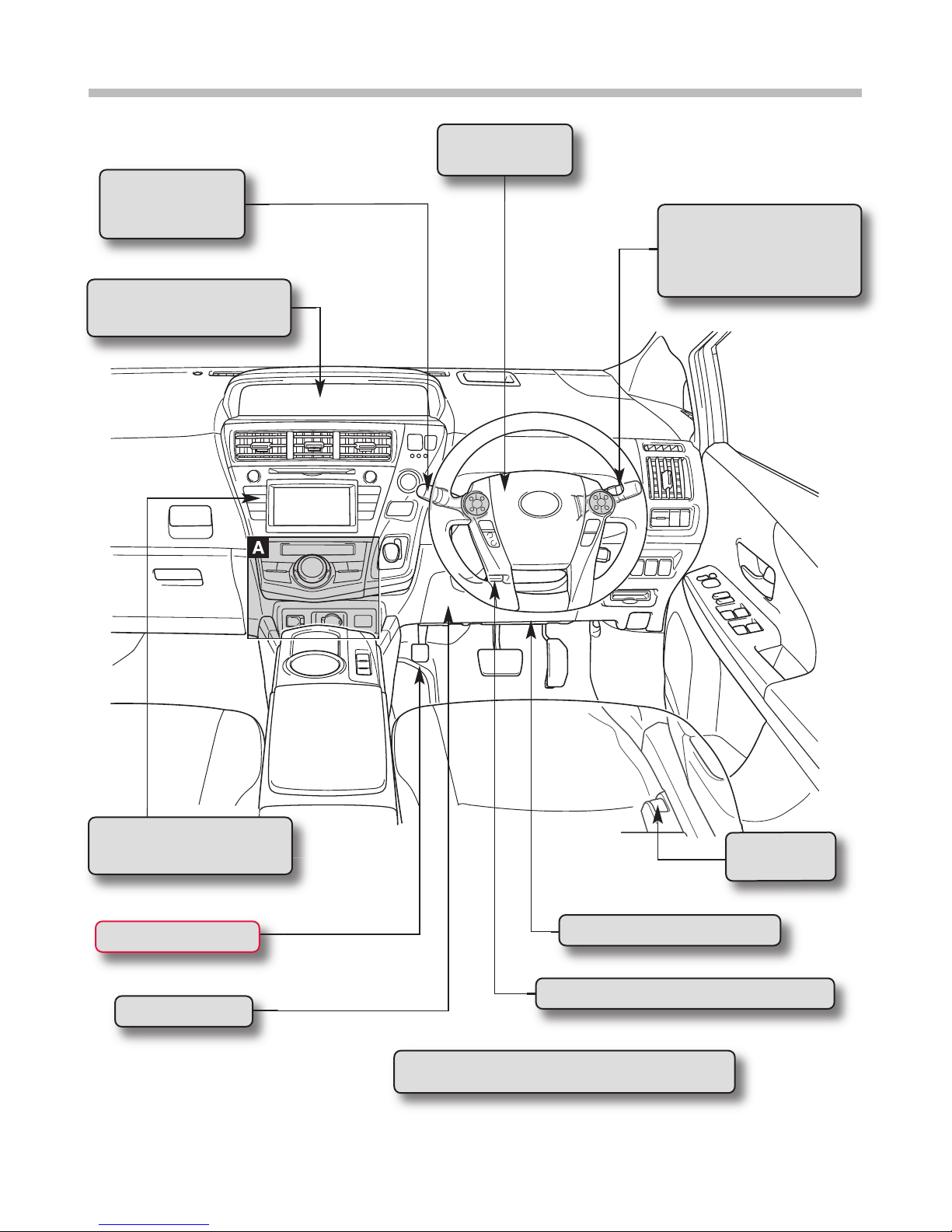

Instrument Panel Overv ew
A. Heating and A/C controls (page 12).
* f equipped.
*1Refer to
“ Navigation System” Owner's Manual.
*2Refer to “Touch Screen” Owner's Manual.
Navigation system*1
Audio system*2
Gauges and meters
Trip-information display
Fuel filler
door opener
SRS knee airbag
Pre-crash braking off switch*
SRS driver airbag
Horn

8
Mult - nformat on d splay
Gauges and meters
The following gauges and meters illuminate when the “POWER” switch is in ON mode.
Indicators and warning lights
The indicators and warning lights inform the driver of the status of the vehicle’s various systems.
1. Hybrid System Indicator
This represents the hybrid system power output
and regenerative charging.
2. Speedometer
Displays the vehicle speed.
3. Shift position indicators
Displays the shift position.
4. Fuel gauge
Displays the quantity of fuel remaining in the tank.
5. Hybrid (traction battery) status
The amount of charge remaining in the hybrid
(traction battery) is shown by 8 bars.
6. Trip information display
Displays fuel consumption, driving range, etc
7. Odometer and trip meter display
8. Clock

9
Instrument cluster
Warning lights
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
*1These lights turn on when the ‘‘ENG NE START STOP’’ switch is turned to the GN T ON ON mode.
They will turn off after the engine is started.
There may be a malfunction if a light does not come on, or if the lights do not turn off. Have the vehicle
inspected by your Toyota dealer.
Shift position
indicators
Power mode
indicator
Eco Driving Mode
indicator
EV-Drive Mode
indicator
“READY” indicator
Main indicators and warning lights only - For details, please refer to your Owner's Manual chapter 2-2 and 5-2.

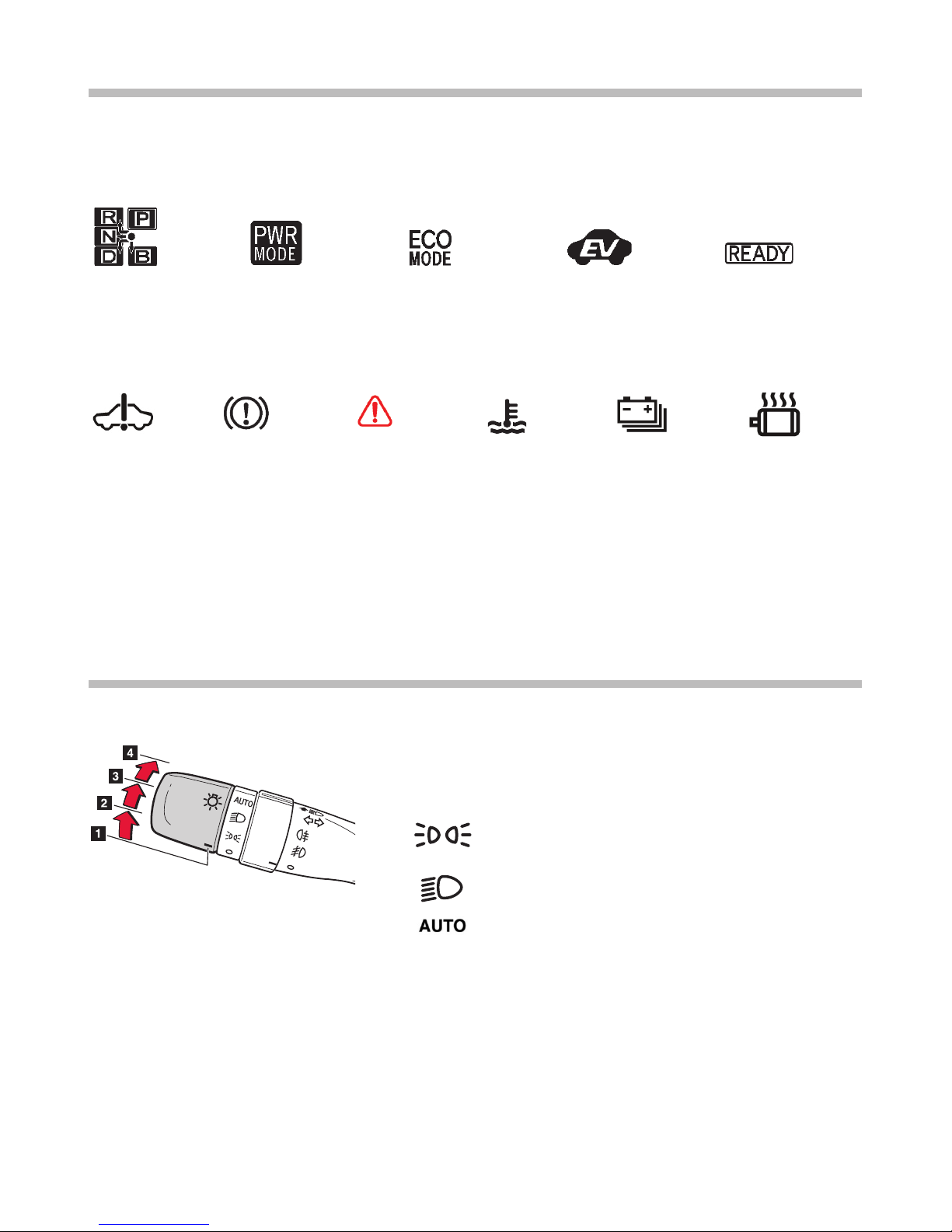

Indicators and warning lights
The indicators inform the driver of the operating state of the vehicle’s main systems.
Hybrid system
overheat
Hybrid battery
indicator
High coolant
temperature
Master warning
light
Brake system
warning light/-
buzzer
Hybrid system
warning
*1
L ghts
The headlights can be operated manually
or automatically
1. The daytime running lights turn on.
2. The front position, tail, license plate and
instrument panel lights turn on.
3. The headlights and all lights listed above turn on.
4. The headlights and all lights listed above turn on
and off automatically.
(When the engine is in the ‘‘ON’’ position)
Turning on the high beam headlights
1. With the headlights on, push the lever away to
turn on the high beams or back to turn them off.
2. You can flash the high beams with the headlights
on or off by pulling the lever towards you, and
releasing it to turn them off.
*1*1*1
o

10
W pers

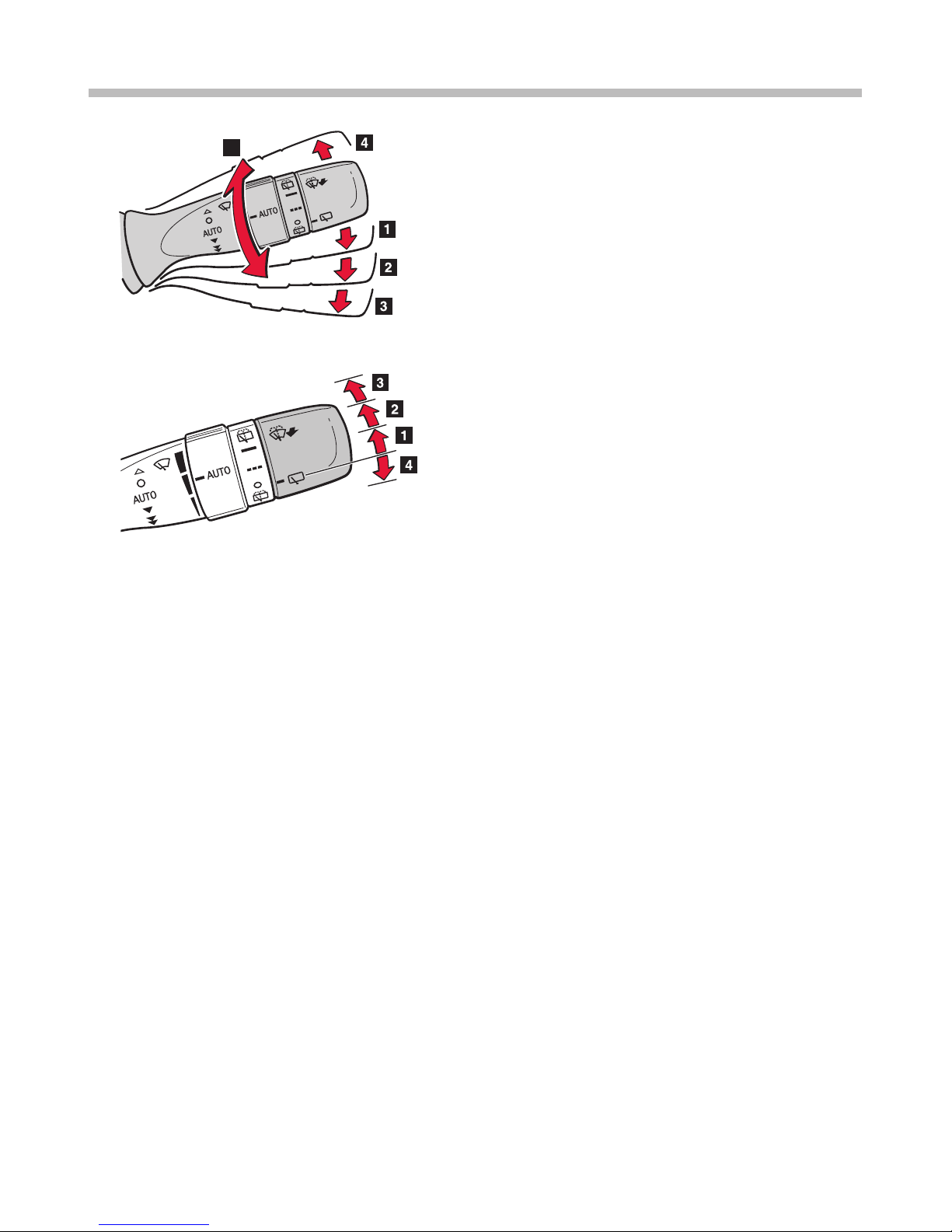

Wiper with rain-sensing function (AUTO)
With ‘‘AUTO’’ selected, the wiper will operate
automatically when detecting rain and adjust timing
according to rain volume.
1. Rain-sensing wiper operation.
2. Low speed wiper operation.
3. High speed wiper operation.
4. Temporary operation.
5. ntermittent frequency.
5
Rear window wiper and washer
1. ntermittent window wiper operation.
2. Normal window wiper operation.
3. Washer/wiper dual operation.
4. Washer/wiper dual operation.

11
Power ( gn t on) sw tch
Starting the hybrid system
Check that the parking brake is set.
Firmly depress the brake pedal.
The POWER switch indicator turns green.
When the shift position is “N”, the hybrid system
cannot start. Shift to the “P” position when starting
the hybrid system.
Press the POWER switch.
After a few seconds, the READY indicator comes on
with a beep sound.
Continue depressing the brake pedal until the hybrid
system is completely started.
Stopping the hybrid system
1. Stop the vehicle.
2. Set the parking brake.
3. Shift to the "P" position, and check that the
indicators shows “P”.
4. Press the “POWER” switch.
5. Release the brake pedal and check that the
indicator on the “POWER” switch is off.
f you stop the hybrid system without setting the shift
position to “P”, the shift position will be shifted to “P”
automatically. You can also shift the shift position to
“P” by pressing the “P” position switch.
ON/OFF
When EV-Drive mode is turned on, the indicator
comes on. Pressing the switch again will return to
normal driving (petrol engine and electric motor).
EV-Drive mode
n EV-Drive Mode the electric motor (traction motor), powered by the hybrid battery (traction battery), is used to
drive the vehicle.

12
Heat ng, A/C and de-m st ng
Air outlets and fan speed are automatically adjusted according to the temperature setting.
Tips for windscreen demisting :
1. Switch AUTO button off (light is OFF)
2. Switch A/C ON (light is ON)
3. Switch air recirc off (light is OFF)
4. Switch airflow to windscreen (light ON)
Turn left and right to select the function.
1. Fan speed
2. Temperature setting
3. Air outlet
Outside
temperature
display
Air outlet display
Fan speed display
Cooling and
dehumidification
function on/off
button
Outside/recirculated
air mode button
“OFF” button
Pollen removal mode
Temperature
setting display
Automatic mode Function select Adjust/select
Switching functions and changing settings
Front/rear
windscreen
defogger buttons

13
Steer ng wheel cl mate control sw tches
Sett ng of the clock
1. Adjust hours.
2. Adjust minutes.
3. Round the nearest hour.*
*: e.g. 1:00 to 1:29 ’1:00
1:30 to 1:59 ’2:00
1. Temperature control
2. Outside air or recirculated air mode
Some functions can be controlled using the switches on the steering wheel.

14
Gear change
Park ng brake
Sets the parking brake*
(Depressing the pedal again releases the parking
brake).
*Fully depress the parking brake pedal with your
left foot while depressing the brake pedal with
your right foot.
R
N
DB
1. Eco driving mode
To help achieve low fuel consumption when
having frequent accelerating and braking.
Press once more to switch off
2. Power mode
For high level or response such as driving in
mountainous regions or overtaking.
Press once more to switch off
2
1
Shift position Function
PParking the vehicle or starting
the hybrid system
R Reversing
N Neutral
D Normal driving
BModerate engine braking for
down hills or steep slopes.
When shifting to “D” or “R”, move the shift lever
along the shift gate.
To shift to “N”, slide the shift lever to the left and
hold it. The shift position will change to “N”.
Shifting to “B” is only possible when position
“D” is selected.
lThe shift lever always returns to this original
position after shifting operation.

15
Fuel tank open ng
Bonnet open ng
Opening the fuel tank cap
Turn the fuel tank cap slowly to open.
Hang the fuel tank cap on the back of the fuel filler
door.
Take care to select the correct fuel.
Hold the bonnet open by inserting the supporting
rod into the slot.
Close: gently drop the bonnet from approximately
200mm
Release the lock from the inside of the vehicle to open
the bonnet.
Pull the bonnet release lever.
The bonnet will pop up slightly.
Release the bonnet catch and lift the bonnet.
Caution :
Be careful when you pick up the rod, it might
be hot.
Firstly pull the specified lever.

16
PR PL11-0412ENUK-00-00
Eco-Dr v ng
What is ‘‘Eco-Driving’’?’
•Eco-Driving = Driving in a more careful and environmentally responsible way
•Eco-Driving = Reduced fuel costs
•Eco-Driving = Reduced Environmental impact áSaving of CO2emissions.
Total potential saving of 20 - 30%.
Eco-Driving Savings
Roof load increases wind drag and
therefore consumption.
Open windows increase fuel
consumption by an average of 5%.
Air Conditioning
can result in 10 - 25%
extra fuel consumption.
Low Tyre ressure result in higher fuel consumption
(up to 3% extra from 0.5 bar too low)
Tyre pressures can fall by 2.5 - 5.0% after one month,
and by 20% after 5 months.
Starting
•Remove any extra weight and roof load
•Plan your route to avoid detours
•Avoid using your car for short journeys
Checking/maintenance
•Check your tyre pressures regularly
•Service your car according to owner’s manual
Driving
•Only use electrical accessories when necessary (e.g. A/C)
•Follow and anticipate the traffic flow
•Keep your windows closed (use ventilation system when possible)
•Switch off your engine if you have to wait longer than 30 - 60 seconds
How to Eco-Drive?
Roof Load
(Speed at 120 km/hr)
Increased
consumption
Luggage rack 5 – 10%
Ski box 10 – 20%
Bicycle rack 30%
Loaded luggage rack 35 – 40%

PR PL11-0412ENUK-00-00
