Toyota Sienna 2001 User manual

01 SIENNA_U (L/O0008)
1
2001 MY SIENNA (OM45406U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 7. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 – 1

01 SIENNA_U (L/O0008)
22001 MY SIENNA (OM45406U)
Instrument panel overview 1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Automatic transmission selector lever
5. Center vents
6. Garage door opener, garage door
opener box or auxiliary box
7. Electric moon roof switch, front
personal light or front interior light
switch
8. Front personal lights or front interior
light
9. Power door lock switches
10. Power window switches
11. Glove box
12. Auxiliary boxes
13. Tilt steering lock release lever
14. Hood lock release lever
15. Parking brake pedal
16. Window lock switch

01 SIENNA_U (L/O0008)
3
2001 MY SIENNA (OM45406U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Clock and front passenger’s seat belt
reminder light
4. Emergency flasher switch
5. Front air conditioning controls
6. Rear fan speed selector or rear fan
position selector
7. Rear window and outside rear view
mirror defoggers switch
8. Car audio
9. Seat heater switches
10. Ashtray
11. Power sliding door switches
12. Power outlet
13. Cigarette lighter
14. Power rear quarter window switch
15. Ignition switch
16. Cruise control switch
17. Audio remote control buttons
18. Power sliding door off switch

01 SIENNA_U (L/O0008)
42001 MY SIENNA (OM45406U)
19. Tire pressure warning system reset
switch or traction control system off
switch
20. Theft deterrent system/Engine
immobiliser system indicator light
21. Power rear view mirror control switch
22. Instrument panel light control dial

01 SIENNA_U (L/O0008)
5
2001 MY SIENNA (OM45406U)

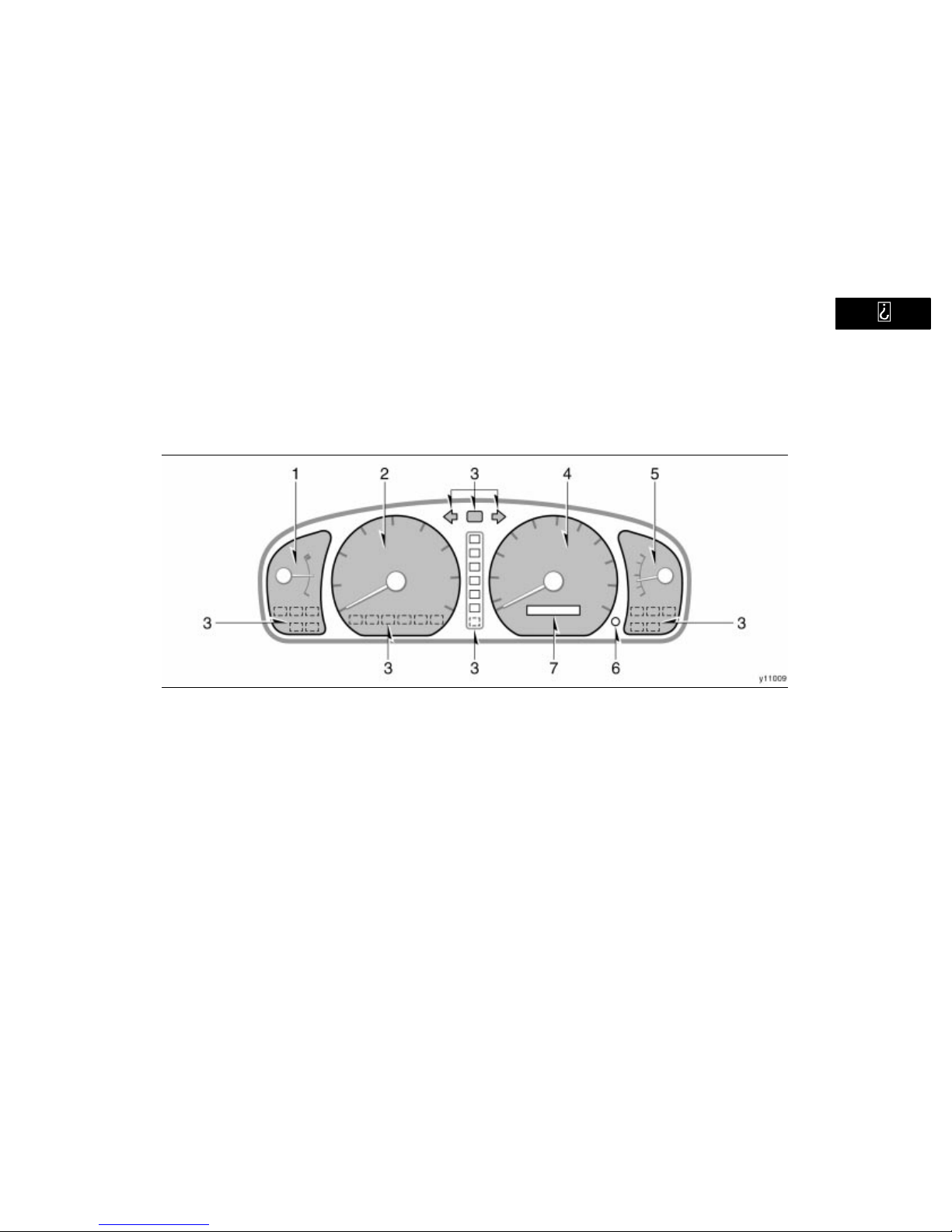

1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Fuel gauge
6. Trip meter reset knob
7. Odometer and two trip meters
Instrument cluster overview
With tachometer

01 SIENNA_U (L/O0008)
62001 MY SIENNA (OM45406U)
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Odometer and two trip meters
5. Fuel gauge
6. Trip meter reset knob
Without tachometer

01 SIENNA_U (L/O0008)
7
2001 MY SIENNA (OM45406U)
Indicator symbols on the instrument panel
Brake system warning light∗1 or
Driver’s seat belt reminder light∗1
or Malfunction indicator lamp∗1
Low fuel level warning light∗1
Discharge warning light∗1
Low oil pressure warning light∗1
or Anti–lock brake system warning light∗1
Open door warning light∗1
SRS warning light∗1
Open power sliding door warning light∗1
Low windshield washer fluid level warning
light∗1
Low tire pressure warning light∗1
Front passenger’s seat belt reminder light∗1
Vehicle skid control system warning light∗1
Traction control system off indicator/warning
light∗1

01 SIENNA_U (L/O0008)
82001 MY SIENNA (OM45406U)
Overdrive–off indicator light
Cruise control indicator light∗2
Automatic transmission indicator lights
Headlight high beam indicator light
Turn signal indicator lights
∗1: For details, see “Service reminder indicators and warning
buzzers” in Section 1–5.
∗2: If this light flashes, see “Cruise control” in Section 1–6.
Slip indicator light

01 SIENNA_U (L/O0008)
9
2001 MY SIENNA (OM45406U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front doors 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sliding door 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power sliding door 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power rear quarter windows 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center side windows and manual rear quarter windows 32. . . . . . . . . .
Back door 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 – 2

01 SIENNA_U (L/O0008)
10 2001 MY SIENNA (OM45406U)
Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Your vehicle is supplied with two kinds
of keys.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built–in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system) Keys (with engine immobiliser system)

01 SIENNA_U (L/O0008)
11
2001 MY SIENNA (OM45406U)
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side door can be locked without
a key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
 When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

01 SIENNA_U (L/O0008)
12 2001 MY SIENNA (OM45406U)
 Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.

01 SIENNA_U (L/O0008)
13
2001 MY SIENNA (OM45406U)
Engine immobiliser system
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system”.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built–in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.

01 SIENNA_U (L/O0008)
14 2001 MY SIENNA (OM45406U)
For vehicles sold in U.S.A.
FCC ID: MOZ RI–4BTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS–210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Front doors
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—All
the doors lock and unlock simultaneously
with either front door. In the driver’s door
lock, turning the key once will unlock the
driver’s door and twice in succession will
unlock all the doors simultaneously.

01 SIENNA_U (L/O0008)
15
2001 MY SIENNA (OM45406U)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the front door with the lock knob
in the lock position will also lock the front
door. Be careful not to lock your keys in
the vehicle.
Vehicles with power door lock sys-
tem—The door cannot be locked if you
leave the key in the ignition switch.
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
All the doors lock or unlock simultaneous-
ly.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

01 SIENNA_U (L/O0008)
16 2001 MY SIENNA (OM45406U)
Sliding door
LOCKING AND UNLOCKING WITH KEY
(on some models)
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
CLOSING FROM OUTSIDE
To close the fully–opened sliding door, pull
the outside handle toward you and then
close the door. Lock release
button
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob downward.
To unlock: Push the knob upward.
To open the sliding door, push the lock
release button and then open the door.

01 SIENNA_U (L/O0008)
17
2001 MY SIENNA (OM45406U)
Vehicles with power door lock sys-
tem—The sliding doors will be locked si-
multaneously when either front door or the
back door is locked with the power door
lock switch or key. If you lock either front
door or the back door with the power door
lock switch or key while the sliding door
is open, the sliding door will be locked
after it is closed. (For instructions, see
“Front doors” or “Back door” in this sec-
tion.)
Closing the sliding door with the lock knob
in the lock position will also lock the slid-
ing door. Be careful not to lock your keys
in the vehicle.
CLOSING FROM INSIDE
To close the fully–opened sliding door,
push the lock release button and then
close the door.
CAUTION
When closing the sliding door, con-
firm safety of the area around.
Keep the heads, hands and other
parts of the bodies of all occupants
away from the sliding door. Other-
wise, they will be possibly caught
and pinched by the closing door
causing an unexpected serious inju-
ry.
When the vehicle is stopped on a
gradient, the door will slide faster
when opening or closing, so be es-
pecially careful that the passengers
do not get hit or pinched by the
door.
When stopping on a downward
slope, open the door fully while
passengers are getting on or off.
Do not pull the outside handle or
push the lock release button while
the door is open as the door could
suddenly close by itself causing in-
jury.
NOTICE
Do not close the sliding door by ap-
plying the brakes. Doing so could
cause the door to be damaged.

01 SIENNA_U (L/O0008)
18 2001 MY SIENNA (OM45406U)
HALF–OPENED SLIDING DOOR
STOPPER
When opening the left side sliding door, it
stops at the half–opened position if the
fuel filler door is opened.
Left and right side power sliding door
models—The left side power sliding door
does not operate when the fuel filler door
is open.
NOTICE
Avoid forcibly opening the left side
sliding door fully when refueling.
Otherwise, the fuel filler door may be
damaged.
SLIDING DOOR CHILD–PROTECTORS
Open the sliding door fully and move
the lock lever to the “LOCK” position
as shown on the label. Then close the
sliding door.
If the child–protector is locked, you cannot
open the sliding door from the inside. We
recommend using this feature whenever
small children are in the vehicle.
Vehicles with power sliding door system—
If the power sliding door system is on, the
child–protector feature is cancelled when
someone pushes one of the “DOOR L”,
“DOOR R” and “POWER DOOR” switches
inside the vehicle or “POWER DOOR”,
“D–PWR DOOR” and “P–PWR DOOR”
switches of the wireless remote control
transmitter.
CAUTION
Make sure to turn off the power slid-
ing door system after locking the
child–protectors.

01 SIENNA_U (L/O0008)
19
2001 MY SIENNA (OM45406U)
Power sliding door
Some vehicles are equipped with a power
sliding door. This system has the following
functions:
The power sliding door can be oper-
ated with the “DOOR L”, “DOOR R”
and “POWER DOOR” switches inside
the vehicle or “POWER DOOR”, “D–
PWR DOOR” and “P–PWR DOOR”
switches of the wireless remote control
transmitter. (For details about the wire-
less remote control transmitter, see
“Wireless remote control” in this sec-
tion.)
If you move the sliding door to the
opening or closing direction by hand,
the sliding door will automatically and
completely open or close after you let
go of the sliding door.
CAUTION
Do not leave small children or pets
unattended in your vehicle. They
could operate the power sliding door,
and they themselves or others could
be injured. Turn off the power sliding
door system when the power sliding
door is not in use.
“PWR DOOR OFF” SWITCH
This switch is used to turn on and off
the power sliding door system. For op-
erating the power sliding door, the
“PWR DOOR OFF” switch on the instru-
ment panel must be pushed out. (The
orange line on the top of the switch
indicates that the system is on.) To dis-
able the power sliding door feature,
push in the switch.
When the power sliding door system is
on, you can open and close the sliding
door with the “DOOR L”, “DOOR R” and
“POWER DOOR” switches inside the ve-
hicle or “POWER DOOR”, “D–PWR
DOOR” and “P–PWR DOOR” switches of
the wireless remote control transmitter
even if the sliding door child–protector is
locked. If small children or pets are in the
vehicle, turn off the system to prevent the
accidental operation of the door.
CAUTION
When jacking up the vehicle, turn off
the power sliding door system and
close the sliding door completely.
NOTICE
When your vehicle goes through an
automatic car wash, make sure the
power sliding door system is off.

01 SIENNA_U (L/O0008)
20 2001 MY SIENNA (OM45406U)
Instrument panel
Center pillar
“DOOR L”, “DOOR R” AND “POWER
DOOR” SWITCHES
These switches are used to open and
close the power sliding door. Push and
release one of the “DOOR L”, “DOOR
R” and “PWR DOOR” switches.
Opening and closing can be performed by
the “DOOR L”, “DOOR R” and “PWR
DOOR” switches under the following con-
ditions:
The sliding door is unlocked.
The power sliding door system is on.
(The “PWR DOOR OFF” switch is
pushed out.)
To open the power sliding door when
the ignition key is in the “ON” position,
the transmission selector lever must be
in “P”. (To close the sliding door from
the fully–opened or half–opened posi-
tion, the transmission selector lever is
not required to be in “P”.)
Left and right side power sliding door
models—The left side power sliding door
does not operate when the fuel filler door
is opened.
CAUTION
If you shift the automatic transmis-
sion selector lever out of “P” and
accelerate before the power sliding
door is closed completely, the sliding
door may reverse to the open posi-
tion. A child or others could fall out
of the vehicle and be injured. Always
make sure the power sliding door is
closed and latched before you start
driving.
OPENING BY HAND
When the power sliding door system is
on, if you pull the outside door handle or
push the inside lock release button to re-
lease the sliding door, it will then automat-
ically and completely open.
When the power sliding door system is
off, open the sliding door as usual.
CLOSING BY HAND
When the power sliding door system is
on, if you slide the door about 10 cm (4
in.) to the closing direction and let the
door go, it will automatically and com-
pletely close.
When the power sliding door system is
off, close the sliding door as usual.
