Toyota COROLLA 2010 - User manual

QUICK REFERENCE
GUIDE
COROLLA
2010
413269M1_r1.indd 1413269M1_r1.indd 1 1/13/09 9:18:37 AM1/13/09 9:18:37 AM
All manuals and user guides at all-guides.com
all-guides.com

OVE
FEAT
SAFE
EME
1Visi
2Prog
more
2010
Corolla
!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Corolla.
This Quick Reference Guide is not a full description of Corolla
operations. Every Corolla owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
413269M2.qxd:413269M2 1/9/09 1:33 PM Page 99
All manuals and user guides at all-guides.com

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 14
Audio 12-13
Auto lock functions29
Automatic Transmission 8
Auxiliary storage 18
Clock 16
Cruise control 15
Cup holders 18
Door locks-Power 17
Light control-Instrument panel 18
Lights & turn signals 11
Moonroof 17
Multi-information display 15
Parking brake 8
Power outlets 14
Seat adjustments-Front 9
Seat adjustments-Rear 9
Seats-Head restraints 10
Te l e p h o n e controls (Bluetooth®)16
Tilt and telescopic steering wheel 17
Windows-Power 10
Windshield wipers & washers 10
Child comfort guide 19
Doors-Child safety locks 20
Seatbelts 19
Seatbelts-Shoulder belt adjustment 19
Spare tire&tools 21
Tire Pressure Monitoring (warning) System 20
Trunk-Internal release 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
g
INDEX
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 1
All manuals and user guides at all-guides.com

2
F
“A
E
A
Ti
Ti
H
1
2
OVERVIEW
Instrument panel
Steering wheel audio controls1,2
Voice command button1
Te l e p h o n e c o n t r o l s 1
Ignition switch (mechanical key)1
Cruise control1
VSC/TRAC OFF switch
Power rearview mirror control
Auxiliary storage
Headlight, turn signal and front fog light1controls
Wiper and washer controls
Emergency flasher button
Audio system2
Air Conditioning controls
Outside rearview mirror1/Rear window defogger button
Steering wheel controls
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 2
All manuals and user guides at all-guides.com

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Front passenger seatbelt reminder light
“AIR BAG ON” and “AIR BAG OFF” indicator
Engine immobilizer indicator
AUX adapter
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
1If equipped
2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
Air Conditioning system
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 3
All manuals and user guides at all-guides.com

4
Ind
For d
Own
1If in
be a
OVERVIEW
Instrument cluster
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Odometer and two trip meters
Automatic Transmission shift range display (if equipped)
Multi-information display
Display button
Engine coolant temperature
Optitron type meters
Non-optitron type meters
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 4
All manuals and user guides at all-guides.com
all-guides.com

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

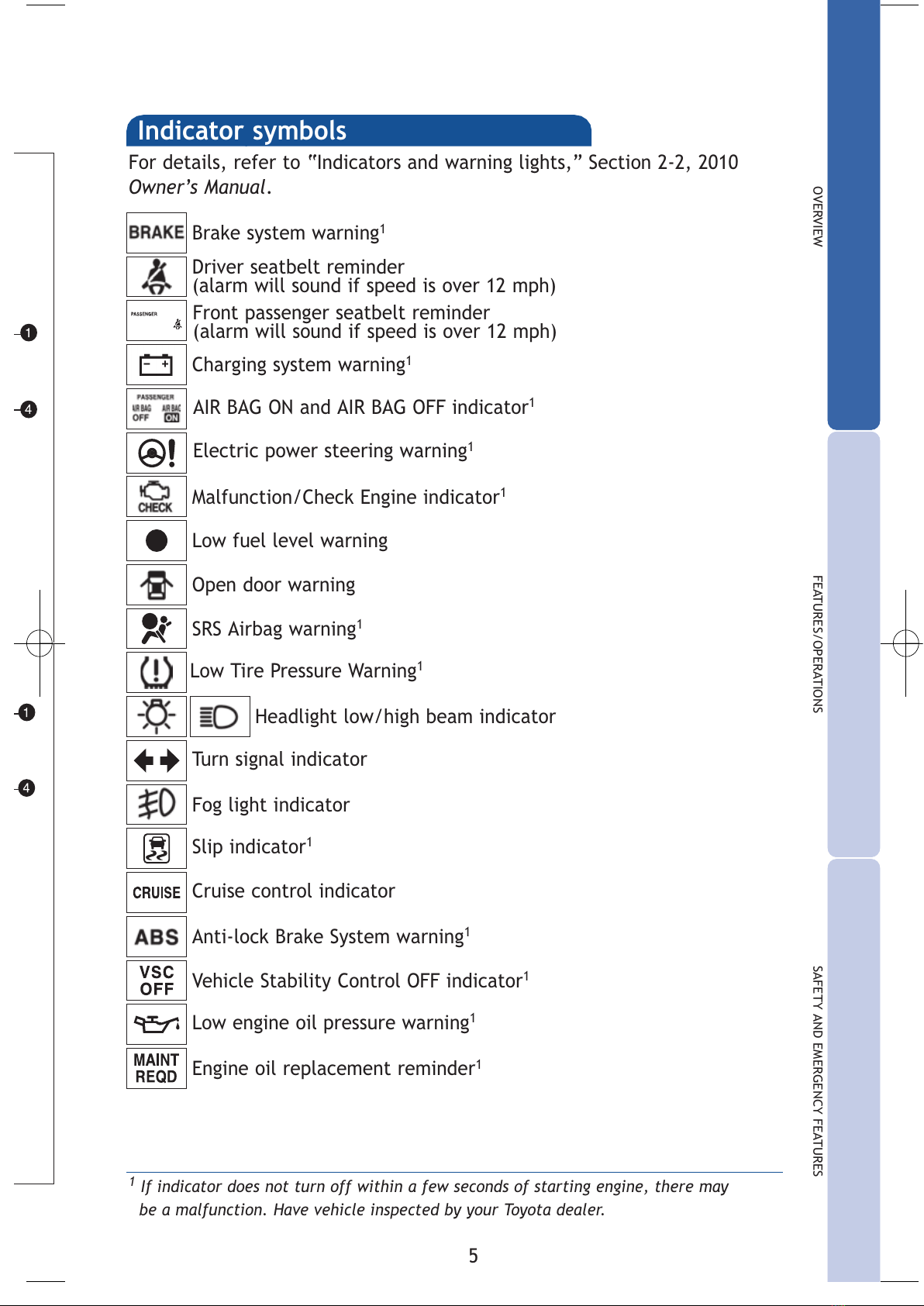

Indicator symbols
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator1
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator1
Cruise control indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
Low engine oil pressure warning1
Vehicle Stability Control OFF indicator1
Engine oil replacement reminder1
Electric power steering warning1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 5
All manuals and user guides at all-guides.com

6
Ho
E
E
E
W
Note
En
4cy
OVERVIEW

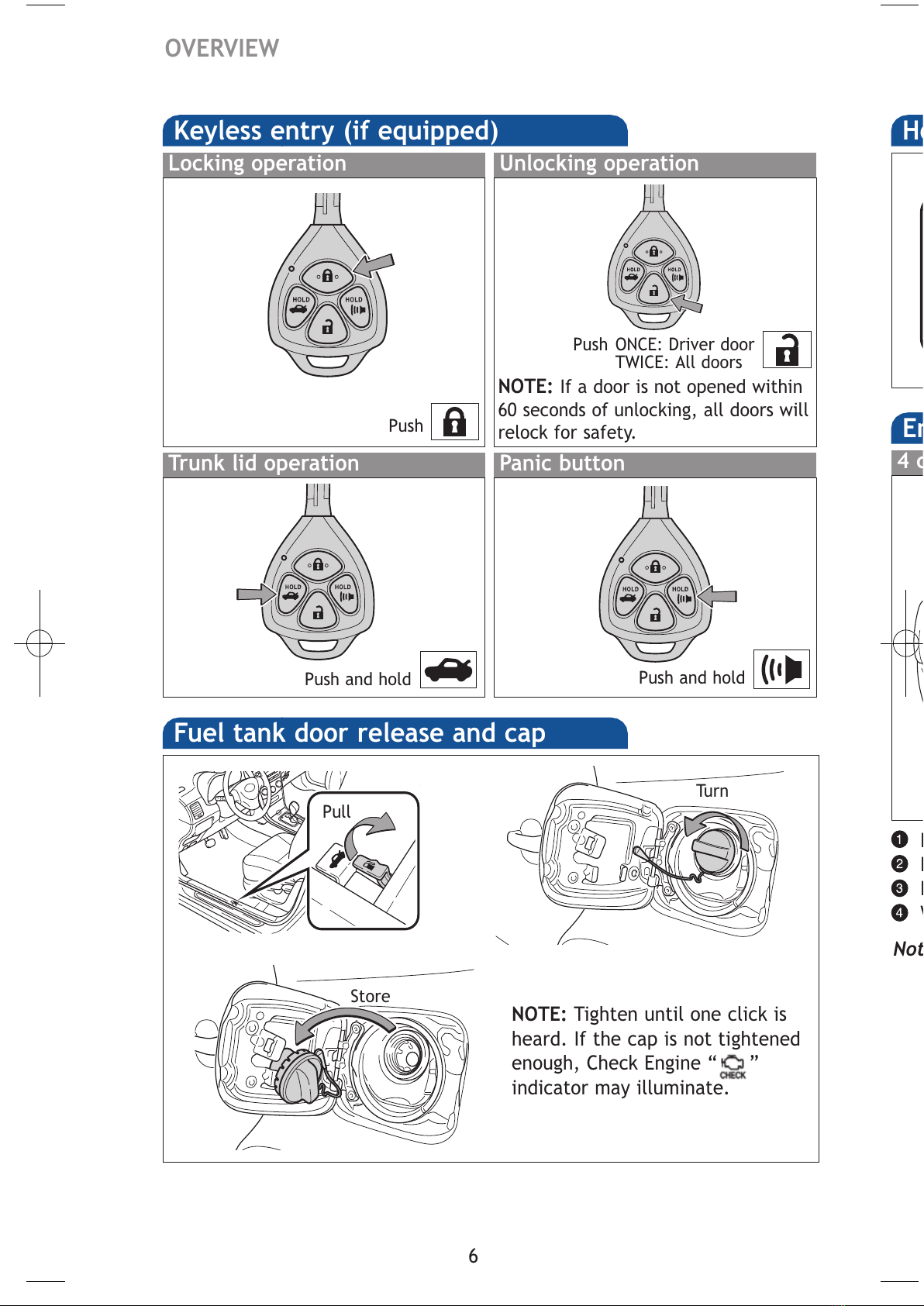

Keyless entry (if equipped)
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation Unlocking operation
Panic button
Push and hold
NOTE: Ifadoorisnotopenedwithin
60 seconds of unlocking, all doors will
relock for safety.
Trunk lid operation
Push and hold
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “”
indicator may illuminate.
Pull
Tu r n
Store
413269M2_r1.qxd:413269M2 1/13/09 9:33 AM Page 6
All manuals and user guides at all-guides.com

7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

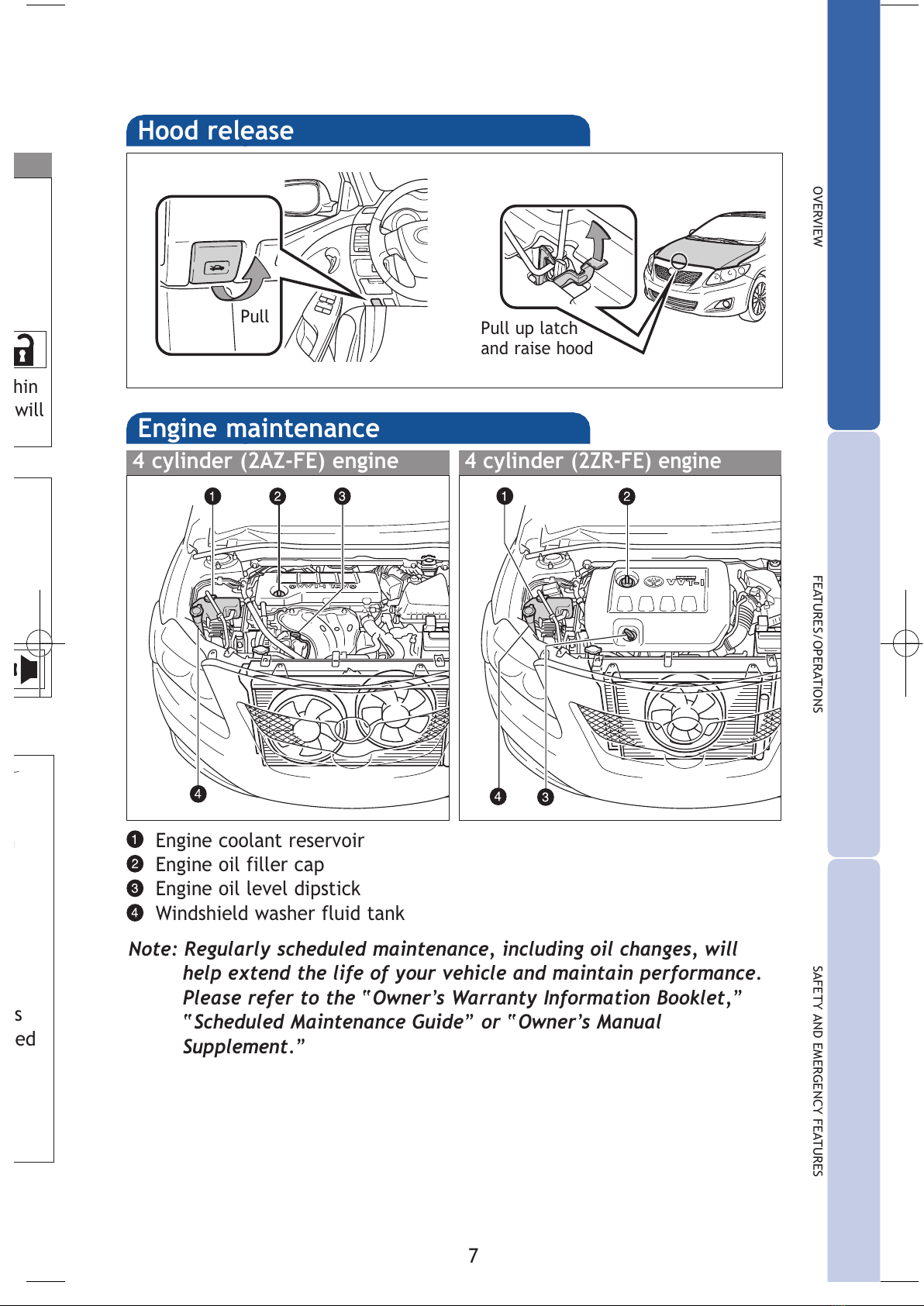

Hood release
Pull up latch
and raise hood
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Pull
4 cylinder (2AZ-FE) engine
4 cylinder (2ZR-FE) engine
hin
will
s
ed
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 7
All manuals and user guides at all-guides.com

8
Au
Auto
mode
-Doo
-Doo
-Doo
-Doo
sett
Refe
Sea
Sea
Man
Po
H
Se
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to shift
from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Standard type Multi-mode type
Park*
Reverse
Neutral
Drive
“S” mode
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
3
2
L
“S” “D”
Parking brake
(2) Push
Set Release
(1) Pull slightly
(3) Lower
Pull
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 8
All manuals and user guides at all-guides.com

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Auto lock functions (if equipped)
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
setting the engine switch or “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
Seat adjustments-Rear
Seat adjustments-Front
Manual seat
Position (forward/backward)
Height crank (driver side only)
Seatback angle
Pull
Fold down
shift
ays
“D”
htly
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 9
All manuals and user guides at all-guides.com
all-guides.com

10
Lig
Turn
Hea
Fro
Da
up
cha
Fron
FEATURES/OPERATIONS
Seats-Head restraints
Front Rear
Lock release button Lock release button
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash
and wipe
Windows-Power (if equipped)
Up
Down
Driver side
Window lock switch
Automatic operation (driver side only) Push the switch completely down
and release to fully open. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency (if equipped).
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 10
All manuals and user guides at all-guides.com

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
Daytime Running Light system (DRL) Headlights turn on automatically
upon starting engine. The brightness of the headlights will automatically
change depending on the darkness of the surroundings.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
High beam
Headlights
Parking lights
Tu r n
ash
e
witch
own
tch
ow
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 11
All manuals and user guides at all-guides.com

12
RAD
To p
butto
selec
To s c
to ho
“
-I
t
-I
“
P
tu
AUX
Stee
FEATURES/OPERATIONS
Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
Toselectafile(MP3/WMAonly)Tu r n “ T U N E .FILE.”
Eject CD
Push to
turn
ON/OFF
Seek
station/
CD track
select
Station/CD
track scan
Mode
Preset buttons - functions in other
modes indicated above number
View CD
text
Push to skip
up/down
folder and
radio
category
type
Push and
turn to
adjust tone
& balance
Load CD(s)
Type 2 other functions
Type 1 functions
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 12
All manuals and user guides at all-guides.com

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
“”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn the audio system OFF.
v
v
AUX audio jack
Steering wheel switches (if equipped)
Volume control
By inserting a mini plug into
the AUX audio jack, you can
listen to music from a portable
audio device through the
vehicle’s speaker system while
in AUX mode.
D
skip
wn
and
ry
nd
o
tone
ance
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 13
All manuals and user guides at all-guides.com

14
Cru
1The
2The
Turn
Fun
Mu
Pu
(1
(2
(3
(4
(5
(6
(7
*
FEATURES/OPERATIONS
Air Conditioning/Heating
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Use for quick cooling. MAX A/C changes air intake to recirculate.
It is not possible to change intake to fresh, or to turn A/C OFF in
this mode.
Outside rearview mirror/Rear window defogger
Fresh or recirculated cabin air
Power outlets
Center console
Designed for 12V car accessories.
The engine switch must be in the “ACC” or “ON” position.
Front console (if equipped)
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 14
All manuals and user guides at all-guides.com
all-guides.com

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal.
2The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Multi-information display
Push the display button to change information in the following:
(1) Clock
(2) Outside temperature
(3) Current gas mileage
(4) Average gas mileage*
(5) Miles left on remaining fuel
(6) Average vehicle speed from engine start*
(7) Running time from engine start*
* Push and hold display button to reset.
Display button
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 15
All manuals and user guides at all-guides.com

16
Note
Til
L
Do
Mo
Slid
Re
m
FEATURES/OPERATIONS
Bluetooth®technology allows dialing or receive calls without taking hands
from the steering wheel or using a cable to connect the compatible
telephoneandthesystem.
RefertotheOwner’s Manual for more details.

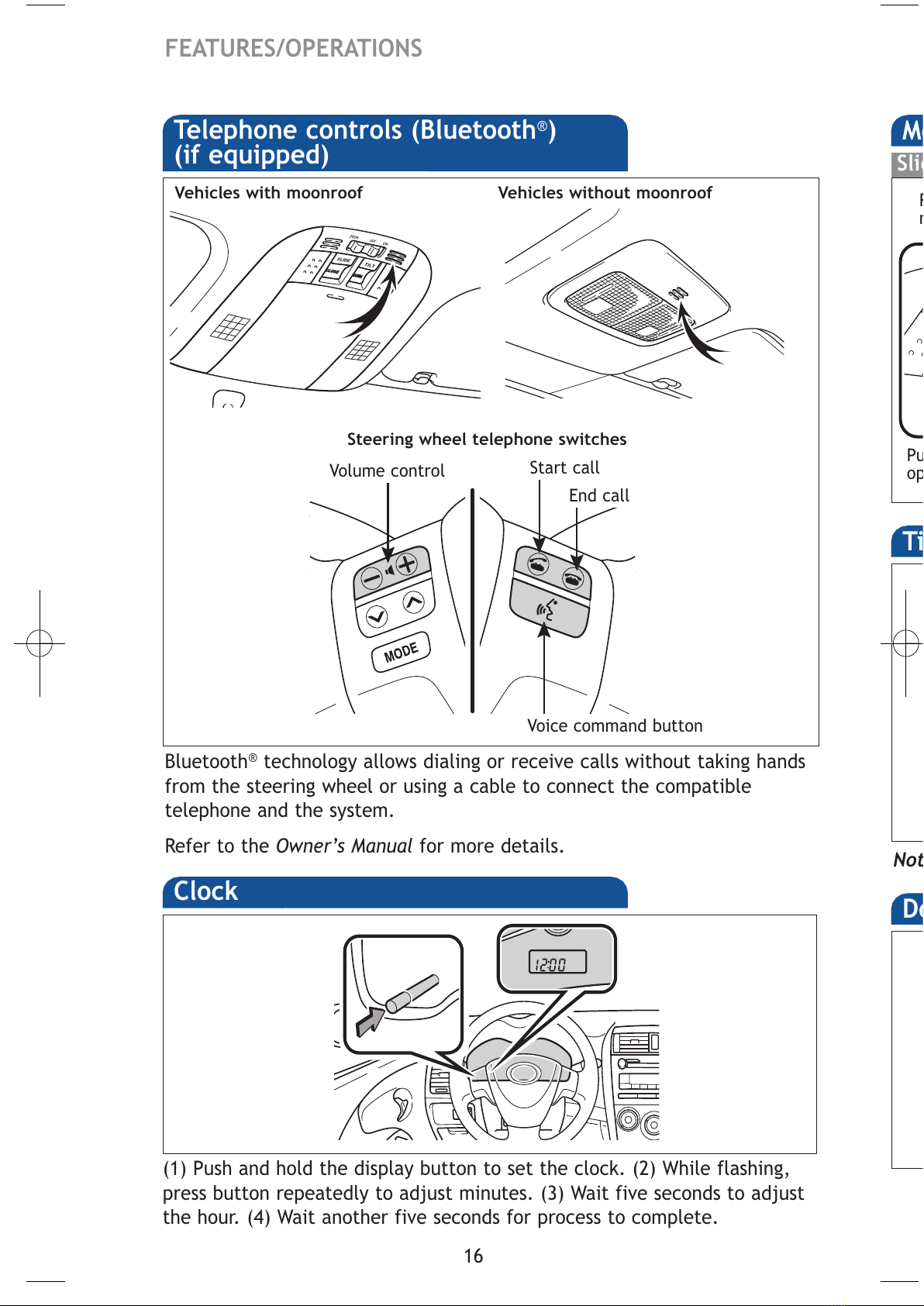

Telephone controls (Bluetooth®)
(if equipped)
Vehicles without moonroof
Vehicles with moonroof
Steering wheel telephone switches
Start call
End call
Voice command button
Volume control
Clock
(1) Push and hold the display button to set the clock. (2) While flashing,
press button repeatedly to adjust minutes. (3) Wait five seconds to adjust
the hour. (4) Wait another five seconds for process to complete.
Pus
ope
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 16
All manuals and user guides at all-guides.com

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Note: Do not attempt to adjust while the vehicle is in motion.

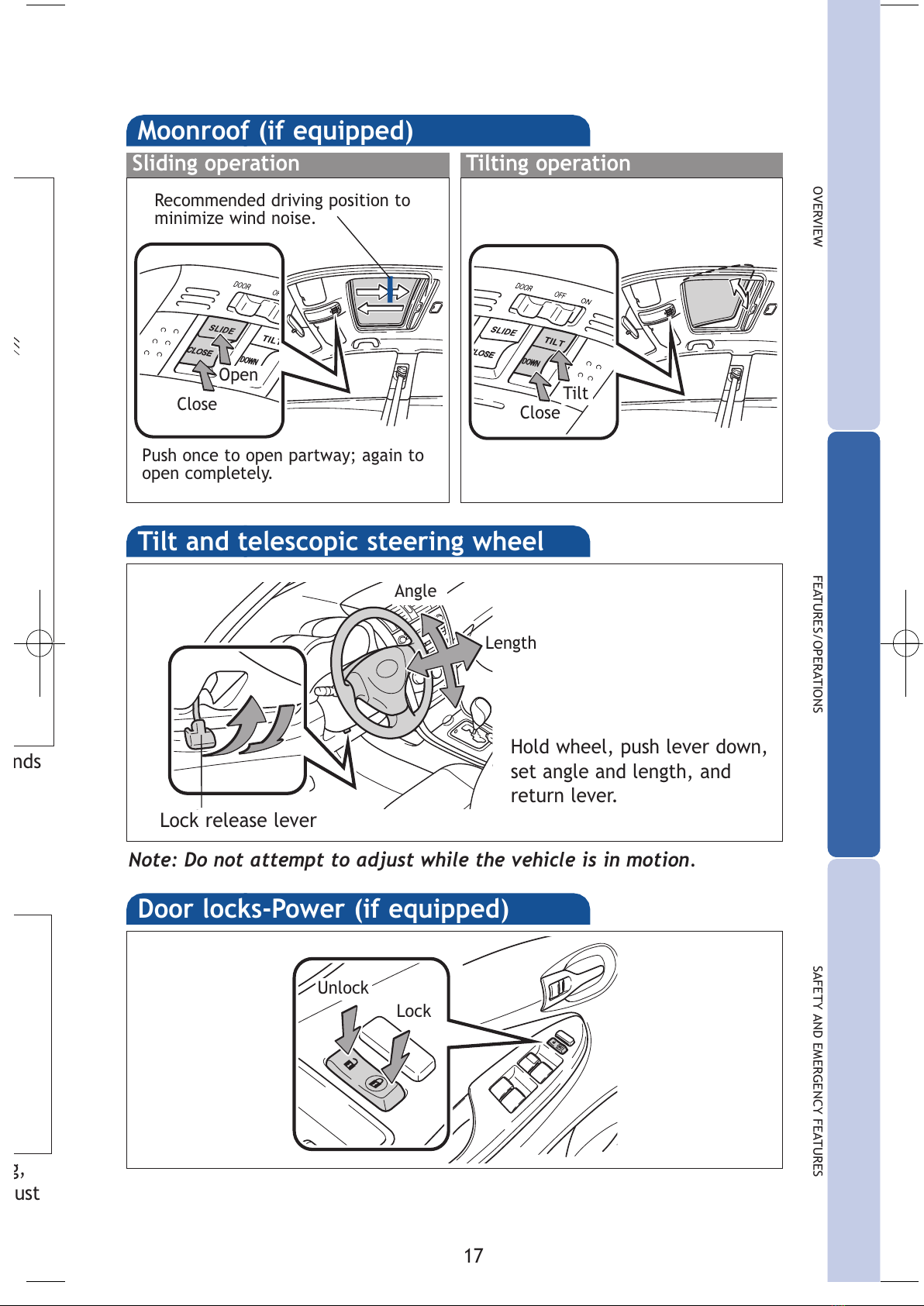

Tilt and telescopic steering wheel
Lock release lever
Angle
Length
Hold wheel, push lever down,
set angle and length, and
return lever.
Door locks-Power (if equipped)
Lock
Unlock
Moonroof (if equipped)
Sliding operation Tilting operation
Open
Tilt
Close Close
Recommended driving position to
minimize wind noise.
nds
g,
ust
Push once to open partway; again to
open completely.
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 17
All manuals and user guides at all-guides.com

18
If be
re-ex
is us
To f i
restr
Sea
Sea
Ch
S
FEATURES/OPERATIONS
Cup holders
Front
Auxiliary storage
Instrument panel
Overhead console
Type A Type B Type C
Rear
Pull
Pull
Push
Pull
Light control-Instrument panel
Brightness
control -
+
413269M2.qxd:413269M2 1/9/09 1:35 PM Page 18
All manuals and user guides at all-guides.com
