Toyota COROLLA 2010 - User manual

QUICK REFERENCE
GUIDE
MATRIX
2010
413259M1.qxd 1413259M1.qxd 1 1/13/09 8:33:31 PM1/13/09 8:33:31 PM

2010
Corolla Matrix
!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Corolla Matrix.
This Quick Reference Guide is not a full description of
Corolla Matrix operations. Every Corolla Matrix owner should
review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
413259M2.qxd 1/13/09 8:20 PM Page CVR2

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 16
Audio 14-15
Auto lock functions28
Automatic Transmission 8
Auxiliary storage 17
Bottle holders 19
Clock 10
Cruise control 17
Cup holders 18
Door-Back 13
Door locks-Power 13
Light control-Instrument panel 16
Lights & turn signals 11
Moonroof 13
Parking brake 10
Power outlet-12V DC 19
Power outlet-115V AC 19
Seat adjustments-Front 9
Seat adjustments-Rear 9
Seats-Head restraints 9
Te l e p h o n e controls (Bluetooth®)18
Tilt and telescopic steering wheel 10
Windows-Power 12
Windshield wipers & washers 12
Doors-Child safety locks 20
Seatbelts 21
Seatbelts-Shoulder belt anchor 20
Spare tire & tools 21
Tire Pressure Monitoring (warning) System 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
INDEX
413259M2.qxd 1/13/09 8:23 PM Page 1

2
OVERVIEW
Instrument panel
Steering wheel audio controls1,2
Voice command button1
Telephone controls1
Ignition switch
Cruise control1
VSC/TRAC OFF switch
Auxiliary storage
Power outside rearview mirror control
Headlight, turn signal and front fog light1controls
Wiper and washer controls
“AIR BAG ON” and “AIR BAG OFF” indicator
Front passenger seatbelt reminder light
Engine immobilizer indicator
Emergency flasher button
Steering wheel controls
413259M2.qxd 1/13/09 8:23 PM Page 2

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Audio system2
Air Conditioning controls
Outside rearview mirrors1/Rear window defogger button
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
1If equipped
2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
413259M2.qxd 1/13/09 8:23 PM Page 3

4
OVERVIEW

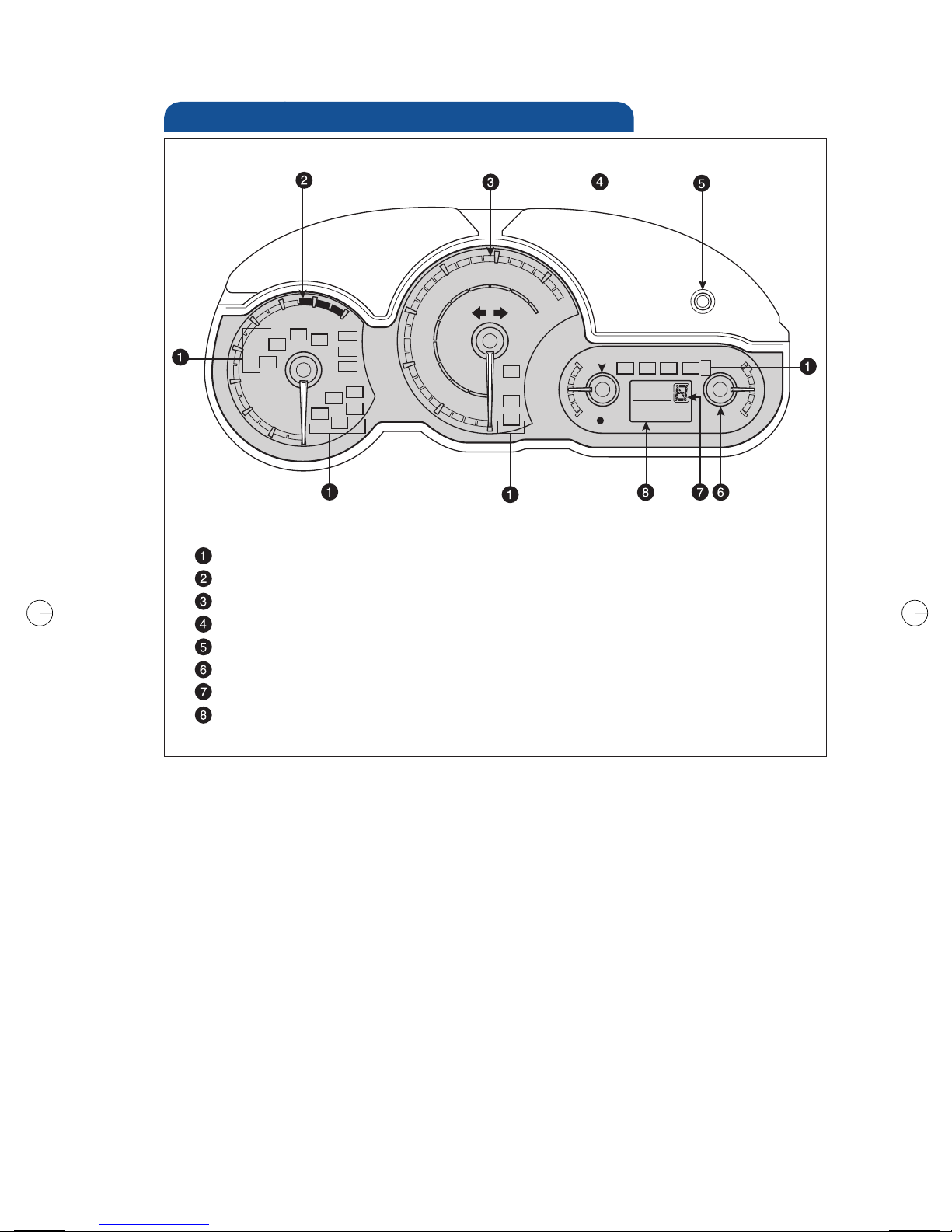

Instrument cluster
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Engine coolant temperature
Automatic Transmission shift range display (if equipped)
Odometer and two trip meters
413259M2.qxd 1/13/09 8:23 PM Page 4

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

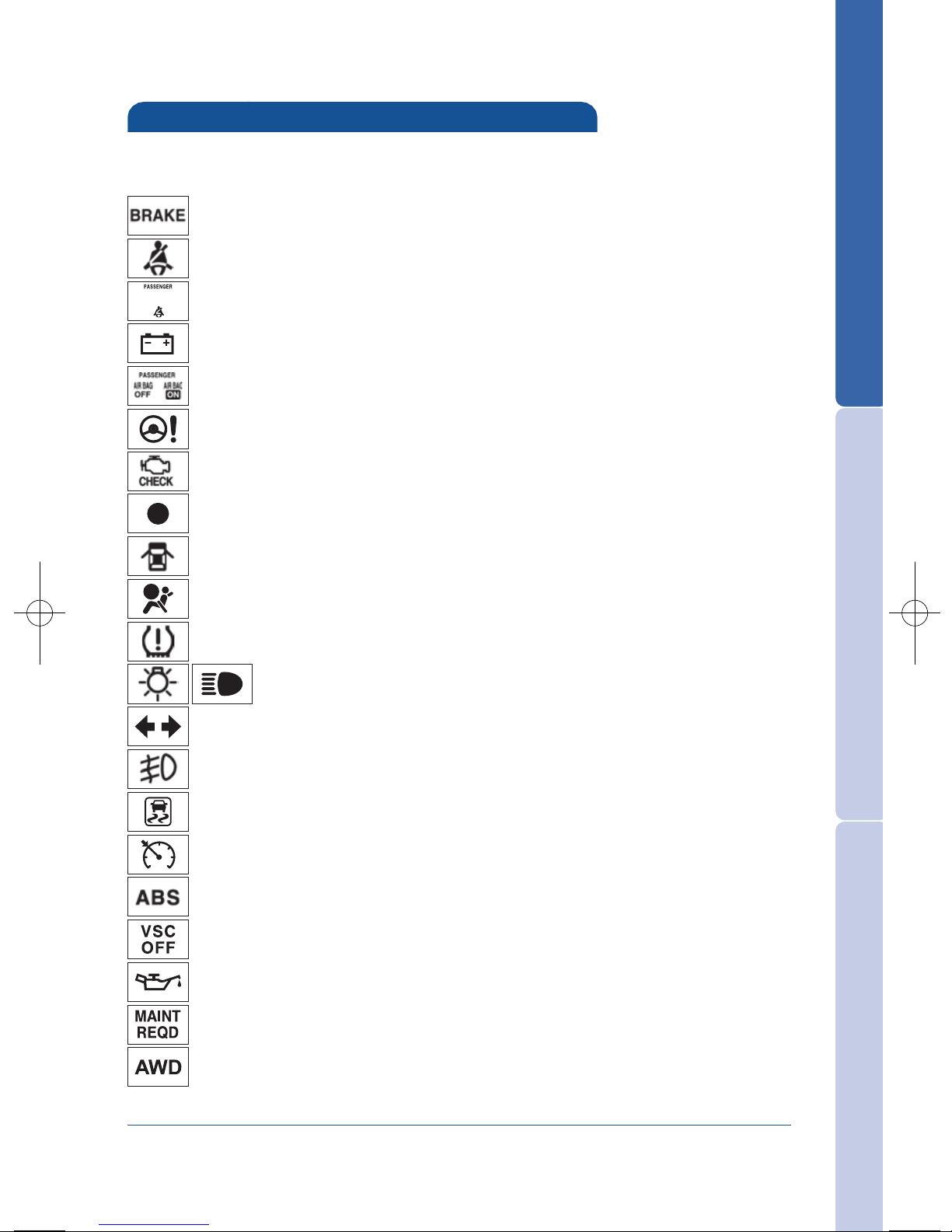

Indicator symbols
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator1
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator1
Cruise control indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
Active torque control 4WD system warning1
Low engine oil pressure warning1
Vehicle Stability Control OFF indicator1
Engine oil replacement reminder1
Electric power steering warning1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
413259M2.qxd 1/13/09 8:23 PM Page 5

6
OVERVIEW

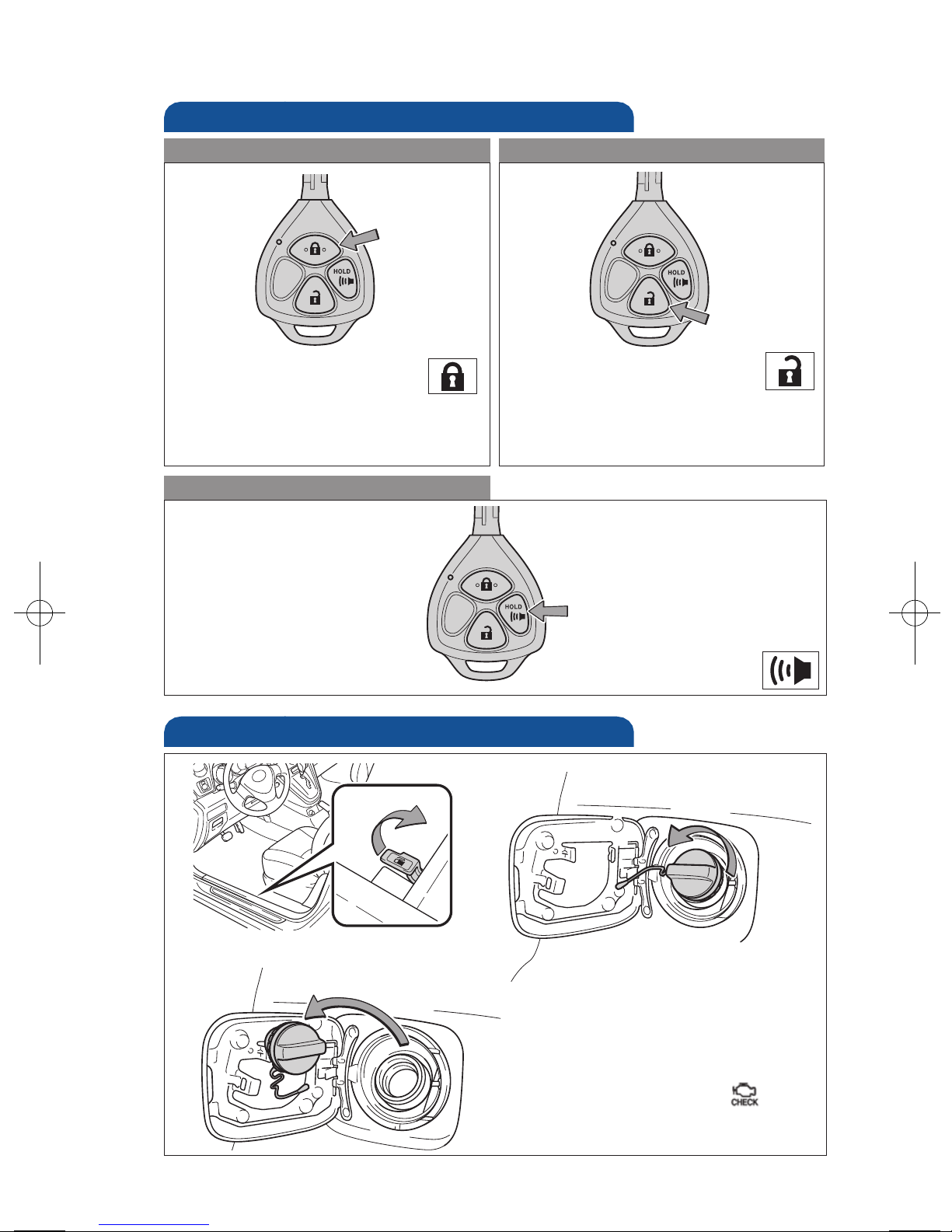

Keyless entry (if equipped)
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation Unlocking operation
Panic button
Push and hold
NOTE: If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull Tu r n
Store
413259M2.qxd 1/13/09 8:23 PM Page 6

7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Hood release
Pull up latch
and raise hood
Pull
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
4 cylinder (2AZ-FE) engine
4 cylinder (2ZR-FE) engine
413259M2.qxd 1/13/09 8:23 PM Page 7

8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to shift
from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
3
2
L
Standard type Multi-mode type
Park*
Reverse
Neutral
Drive
“S” mode
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
3
2
L
“S” “D”
Auto lock functions (if equipped)
Automatic door locks can be programmed to operate in three different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
setting the engine switch to “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
Se
a
Se
a
P
o
H
S
e
Se
a
Fro
n
413259M2_r1.qxd:413259M2_r1 1/15/09 2:10 PM Page 8

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

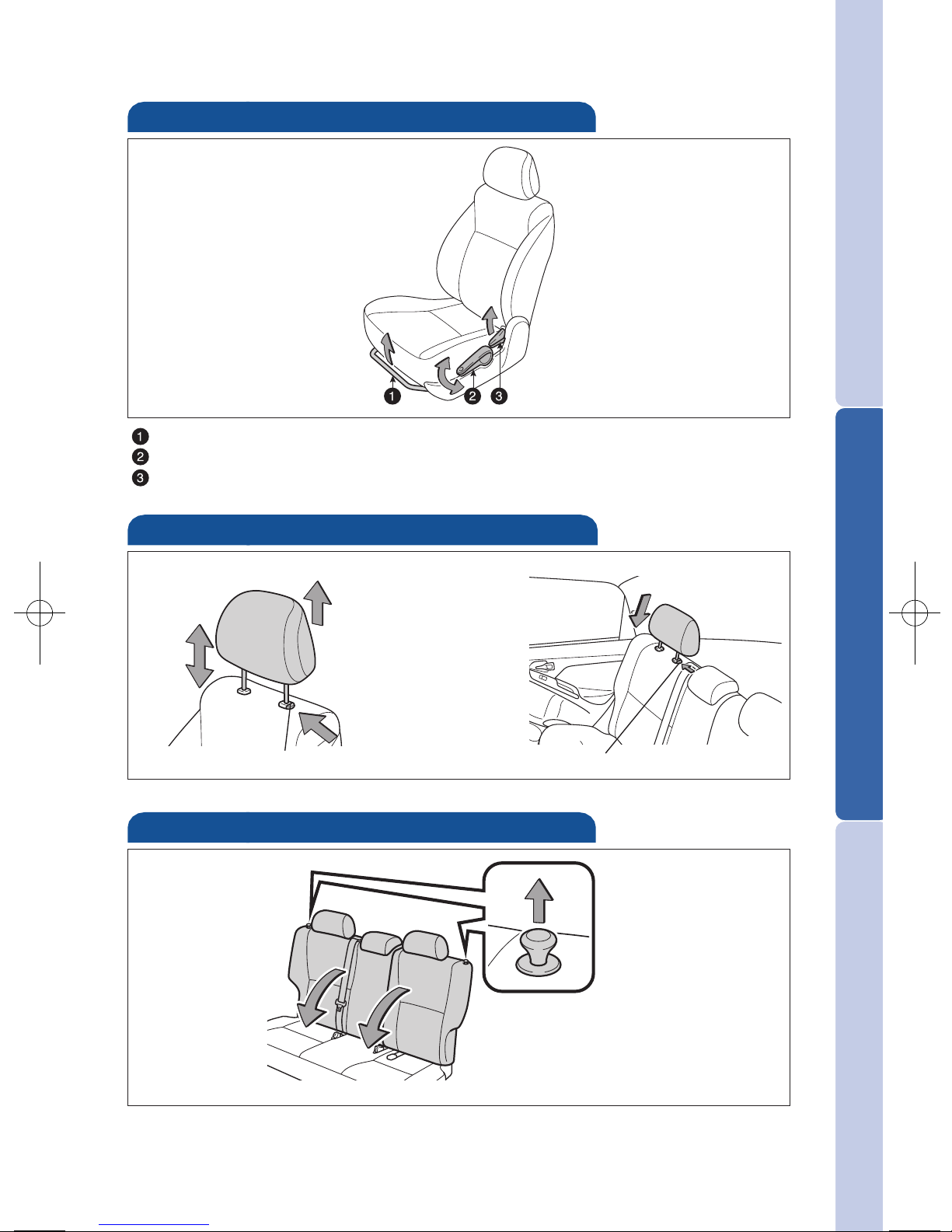

Seat adjustments-Rear
Seat adjustments-Front
Position (forward/backward)
Height crank (driver side only)
Seatback angle
Fold down
Pull
Seats-Head restraints
Front Rear
Lock release button Lock release button
413259M2.qxd 1/13/09 8:23 PM Page 9

10
FEATURES/OPERATIONS

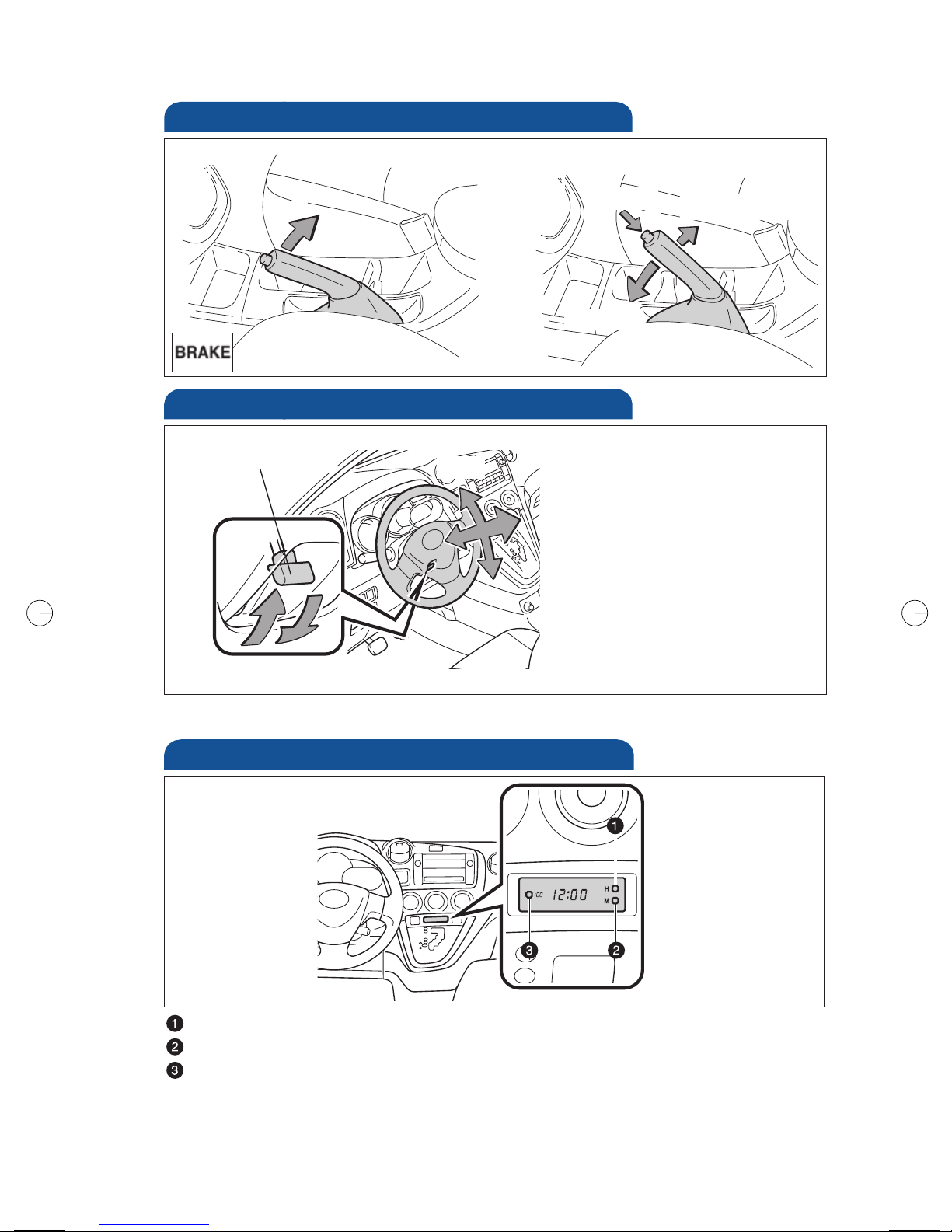

Parking brake
(2) Push
Set Release
(1) Pull slightly
(3) Lower
Pull
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lock release lever Angle
Length
Hold wheel, push lever down,
set angle and length, and
return lever.
Clock
Hour set
Minute set
Round off minutes
413259M2.qxd 1/13/09 8:23 PM Page 10

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Headlights turn on automatically
upon starting engine. The brightness of the headlights will
automatically change depending on the darkness of the surroundings.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
High beam
Headlights
Parking lights
Tu r n
413259M2.qxd 1/13/09 8:23 PM Page 11

12
FEATURES/OPERATIONS
Windows-Power (if equipped)
Up
Down
Driver side
Window lock switch
Automatic operation (driver side only) Push the switch completely down
and release to fully open. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Windshield wipers & washers
Front
Interval wipe
Single wipe
Slow
Fast
Pull to wash
and wipe
Rear (if equipped)
Interval wipe
Wash and wipe
Wipe
Wash and wipe
Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency (if equipped).
413259M2.qxd 1/13/09 8:23 PM Page 12

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

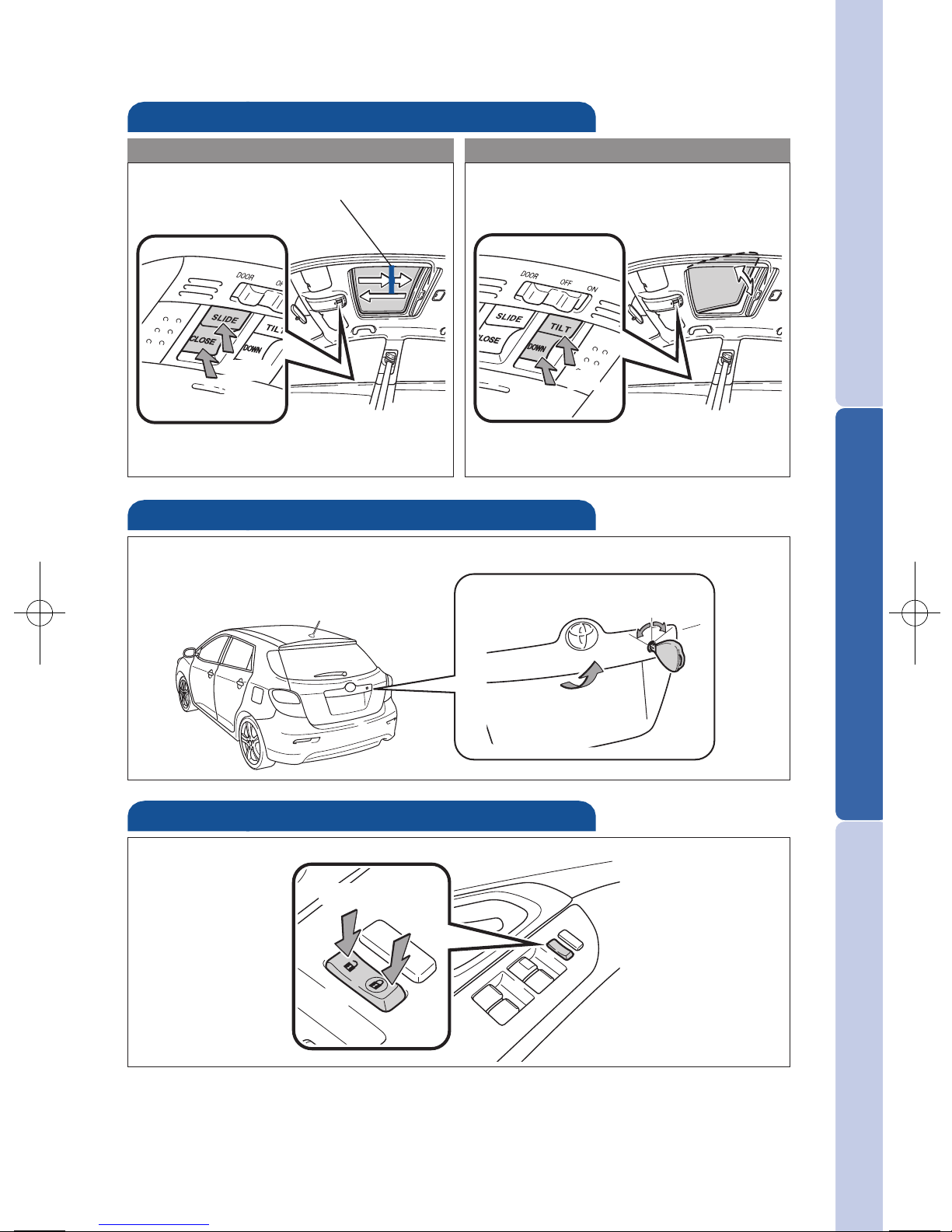

Door-Back
Lock
Unlock
Open
Moonroof (if equipped)
Sliding operation Tilting operation
Open Tilt
Close Close
Recommended driving position to
minimize wind noise.
Door locks-Power (if equipped)
Lock
Unlock
Push once to open partway; again to
open completely.
413259M2.qxd 1/13/09 8:23 PM Page 13

14
FEATURES/OPERATIONS

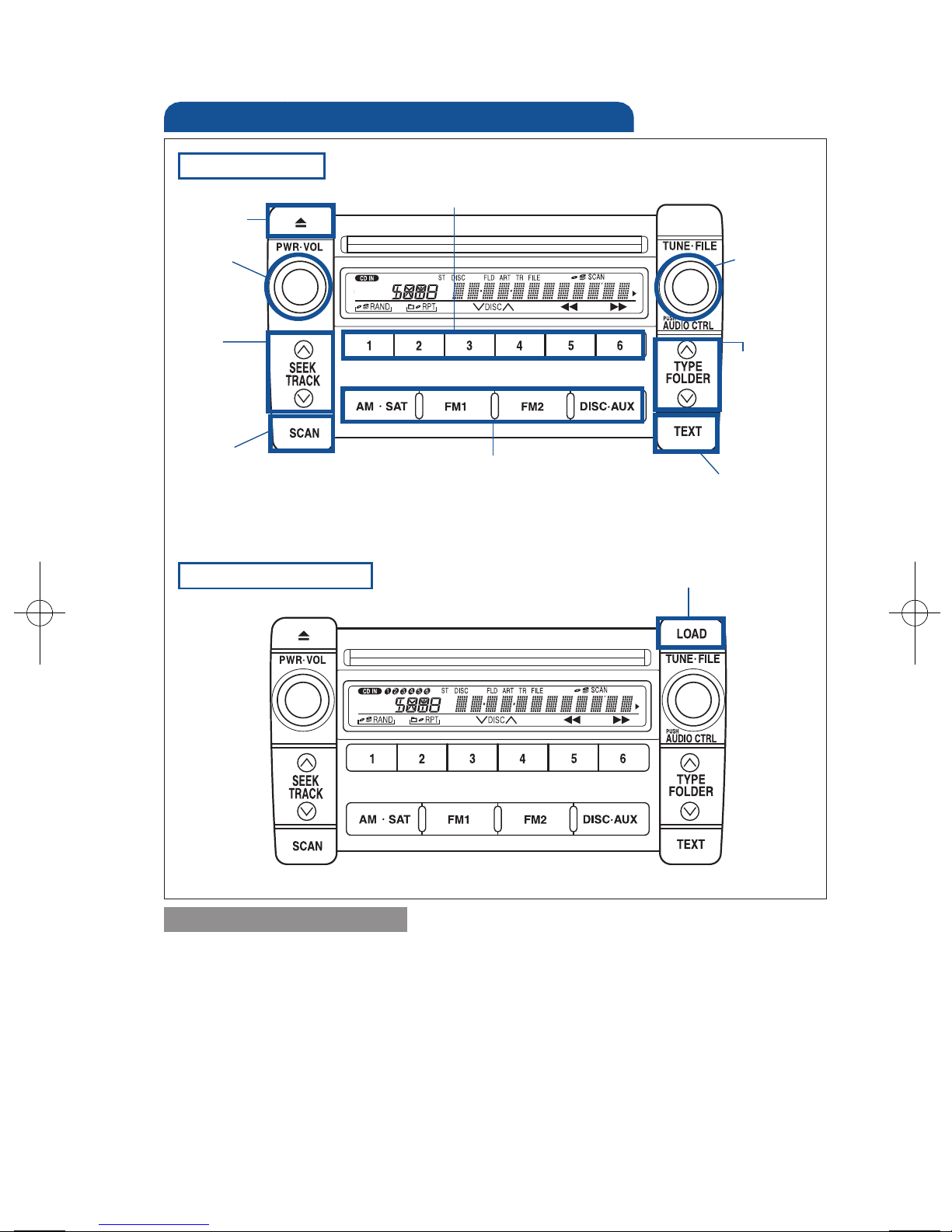

Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.FILE.”
Eject CD
Push to
turn
ON/OFF
Seek
station/
CD track
select
Station/CD
track scan Mode
Preset buttons - functions in other
modes indicated above number
View CD
text
Push to skip
up/down
folder and
radio
category
type
Push and
turn to
adjust tone
& balance
Load CD(s)
Type 2 other functions
Type 1 functions
413259M2.qxd 1/13/09 8:23 PM Page 14

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
“”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn the audio system OFF.
v
v
AUX audio jack
Steering wheel switches (if equipped)
Volume control
By inserting a mini plug into
the AUX audio jack, you can
listen to music from a portable
audio device through the
vehicle’s speaker system while
in AUX mode.
413259M2.qxd 1/13/09 8:23 PM Page 15

16
FEATURES/OPERATIONS

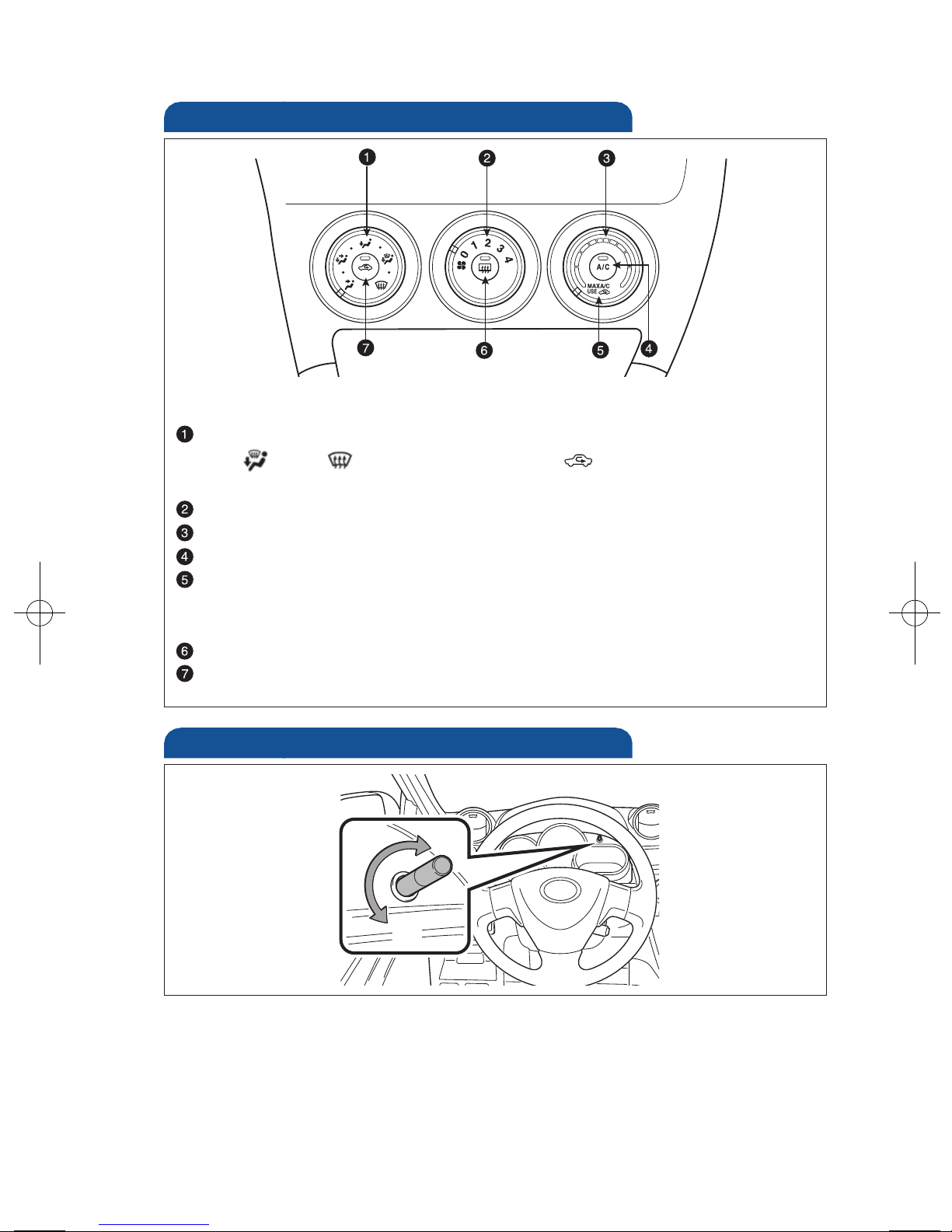

Air Conditioning/Heating
Airflow vent
Fan speed
Temperature selector
Air Conditioning ON/OFF
Use for quick cooling. MAX A/C changes air intake to recirculate.
It is not possible to change intake to fresh, or to turn A/C OFF in
this mode.
Outside rearview mirror/Rear window defogger
Fresh or recirculated cabin air
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Light control-Instrument panel
Brightness
control
-
+
413259M2.qxd 1/13/09 8:23 PM Page 16

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

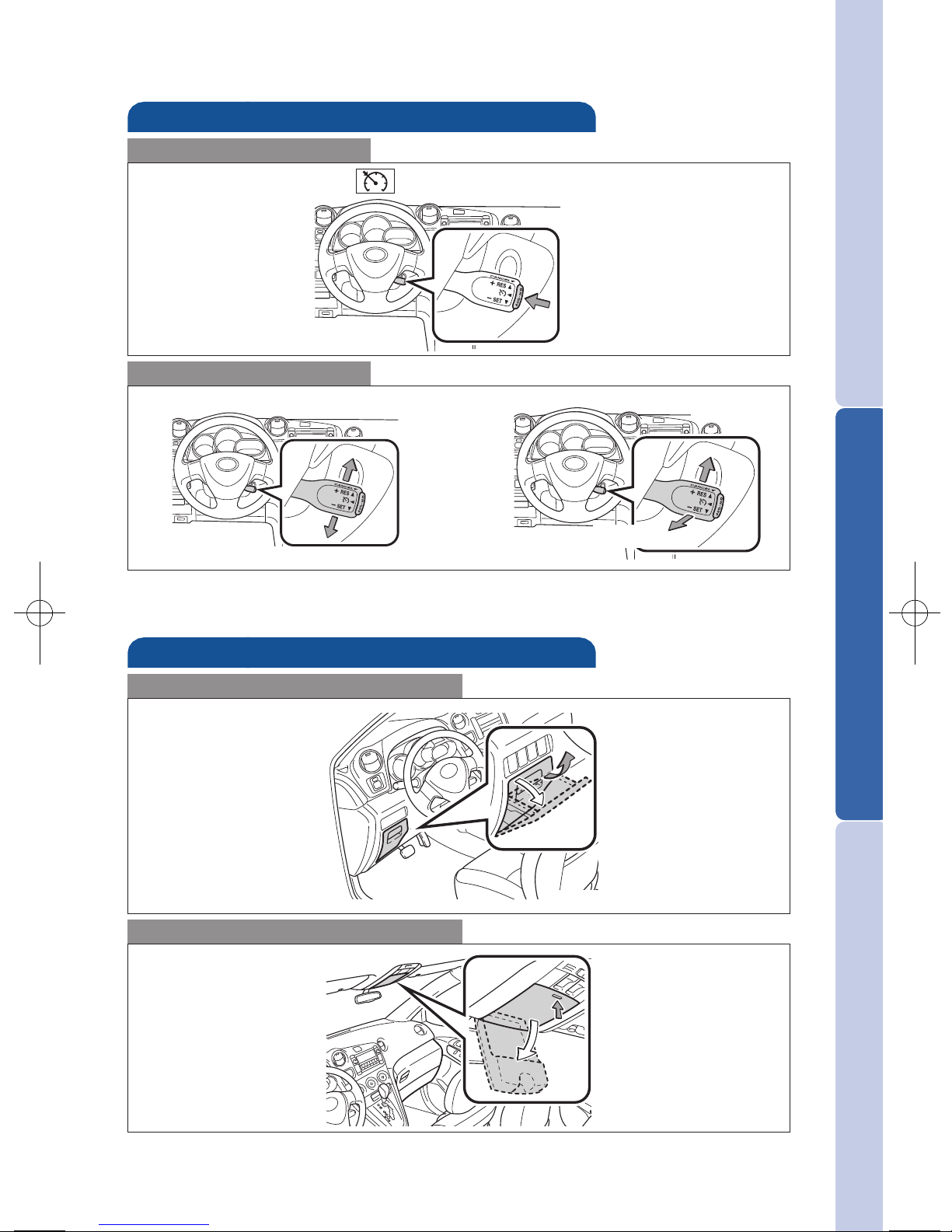

Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.
2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Auxiliary storage
Instrument panel
Overhead console (if equipped)
Pull
Push
413259M2.qxd 1/13/09 8:23 PM Page 17

18
FEATURES/OPERATIONS
Bluetooth®technology allows dialing or receive calls without taking hands
from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to the Owner’s Manual for more details.
Telephone controls (Bluetooth®)
(if equipped)
Vehicles without moonroof
Vehicles with moonroof
Steering wheel telephone switches
Start call
End call
Voice command button
Volume control
Cup holders
Front Rear
413259M2.qxd 1/13/09 8:23 PM Page 18
