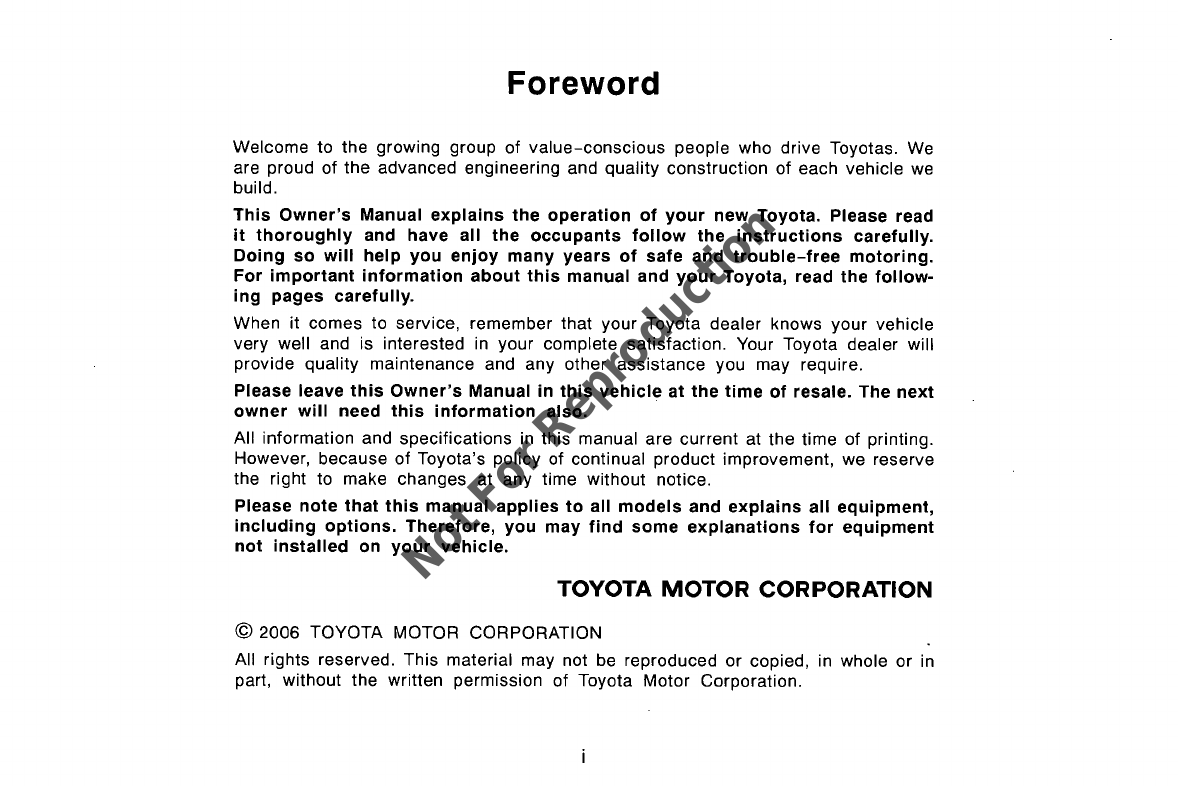

Foreword
Welcome to the growing group of value-conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle we
build.
This Owner's Manual explains the operation of your new Toyota. Please read
it thoroughly and have all the occupants follow the instructions carefully.
Doing so will help you enjoy many years of safe and
trouble-free motoring.
For important information about this manual and your Toyota, read the follow-
ing pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle
very well and is interested in your complete satisfaction. Your Toyota dealer will
provide quality maintenance and any other assistance you may require.
Please leave this Owner's Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of printing.
However, because
of Toyota's policy of continual product improvement, we reserve
the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
TOYOTA MOTOR CORPORATION
©2006 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of Toyota Motor Corporation.
Not For Reproduction

Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings.
You must follow these warnings carefully to
avoid possible injury or damage.
The types
of warnings, what they look like, and how they are
used in this manual are explained as follows:
& CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to reduce the risk of injury to yourself and
others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
ii
Safety symbol
00060
When you see the safety symbol
shown above, it means: "Do not ... ";
"Do not do this"; or "Do not let this
happen".
Not For Reproduction

Important information about your Toyota
Fuel and fuel filter (diesel engine)
The fuel filter for adiesel engine does not need to be
replaced periodically.
NOTICE
For long life performance of your vehicle, please
follow these instructions:
•Only fill your fuel tank
at astandard station.
• If the fuel system warning light comes on, have
your vehicle checked
and the warning light reset
by your Toyota dealer as soon as possible.
•The fuel filter should only be replaced
at your
Toyota dealer to prevent the mixing
of fuel with
foreign material and impurities.
iii
Occupant restraint systems
Toyota encourages you and your family to take the time to
read Section
1-3 of this Owner's Manual carefully. In
terms of helping you understand how you can receive the
maximum benefit of the occupant restraint systems this
vehicle provides, Section
1-3 of this Owner's Manual is
the most important Section for you and your family to
read.
Section
1-3 describes the function and operation concern-
ing seats, seat belts, SRS airbags and child restraint sys-
tems of this vehicle and some potential hazards you
should be aware of. These systems work together along
with the overall structure of this vehicle in order to provide
occupant restraint in the event of acrash. The effect of
each system is enhanced when it is used properly and
together with other systems. No single occupant restraint
system can, by itself, provide you or your family with the
equal level of restraint which these systems can provide
when used together. That is why it is important for you and
your family to understand the purpose and proper use of
each of these systems and how they relate to each other.
Not For Reproduction

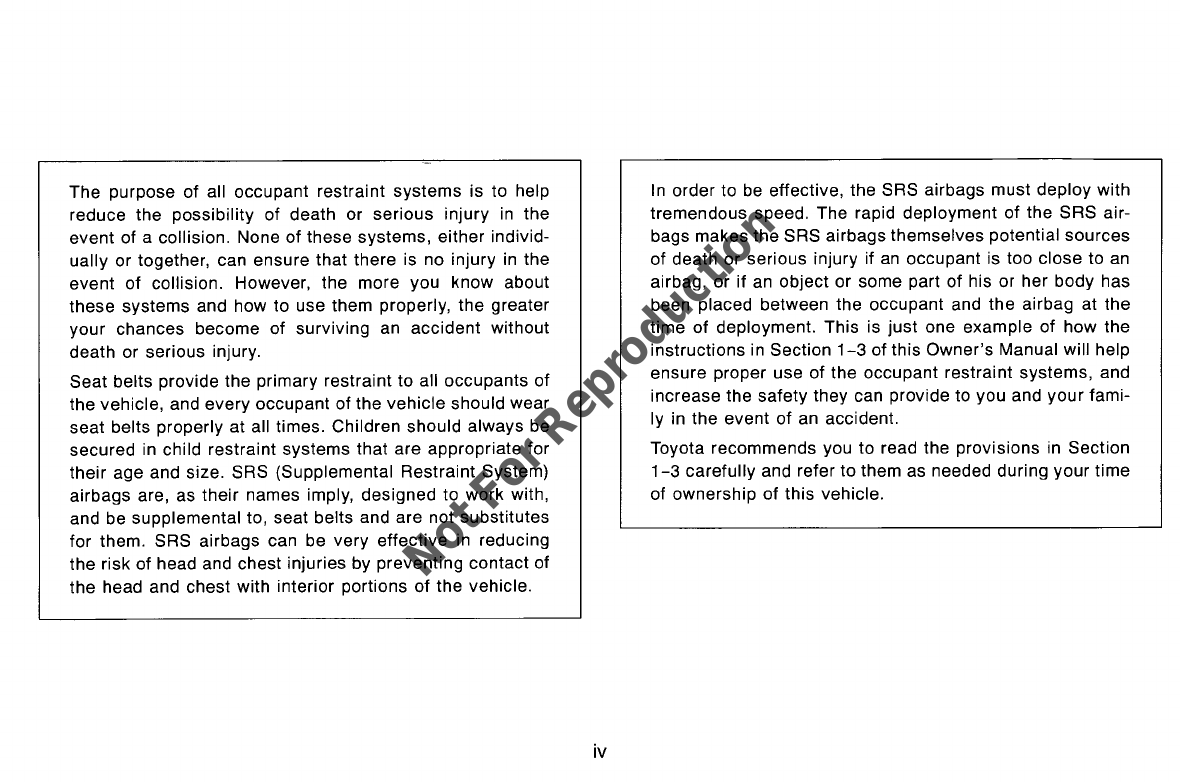

The purpose of all occupant restraint systems is to help
reduce the possibility of death or serious injury
in the
event of acollision. None of these systems, either individ-
ually or together, can ensure that there is no injury in the
event of collision. However, the more you know about
these systems and how to use them properly, the greater
your chances become of surviving an accident without
death or serious injury.
Seat belts provide the primary restraint to all occupants of
the vehicle, and every occupant of the vehicle should wear
seat belts properly at all times. Children should always be
secured in child restraint systems that are appropriate for
their age and size. SRS (Supplemental Restraint System)
airbags are, as their names imply, designed to work with,
and be supplemental to, seat belts and are not substitutes
for them. SRS airbags can be very effective in reducing
the risk of head and chest injuries by preventing contact of
the head and chest with interior portions
of the vehicle.
iv
In order to be effective, the SRS airbags must deploy with
tremendous speed. The rapid deployment of the SRS air-
bags makes the SRS airbags themselves potential sources
of death or serious injury if
an occupant is too close to an
airbag, or if an object or some part of his or her body has
been placed between the occupant and the airbag at the
time
of deployment. This is just one example of how the
instructions in Section
1-3 of this Owner's Manual will help
ensure proper use of the occupant restraint systems, and
increase the safety they can provide to you and
your fami-
ly in the event of an accident.
Toyota recommends you to read the provisions in Section
1-3 carefully and refer to them as needed during your time
of ownership
of this vehicle.
Not For Reproduction

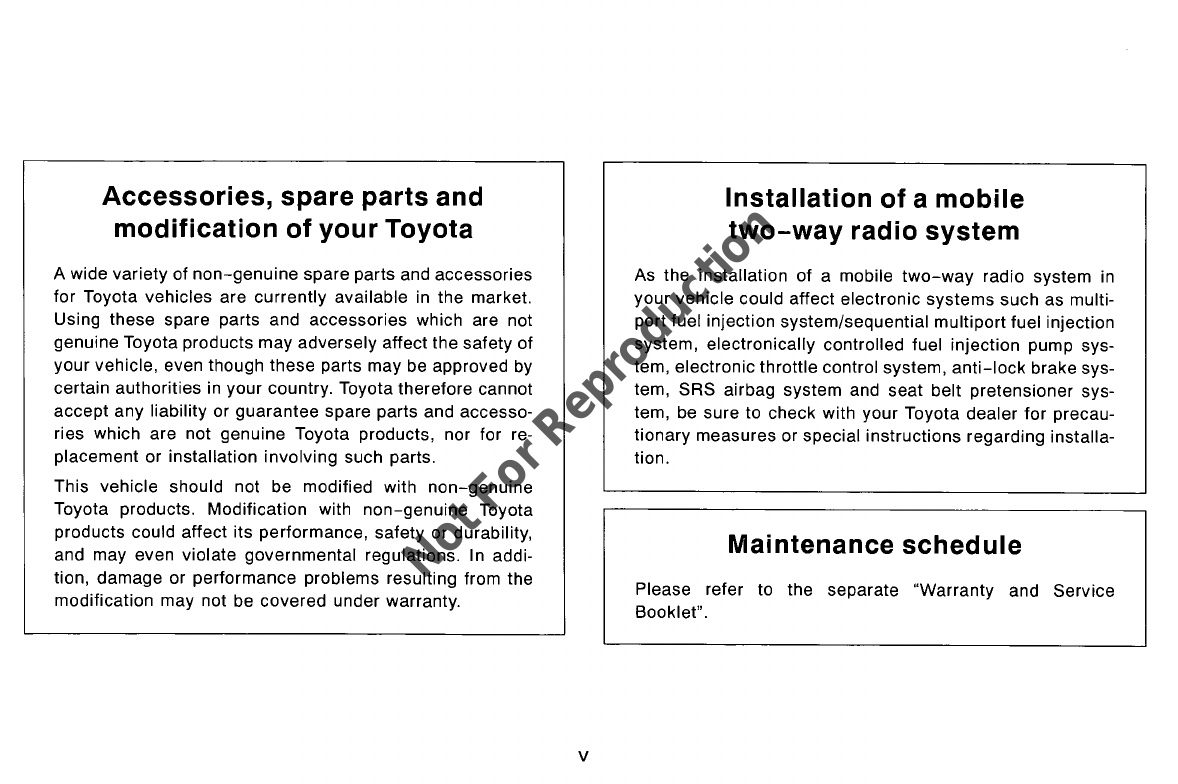

Accessories, spare parts and
modification of your Toyota
Awide variety of non-genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
Using these spare parts and accessories which are not
genuine Toyota products may adversely affect the safety of
your vehicle, even though these parts may be approved by
certain authorities in
your country. Toyota therefore cannot
accept any liability or guarantee spare parts and accesso-
ries which are not genuine Toyota products, nor for re-
placement or installation involving such parts.
This vehicle should not be modified with
non-genuine
Toyota products. Modification with non-genuine Toyota
products could affect its performance, safety or durability,
and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the
modification may not be covered under warranty.
v
Installation of amobile
two-way radio system
As the installation of amobile two-way radio system in
your vehicle could affect electronic systems such as multi-
port fuel injection system/sequential multiport fuel injection
system, electronically controlled fuel injection pump sys-
tem, electronic throttle control system,
anti-lock brake sys-
tem, SRS airbag system and seat belt pretensioner sys-
tem, be sure to check with your Toyota dealer for precau-
tionary measures or special instructions regarding installa-
tion.
Maintenance schedule
Please refer to the separate "Warranty and Service
Booklet".
Not For Reproduction

Scrapping of your Toyota
The SRS airbag and seat belt pretensioner device in your
Toyota contains explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by aqualified service
shop or by your Toyota dealer before you dispose of your
vehicle.
vi
Not For Reproduction

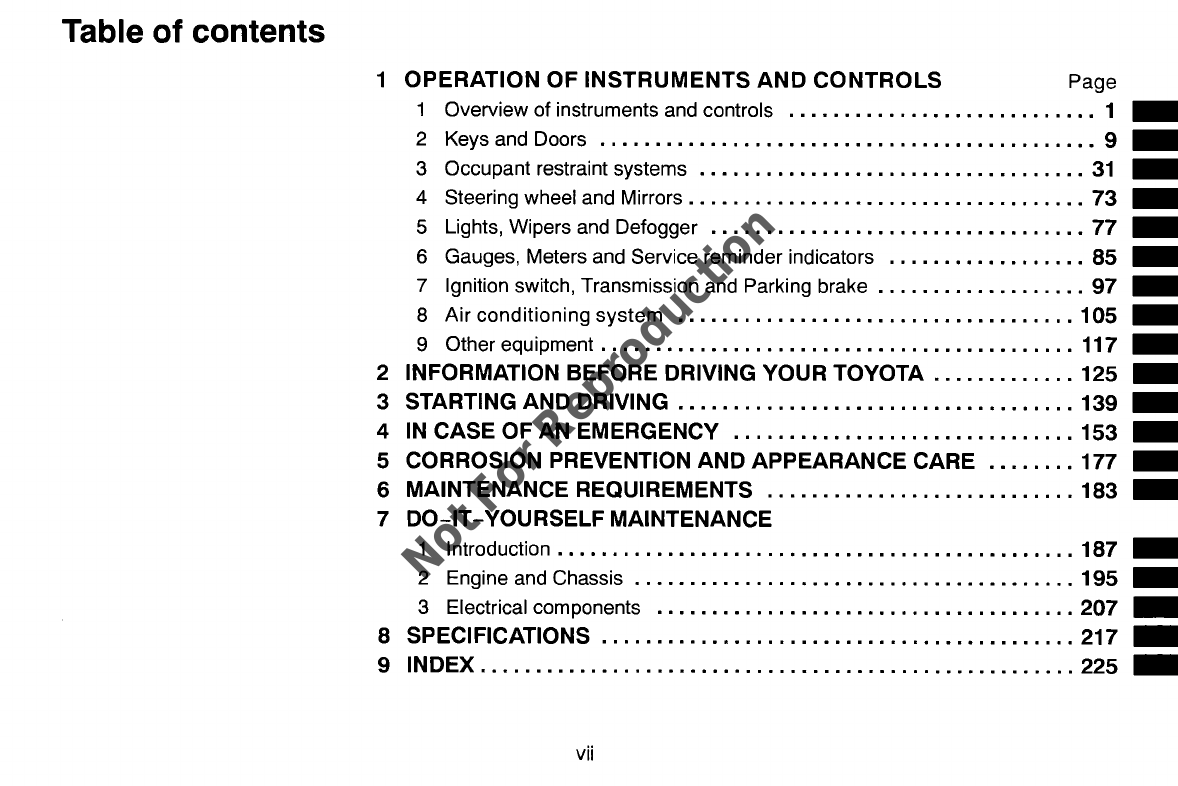

Table of contents
1OPERATION OF INSTRUMENTS AND CONTROLS Page
1Overview of instruments and controls ...•.....•.•.•........•..••• 1 _
2Keys and Doors •.•..........•..•.......•.....•.•••........•• 9 _
3Occupant restraint systems ..••..•••••.••••................... 31 _
4Steering wheel and Mirrors ...•....•..•...••..........•.••••... 73 _
5Lights, Wipers and Defogger .........•....•..•.......•.•.....• 77 _
6Gauges, Meters and Service reminder indicators ......••.•..••.... 85 _
7Ignition switch, Transmission and Parking brake ..........•........ 97 _
8 Air conditioning system ...................••............... 105 _
9Other equipment ...••.•...•....•.......•.•..........•.•.... 117 _
2INFORMATION BEFORE DRIVING YOUR TOYOTA 125 _
3STARTING AND DRIVING 139 _
4
IN CASE OF AN EMERGENCy 153 _
5CORROSION PREVENTION AND APPEARANCE CARE 177 _
6MAINTENANCE REQUIREMENTS 183 _
7
DO-lT-YOURSELF MAINTENANCE
1Introduction .••••......•.........••................•••••... 187 _
2Engine and Chassis ..•.•..........•..•••...••......•.•..... 195 _
3Electrical components .....•.•....•..••.....•....•..•....... 207 _
8SPECiFiCATIONS 217 _
9INDEX 225 _
vii
Not For Reproduction

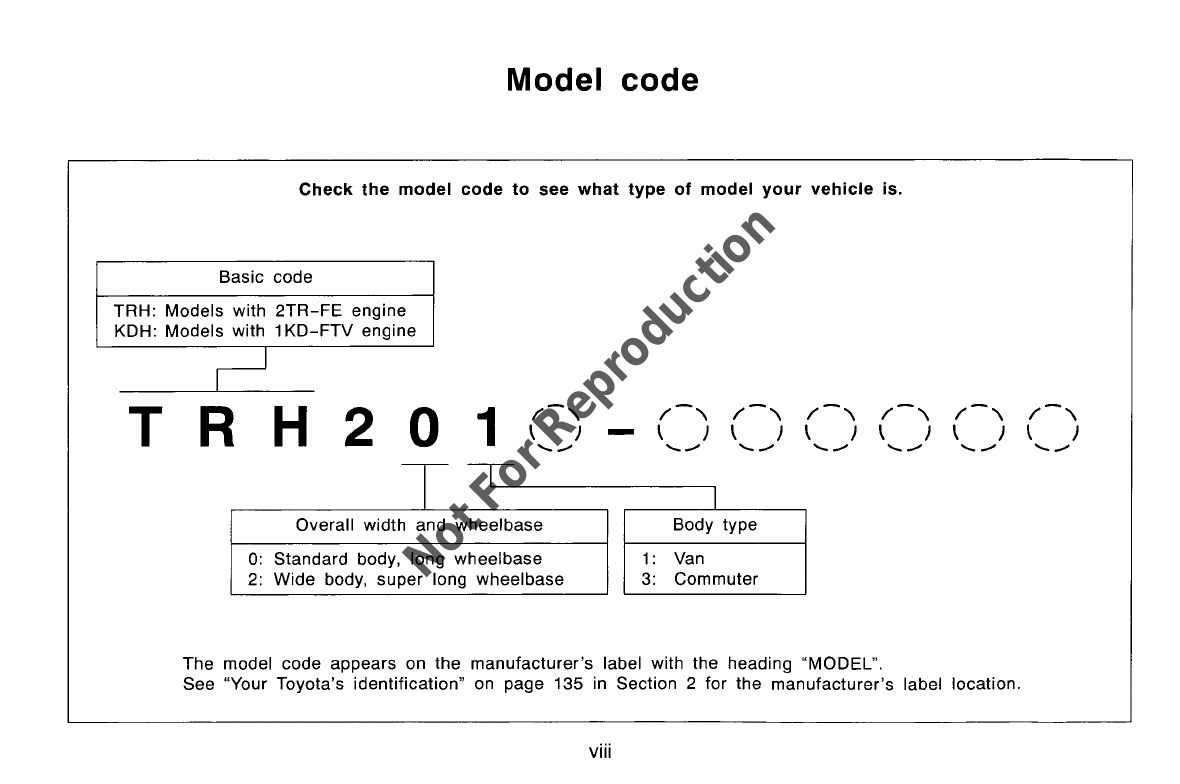

Model code
Check the model code to see what type of model your vehicle is.
Basic code
TRH: Models with
2TR-FE engine
KDH: Models with 1
KD-FTV engine
I' '\
\)
...........
I' '\
\)
...... .....
I' '\
\)
...... .....
I' '\
\)
...........
I' '\
\)
...... .....
I' '\
\)
...........
-
I' '\
\)
...........
Overall width and wheelbase
TRH201
T -r-L---------,I
Body type
0: Standard body, long wheelbase
2: Wide body, super long wheelbase
1: Van
3: Commuter
The model code appears on the manufacturer's label with the heading "MODEL".
See "Your Toyota's identification" on page 135 in Section 2for the manufacturer's label location.
viii
Not For Reproduction

SECTION 1-1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2
Instrument cluster overview 4
Indicator symbols on the instrument panel 6
-
Not For Reproduction

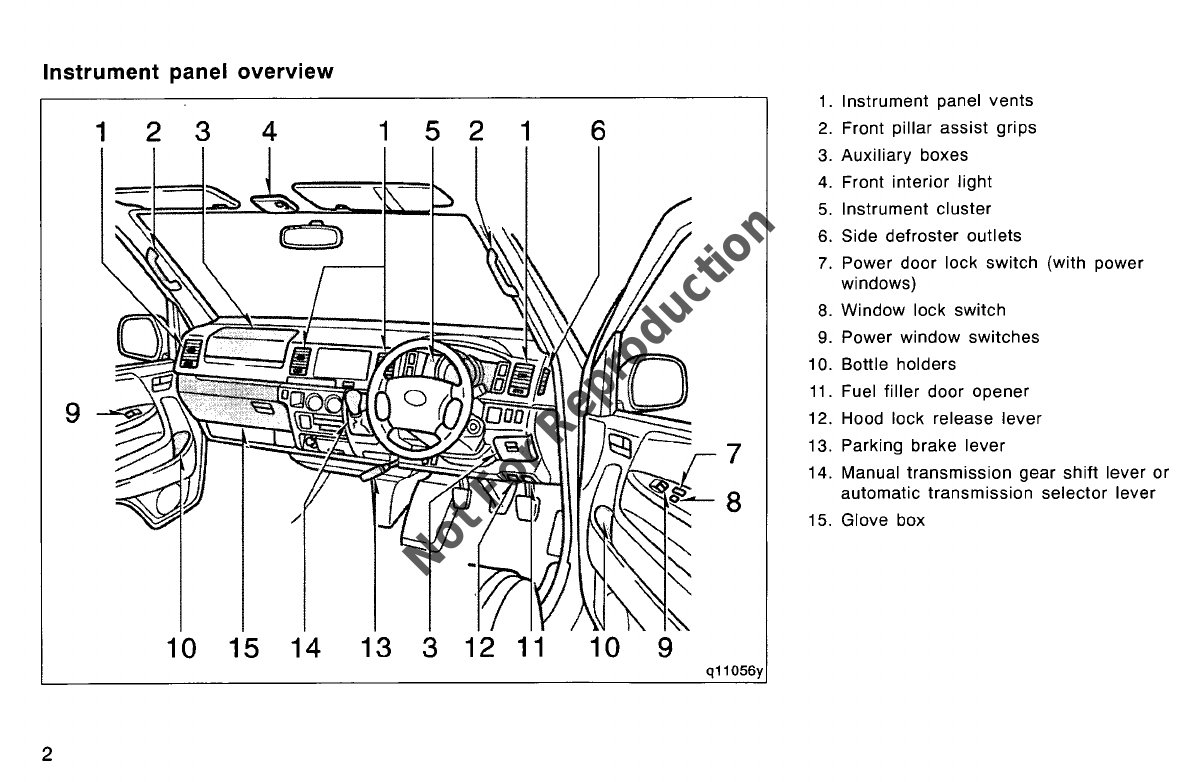

Instrument panel overview
13 312 11
1. Instrument panel vents
2. Front pillar assist grips
3. Auxiliary boxes
4. Front interior light
5. Instrument cluster
6. Side defroster outlets
7. Power door lock switch (with power
windows)
8. Window lock switch
9. Power window switches
10. Bottle holders
11. Fuel filler door opener
12. Hood lock release lever
13. Parking brake lever
14. Manual transmission gear shift lever or
automatic transmission selector lever
15. Glove box
615 2
3 4 1
~ sl <;;::==. ~1::-==1-
10 15 14
21
9
q11056y
2
Not For Reproduction

123
1. Cup holder
45 6 7
2. Emergency flasher switch
3. Rear interior light switch
4. Heater idle up switch
5. Wiper and washer switches
6. Headlight and turn signal switches
7. Rear fog light switch
8. Power door lock switch (without power
windows)
8
9. Power rear view mirror control switches
16 -10. Ignition switch
11. Tilt steering lock release lever
12. Rear window defogger switch
913. Air conditioning controls
14. Ashtray
15. Cigarette lighter
~
16. Rear heater main switch or rear cooler
main switch
15 14 13 12
11
10 q11053y
3
Not For Reproduction

Instrument cluster overview
~For Australia
1213
716541
q11065
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Fuel gauge
4
4. Odometer, two trip meters, meter light
control and clock adjust knob
5. Odometer, two trip meters, meter light
control display and clock
6. Clock adjust knob
7. Engine coolant temperature gauge
Not For Reproduction

~For New Zealand
1213
q11067
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Fuel gauge
4. Engine coolant temperature gauge
5. Odometer, two trip meters, meter light
control and clock adjust knob
6. Odometer, two trip meters, meter light
control display and clock
7. Clock adjust knob
8. Tachometer
5
Not For Reproduction

Indicator symbols on the instrument panel
(CD)
Brake system warning
light'
~
Driver's seat belt reminder light'
0Charging system warning
light'
e:e::t1
Low engine oil pressure warning light'
~
Low engine oil level warning light'
~
to
Malfunction indicator lamp'
il1
Low fuel level warning light'
~
Open door warning light'
6
(8)
Anti-lock brake system warning
light'
....
SRS warning light'
~
T-BELT Timing belt replacement warning
light'
i1
Fuel system warning light'
1::::1
~
Engine immobilizer system indicator light
::00:: Tail light indicator light
, ....
=D Headlight high beam indicator light
~~
Turn signal indicator lights
Not For Reproduction

PRND
32L
Automatic transmission indicator lights
Engine preheating indicator light
The indicators marked with •are service reminder indicators.
For details, see "Service reminder indicators and warning buzz-
ers" on page 89 in Section
1-6.
7
Not For Reproduction

8
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
I
Not For Reproduction

SECTION 1-2
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10
Engine immobilizer system 12
Wireless remote control 13
Side doors 17
Power windows
21
Rear side windows 23
Back door 24
Hood 25
Engine access hole cover 26
Sub battery access hole cover 27
Fuel tank cap 28
-
9
Not For Reproduction

Keys
1
Type A
1
Type B
10
q12108
2
q12115
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)-
These keys work in every lock. Your
Toyota dealer will need one of them
to
make anew key with a built-in trans-
ponder chip.
Type B
only-These keys are fitted
with the wireless remote control trans-
mitter. For information on use of the
wireless remote control transmitter, see
"Wireless remote control" on page 13
in this Section.
2. Sub key (gray)-
This key also works in every lock.
Since the side doors and back door can
be locked without akey, you should al-
ways carry aspare key in case you acci-
dentally lock your keys inside the vehicle.
Atransponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system
to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Not For Reproduction

q12109
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
•When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
q12110
•When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip .
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
q12111
I. Do not bend the key grip .
11
Not For Reproduction
