Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle we
build.
This Owner’s Manual explains the operation of your new Toyota. Please read
it thoroughly and have all the occupants follow the instructions carefully.
Doing so will help you enjoy many years of safe and trouble−free motoring.
For important information about this manual and your Toyota, read the follow-
ing pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle
very well and is interested in your complete satisfaction. Your Toyota dealer will
provide quality maintenance and any other assistance you may require.
Please leave this Owner’s Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of printing.
However, because of Toyota’s policy of continual product improvement, we reserve
the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
 2004 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of Toyota Motor Corporation.
HILUX (Argentina) OM99908E 04/10/06

ii
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to reduce the risk of injury to yourself and
others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.
HILUX (Argentina) OM99908E 04/10/06

iii
Important information about your Toyota
Fuel and fuel filter
(diesel engine)
The fuel filter for a diesel engine does not need to be
replaced periodically.
NOTICE
For long life performance of your vehicle, please
follow these instructions:
zOnly fill your fuel tank at a standard station.
zIf the fuel system warning light comes on, have
your vehicle checked and the warning light reset
by your Toyota dealer as soon as possible.
zThe fuel filter should only be replaced at your
Toyota dealer to prevent the mixing of fuel with
foreign material and impurities.
Occupant restraint systems
Toyota encourages you and your family to take the time
to read Section 1−3 of this Owner’s Manual carefully. In
terms of helping you understand how you can receive
the maximum benefit of the occupant restraint systems
this vehicle provides, Section 1−3 of this Owner’s Manu-
al is the most important section for you and your family
to read.
Section 1−3 describes the function and operation con-
cerning seats, seat belts, SRS airbags and child re-
straint systems of this vehicle and some potential haz-
ards you should be aware of. These systems work to-
gether along with the overall structure of this vehicle in
order to provide occupant restraint in the event of a
crash. The effect of each system is enhanced when it is
used properly and together with other systems. No
single occupant restraint system can, by itself, provide
you or your family with the equal level of restraint
which these systems can provide when used together.
That is why it is important for you and your family to
understand the purpose and proper use of each of these
systems and how they relate to each other.
HILUX (Argentina) OM99908E 04/10/06

iv
The purpose of all occupant restraint systems is to help
reduce the possibility of death or serious injury in the
event of a collision. None of these systems, either indi-
vidually or together, can ensure that there is no injury
in the event of collision. However, the more you know
about these systems and how to use them properly, the
greater your chances become of surviving an accident
without death or serious injury.
Seat belts provide the primary restraint to all occupants
of the vehicle, and every occupant of the vehicle should
wear seat belts properly at all times. Children should
always be secured in child restraint systems that are
appropriate for their age and size. SRS (Supplemental
Restraint System) airbags are, as their names imply,
designed to work with, and be supplemental to, seat
belts and are not substitutes for them. SRS airbags can
be very effective in reducing the risk of head and chest
injuries by preventing contact of the head and chest
with interior portions of the vehicle.
In order to be effective, the SRS airbags must deploy
with tremendous speed. The rapid deployment of the
SRS airbags makes the SRS airbags themselves poten-
tial sources of serious injury if an occupant is too close
to an airbag, or if an object or some part of his or her
body has been placed between the occupant and the
airbag at the time of deployment. This is just one exam-
ple of how the instructions in Section 1−3ofthisOwn-
er’s Manual will help ensure proper use of the occupant
restraint systems, and increase the safety they can pro-
vide to you and your family in the event of an accident.
Toyota recommends you to read the provisions in Sec-
tion 1−3 carefully and refer to them as needed during
your time of ownership of this vehicle.
HILUX (Argentina) OM99908E 04/10/06

v
Accessories, spare parts and
modification of your Toyota
A wide variety of non−genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
Using these spare parts and accessories which are not
genuine Toyota products may adversely affect the safety of
your vehicle, even though these parts may be approved by
certain authorities in your country. Toyota therefore cannot
accept any liability or guarantee spare parts and accesso-
ries which are not genuine Toyota products, nor for re-
placement or installation involving such parts.
This vehicle should not be modified with non−genuine
Toyota products. Modification with non−genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.
Installation of a mobile
two−way radio system
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, electronically controlled fuel pump,
electronic engine control system, cruise control system,
anti−lock brake system and SRS airbag system, be sure
to check with your Toyota dealer for precautionary mea-
sures or special instructions regarding installation.
HILUX (Argentina) OM99908E 04/10/06

vi
Scrapping of your Toyota
The SRS airbag device in your Toyota contains explo-
sive chemicals. If the vehicle is scrapped with the air-
bags left as it is, this may cause an accident such as
fire. Be sure to have the SRS airbag system removed
and disposed of by a qualified service shop or by your
Toyota dealer before you scrap your vehicle.
On−pavement and off−road
driving tips
This vehicle will handle and maneuver differently from
an ordinary passenger car because it is designed for
off−road use also. It has a significantly higher rollover
rate than other types of vehicles. In addition, this ve-
hicle has a higher ground clearance and center of gravi-
ty than that of an ordinary passenger car. This vehicle
design feature causes this type of vehicle to be more
likely to rollover. Failure to operate this vehicle correctly
may result in loss of control, accidents or vehicle rol-
lover causing death or serious injury. Be sure to read
“Off−road vehicle precautions” on page 148 and “Off−
road driving precautions” on page 169.
HILUX (Argentina) OM99908E 04/10/06

vii
Model code
KUN26L−PPS
Check the model code to see what type of model your vehicle is.
The model code appears on the manufacturer’s plate with the heading “MODEL”.
See “Your Toyota’s identification” on page 159 for the manufacturer’s plate location.
Engine type
TGN: Models with gasoline engine
KUN: Models with diesel engine
Driving system
25, 26: Four−wheel drive models
35, 36: Pre Runner (two−wheel drive models)
Grade
S: SR
D: DLX
Transmission type
P: Automatic transmission
M: Manual transmission
Cab type
T: Single−cab
P: Double−cab
HILUX (Argentina) OM99908E 04/10/06

1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2....................................
Instrument cluster overview 4...................................
Indicator symbols on the instrument panel 5......................
HILUX (Argentina) OM99908E 04/10/06
SECTION 1 − 1

2
1. Side vent 136.......................
2. Instrument cluster 4.................
3. Center vents 136....................
4. Auxiliary box
∗
141...................
5. Personal lights
∗
74..................
6. Upper glove box
∗
141...............
7. Cup holders
∗
142....................
8. Lower glove box 141................
9. Power window switches
∗
20.........
10. Four−wheel drive control lever 96....
11. Bottle holder 144....................
12. Automatic transmission selector
lever or manual transmission
gear shift lever 91, 94..............
13. Parking brake lever 98..............
14. Hood lock release lever 23.........
15. Fuel filler door opener
∗
27...........
16. Window lock switch
∗
20.............
17. Power door lock switch
∗
18..........
18. Cup holder 142.....................
∗
: If equipped
HILUX (Argentina) OM99908E 04/10/06
Instrument panel overview
"View A

3

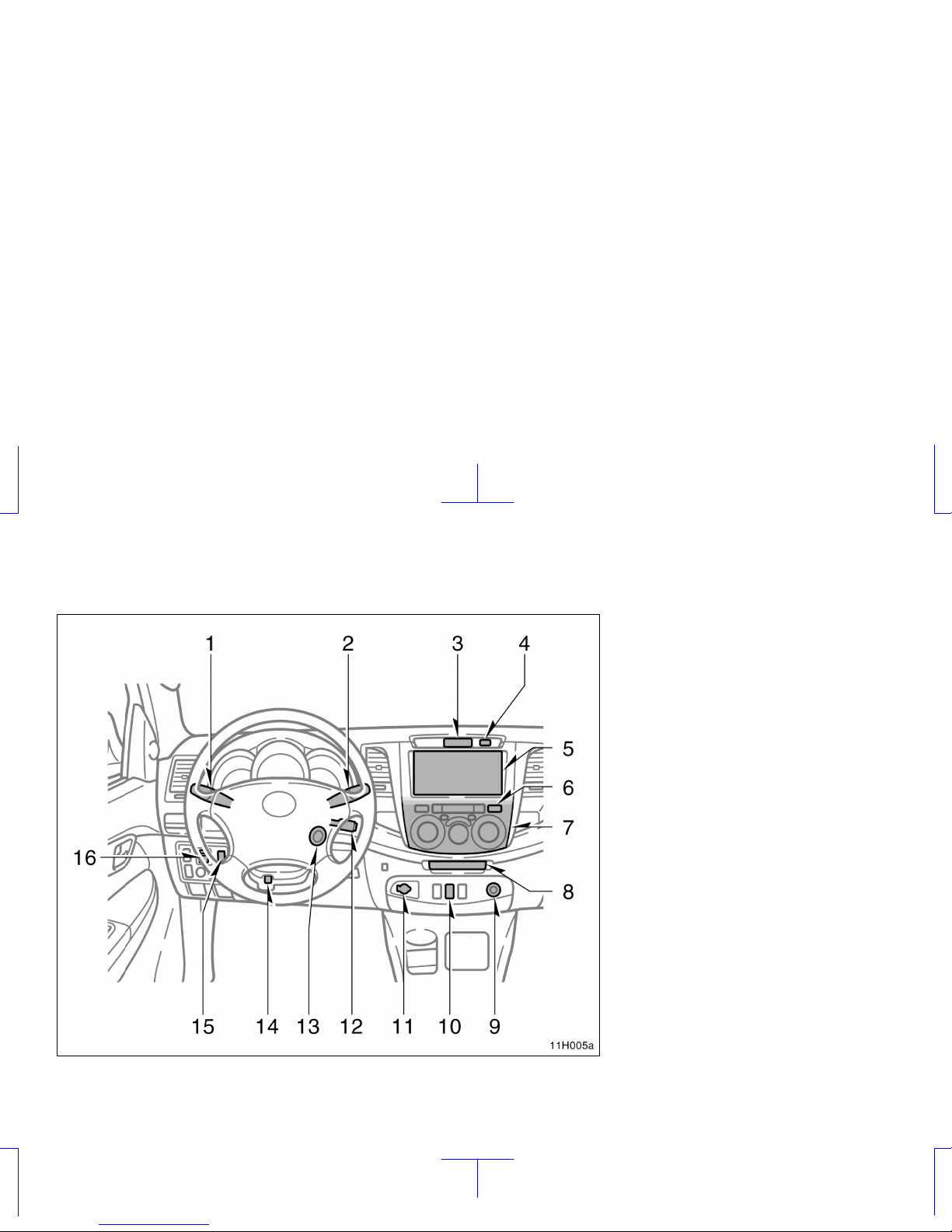

1. Headlight and turn
signal switches 72..................
2. Wiper and washer switches 75......
3. Clock 138...........................
4. Front passenger’s seat belt
reminder light
∗
80...................
5. Audio system 104...................
6. Emergency flasher switch 73........
7. Air conditioning controls 130.........
8. Ashtray 138.........................
9. Cigarette lighter 138.................
10. Rear window defogger switch
∗
75....
11. Power outlet
∗
140...................
12. Cruise control switch
∗
99............
13. Ignition switch 90...................
14. Tilt steering lock release lever 68....
15. Engine immobilizer system/
theft deterrent system
indicator light
∗
11/24................
16. Power rear view mirror
control switches
∗
69.................
∗
: If equipped
HILUX (Argentina) OM99908E 04/10/06
"View B
11h005a

4
11h006
1. Tachometer 79......................
2. Speedometer
3. Service reminder indicators
and indicator lights 80...............
4. Engine coolant temperature
gauge 78...........................
5. Fuel gauge 78......................
6. Trip meter reset knob 79............
7. Odometer and two trip meters 79....
HILUX (Argentina) OM99908E 04/10/06
Instrument cluster overview

5
Brake system warning light
∗
1
Front passenger’s seat belt reminder light
∗
1
(some models)
Discharge warning light
∗
1
Low engine oil pressure warning light
∗
1
Automatic transmission fluid temperature warn-
ing light
∗
1
(some models)
Unengaged “Park” warning light
∗
1
(some models)
Seat belt reminder light
∗
1
(some models)
Low fuel level warning light
∗
1
Anti−lock brake system warning light
∗
1
(some models)
Open door warning light
∗
1
SRS warning light
∗
1
(some models)
Timing belt replacement warning light
∗
1
(diesel engine)
Headlight high beam indicator light
Turn signal indicator lights
Malfunction indicator lamp
∗
1
Fuel system warning light
∗
1
(diesel engine)
HILUX (Argentina) OM99908E 04/10/06
Indicator symbols on the instrument panel

6
∗
1
: For details, see “Service reminder indicators and warning
buzzers” on page 80.
∗
2
: If this light flashes, see “Cruise control” on page 99.
Cruise control indicator light
∗
2
(some models)
Front fog light indicator light (some models)
Four−wheel drive indicator light (some models)
Engine preheating indicator light (diesel engine)
HILUX (Argentina) OM99908E 04/10/06

137
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock 138.....................................................
Cigarette lighter and ashtrays 138...............................
Power outlet 140...............................................
Rear console box 140..........................................
Glove boxes 141...............................................
Auxiliary box 141...............................................
Cup holders 142...............................................
Bottle holders 144..............................................
Floor mat 145..................................................
HILUX (Argentina) OM99908E 04/10/06
SECTION 1 − 10

138
18h001

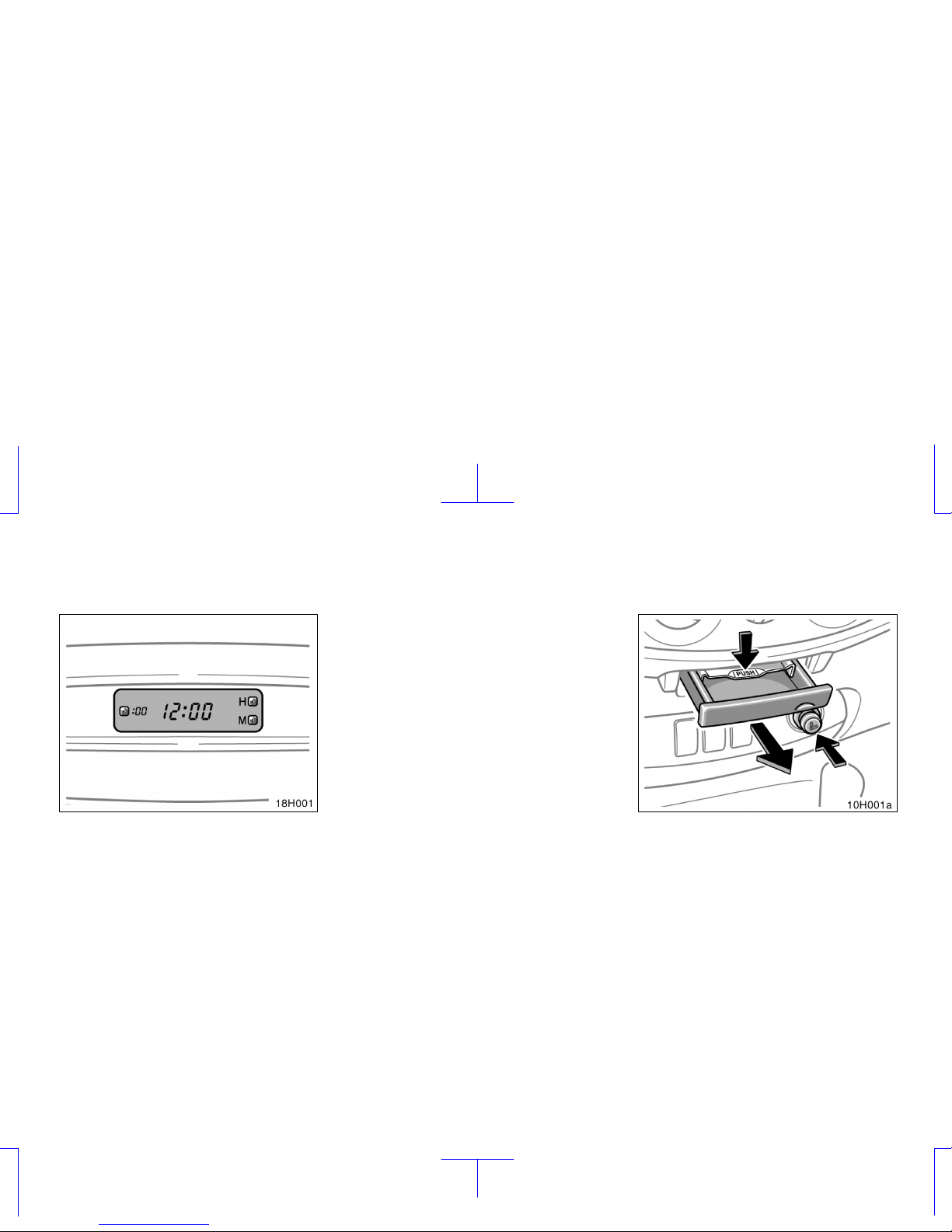

To set the hour: Push the “H” button.
To set the minutes: Push the “M” button.
The time can also be set by pushing the
“H” or “M” button continuously.
The key must be in the “ACC” or “ON”
position.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00.
When the instrument panel lights are
turned on, the brightness of the time indi-
cation will be reduced.
10h001a
Cigarette lighter and front ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
HILUX (Argentina) OM99908E 04/10/06
Clock Cigarette lighter and ashtrays

139
FRONT ASHTRAY
To use the ashtray, pull it out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always close the ash-
tray completely after use.
10H015
Portable ashtray
PORTABLE ASHTRAY (some models)
To use the portable ashtray, open the
lid.
The ashtray should be used in the bottle
holders of the rear seat.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, pull it out of a
bottle holder.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always close the ash-
tray completely after use.
HILUX (Argentina) OM99908E 04/10/06

140
10h002
The power outlet is designed for power
supply for car accessories. To use it,
open as shown.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
zTo prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
zTo prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
zClose the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
10h003
To use the rear console box, open as
shown in the illustration.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop,
always keep the console box closed
while driving.
NOTICE
Take care when placing sharp−edged
objects in the rear console box, as
they may scratch or damage the inner
surface of the compartment.
HILUX (Argentina) OM99908E 04/10/06
Power outlet
(some models)
Rear console box
(some models)

141
10h004
Upper glove box (some models)
10h005a
Lower glove box
To use the upper glove box:
Push anywhere on the labelled “PUSH”.
To use the lower glove box:
Open by pulling the lever.
Lock by inserting the master key and turn-
ing it clockwise.
Unlock by inserting the master key and
turning it counterclockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
NOTICE
Take care when placing sharp−edged
objects in the glove box, as they may
scratch or damage the inner surface
of the compartment.
10h006
To use the auxiliary box, open as
shown in the illustration.
CAUTION
D To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
D As this box is designed for holding
light objects such as eyeglasses, do
not place any heavy objects in it.
Heavy objects may cause the box to
open and the contents to fly out
resulting in injuries.
HILUX (Argentina) OM99908E 04/10/06
Glove boxes
Auxiliary box
(some models)

142
NOTICE
zIn hot weather, the inside of the
vehicle ceiling becomes very hot.
Do not leave anything flammable or
deformable such as a lighter,
glasses, etc. inside.
zTake care when placing sharp−
edged objects in the auxiliary box,
as they may scratch or damage the
inner surface of the compartment.
10h007
The cup holder is designed for holding
cups, drink−cans or bottles securely.
To use the cup holder, pull it out.
CAUTION
D Do not put bottles in the cup hold-
er while driving. Doing so may
block the driver’s view.
D Do not place anything else other
than cups or drink−cans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
D To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
HILUX (Argentina) OM99908E 04/10/06
Cup holder
(instrument panel)

143
Front (some models)
10h010
Type A
10h011
Type B
10h013
Type C
The cup holder is designed for holding
cups, drink−cans or bottles securely.
Your vehicle is equipped with several
types of cup holders. To use them, ob-
serve the above illustrations.
CAUTION
D Do not put bottles in the cup hold-
ers while driving. Doing so may ob-
struct use of other functions.
D Do not place anything else other
than cups or drink−cans in the cup
holders, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
HILUX (Argentina) OM99908E 04/10/06
Cup holder (console box)
