Table of Contents
Accessing your vehicle 2
Rear door child protection lock 3
Child restraint system 3
Seat and seat belt adjustment 4
Steering wheel adjustment 5
Instrument panel overview 6
Functions overview 7
Dashboard instruments 8
Instrument Cluster 8 - 9
Lights 9
Wipers 10
Electric windows and windows lock 11
Starting your vehicle 11
Heating, A/C and de-misting 12
Set up display to access clock setting 13

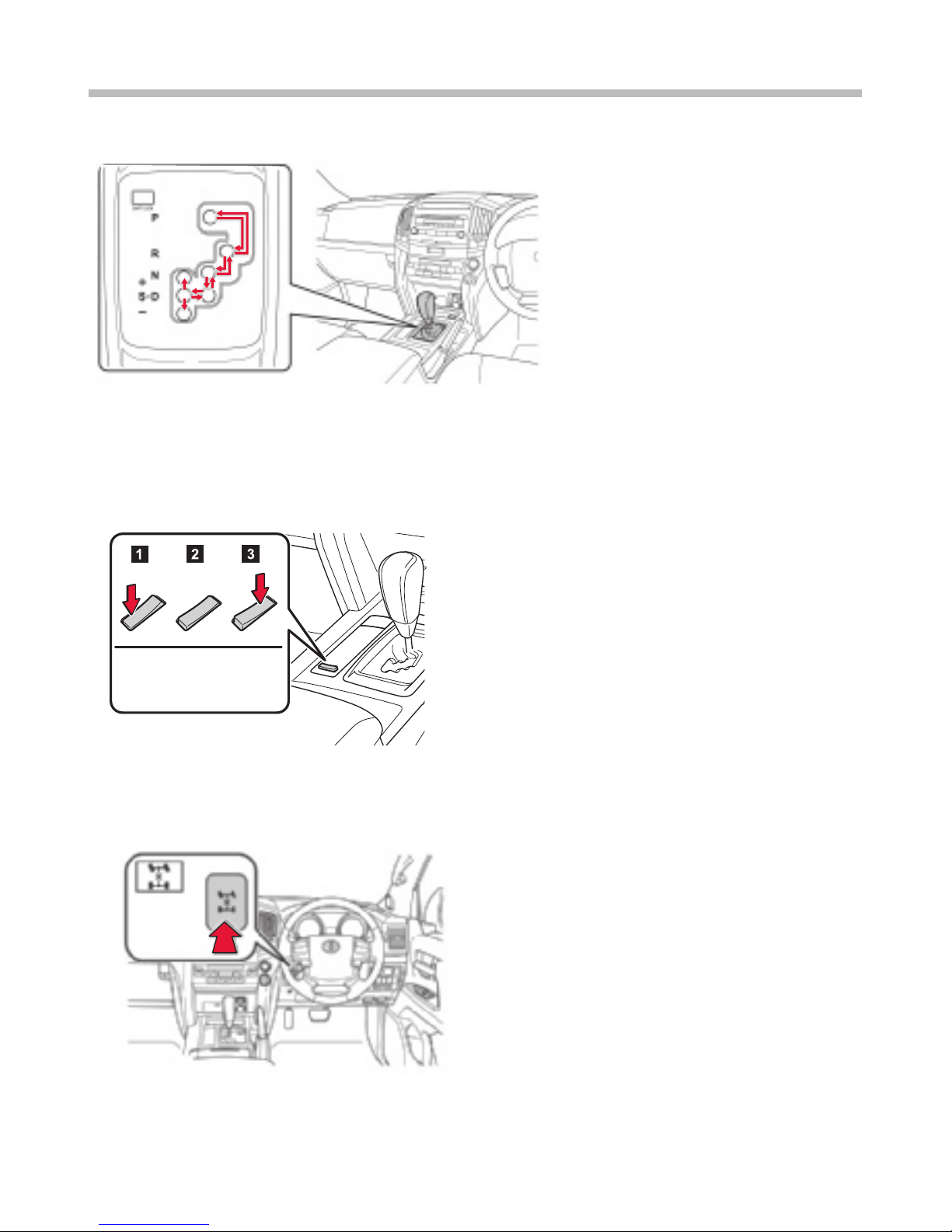

Gear change 14

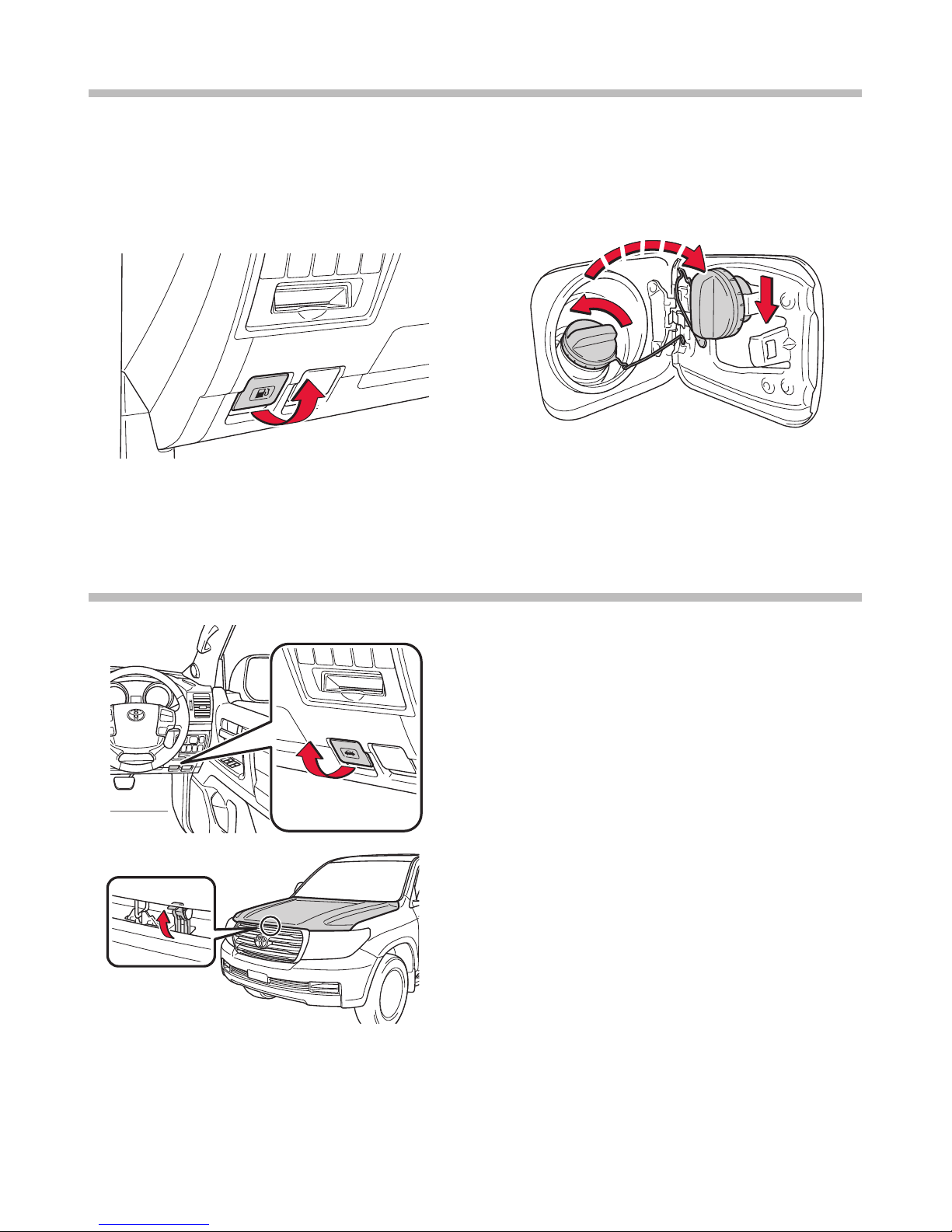

Fuel tank opening 15
Bonnet opening 15
Eco-Driving 16
Introducing Land Cruiser V8
Thank you for buying a Land Cruiser V8. We trust this Brief Guide will enable you to become
familiar with your vehicle’s basic operations and assist you in enjoying your vehicle.
This brief guide does not replace or substitute the Owner’s Manual, which you will find in the
vehicle’s glove compartment. It is important that you review the full Owner’s Manual as well as
any further supplementary manuals as this will allow you to familiarise yourself with the
operating and safety instructions and to handle the vehicle within its limitations.
Please do read all documents in your pack as this will ensure you get maximum performance
from your car and learn about related services offered.
Your Centre and everyone at Toyota wish you many years of enjoyable driving in your
new Land Cruiser V8.
NB: All information contained in this brief guide are current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

2
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Smart entry & Start system
The following operations can be performed simply by carrying the electronic key on your person.
(The driver should always carry the electronic key.)
The Mechanical Key is stored within the
Electronic Key
Accessing your vehicle
1. Electronic keys
- Operate smart entry & start system.
- Operate the wireless remote control function.
2. Mechanical keys.
3. Key number plate.
1. Locks and unlocks the doors.
2. Locks and unlocks the doors.
3. Start and stop the engine.

3
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH

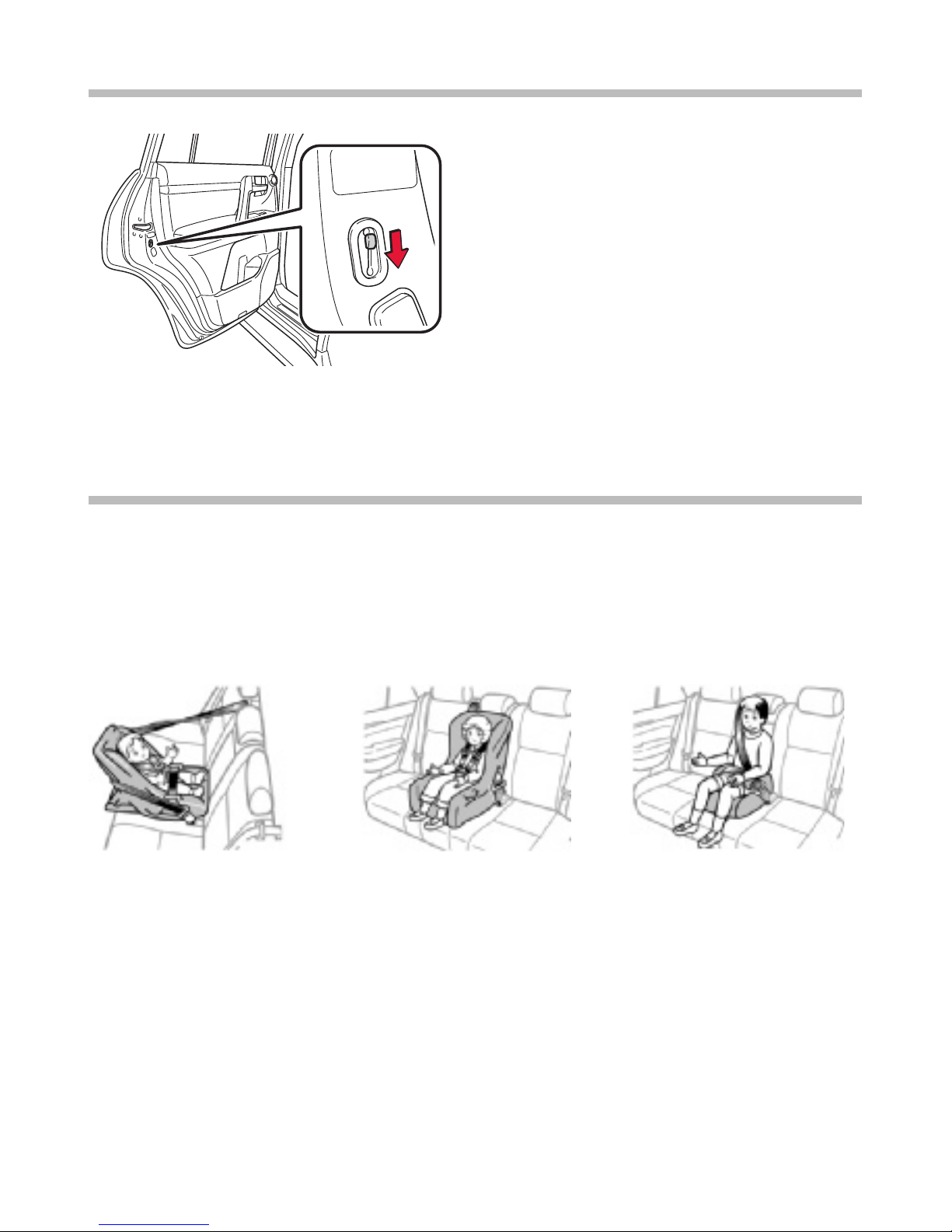

Rear door child protection lock
The door cannot be opened from inside the vehicle
when the locks are set.
These locks can be set to prevent children from
opening the rear doors. Push down the rear door
switches to lock the rear doors.
Child restraint system
Child restraint systems are classified into the following 5 groups according to the regulation ECE No. 44:
Group 0: Up to 10 kg or 22lbs (0-9 months)
Group I: 9-18 kg or 20-40lbs (9 months-4 years)
Group III: 22-36 kg or 48-79lbs(6 years-12 years)
Group 0+: Up to 13 kg or 29lbs (0-2 years)
Group II: 15-25 kg or 33-55lbs (4 years -7 years)
(A) Baby seat
equal to Group 0 and 0+
of ECE No. 44
(B) Child seat
equal to Group 0+, I and II
of ECE No. 44
(C) Junior seat
equal to Group III
of ECE No. 44

4
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Seat and seat belt adjustment
1
2
3
4
5
3
4
5
1
2
Manual seat
1. Seat position
adjustment .
2. Seat back angle
adjustment .
3. Vertical height
adjustment.*
4. Seat cushion angle
adjustment knob.*
5. Lumbar support
control*
*: Driver's side only
Power seat
1. Seat position fore/aft
control.
2. Seat back angle
control.
3. Seat cushion (front)
angle control.
4. Vertical height
control switch.
5. Lumbar support
control (driver's side
only).
Head restraint height adjustment
Pull to move
upwards.
Press and hold
lock release to
lower.
Angle adjustment .
The centre of the head
restraint should be level
with the top of the ears
For reasons of safety your vehicle is fitted
with active head restraints
Under no circumstances should any
accessories be attached to these
(e.g. portable DVD players, etc).
Seat belts
1. To fasten the seat belt push the
tab into the buckle until it clicks.
2. Press the release button to
unfasten the seat belt.
Adjust the height up (1) and down (2) as
required.
2
1
Lock release

5
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Steering wheel adjustment
To change the angle
Manual tilt & telescopic steering
Auto tilt away ( vehicles with power tilt &
telescopic steering wheel)
Steering wheel must not be adjusted while the
vehicle is in motion.
1. Tilt up
2. Tilt down
3. Move/extend towards driver
4. Move/retract away from the driver
Power tilt & telescopic steering wheel
1. Hold the steering wheel and pull the lock release
lever towards you.
2. Tilt the steering wheel to the desired angle and
release the lever.
When the "ENGINE START STOP" switch is turned OFF,
the steering wheel returns to its stowed position by
moving up and away to enable easier driver entry and
exit.
Switching to the ACCESSORY / IGNITION mode will
return the steering wheel to its original position.
To change the column length
1. Hold the steering wheel and push down the lock
release lever.
2. Set the steering wheel to the desired length and
return the lever to its original position.

6
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Instrument panel overview
A. Functions overview (page 7)
B. Dashboard instruments (page 8).
Headlight switch
Indicator lever
Fog light switch
Multi-information display
Windshield wipers and
washer switch
Rear window wiper and
washer switch
Cup holders
SRS knee airbags
Fuel filler door opener
Gauges and meters
Bonnet opener
Audio remote controls

7
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH

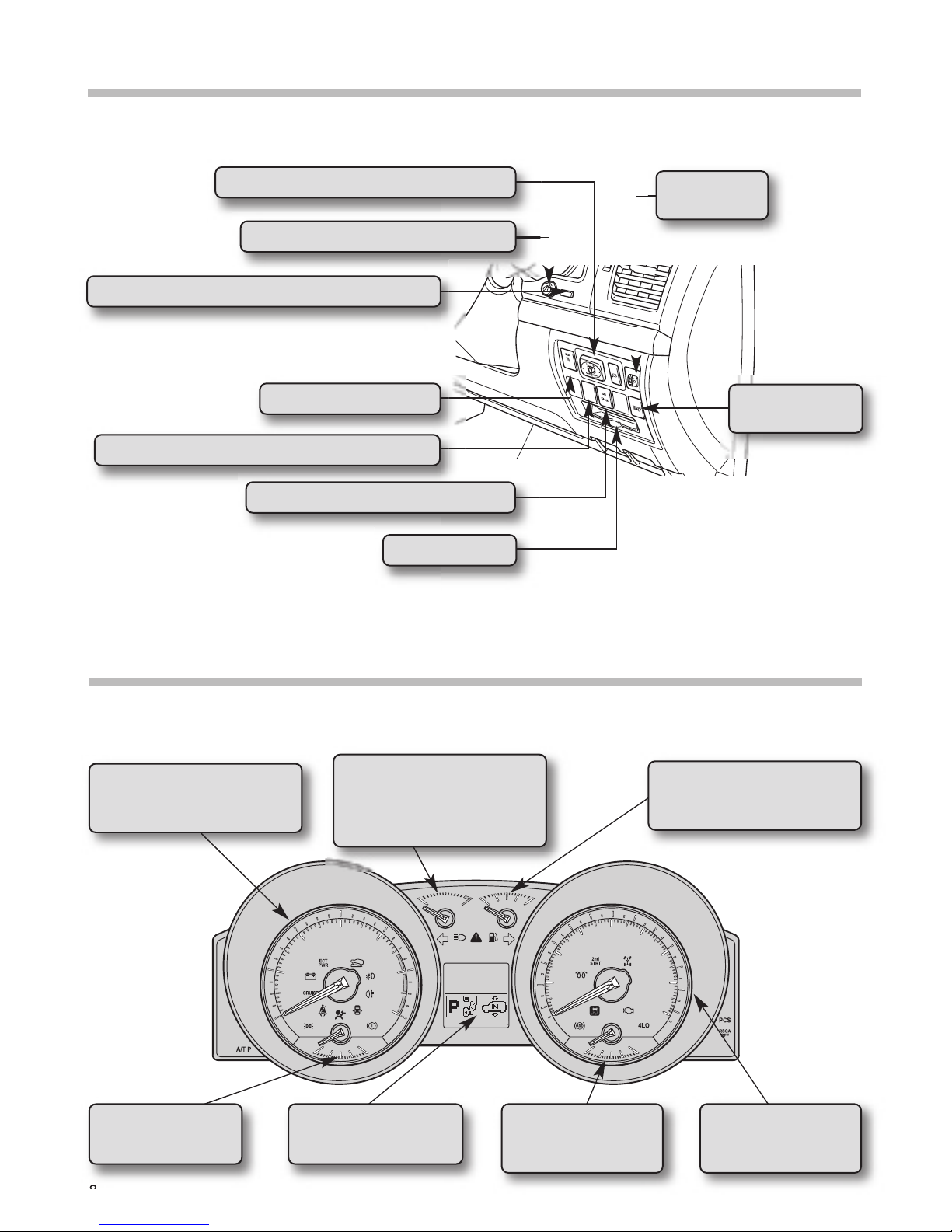

Area A indicated on instrument panel overview (page 6).
With navigation system
Without navigation system
Functions overview
Clock Outside temperature display
Airbag manual on-off
indicator
Security indicator light
Navigation system
Air conditioning system
Front passenger’s seat
belt reminder light
Hazard lights
switch
Rear window
demister switch
Audio system*
Clock
Airbag manual
on-off indicator
Front passenger’s seat
belt reminder light
Security indicator light
Audio system*
Outside
temperature
display
Air conditioning system
Hazard lights
switch
Rear air conditioning
control switch
Windshield wiper
de-icer switch
Rear window
defogger switch

8
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Instrument cluster
The following gauges, meters and displays illuminate when the ‘‘ENGINE START STOP’’ switch is in the IGNITION
ON mode.
ODO/TRIP
RSCA
OFF
PWR
HEAT
Dashboard instruments
Area B indicated on instrument panel overview (page 6).
* On some models
Headlight
leveling dial*
Outside rear view mirror control switches
Instrument cluster light control knob
Odometer/trip meter and trip meter reset button
Power heater switch*
Roll sensing of curtain shield airbags off switch
Toyota parking assist-sensor switch*
Headlight
cleaner switch*
Card holder
Tachometer
Displays the engine speed in
revolutions per minute.
Engine coolant
temperature gauge
Displays the engine coolant
temperature.
Multi-information
display
Voltmeter
Displays the charge
state.
Speedometer
Displays the vehicle
speed.
Fuel gauge
Displays the quantity of fuel
remaining in the tank.
Engine oil
pressure gauge

9
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH

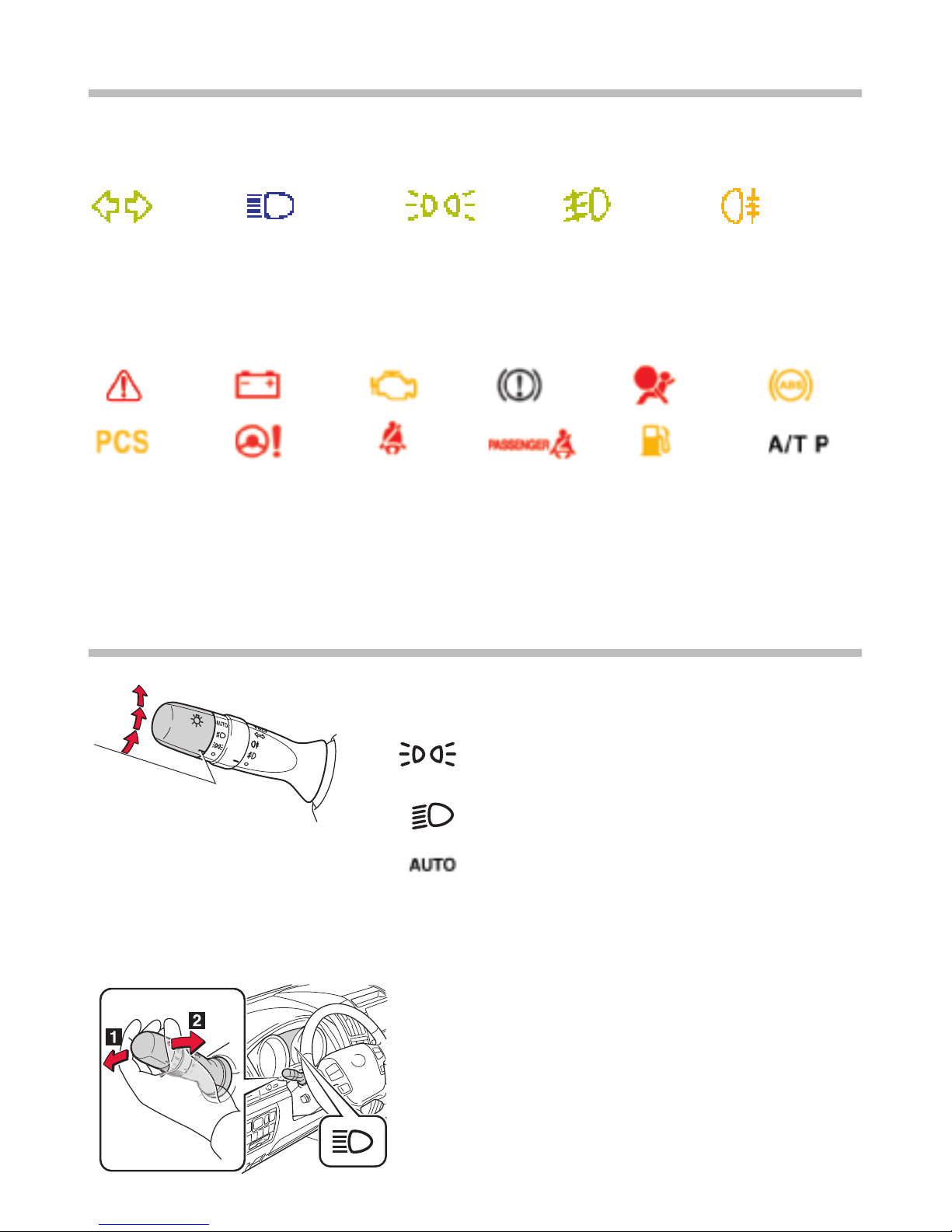

Warning lights
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
These lights turn on when the ‘‘ENGINE START STOP’’ switch is turned to the IGNITION ON mode. They will turn
off after the engine is started.
There may be a malfunction if a light does not come on, or if the lights do not turn off. Have the vehicle inspected
by your Toyota dealer.
Turn signal
indicator
Headlight
high beam
Tail light
indicator
Front fog light
indicator
Rear fog
light indicator
Indicators
The indicators inform the driver of the operating state of the vehicle’s main systems.
Lights
The headlights can be operated manually
or automatically
The front position, tail, license plate and instrument
panel lights turn on.
The headlights and all lights listed above turn on,
normal driving
The headlights and all lights listed above turn on and
off automatically.
(When the engine is in the ‘‘IGNITION ON’’ position)
Turning on the high beam headlights
1. With the headlights on, push the lever away to
turn on the high beams.
Pull the lever back to the centre position to turn
the high beams off.
2. You can flash the high beams with the headlights
on or off by pulling the lever towards you, and
releasing it to turn them off.
Instrument cluster

10
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Wipers

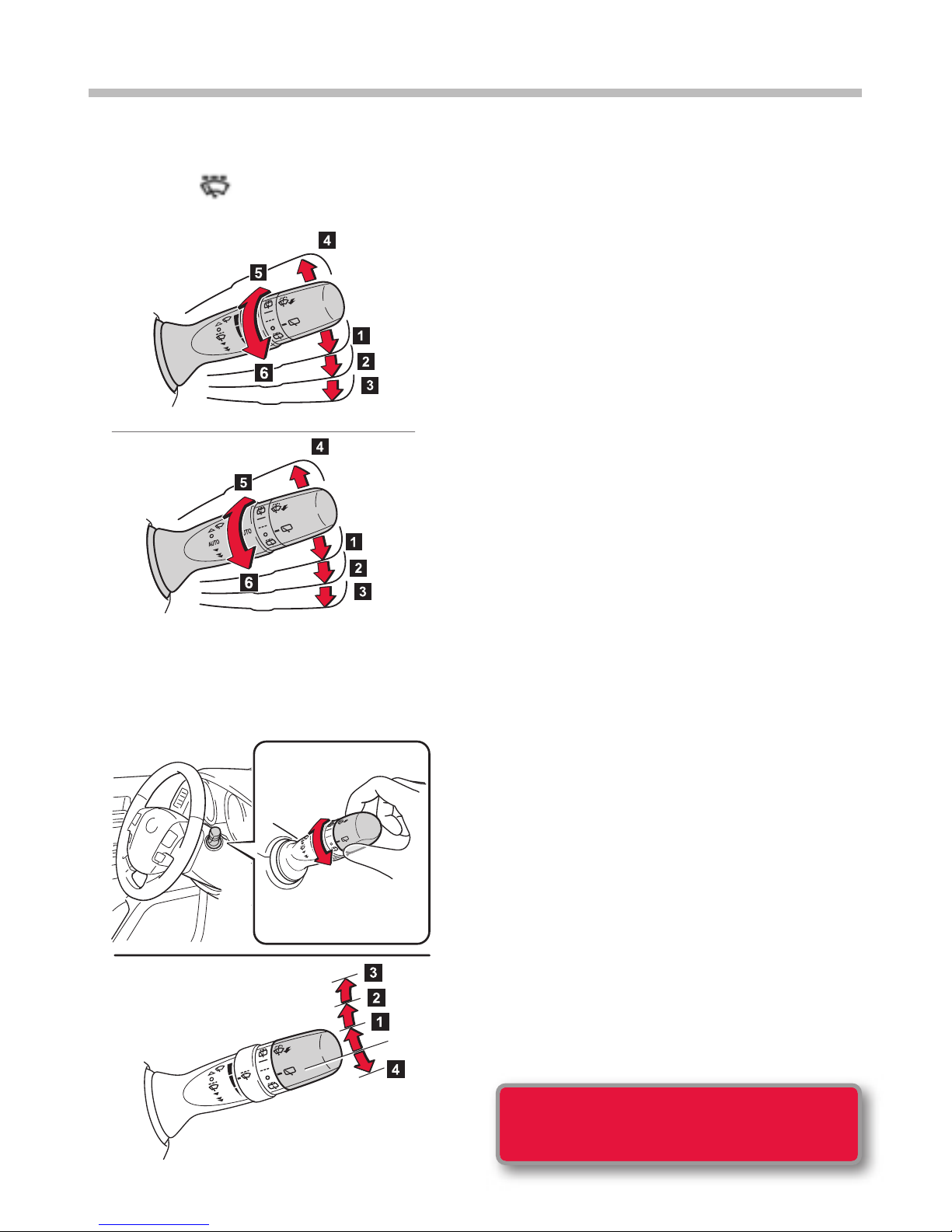

1. Intermittent wiper operation.
2. Low speed wiper operation.
3. High speed wiper operation.
4. Temporary operation.
5. Increase intermittent frequency.
6 Decrease intermittent frequency.
Wiper with interval adjuster
Wiper interval can be adjusted for intermittent
operation when is selected).
The rear window wiper and washer can be operated
when the ‘‘ENGINE START STOP’’ switch is in the
IGNITION ON mode.
Rear window wiper and washer
1. Intermittent window wiper operation
2. Normal window wiper operation
3. Washer/wiper dual operation
4. Washer operation
Wiper with rain-sensing function (AUTO)
With ‘‘AUTO’’ selected, the wiper will operate
automatically when detecting rain and adjust timing
according to rain volume.
1. Rain-sensing wiper operation.
2. Low speed wiper operation.
3. High speed wiper operation.
4. Temporary operation.
5. Sensor sensitivity (high).
6. Sensor sensitivity (low).
When the rear window is dry
Do not use the wipers, as they may damage the
rear window.

11
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Electric windows and windows lock
The electric windows can be opened and closed as follows:
1. Closing
2. One-touch closing*
3. Opening
4. One-touch opening*
Pressing the switch
locks the passenger
windows preventing
accidental opening
or closing.
Keep fingers away from moving windows
*To stop the window, press
the switch lightly in the opposite
direction
Starting your vehicle
While carrying the electronic key on your person, the
following operations start the engine or changes
"ENGINE START STOP" switch mode.
Starting the engine
1. Check that the parking brake is set.
2. Check that the shift lever is set in “P”.
3. Firmly depress the brake pedal.
The "ENGINE START STOP" switch indicator turns
green.
Press the "ENGINE START STOP" switch.
Continue depressing the brake pedal until the engine
is completely started.
NB For diesel vehicles:
The engine should not be started until
the indicator light goes out.
“ENGINE START STOP” switch mode
Modes can be changed by pressing the "ENGINE START STOP" switch with the brake pedal released.
1. OFF
2. ACCESSORY mode
3. IGNITION ON mode

DUAL
12
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Heating, A/C and de-misting
Front air conditioning system
With navigation system : Please refer to your Navigation System Owner's manual.
Without navigation system :
With rear air conditioning system
A. Vehicles with windshield de-icer
B. Vehicles without windshield de-icer
1
2 83 4 5 6 7
1516
1113
14 12
1918
9
10
17
1. Passenger’s side temperature control.
2. Changes the air outlets used.
3. Passenger’s side temperature setting display.
4. Airflow display.
5. Fan speed display.
6. Fan speed.
7. Driver’s side temperature setting display.
8. Off*
9. Driver’s side temperature control.
10. Automatic mode.
11. Dual operation switch.
12. Windshield defogger.
13. Air conditioning on/off switch.
14. Pollen removal mode.
15. Outside air mode.
16. Recirculated air mode.
17. Outside air or recirculated air mode.
18. Rear air con mode.
19. 4 zone operation switch.

13
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Set up display to access clock setting
With Navigation system
Please refer to your Navigation System Owner's Manual.
Without Navigation system
De-misting the windshield
Press
The air conditioning system control operates
automatically.
Recirculated air mode will automatically switch to
outside air mode.
2
1
3
FRONT REAR
A/C
1. Adjust hours.
2. Adjust minutes.
3. Round to the nearest hour.

While the “ENGINE START STOP” switch is
in the IGNITION MODE ON, depress and
hold the brake pedal and move the gear
lever.
D = normal automatic driving style
S = Control the engine braking forces
14
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Gear change
Automatic transmission
The following patterns can be selected to suit current
driving and operating conditions.
1. Power mode
For powerful acceleration and driving in
mountainous regions.
2. Normal mode
3. Second start mode
For starting on slippery road surfaces, such as on
snow.
Press 2nd to return to normal mode.
Lock the centre differential when your vehicle's
wheels get stuck or when driving on a slippery or
bumpy surface.
Unlock after they have been freed.
ETC
PWR
2nd
PWR
2nd
PWR
2nd
PWR
2nd
ECT
PWR
2nd
STRT
Selecting a driving mode
Centre differential lock/unlock switch

15
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
Fuel tank opening
Bonnet opening
Before refueling the vehicle
Turn the “ENGINE START STOP” switch OFF and
ensure that all the doors and windows are closed.
Pull the lever.
Opening the fuel tank cap
Turn the fuel tank cap slowly to open.
Hang the fuel tank cap on the back of the fuel filler
door
Take care to select the correct fuel.
Release the lock from the inside of the vehicle to open
the bonnet.
1. Pull the bonnet release lever.
The bonnet will pop up slightly
2. Lift the bonnet catch and lift the bonnet

16
LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
LCR11-0907ENUK-01-00
Eco-Driving
What is ‘‘Eco-Driving’’?’
•Eco-Driving = Driving in a more careful and environmentally responsible way
•Eco-Driving = Reduced fuel costs ❯Potential saving in the EU of 20 billion euros by 2010
•Eco-Driving = Reduced Environmental impact ❯Potential saving in the EU of 50 million tons of
CO2emissions by 2010.
Total potential saving of 20 - 30%.
Eco-Driving Savings
Roof load increases wind drag and
therefore consumption.
Open windows increase fuel
consumption by an average of 5%.
Low Tyre Pressure result in higher fuel consumption
(up to 3% extra from 0.5 bar too low)
Tyre pressures can fall by 2.5 - 5.0% after one month,
and by 20% after 5 months.
Starting
•Remove any extra weight and roof load
•Plan your route to avoid detours
•Avoid using your car for short journeys
Checking/maintenance
•Check your tyre pressures regularly
•Service your car according to owner’s manual
Driving
•Shift up gear earlier
•Only use electrical accessories when necessary (e.g. A/C)
•Follow and anticipate the traffic flow
•Keep your windows closed (use ventilation system when possible)
•Switch off your engine if you have to wait longer than 30 - 60 seconds
How to Eco-Drive?
Roof Load
(Speed at 120 km/hr)
Increased
consumption
Luggage rack 5 – 10%
Ski box 10 – 20%
Bicycle rack 30%
Loaded luggage rack 35 – 40%
Air Conditioning
can result in 10 - 25%
extra fuel consumption.
Shifting up gear
earlier can result
in 8% saving.

LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH

LCR11-0907ENUK-01-00 RH LCR11-0907ENUK-01-00 RH
LCR11-0907ENUK-01-00
