2009
Prius
!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Prius.
This Quick Reference Guide is not a full description of Prius
operations. Every Prius owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
412737M1.qxd 7/28/08 4:12 PM Page 3

1
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCYFEATURES
Hybrid Synergy Drive System 2
Keyless entry
1
6
Key fob 3
Parking & turning OFF the Hybrid System 9
Shifting 8
Smart Key system 4-5
Smart Key unlock functions
1
5
Tu r n i n g the Hybrid System ON 7
Engine maintenance 15
Fuel tank door opener and cap 14
Hood release 15
Indicator symbols 12-13
Instrument cluster 12
Instrument panel 10-11
Light control-Instrument panel 14
Rear hatch 14
Air Conditioning/Heating 20-21
Audio 22-23
Clock 25
Cruise control 21
Cup and bottle holders 25
Garage door opener (HomeLink
®
)
2
17
Lights & turn signals 16
Luggage storage box 24
Parking brake 25
Power outlets 25

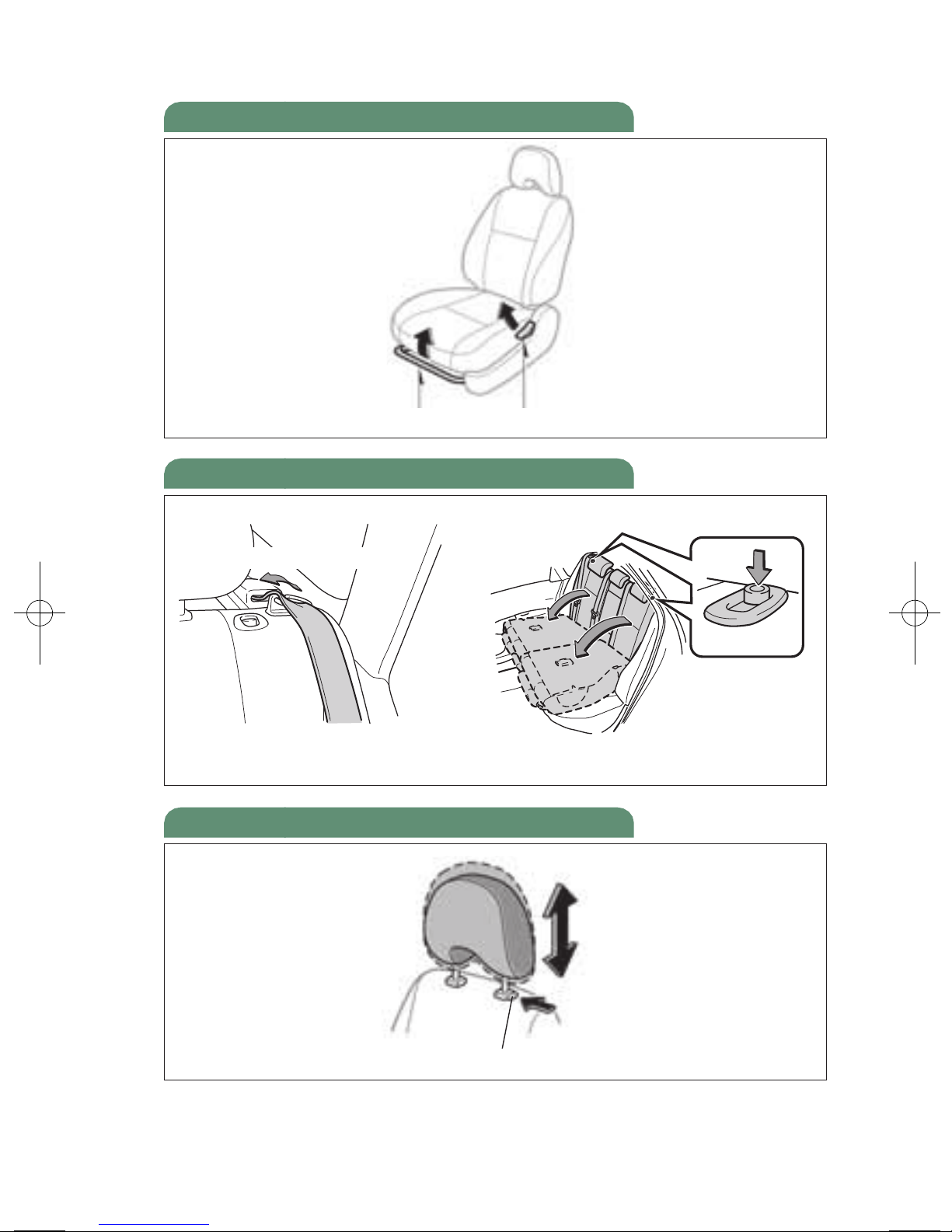

Seat adjustments-Front 18
Seat adjustments-Rear 18
Seats-Head restraints 18
Te l e p h o n e controls (Bluetooth®)24
Tilt steering wheel 19
Windows 19
Windshield wipers & washers 17
Door locks 26
Doors-Child safety locks 26
Emergency flashers 27
Jump starting 28
Rear air vent 27
Seat belts 26
Seat belts-Shoulder belt anchor 26
Spare tire & tools 29
Tire Pressure Monitoring (warning) System 27
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1 Programmable by customer. Fordealer-programmable features, please visit your
Toyotadealer.
2 HomeLink® is aregistered trademark ofJohnsonControls, Inc.
BASIC HYBRID VEHICLE
OPERATION
09-Prius-revised.qxd 7/30/08 5:30 AM Page 1

2
BASIC HYBRID VEHICLE OPERATION
Hybrid Synergy Drive System
The Hybrid Synergy Drive System utilizes a computer controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied,
braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
Note: Fuel consumption and energy information of the Hybrid System
are shown on the multi-information display. Refer to this screen
for importantdrivinginformation and feedback to maximize
energy use/creation and conserve fuel.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner's
Manual.
-If possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on
the highway.
-When possible, avoid sudden stops to maximize regenerative braking
energy.
-Minimize use of the Air Conditioning.
Refer to the Owner’s Manual for more details.
M2.qxd 7/28/08 3:49 PM Page 2

3
OVERVIEWBASICHYBRIDVEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

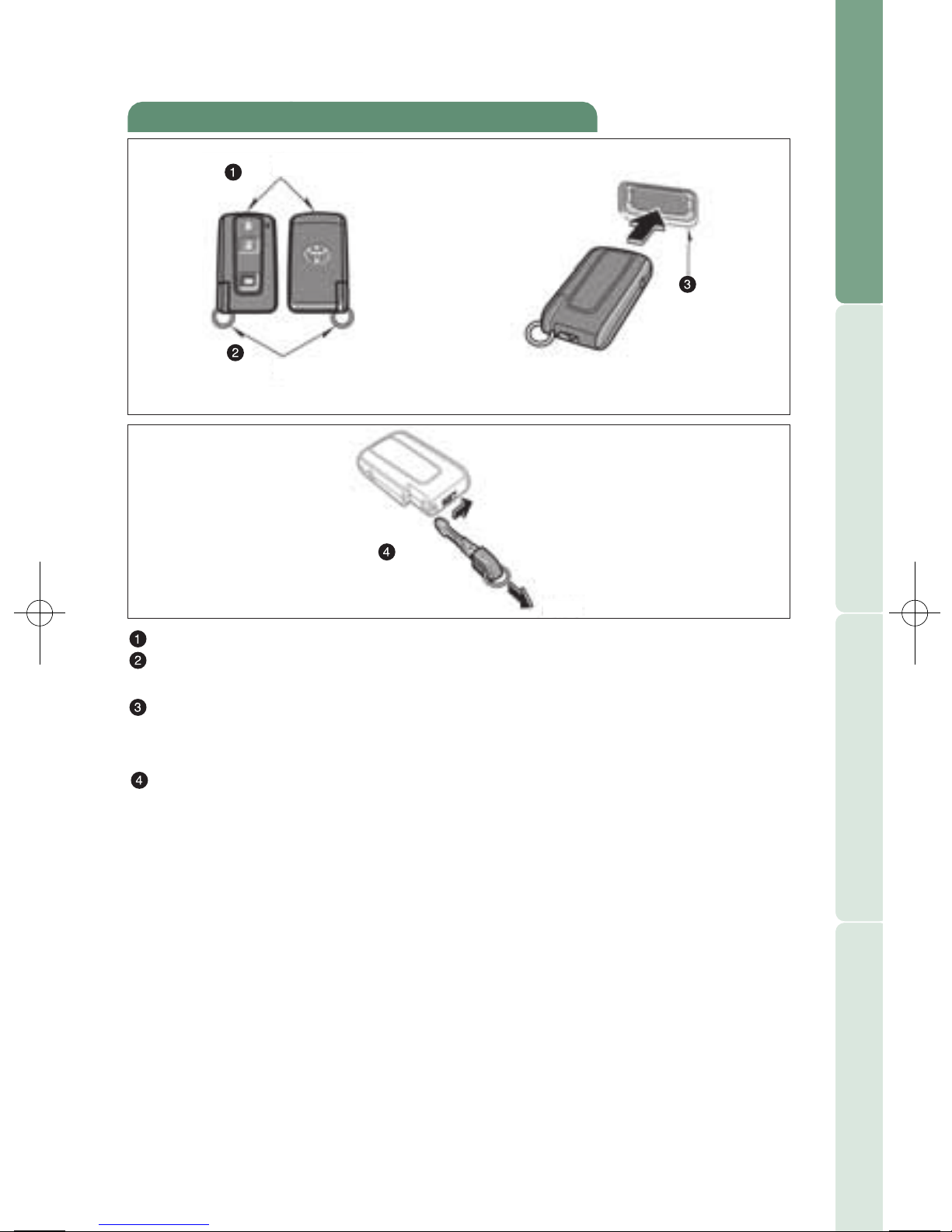

Master key Ignition key &wireless remote.
Mechanical key Fits into master key and can be removed to manually
lock/unlock driver door only.
Ignition key slot When inserting, push completely in. When removing,
gently pull; key will be pushed out by a spring. DO NOT FORCE THE KEY.
If it cannot be removed, push it all the way in again, then pull it out.
To remove or replace mechanical key Slide the lock knob in the
direction of the arrow.
Key fob
Master key
Mechanical key*
Ignition key
(key fob)slot
* Lock/Unlock the driver’s door only
Slide
Pull out
M2.qxd 7/28/08 3:49 PM Page 3

4
BASIC HYBRID VEHICLE OPERATION
Locking operation
Front door Rear hatch
Smart Key system (if equipped)
Carrying a Smart Key allows the vehicle to be locked, unlocked and the
Hybrid System engaged without handling the key.
Push
Push
Unlocking operation
Front door
NOTE: After unlocking, if a door is not opened within 60 seconds, all doors
will relock for safety. Refer to your Owner’s Manual and the following
section of this guide for Smart Key unlocking programmable options.
Rear hatch
M2.qxd 7/28/08 3:50 PM Page 4

5
OVERVIEWBASICHYBRIDVEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Smart Key unlock functions (if equipped)
The Smart Key unlocking function can be programmed to operate in three
different modes when Smart Key is activated. In all modes, grasping the
front passenger’s door handle will unlock all doors.
-To unlock driver’s door only, grasp driver’s door handle.
-To unlock all doors, grasp any door handle except rear doors.
-To unlock driver’s door or hatch independently, grasp the handle.
Refer to the Owner’s Manual for more information on this feature, and
how to change modes.
Smart Key system cancel switch
NOTE: To conserve battery power, turn the Smart Key system “OFF” when
not using the vehicle for prolonged periods of time. For more battery saving
information, refer to the Owner’s Manual for more details.
Enabled Disabled
Push
M2.qxd 7/28/08 3:50 PM Page 5

6
BASIC HYBRID VEHICLE OPERATION
Panic button
Push and hold
Keyless entry
Locking operation
Unlocking operation
NOTE: After unlocking, if a door is not opened within 60 seconds, all doors
will relock for safety.
Push
Push ONCE: Driver door
TWICE: All doors
M2.qxd 7/28/08 3:50 PM Page 6

7
OVERVIEWBASICHYBRIDVEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

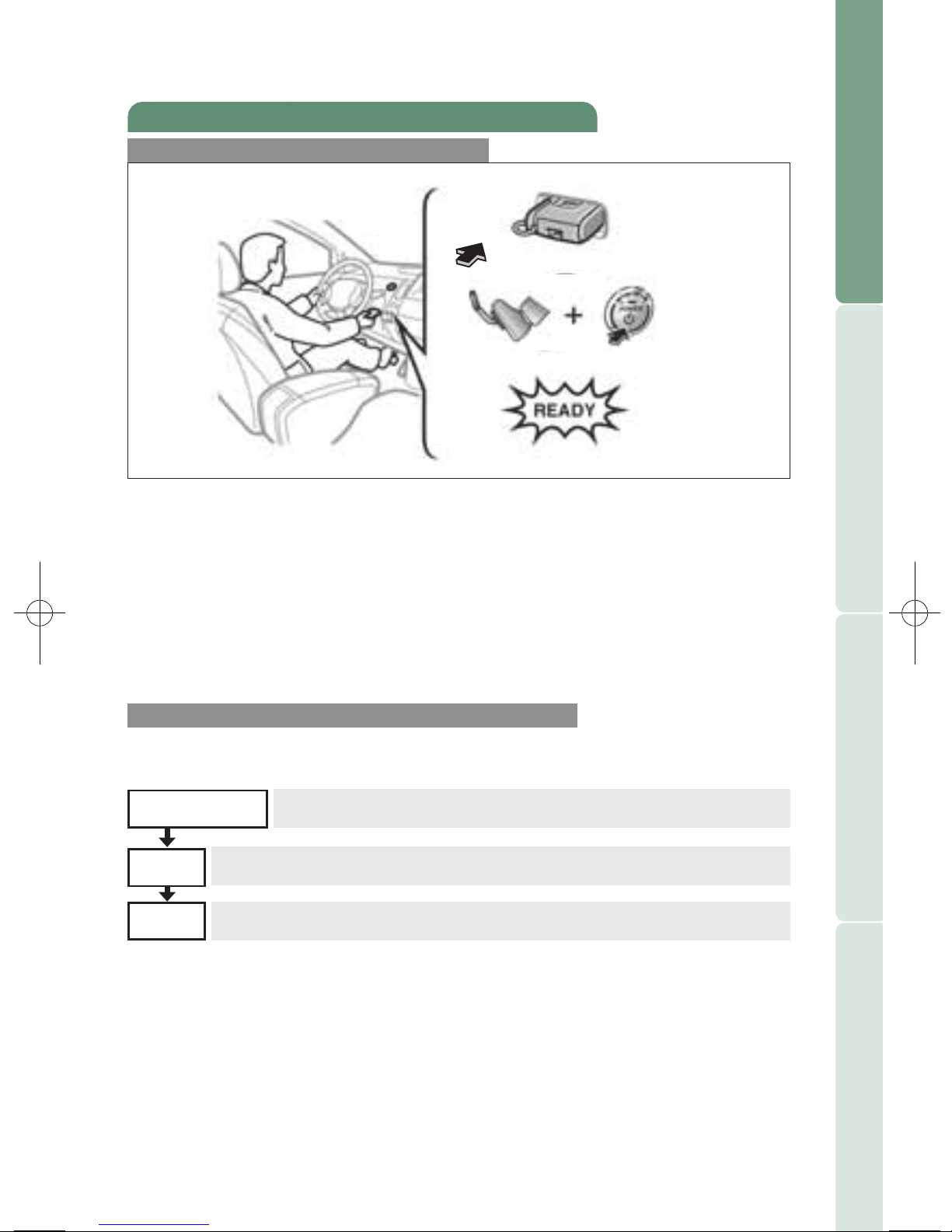

(1) Insert key.*
(2) Depress the brake pedal and push the “POWER” button briefly and
firmly.
(3) The “READY” light will blink. After a few seconds, when the light
remains ON and a beep sounds, you may begin driving.
Note: The brake pedal must be depressed to turn the Hybrid System on.
* It is not necessary to insert the ignition key (key fob)if Smart Key
system is installed and activated.
Turning the Hybrid System ON
Changing operation modes
Pressing “POWER” without depressing the brake pedal while the Hybrid
System is OFF will change the operation mode in succession from:
Start function
ACCESSORY
ON
OFF
Accessories such as the radio will operate.
Ignition is on; Hybrid System is not engaged.
All systems OFF.
(1)
(2)
(3)
M2.qxd 7/28/08 3:50 PM Page 7

8
BASIC HYBRID VEHICLE OPERATION

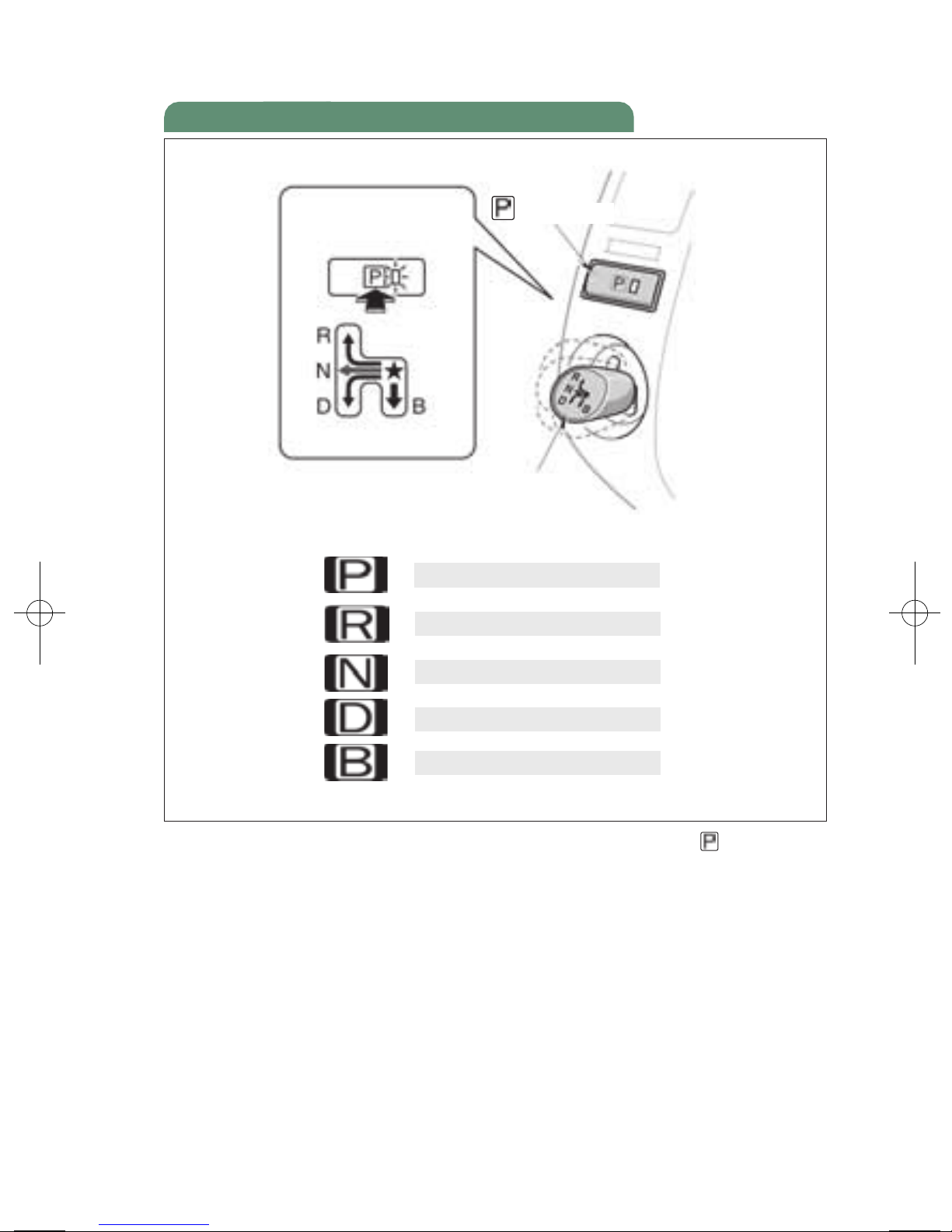

Shifting
Park button
Shift lever
Brake pedal must be depressed when shifting to or from the Park
position. If brake is not applied, a beep will sound and the vehicle cannot
be shifted.
NOTE: The shift lever will always return to its original position after
shifting. ALWAYS CONFIRM SHIFT POSITION BY CHECKING INDICATOR
SYMBOLS ON THE INSTRUMENT CLUSTER.
* The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park button
Reverse (buzzer sounds)
Neutral
Drive
Engine brake
Shift position
*
M2.qxd 7/28/08 3:50 PM Page 8

9
OVERVIEWBASICHYBRIDVEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
(1) When the vehicle is at a complete stop, keep brake pedal depressed
and push Park button above the shift lever.
(2) Push the “POWER” button to turn off the system.
(3) Fully depress the parking brake.
(4) Remove the key fob if inserted.*
Information
In some instances when the engine starts, and/or on a short trip after the
engine is stopped, the engine water pump may continue operating for a
short time. This is a standard operation of the vehicle to ensure optimum
performance and shouldn’t be a concern.
WARNING: If the “POWER” button is held for longer than three seconds
while the vehicle is moving, the Hybrid System will shut off.
* It is not necessary to insert the ignition key (key fob)if Smart Key
system is installed and activated.
Parking & turning OFF the Hybrid System
(1)
(2)
(3)
(4)
M2.qxd 7/28/08 3:50 PM Page 9

10
OVERVIEW
Headlight, turn signal and front fog light1controls
Wiper and washer controls
“POWER” button
Clock
“AUDIO” switch (multi-information display control)
“CLIMATE” switch (multi-information display control)
Multi-information display
“DISPLAY” sw itc h (multi-information display control)
“INFO” switch (multi-information display control)
Mph or km/h button
Trip meter reset
Emergency flasher button

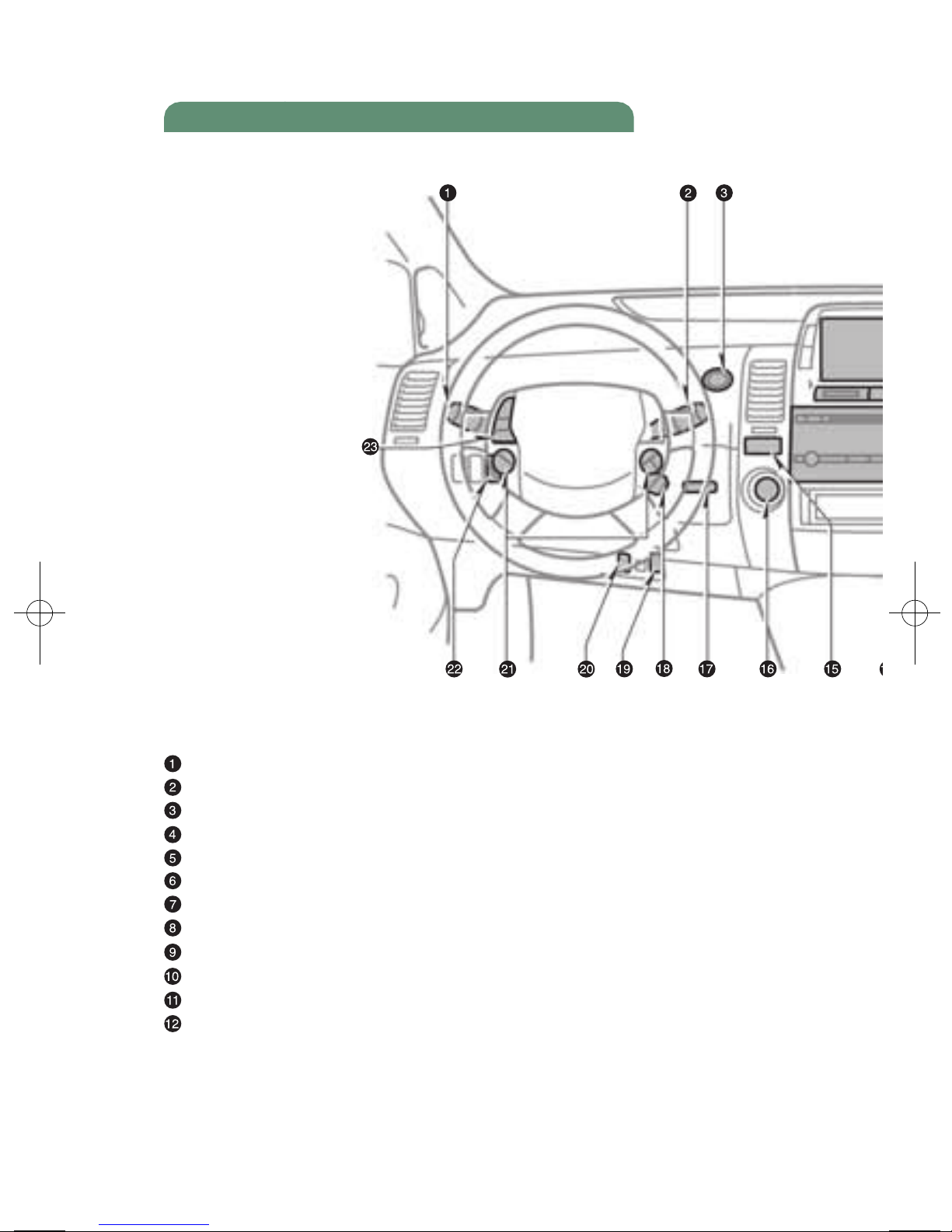

Instrument panel
M2.qxd 7/28/08 3:50 PM Page 10

11
OVERVIEWBASIC HYBRID VEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCYFEATURES
Audio system
12V DC Power outlet
Park button
Electronic shift lever
Ignition key (key fob) slot
Cruise control1
Tire Pressure Monitoring (warning) System
Smart Key system cancel1
Steering wheel climate control
Instrument panel light control
Steering wheel audio control
1 If equipped
2For details, refer to the NavigationSystemOwner’s Manual.
With navigation system1,2
Without navigation system
09-Prius-revised.qxd 7/30/08 5:31 AM Page 3

12
OVERVIEW
Low engine oil pressure warning1
Service indicators and reminder
Speedometer
Fuel gauge
Odometer and two trip meters
Instrument cluster
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Brake system warning1
Charging system warning1
Low fuel level indicator1
Malfunction/Check Engine indicator1

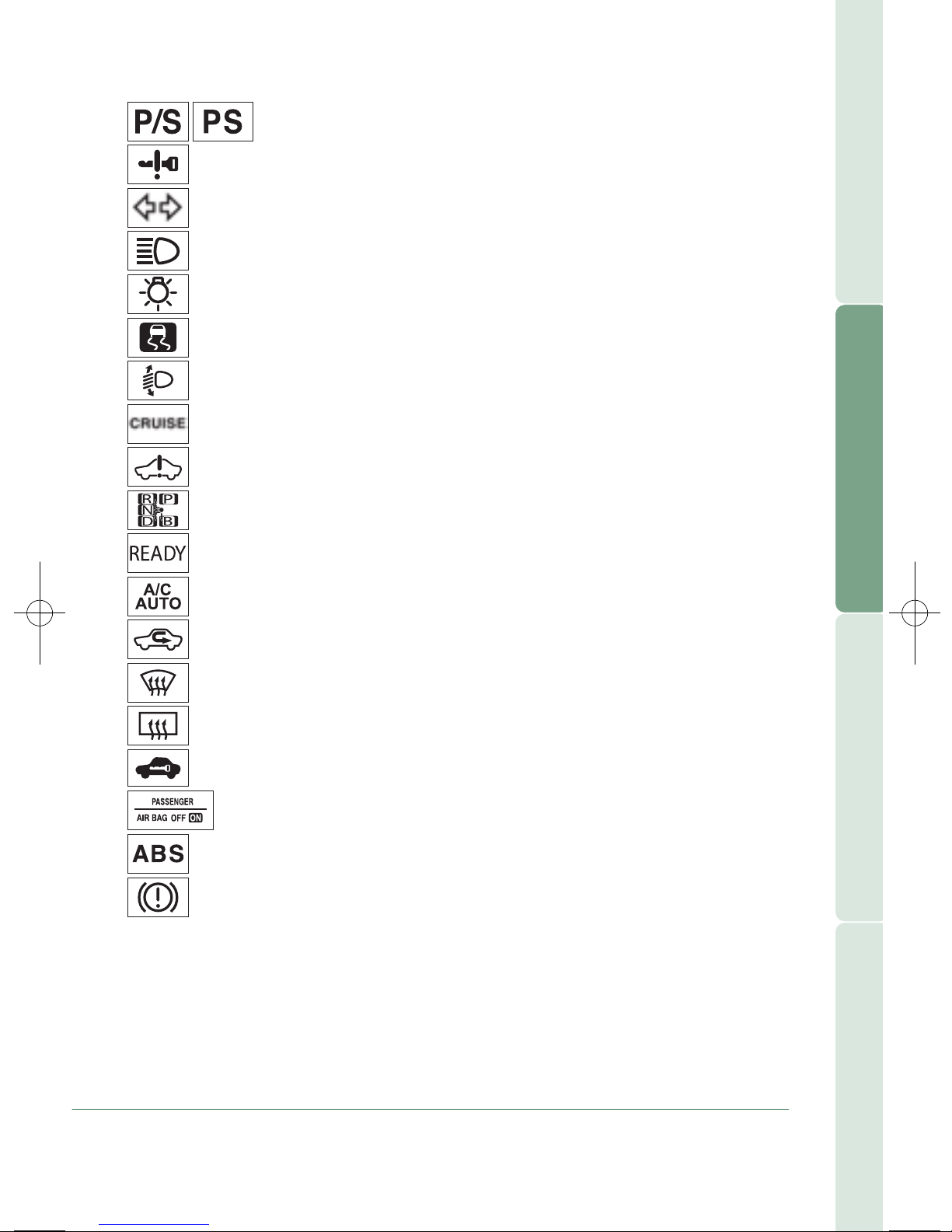

Indicator symbols
Master warning1
High coolant temperature warning1
Open door warning1
Airbag SRS warning1
1For details,refer to Section 5-2, 2009 Owner’s Manual.
2If this light flashes,see “Cruise control” Section 2-4,2009 Owner’s Manual.
Engine oil replacement reminder1
Vehicle Stability Control warning1
Traction battery warning1
Low Tire Pressure Warning1
M2.qxd 7/28/08 3:50 PM Page 12

13
OVERVIEWBASICHYBRIDVEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Headlight indicator
Anti-lock Brake System warning1
3For details,refer to “Transmission” Section 2-1,2009 Owner’s Manual.
Driving ready light
Turn signal indicator
Headlight high beam indicator
Cruise control indicator2
Slip indicator
Hybrid System warning1
Electric power steering system warning1
Smart Key system warning1
Automatic headlight leveling system warning1
Running mode position indicator3
Automatic Air Conditioner indicator
Recirculate mode indicator
Windshield airflow indicator
Rear window and outside rearview mirror defogger indicator
Hybrid vehicle immobilizer/Theft deterrent system indicator
Front passenger occupant classification indicator
Yellow: Brake System warning1
M2.qxd 7/28/08 3:50 PM Page 13

14
OVERVIEW
Rear hatch
Pull
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
NOTE: MAINTAIN GASOLINE IN THE TANKATALL TIMES. SERIOUS
DAMAGE TO THE HYBRID SYSTEM CAN OCCUR IFTHE VEHICLE
RUNSOUTOFGASOLINE.
Fuel tank door opener and cap
Tu r n
Driver seat Pull up
Store
To open the rear hatch, grasp the handle and pull up.
Light control-Instrument panel
Brightness control
+
-
M2.qxd 7/28/08 3:50 PM Page 14

15
OVERVIEWBASICHYBRIDVEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Hood release
Engine maintenance
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
Note: Regularlyscheduled maintenance,includingoil changes,will
helpextend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Pull up latch and
raise hood
Pull
M2.qxd 7/28/08 3:50 PM Page 15

16
FEATURES/OPERATIONS
Lights & turn signals
Headlights
Automatic light cutoff system Automatically turns off lights when the
driver’s door is opened with the Hybrid System “OFF.”
Turn signals
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Low beam
AUTO*
Head lights
High beam
High beam flasher
Parking light
Tu r n
Right turn
Left turn
Lane change
Lane change
* If equipped
M2.qxd 7/28/08 3:50 PM Page 16

17
OVERVIEWBASICHYBRIDVEHICLE OPERATION FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Garage door opener (HomeLink®)
(if equipped)
Indicator
Buttons
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact the Toyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Windshield wipers & washers
Front
Rear
Wash and wipe
Wash and wipe
Interval wipe
Wipe
Adjust interval*
Single wipe
Interval wipe
Slow
Fast
* Intermittent windshield wiper interval adjustment
Rotate to increase/decrease wipe frequency.
Pull to wash and wipe
M2.qxd 7/28/08 3:50 PM Page 17

18
FEATURES/OPERATIONS
Seats-Head restraints
Lock release button
Seat adjustments-Front
Seat adjustments-Rear
Position Seatback angle
(1) Remove the seat belt
(3) Fold down
(2) Push down
M2.qxd 7/28/08 3:50 PM Page 18
