Toyota LAND CRUISER User manual

1
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 6. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 1

2
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Electric moon roof switches and/or
personal lights
6. Glove box
7. Power door lock switches
8. Power window switches
9. Automatic transmission selector lever
10. Seat heater switches
11. Rear seat audio system
12. Cup holder
13. Parking brake lever
14. Second start mode selector button and
driving pattern selector button
15. Four- wheel drive control lever
16. Lower vent
17. Hood lock release lever
18. Fuel filler door opener
19. Window lock switch

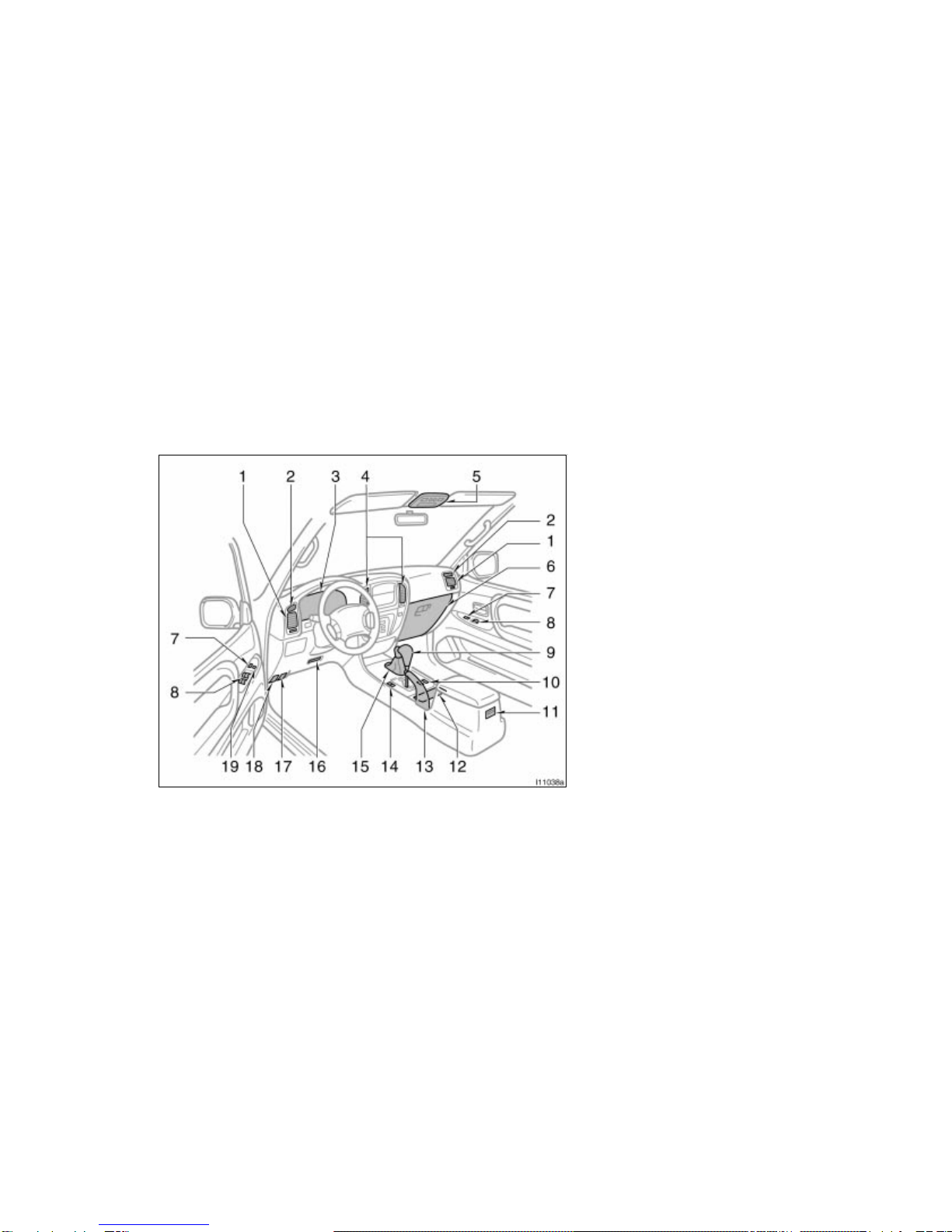

Instrument panel overview
View A

3
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
1. Headlight, turn signal and front fog
light switches
2. Cruise control switch
3. Ignition switch
4. Wiper and washer switches
5. Emergency flasher switch
6. Clock, outside temperature and trip infor-
mation display
7. Car audio
8. Front passenger’s seat belt reminder
light
9. Air conditioning controls
10. Outside rear view mirror heater switch
11. Rear air conditioning switch
12. Rear window defogger switch
13. Center differential lock switch
14. Power antenna switch
15. Power tilt and telescopic steering
switch
16. Instrument panel light control dial
17. Power rear view mirror control switches
18. Power quarter window switch (left- hand
side)
19. Power quarter window switch (right-
hand side)
20. Roll sensing of curtain shield airbags
off switch
View B

4
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
1. Ashtray
2. Cigarette lighter
3. Power outlet
Lower part of center cluster panel

5
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

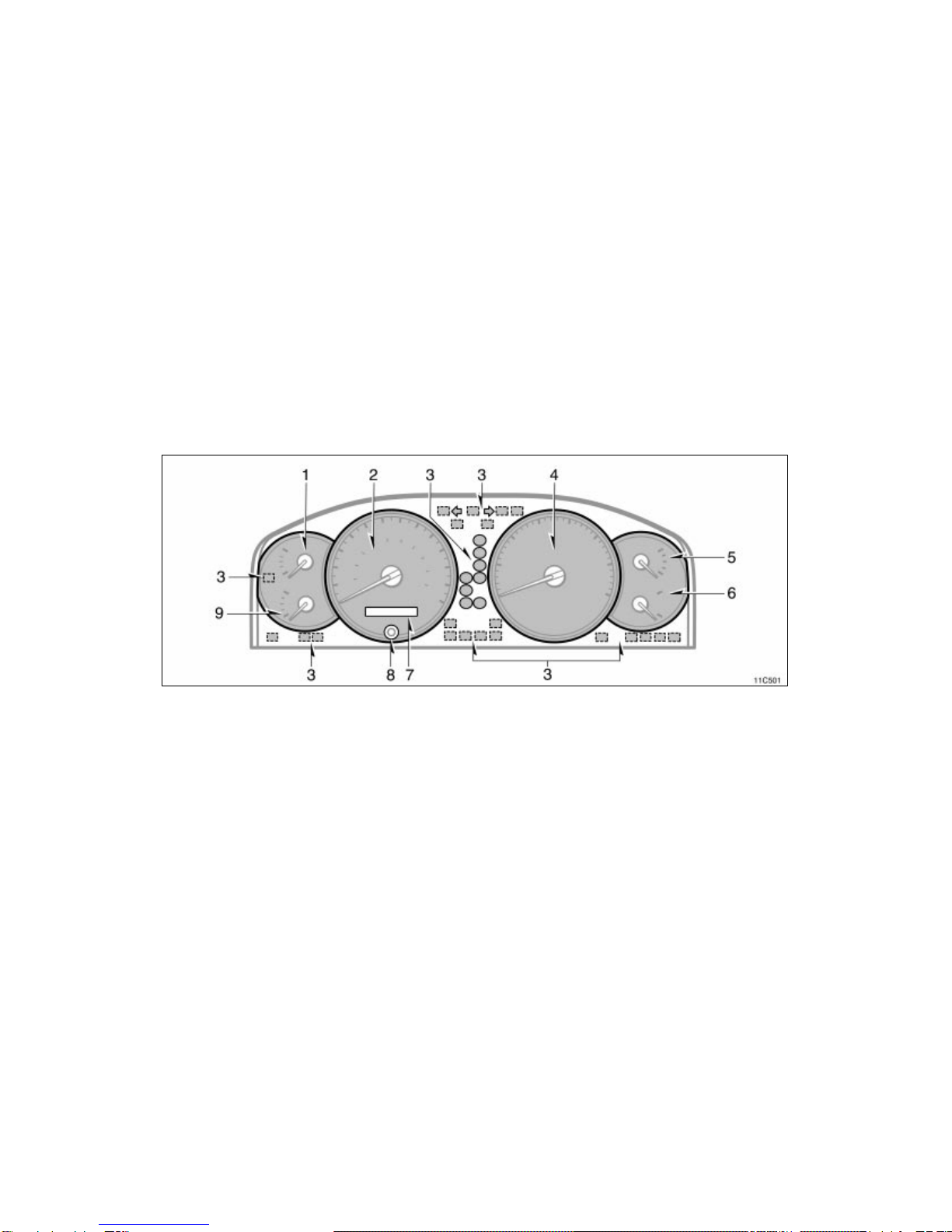

Instrument cluster overview
1. Voltmeter
2. Speedometer
3. Service reminder indicators and
indicator lights
4. Tachometer
5. Engine oil pressure gauge
6. Engine coolant temperature gauge
7. Odometer and two trip meters
8. Trip meter reset knob
9. Fuel gauge

6
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Indicator symbols on the instrument panel
Brake system warning light∗1
Malfunction indicator lamp∗1
Headlight high beam indicator light
Turn signal indicator lights
Driver’s seat belt reminder light∗1
Anti- lock brake system warning light∗1
Open door warning light∗1
SRS warning light∗1
Low fuel level warning light∗1
Automatic transmission fluid temperature warning
light∗1
Unengaged “Park” warning light∗1
Discharge warning light∗1
Engine oil replacement reminder light
Center differential lock indicator light
Driving pattern (“POWER” mode) indicator
light
Automatic transmission second start indicator
light
Cruise control indicator light∗2
Automatic transmission indicator lights

7
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 122.
∗2: If this light flashes, see “Cruise control” on page 142.
∗3: For details, see “Roll sensing of curtain shield airbags off
switch” on page 66.
vehicle stability control system off indicator
light∗1
vehicle stability control system and active traction
control system warning light∗1
Active traction control system indicator light
Slip indicator light
Roll sensing of curtain shield airbags off indicator light∗3

8
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

9
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power quarter windows 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 2

10
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Keys
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—These keys work
in every lock. Your Toyota dealer will
need one of them to make a new key
with a built- in transponder chip.
2. Sub key (gray)—This key does not
work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” on page 17.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.

11
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
 When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
 Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
 Do not use the key with electromag-
netic materials.

12
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Engine immobilizer system
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 27.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.

13
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make a new key
with a built- in transponder chip, your
dealer will need your key number and
master key. However, there is a limit to
the number of additional keys your Toyota
dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
Side doors—

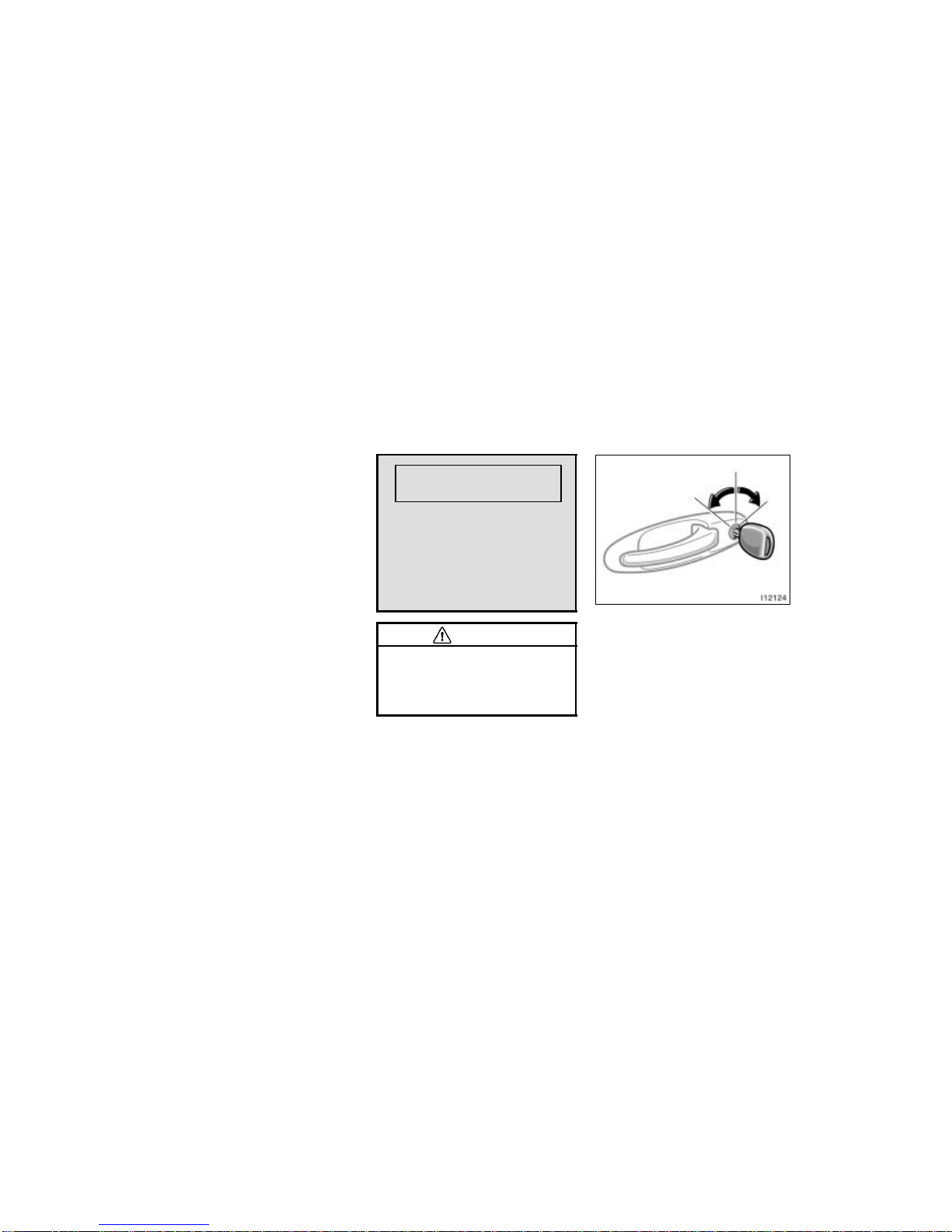

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with either front
side door. In the driver’s door lock, turn-
ing the key once will unlock the driver’s
door and twice in succession will unlock
all the side doors and back door simulta-
neously.*
NOTE: *The 2- step unlocking function can
be changed. Ask your Toyota dealer for
details.
FCC ID: MOZRI- 20BTY
MADE IN JAPAN

14
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

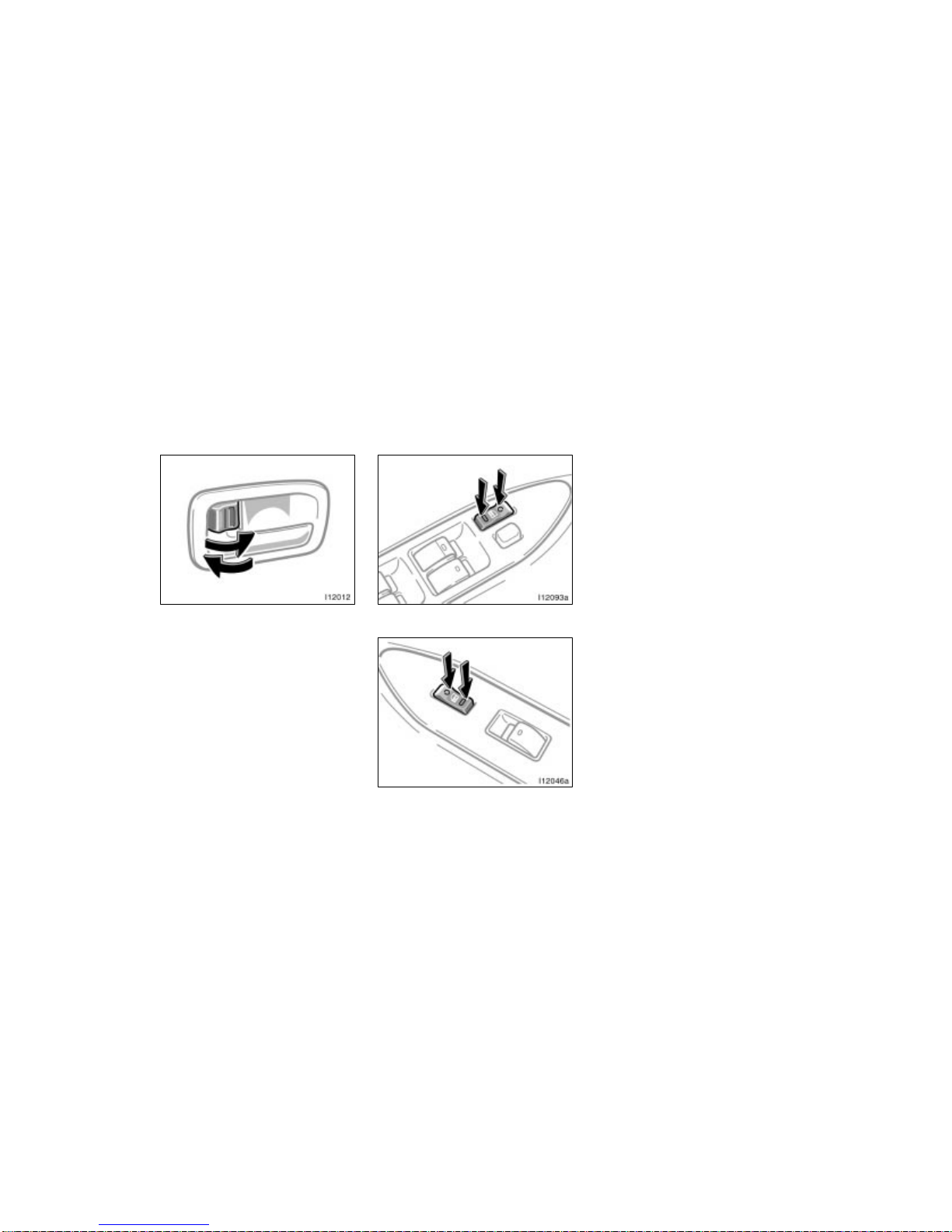

LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knob
are in the lock position.
Closing the side door with the lock knob
in the lock position will also lock the side
door. Be careful not to lock your keys in
the vehicle.
Front side doors cannot be locked when
either front side door is open and the key
is in the ignition.
l12093a
Driver’s side
l12046a
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
All the side doors and back door lock or
unlock simultaneously.
When the front doors are locked from the
outside or locked with the wireless remote
control key, the power door lock switch
will not work until the either front door is
unlocked with the key, lock knob, or wire-
less remote control key.

15
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

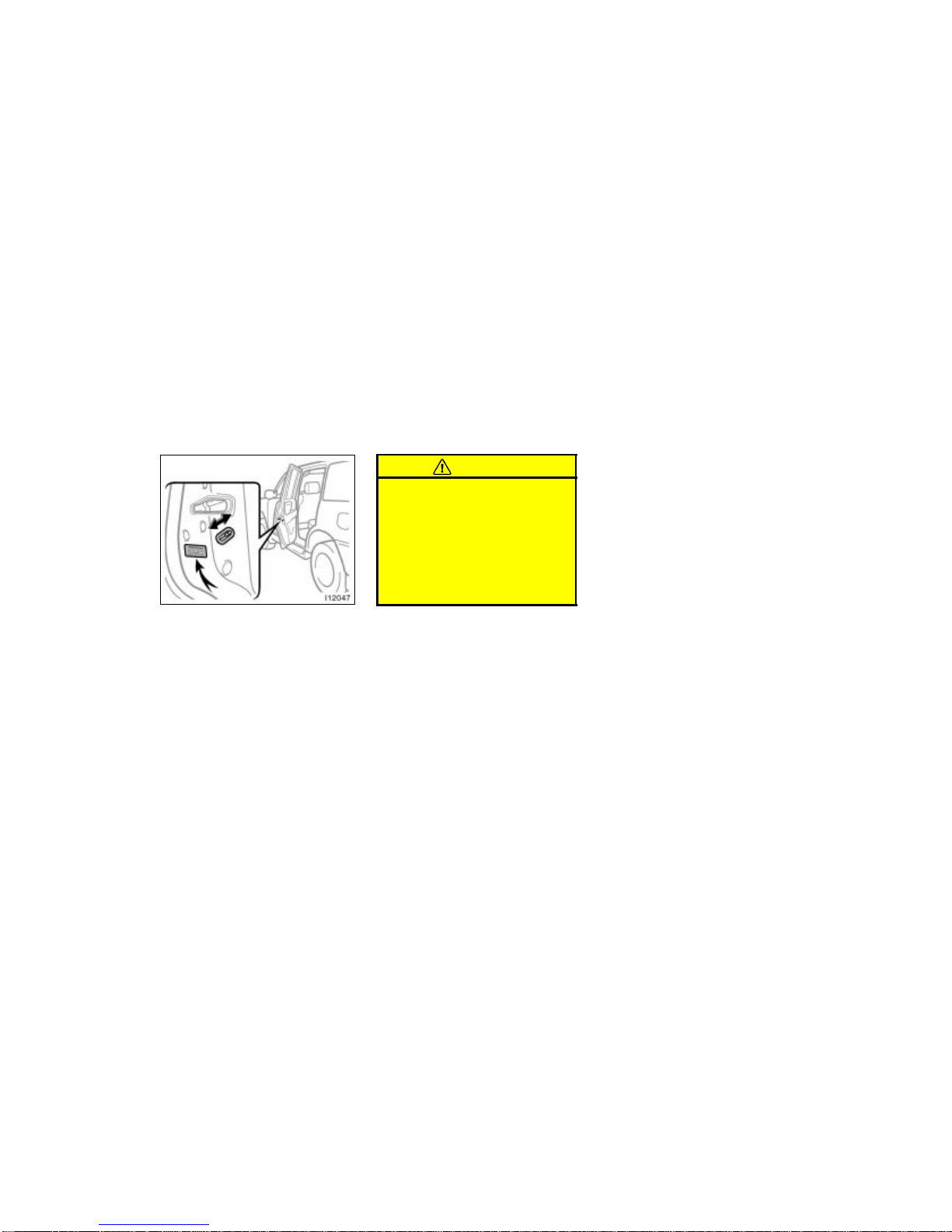

REAR DOOR CHILD- PROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
You can select the following modes of
the automatic locking and unlocking
functions. The initial mode is mode 1.
Mode 1—Automatic locking operation
linked to shift lever position
All doors are automatically locked when
the shift lever is moved out of “P”
position after the ignition switch is
turned to the “ON” position and all the
doors are closed.
Mode 2—Automatic locking operation
linked to vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
Mode 3—Automatic unlocking opera-
tion linked to the ignition switch
All doors are automatically unlocked
when the driver’s door is opened within
10 seconds after the ignition switch is
turned to the “ACC” or “LOCK” posi-
tion, or the key is removed.
Mode 4—Automatic unlocking opera-
tion linked to shift lever position
All doors are automatically unlocked
when the selector lever is moved to
“P” position after the ignition switch is
turned to “ON” position.
—Automatic door locking and
unlocking functions

16
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
SETTING FUNCTIONS
You can set the following functions by
yourself.
To set the mode 1 (the automatic lock-
ing operation linked to shift lever posi-
tion):
1. Set the parking brake, close all doors
and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P”
position.
3. Press the driver’s side power door lock
switch on the front side for about 5
seconds, within 10 seconds after the
ignition switch is turned to the “ON”
position.
4. The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To set the mode 2 (the automatic lock-
ing operation linked to vehicle speed):
1. Set the parking brake, close all doors
and turn the ignition switch to the “ON”
position.
2. Shift the selector lever from the “P”
into the “N” position.
3. Press the driver’s side power door lock
switch on the front side for about 5
seconds, within 10 seconds after the
ignition switch is turned to the “ON”
position.
4. The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To set the mode 3 (the automatic un-
locking operation linked to the ignition
switch):
1. Set the parking brake, close all doors
and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P”
into the “N” position.
3. Press the driver’s side power door lock
switch on the rear side for about 5
seconds, within 10 seconds after the
ignition switch is turned to the “ON”
position.
4. The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To set the mode 4 (the automatic un-
locking operation linked to shift lever
position):
1. Set the parking brake, close all doors
and turn the ignition switch to the “ON”
position.
2. Shift the selector lever into the “P”
position.
3. Press the driver’s side power door lock
switch on the rear side for about 5
seconds, within 10 seconds after the
ignition switch is turned to the “ON”
position.
4. The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
CAUTION
To prevent an accident, set and can-
cel the function with the parking
brake set securely.

17
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
—Wireless remote control*
Locking operation
Unlocking operation
The wireless remote control system is
designed to lock or unlock all the side
doors and back door from a distance
within approximately 1 m (3 ft.) of the
vehicle.
NOTE: *This feature can be deactivated
as vehicle theft deterrent measure in case
of the loss of the wireless remote control
key. Ask your Toyota dealer for details.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches slow-
ly and securely. At this time, the indica-
tor light on the key grip flashes once.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked si-
multaneously. At this time, turn signal
lights flash once.*
NOTE: *The turn signal lights can be set
not to flash. Ask your Toyota dealer for
details.
Check to see that all the side doors and
back door are securely locked.
If any of the side doors or back door is
not securely closed, or if the key is in the
ignition switch, locking cannot be per-
formed by the “LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously.* At this time, turn signal
lights flash twice.**
NOTE: *The 2- step unlocking function can
be changed. **The turn signal lights can
be set not to flash. Ask your Toyota deal-
er for details.
Together with the activation of unlocking,
the interior light comes on for 15 seconds
if the interior light switch is in “DOOR”
position.* However, this function does not
work when the ignition key is in the “ACC”
or “ON” position. (For detailed information,
see “Interior light” on page 112.)
You have 30 seconds to open a door after
using the wireless remote unlock fea-
ture.** If a door is not opened by then, all
the side doors and back door will be auto-
matically locked again.
NOTE: *The interior light can be set not
to come on or the duration of lighting can
be changed. **The time before automatic
re- locking can be changed. Ask your
Toyota dealer for details.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.

18
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
“PANIC” SWITCH
Pushing the “PANIC” switch for 1 sec-
ond blows the horn intermittently and
flashes the headlights, tail lights and
interior lights.*
NOTE: *This feature can be deactivated.
Ask your Toyota dealer for details.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for 1 minute. To stop
the alarm midway, push the “PANIC”,
“LOCK” or “UNLOCK” switch, or unlock
any side door or back door with key. You
can also stop the alarm by turning the
ignition key from “LOCK” to the “ON” posi-
tion.
The “PANIC” mode does not work when
the ignition key is in the “ON” position.
WIRELESS REMOTE CONTROL KEY
The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age and trouble on the key.
Do not leave the key on places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys for the same vehicle. Contact
your Toyota dealer for detailed information.
If the wireless remote control key does
not actuate the doors or operate from a
normal distance, or the indicator light on
the key is dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To
replace the battery, see following
“REPLACING THE BATTERY”.
If you lose your wireless remote control
key, contact your Toyota dealer as soon
as possible to avoid the possibility of
theft, or an accident. (For detailed infor-
mation, see “If you lose your keys” on
page 266.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

19
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
REPLACING THE BATTERY
For replacement, use a CR1616 lithium
battery or equivalent and a special screw-
driver.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE
 When replacing the terminal battery,
be careful not to lose the compo-
nents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used battery according
to the local laws.
Replace the battery by following these
procedures:

20
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
1. Remove the screw, and then the cover. 2. Remove the module from the key
frame. 3. Remove the 2 screws to take out the lid of the module. Take out the dis-
charged battery and put a new battery
with the positive side up.
NOTICE
Do not bend the terminals.
