Toyota 2009 FJ Cruiser User manual

MN 00505-QRG09-FJC
Printed in the USA 7/08
2009
Quick Reference Guide

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the wheel ornament (aluminum wheel only).
(2) Turn the hold-down nuts counterclockwise and remove.
Refer to the Owner’s Manual for jack positioning and tire changing
procedures.
21
If tire pressure becomes critically low on any of the tires (including the
spare), indicator light will come on. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn off,
have the system checked by your Toyota dealer.
Refer to the Owner’s Manual for more details.
Tool bag
Jack
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
(2)
(1)
Tire Pressure Monitoring (warning)
System
2009
FJ Cruiser
!Aword about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new FJ Cruiser.
This Quick Reference Guide is not a full description of FJ
Cruiser operations. Every FJ Cruiser owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual.Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.

1
INDEX
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Accessory meter 13
Air Conditioning/Heating 16
Audio 14-15
Automatic Transmission 8
Bottle holders-Rear seat 19
Clock 16
Cruise control 17
Cup holders 19
Door-Back 13
Four-wheel drive 9
Intuitive parking assist 17
Light control-Instrument panel 17
Lights1&turn signals 12
Parking brake 10
Power outlet-12V DC 18
Power outlet-115V AC 18
Seat adjustments-Front 10
Seats-Folding rear seats 11
Seats-Head restraints 10
Seats-Removing rear seats 11
Tilt steering wheel 8
VSC OFF button 18
Windows 13
Windshield wipers & washers 12
Door locks 20
Seat belts 20
Seat belts-Shoulder belt anchor 20
Spare tire & tools 21
Tire Pressure Monitoring (warning) System 21
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on this and other customizable
options.

OVERVIEW
Instrument panel
32
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

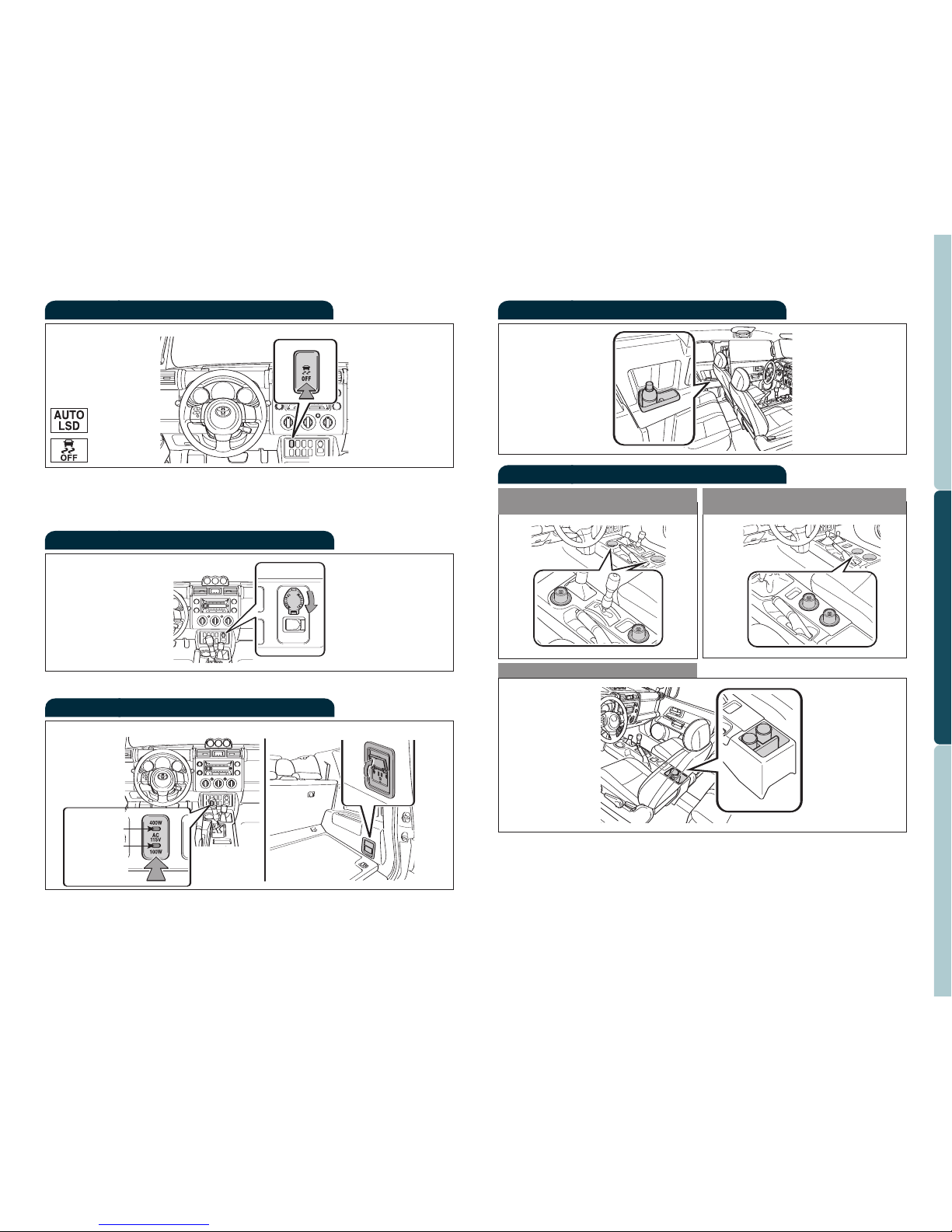

Rear differential lock button*
Active traction control switch*
Sub woofer ON-OFF button*
Power outlet
AUX audio jack
Intuitive parking assist switch*
Power outlet main switch
Cruise control*
Hood release
Volume control switch (for audio)*
“ ” button (for audio)*
“MODE” button (for audio)*
*If equipped
Instrument panel light control
Power rearview mirror controls*
Clutch start cancel switch*
Roll Sensing of Curtain shield Airbag OFF switch
Tilt steering lock release
Headlight and turn signal control
Wiper and washer controls
Engine switch
Emergency flasher button
Clock
Front passenger seat belt reminder light
Audio system
Engine immobilizer indicator
Air Conditioning controls
Back window defogger button
VSC OFF switch*
Steering wheel controls
(if equipped)
>
>

OVERVIEW
Indicator symbols
Instrument cluster
54
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Tachometer
Service indicators and reminder
Speedometer
Voltmeter
Automatic Transmission indicator
Engine coolant temperature
Fuel gauge
Trip meter reset knob
Odometer and two trip meters
Battery warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Automatic Transmission indicator
Front passenger occupant classification indicator
Turn signal indicator
Four-wheel drive indicator3
Rear differential lock indicator2
Center differential lock indicator3
Slip indicator
Vehicle Stability Control OFF indicator
Active traction control system indicator
AUTO Limited Slip Differential indicator
Cruise control indicator4
Automatic Transmission fluid temperature warning1
Unengaged Park warning1
Airbag SRS warning1
Headlight high beam indicator
Anti-lock Brake System warning1
Open door warning1
3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2009 Owner’s
Manual.
4If this light flashes, refer to “Cruise control,” Section 2-4, 2009 Owner’s Manual.
1For details, refer to “If a warning light turns on or a warning buzzer sounds” Section
5-2, 2009 Owner’s Manual.
2For details, see “Rear differential lock system,” Section 2-4, 2009 Owner’s Manual.
Low Tire Pressure Warning1
Engine immobilizer system indicator
Low fuel level warning1
Roll Sensing of Curtain shield Airbag OFF indicator
Traction Control/OFF indicator

OVERVIEW

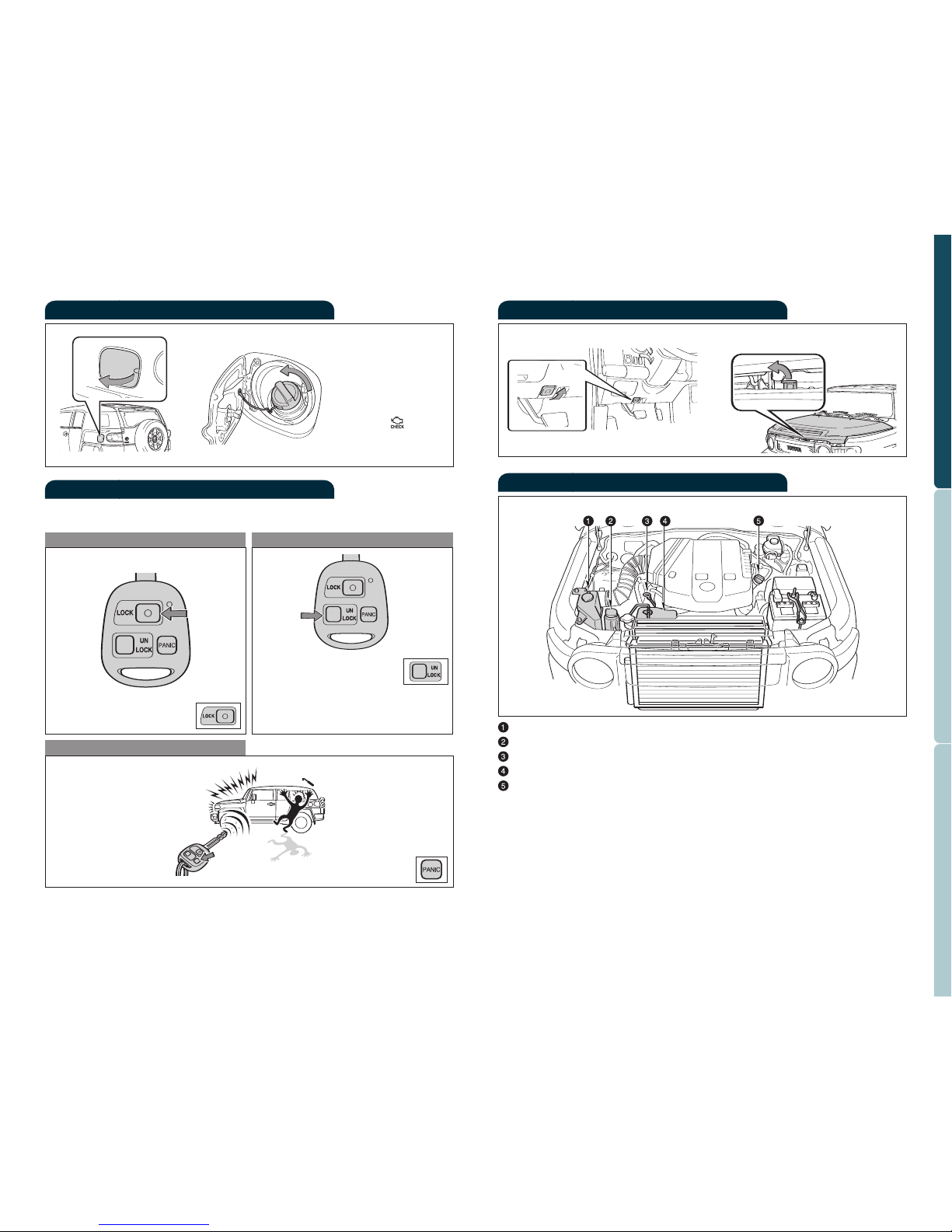

Fuel tank door release and cap Hood release
76
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Pull
Turn NOTE: Tighten
until one click is
heard. If the cap is
not tightened
enough, Check
Engine “ ”
indicator may
illuminate.
Keyless entry (if equipped)
Beep sound can be switched ON or OFF by customer. Refer to the Owner’s
Manual for more details.
NOTE: If a door is not opened
within 60 seconds of unlocking, all
doors will relock for safety.
Panic button
N
U
K
CO
L
K
C
O
L
C
I
N
A
P
Locking operation Unlocking operation
Push
Push and hold
Push ONCE: Driver door
TWICE: All doors
Pull
Pull up latch and
raise hood
Windshield and back window washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance

FEATURES/OPERATIONS

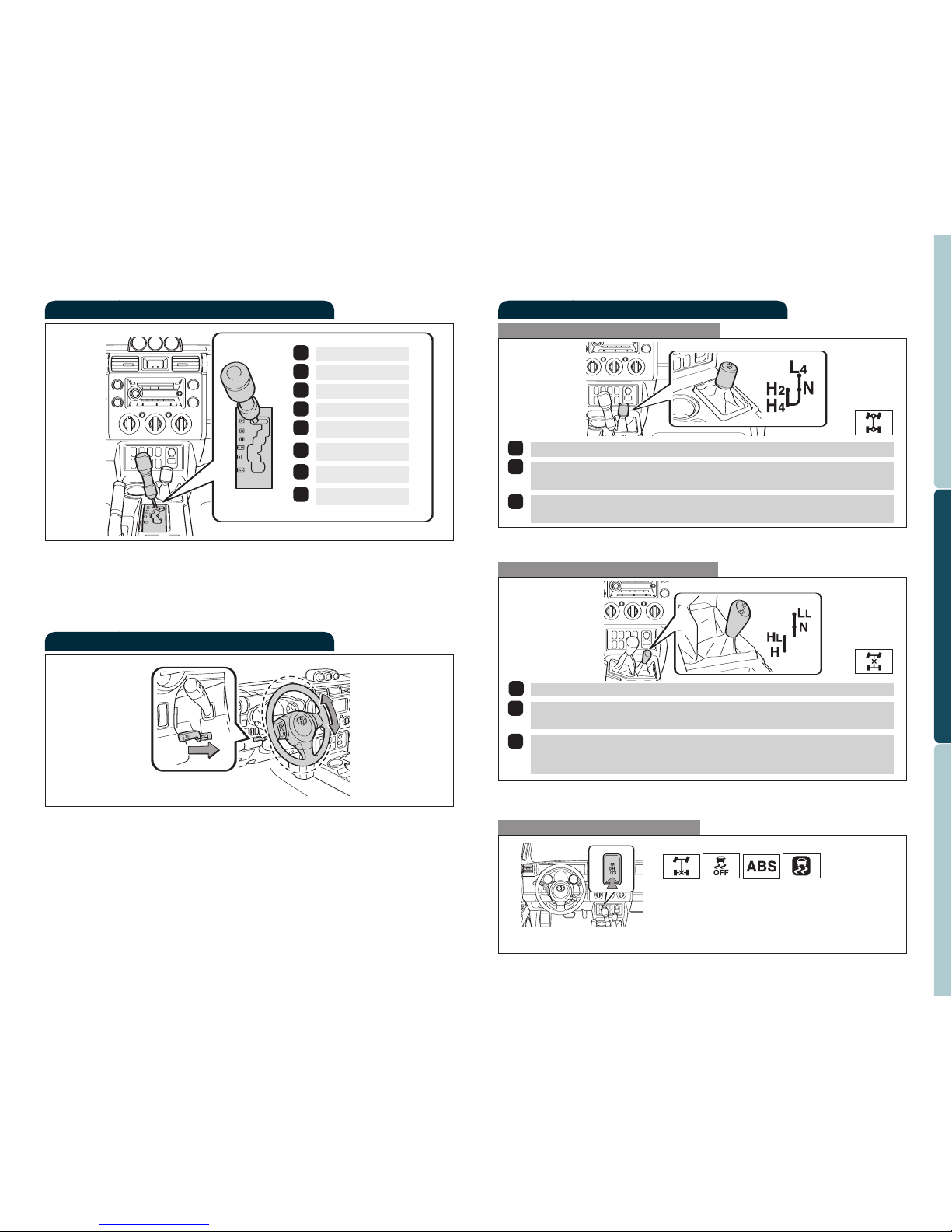

Four-wheel drive (if equipped)
98
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Automatic Transmission (if equipped)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
P
R
N
D
4
3
2
L
Fourth gear
Tilt steering wheel
H2
H4
L4
Full-time four-wheel drive models
Part-time four-wheel drive models
High speed (2WD)
High speed (4WD)
Shift to “H4” with speed below 50 mph.
Low speed (4WD)
Stop vehicle, shift to “N” position, then move the lever to “L4.”
Rear differential lock button
NOTE: For best fuel economy and performance under normal driving
conditions, shift vehicle into “H2” position.
Rear differential lock/unlock
Low speed
Center differential locked. Depress the clutch pedal to shift from “HL”
when vehicle is stopped or when speed is below 5 mph.
HL
LL
H
Before using the rear differential lock button:
•Shift the lever into “L4” (part-time 4WD models)
•Shift the lever into “LL” (full-time 4WD models)
NOTE: For best fuel economy and performance under normal driving
conditions, shift vehicle into “H” position.
Hold the steering wheel, pull the lock release lever, tilt to the desired
angle and release the lever.
Note: Do not attempt to adjust while the vehicle is in motion.
*The key must be in the “ON” position and the brake pedal depressed
to shift from Park.
High speed
High speed
Center differential locked. Depress the clutch pedal to shift from “LL.”

FEATURES/OPERATIONS
Seats-Head restraints
Seats-Folding rear seats
1110
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Seats-Removing rear seats
Lock release button
(1) Push
(2) Remove
(3) Stow
(6) Fold-down
(5) Push down
(1) Pull up
(2) Loosen
(3) Separate
(4) Fold
Seat adjustments-Front
Seat position (forward/backward)
Cushion angle (driver side only)
Height crank (driver side only)
Seatback angle
Release
Set
Pull
(1) Pull slightly
(2) Push
(3) Lower
Parking brake
(4) Pull up

13
Door-Back
12
FEATURES/OPERATIONS
Open/Close Lock in place
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Unlock Lock
Pull
Unlock
Lock
Back door can be locked into place
when it is fully open.
Windshield wipers & washers
Rear (if equipped)
Front
Interval
wipe
Slow
Fast
Pull to wash and wipe
Adjust interval* Wash and wipe
Wipe
Interval wipe
Wash and
wipe
NOTE: Rear wiper and washer
operate only when back window is
fully closed.
Lights & turn signals
Headlights
High beam flasher
Low beam
Headlights
-Automatic light cutoff system Automatically turns lights off after 30
seconds when all doors are closed with the key in “ACC” or “LOCK.”
Lights may also be turned off by pushing lock button on remote after
locking.
-Daytime Running Light system (DRL) (if equipped) Automatically turns
on the headlights at a reduced intensity.
Parking lights
High beam
Turn signals
Right turn
Lane change
Lane change
Left turn
Windows
Driver side
Automatic down operation (driver side only) Push the switch completely
down and release to fully open. To stop window at any point, lightly pull
the switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Up
Down
Windows
lock switch
Accessory meter (if equipped)
Compass
Outside temperature
display
Clinometer-vehicle slant
Calibrating the compass
setting
Switching between
Fahrenheit and Celcius
of thermometer
*Intermittent windshield wiper
interval adjustment
Rotate to increase/decrease wipe
frequency.

1514
FEATURES/OPERATIONS
Audio
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Type 2
View radio and CD information
Eject CD
Push to turn
ON/OFF
Push to adjust
tone & balance
Push to skip
up/down
folder
Seek station/
CD track select
Station/CD
track scan
Mode
Load CD(s)
Preset buttons-functions in other
modes indicated above number.
View genre/Push to skip up/down folder
Type 1
Eject CD
Push to turn
ON/OFF
Push to adjust
tone & balance
Seek station/
CD track select
Station/CD
track scan
Mode
Preset buttons-functions in other
modes indicated above number.
View radio
and CD
information
CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD Changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
-To select a file (MP3/WMA only) T
urn “TUNE.FILE.”
-To select a folder (MP3/WMA only) Push either side of “FOLDER” or
“TYPE/FOLDER.”
RADIO
Preset buttons Tune in the desired station and press a preset button (1-6)
until you hear a beep. Push desired preset button (1-6) to select.
“SCAN” Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
“ ”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to the next or previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio OFF.
>
>
Steering wheel switches (if equipped)
Subwoofer switch (if equipped)
ON/OFF
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
AUX audio jack
Volume control

1716
FEATURES/OPERATIONS
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Light control-Instrument panel
Brightness
control
+
-
Clock
H- Hour set
M- Minute set
Air Conditioning/Heating
When vehicle is in reverse, a buzzer will sound to inform driver when
nearing an obstacle. The system can only be used when the transmission is
in the “R” position.
ON/OFF switch
Intuitive parking assist (if equipped)
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal.
2The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF Functions
System ON/OFF
Resume2/Increase
speed
Set/Decrease speed
Cancel1
Fresh or recirculated cabin air
Air Conditioning ON/OFF
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Temperature selector
Fan speed
Rear defogger

1918
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Bottle holders-Rear seat
Cup holders
Rear console
Power outlet-12V DC
ON/OFF switch Luggage compartment
Push
Instrument panel
The illumination changes according to the maximum available capacity.
•Green and Yellow 115V AC/400W
•Yellow 115V AC/100W
Engine must be running in order to use the 115V AC power outlet.
Green light
Power outlet-115V AC (if equipped)
Manual
Transmission models
Automatic
Transmission models
Key must be in the “ACC” or “ON” position to be used.
FEATURES/OPERATIONS
Yellow light
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
VSC OFF button
VSC OFF button

20
SAFETY AND
EMERGENCY FEATURES
Seat belts
Seat belts-Shoulder belt anchor
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up
slack
Too high
Push up, or squeeze
lock release to lower
Door locks
Unlock
Lock

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the wheel ornament (aluminum wheel only).
(2) Turn the hold-down nuts counterclockwise and remove.
Refer to the Owner’s Manual for jack positioning and tire changing
procedures.
21
If tire pressure becomes critically low on any of the tires (including the
spare), indicator light will come on. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn off,
have the system checked by your Toyota dealer.
Refer to the Owner’s Manual for more details.
Tool bag
Jack
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
(2)
(1)
Tire Pressure Monitoring (warning)
System
2009
FJ Cruiser
!Aword about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new FJ Cruiser.
This Quick Reference Guide is not a full description of FJ
Cruiser operations. Every FJ Cruiser owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual.Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.

MN 00505-QRG09-FJC
Printed in the USA 7/08
2009
Quick Reference Guide
