’05 AVALON_U (L/O 0501)
1
2005 AVALON from Jan. ’05 Prod. (OM41408U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center cluster overview 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 9. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 1
Information Provided by:

’05 AVALON_U (L/O 0501)
2
2005 AVALON from Jan. ’05 Prod. (OM41408U)

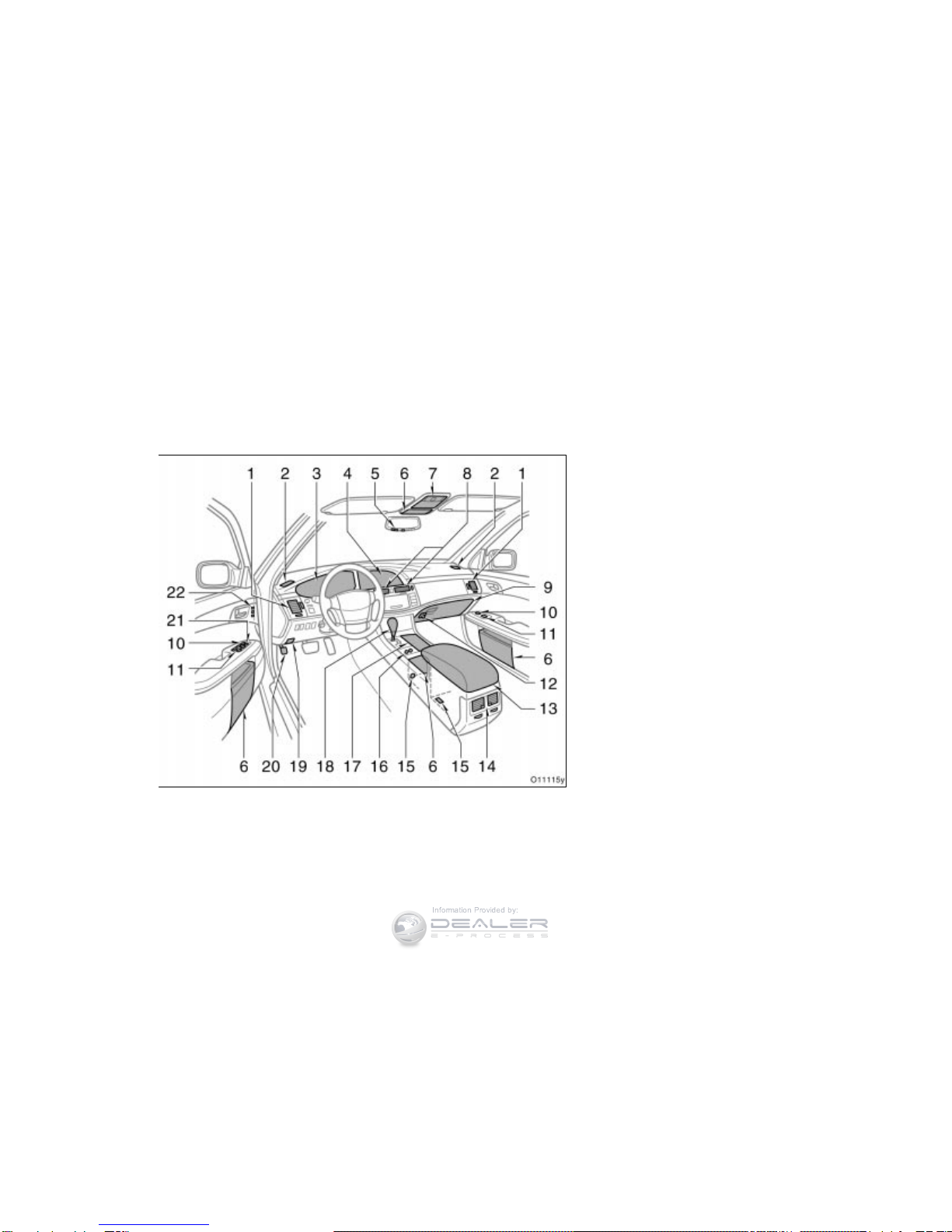

1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center cluster
5. Garage door opener switches
6. Auxiliary boxes
7. Front personal lights, interior light
and/or electric moon roof switches
8. Center vents
9. Glove box
10. Power door lock switches
11. Power window switches
12. Trunk opener main switch
13. Rear console box
14. Rear vents
15. Power outlets
16. Seat ventilator/heater switches
17. Cup holder
18. Automatic transmission selector lever
19. Hood lock release lever
20. Parking brake pedal
21. Window lock switch
22. Driving position memory switches
Instrument panel overview
View A
Information Provided by:

’05 AVALON_U (L/O 0501)
3
2005 AVALON from Jan. ’05 Prod. (OM41408U)
1. Instrument panel light control knob
2. Headlight, turn signal and front fog
light switches
3. Audio remote control switches
4. Speech command switch (See the
separate “Navigation System Owner’s
Manual.”)
5. Climate remote control switches
6. Wiper and washer switches
7. Rear window and outside rear view
mirror defogger switch
8. Emergency flasher switch
9. Audio system
10. Air conditioning controls
11. Cigarette lighter and ashtray, auxiliary
box, cassette player or navigation
system controller (For the navigation
system, see the separate “Navigation
System Owner’s Manual.”)
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Telescopic steering lock release lever
16. Glass breakage sensor
17. Trunk opener switch
View B (with key cylinder- type ignition switch)
Information Provided by:

’05 AVALON_U (L/O 0501)
4
2005 AVALON from Jan. ’05 Prod. (OM41408U)
18. Fuel filler door opener switch
19. Power rear view mirror control switches
Information Provided by:

’05 AVALON_U (L/O 0501)
5
2005 AVALON from Jan. ’05 Prod. (OM41408U)

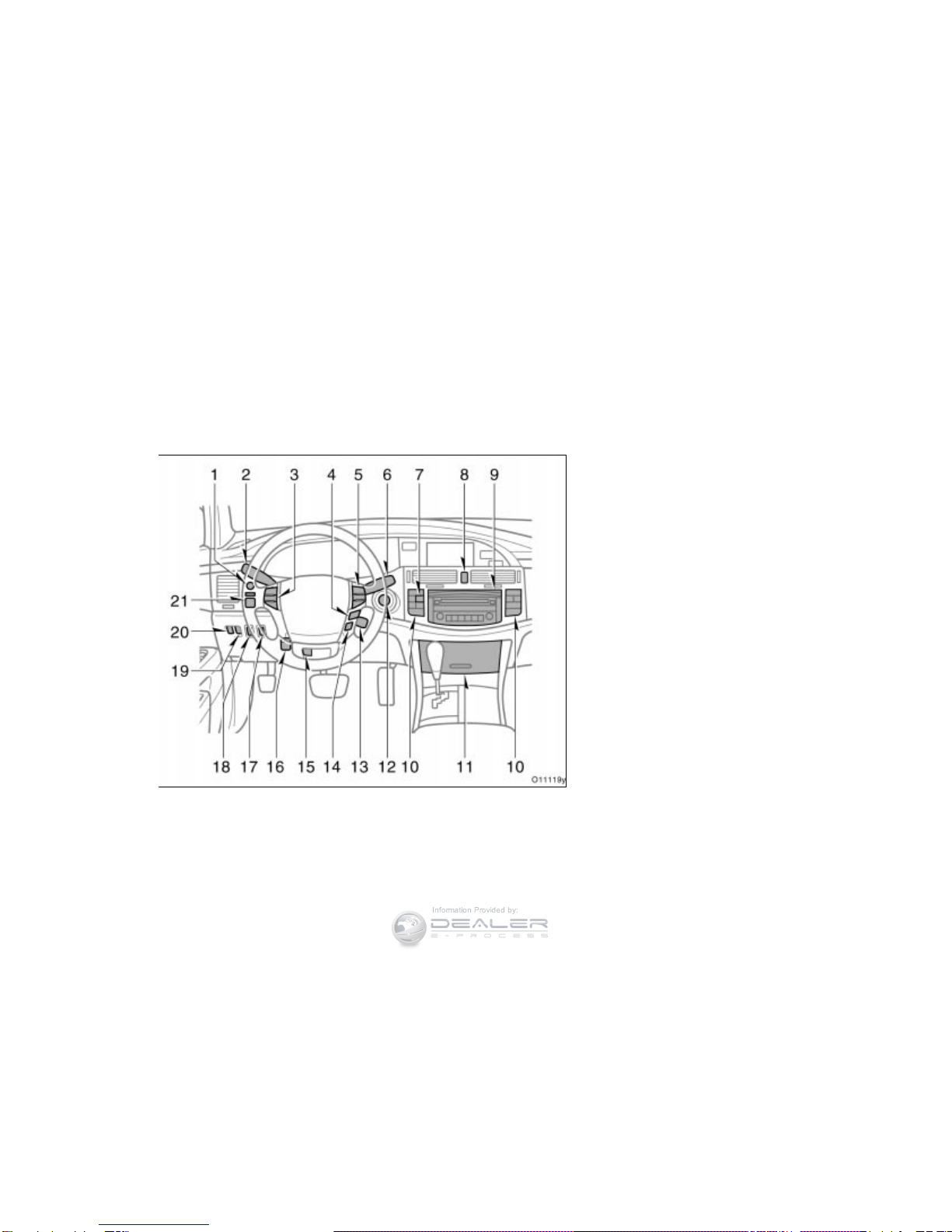

1. Instrument panel light control knob
2. Headlight, turn signal and front fog
light switches
3. Audio remote control switches
4. Speech command switch (See the
separate “Navigation System Owner’s
Manual.”)
5. Climate remote control switches
6. Wiper and washer switches
7. Rear window and outside rear view
mirror defogger switch
8. Emergency flasher switch
9. Audio system
10. Air conditioning controls
11. Cigarette lighter and ashtray, auxiliary
box, cassette player or navigation
system controller (For the navigation
system, see the separate “Navigation
System Owner’s Manual.”)
12. Ignition switch (engine switch)
13. Cruise control switch
14. Distance switch
15. Tilt steering lock release lever
16. Telescopic steering lock release lever
17. Glass breakage sensor
View B (with smart key system)
Information Provided by:

’05 AVALON_U (L/O 0501)
6
2005 AVALON from Jan. ’05 Prod. (OM41408U)
18. Rear electric sunshade switch
19. Trunk opener switch
20. Fuel filler door opener switch
21. Power rear view mirror control switches
Information Provided by:

’05 AVALON_U (L/O 0501)
7
2005 AVALON from Jan. ’05 Prod. (OM41408U)

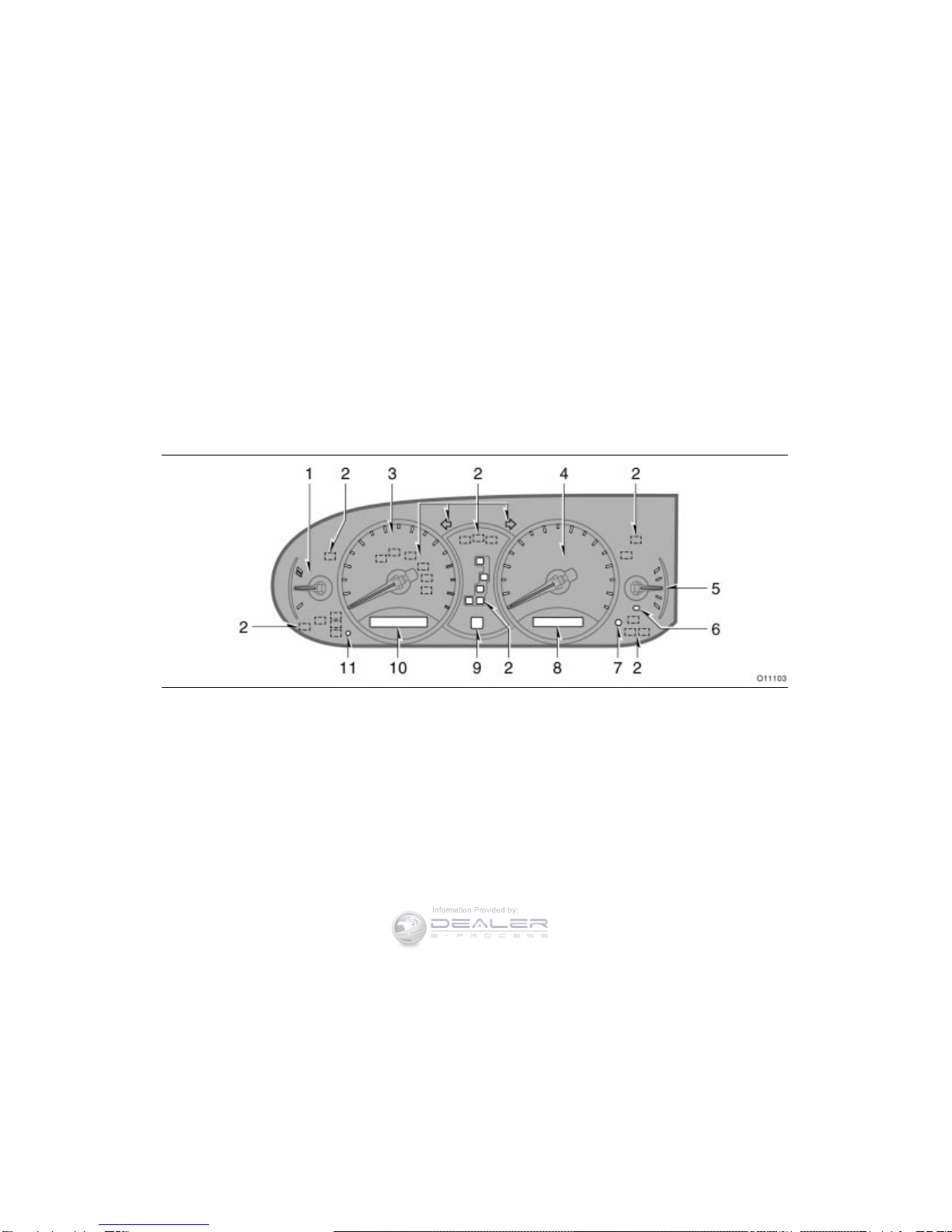

1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Tachometer
4. Speedometer
5. Fuel gauge
6. Low fuel level warning light
7. Trip meter reset knob
8. Odometer and two trip meters
9. Automatic transmission shift range
position display
10. Dynamic laser cruise control display
11. Dynamic laser cruise control master
warning light
Instrument cluster overview
Information Provided by:

’05 AVALON_U (L/O 0501)
8
2005 AVALON from Jan. ’05 Prod. (OM41408U)

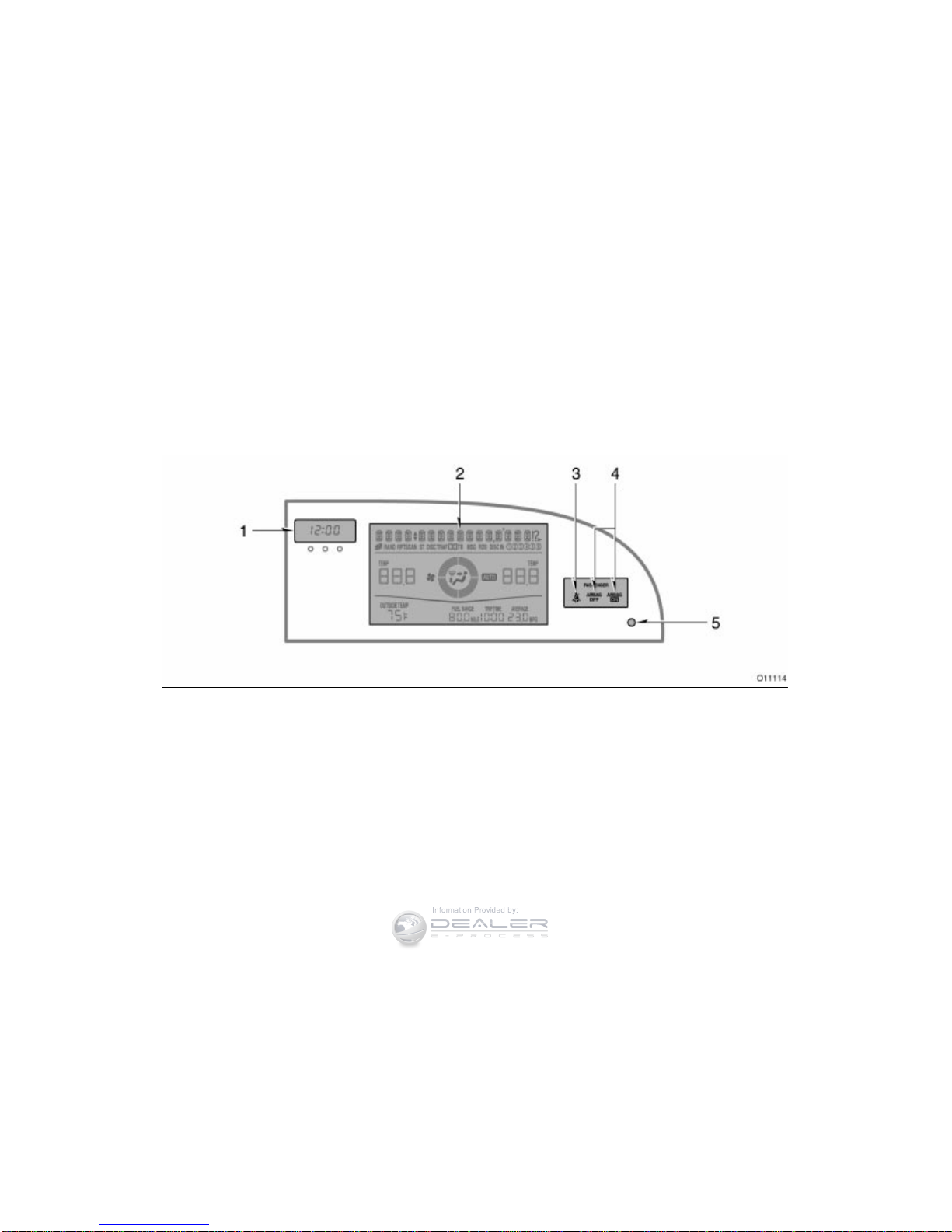

1. Clock
2. Center display∗1
3. Front passenger’s seat belt reminder
light∗2
4. “AIRBAG ON” and “AIRBAG OFF”
indicator lights
5. Pattern selector knob (for center
display)
∗1: If your vehicle has equipped navigation system, see the separate “Navigation System Owner’s Manual”.
∗2: For details, see “Service reminder indicators and warning buzzers” on page 145 in Section 1- 6.
Center cluster overview
Information Provided by:

’05 AVALON_U (L/O 0501)
9
2005 AVALON from Jan. ’05 Prod. (OM41408U)
Brake system warning light∗1
Driver’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
or
Anti- lock brake system warning light∗1 or
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Vehicle stability control system and traction
control system warning light∗1
or
Automatic headlight leveling system warning
light∗1
Engine oil replacement reminder light∗1
Engine immobilizer/theft deterrent system
indicator light
Smart key system warning light∗1
Headlight low beam indicator light
Indicator symbols on the instrument panel
Information Provided by:

’05 AVALON_U (L/O 0501)
10
2005 AVALON from Jan. ’05 Prod. (OM41408U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 145 in Section 1- 6.
∗2: If this light flashes, see “Cruise control” on page 169 in
Section 1- 7.
∗3: If this light flashes, see “Dynamic laser cruise control” on
page 172 in Section 1- 7.
Turn signal indicator lights
Slip indicator/traction control system off light
Cruise control indicator light∗2or dynamic laser
cruise control indicator light∗3
Automatic transmission indicator lights
Headlight high beam indicator light
Tail light indicator light
Dynamic laser cruise control ready mode
indicator light
Conventional cruise control mode indicator light
Information Provided by:

’05 AVALON_U (L/O 0501)
237
2005 AVALON from Jan. ’05 Prod. (OM41408U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Center display 238. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 241. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compass 241. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays 246. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 247. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener 248. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 251. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes 251. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear console box 253. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders 253. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear electric sunshade 254. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 255. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 10
Information Provided by:

’05 AVALON_U (L/O 0501)
238
2005 AVALON from Jan. ’05 Prod. (OM41408U)

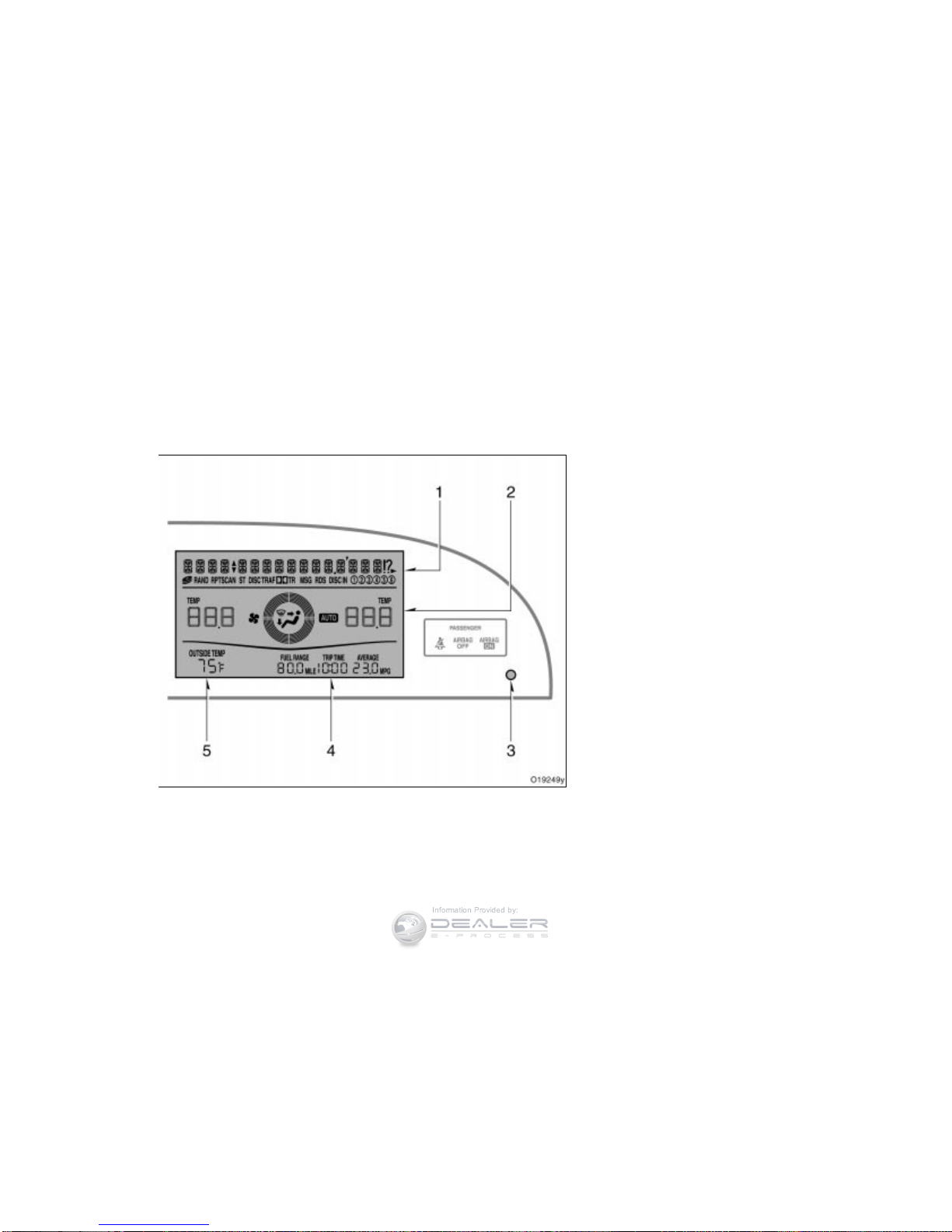

1. Audio display
(For details, see “Audio system” on
page 189 in Section 1- 8.)
2. Air conditioning display
(For details, see “Air conditioning
system” on page 223 in Section 1- 9.)
3. Pattern selector knob
4. Cruise information display
5. Outside temperature display
Center display—
Information Provided by:

’05 AVALON_U (L/O 0501)
239
2005 AVALON from Jan. ’05 Prod. (OM41408U)
Operate the center display with the
ignition switch on.
When the ignition switch is set at ON, the
last previously used mode displayed just
before the ignition switch is turned off will
appear.
If the electrical power source has been
disconnected from the center display, the
display will automatically be set to the
initial mode.
When the instrument panel lights are
turned on, the brightness of the display
may be reduced.

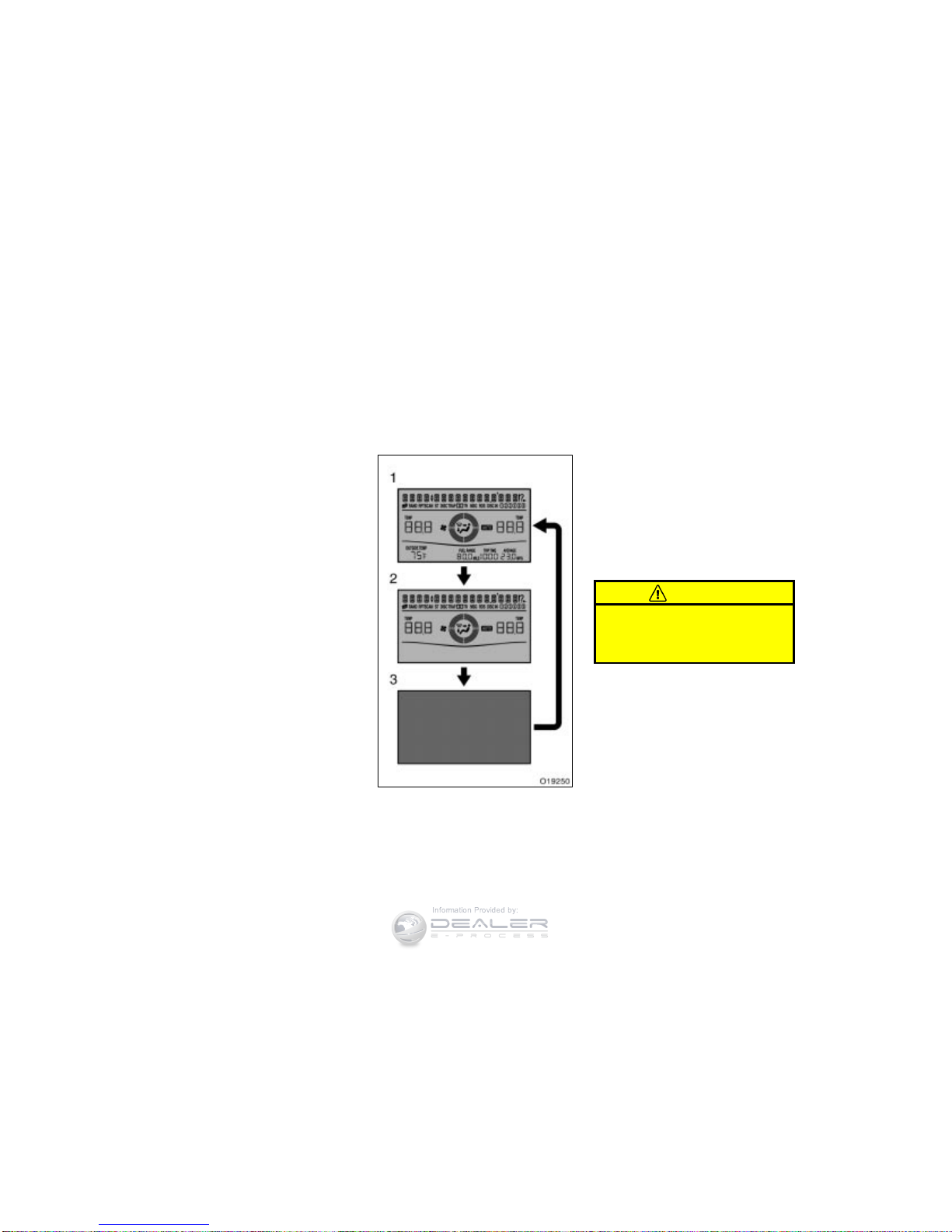

Pattern selector knob
This knob is used to select the pattern
of the display.
Every time you push the pattern selector
knob, the display in the following order.
1. All the display
2. Audio display and air conditioning dis-
play
3. Display off
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
—Before using the center
display
Information Provided by:

’05 AVALON_U (L/O 0501)
240
2005 AVALON from Jan. ’05 Prod. (OM41408U)

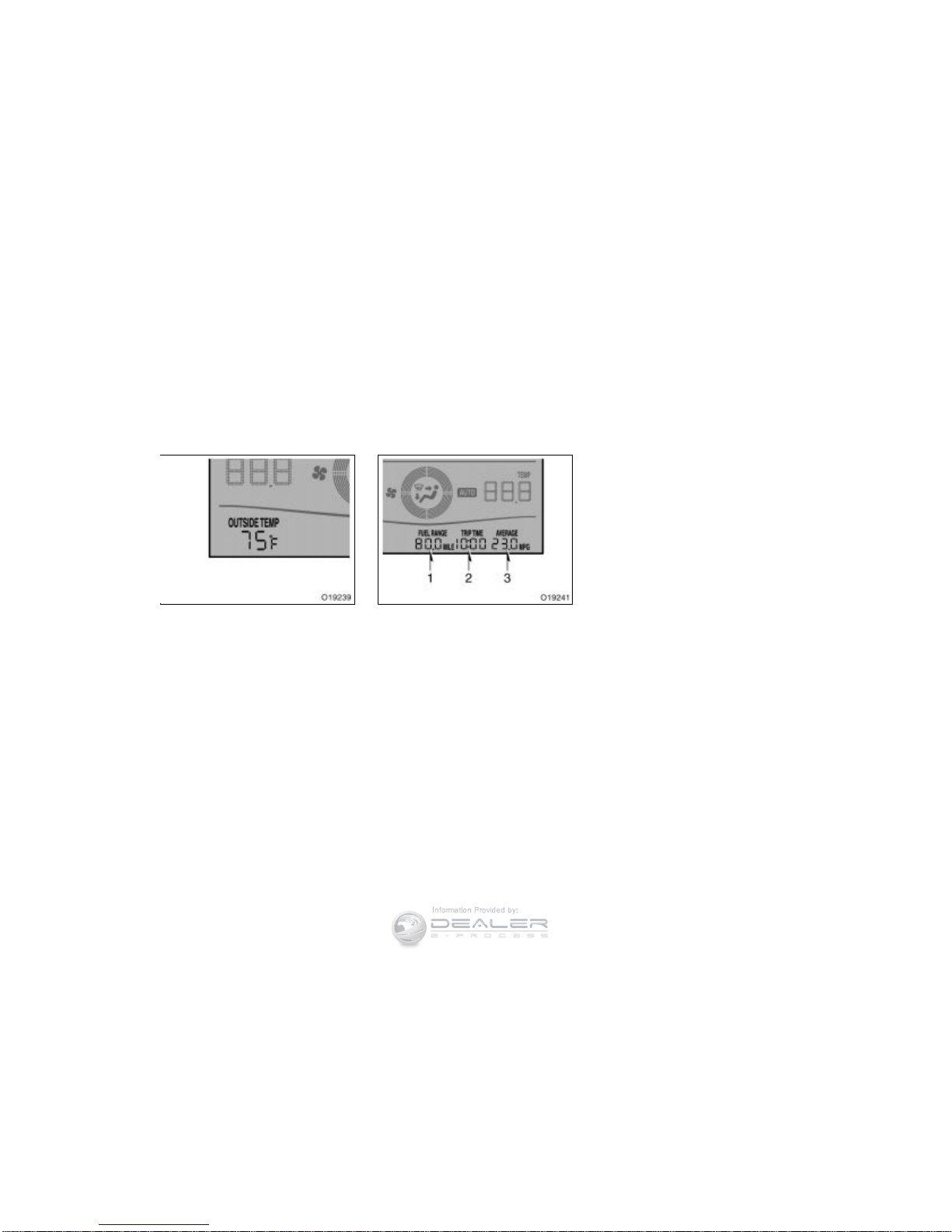

The outside temperature value is updated
every 1 second.
The displayed temperature ranges from
-30C (- 22F) up to 50C (122F).
If an abnormality exists in the connection
of the outside air temperature sensor,
“- - ”, “F” or “E” will appear on the display.
If “- - ”, “F” or “E” appears on the display,
contact your Toyota dealer.
There may be a case that “- -”, “F” or “E”
appears momentarily when the ignition
switch is quickly set to ON. It is normal
if it goes out soon.
1. Driving range
(“FUEL RANGE”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The displayed value is updated every 10
seconds.
Every time you refuel the vehicle, the
driving range calculation is automatically
reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
2. Elapsed time
(“TRIP TIME”)
The elapsed time after the engine starts
is displayed.
When the engine is started, driving time
is counted from 0:00. Up to 99:59 (99
hours, 59 minutes) can be displayed.
When the driving time exceeds 99:59, the
counter returns to 0:00.
The calculation is reset when the ignition
switch is turned off.
3. Average fuel consumption after re-
fueling
(“AVERAGE”)
Average fuel consumption after refuel-
ing is calculated and displayed based
on total driving distance and total fuel
consumption with the engine running.
The displayed value is updated every 10
seconds.
Every time you refuel the vehicle, the av-
erage fuel consumption after refueling cal-
culation is automatically reset.
—Outside temperature display —Cruise information display
Information Provided by:

’05 AVALON_U (L/O 0501)
241
2005 AVALON from Jan. ’05 Prod. (OM41408U)
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
The ignition switch must be set at ON.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication may be reduced.
The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the “ ” switch to turn the com-
pass system on and off.
Clock Compass
Information Provided by:

’05 AVALON_U (L/O 0501)
242
2005 AVALON from Jan. ’05 Prod. (OM41408U)
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.
Displays Directions
N
NE
E
SE
S
SW
W
NW
North
Northeast
East
Southeast
South
Southwest
West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
Information Provided by:

’05 AVALON_U (L/O 0501)
243
2005 AVALON from Jan. ’05 Prod. (OM41408U)
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “ ” switch until
the zone number appears on the display.
Then push the “ ” switch, referring to
the following map to select the number of
the zone where the vehicle is.
Information Provided by:

’05 AVALON_U (L/O 0501)
244
2005 AVALON from Jan. ’05 Prod. (OM41408U)
Zone number
After calibration, leaving the system for
several seconds returns it to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Samoa: 5 Guam: 8 Saipan: 8
Information Provided by:

’05 AVALON_U (L/O 0501)
245
2005 AVALON from Jan. ’05 Prod. (OM41408U)
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the “ ” switch until “C” appears on
the display.
If “C” appears on the display because of
a drastic change in the magnetic field,
perform circling calibration.
Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.
Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
Information Provided by:

’05 AVALON_U (L/O 0501)
246
2005 AVALON from Jan. ’05 Prod. (OM41408U)
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Type A
Type B
CIGARETTE LIGHTER (type A)
To use the cigarette lighter, first open
the ashtray lid, then press in the light-
er. After it finishes heating up, it auto-
matically pops out ready for use.
If the engine is not running, the ignition
switch must be set at ACC.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAY
Type A: To use the ashtray, push the lid
to open.
Type B: Open the lid of the cup holder
and set the ashtray in it. It can be used
outside the vehicle. To use the ashtray,
raise the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To detach the ashtray, pull it out.
Cigarette lighter and ashtrays
Information Provided by:
