2011
Sienna
!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Sienna.
This Quick Reference Guide is not a full description of Sienna
operations. Every Sienna owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
Information Provided by:

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1
6
Light control-Instrument panel 9
Smart Key system
1,2
7
Air Conditioning/Heating 24-26
Audio 22-23
Auto lock functions
2
10
Automatic Transmission 10
Bottle holders 31
Clock 19
Cruise control 20
Cup holders 31
Door-Power back 18
Doors-Sliding 17
Dynamic radar cruise control 20-21
Enhanced VSC OFF button 28
Garage door opener (HomeLink
®
)
2,3
29
Hill-start Assist Control (HAC) 29
Lights
1
& turn signals 11-12
Moonroof 19
Parking brake 10
Power outlets-12V DC 30
Power outlets-120V AC 30
Rear seat entertainment system 28
Seat adjustments-Front 14
Seat adjustments-Rear 14
Seat heaters 26
Seats-Head restraints 13
Seats-Removing second row center seat 15
Seats-Removing second row outside seats 15
Seats-Stowing third row seats 16
Sunshade-Side 19
Telephone controls (Bluetooth
®
)27
Tilt and telescopic steering wheel 11
Windows 18
Windows-Power quarter 18
Windshield wipers & washers 13
Door locks 32
Doors-Child safety locks 32
Seat belts 32
Seat belts-Shoulder belt anchor 32
Spare tire & tools 33
Tire Pressure Monitoring (warning) System 33
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Information Provided by:

2
OVERVIEW

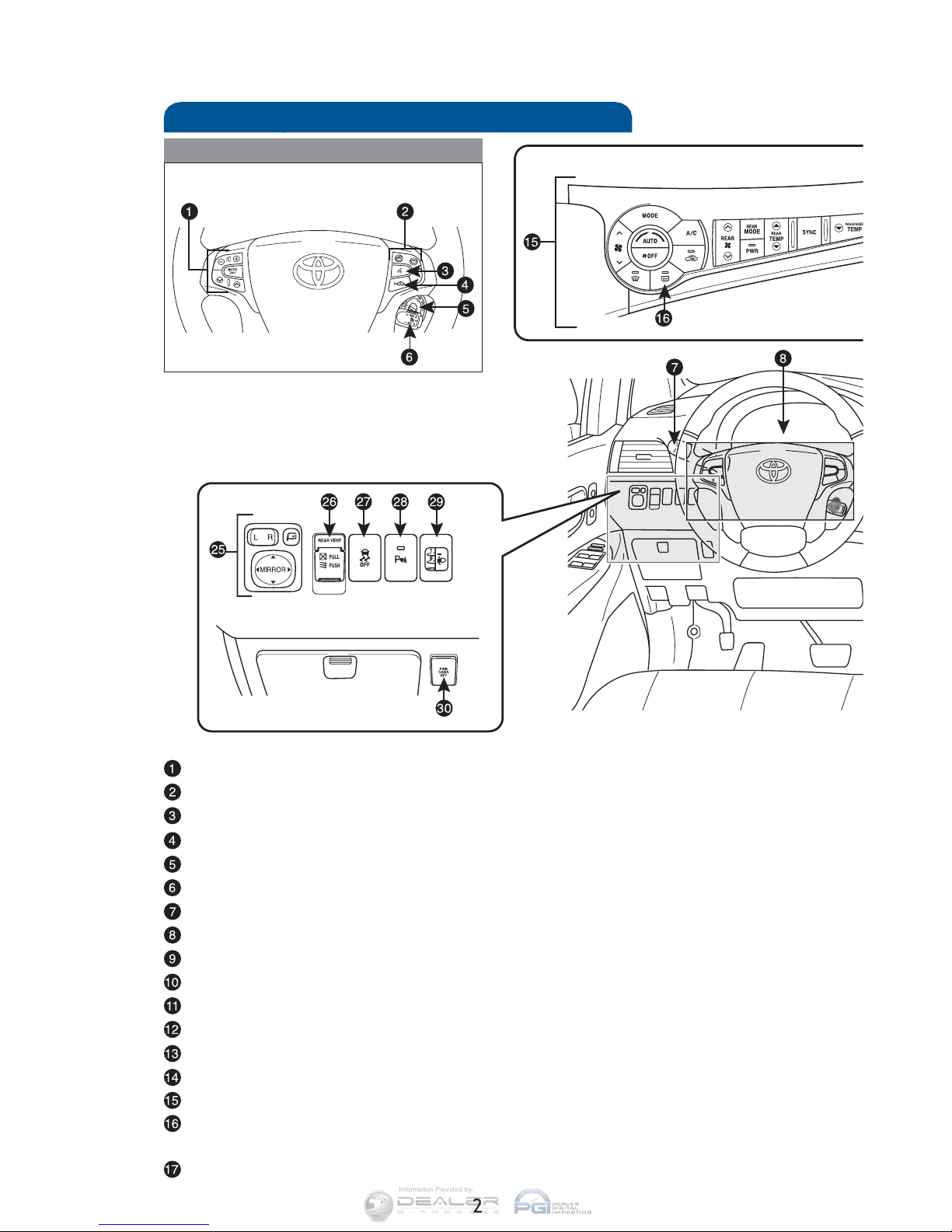

Instrument panel
Steering wheel controls
Steering wheel audio controls1
Telephone controls1,2
Voice command button1,2
Distance switch1
Ignition switch (standard key)1
Cruise control1
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
Emergency flasher button
Multi-information display1
Clock1
Audio system/Navigation system1,2
“ENGINE START STOP” switch (Smart Key)1
Air Conditioning controls
Outside rearview mirrors1/Rear window defogger button/Windshield
wiper de-icer1
Auxiliary box1
Automatic Air Conditioning system
Information Provided by:

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

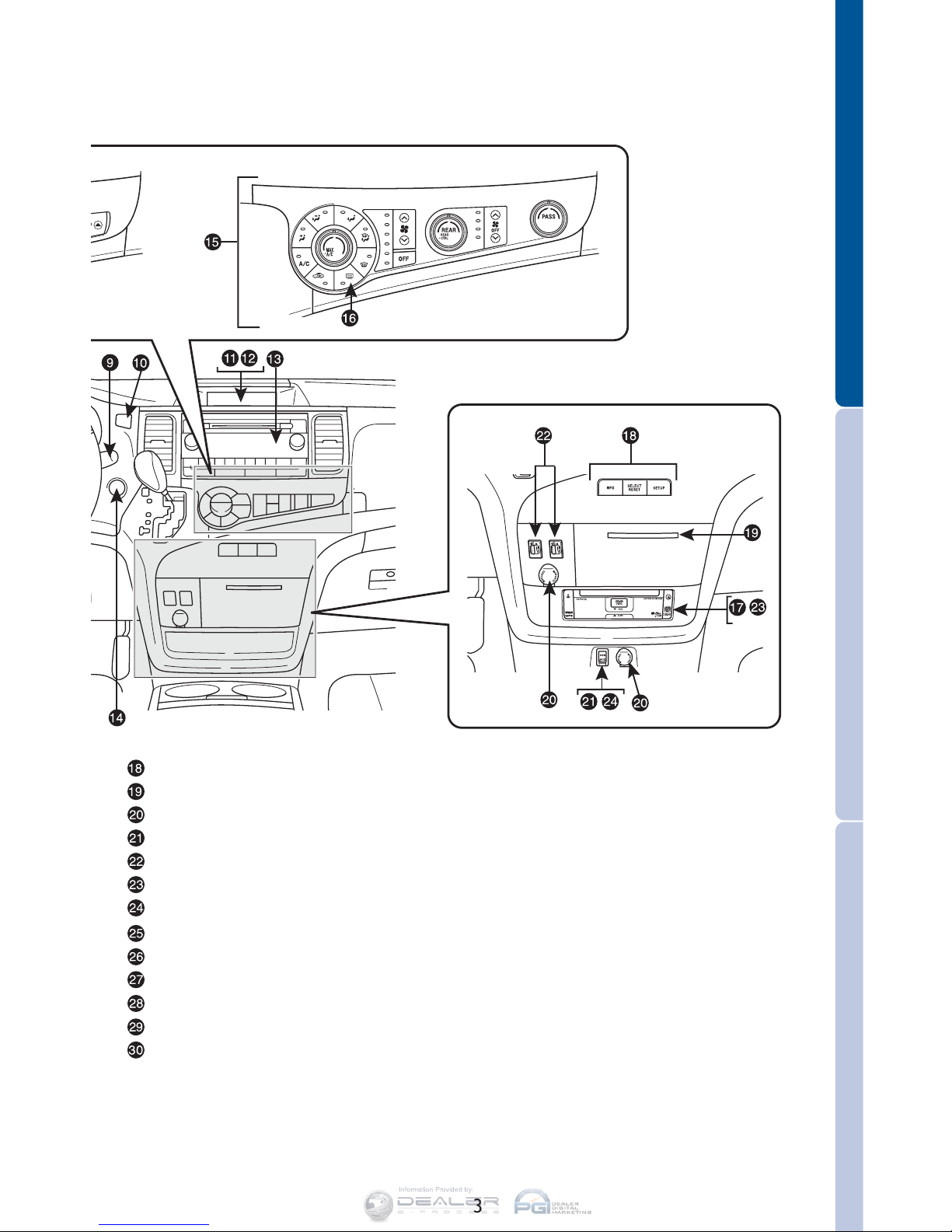

Multi-information display switches1
Cup holder
Power outlet (12V)
AUX adapter
Seat heater switches1
DVD player1
USB adapter1
Power rearview mirror controls
Power quarter window switch1
Enhanced VSC/TRAC OFF switch
Intuitive parking assist switch1
Headlight beam level control dial1
Power sliding door/power back door main switch1
1If equipped
2For vehicles with navigation system, refer to the “Navigation System
Owner’s Manual.”
Manual Air Conditioning system
Information Provided by:

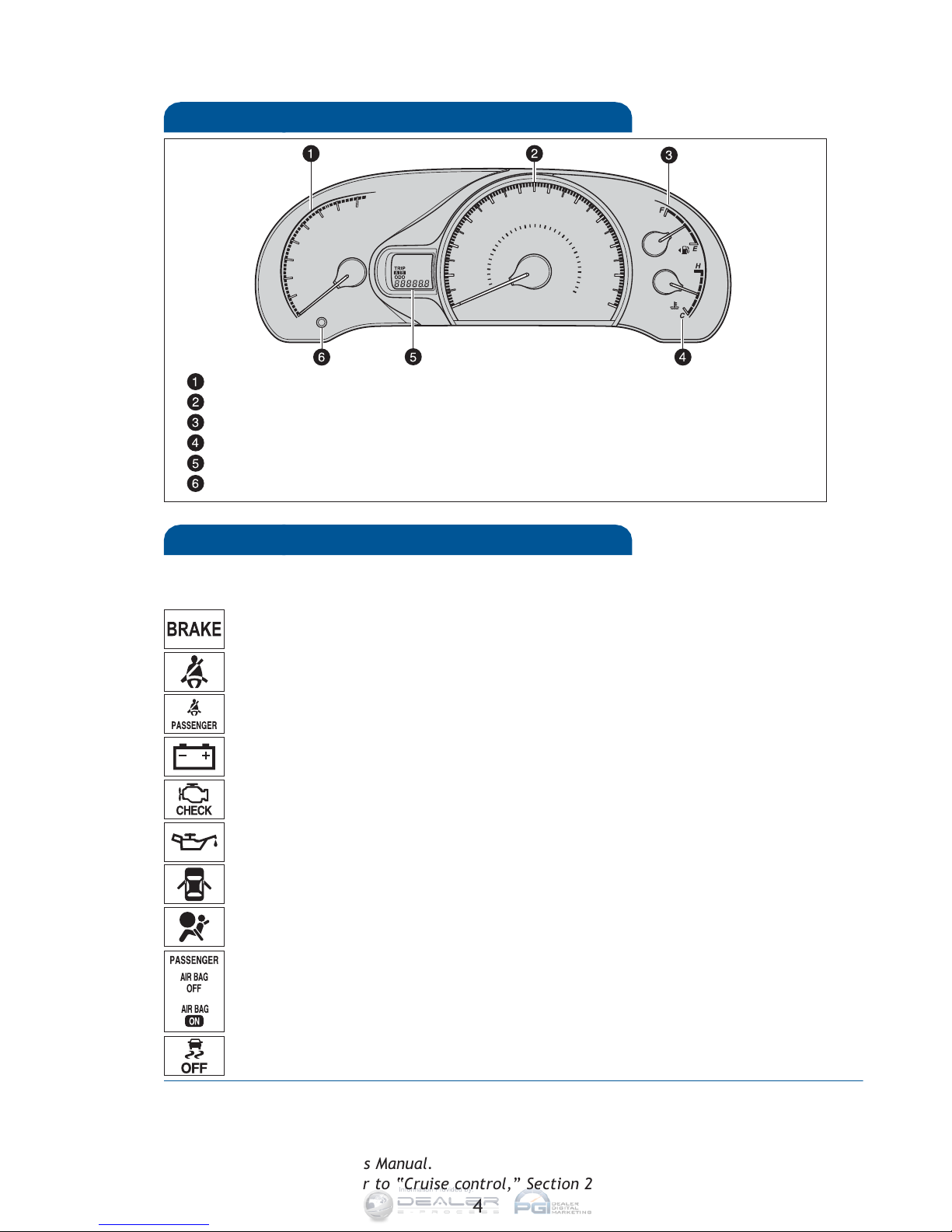

4
OVERVIEW
Low engine oil pressure warning1,2
Driver seat belt reminder2
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder2
(alarm will sound if speed is over 12 mph)
Brake system warning1,2
Charging system warning1,2
Malfunction/Check Engine indicator1,2
Indicator symbols
Instrument cluster
Tachometer
Speedometer
Fuel gauge
Engine coolant temperature
Odometer and two trip meters display
Odometer/trip meter display change button
Open door warning2
SRS AIR BAG ON-OFF indicator
Airbag SRS warning1,2
Vehicle Stability Control OFF indicator1,6
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
2For details, refer to “If a warning light turns on or a warning buzzer sounds...,”
Section 5-2, 2011 Owner’s Manual.
3If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.
For details, refer to “Indicators and warning lights,” Section 2-2, 2011
Owner’s Manual.
Information Provided by:

5

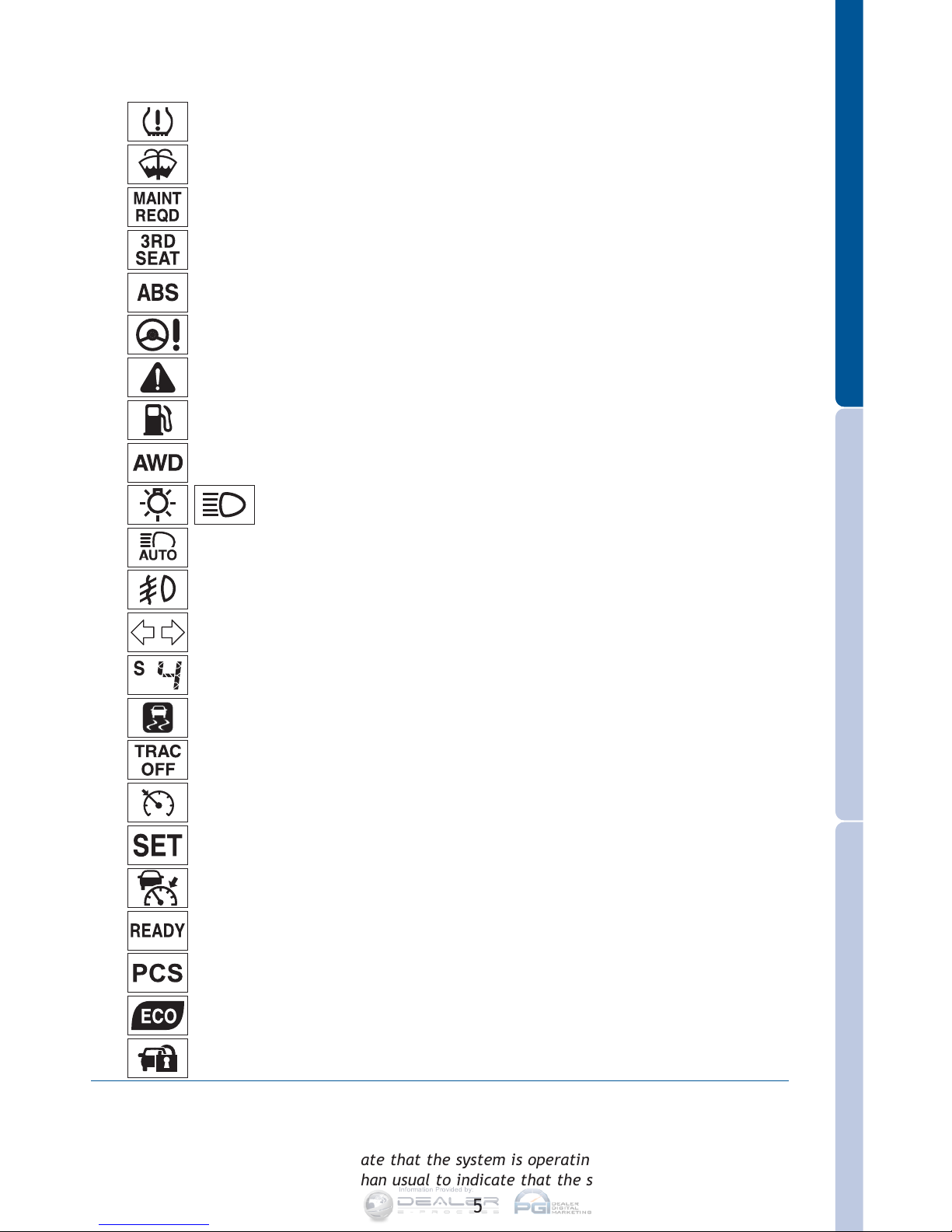

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1,2
Low Tire Pressure Warning1,2
Engine oil replacement reminder1,2
Third seat fold incomplete warning2
Security indicator
Headlight low/high beam indicator
Turn signal indicator
Cruise control indicator3,5
Radar cruise READY indicator
Pre-Collision System indicator1,7
Shift position indicators
Slip indicator/Hill-start Assist Control indicator1,6
Traction Control OFF indicator1
Low windshield washer fluid level warning1,2
4If this light flashes, refer to “Dynamic radar cruise control,” Section 2-4, 2011
Owner’s Manual.
5The indicator flashes to indicate a malfunction.
6The indicator flashes to indicate that the system is operating.
7The indicator flashes faster than usual to indicate that the system is operating.
Active Torque Control 4WD system warning light1,2
Master warning light1,2
Low fuel level warning light2
Electric power steering system warning light1,2
Automatic high beam indicator5
Fog light indicator
Radar cruise control indicator4,5
Cruise control SET indicator
ECO driving indicator light1
Information Provided by:

6
OVERVIEW
Keyless entry
Locking operation
NOTE: If a door is not opened within 60 seconds of unlocking, all doors
will relock for safety.
Push
Push ONCE: Driver door
TWICE: ALL doors
Unlocking operation
Panic button
Push and hold
Power back door operation
(if equipped)
Push and hold
Type A Type B Type C
Type A Type B Type C
Type A Type B
Power sliding door operation (if equipped)
Left side power sliding door Right side power sliding door
Type A Type B Type A Type B
Push and holdPush and hold
Information Provided by:

7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver side
doors only, or all doors. Grasping any passenger door handle will unlock
all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Unlock
Push
Lock
Locking operation Unlocking operation
Carry remote
to lock Carry remote
to unlock
To u c h
Front door lock Front door unlock*
Grasp
Carry remote to lock/unlock
Back door lock/unlock
Information Provided by:

8
Fuel tank door release and cap
Pull up
Store
Tu r n
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Hood release
Pull up latch
and raise hood
Pull
OVERVIEW
Insert rod to
hold hood open
Information Provided by:

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Windshield and rear window washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Bright
Dark
Information Provided by:

10
FEATURES/OPERATIONS
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the “ENGINE START STOP” switch or engine switch OFF.
Refer to the Owner’s Manual for more details.
Automatic Transmission
* The “ENGINE START STOP” switch/engine switch must be “ON” and the
brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
“S” (Sequential) mode
“S” “D”
Park*
Reverse
Neutral
Drive
P
R
N
D
S“S” mode
Parking brake
Set: Depress
Release: Depress again
+(“S” mode)
(“S” mode)
Information Provided by:

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Length
Lock release lever Angle

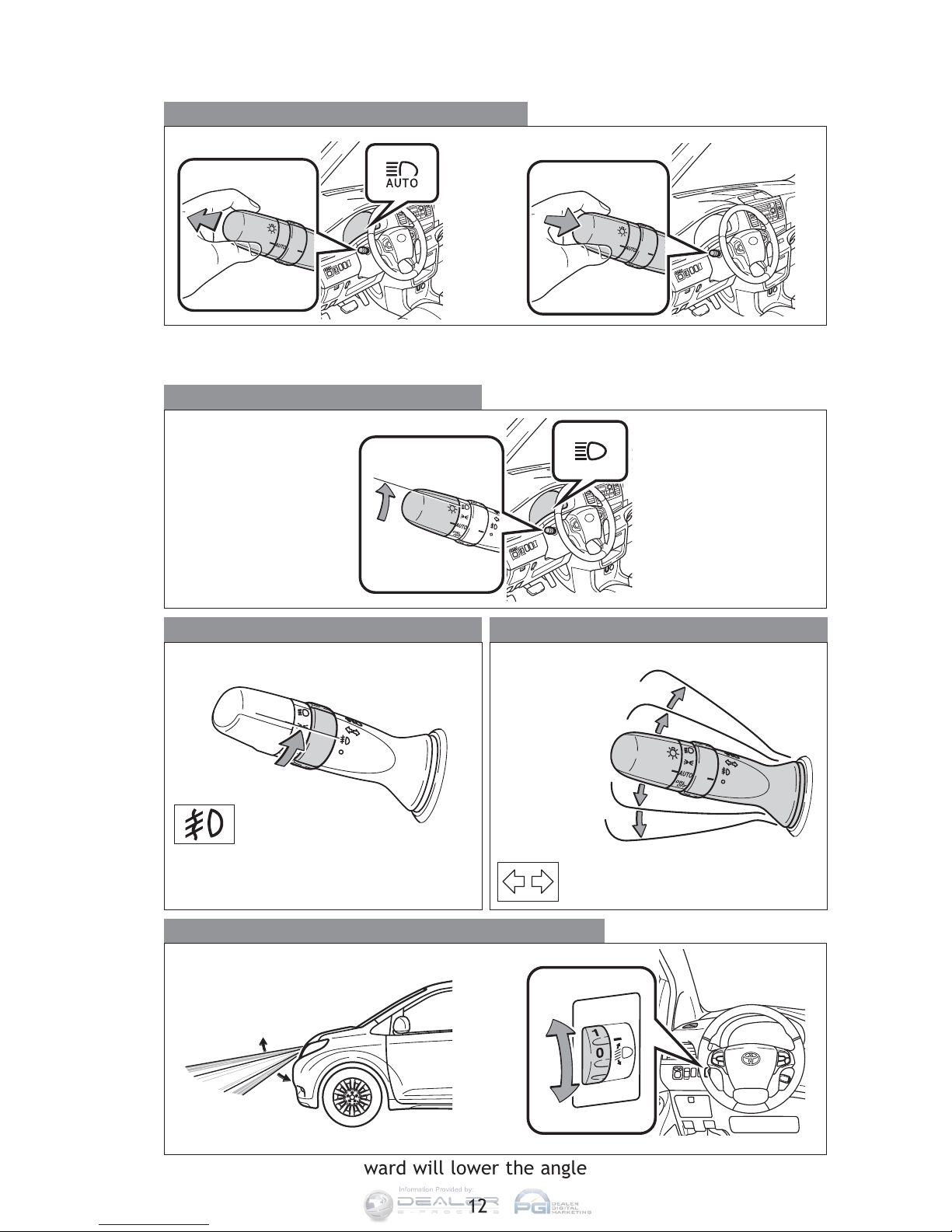

Lights & turn signals
Headlights
High beam flasher
Low beam
Headlights
-Daytime Running Light system (DRL) Automatically turns on the
headlights at a reduced intensity.
-Automatic light cut off system (if equipped) Automatically turns lights
off after a delay of 30 seconds, or the lock switch on remote may be
pushed after locking.
Parking lights
High beam
Auto or OFF
DRL OFF
Without automatic high beam
Information Provided by:

12
FEATURES/OPERATIONS
Headlight beam level control (if equipped)
Rotating the dial downward will lower the angle of the beam.
Up
Down Down
Up
Turn signalsFront fog lights (if equipped)
Front fog lights come on only when
the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
Tu r n
Automatic high beam (if equipped)
Deactivate
* Refer to the Owner’s Manual for details on activating the automatic high
beams.
Activate*
Manual high beam
Information Provided by:

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Windshield wipers & washers
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe
Adjust frequency*
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
* Intermittent windshield
wiper frequency adjustment
Rotate to increase/decrease
wipe frequency.
* Rain-sensing windshield wiper
Rotate to increase/decrease
sensor sensitivity.
Rain-sensing
Slow
Fast
Pull to wash and wipe
Single wipe
Adjust sensor sensitivity*
Seats-Head restraints
Lock release button
Front and second row
outside seats
Second row center
(8-passenger models)
and third row center seats
Third row outside seats
Lock release button
Information Provided by:

14
FEATURES/OPERATIONS
Seat adjustments-Rear
Second row seat
Third row seat
Seat position (forward/backward)
Seatback angle
Ottoman angle
Refer to the Owner’s Manual for more details.
Tip-up seat
Manual
Ottoman seat
Power
Seat adjustments-Front
Manual seat Power seat
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Lumbar support (driver side only)
Seat position, cushion angle and height
Pull
strap
Information Provided by:

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
(2)
(2)
(1)
(1)

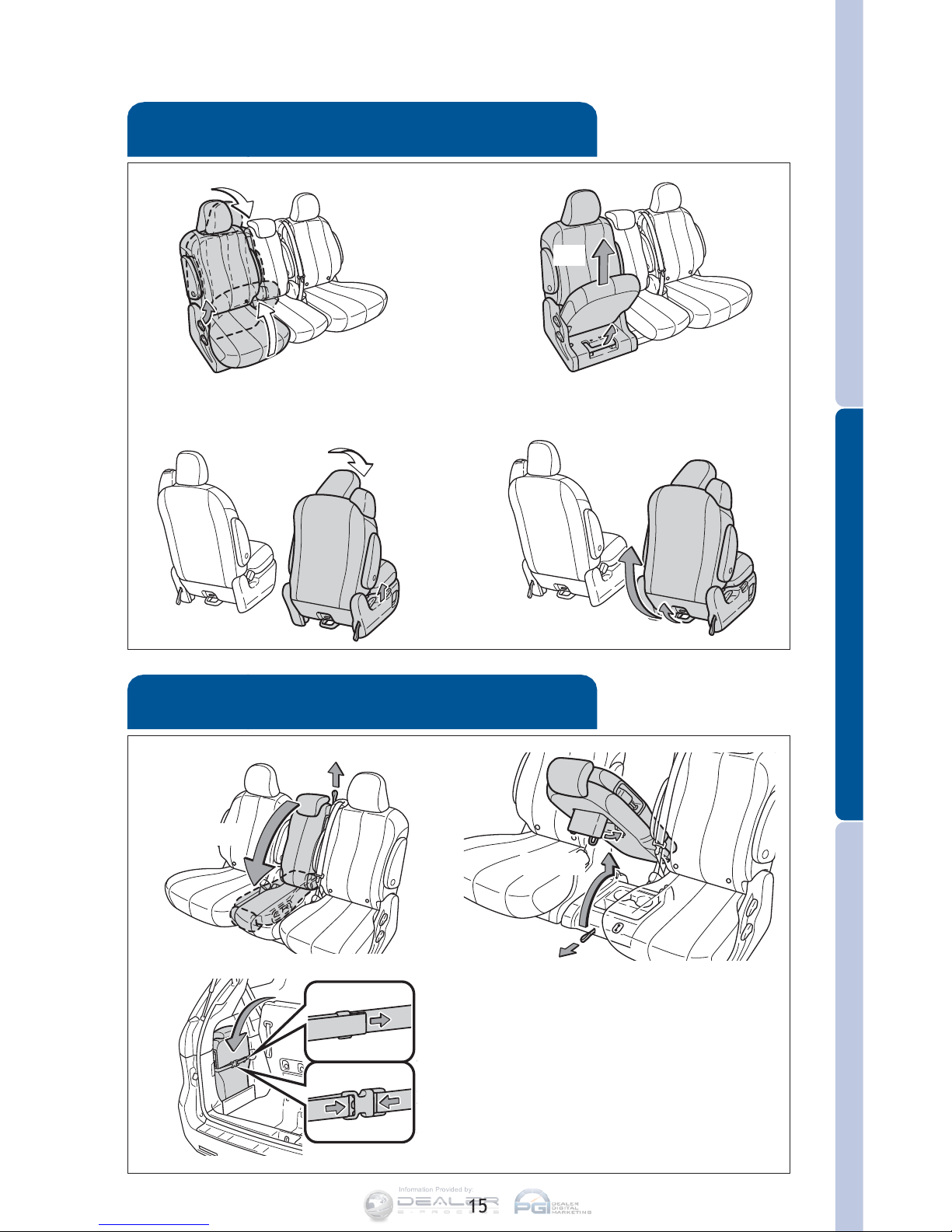

Tip-up seats
Fold
Pull
Lift
Pull
Pull
Tip-up
Pull
Fold
Lift
Ottoman seats
Seats-Removing second row center
seat (if equipped)
Pull
Fold
Pull
Remove
(2)
(1)
(3)
Seats-Removing second row outside
seats
Information Provided by:

16
FEATURES/OPERATIONS
Seats-Stowing third row seats (manual)
Lower
An alarm will sound for 10 seconds and the indicator will light
up on the instrument panel if the seat is not fully open or stowed when
vehicle is shifted out of Park.
Refer to the Owner’s Manual for more details.
Third seat fold
incomplete warning light
Stow the seat belt buckles
Seats-Stowing third row seats
(power) (if equipped)
(2)(1)
(3)
Lower
Push down
Stow the seat belt buckles
Pull
(2)(1)
(3)
Push and hold
Information Provided by:

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Opening/Closing
ON/OFF switch
Power
• Sliding doors will not fully open if the sliding door window is open.
• Power sliding doors will open only when gear selector is in the “P”
(Park) position, and doors are unlocked. Refer to the Owner’s Manual
for more details.
• An alarm will sound if a sliding door is open and the vehicle is shifted
out of Park.
• Left sliding door will not open if gas door is open.
• If battery is disconnected, the power sliding doors need to be
reinitialized. Refer to the Owner’s Manual for more details.
Manual
• Sliding doors will not lock into the open position if the sliding door
window is open.
Doors-Sliding
Front overhead console
Instrument panel
Push
Center pillar
On
Off
Open: Push
Close: Push again
Open: Push
Close: Push again
Information Provided by:

18
FEATURES/OPERATIONS
Windows
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Window lock switch
Up Down
Windows-Power quarter (if equipped)
Open Close
Door-Power back (if equipped)
On
Off
Push
Push
Instrument panel Front overhead console
Open: Push
Close: Push again
NOTE: If battery is disconnected, the power back door needs to be
reinitialized. Refer to the Owner’s Manual for more details.
Opening/ClosingON/OFF switch
Information Provided by:
