Toyota 1993 MR2 Manual

FOREWORD
This wiring diagram has been prepared to provide information
on the electrical system of the 1993 TOYOTA MR2.
Applicable models: SW20, 21 Series
For service specifications and repair procedures of the above
models other than those listed in this manual, refer to the
following manuals;
Manual Name Pub. No.
 1993 MR2 Repair Manual
Volume 1
Volume 2
 1993 MR2 New Car Features
Supplement
RM285U1
RM285U2
NCF083U
All information in this manual is based on the latest product
information at the time of publication. However, specifications
and procedures are subject to change without notice.
TOYOTA MOTOR CORPORATION
Servicing vehicles with an SRS AIRBAG (referred to as the airbag in the
remainder of this manual) installed.
When handling airbag components (removal, installation or inspection, etc.),
always follow the directions given in the repair manuals listed above to
prevent the occurrence of accidents and airbag malfunction.
NOTICE

2
INTRODUCTION
This manual consists of the following 11 sections:
No. Section Description
A
INDEX Index of the contents of this manual.
A
INTRODUCTION Brief explanation of each section.
BHOW TO USE
THIS MANUAL Instructions on how to use this manual.
CTROUBLE–
SHOOTING Describes the basic inspection procedures for electrical circuits.
DABBREVIATIONS Defines the abbreviations used in this manual.
EGLOSSARY OF
TERMS AND
SYMBOLS Defines the symbols and functions of major parts.

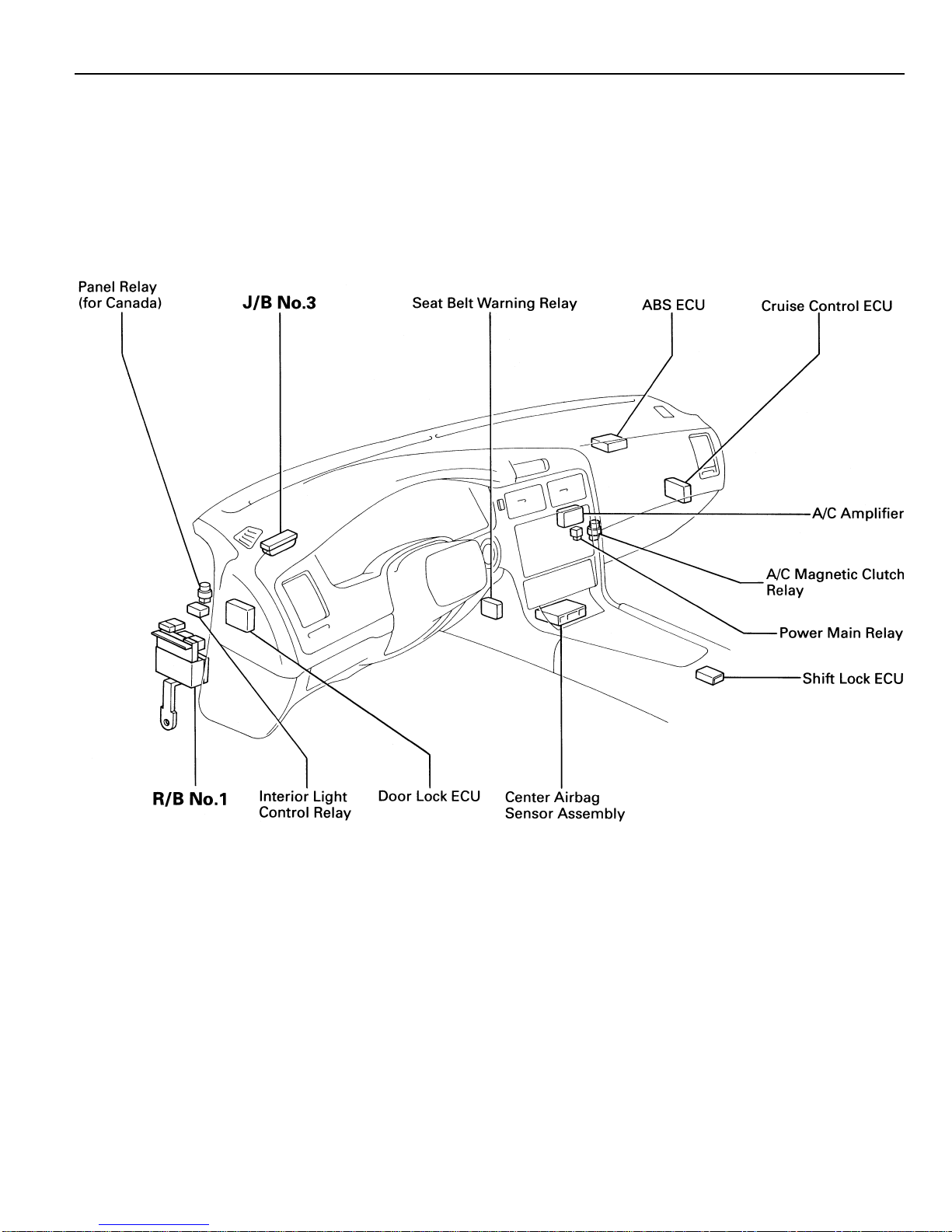

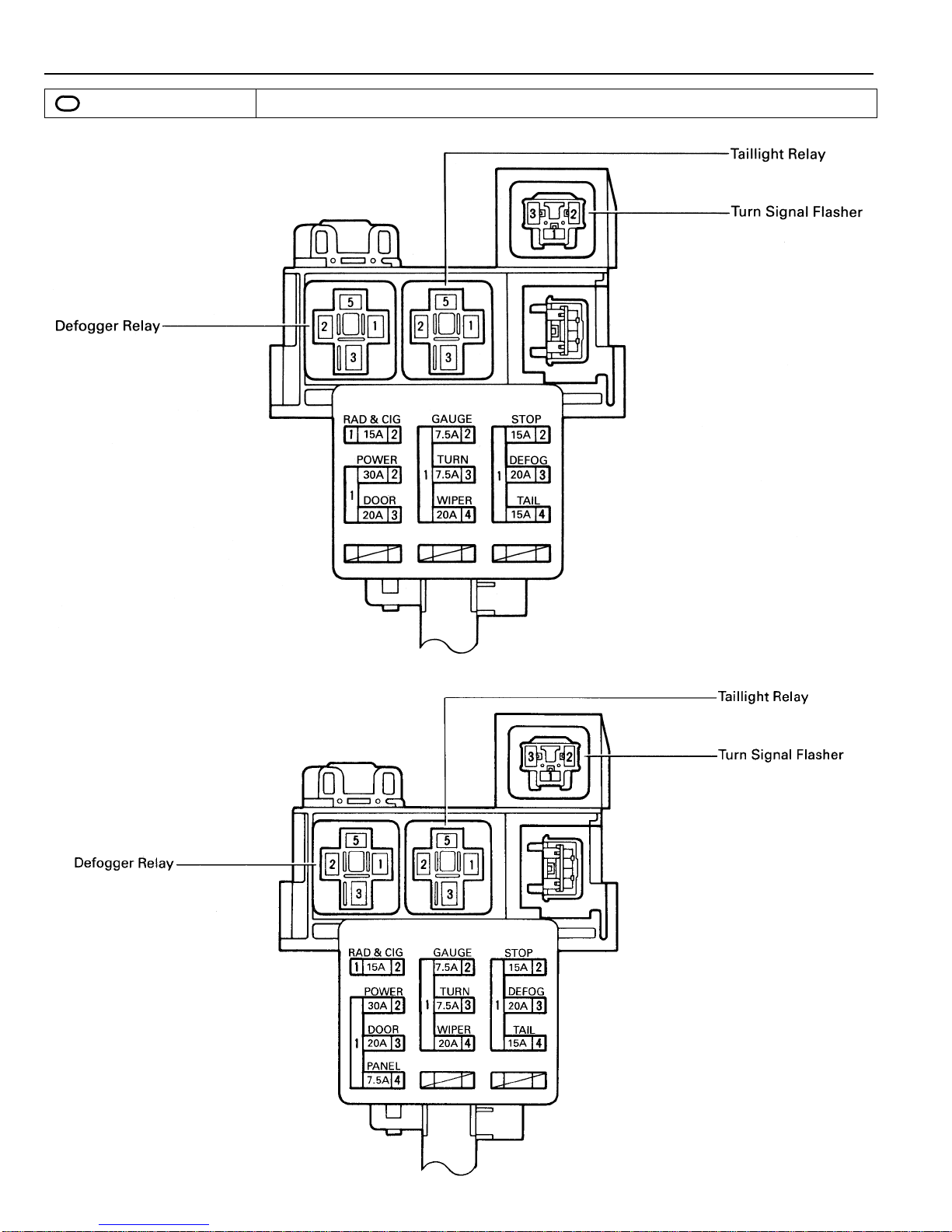

FRELAY LOCATIONS Shows position of the Electronic Control Unit, Relays, Relay Block, etc.
This section is closely related to the system circuit.
GELECTRICAL
WIRING ROUTING Describes position of Parts Connectors, Splice points, Ground points, etc. This section is closely related to the system circuit.
HPOWER SOURCE
(Current Flow Chart) Describes power distribution from the power supply to various electrical loads.
INDEX Index of the system circuits.
ISYSTEM CIRCUITS
Electrical circuits of each system are shown from the power supply through
ground points. Wiring connections and their positions are shown and
classified by code according to the connection method. (Refer to the
section, “How to use this manual”).
The “System Outline” and “Service Hints” useful for troubleshooting are also
contained in this section.
JGROUND POINTS Shows ground positions of all parts described in this manual.
KOVERALL
WIRING DIAGRAM Provides circuit diagrams showing the circuit connections.

3
HOW TO USE THIS MANUAL
This manual provides information on the electrical circuits installed on vehicles by
dividing them into each system circuit.
The actual wiring of each system circuit is shown from the point where the power source
is received from the battery as far as each ground point. (All circuit diagrams are shown
with the switches in the OFF position.)
When troubleshooting any problem, first understand the operation of the circuit where
the problem was detected (see System Circuit section), the power source supplying
power to that circuit (see Power Source section), and the ground points (see Ground
Points section). See the System Outline to understand the circuit operation.
When the circuit operation is understood, begin troubleshooting of the problem circuit
to isolate the cause. Use Relay Location and Electrical Wire Routing sections to find
each part, junction block and wiring harness connectors, wiring harness and wiring
harness connectors, splice points, and ground points of each system circuit. Internal
wiring for each junction block is also provided for better understanding of connection
within a junction block.
Wiring related to each system is indicated in each system circuit by arrows (from
, to ).Whenoverallconnectionsarerequired,seetheOverallWiringDiagram
at the end of this manual.

* The system shown here is an EXAMPLE ONLY. It is different to the
actual circuit shown in the SYSTEM CIRCUITS SECTION.
4
HOW TO USE THIS MANUAL

A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
5

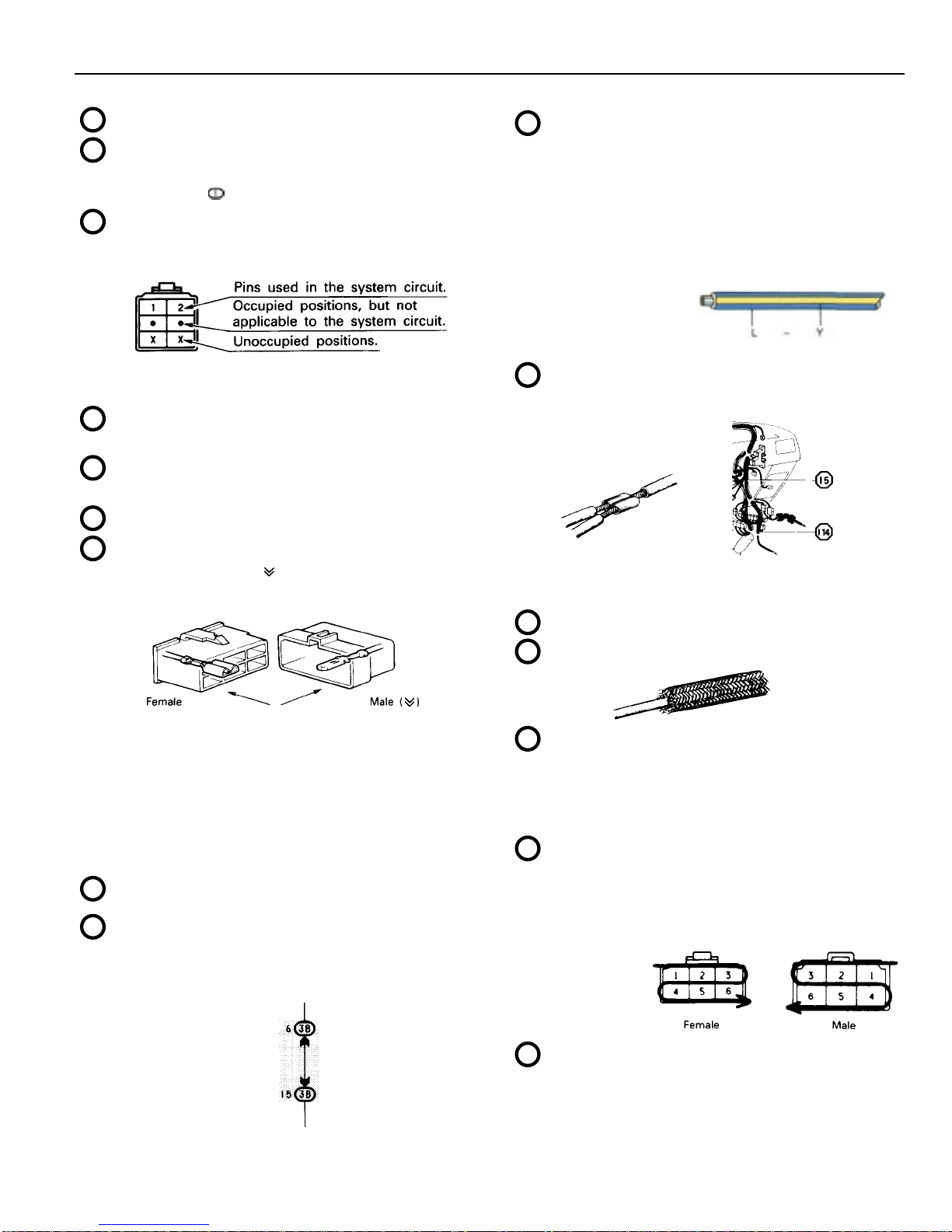

:System Title
:Indicates a Relay Block. No shading is used and only
the Relay Block No. is shown to distinguish it from the
J/B.
Example: Indicates Relay Block No. 1.
:Indicates the connector to be connected to a part (the
numeral indicates the pin No.)
Explanation of pin use.
The pins shown are only for the highest grade, or only
include those in the specification.
:Connector Color
Connectors not indicated are milky white in color.
:( ) is used to indicate different wiring and connector,
etc. when the vehicle model, engine type, or
specification is different.
:Indicates related system.
:Indicates the wiring harness and wiring harness
connector. The wiring harness with male terminal is
shown with arrows ( ).
Outside numerals are pin numbers.
The first letter of the code for each wiring harness and
wiring harness connector(s) indicates the component’s
location, e.g., “E” for the Engine Compartment, “I” for the
Instrument Panel and Surrounding area, and “B” for the
Body and Surrounding area.
When more than one code has the first and second
letters in common, followed by numbers (e.g., IH1, IH2),
this indicates the same type of wiring harness and
wiring harness connector.
:Represents a part (all parts are shown in sky blue). The
code is the same as the code used in parts position.
:Junction Block (The number in the circle is the J/B No.
and the connector code is shown beside it). Junction
Blocks are shaded to clearly separate them from other
parts (different junction blocks are shaded differently for
further clarification).
3B indicates
that it is inside
Junction Block
No. 3.
Example:
:Indicates the wiring color.
Wire colors are indicated by an alphabetical code.
B = Black L = Blue R = Red
BR = Brown LG = Light Green V = Violet
G = Green O = Orange W = White
GR = Gray P = Pink Y = Yellow
The first letter indicates the basic wire color and the
second letter indicates the color of the stripe.
Example: L – Y
(Blue) (Yellow)
:Indicates a wiring Splice Point (Codes are “E” for the
Engine Room, “I” for the Instrument Panel, and “B” for
the Body).
Example:
The Location of Splice Point I 5 is indicated by the
shaded section.
:Page No.
:Indicates a shielded cable.
:Indicates a ground point.
The first letter of the code for each ground point(s)
indicates the component’s location, e.g., “E” for the
Engine Compartment, “I” for the Instrument Panel and
Surrounding area, and “B” for the Body and
Surrounding area.
:Indicates the pin number of the connector.
The numbering system is different for female and male
connectors.
Example: Numbered in order
from upper left to
lower right
Numbered in order
from upper right to
lower left
:When 2 parts both use one connector in common, the
parts connector name used in the wire routing section
is shown in square brackets [ ].

Q
R
S
T
U
V
W
X
6
HOW TO USE THIS MANUAL
WITH THE IGNITION SW TURNED ON, THE CURRENT FLOWS TO TERMINAL 3 OF THE POWER WINDOW MASTER SW, TERMINAL 2 OF THE POWER WINDOW CONTROL RELAY
AND TERMINAL 8 OF THE POWER WINDOW SW THROUGH THE DOOR FUSE.
1. DRIVER’S WINDOW “MANUAL UP” OPERATION BY MASTER SW
HOLDING MANUAL SW (DRIVER’S) ON “UP” POSITION LOCATED IN POWER WINDOW MASTER SW, THE CURRENT FLOWS TO TERMINAL 5 OF THE POWER WINDOW
CONTROL RELAY THROUGH TERMINAL 3 OF THE MASTER SW  TERMINAL 2 TO OPERATE A POWER WINDOW CONTROL RELAY. THUS THE CURRENT INSIDE THE RELAY
FLOWS FROM TERMINAL 2 OF THE RELAY TERMINAL 1 TERMINAL 2 OF THE POWER WINDOW MOTOR  TERMINAL 1 TERMINAL 4 OF THE RELAY  TERMINAL
3  TO GROUND. THE MOTOR TURNS TO ASCENT THE WINDOW. RELEASING THIS SW, THE ROTATION OF MOTOR IS STOPPED AND THE WINDOWS CAN STOP AT WILL
POINT.
(FOR THE “MANUAL DOWN” OPERATION, CURRENT FLOWS IN THE REVERSE DIRECTION BECAUSE THE TERMINALS WHERE IT FLOWS ARE CHANGED).
2. DRIVER’S WINDOW “AUTO DOWN” OPERATION BY MASTER SW
ONCE THE “AUTO DOWN” BUTTON OF THE MASTER SW IS PUSHED, THE CURRENT FLOWS TERMINAL 9 OF THE POWER WINDOW CONTROL RELAY THROUGH TERMINAL
3 OF THE MASTER SW  TERMINALS 8 AND 9 TO OPERATE THE RELAY. THUS THE CURRENT INSIDE THE POWER WINDOW CONTROL RELAY FLOWS FROM TERMINAL
2 OF THE RELAY  TERMINAL 4  TERMINAL 1 OF THE POWER WINDOW MOTOR  TERMINAL 2  TERMINAL 1 OF THE RELAY  TERMINAL 3  TO GROUND.
THE MOTOR CONTINUES THE ROTATION ENABLING TO DESCENT THE WINDOW.
THE WINDOW DESCENDS TO THE END POSITION. THE CURRENT WILL BE CUT OFF TO RELEASE THE AUTO DOWN FUNCTION BASED ON THE INCREASING CURRENT
BETWEEN TERMINAL 2 OF THE RELAY AND TERMINAL 1 IN RELAY.
3. DRIVER’S WINDOW AUTO DOWN RELEASE OPERATION BY MASTER SW
HOLDING THE MANUAL SW (DRIVER’S) ON “UP” POSITION IN OPERATING AUTO DOWN. THE CURRENT FROM TERMINAL 3 OF THE MASTER SW PASSING TERMINAL 2
FLOWS TERMINAL 5 OF THE RELAY AND RELEASES THE AUTO DOWN FUNCTION IN THE POWER WINDOW CONTROL RELAY. RELEASING THE HAND FROM SW, WINDOW
STOPS AND CONTINUING ON TOUCHING SW, THE FUNCTION SWITCHES TO MANUAL UP OPERATION.
4. PASSENGER’S WINDOW UP OPERATION (MASTER SW) AND WINDOW LOCK SW OPERATION
HOLDING PASSENGER’S WINDOW SW (MASTER SW) ON “UP”, THE CURRENT FLOWS FROM TERMINAL 3 OF THE MASTER SW PASSING TERMINAL 6 TO TERMINAL 3 OF
THE POWER WINDOW SW (PASSENGER’S)  TERMINAL 4  TERMINAL 2 OF THE MOTOR  TERMINAL 1  TERMINAL 9 OF THE POWER WINDOW SW  TERMINAL
7  TERMINAL 1 OF THE MASTER SW  TERMINAL 4 TO GROUND. THE MOTOR RUNS TO ASCENT THE WINDOW. RELEASING THIS SW, THE ROTATION OF MOTOR IS
STOPPED AND WINDOW CAN STOP AT WILL PLACE.
SWITCHING THE WINDOW LOCK SW IN “LOCK” POSITION, THE CIRCUIT IS OPENED AND STOPPED THE MOTOR ROTATION.
(FOR THE DOWN OPERATION, CURRENT FLOWS IN THE REVERSE DIRECTION BECAUSE THE TERMINALS WHERE IT FLOWS ARE CHANGED).
P 2 POWER WINDOW CONTROL RELAY
3–GROUND: ALWAYS CONTINUITY
2–GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION
5–GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION AND MASTER SW AT UP POSITION
8–GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION AND MASTER SW AT AUTO DOWN POSITION
9–GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION AND MASTER SW AT DOWN OR AUTO DOWN POSITION
P 4 POWER WINDOW MASTER SW
4–GROUND: ALWAYS CONTINUITY
3–GROUND: APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION
WINDOW LOCK SW
OPEN WITH THE WINDOW LOCK SW AT LOCK POSITION
: PARTS LOCATION
CODE SEE PAGE CODE SEE PAGE CODE SEE PAGE
P 2 21 P 4 21 P 6 21
P 3 21 P 5 21 21
: RELAY BLOCKS
CODE SEE PAGE RELAY BLOCK (RELAY BLOCK LOCATION)
116 R/B NO. 1 (INSTRUMENT PANEL LEFT SIDE)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
3B 14 J/B NO. 3 AND COWL WIRE (INSTRUMENT PANEL LEFT SIDE)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
ID1 26 FRONT DOOR RH WIRE AND COWL WIRE (RIGHT KICK PANEL)
IH1 26 FRONT DOOR LH WIRE AND COWL WIRE (LEFT KICK PANEL)
: GROUND POINTS
CODE SEE PAGE GROUND POINT LOCATION
IC 24 COWL LEFT
: SPLICE POINTS
CODE SEE PAGE WIRE HARNESSES WITH SPLICE POINTS
I 5 24 COWL WIRE
SYSTEM OUTLINE
SERVICE HINTS

Q
R
S
T
U
V
W
X
7
:Explains the system outline.
:Indicates values or explains the function for reference during troubleshooting.
:Indicates the reference page showing the position on the vehicle of the parts in the system circuit.
Example: Part “P4” (Power Window Master SW) is on page 21 of the manual.
* The letter in the code is from the first letter of the part, and the number indicates its order
in parts starting with that letter.
Part is 4th in order
Power Window Master SW
Example: P 4
:Indicates the reference page showing the position on the vehicle of Relay Block Connectors in the
system circuit.
Example: Connector “1” is described on page 16 of this manual and is installed on the left side of the
instrument panel.
:Indicates the reference page showing the position on the vehicle of J/B and Wire Harness in the system
circuit.
Example: Connector “3B” connects the Cowl Wire and J/B No. 3. It is described on page 14 of this
manual, and is installed on the instrument panel left side.
:Indicates the reference page describing the wiring harness and wiring harness connector (the female
wiring harness is shown first, followed by the male wiring harness).
Example: Connector “ID1” connects the front door RH wire (female) and cowl wire (male). It is
described on page 26 of this manual, and is installed on the right side kick panel.
:Indicates the reference page showing the position of the ground points on the vehicle.
Example: Ground point “IC” is described on page 24 of this manual and is installed on the cowl left side.
:Indicates the reference page showing the position of the splice points on the vehicle.
Example: Splice point “I 5” is on the Cowl Wire Harness and is described on page 24 of this manual.

* The system shown here is an EXAMPLE ONLY. It is different to the actual circuit shown in the SYSTEM CIRCUITS SECTION.
POWER SOURCE (Current Flow Chart)
The chart below shows the route by which current flows from the battery to each electrical source (Fusible Link, Circuit
Breaker, Fuse, etc.) and other parts.
The next page and following pages shown the parts to which each electrical source outputs current.
POWER SOURCE
8
HOW TO USE THIS MANUAL
The “Current Flow Chart” section, describes which parts each power source (fuses, fusible links, and circuit breakers)
transmits current to. In the Power Source circuit diagram, the conditions when battery power is supplied to each system are
explained. Since all System Circuit diagrams start from the power source, the power source system must be fully understood.

* The system shown here is an EXAMPLE ONLY. It is different to the actual circuit shown in the SYSTEM CIRCUITS SECTION.
GROUND POINT
9
The ground points circuit diagram shows the connections from all major parts to the respective ground points. When
troubleshooting a faulty ground point, checking the system circuits which use a common ground may help you identify the
problem ground quickly. The relationship between ground points ( , , and shown below) can also be
checked this way.

10
TROUBLESHOOTING
VOLTAGE CHECK
(a) Establish conditions in which voltage is present at the
check point.
Example: – Ignition SW on
– Ignition SW and SW 1 on
– Ignition SW, SW 1 and Relay on (SW 2 off)
(b) Using a voltmeter, connect the negative lead to a good
ground point or negative battery terminal, and the
positive lead to the connector or component terminal.
This check can be done with a test light instead of a
voltmeter.
CONTINUITY AND RESISTANCE CHECK
(a) Disconnect the battery terminal or wire so there is no
voltage between the check points.
(b) Contact the two leads of an ohmmeter to each of the
check points.
If the circuit has diodes, reverse the two leads and check
again.
When contacting the negative lead to the diode positive side
and the positive lead to the negative side, there should be
continuity.
When contacting the two leads in reverse, there should be no
continuity.
(c) Use the volt/ohmmeter with high impedance (10 kΩ/V
minimum) for troubleshooting of the electrical circuit.

11

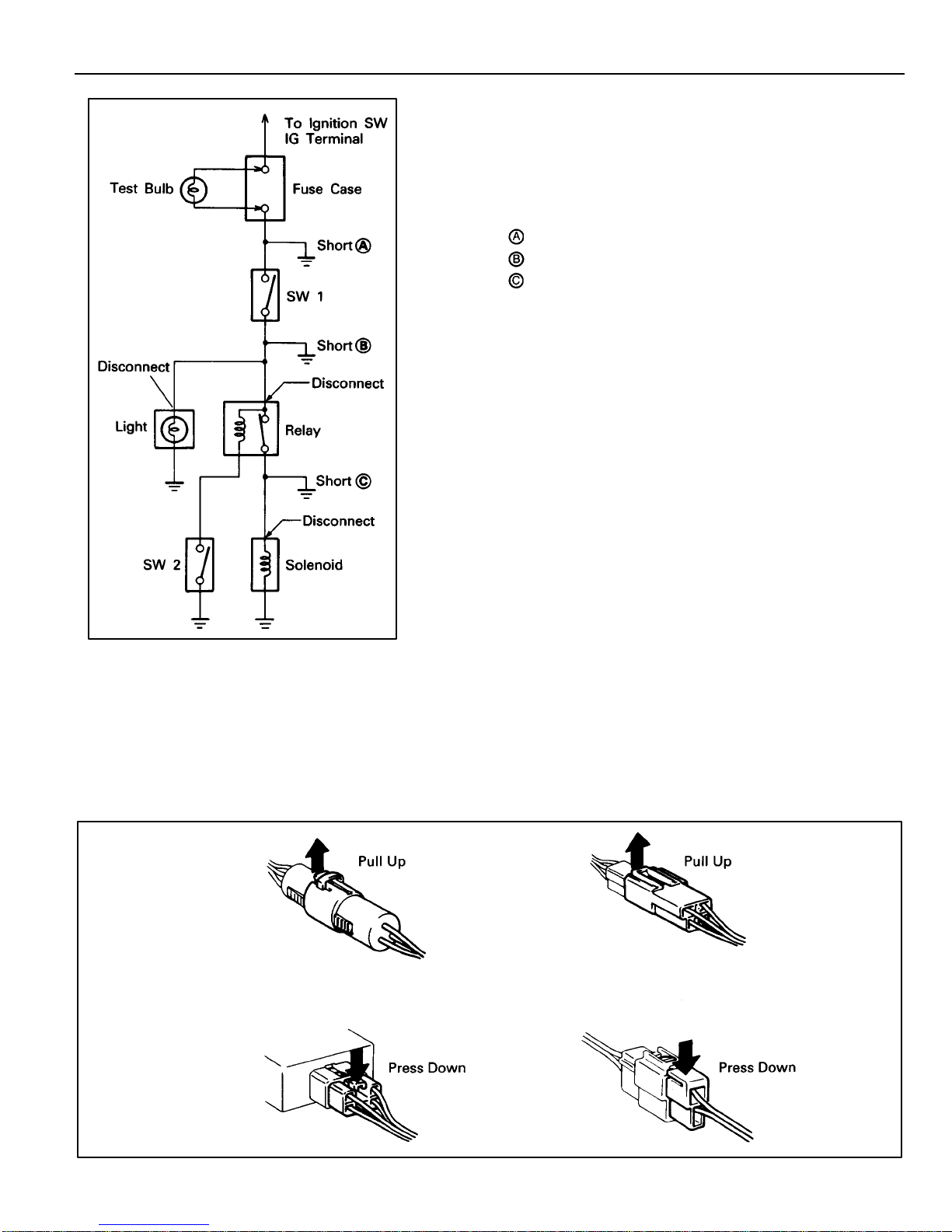

FINDING A SHORT CIRCUIT
(a) Remove the blown fuse and disconnect all loads of the
fuse.
(b) Connect a test light in place of the fuse.
(c) Establish conditions in which the test light comes on.
Example: – Ignition SW on
– Ignition SW and SW 1 on
– Ignition SW, SW 1 and Relay on (Connect the
Relay) and SW 2 off (or Disconnect SW 2)
(d) Disconnect and reconnect the connectors while
watching the test light.
The short lies between the connector where the test
light stays lit and the connector where the light goes
out.
(e) Find the exact location of the short by lightly shaking
the problem wire along the body.
CAUTION:Do not open the cover or the case of the ECU unless
absolutely necessary. (If the IC terminals are touched,
the IC may be destroyed by static electricity.)
DISCONNECTION OF MALE AND FEMALE
CONNECTORS
To pull apart the connectors, pull on the connector itself, not the
wire harness.
HINT: Check to see what kind of connector you are disconnecting
before pulling apart.

12
TROUBLESHOOTING
HOW TO REPLACE TERMINAL
(with terminal retainer or secondary locking
device)

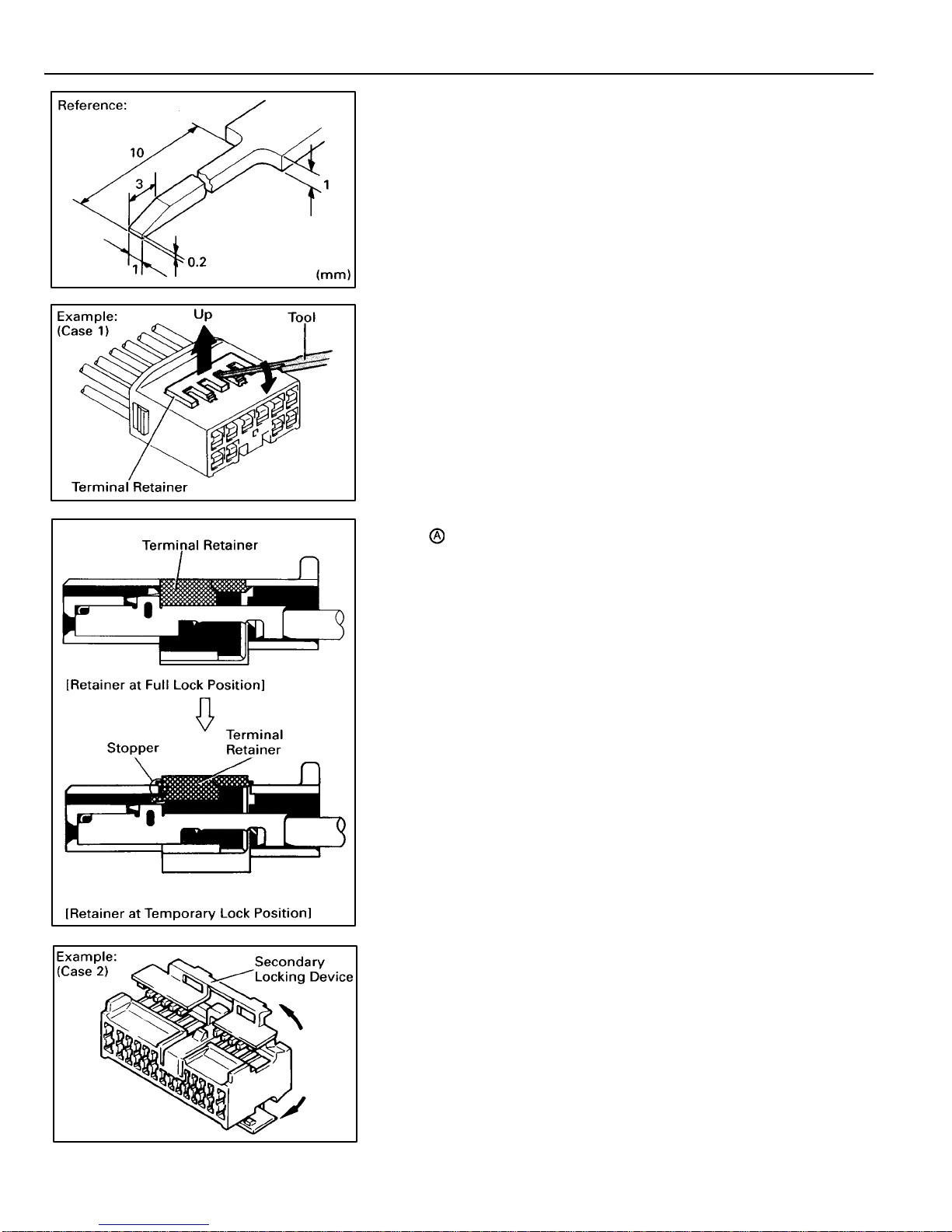

1. PREPARE THE SPECIAL TOOL
HINT: To remove the terminal from the connector, please
construct and use the special tool or like object shown
on the left.
2. DISCONNECT CONNECTOR
3. DISENGAGE THE SECONDARY LOCKING DEVICE OR
TERMINAL RETAINER.
(a) Locking device must be disengaged before the
terminal locking clip can be released and the terminal
removed from the connector.
(b) Use a special tool or the terminal pick to unlock the
secondary locking device or terminal retainer.
NOTICE:
Do not remove the terminal retainer from connector body.
For Non–Waterproof Type Connector
HINT: The needle insertion position varies according
to the connector’s shape (number of terminals
etc.), so check the position before inserting it.
“Case 1”
Raise the terminal retainer up to the temporary
lock position.
“Case 2”
Open the secondary locking device.

13
For Waterproof Type Connector
HINT: Terminal retainer color is different
according to connector body.
Example:
Terminal Retainer: Connector Body
Black or White : Gray
Black or White : Dark Gray
Gray or White : Black
“Case 1”
Type where terminal retainer is pulled up
to the temporary lock position (Pull Type).

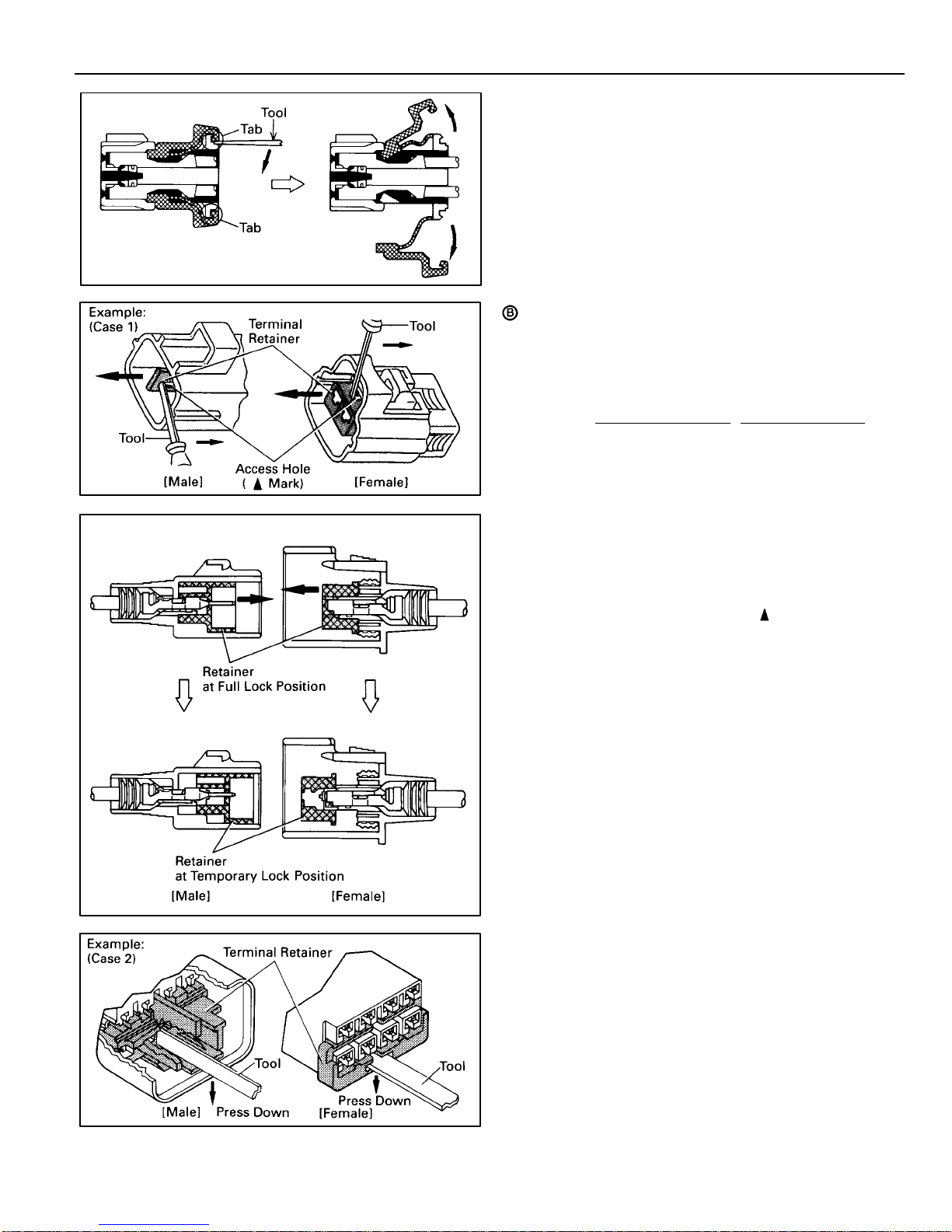

Insert the special tool into the terminal
retainer access hole ( Mark) and pull
the terminal retainer up to the temporary
lock position.
HINT: The needle insertion position varies
according to the connector’s shape
(Number of terminals etc.), so check the
position before inserting it.
“Case 2”
Type which cannot be pulled as far as
Power Lock.

14
TROUBLESHOOTING
Insert the tool straight into the access hole of terminal
retainer as shown.
Push the terminal retainer down to the temporary lock
position.
(c) Release the locking lug from terminal and pull the
terminal out from rear.
4. INSTALL TERMINAL TO CONNECTOR
(a) Insert the terminal.
HINT:
1. Make sure the terminal is positioned correctly.
2. Insert the terminal until the locking lug locks firmly.
3. Insert the terminal with terminal retainer in the
temporary lock position.
(b) Push the secondary locking device or terminal retainer
in to the full lock position.
5. CONNECT CONNECTOR

15
ABBREVIATIONS
ABBREVIATIONS
The following abbreviations are used in this manual.
A/C = Air Conditioning
A/T = Automatic Transmission
ABS = Anti–Lock Brake System
ACS = Air Conditioning Sensor
AFC = Air Flow Sensor
COMB. = Combination
DLC = Data Link Connector
ECT = Electronic Controlled Transmission
ECTS = Engine Coolant Temperature Sensor
ECU = Electronic Control Unit
EFI = Electronic Fuel Injection
EGR = Exhaust Gas Recirculation
EGRS = EGR Function Sensor
Ex. = Except
FL = Fusible Link
HO2S = Heated Oxygen Sensor
IACV = Intake Air Control Valve
IATS = Intake Air Temperature Sensor
ISC = Idle Speed Control
J/B = Junction Block
LH = Left-Hand
M/T = Manual Transmission
MAP = Manifold Absolute Pressure Sensor
MPI = Multiport Electronic Fuel Injection
O/D = Overdrive
PCM = Powertrain Control Module
PNC = Park/Neutral Switch
PTCS = Powertrain Control Signals
PTIS = Powertrain Input Signals
R/B = Relay Block
RH = Right–Hand
SMPI = Sequential Multiport Electronic Fuel Injection
SRS = Supplemental Restraint System
SW = Switch
TEMP. = Temperature
VSPG = Vehicle Speed Pulse Generator
VSS = Vehicle Speed Sensor
VSV = Vacuum Switching Valve
w/ = With
w/o = Without
*The titles given inside the components are the names of the terminals (terminal codes) and
are not treated as being abbreviations.

METER, ANALOG
Current flow activates a magnetic
coil which causes a needle to
move, thereby providing a relative
display against a background
calibration.
LED (LIGHT EMITTING DIODE)
Upon current flow, these diodes
emit light without producing the
heat of a comparable light.
IGNITION COIL
Converts low–voltage DC current
into high–voltage ignition current
for firing the spark plugs.
1. SINGLE
FILAMENT
GROUND
The point at which wiring attaches
to the Body, thereby providing a
return path for an electrical circuit;
without a ground, current cannot
flow.
Current flow causes a headlight
filament to heat up and emit light.
A headlight may have either a
single (1) filament or a double (2)
filament.
BATTERY
Stores chemical energy and
converts it into electrical energy.
Provides DC current for the auto’s
various electrical circuits.
CAPACITOR (Condenser)
A small holding unit for temporary
storage of electrical voltage.
CIRCUIT BREAKER
Basically a reusable fuse, a circuit
breaker will heat and open if too
much current flows through it. Some
units automatically reset when cool,
others must be manually reset.
DIODE
A semiconductor which allows
current flow in only one direction.
DIODE, ZENER
A diode which allows current flow
in one direction but blocks reverse
flow only up to a specific voltage.
Above that potential, it passes the
excess voltage. This acts as a
simple voltage regulator.
FUSE
A thin metal strip which burns
through when too much current
flows through it, thereby stopping
current flow and protecting a
circuit from damage.
FUSIBLE LINK
A heavy–gauge wire placed in
high amperage circuits which
burns through on overloads,
thereby protecting the circuit.
HORN
An electric device which sounds a
loud audible signal.
LIGHT
Current flow through a filament
causes the filament to heat up
and emit light.
METER, DIGITAL
Current flow activates one or
many LED’s, LCD’s, or fluorescent
displays, which provide a relative
or digital display.
MOTOR
A power unit which converts
electrical energy into mechanical
energy, especially rotary motion.
CIGARETTE LIGHTER
An electric resistance heating
element.
DISTRIBUTOR, IIA
Channels high–voltage current
from the ignition coil to the
individual spark plugs.
2. DOUBLE
FILAMENT
HEADLIGHTS
FUEL
(for High Current Fuse or
Fusible Link.)
(for Medium Current Fuse)
M
16
GLOSSARY OF TERMS AND SYMBOLS

17
1. NORMALLY
OPEN Opens and
closes circuits,
thereby
stopping (1) or
allowing (2)
current flow.
RESISTOR
An electrical component with a
fixed resistance, placed in a circuit
to reduce voltage to a specific
value.
RESISTOR, TAPPED
A resistor which supplies two or
more different non–adjustable
resistance values.
SENSOR (Thermistor)
A resistor which varies its
resistance with temperature.
SHORT PIN
Used to provide an unbroken
connection within a junction block.
SOLENOID
An electromagnetic coil which
forms a magnetic field when
current flows, to move a plunger,
etc.
SWITCH, DOUBLE THROW
A switch which continuously
passes current through one set
of contacts or the other.
SWITCH,
IGNITION
A key operated switch with
several positions which allow
various circuits. Particularly the
primary ignition circuit, to
become operational.
Wires are always
drawn as straight lines
on wiring diagrams.
Crossed wires (1)
without a black dot at
the junction are not
joined; crossed wires
(2) with a black dot or
octagonal ( ) mark at
the junction are spliced
(joined) connections.
RELAY, DOUBLE THROW
A relay which passes current
through one set of contacts or the
other.
SENSOR, ANALOG SPEED
Uses magnetic impulses to open
and close a switch to create a
signal for activation of other
components.
TRANSISTOR
A solidstate device typically used
as an electronic relay; stops or
passes current depending on the
applied voltage at “base.”
SWITCH, WIPER PARK
Automatically returns wipers to
the stop position when the wiper
switch is turned off.
SWITCH, MANUAL
SPEAKER
An electromechanical device
which creates sound waves from
current flow.
2. NORMALLY
CLOSED
RESISTOR, VARIABLE or
RHEOSTAT
A controllable resistor with a
variable rate of resistance.
Also called a potentiometer or
rheostat.
2. NORMALLY
OPEN
RELAY
1. NORMALLY
CLOSED
Basically, an electrically
operated switch which may
be normally closed (1) or
open (2).
Current flow through a
small coil creates a
magnetic field which either
opens or closes an
attached switch.
(2) SPLICED
WIRES
(1) NOT
CONNECTED

18
RELAY LOCATIONS
[Body]
[Engine Compartment]

19
[Instrument Panel]

20
RELAY LOCATIONS
1: R/B No. 1 Left Kick Panel (See Page 19)
(for USA)
(for Canada)
