This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
6.S.A., Inc. wish you many years of satismed driving in your new
Sienna.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Sienna operations.
Every Sienna owner should review the Owner’s Manual that accompanies this
vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
1
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16-7
Light control-Instrument panel 9
Smart Key system1,2 7
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
3HomeLink®is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS
FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 24
Audio 22
Auto lock/unlock210
Automatic transmission 10
Blind Spot Monitor (BSM) 20
Bottle holders 28
Cruise control 20
Cup holders 30
Door-Power back 18
Door locks 10
Doors-Power sliding 17
Driver Easy Speak 20
Dynamic Radar
Cruise Control (DRCC) 21
Enhanced VSC OFF button 26
Garage door
opener (HomeLink®)2,3 27
Hill-start Assist Control (HAC) 27
Lights1& turn signals 11-12
Moon roof 19
Parking brake 10
Power outlets-12V DC 29
Power outlets-120V AC 29
Pre-Collision System (PCS) 28
Rear seat entertainment system 26
Rear view monitor system 25
Seat adjustments-Front 14
Seat adjustments-Rear 14
Seat heaters 25
Seats-Head restraints 13
Seats-Removing
2nd row center seat 15
Seats-Removing
2nd row outside seats 15
Seats-Stowing 3rd row seats 16
Steering wheel switches
& telephone controls 23
Sunshade-Side 19
Tilt & telescopic steering wheel 11
Windows 18
Windows-Quarter 18
Windshield wipers & washers 13
Child restraint anchors 31
Doors-Child safety locks 31
Floor mat installation 35
Seat belts 32
Seat belts-Shoulder belt anchor 31
Spare tire & tools 33
Star Safety SystemTM 34-35
Tire Pressure Monitoring
(warning) System (TPMS) 32
BLUETOOTH®DEVICE
PAIRING SECTION 36-45

2
OVERVIEW
Instrument panel
Steering wheel controls
Audio control switches1,2
Telephone switches2
Meter control switches1
Dynamic Radar Cruise
Control (DRCC)
vehicle-to-vehicle
distance button1
Cruise control switch
“DISP” switch1
Audio control
switches1,2
Talk switch2
Headlight, turn signal and
front fog light1controls
Gauges and meters Wiper and washer controls
Wiper and washer controls
Pre-Collision System (PCS) braking off switch1
Manual headlight leveling dial1
Power quarter window switch1
Intuitive parking assist switch1
Enhanced VSC OFF switch
Heated steering wheel switch
Blind Spot Monitor
(BSM) main switch1Power sliding door1/
Power back door main switch1
Tire pressure warning reset switch
Ignition switch1

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
3

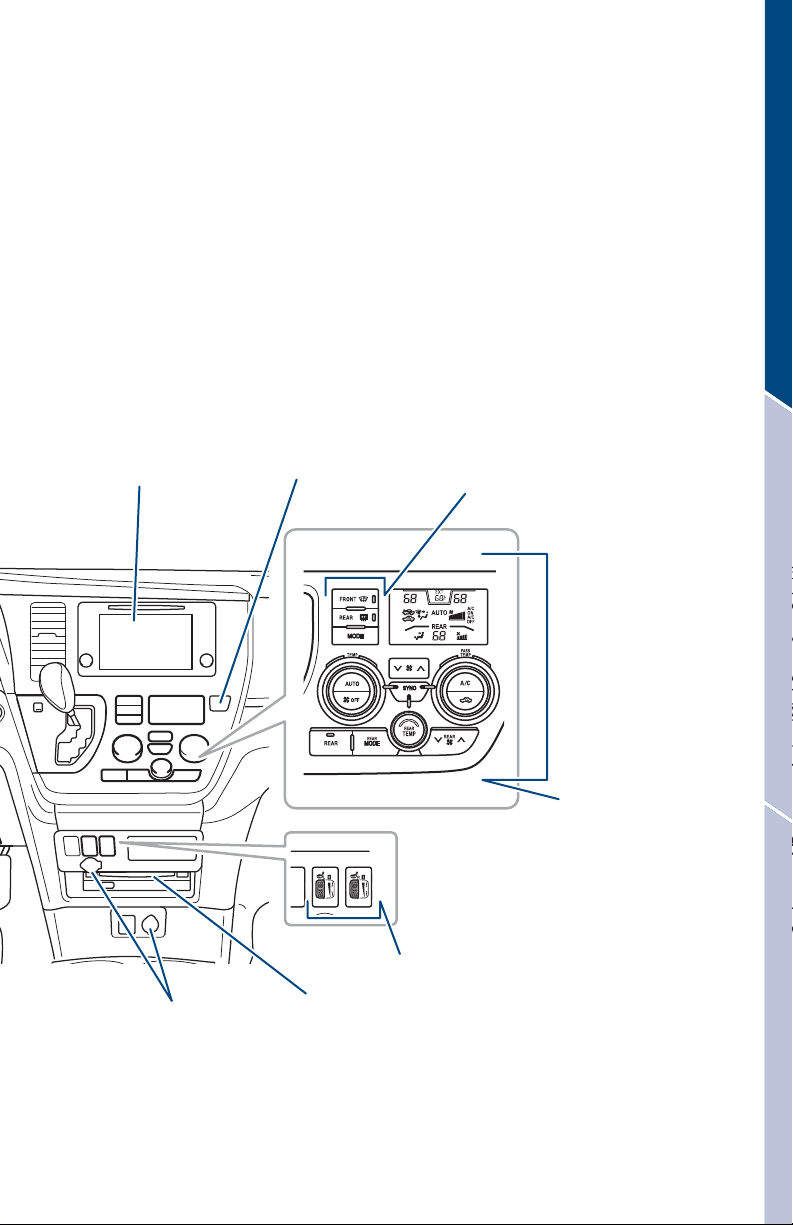

Audio system1,2/
Navigation system1,2
Blu-Ray/DVD player1
Power outlets (12V)
Emergency flasher button
Air Conditioning controls
Seat heater switches1
Outside rearview mirrors1/
Rear window defogger button/
Windshield wiper de-icer1
1If equipped
2For details, refer to the “Navigation System Owner’s Manual” and “2017 Entune™ Audio
Quick Reference Guide.”

4
OVERVIEW
Instrument cluster
For details, refer to “Indicators and warning lights,” Section 2-2, 2017 Owner’s
Manual.
Tachometer
Tachometer
Speedometer
Speedometer
Multi-Information Display
Multi-Information Display
Engine coolant temperature
Engine coolant temperature
Odometer and trip
meter display
Odometer and trip
meter display
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button
Fuel gauge
Fuel gauge
Vehicles with a monochrome display
Vehicles with a color display
Malfunction/Check Engine indicator1
Master warning light1
Low fuel level warning light
Indicator symbols
Service indicators and reminders

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
5
For details, refer to “Indicators and warning lights,” Section 2-2, 2017Owner’s
Manual.
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Open door warning7
SRS AIR BAG ON-OFF indicator
Airbag SRS warning1
1If indicator does not turn off within a few seconds of starting engine, there may be a malfunction.
Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 4-5, 2017 Owner’s Manual.
3 If this light flashes, refer to “Dynamic Radar Cruise Control,” Section 4-5, 2017 Owner’s Manual.
4The indicator flashes to indicate a malfunction.
5The indicator flashes to indicate that the system is operating.
6The indicator flashes faster than usual to indicate that the system is operating.
7 If equipped.
Headlight low/high beam indicator
Turn signal indicator
Automatic High Beam indicator4
Fog light indicator
Charging system warning1,7
Low engine oil pressure warning1,7
Low Tire Pressure Warning1
Brake system warning1
Anti-lock Brake System warning1
Third seat fold incomplete warning7
Electric power steering system
warning light1
Cruise control indicator2,4
Cruise control SET indicator
Security indicator
ECO Driving Indicator Light1
ICE warning indicator
Arrow direction indicates fuel
tank door position
Vehicle Stability Control OFF
indicator1,5,7
Blind Spot Monitor warning/Blind Spot
Monitor outside rearview mirror indicators7
Pre-Collision System indicator1,6
Slip indicator/Hill-start Assist
Control indicator1,5
Dynamic Radar Cruise Control
indicator3,4
Service indicators and reminders
2017_Sienna_QRG_D6_2.indd 5 7/13/16 5:08 PM

6
Keyless entry
OVERVIEW
NOTE: If a door is not opened within 30 seconds of unlocking, all doors will relock for
safety.
Type A
Type A
Type B
Type B
Type C
Type C
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver side doors
only, or all doors. Grasping any passenger door handle will unlock all doors.
Push
ONCE: Driver door
TWICE: All doors
Carry remote Type C
Smart key feature
Front door lock
Touch
Carry remote Type C
Smart key feature
Pull
Carry remote Type C
Smart key feature
Grasp
Front door unlock*
Push
Type B Type C
LOCKING OPERATION
UNLOCKING OPERATION
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
POWER SLIDING DOOR OPERATION (IF EQUIPPED)
Type B
POWER BACK DOOR OPERATION (IF EQUIPPED)
PANIC BUTTON (IF EQUIPPED)
Push
Unlock
Push
Lock
Carry remote Type C
Smart key feature
BACK DOOR LOCK/UNLOCK
Push and hold
Right
side
Left
side
Push and hold
Right
side
Left
side
2017_Sienna_QRG.r1.indd 6 7/15/16 4:03 PM

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
7
Smart Key system (if equipped)
NOTE: If a door is not opened within 30 seconds of unlocking, all doors will relock for
safety.
Push and hold
Accessories such as the radio will operate.
Power ON; the engine is not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Indicator light ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver side doors
only, or all doors. Grasping any passenger door handle will unlock all doors.
Carry remote Type C
Smart key feature
Carry remote Type C
Smart key feature
Carry remote Type C
Smart key feature
Front door unlock*
Push and hold
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Push and hold
Type B Type C
POWER BACK DOOR OPERATION (IF EQUIPPED)
PANIC BUTTON (IF EQUIPPED)
Carry remote Type C
Smart key feature
All-door unlock
and lock
2017_Sienna_QRG_D6_2.indd 7 7/13/16 5:09 PM

8
OVERVIEW
Pull up
Store
Turn to close
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull up latch and
raise hood
Pull
Insert rod to hold
hood open
Turn to open
Fuel tank door release and cap
Hood release

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
9
Windshield and rear
window washer fluid tank
Engine coolant reservoir
Engine oil filler cap Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Pressing the button will adjust the brightness of the meter panel lights. The
brightness level of the meters when the surroundings are bright (day mode) and
dark (night mode) can be adjusted individually.
Light control-Instrument panel
Engine maintenance

10
Auto lock/unlock
Automatic transmission
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 45 seconds after turning the
“ENGINE START STOP” switch OFF. (Vehicles with a Smart Key system)
-Doors unlock when the driver’s door is opened within 45 seconds after turning
the ignition switch to the “ACC” or “LOCK” position. (Vehicles without a Smart Key
system)
Refer to the Owner’s Manual for more details.
* The “ENGINE START STOP” switch/ignition switch must be “ON” and the brake
pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Park*
P
Reverse
R
Neutral
N
Drive
D
S“S” mode
“S”
“D”
+(“S” mode)
(“S” mode)
Door locks
Unlock Lock
FEATURES & OPERATIONS
“S” (SEQUENTIAL) MODE

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
11
Tilt and telescopic steering wheel
Lights & turn signals
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Lock release lever Angle
High beam flasher
Low beam
Headlights
Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity on some models.
Automatic light cut off system Automatically turns lights off after a delay of 30
seconds, or the lock switch on remote may be pushed after locking.
Parking lights
High beam
Auto or OFF
DRL OFF
Without automatic high beam
HEADLIGHTS

12
FEATURES & OPERATIONS
Rotating the dial downward will lower the angle of the beam.
Up
Down Down
Up
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
Turn
Deactivate
* Refer to the Owner’s Manual for details on activating the automatic high beams.
Activate*
AUTOMATIC HIGH BEAMS (AHB) (IF EQUIPPED)
FRONT FOG LIGHTS (IF EQUIPPED)
TURN SIGNALS
HEADLIGHT BEAM LEVEL CONTROL (IF EQUIPPED)

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
13
Windshield wipers & washers
Seats-Head restraints
*Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.
* Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
Rain-sensing
Intermittent
Lock release button
Front and second row
outside seats Third row outside seats
Lock release button Lock release lever
Rain-sensing
Slow
Fast
Pull to wash and wipe
Single wipe
Adjust sensor sensitivity*
Off
Adjust frequency* Single wipe
Interval wipe
Slow
Fast
Pull to wash and wipe
Off
Wash and wipe
Wipe
Interval wipe
Wash and
wipe
Off
Second row center
(8-passenger models)
and third row center seats
FRONT
REAR

14

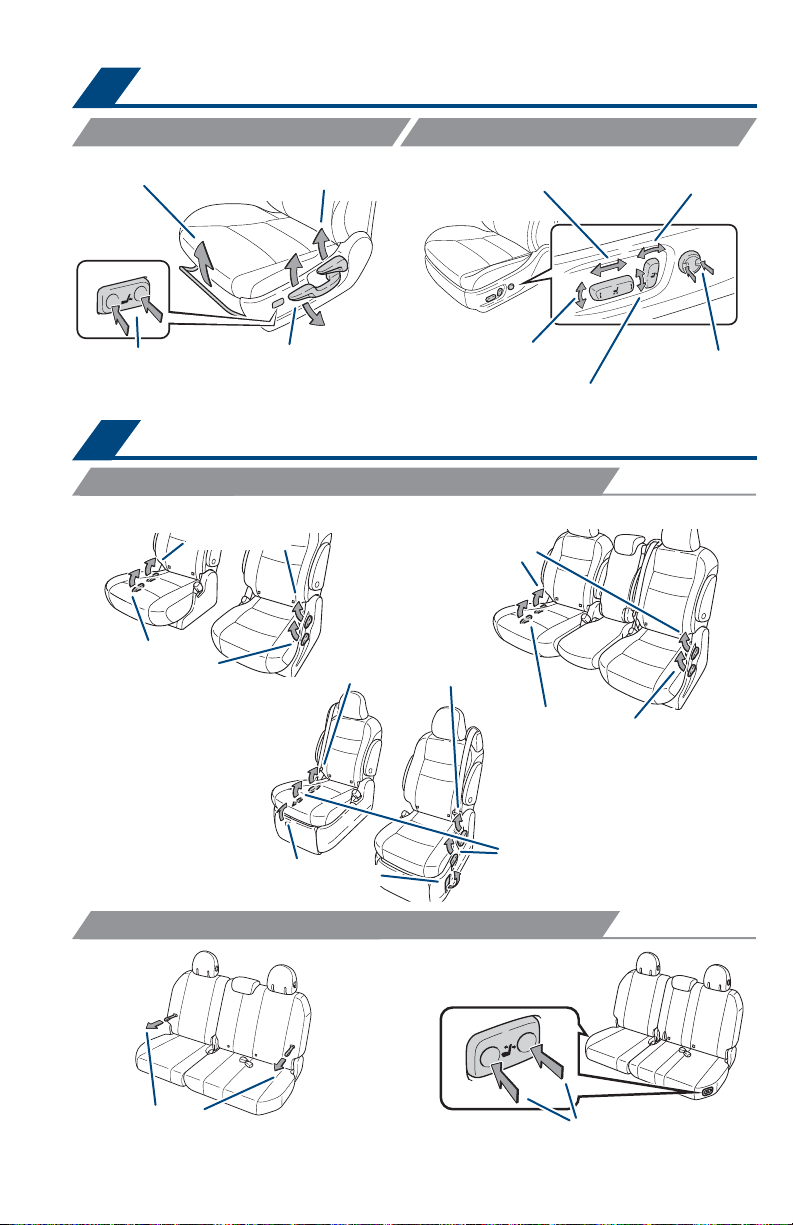

Seat adjustments-Front
Seat adjustments-Rear
FEATURES & OPERATIONS
SECOND ROW SEAT
THIRD ROW SEAT
Refer to the Owner’s Manual for more details.
Manual
Pull
strap
Tip-up seat (7-passenger models)
Ottoman seat
Tip-up seat (8-passenger models)
Power
Seat position
(forward/backward)
Height crank
(driver side only) Height crank (driver side only)
Seatback angle
Seat position
(forward/backward)
Seat position
(forward/backward)
Seatback angle
Seatback angle Seatback angle
Seatback angle
Ottoman angle
Seatback angle
Seat position
(forward/backward)
Seatback angle
Seat position
(forward/backward)
Lumbar support
(if equipped) Lumbar support
(if equipped)
Seat position, cushion
angle and height
MANUAL SEAT POWER SEAT

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
15
(2)
(2)
(1)
(1)
Tip-up seats
Fold
Pull
Lift
Pull
Pull
Tip-up
Pull
Fold
Lift
Ottoman seats
Pull
Fold
Pull
Remove
(2)(1)
(3)
Seats-Removing 2nd row outside seats
Seats-Removing 2nd row center seat (if equipped)

16
Seats-Stowing 3rd row seats
MANUAL
POWER
FEATURES & OPERATIONS
Lower
An alarm will sound for 10 seconds and the indicator will light up on the
instrument panel if the seat is not fully open or stowed when vehicle is shifted out
of Park.
Refer to the Owner’s Manual for more details.
Third seat fold incomplete
warning light
Stow the seat belt buckles
(2)(1)
(3)
Lower
Push down
Stow the seat belt buckles
Pull
(2)(1)
(3)
Push and hold

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
17

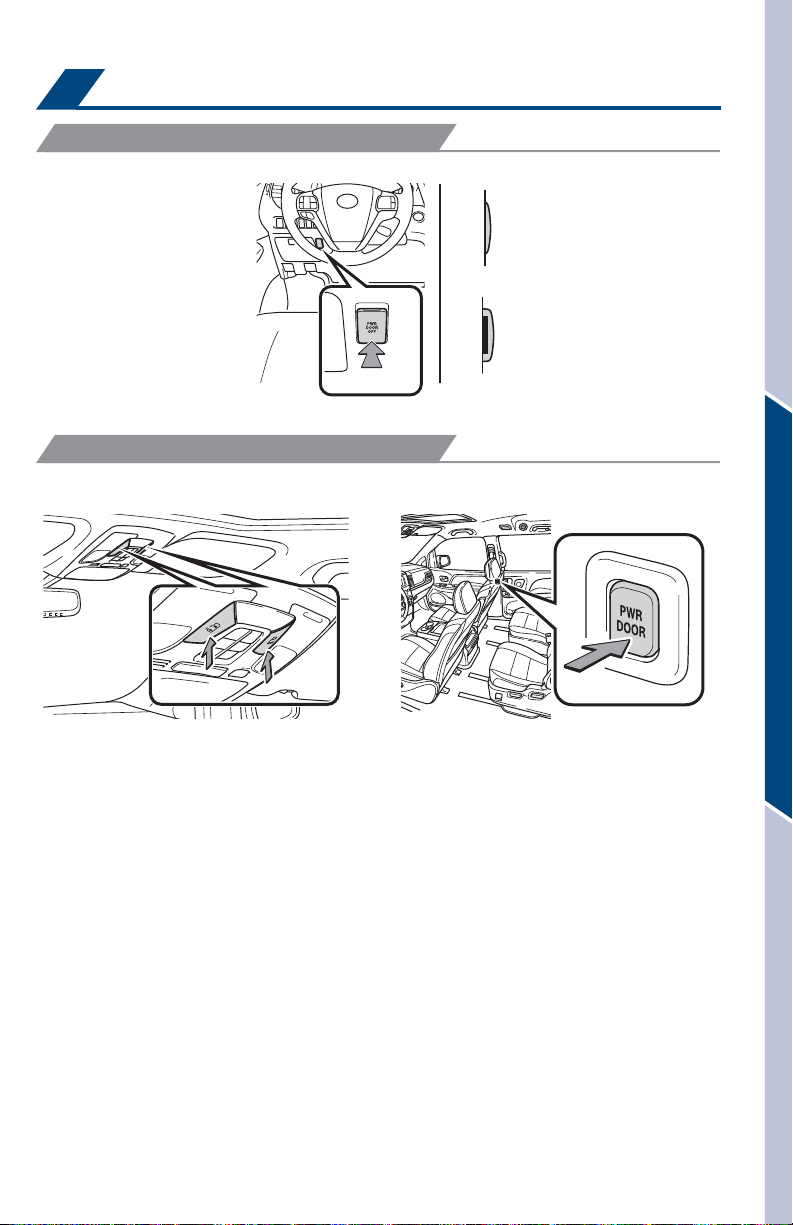

Doors-Power sliding (if equipped)
ON/OFF SWITCH
OPENING/CLOSING
Power
• Sliding doors will not fully open if the sliding door window is open.
• Power sliding doors will open only when gear selector is in the “P” (Park) position,
and doors are unlocked. Refer to the Owner’s Manual for more details.
• An alarm will sound if a sliding door is open and the vehicle is shifted out of Park.
• Left sliding door will not open if gas door is open.
• If battery is disconnected, the power sliding doors need to be reinitialized.
Refer to the Owner’s Manual for more details.
Manual
• Sliding doors will not lock into the open position if the sliding door window is open.
Front overhead console
Instrument panel
Push
Center pillar
On
Off
Open: Push
Close: Push again Open: Push Close: Push again

18
FEATURES & OPERATIONS
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop window partway, lightly push the switch in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Window lock switch
Up
Down
On
Off
Push
Instrument panel Front overhead console
Open: Push
Close: Push again
Open Close
Manual Power
* Tilt: Push
Open: Push again
FRONT MOON ROOF
Push
Rear side window
Door-Power back (if equipped)
Windows
Windows-Quarter
ON/OFF SWITCH OPENING/CLOSING
2017_Sienna_QRG_D6_2.indd 18 7/13/16 5:09 PM
