Table of Contents
Accessing your vehicle 2 - 3
Child rear door protection lock 3
Child restraint system 3
Seat and seat belt adjustment 4 - 5
Steering wheel adjustment 5
nstrument panel overview 6
Steering wheel controls 7
nstrument cluster 8 - 9
Lights 9
Wipers 10
Electric window and window lock 10
Starting your vehicle 11
Stop & Start system (if equipped) 11
Heating, A/C and de-misting 12
Setting the clock 13

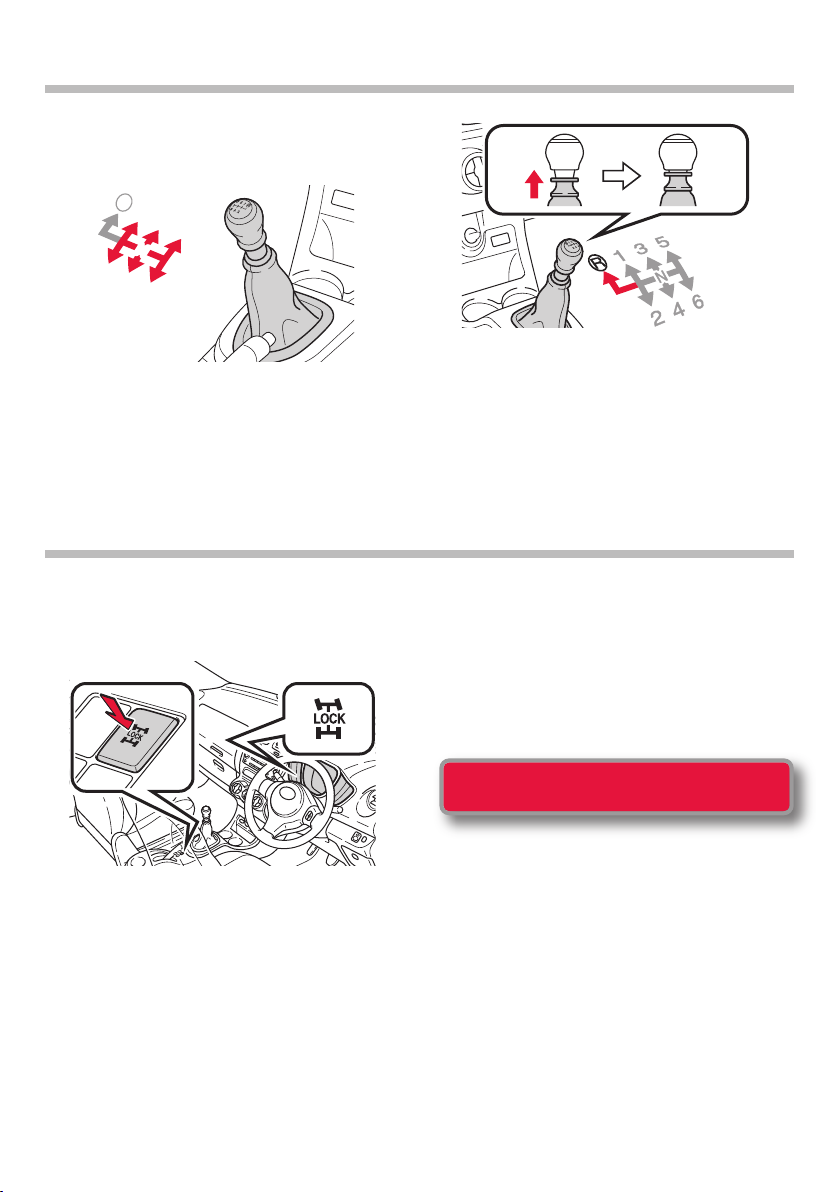

Gear change 14
Four-wheel drive lock (4WD models) 14
Fuel tank opening 15
Bonnet opening 15
Eco-Driving 16
Introduc ng Urban Cru ser
Thank you for buying an Urban Cruiser. We trust this Brief Guide will enable you to become
familiar with your vehicle’s basic operations and assist you in enjoying your vehicle.
This brief guide does not replace or substitute the Owner’s Manual, which you will find in the
vehicle’s glove compartment. t is important that you review the full Owner’s Manual as well as
any further supplementary manuals as this will allow you to familiarise yourself with the
operating and safety instructions and to handle the vehicle within its limitations.
Please do read all documents in your pack as this will ensure you get maximum performance
from your car and learn about related services offered.
Your Centre and everyone at Toyota wish you many years of enjoyable driving in your new
Urban Cruiser.
NB: All information contained in this brief guide are current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

2
Smart entry & Start system
The following operations can be performed simply by
carrying the electronic key on your person.
(The driver should always carry the electronic key.)
1. Unlocks and locks the doors.
2. Unlock and locks the back door.
3. Start and stop the engine.
The Mechanical Key is stored within the
Electronic Key

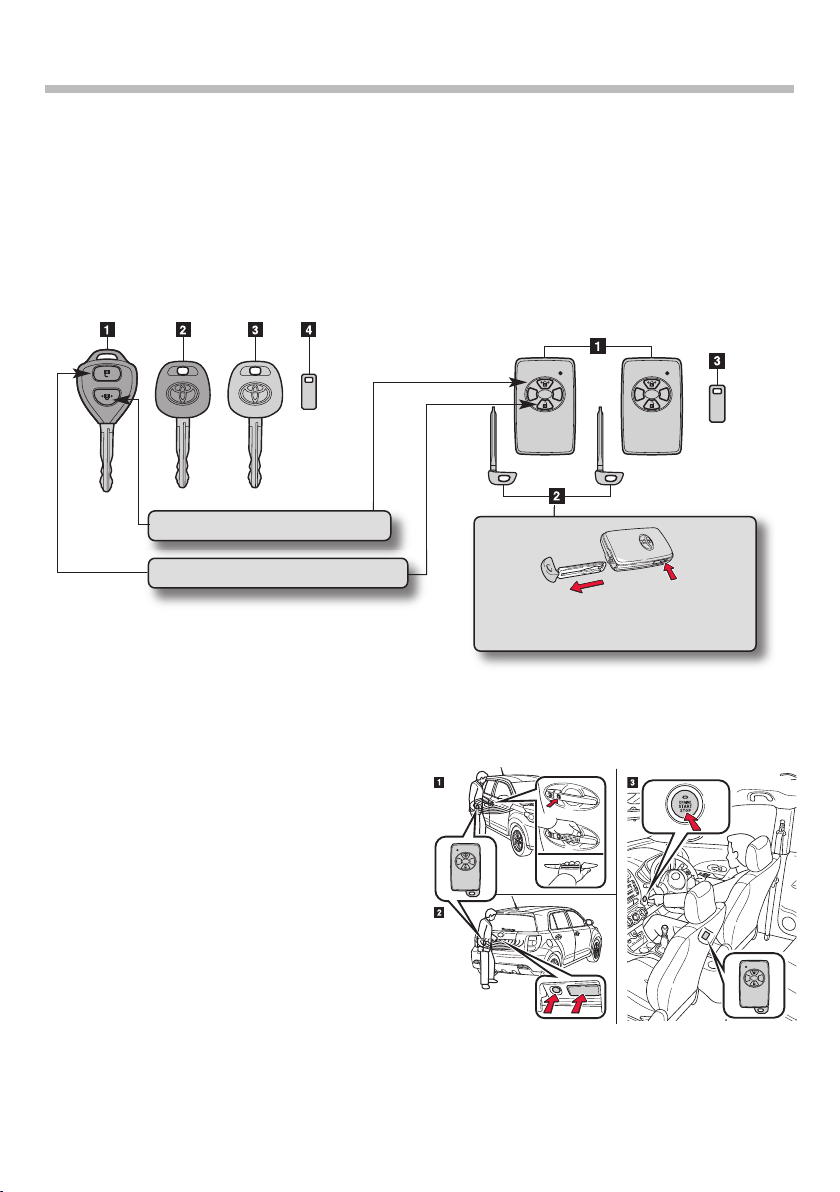

Access ng your veh cle
Vehicles without smart entry & start
system
1. Master keys (with wireless remote control
function).
2. Master keys (without wireless remote control
function).
3. Valet key - Limited access.
4. Key number plate.
Vehicles with smart entry & start system
1. Electronic keys.
- Operate smart entry & start system.
- Operate the wireless remote control function.
2. Mechanical keys.
3. Key number plate.
The wireless remote control can be used to lock and
unlock your vehicle from the outside.
Lock all doors and boot/rear door
Unlock all doors and boot/rear door

3
Ch ld restra nt system
Child restraint systems are classified into the following 5 groups according to the regulation ECE No. 44:
Group 0: Up to 10 kg or 22lbs (0-9 months)
Group : 9-18 kg or 20-40lbs (9 months-4 years)
Group : 22-36 kg or 48-79lbs(6 years-12 years)
Group 0+: Up to 13 kg or 29lbs (0-2 years)
Group : 15-25 kg or 33-55lbs (4 years -7 years)
(A) Baby seat
equal to Group 0 and 0+
of ECE No. 44
(B) Child seat
equal to Group 0+, and
of ECE No. 44
(C) Junior seat
equal to Group
of ECE No. 44
Access ng your veh cle
Ch ld rear door protect on lock
The door cannot be opened from inside the vehicle
when the locks are set.
1. Unlock
2. Lock
These locks can be set to prevent children from
opening the rear doors. Push down the rear door
switches to lock the rear doors.

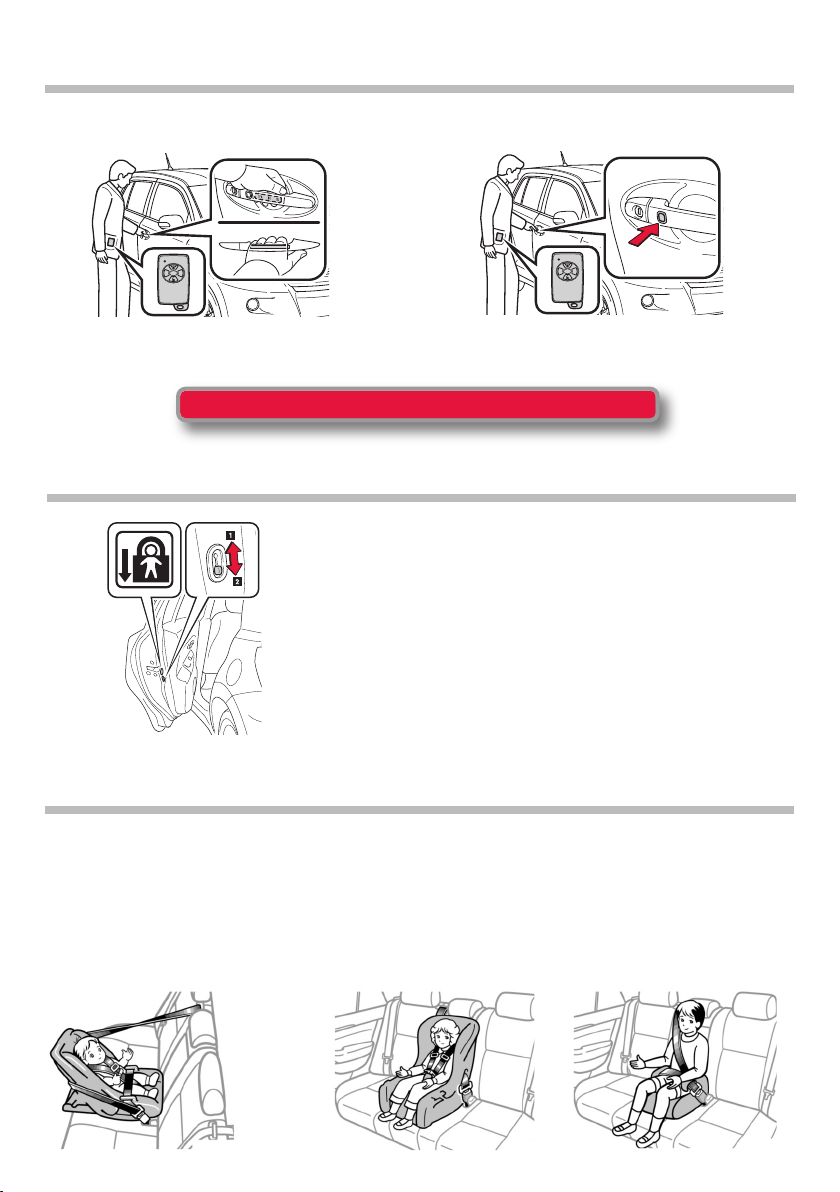

Unlocking and locking the doors (front door handles only)
Grip the handle to unlock.
Make sure to touch the sensor on the back of the
handle.
Press the button to lock.
The doors cannot be unlocked for 3 seconds after they are locked.

4
Seat and seat belt adjustment
Front seats
1. Seatback angle adjustment lever.
2. Seat position adjustment lever.
3. Vertical height adjustment lever (driver’s side).
Seat belts
1. To fasten the seat belt push the tab into the buckle
until it clicks.
2. Press the release button to unfasten the seat belt.
Adjust the height up and down as required.
1. Down
Pull the lock release knob and slide the height
adjuster down.
2. Up
Move the height adjuster up as needed until you
hear a click.
Head restraint height adjustment
1. Up
Pull the head restraints up.
2. Down
Push the head restraint down while pressing the
lock release button.
Lock release
The centre of the head
restraint should be level
with the top of the ears

5
Steer ng wheel adjustment
After adjustment, pull the lever up to secure the
steering wheel.
Rear centre seat belts
Make sure that the buckle (1) is securely latched for
ready use of the centre seat belt.
1. nsert the tab with the hooked end.
2. nsert the tab with the concave end.
Hold the steering wheel and press the lever down.
Adjust the position by moving the steering wheel
horizontaly and vertically.
Seat and seat belt adjustment

6
* On some models
Gauges and meters
Multi-information display Windscreen wipers and
washer switch.
Rear window wiper and
washer switch
Headlight switch
Turn signal lever
Fog light switch

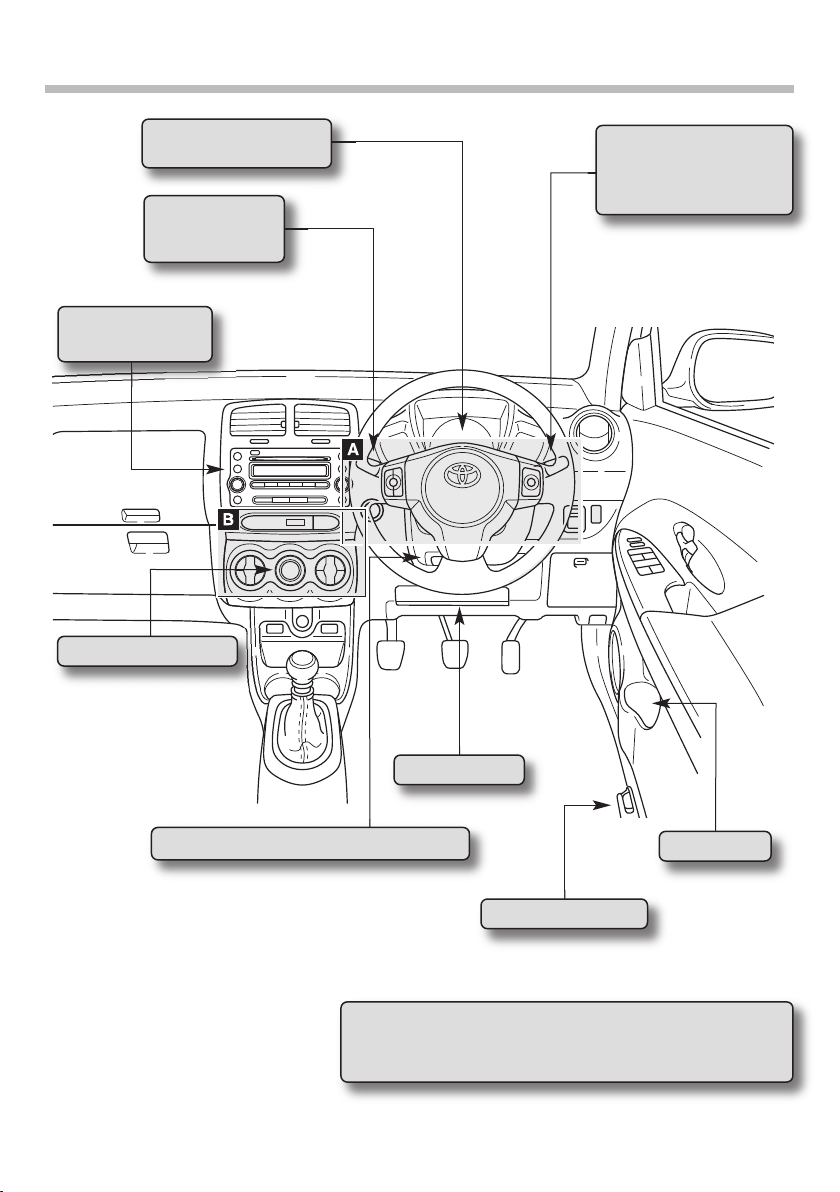

Instrument Panel Overv ew
A. Steering wheel Controls (page 7).
B. Heating and A/C Controls (page 12).
Audio system
Navigation system*
Fuel filler door opener
Heating and A/C control
SRS knee airbag
Bottle holder
Tilt and telescopic steering lock release lever

7
Area A indicated on instrument panel overview (page 6).
Steer ng wheel nstruments
* On some models
Audio remote control switches
Engine (ignition) switch (vehicles
with smart entry & start system)
Engine (ignition) switch (vehicles
without smart entry & start system)
Telephone switch*
Talk switch*

8

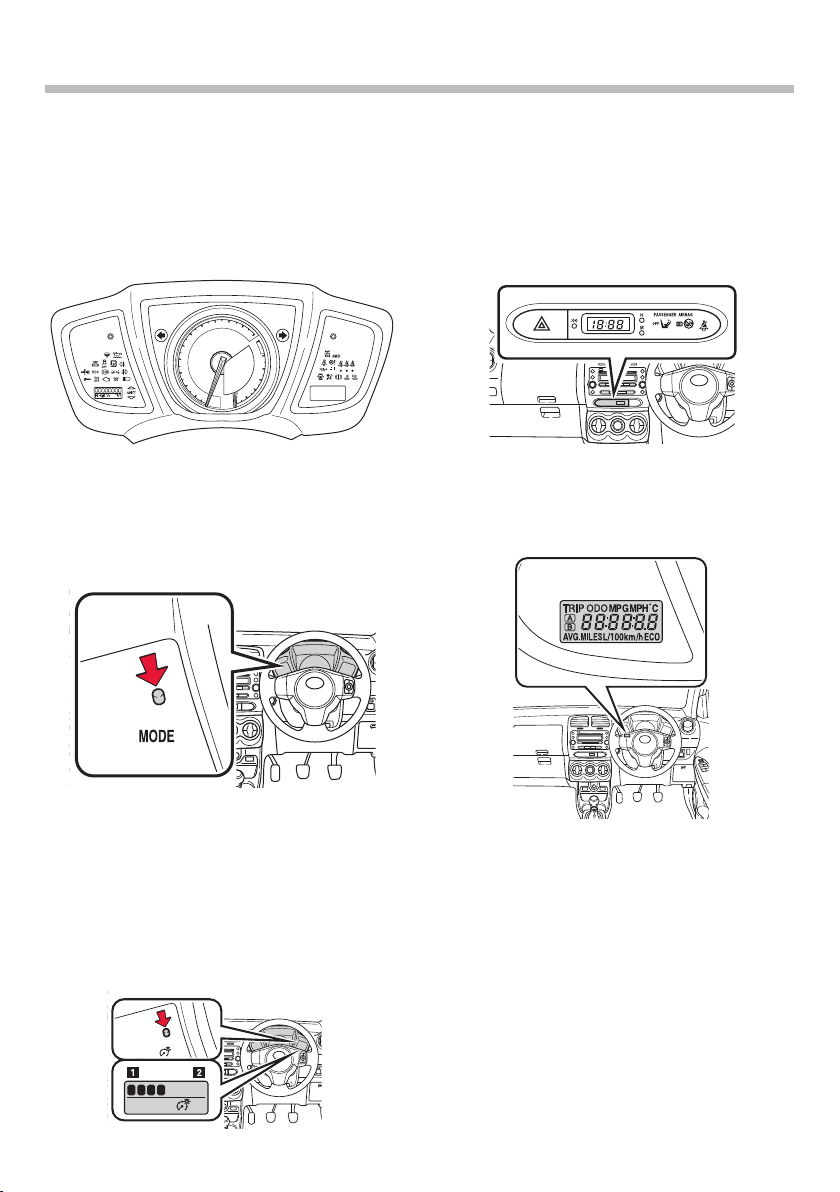

Instrument cluster
Vehicles without smart entry and start system
The following gauges, meters and displays illuminate when the engine switch is in the ‘‘ON’’ position.
Vehicles with smart entry & start system
The following gauges, meters and displays illuminate when the ‘‘ENG NE START STOP’’ switch is in the GN T ON
ON mode.
Centre panel
Multi-information display
Instrument cluster light control
The units used on the speedometer, tachometer and some indicators may differ depending on the target region.
To adjust the brightness of the instrument cluster
lights, push the switch.
1. Darker.
2. Brighter.
Odometer/trip meter display.
Trip nformation - displays driving range, fuel
consumption and other cruising-related information.
Outside temperature display - indicates the outside
temperature.
Display items can be switched by pressing the
“MODE” button.
Switch the display

9
Main Warning lights*
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
*1These lights turn on when the engine switch is turned to the ‘‘ON’’ position (without smart entry & start
system) or the ‘‘ENG NE START STOP’’ switch is turned to the GN T ON ON mode (with smart entry & start
system). They will turn off after the engine is started.
There may be a malfunction if a light does not come on, or if the lights do not turn off. Have the vehicle
inspected by your Toyota dealer.
*: For details, please see your Owner's manual, Chapter 2-2.
Turn signal
indicator
Headlight
high beam
Tail light
indicator
Front fog light
indicator
Rear fog
light indicator
Main Indicators*
The indicators inform the driver of the operating state of the vehicle’s main systems.
L ghts
The headlights can be operated manually
The front position, tail, license plate lights turn on.
The headlights and all lights listed above turn on,
normal driving.
Turning on the high beam headlights
1. With the headlights on, push the lever away to
turn on the high beams.
Pull the lever back to the centre position to turn
the high beams off.
2. You can flash the high beams with the headlights
on or off by pulling the lever towards you, and
releasing it to turn them off.
Instrument cluster
*1
*1*1*1
*1*1
*1*1

10
Electr c w ndows and w ndows lock
W pers
1. ntermittent wiper operation.
2. Low speed wiper operation.
3. High speed wiper operation.
4. Temporary operation.
Rear window wiper and washer
1. ntermittent window wiper operation.
2. Normal window wiper operation.
3. Washer/wiper dual operation.
4. Washer/wiper dual operation.
When the rear window is dry do not use the
wipers, as they may damage the rear window.
The electric windows can be opened and closed as follows:
1. One touch closing
(driver’s windows only)*.
2. Closing
3. One touch opening*
(driver’s windows only)*.
4. Opening
Pressing the switch
locks the passenger
windows preventing
accidental opening or
closing.
Keep fingers away from moving windows.
*To stop the window, press
the switch lightly in the opposite
direction

11
Start ng your veh cle
Light: Red: No start/Green: Engine start.
For details of restrictions and operating conditions, please read carefully
Chapter 2-4 in you Owner’s Manual.
For vehicles without smart entry key positions are as
follows:
1. Lock:- The steering wheel is locked and the key can be removed.
2. ACC:- Some electrical equipment such as audio can be used.
3. On:- All electrical equipment can be used.
4. Start:- Starts the engine.
For vehicles with smart entry :
1. The driver should carry the key on his person.
2. The Engine Start Stop button is used to start the vehicle.
Starting procedure:
Ensure hand brake is applied.
Put gear lever to the neutral position.
Press and hold the clutch pedal firmly.
Press the “ENG NE START STOP” switch.
Start the engine.
NB For diesel vehicles:
The engine should not
be started until
the indicator
light goes out.
Stop & Start system ( f equ pped)
This vehicle is fitted with a “Stop & Start” function that allows the automatic stopping and starting of the engine.
This function helps you to decrease the fuel consumption.
Stopping the engine
First put the shift lever in the neutral position when stationary, and release
the clutch pedal. The engine will then stop. Next with the engine stopped,
if the clutch pedal is pressed, the engine will start again.
The “ECO” indicator will light up in the instrument cluster when the engine
has stopped.
A buzzer will sound as a warning when the following operations are done:
1. The shift is put into a gear position without the clutch pedal being
pressed when the engine is stopped.
2. The driver’s door is opened when the engine has stopped temporarily.
Restarting the engine
Check that the shift lever is in “N” and depress the clutch pedal, the engine
will re-start and the “ECO OFF” indicator will come on but when the vehicle
starts moving, it will go off.
f you should want to disable the system, press “ECO OFF” switch.

Heat ng, A/C and de-m st ng
Manual air conditioning system
Automatic air conditioning system
Airflow of outlets are automatically adjusted according to the temperature setting.
Recirculated air mode
Outside air mode
Automatic modeTemperature setting display
OffFan speed displayFan speed
Air conditioning
ON/OFF switch
Windscreen defogger
Changes the air
outlets used
Airflow display
Temperature control
Fan speed control dial
Air outlet selection
dial
Temperature
control dial
Air intake selection dial
Air conditioning ON/OFF
switch (if equipped
Tips for windscreen demisting:
1. Switch AUTO button off (light is OFF)
2. Switch A/C ON (light is ON)
3. Switch air recirc off (light is OFF)
4. Switch airflow to windscreen (light ON)
12

13
Sett ng the clock
1. Adjusts the hour.
2. Adjusts the minutes.
3. Rounds to the nearest hour*
* eg. 1:00 to 1:29 = 1:00
1:30 to 1:59 = 2:00
When the battery is disconnected
The time display will automatically be set to 1:00.

14
Gear change
Four-wheel dr ve lock (4WD models)
ushing the button again cancels four-wheel
drive lock mode.
Manual transmission
The shift pattern is as shown.
Shift pattern
Fully depress the clutch pedal before operating the
gear lever, and then release it slowly, once a gear is
selected.
Gear lever for ‘‘R’’ (Reverse)
Lift up the ring and shift lever to the ‘‘R’’ position.
6
4
2
5
3
1
N
R
Four-wheel drive lock mode can be used when a large amount of drive power needs to be
applied to all the wheels, such as when the vehicle gets stuck in mud and you need to free
it.
ush the button
The torque of the engine is distributed to the rear
wheels to the maximum extent possible in accordance
with driving conditions.
Four -wheel drive lock mode can be
operated when the engine switch is on.
Four -wheel drive lock mode
Four -wheel drive lock mode is cancelled when the
brakes are applied to ensure the ABS and VSC system
operate effectively.
Four -wheel drive lock mode is cancelled when the
vehicle speed exceeds 25 mph.

15
Fuel tank open ng
Bonnet open ng
Before refueling the vehicle
Vehicles without smart entry & start
system
Turn the engine switch to the “LOCK” position and
ensure that all the doors and windows are closed.
Vehicles with smart entry & start system
Turn the “ENG NE START STOP” switch OFF and
ensure that all the doors and windows are closed.
Opening the fuel tank cap
Press the fuel filler door opener switch.
Turn the fuel tank cap slowly to open.
Hang the fuel tank cap on the back of the fuel filler
door.
Take care to select the correct fuel.
Release the lock from the inside of the vehicle to open
the bonnet.
1. Pull the bonnet release lever.
The bonnet will pop up slightly.
Release the bonnet catch and lift the bonnet.
Hold the bonnet open by inserting the supporting
rod into the slot.
Close: gently drop the bonnet from approximately
200mm.
Caution :
Be careful when you pick up the rod, it might
be hot.

16
URB11-0612ENUK-02-00
Eco-Dr v ng
Total potential saving of 20 - 30%.
Eco-Driving Savings
Roof load increases wind drag and
therefore consumption.
Open windows increase fuel
consumption by an average of 5%.
Air Conditioning
can result in 10 - 25%
extra fuel consumption.
Shifting up gear
earlier can result
in 8% saving.
Starting
•Remove any extra weight and roof load
•Plan your route to avoid detours
•Avoid using your car for short journeys
Checking/maintenance
•Check your tyre pressures regularly
•Service your car according to owner’s manual
Driving
•Shift up gear earlier
•Only use electrical accessories when necessary (e.g. A/C)
•Follow and anticipate the traffic flow
•Keep your windows closed (use ventilation system when possible)
•Switch off your engine if you have to wait longer than 30 - 60 seconds
How to Eco-Drive?
Roof Load
(Speed at 120 km/hr)
Increased
consumption
Luggage rack 5 – 10%
Ski box 10 – 20%
Bicycle rack 30%
Loaded luggage rack 35 – 40%
Low Tyre ressure result in higher fuel consumption
(up to 3% extra from 0.5 bar too low)
Tyre pressures can fall by 2.5 - 5.0% after one month,
and by 20% after 5 months.
What is ‘‘Eco-Driving’’?’
•Eco-Driving = Driving in a more careful and environmentally responsible way
•Eco-Driving = Reduced fuel costs
•Eco-Driving = Reduced Environmental impact áSaving of CO2emissions.

URB11-0612ENUK-02-00
