Toyota Yaris Hybrid User manual

Yaris Hybrid
Brief Guide

1
Table of Contents
Caution: High voltage components 2
Hybrid battery air vent 2
Accessing your vehicle 3-4
Electric windows and windows lock
(on some models) 5
Steering wheel adjustment 5
Seat and seat belt adjustment 6
nstrument Panel Overview 7-8
nstrument Cluster 9
Multi-information display 10
Starting your vehicle 11
Hybrid transmission 12
Heating, A/C and de-misting 13
Lights 14
Wipers 14
Fuel tank opening 15
Bonnet opening 15
Eco-Driving 16
Introducing Yaris Hybrid
Thank you for buying a Yaris Hybrid. We trust this Brief Guide will enable you to become
familiar with your vehicle’s basic operations and assist you in enjoying your vehicle.
This Brief Guide does not replace or substitute the Owner’s Manual, which you will find in the
vehicle’s glove compartment. t is important that you review the full Owner’s Manual as well as
any further supplementary manuals as this will allow you to familiarise yourself with the
operating and safety instructions and to handle the vehicle within its limitations.
Please do read all documents in your pack as this will ensure you get maximum performance
from your car and learn about related services offered.
Your retailer and everyone on the staff at Toyota wish you many years of enjoyable driving in
your new Yaris Hybrid.
NB: All information contained in this Brief Guide are current at the time of printing. Toyota
reserves the right to make changes at any time without notice.

2
Caution: High voltage components
Hybrid battery air vent
1. Caution label.
2. Service plug.
3. Air conditioning compressor.
4. Electric motor (Traction motor).
5. Power control unit with DC/DC converter.
6. Hybrid battery (Traction battery).
7. High voltage cables (orange).
There is an air intake vent on the side of the lower
part of the rear left seat for the purpose of cooling
the hybrid battery (traction battery). f the vent
becomes blocked, the hybrid battery (traction
battery) may overheat, leading to a reduction in
hybrid battery output.
Take care when handling the hybrid system, as it contains a high
voltage system and some parts become extremely hot.

3
Accessing your vehicle

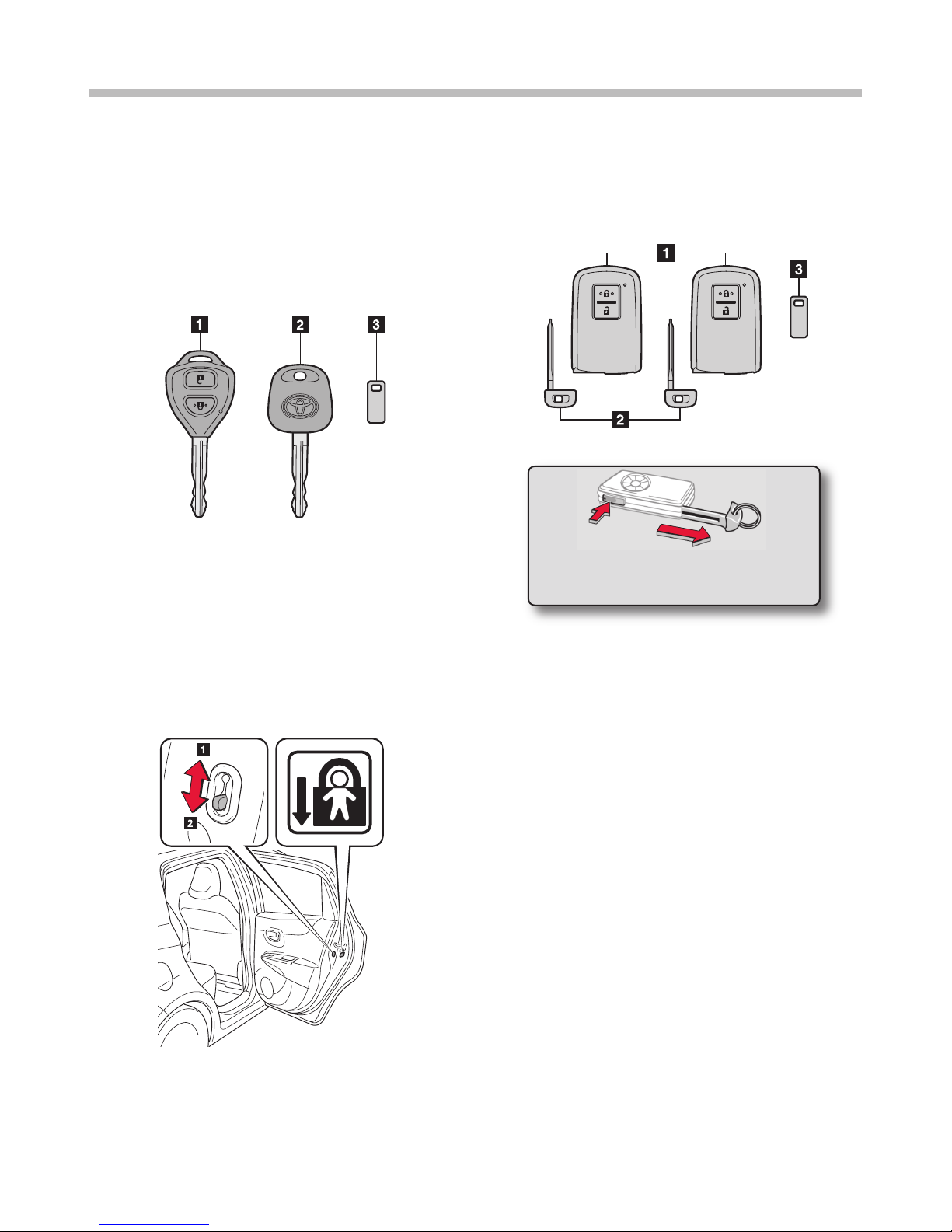

ehicles without smart entry & start
system
1. Key with a wireless remote control function.
2. Key without a wireless remote control function.
3. Key number plate
f you should lose your keys or if you need additional
keys, duplicates can be made using the key number.
ehicles with a push-button start system
1. Electronic keys
2. Mechanical keys
3. Key number plate
1. Unlock.
2. Lock.
Move the lock lever to the "LOCK" position as shown
on the label, then the door cannot be opened with the
inside door handle. This is to prevent children from
opening the rear doors.
Rear door child-protector lock (5-door only)
The Mechanical Key is stored within the
Electronic Key.

4

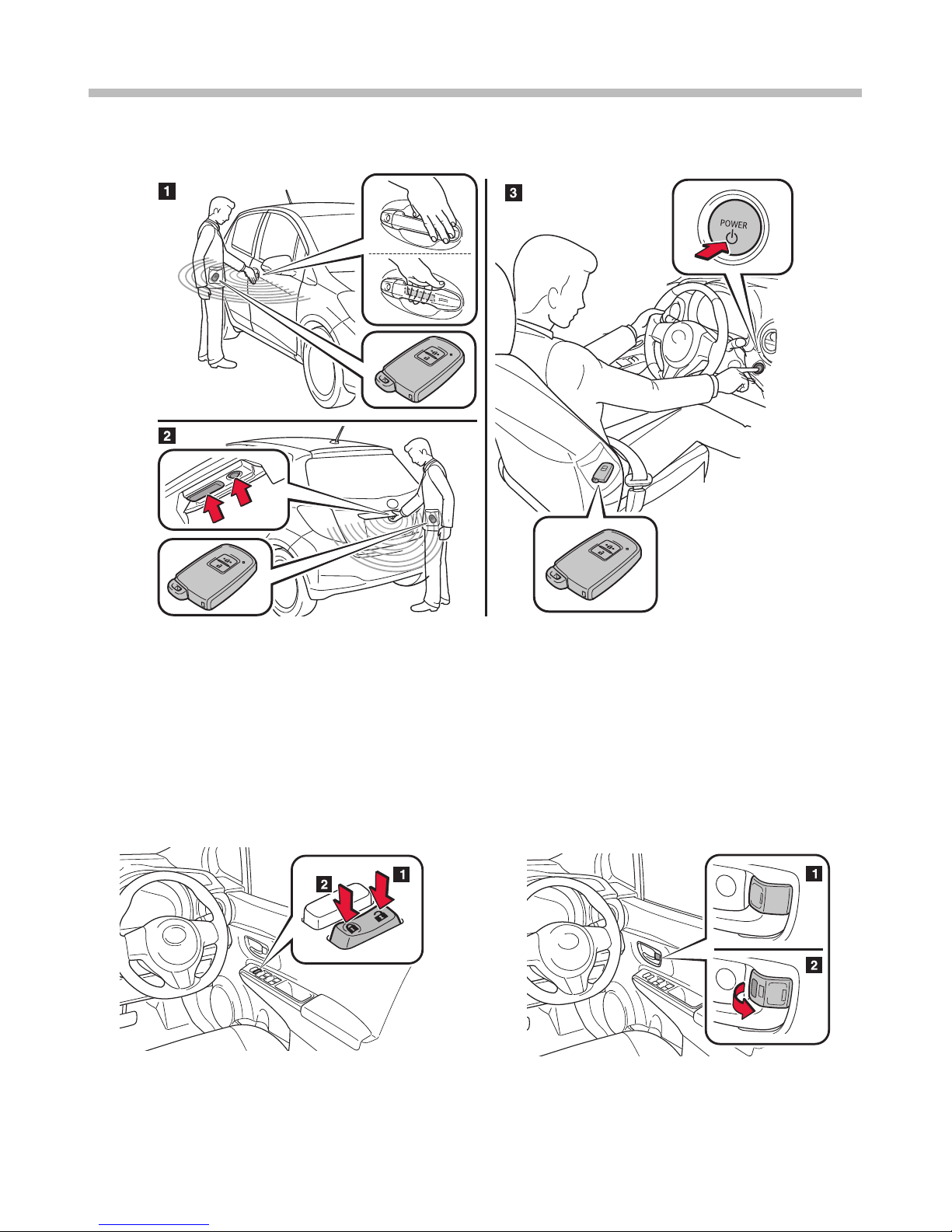

Entry & start system (applicable for vehicles with smart entry and smart start)
1. Unlocks all the doors.
2. Locks all the doors.
1. Locks the door (driver’s side only).
2. Unlocks the door (driver’s side only).
The front doors can be opened by pulling the inside
handle even if the lock button is in the lock position.
Door lock switch
Type A Type B
1. Unlocks and locks the side doors.
2. Unlocks and locks the back door.
3. Starts the hybrid system.
Accessing your vehicle

5
Window lock switch
The steering wheel can be adjusted to a
comfortable position
Steering wheel ad ustment
Hold the steering wheel and push the lever down.
Adjust to the ideal position by moving the steering
wheel horizontally and vertically.
After adjustment, pull the lever up to secure the
steering wheel.
Electric windows and windows lock
(on some models)
The power windows can be opened and closed using the switches
Operating the switch moves the windows as follows:
1. Closing
2. One-touch closing (driver’s side only)*
3. Opening
4. One-touch opening (driver’s side only)*
*: Pushing the switch in the opposite direction will
stop window travel partway.
Press the switch down to lock the passenger window
switches.
Use this switch to prevent children from accidentally
opening or closing a passenger window.
The steering wheel must not be adjusted while the vehicle is in motion.

6
1. Seat position adjusting lever.
2. Seat back angle adjusting lever.
3. Vertical seat height adjusting lever (on some
models).
4. Seat back lock release lever (3 doors models).
To fasten your belt, pull it out of the retractor and
insert the tab into the buckle.
You will hear a click when the tab locks into the
buckle.
The seat belt length automatically adjusts to your size
and the seat position.
1. Lower the head seat restraint to the lowest
position.
2. Stow the rear seat belt buckles as shown.
3. Pull the seat back lock release knob and fold the
seat back down. Each seat back may be folded
separately.
Seat and seat belt ad ustment
Make sure that all occupants are wearing their
seat belts before driving the vehicle.
Adjusting front seats Fold-down rear seat
Seat belts

7
Instrument Panel Overview
Gauge and meters
Multi-information display
AUX port/USB
port*
SRS driver knee airbag*
Cigarette lighter*
Power outlet*
Glove box
Bonnet lock release lever
Fuel filler door opener
* f equipped

8

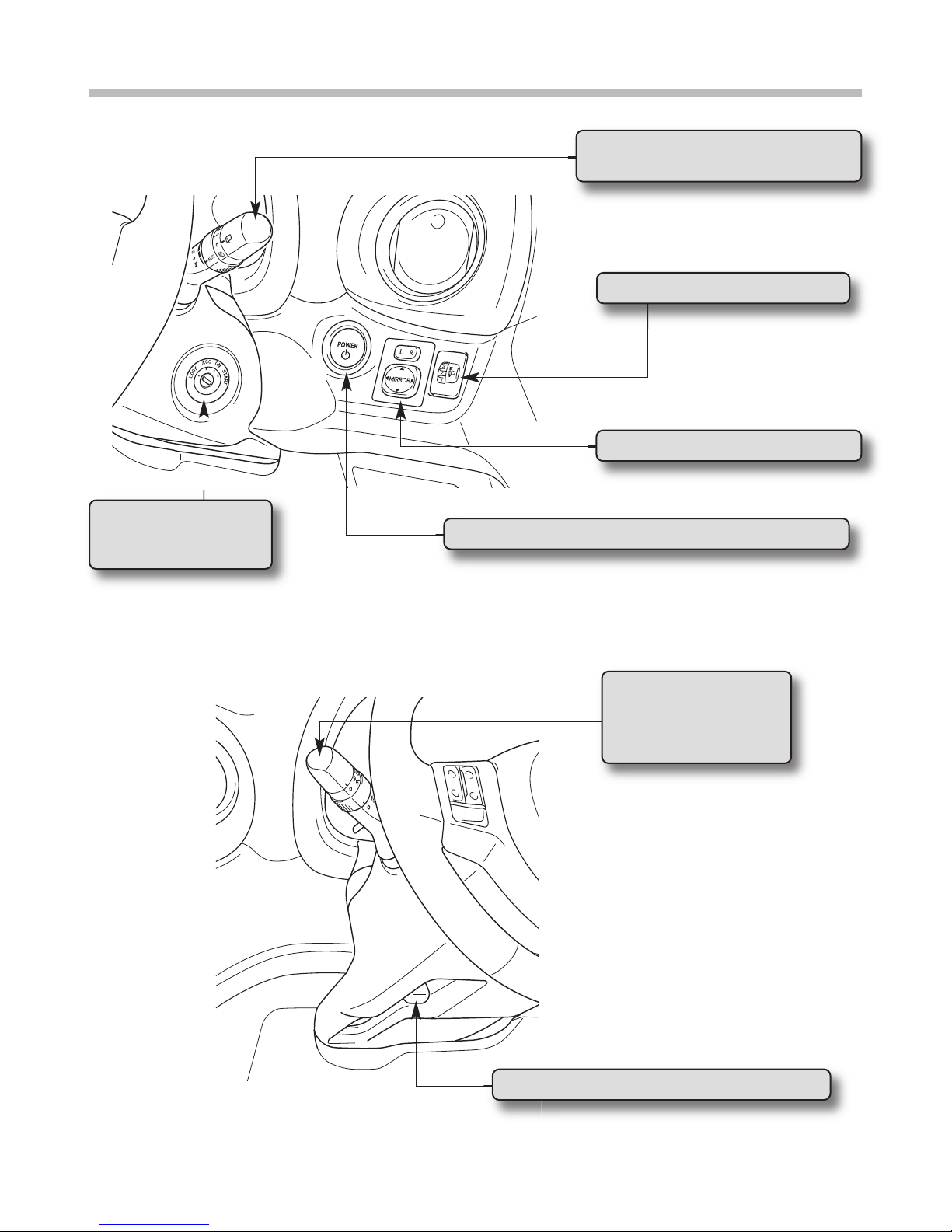

Instrument Panel Overview
A
B
*: f equipped
Windscreen wiper and washer switch
Rear window wiper and washer switch*
Engine (ignition) switch
(vehicles without an
electronic key)
Power (ignition) switch (vehicles with an electronic key)
Outside rear view mirror switches*
Manual headlight leveling dial
Tilt and telescopic steering lock release lever
Headlight switch
Turn signal lever
Front fog light switch*/
Rear fog light switch

9
Instrument Cluster
Main indicator symbols and warning lights
* on some models
For full details of indicators symbols and warning lights, please consult your Owner's Manual Chapter 2-2
Brake system warning
light
Anti-lock brake system
warning light
Discharge
warning light
Low engine oil pressure
warning light
Malfunction indicator
lamp
Power steering system
warning light
Low fuel level indicator
light
Low engine coolant
temperature indicator
light
High engine coolant
temperature warning
light
Fuel filter warning light
(Diesel models only)
“ECO MODE” indicator SRS warning light Multi-mode manual
transmission warning
light*
Vehicle stability control
system*
Smart entry and start
system warning light*
EV drive mode
indicator
Front passenger airbag
“OFF”
Engine oil change
reminder light*
EV indicator Stop & Start indicator
1. Tachometer:
Displays the engine speed in revolutions per
minute.
2. Speedometer:
Displays the vehicle speed.
3. Clock.
4. Outside temperature display.
5. Fuel gauge:
Displays the quantity of fuel remaining in the tank.
6. Display change button.
7. Odometer, trip meter and multi-information
display.
8. Clock adjusting buttons.
9. Hybrid system ndicator.
Displays hybrid system power output and
regenerative level.
768
21 3 4 5
9

10
Multi-information display
The multi-information display presents
the driver with a variety of driving-related
data.
•Odometer
•Trip meter
•Stop & Start system operation time
(if equipped)
•Stop & Start system total operation time (if
equipped)
•Trip information
Displays driving range, fuel consumption and
other cruising-related information.
•Instrument panel light control
•E indicator customisation
You can view the status of your hybrid system on the “touch screen”.
For details, see the owner's manual, chapter 1-1
* f equipped
Energy/monitor/consumption screen*

11
Starting your vehicle
Engine switch positions:
1. Lock: The steering wheel is locked and the key can
be removed.
2. ACC: Some electrical equipment such as audio can
be used.
3. On: All electrical equipment can be used.
4. Start: For starting the hybrid system.
ehicles without an electronic key
1. Check that the parking brake is set.
2. Check that the shift lever is set in P.
3. Firmly depress the brake pedal.
Turn the switch to “START” position, continue
depressing the brake pedal until Hybrid system is
started.
Starting the Hybrid system
ehicles with an electronic key
1. Check that the parking brake is set.
2. Check that the shift lever is set in P.
3. Firmly depress the brake pedal.
Press the “POWER” switch, continue depressing the
brake pedal until Hybrid system is started.
The vehicle can move when the "READY" indicator is on.

12

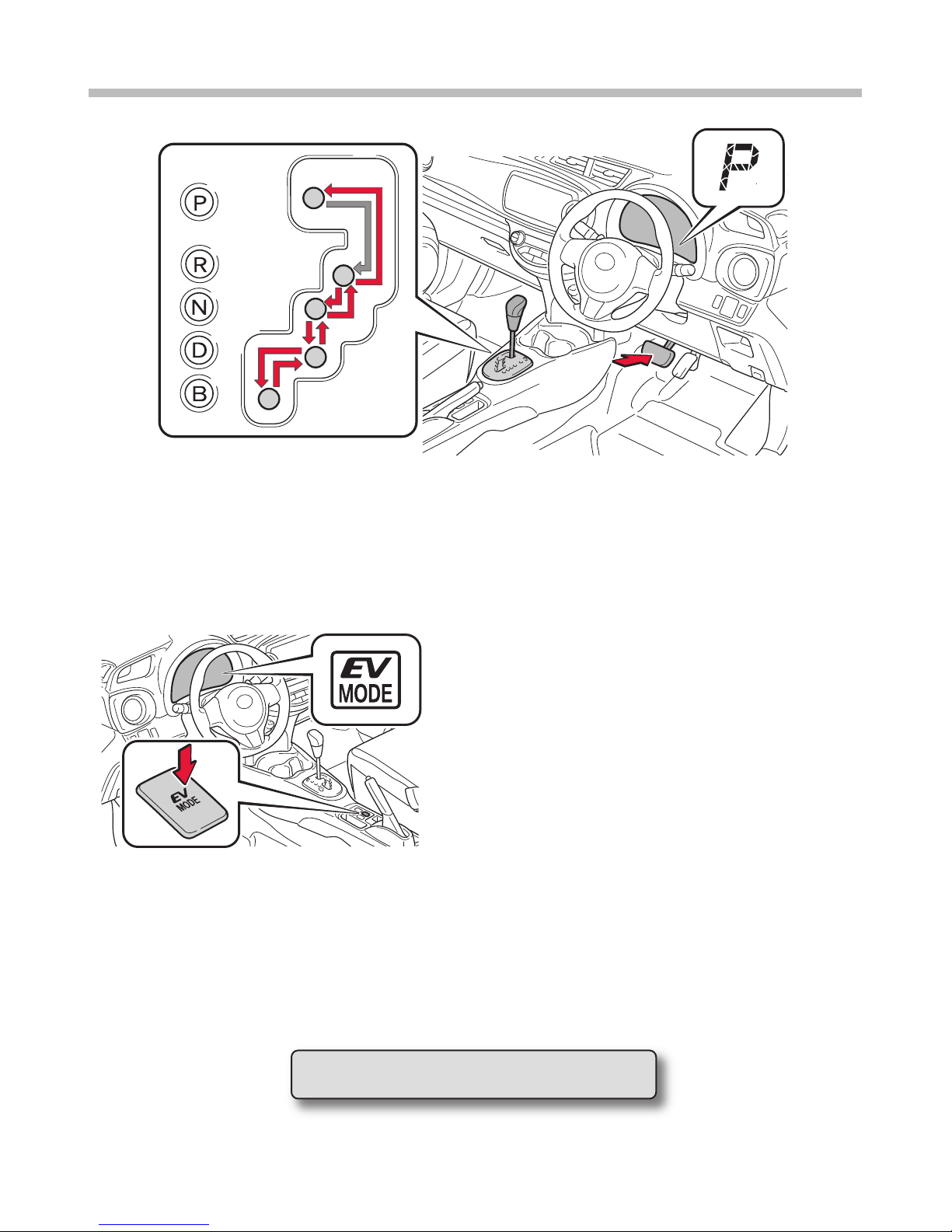

Hybrid transmission
With the power on, move the shift lever with the
brake depressed, when shifting from “P” or “R” to
another position.
n EV drive mode, the electric motor (traction motor),
powered by the hybrid battery (traction battery), is
used to drive the vehicle.
This mode allows you to drive in residential areas
early in the morning and late at night, or in indoor
parking lots etc without concern for noises and
exhaust gas emissions.
E Drive mode
For details, see details in your Owner’s manual
Chapter 2-1

13
Heating, A/C and de-misting
Manual air conditioning system*
Automatic air conditioning system
1
45
11
123
2 73 4 4 5 6
10
12
13
8
9
1. Air outlet selector dial
2. Outside/recirculated air mode dial
3. Temperature control dial
4. Cooling and dehumidification function on/off
button (if equipped)
5. Fan speed control dial
1. Cooling and dehumidification function
on/off button
2. Left side temperature control dial
3. Left side temperature display
4. Fan speed display
5. Air outlet display
6. Right side temperature display
7. Right side temperature control dial
8. Windscreen defogger button
9. Air outlet selector button
10. “OFF” button
11. Fan speed control button
12. Automatic mode button
13. Outside/recirculated air mode button
14. Dual mode button
14
* f equipped

14
Lights
Headlights
1. The front position, tail, license plate and
instrument panel lights turn on.
2. The headlights and all of the lights above turn on.
3. All lights turn on or off automatically when the
engine is on depending on outside light intensity.
High-low beams
For high beams, turn the headlights on and push the
lever away from you (position 1).
Pull the lever toward you for low beams.
To flash the high beam headlights, pull the lever all
the way back (position 2). The high beam headlights
turn off when you release the lever.
Windscreen wipers and washer
1. ntermittent windscreen wiper operation
2. Low speed windscreen wiper operation
3. High speed operation
4. Temporary operation
To spray washer fluid, pull the lever toward you.
Rain-sensing windscreen wiper
(if equipped)
With "AUTO" selected, the wiper will operate
automatically when the sensor detects rain and
adjust the timing according to rain volume and
vehicle speed.
1. Rain-sensing wiper operation (AUTO)
2. Low speed wiper operation
3. High speed operation
4. Temporary operation
Wipers

15

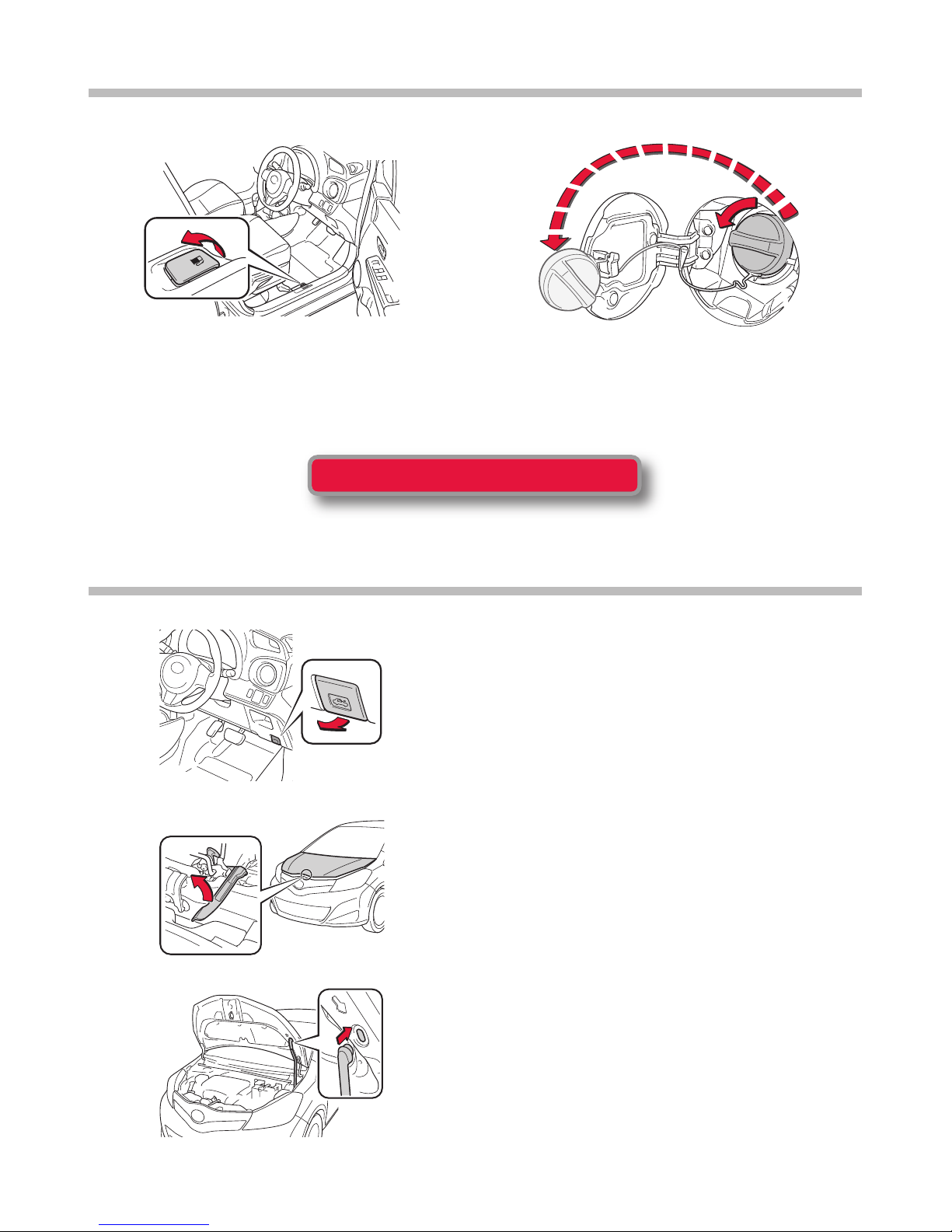

Bonnet opening
To open the bonnet:
1. Pull the bonnet lock re lease lever.
The bonnet will spring up slightly.
2. n front of the vehicle, pull up on the auxiliary
catch lever and lift the bonnet.
3. Hold the bonnet open by inserting the support rod
into the slot.
Fuel tank opening
1. To open the fuel filler door, pull the lever up. 2. To remove the fuel tank cap, turn the cap slowly
counter clockwise, then pause slightly before
removing it. Hang the tether as shown in the
illustration.
Take care to select the correct fuel

16
YARHY11-0412ENUK-00-00
Eco-Driving
Total potential saving of 20 - 30%.
Eco-Driving Savings
Roof load increases wind drag and
therefore consumption.
Open windows increase fuel
consumption by an average of 5%.
Starting
•Remove any extra weight and roof load
•Plan your route to avoid detours
•Avoid using your car for short journeys
Checking/maintenance
•Check your tyre pressures regularly
•Service your car according to owner’s manual
Driving
•Only use electrical accessories when necessary (e.g. A/C)
•Follow and anticipate the traffic flow
•Keep your windows closed (use ventilation system when possible)
•Switch off your engine if you have to wait longer than 30 - 60 seconds
How to Eco-Drive?
Roof Load
(Speed at 120 km/hr)
Increased
consumption
Luggage rack 5 – 10%
Ski box 10 – 20%
Bicycle rack 30%
Loaded luggage rack 35 – 40%
Air Conditioning
can result in 10 - 25%
extra fuel consumption.
Low Tyre Pressure result in higher fuel consumption
(up to 3% extra from 0.5 bar too low)
Tyre pressures can fall by 2.5 - 5.0% after one month,
and by 20% after 5 months.
What is ‘‘Eco-Driving’’?’
•Eco-Driving = Driving in a more careful and environmentally responsible way
•Eco-Driving = Reduced fuel costs
•Eco-Driving = Reduced Environmental impact áSaving of CO2emissions.

YARHY11-0412ENUK-00-00
