!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
MYCAR.PK , wish you many years of satisfied driving in your
new Prius.
This Quick Reference Guide is not a full description of Prius
operations. Every Prius owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
25
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Spare tire & tools
To o l l o c a t i o n
Removing the spare tire
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Wheel nut
wrench
Spare tire
Towing eyelet
Center auxiliary box
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Jack
Jack handle
Doors-Child safety locks
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 9
Smart Key system1,2 7
Air Conditioning/Heating 16
Audio 18-19
Auto lock functions110
Clock 23
Cruise control 20
Dynamic Radar Cruise Control 20-21
EV-Drive Mode 12
Garage door opener (HomeLink®)323
Hill start Assist Control (HAC) 23
Hybrid Synergy Drive System 10
Lights1& turn signals 15
LKA (Lane Keep Assist) 21
Moonroof 17
Multi-information display222
Parking brake 12
Power outlets 19
Seat adjustments-Front 13
Seat heaters 16
Seats-Folding down second row seats 13
Seats-Head restraints 13
Solar ventilation system 17
Steering wheel switches 19
Telephone controls (Bluetooth®)22
Tilt and telescopic steering wheel 12
Transmission 11
Windows-Power 14
Windshield wipers & washers 14
Doors-Child safety locks 25
Door locks 24
Seatbelts 24
Seatbelts-Shoulder belt anchor 24
Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

2
OVERVIEW
Instrument panel
Steering wheel controls
Steering wheel audio controls
Voice command button1,2
“TRIP” button
Multi-information display button
Steering wheel climate controls
Cruise control1
“LKA” switch1
Distance switch1
Telephone controls1,2
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls1
Wiper and washer controls1
Mph or km/h button
Advance Parking Guide System/Intelligent Parking Assist pre-support
switch1,2
Power button
Multi-information display
Audio system or navigation system-integrated audio system1,2
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Automatic Air Conditioning
Air Conditioning controls
Outside rearview mirror1/Back window defogger button
“EV” switch1
“ECO MODE” switch
“PWR MODE” switch
Emergency flasher button
Shift lever
“P” position switch
Tilt and telescopic steering lock release lever
Fuel filler door opener
Power rearview mirror control
Headlight cleaner switch1
Solar ventilation switch1
Instrument panel light control
1If equipped
2For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

4
OVERVIEW
Indicator symbols
Instrument cluster
Service indicator and reminder
Fuel gauge
Transmission shift position indicator
Multi-information display
Instantaneous fuel consumption
Speedometer
Charging system warning1
Brake system warning1
Front passenger occupant classification or front
passenger airbag ON/OFF indicator1
Open door warning
Airbag SRS warning1
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Brake system warning light (yellow indicator)1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

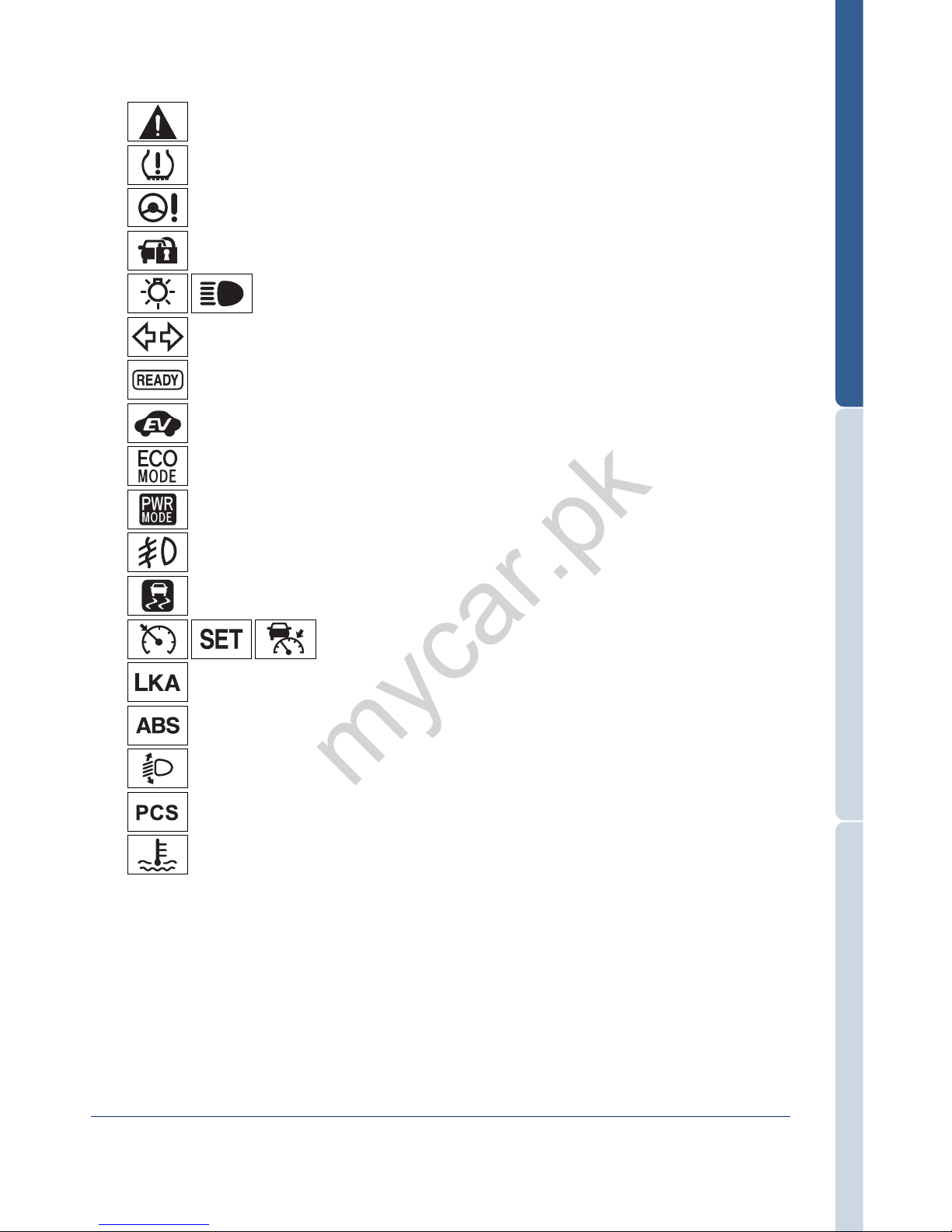

2If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill start Assist Control indicator1
Cruise control indicator2
LowTirePressureWarning
1
Theft deterrent/Engine immobilizer system indicator
Master warning
Electric power steering system warning1
READY indicator
Front fog light indicator
Eco Mode indicator
EV Drive Mode indicator
Automatic headlight leveling system warning1
Lane Keep Assist indicator
Pre-Collision System warning light1
High coolant temperature warning light1
Power Mode indicator
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

6
OVERVIEW

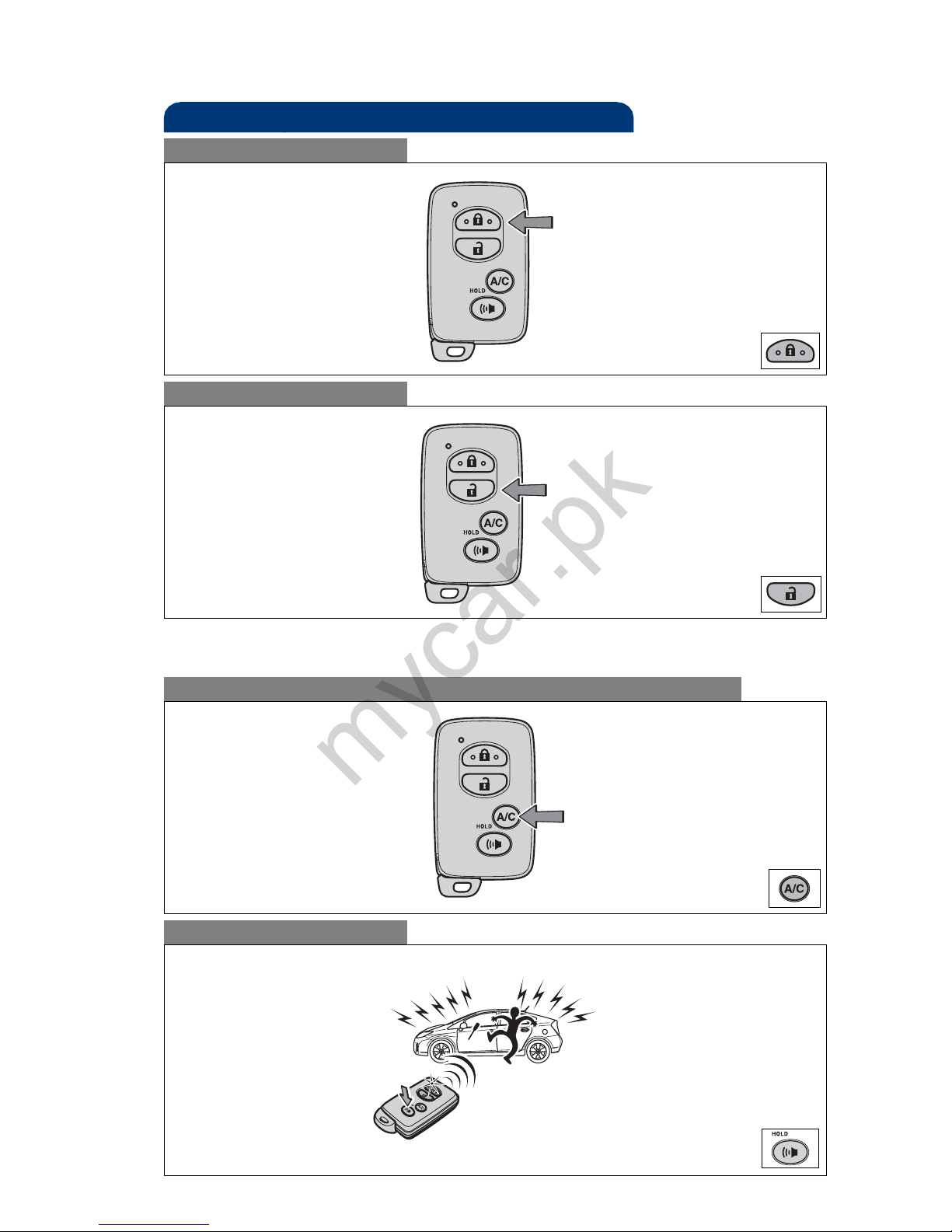

Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Remote Air Conditioning system operation (if equipped)
Panic button
Push and hold
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Will automatically shut off
after three minutes, or if a
door is opened.
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; Hybrid System is not engaged.
All systems OFF.
ACCESSORY
ON
OFF
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “POWER” switch will
change the operation mode in succession from:
Power (without starting Hybrid System)
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Locking operation (if equipped) Unlocking operation
(if equipped)
Carry remote to lock/unlock Carry remote to lock/unlock
Front door lock Front door unlock*
Back door lock/unlock (if equipped)
Carry remote to
lock/unlock
Touch
Grasp
Push
Lock
Push
Unlock
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

8
Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull
Tu r n
Store
Engage support rod
Pull
OVERVIEW
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine coolant reservoir
Engine oil level dipstick
Engine oil filler cap
Windshield washer fluid tank
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

10
FEATURES/OPERATIONS

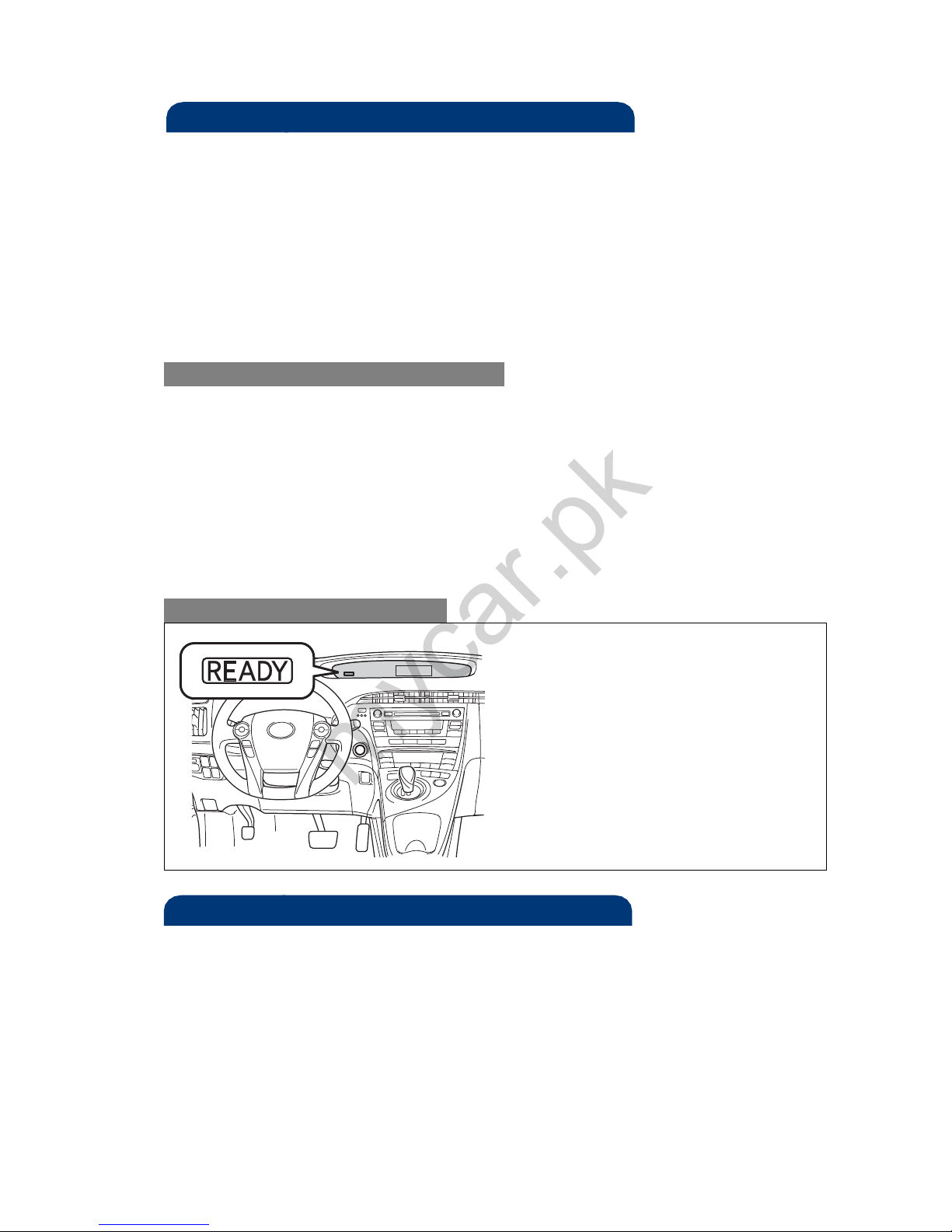

(1) Depress the brake pedal, and
press the “POWER” switch
briefly and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a
beep sounds, you may begin
driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
Note: Fuel consumption and energy information of the Hybrid System
are shown on the multi-information display.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner’s
Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the
highway.
-When possible, avoid sudden stops to maximize regenerative braking
energy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the “POWER” switch or ignition switch OFF.
Refer to the Owner’s Manual for more details.
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

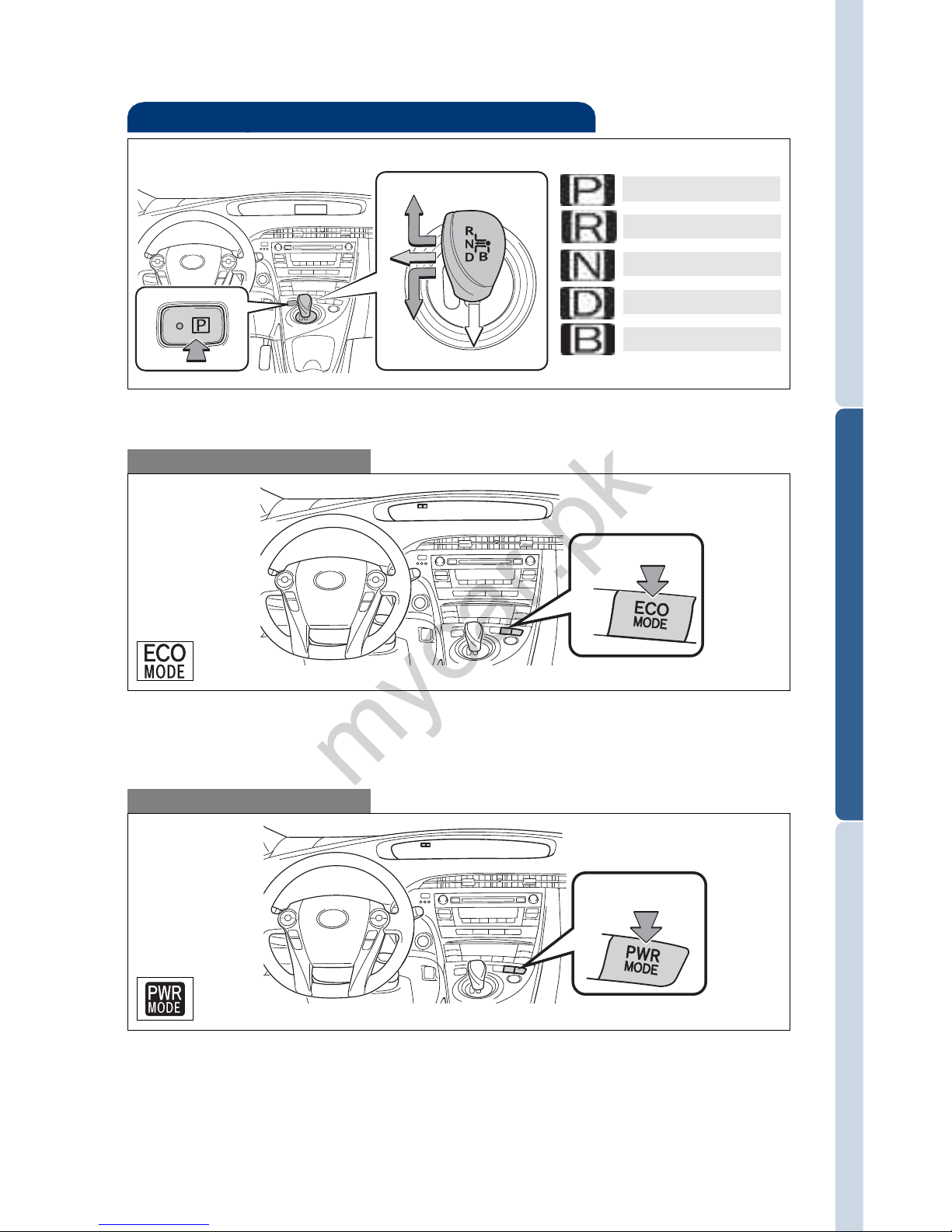

Transmission
* The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Eco Mode
Push
Eco Mode helps achieve low fuel consumption during trips that involve
frequent accelerating and braking.
Refer to the Owner’s Manual for more details.
Park button
Reverse
Neutral
Drive
Engine brake*
Power Mode
Use when a higher level of response is desired, such as when driving in
mountainous regions.
Refer to the Owner’s Manual for more details.
Push
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

12
FEATURES/OPERATIONS

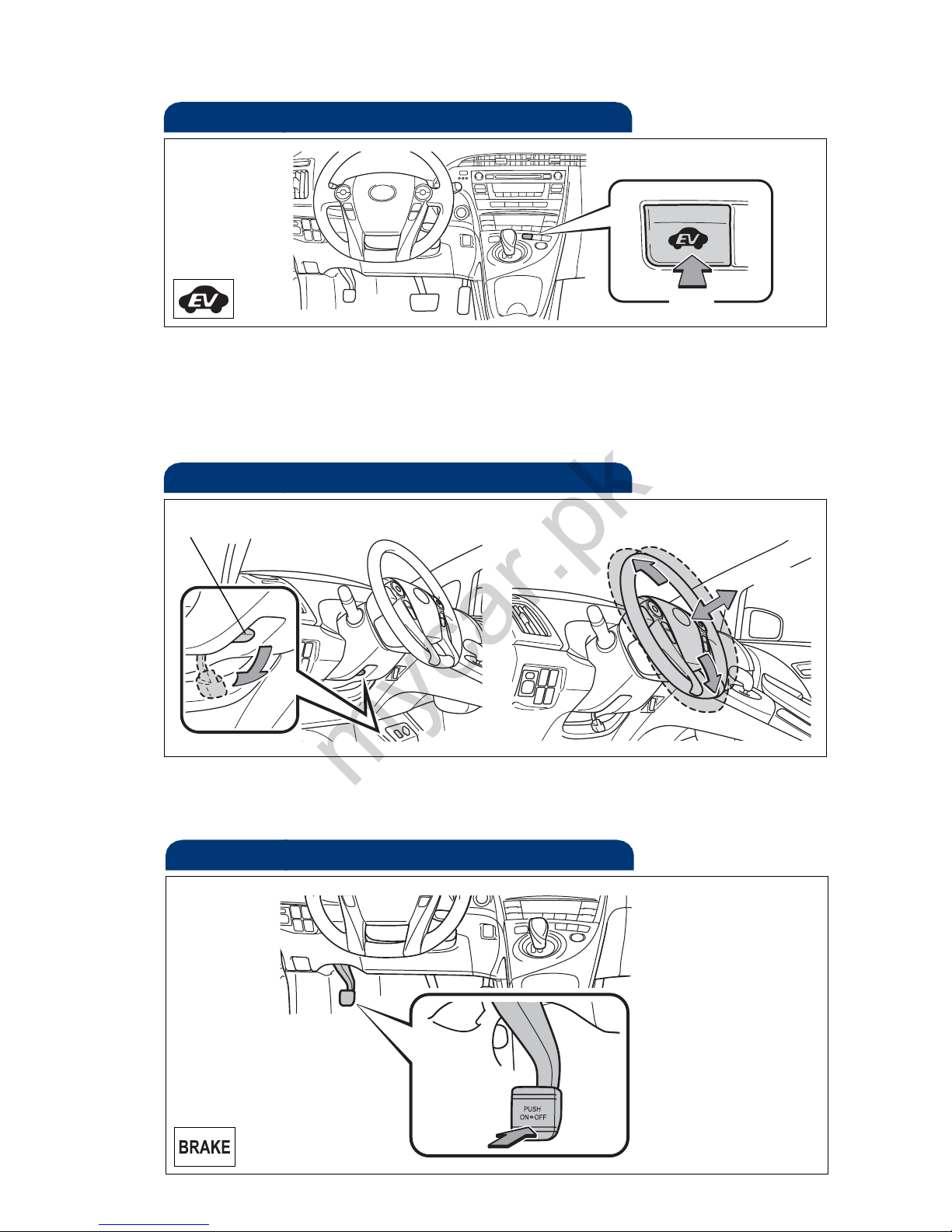

Hold wheel, push lever down, set angle and length, and return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
EV-Drive Mode (if equipped)
EV-Drive Mode allows the electric motor (traction motor), powered by the
hybrid battery (traction battery), to be used to drive the vehicle under
certain driving conditions.
Refer to the Owner’s Manual for more details.
Push
Angle
Length
Lock release lever
Parking brake
Set: Depress
Release: Depress again
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

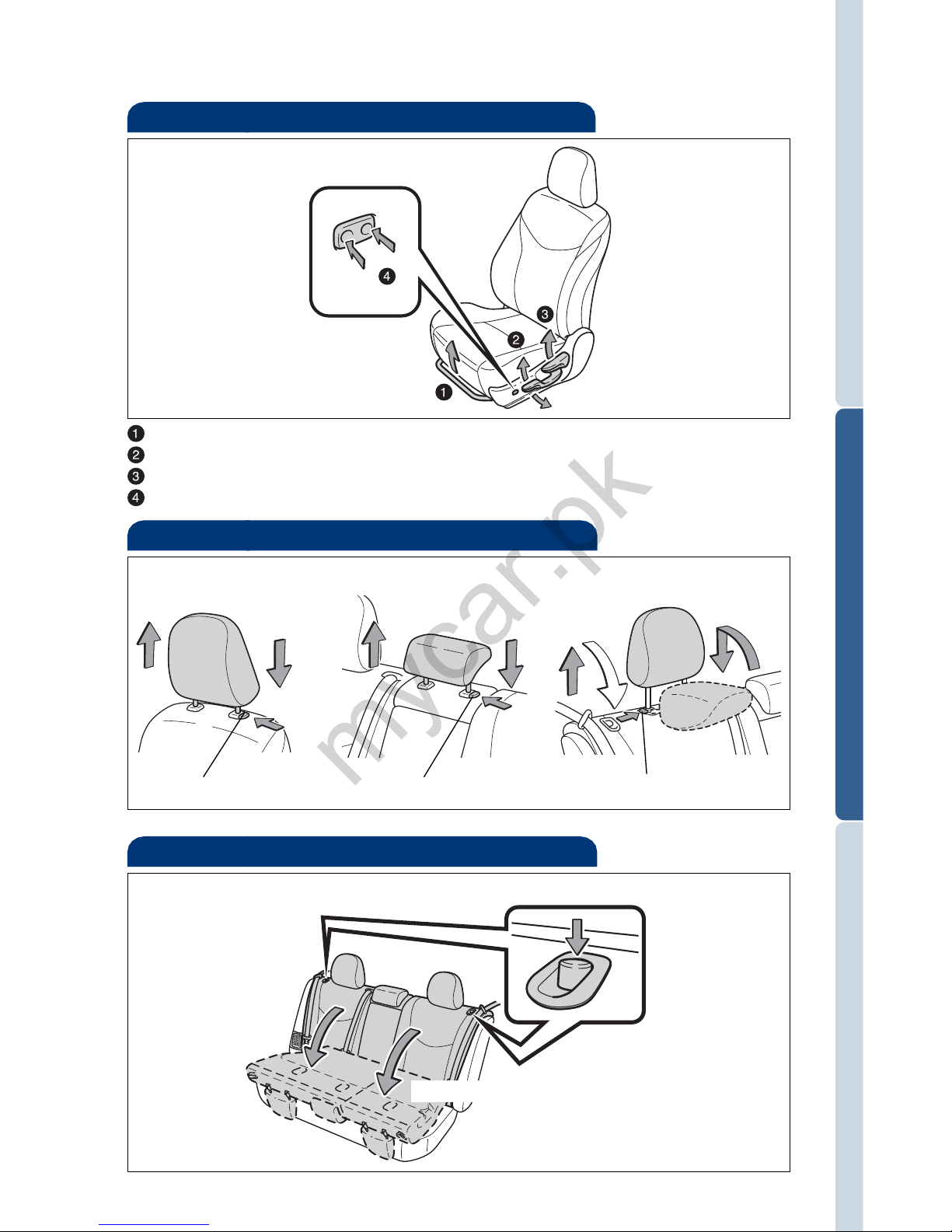

Seat adjustments-Front
Seat position (forward/backward)
Seatback angle
Height crank (driver side; if equipped)
Lumbar support (driver side; if equipped)
Seats-Head restraints
Front Rear center
Lock release button Lock release button
Rear outboard
Lock release button
(2) Fold down
(1) Press down
Seats-Folding down second row seats
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

14
FEATURES/OPERATIONS

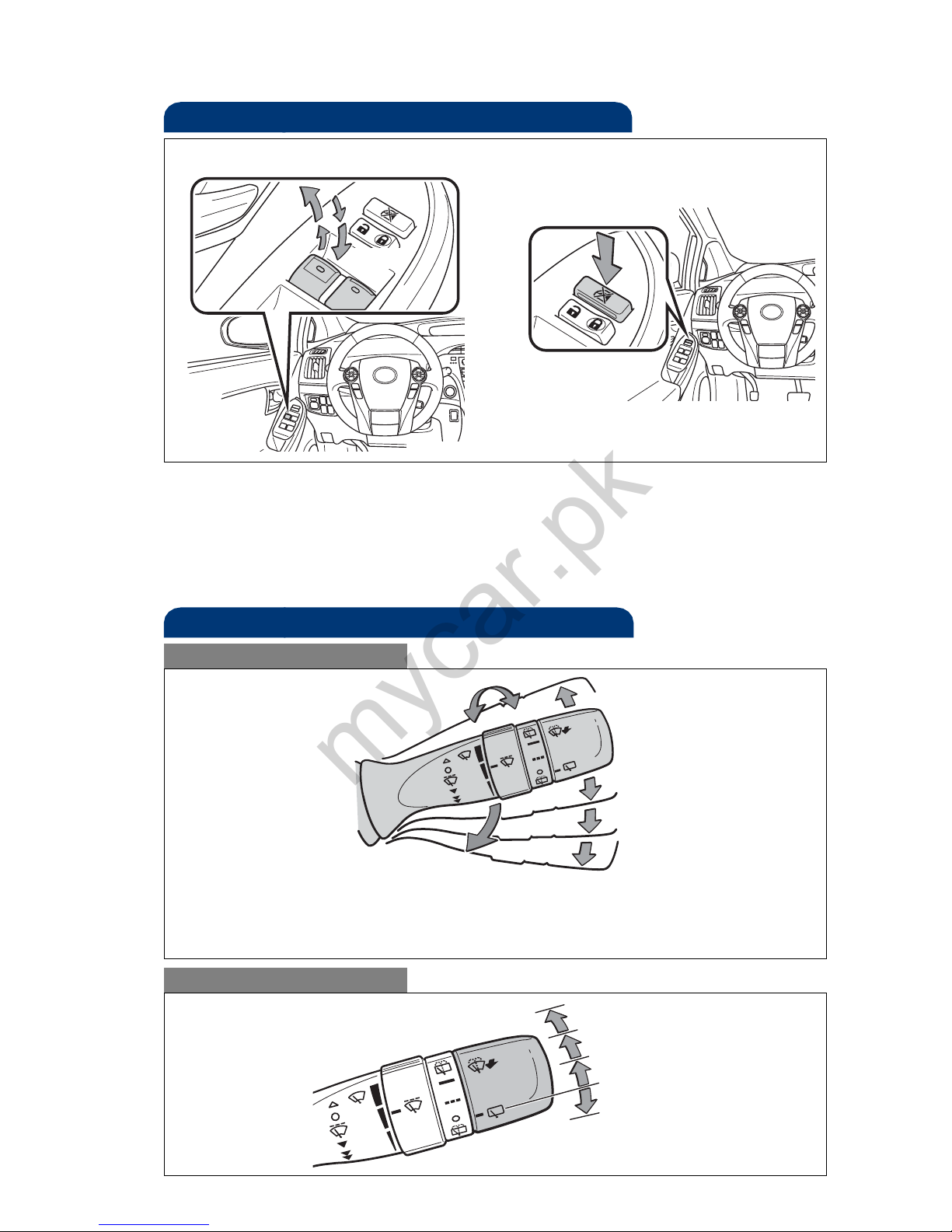

Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Front
Rear (if equipped)
Wash and wipe
Wipe
Interval wipe
Wash and wipe
Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Windows-Power
Up
Down
Window lock switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL) (if equipped) Automatically turns
on the headlights at a reduced intensity.
-Automatic light cutoff system (if equipped) Automatically turns lights
off after a delay of 30 seconds.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
High beam
Auto*
Headlights
Parking lights
Tu r n
* If equipped
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

16
FEATURES/OPERATIONS
Air Conditioning/Heating
Front automatic Air Conditioning
Temperature selector
Temperature setting display
Air outlet display
Fan speed display
Fan speed control
Windshield defogger
Air Conditioning ON/OFF
Micro dust and pollen filter mode (turns off automatically after 3
minutes)
Airflow vent
In “ ” or “ ” mode, use fresh air (“ ” indicator OFF) to
reduce window fogging.
Fresh or recirculated cabin air
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Climate control OFF
Seat heaters (if equipped)
Push
Push
Driver seat
Front passenger seat
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Solar ventilation system (if equipped)
With the “POWER” switch in
ON mode, turn on the solar
ventilation switch.
The solar ventilation system allows ventilation of the vehicle interior when
the vehicle is parked in direct sunlight.
Refer to the Owner’s Manual for more details.
OnOff
Moonroof (if equipped)
Opening operation Closing operation
Push and hold
Recommended driving position to
minimize wind noise.
Push once to tilt up;
again to open partway;
again to open completely.
Push
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk

18
FEATURES/OPERATIONS
Type 2 (with JBL speakers and Bluetooth®function)
Audio
Eject CD
Push to turn
ON/OFF
View CD text
Seek station/
CD track select
Station/CD
track scan
Mode
Preset buttons - functions in other
modes indicated above number
Type 1
Push to skip
up/down
folder and
radio
category
type
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.FILE.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
Push to
adjust tone
& balance
Mute
Load CD(s)
www.mycar.pk
Umar: 03214530584
www.prius.pk
mycar.pk
