TPL VISION M-EBAR Series User manual

Preamble
rISk claSS
The EN-62471 norm about lighting uxes enables the classication of led lightings in 4 distinct groups, according
to their hazardousness degree. Please nd below an indicative table, recapitulating the classes of risk for our
standard products.
Colour Class Risk
White WHI 0none
In all cases, TPL Vision recommends the use of the protection glasses that are listed in its catalog.
For more information about photobiological risks, do not hesitate to contact us.
TPL Vision can provide guidance notes about the nominal distance to minimize eye risks.
USer gUIde
UnPackIng
Products are packed in our factory, using suitable materials for a safe transport through the usual means of trans-
portation, in France and internationally. However, a damaged package must be reported to the carrier on delivery.
Hand-written reservations must be indicated on the delivery order. Moreover, please send a letter or an email to
TPL Vision as soon as possible (up to 24 hours after the delivery). If the transportation damage has not been stipu-
lated on the delivery order and reported to TPL Vision in time, the package will not be taken back nor exchanged.
To open the package, do not use any cutting blade to avoid damaging the product(s). Please use the delivered
accessories, if needed (do not use any other products or equivalents to replace the delivered accessories).
This Technical User Guide contains warnings and guidance for correct and safe operation of the product.
These instructions must be followed at all times. TPL Vision will not be held responsible for problems caused
by using the product contrary to these instructions and the Warranty will be deemed invalid.

* Total length, without connector.

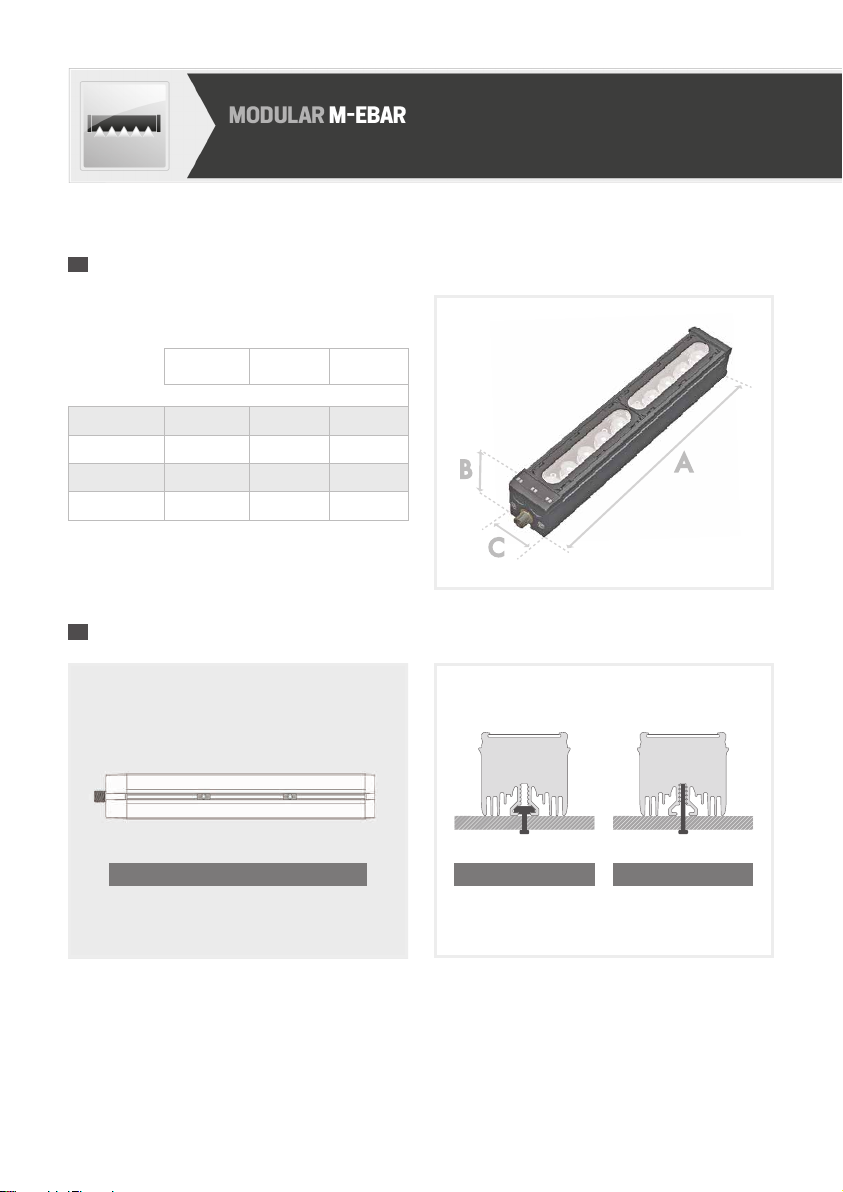

fIxIng
dImenSIonS
2 M4 NUTS SET AT EQUAL DISTANCE Nuts M4 – supplied Screws M4 – not supplied
Length
(mm)
Height
(mm)
Width
(mm)
A B C
M-EBAR 125 158 45 47.6
M-EBAR 250 283 45 47.6
M-EBAR 375 408 45 47.6
M-EBAR 500 533 45 47.6
During the set up, the light has to be switched off and unplugged. Please use the delivered nuts and insert them
in the groove located in the back of the light. The light will be better xed if you spread the attachment points as
indicated on the scheme above. You can also use M4 screws (not supplied) with a tightening torque from 0.5 to
1.5Nm. We also recommend the use of a threadlocker (not supplied) to avoid any risk of loosening.
USer gUIde P2/8

led IndIcatorS
: Strobe LED indicator
: Power LED indicator
connectIon
WIrIng
M12 Connector
5 male points
+ 24 V
1
2
3
4
Ground
PNP
5Dim 0-10V
STROBE PNP
:
+ 24 V
NPN
1
2
3
4
Ground
STROBE NPN
:
+ 24 V
1
2
3
4
Ground
PNP
+ 24 V
NPN
1
2
3
4
Ground
CONTINUOUS MODE :
or
2
4
1
+ 24 V
3GND
5DIM 0-10V
STROBE
NPN
STROBE
PNP 5Dim 0-10V
5Dim 0-10V 5Dim 0-10V
black
brown
blue
grey
white
Front view Top view
P3/8

USer gUIde P4/8
VOLTAGE DROP
Dimensions 125 250 375 500
Max voltage drop in the bar (V) 0.01 0.03 0.06 0.12
Power supply cable : 4x1,5² max length
for acceptable voltage drop (m)* >150 >150 >150 >150
Linking cable : 5x0,34² max length
for acceptable voltage drop (m)
No restriction if each bar has its own power supply cable
please contact us for other conguration
* For longer power supply cable, increase the section of the copper wire.
control
The product is optimised for a lifespan >50kh in a 40°C atmosphere.
In strobe mode, the strobing time is directly equivalent to the time during which the strobe entry is activated.
Strobe PnP & nPn
PNP : from 5 to 24V for 100% ON. From 0 to 1V for 100% OFF.
NPN : less than 1V for 100% ON. Above 2V for 100% OFF. Max 20V.
Strobe mode: LED are supplied with 100% maximum current.
Continuous mode: after 30ms at 100%, LED are supplied at a safe level for use.
Brightness D max (%) t max f max
x1 100% CW N/A
x 2.4 20% 30 ms 750Hz
D : Duty Cycle
t : pulse duration
f : frequency
oPeratIng condItIonS
-10° to +40°C / 80% of humidity without condensation. No thermal shock (max temperature variation: 10°C in 24h).

P5/8
oPeratIon
dImmIng 0-10V
Continuous mode: in order to protect the light, after 30ms, it decreases and reaches a safe power supply level.
30%
50%
70%
100%
0 2 4 6 8 10
VOLTS
Potential dimming between
0 & 10 V.
At 0 Volts, the product reaches
100% of its lighting power. Only
usable in the Overdrive phase.
Please consider a tolerance of ±5%
when measuring the dimmed bri-
ghtness levels.
STROBE INPUT
30 ms
15 µs 15 µs
15 µs 15 µs
LIGHT
CONTINUOUS WORKING
(triggering input >30 ms)
STROBE MODE
(triggering input <30 ms)
x 2.4
x 1
STROBE INPUT
30 ms
15 µs 15 µs
15 µs 15 µs
LIGHT
CONTINUOUS WORKING
(triggering input >30 ms)
STROBE MODE
(triggering input <30 ms)
x 2.4
x 1

eqUIPment maIntenance
CLEANING (when the product is switched off)
Please use a soft and dry cloth. Do not use any abrasive material.
Do not use any cleaning solvent or aggressive chemical product.
TPL Vision recommends to use isopropyl alcohol.
USer SecUrIty
Do respect the power supply voltages and the connection terminals.
Do not modify or dismantle all or part of the product.
Do not connect or clean when power is on.
Do not watch the lighting source directly, and follow the advice below :
• If the workstation enables it, interpose a lter that will stop the lighting radiation under xed or adjustable
frame between the source and the operator.
• When these measures cannot be implemented, supply the operators with glasses (class 4) available for sale
at TPLVision, or with a dedicated protective mask, that will stop the lighting radiation.
• Forbid or limit the direct access to the lighting source (exposure into the radiation axis).
• Establish a security perimeter so as to prevent the operators from approaching the lighting source beyond
therecommendations of the manufacturer, as for eye irritation is concerned.
• In any case, ensure that the chosen means properly reduce the exposition quantities (features of screens or
glasses to be chosen, according to the wavelengths that the operators are exposed to).
USer gUIde P6/8
PoWer SUPPly
125 250 375 500
Power consumption (average) 7W 14W 21W 28W
Power consumption Strobe mode* (average) 5.6W 11.2W 16.8W 22.4W
Power consumption (peak) 28W 56W 84W 112W
Min. functioning Voltage 20V in the light input
Normal functioning Voltage 24V in the light input (±10%)
Max. functioning Voltage 30V in the light input
*strobed with 20% duty cycle.


TPL VISION UK
Brenchley House – School Road – Charing – Kent TN27 0JW – UK
Tel. +44 (0)1738 310 392 – www.tpl-vision.com
Features and presentations liable to changes without notice. Documentation valid from June 2017 until further notice. Ref.UG-010801-B1, 2020/07 edition.
