Chauvet Professional Rogue Outcast 2X Wash User manual

Model ID: ROGUEOUTCAST2XWASH
User Manual

Rogue Outcast 2X Wash User Manual Rev. 1
Edition Notes
The Rogue Outcast 2X Wash User Manual includes a description, safety precautions, installation,
programming, operation and maintenance instructions for the Rogue Outcast 2X Wash as of the release
date of this edition.
Trademarks
Chauvet, Chauvet Professional, the Chauvet logo, Rogue, Outcast, and Rogue Outcast are registered
trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United
States and other countries. Other company and product names and logos referred to herein may be
trademarks of their respective companies.
Copyright Notice
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2022 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
Manual Use
Chauvet authorizes its customers to download and print this manual for professional information purposes
only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this
manual or its content for any other purpose without written consent from Chauvet.
Document Printing
For best results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4
paper (210 x 297 mm), configure the printer to scale the content accordingly.
Intended Audience
Any person installing, operating, and/or maintaining this product should completely read through the guide
that shipped with the product, as well as this manual, before installing, operating, or maintaining this
product.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetprofessional.com.
Document Revision
This Rogue Outcast 2X Wash User Manual is the 1st edition of this document. Go to
www.chauvetprofessional.com for the latest version.

Rogue Outcast 2X Wash User Manual Rev. 1
Table of Contents
i
TABLE OF CONTENTS
1. Before You Begin ....................................................................... 1
What Is Included ........................................................................................... 1
Claims ........................................................................................................... 1
Text Conventions .......................................................................................... 1
Symbols ........................................................................................................ 1
FCC Compliance........................................................................................... 1
Safety Notes.................................................................................................. 2
Personal Safety.................................................................................................. 2
Mounting and Rigging ........................................................................................ 2
Power and Wiring............................................................................................... 2
Operation ........................................................................................................... 3
Expected LED Lifespan................................................................................. 3
2. Introduction ................................................................................ 4
Description .................................................................................................... 4
Features........................................................................................................ 4
Product Overview.......................................................................................... 4
Product Dimensions ...................................................................................... 5
3. Setup ........................................................................................... 6
AC Power...................................................................................................... 6
AC Plug .............................................................................................................. 6
Power Linking..................................................................................................... 6
Fuse Replacement ............................................................................................. 6
DMX Linking.................................................................................................. 6
Remote Device Management (RDM) ................................................................. 6
USB Software Update ................................................................................... 6
Mounting ....................................................................................................... 7
Orientation.......................................................................................................... 7
Rigging ............................................................................................................... 7
Procedure........................................................................................................... 7
4. Operation .................................................................................... 8
Control Panel Description ............................................................................. 8
Menu Map ..................................................................................................... 8
Configuration (DMX) ..................................................................................... 10
Control Personalities .......................................................................................... 10
Starting Address................................................................................................. 10
Control Channel Assignments and Values.................................................... 11
Zones for DMX Control ...................................................................................... 11
Strobe Chart....................................................................................................... 11
Color Chart......................................................................................................... 11
Zone Selection Chart ......................................................................................... 12
Programs Chart.................................................................................................. 12
Control Chart...................................................................................................... 12
Advanced Modes ............................................................................................... 13
Basic Modes....................................................................................................... 14
MS Modes .......................................................................................................... 15
Configuration (Settings) ................................................................................ 16
Pan Reverse ...................................................................................................... 16
Tilt Reverse ........................................................................................................ 16
Pan Angle........................................................................................................... 16
Tilt Angle ............................................................................................................ 16

Table of Contents
Rogue Outcast 2X Wash User Manual Rev. 1
ii
Fan Mode ........................................................................................................... 16
Display Backlight Timer...................................................................................... 16
Screen Reverse ................................................................................................. 17
Dimmer Curve .................................................................................................... 17
Dimmer Speed ................................................................................................... 17
Pulse Width Modulation ..................................................................................... 17
LED Power ......................................................................................................... 17
White Mode ........................................................................................................ 17
Color Calibration ................................................................................................ 17
USB Update ....................................................................................................... 17
Reset Function ................................................................................................... 18
Factory Reset..................................................................................................... 18
Test Mode ..................................................................................................... 18
Auto Test............................................................................................................ 18
Manual Test ....................................................................................................... 18
System Information ....................................................................................... 18
Offset Mode (Zero Adjust)............................................................................. 18
5. Maintenance................................................................................ 19
Product Maintenance .................................................................................... 19
6. Technical Specifications ........................................................... 20
Returns............................................................................................ 21
Contact Us ...................................................................................... 22

Page 1 of 22
Rogue Outcast 2X Wash User Manual Rev. 1
Before You Begin
1. Before You Begin
What Is Included
Claims
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Symbols
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
• Rogue Outcast 2X Wash
• Seetronic Powerkon IP65 power cable
• 2 Omega brackets with mounting hardware
• Quick Reference Guide
Convention Meaning
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
Symbol Meaning
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function correctly
if this information is not used.
Useful information.
Any reference to data or power connections in this manual assumes the use of Seetronic
IP rated cables.
The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data
transmission protocol.

Page 2 of 22
Before You Begin
Rogue Outcast 2X Wash User Manual Rev. 1
Safety Notes
Read all the following safety notes before working with this product. These notes contain important
information about the installation, usage, and maintenance of this product.
Personal Safety
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer
than 6.5 ft (1.9 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special
cord or cord exclusively available from the manufacturer or his service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service
agent or a similar qualified person.
• The luminaire is intended for professional use only.
• Always disconnect the product from the power source before cleaning or replacing the fuse.
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Do not touch the product’s housing when operating because it may be very hot.
Mounting and Rigging
• Do not submerge this product (IP65). Temporary outdoor operation is fine.
• When using this product in an outdoor environment, use IP65 (or higher) rated power and data
cables. Secure unused power and data ports with attached IP65 covers.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to
warm, humid ballroom) condensation may form on the internal electronics of the product. To avoid
causing a failure, allow product to fully acclimate to the surrounding environment before connecting
it to power.
• Not for permanent outdoor installation in locations with extreme environmental conditions. This
includes, but is not limited to:
• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
• Locations where the normal high or low temperatures exceed the temperature ranges in this
manual.
• Locations that are prone to flooding or being buried in snow.
• Areas where the product will be subjected to extreme radiation or caustic substances.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent
surfaces.
• Make sure there are no flammable materials within 20 cm of this product while it is operating.
• When hanging this product, always secure to a fastening device using a safety cable.
• Never carry the product by the power cable.
Power and Wiring
• Make sure the power cable is not crimped or damaged.
• Always make sure you are connecting this product to the proper voltage in accordance with the
specifications in this manual or on the product’s specification label.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
• Never connect this product to a dimmer pack or rheostat.
• Make sure to replace the fuse with another of the same type and rating.
• Never disconnect this product by pulling or tugging on the power cable.
This product contains no user-serviceable parts. Any reference to servicing in this User
Manual will only apply to properly trained, certified technicians. Do not open the housing
or attempt any repairs.
All applicable local codes and regulations apply to proper installation of this product.

Page 3 of 22
Rogue Outcast 2X Wash User Manual Rev. 1
Before You Begin
Operation
• Do not operate this product if there is damage on the housing, lenses, or cables. Have the damaged
parts replaced by an authorized technician at once.
• Do not cover the ventilation slots when operating to avoid internal overheating.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate the product at higher
temperatures.
• The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
• The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower
temperatures.
• In the event of a serious operation problem, stop using this product immediately!
Expected LED Lifespan
Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than
single LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is
40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit
the overall intensity.
If your Chauvet product requires service, contact Chauvet Technical Support.

Page 4 of 22
Introduction
Rogue Outcast 2X Wash User Manual Rev. 1
2. Introduction
Description
The Rogue Outcast 2X Wash is an IP65 moving head that outputs a bright, powerful light and offers five
zones of LED control for pixel mapping. The outdoor-ready unit features a durable, lightweight aluminum/
magnesium alloy body and a standout zoom range of 8° to 66.1°, giving it the spread to cover even the
largest areas. Control is over DMX and RDM.
Features
• Fully featured IP65 RGBW LED yoke wash fixture with LED zone control, zoom, durable and
lightweight aluminum/magnesium alloy body.
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• 19 RGBW LEDs, 25 W each
• 5-pin DMX input/output connections
• 5 zones of LED control for pixel mapping control
• Fast, smooth pan and tilt movement
• RDM enabled for remote addressing and trouble shooting
• Selectable PWM options for camera operation
• Easy to read OLED display with simple, effective menu options
• User selectable calibrated white for 7500 K at full output
• 6 distinct dimming modes for advanced control
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software
Product Overview
Menu
buttons
LCD
display
DMX
in/out
Carry
handle
Power
in/out
Fuse
holder
USB C
port
Condensation
valve

Page 5 of 22
Rogue Outcast 2X Wash User Manual Rev. 1
Introduction
Product Dimensions
8.49 in
216 mm
9.37 in
238 mm
14.1 in
361 mm
6.99 in
177 mm
7.55 in
192 mm
11.92 in
303 mm
8.58 in
218 mm
11.17 in
284 mm
2.91 in
74 mm

Page 6 of 22
Setup
Rogue Outcast 2X Wash User Manual Rev. 1
3. Setup
AC Power
The Rogue Outcast 2X Wash has an auto-ranging power supply and it can work with an input voltage
range of 100 to 240 VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current
value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
The listed current rating indicates the product’s average current draw under normal conditions.
AC Plug
The Rogue Outcast 2X Wash comes with a power input cable terminated with a Seetronic Powerkon A
connector on one end and bare wire on the other end (U.S. market). Use the table below to wire a plug.
Power Linking
The product supports power linking. It is possible to power link up to 4 Rogue Outcast 2X Wash products
at 100 V, 5 products at 120 V, 9 products at 208 V, 10 products at 230 V, or up to 11 products at 240 V.
Never exceed this number. This product comes with a power input cable. Power linking cables are
available from Chauvet for purchase.
Fuse Replacement
1. Disconnect this product from the power outlet.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with another fuse of the same type and rating (8 A, 250 V).
4. Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The Rogue Outcast 2X Wash will work with a DMX controller using a 5-pin DMX serial connection. A DMX
Primer is available from www.chauvetprofessional.com.
Remote Device Management (RDM)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate
bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the
manufacturer as not all DMX controllers have this capability. The Rogue Outcast 2X Wash supports RDM
protocol that allows feedback to make changes to menu map options.
USB Software Update
The Rogue Outcast 2X Wash allows for software update through USB using the built-in USB port. The
product's USB port supports up to 32GB capacity and only works with FAT32 file format. To update the
software using a USB flash drive, do the following:
1. Power on the product and plug the flash drive into the USB port.
2. Once the flash drive has been detected, the message “Upgrade Firmware” will be displayed. Press
<ENTER>. If a different message appears on the display, search for the updated software in the
Menu (Updated Firmware). A list of the updated software files will be displayed.
3. Select the file that needs to be uploaded. The message “Are you sure?” will be displayed. Press
<ENTER>.
4. If the selected file is correct, the update will be completed. Restart the product.
If the selected file is incorrect, the update will fail, and the display will go back to the main interface.
Repeat steps 1–3 using the correct file.
• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure
the product has an appropriate electrical ground to avoid the risk of electrocution or
fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow or Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

Page 7 of 22
Rogue Outcast 2X Wash User Manual Rev. 1
Setup
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products/.
Orientation
Always mount this product in a safe position, making sure there is adequate room for ventilation,
configuration, and maintenance.
Rigging
Chauvet recommends using the following general guidelines when mounting this product.
• Before deciding on a location for the product, make sure there is easy access to the product for
maintenance and programming purposes.
• Make sure that the structure onto which you are mounting the product can support the product’s
weight. See the Technical Specifications for weight information.
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
Procedure
The Rogue Outcast 2X Wash comes with 2 omega brackets to which you can directly attach mounting
clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product. Use
at least two mounting points per product. For the CHAUVET Professional line of mounting clamps, go to
http://www.trusst.com/products.

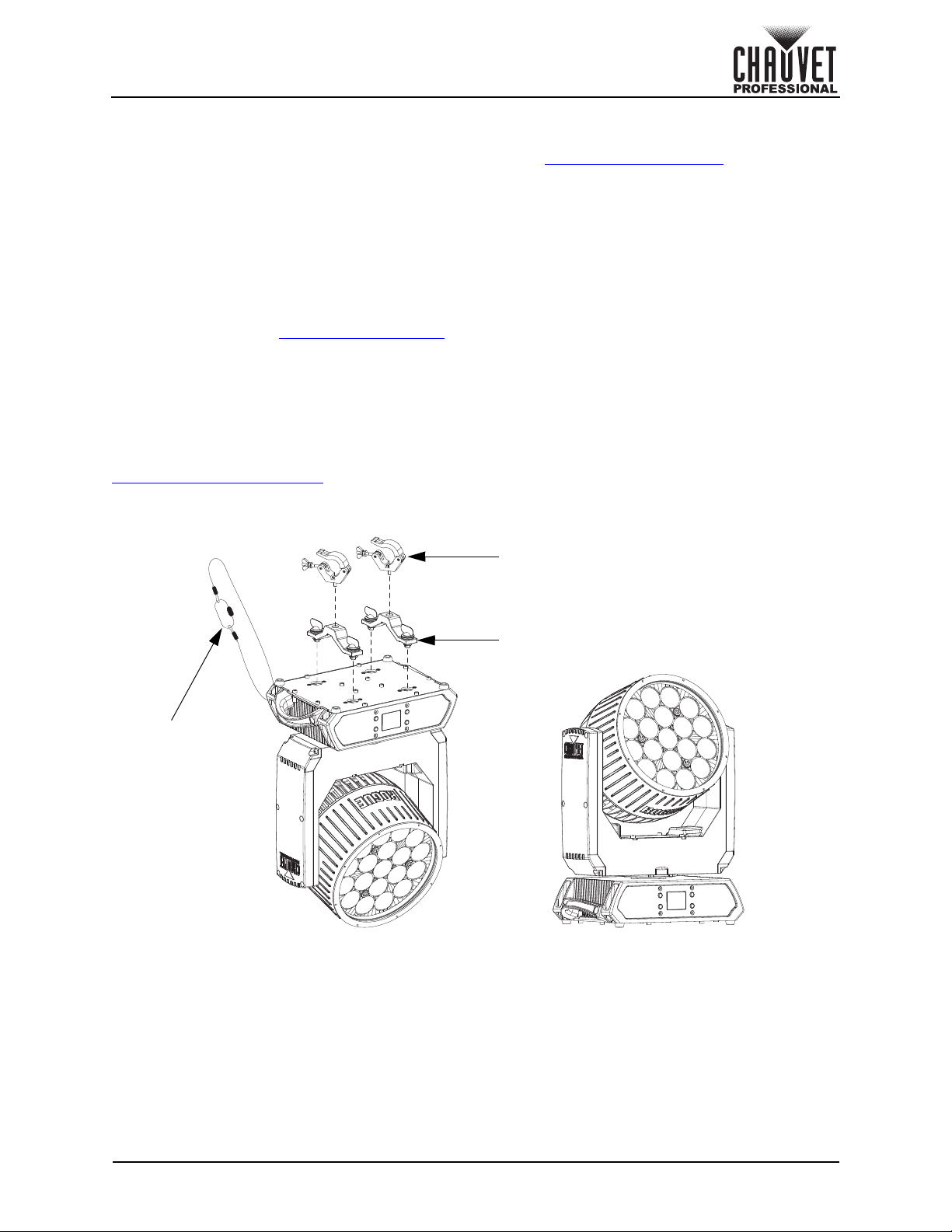

Mounting Diagram
Safety cable
Mounting clamp (x2)
Omega bracket (x2)
Overhead mounting Surface mounting

Page 8 of 22
Operation
Rogue Outcast 2X Wash User Manual Rev. 1
4. Operation
Control Panel Description
Menu Map
Refer to the Rogue Outcast 2X Wash product page on www.chauvetprofessional.com for the latest menu
map.
Button Function
<MENU> Exits from the current menu or function
<ENTER> Enables the currently displayed menu or sets the selected value into the selected function
<UP> Navigates upwards through the menu list or increases the value when in a function
<DOWN> Navigates downwards through the menu list or decreases the value when in a function
Main Level Programming Levels Description
Address 001–512 Sets the starting address
Run Mode
DMX
56CH (Advanced
Modes)
Selects the DMX personality
54CH
33CH
22CH
(Basic Modes)17CH
15CH
54MS (MS Modes)
33MS
Auto Test Auto test all functions
Manual Test
Pan
0–255 Manually control and test all settings
through the control panel
Tilt
Dimmer
Shutter
Red1
Green1
Blue1
White1
Red2
Green2
Blue2
White2
Red3
Green3
Blue3
White3
Red4
Green4
Blue4
White4
Red5
Green5
Blue5
White5
Zoom

Page 9 of 22
Rogue Outcast 2X Wash User Manual Rev. 1
Operation
Setup
Pan Reverse OFF Normal pan
ON Reversed pan
Tilt Reverse OFF Normal tilt
ON Reversed tilt
Pan Angle
540 540° pan range
360 360° pan range
180 180° pan range
Tilt Angle
260 260° tilt range
180 180° tilt range
90 90° tilt range
230 230° tilt range
Fans
Auto Fan speed according to product
temperature
Full Fan speed set on high
ECO Quiet mode
Display OFF Display turns off
ON Display stays on
Screen
Reverse
OFF Normal screen display
ON Inverted screen display
Dimmer
Curve
Linear
Set the dimmer curve
Square
I Squa
SCurve
Dimmer
Speed
Smooth Smooth dimmer speed
Fast Fast dimmer speed
PWM Option
600Hz
Sets the PWM frequency
1200Hz
2000Hz
4000Hz
6000Hz
15000Hz
LED R POWER 050–100 Sets red LED power
LED G POWER 050–100 Sets green LED power
LED B POWER 050–100 Sets blue LED power
LED W POWER 050–100 Sets white LED power
White Mode
On Calibrates white to 7500K
Off Uses maximum output values
Custom
RED 000–255 Sets red LED maximum value
GREEN 000–255 Sets green LED maximum value
BLUE 000–255 Sets blue LED maximum value
WHITE 000–255 Sets white LED maximum value
Color
calibration
On Uses factory default white setting
Off Uses maximum output values
Custom
RED 100–255 Sets red LED maximum value
GREEN 000–255 Sets green LED maximum value
BLUE 000–255 Sets blue LED maximum value
Main Level Programming Levels Description

Page 10 of 22
Operation
Rogue Outcast 2X Wash User Manual Rev. 1
Configuration (DMX)
Use control configurations to operate the product with a DMX controller.
Control Personalities
To set the control personality:
1. Go to the Run Mode main level.
2. Select the DMX option.
3. Select the desired personality, from,56CH, 54CH, 33CH, 22CH, 17CH, 15CH, 54MS, or 33MS.
Starting Address
Each product will respond to a unique starting address from the controller. All products with the same
starting address will respond in unison. To set the starting address:
1. Go to the Address main level.
2. Select the starting address (001–512).
• The highest recommended starting address for 56CH is 457.
• The highest recommended starting address for 54CH is 459.
• The highest recommended starting address for 33CH is 480.
• The highest recommended starting address for 22CH is 491.
• The highest recommended starting address for 17CH is 496.
• The highest recommended starting address for 15CH is 498.
• The highest recommended starting address for 54MS is 459.
• The highest recommended starting address for 33MS is 480.
Setup
(cont.)
USB Update NO Update firmware via USB C
YES
Reset
Function
Pan/Tilt NO
YES
Reset individual functions or all
functions from start-up
Zoom
All
Factory
Settings
NO Reset to factory default settings
YES
Sys Info
Ver V_._ _ _ _ _ _ Shows firmware version
Running Mode _ _ _ Shows current running mode
DMX Address _ _ _ Shows current DMX address
Temperature _ _ _ Shows the product’s temperature in °C
Fixture Time _ _ _ _ Shows time product has been on
UID _ _ _ _ _ _ _ _ Shows product UID
Head Fan1–2 _ _ _ _ _ Shows speed of each fan
Base Fan1–2 _ _ _ _ _
• See the Starting Address section for the highest starting address you can select for each
personality.
• Make sure that the starting addresses on the various products do not overlap due to the new
personality setting.
Main Level Programming Levels Description

Page 11 of 22
Rogue Outcast 2X Wash User Manual Rev. 1
Operation
Control Channel Assignments and Values

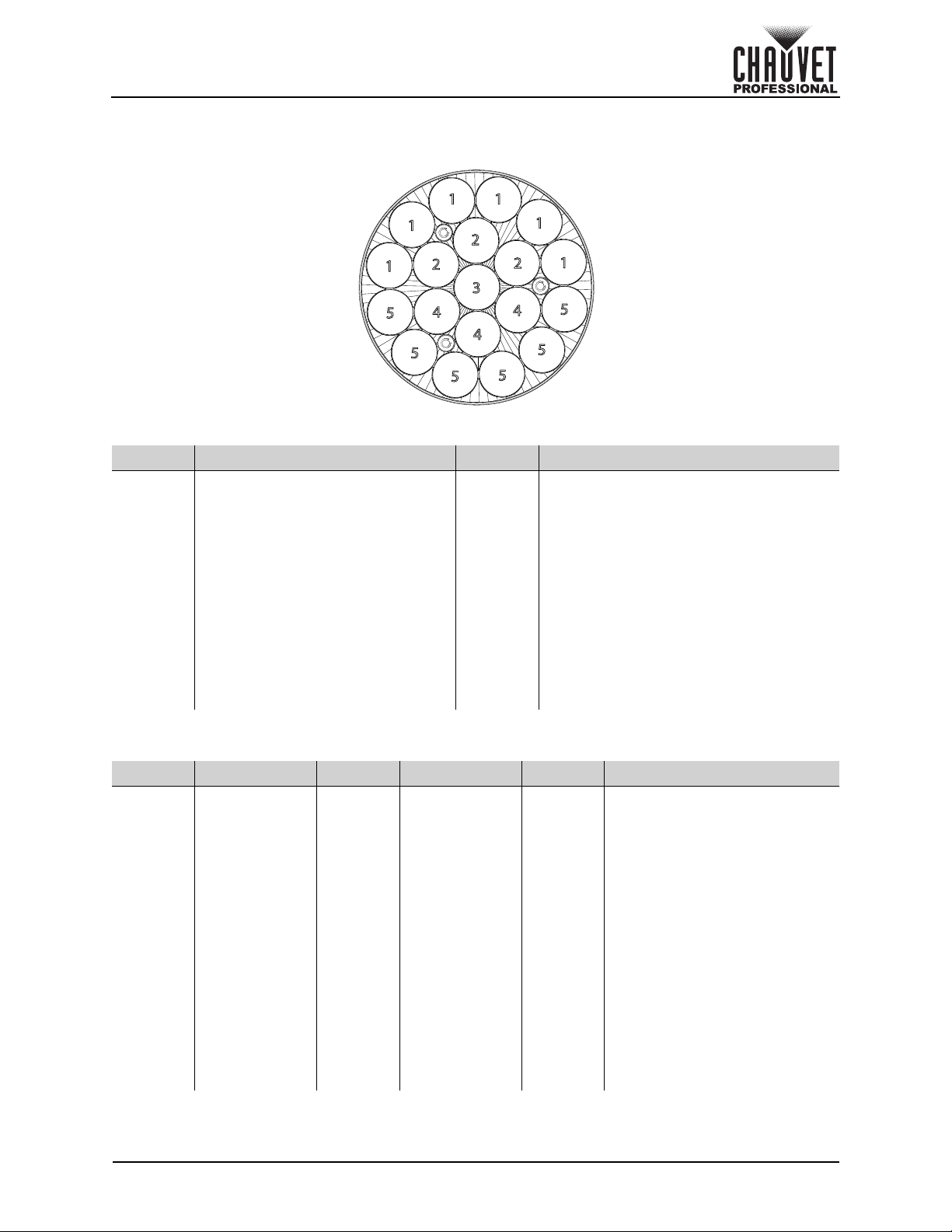

Zones for DMX Control
Strobe Chart
Color Chart
Value Percent/Setting Value Percent/Setting
000 019 Off 145 149 On
020 024 On 150 164 Random strobe 0-100%, fast to slow
025 064 Strobe, fast to slow 165 169 On
065 069 On 170 184 Pulse strobe, fast to slow
070 084 Strobe 100-0%, fast to slow 185 189 On
085 089 On 190 204 Random pulse strobe, fast to slow
090 104 Strobe 0-100%, fast to slow 205 209 On
105 109 On 210 224 Strobe 100-0-100%, fast to slow
110 124 Random strobe, fast to slow 225 229 On
125 129 On 230 244 Random inverse pulse strobe, fast to slow
130 144 Random strobe 100-0%, fast to slow 245 255 On
Value Percent/Setting Value Percent/Setting Value Percent/Setting
000 004 No function 070 074 Color 14 140 144 Color 28
005 009 Color 1 075 079 Color 15 145 149 Color 29
010 014 Color 2 080 084 Color 16 150 154 Color 30
015 019 Color 3 085 089 Color 17 155 159 Color 31
020 024 Color 4 090 094 Color 18 160 164 Color 32
025 029 Color 5 095 099 Color 19 165 169 Color 33
030 034 Color 6 100 104 Color 20 170 174 Color 34
035 039 Color 7 105 109 Color 21 175 179 No function
040 044 Color 8 110 114 Color 22 180 201 Color scroll, fast to slow
045 049 Color 9 115 119 Color 23 202 207 Hold
050 054 Color 10 120 124 Color 24 208 229 Reverse color scroll, fast to slow
055 059 Color 11 125 129 Color 25 230 234 No function
060 064 Color 12 130 134 Color 26 235 249 Color snap, fast to slow
065 069 Color 13 135 139 Color 27 250 255 No function
11
1
1
1
1
55
5
5
5
5
4
4
4
2
2
2
3

Page 12 of 22
Operation
Rogue Outcast 2X Wash User Manual Rev. 1
Zone Selection Chart
Programs Chart
Control Chart
Value Percent/Setting Value Percent/Setting Value Percent/Setting
000 007 Zone 1, 2, 3, 4, 5 088 095 Zone 5 176 183 Zone 2, 3, 4
008 015 Zone 1, 2, 3, 4 096 103 Zone 4 184 191 Zone 1, 2, 3
016 023 Zone 1, 2, 3 104 111 Zone 3 192 199 Zone 1, 2, 5
024 031 Zone 1, 2 112 119 Zone 2 200 207 Zone 1, 4, 5
032 039 Zone 1 120 127 Zone 1 208 215 Zone 2, 3, 4, 5
040 047 No zones 128 135 Zone 4, 5 216 223 Zone 1, 2, 3, 4
048 055 Zone 5 136 143 Zone 3, 4 224 231 Zone 1, 2, 3, 5
056 063 Zone 4, 5 144 151 Zone 2, 3 232 239 Zone 1, 2, 4, 5
064 071 Zone 3, 4, 5 152 159 Zone 1, 2 240 247 Zone 1, 3, 4, 5
072 079 Zone 2, 3, 4, 5 160 167 Zone 1, 5 248 255 Zone 1, 2, 3, 4, 5
080 087 Zone 1, 2, 3, 4, 5 168 175 Zone 3, 4, 5
Value Percent/Setting Value Percent/Setting Value Percent/Setting
000 015 No function
016 020 Zone program 1 096 100 Zone program 17 176 180 Color program 9
021 025 Zone program 2 101 105 Zone program 18 181 185 Color program 10
026 030 Zone program 3 106 110 Zone program 19 186 190 Color program 11
031 035 Zone program 4 111 115 Zone program 20 191 195 Color program 12
036 040 Zone program 5 116 120 Zone program 21 196 200 Color program 13
041 045 Zone program 6 121 125 Zone program 22 201 205 Color program 14
046 050 Zone program 7 126 130 Zone program 23 206 210 Color program 15
051 055 Zone program 8 131 135 Zone program 24 211 215 Color program 16
056 060 Zone program 9 136 140 Color program 1 216 220 Color program 17
061 065 Zone program 10 141 145 Color program 2 221 225 Color program 18
066 070 Zone program 11 146 150 Color program 3 226 230 Color program 19
071 075 Zone program 12 151 155 Color program 4 231 235 Color program 20
076 080 Zone program 13 156 160 Color program 5 236 240 Color program 21
081 085 Zone program 14 161 165 Color program 6 241 245 Color program 22
086 090 Zone program 15 166 170 Color program 7 246 250 Color program 23
091 095 Zone program 16 171 175 Color program 8 251 255 Color program 24
Value Percent/Setting Value Percent/Setting Value Percent/Setting
000 009 No function 110 114 Tilt range 90° 160 164 S-curve dimmer curve
010 014 Blackout on pan/tilt 115 119 Tilt range 230° 165 169 White mode
015 049
Reserved for future use 120 124 Fan mode ECO 170 174 Full mode
050 054 Reset pan 125 129 Fan mode Full 175 179 Color calibration off
when single color
055 059 Reset tilt 130 134 Fan mode Auto
060 064 Reset zoom 135 139 Fast dimmer 180 184 Color calibration on
when single color
065 069
Reserved for future use 140 144 Smooth dimmer
070 074 Reset all 145 149 Linear dimmer curve 185 239 No function
075 099
Reserved for future use 150 154 Square dimmer curve 240 247 Color calibration on
100 104 Tilt range 260° 155 159 Inverse square
dimmer curve
248 255 Color calibration off
105 109 Tilt range 180°

Page 13 of 22
Rogue Outcast 2X Wash User Manual Rev. 1
Operation
Advanced Modes
33CH 54CH 56CH Function Value Percent/Setting
111Pan 000 255 0–100%
2 2 2 Fine pan 000 255 Fine control (16-bit)
333Tilt 000 255 0–100%
4 4 4 Fine tilt 000 255 Fine control (16-bit)
5 5 5 Pan/tilt speed 000 255 Fast to slow
666Dimmer 000 255 0–100%
– 7 7 Fine dimmer 000 255 Fine control (16-bit)
788Strobe 000 255 See Strobe Chart
899Red1 000 255 0–100%
–1010Finered1 000 255 Fine control (16-bit)
91111Green1 000 255 0–100%
– 12 12 Fine green 1 000 255 Fine control (16-bit)
10 13 13 Blue 1 000 255 0–100%
– 14 14 Fine blue 1 000 255 Fine control (16-bit)
11 15 15 White 1 000 255 0–100%
– 16 16 Fine white 1 000 255 Fine control (16-bit)
12 17 17 Red 2 000 255 0–100%
–1818Finered2 000 255 Fine control (16-bit)
13 19 19 Green 2 000 255 0–100%
– 20 20 Fine green 2 000 255 Fine control (16-bit)
14 21 21 Blue 2 000 255 0–100%
– 22 22 Fine blue 2 000 255 Fine control (16-bit)
15 23 23 White 2 000 255 0–100%
– 24 24 Fine white 2 000 255 Fine control (16-bit)
16 25 25 Red 3 000 255 0–100%
–2626Finered3 000 255 Fine control (16-bit)
17 27 27 Green 3 000 255 0–100%
– 28 28 Fine green 3 000 255 Fine control (16-bit)
18 29 29 Blue 3 000 255 0–100%
– 30 30 Fine blue 3 000 255 Fine control (16-bit)
19 31 31 White 3 000 255 0–100%
– 32 32 Fine white 3 000 255 Fine control (16-bit)
20 33 33 Red 4 000 255 0–100%
–3434Finered4 000 255 Fine control (16-bit)
21 35 35 Green 4 000 255 0–100%
– 36 36 Fine green 4 000 255 Fine control (16-bit)
22 37 37 Blue 4 000 255 0–100%
– 38 38 Fine blue 4 000 255 Fine control (16-bit)
23 39 39 White 4 000 255 0–100%
– 40 40 Fine white 4 000 255 Fine control (16-bit)
24 41 41 Red 5 000 255 0–100%
–4242Finered5 000 255 Fine control (16-bit)
25 43 43 Green 5 000 255 0–100%
– 44 44 Fine green 5 000 255 Fine control (16-bit)
26 45 45 Blue 5 000 255 0–100%
– 46 46 Fine blue 5 000 255 Fine control (16-bit)

Page 14 of 22
Operation
Rogue Outcast 2X Wash User Manual Rev. 1
Basic Modes
27 47 47 White 5 000 255 0–100%
– 48 48 Fine white 5 000 255 Fine control (16-bit)
28 49 49 Color 000 255 See Color Chart
29 50 50 Zone Selection 000 255 See Zone Selection Chart
30 51 51 Programs 000 255 See Programs Chart
31 52 52 Program Speed 000 255 0–100%
– – 53 Movement macros
000 007 No function
008 023 Movement macro 1
024 039 Movement macro 2
040 055 Movement macro 3
056 071 Movement macro 4
072 087 Movement macro 5
088 103 Movement macro 6
104 119 Movement macro 7
120 135 Movement macro 8
136 151 Movement macro 9
152 167 Movement macro 10
168 183 Movement macro 11
184 199 Movement macro 12
200 215 Movement macro 13
216 231 Movement macro 14
232 247 Movement macro 15
248 255 Movement macro 16
– – 54 Movement macro speed 000 255 Fast to slow
32 53 55 Zoom 000 255 0–100%
33 54 56 Control 000 255 See Control Chart
15CH 17CH 22CH Function Value Percent/Setting
111Pan 000 255 0–100%
2 2 2 Fine pan 000 255 Fine control (16-bit)
333Tilt 000 255 0–100%
4 4 4 Fine tilt 000 255 Fine control (16-bit)
5 5 5 Pan/tilt speed 000 255 Fast to slow
666Dimmer 000 255 0–100%
7 – 7 Fine dimmer 000 255 Fine control (16-bit)
878Strobe 000 255 See Strobe Chart
989Red 000 255 0–100%
– – 10 Fine red 000 255 Fine control (16-bit)
10 9 11 Green 000 255 0–100%
– – 12 Fine green 000 255 Fine control (16-bit)
11 10 13 Blue 000 255 0–100%
– – 14 Fine blue 000 255 Fine control (16-bit)
12 11 15 White 000 255 0–100%
– – 16 Fine white 000 255 Fine control (16-bit)
13 12 17 Color 000 255 See Color Chart
– 13 18 Zone Selection 000 255 See Zone Selection Chart
33CH 54CH 56CH Function Value Percent/Setting

Page 15 of 22
Rogue Outcast 2X Wash User Manual Rev. 1
Operation
MS Modes
– 14 19 Programs 000 255 See Programs Chart
– 15 20 Program Speed 000 255 0–100%
14 16 21 Zoom 000 255 0–100%
15 17 22 Control 000 255 See Control Chart
33MS 54MS Function Value Percent/Setting
11Pan 000 255 0–100%
2 2 Fine pan 000 255 Fine control (16-bit)
33Tilt 000 255 0–100%
4 4 Fine tilt 000 255 Fine control (16-bit)
5 5 Pan/tilt speed 000 255 Fast to slow
6 6 Dimmer 000 255 0–100%
– 7 Fine dimmer 000 255 Fine control (16-bit)
78Strobe 000 255 See Strobe Chart
89Color 000 255 See Color Chart
9 10 Zone Selection 000 255 See Zone Selection Chart
10 11 Programs 000 255 See Programs Chart
11 12 Program Speed 000 255 0–100%
12 13 Zoom 000 255 0–100%
13 14 Control 000 255 See Control Chart
14 15 Red 1 000 255 0–100%
–16Finered1 000 255 Fine control (16-bit)
15 17 Green 1 000 255 0–100%
– 18 Fine green 1 000 255 Fine control (16-bit)
16 19 Blue 1 000 255 0–100%
– 20 Fine blue 1 000 255 Fine control (16-bit)
17 21 White 1 000 255 0–100%
– 22 Fine white 1 000 255 Fine control (16-bit)
18 23 Red 2 000 255 0–100%
–24Finered2 000 255 Fine control (16-bit)
19 25 Green 2 000 255 0–100%
– 26 Fine green 2 000 255 Fine control (16-bit)
20 27 Blue 2 000 255 0–100%
– 28 Fine blue 2 000 255 Fine control (16-bit)
21 29 White 2 000 255 0–100%
– 30 Fine white 2 000 255 Fine control (16-bit)
22 31 Red 3 000 255 0–100%
–32Finered3 000 255 Fine control (16-bit)
23 33 Green 3 000 255 0–100%
– 34 Fine green 3 000 255 Fine control (16-bit)
24 35 Blue 3 000 255 0–100%
– 36 Fine blue 3 000 255 Fine control (16-bit)
25 37 White 3 000 255 0–100%
– 38 Fine white 3 000 255 Fine control (16-bit)
26 39 Red 4 000 255 0–100%
–40Finered4 000 255 Fine control (16-bit)
15CH 17CH 22CH Function Value Percent/Setting

Page 16 of 22
Operation
Rogue Outcast 2X Wash User Manual Rev. 1
Configuration (Settings)
Pan Reverse
To set the orientation of the pan:
1. Go to the Setup main level.
2. Select the Pan Reverse option.
3. Select from OFF (normal pan motion), or ON (reversed pan motion).
Tilt Reverse
To set the orientation of the tilt:
1. Go to the Setup main level.
2. Select the Tilt Reverse option.
3. Select from OFF (normal tilt motion), or ON (reversed tilt motion).
Pan Angle
To set the maximum angle of the pan:
1. Go to the Setup main level.
2. Select the Pan Angle option.
3. Select from 540 (540°), 360 (360°), or 180 (180°).
Tilt Angle
To set the maximum angle of the tilt:
1. Go to the Setup main level.
2. Select the Tilt Angle option.
3. Select from 260 (260°), 180 (180°), or 90 (90°).
Fan Mode
To set the fan speed mode:
1. Go to the Settings main level.
2. Select the Fans option.
3. Select the fan mode, from Auto (fan speed adjusts to product temperature), Full (fan speed at
maximum), or ECO (quiet mode).
Display Backlight Timer
To set whether an inactive display will turn off:
1. Go to the Setup main level.
2. Select the Display option.
3. Select the length of the backlight timer, from OFF (will turn off) or ON (always on).
27 41 Green 4 000 255 0–100%
– 42 Fine green 4 000 255 Fine control (16-bit)
28 43 Blue 4 000 255 0–100%
– 44 Fine blue 4 000 255 Fine control (16-bit)
29 45 White 4 000 255 0–100%
– 46 Fine white 4 000 255 Fine control (16-bit)
30 47 Red 5 000 255 0–100%
–48Finered5 000 255 Fine control (16-bit)
31 49 Green 5 000 255 0–100%
– 50 Fine green 5 000 255 Fine control (16-bit)
32 51 Blue 5 000 255 0–100%
– 52 Fine blue 5 000 255 Fine control (16-bit)
33 53 White 5 000 255 0–100%
– 54 Fine white 5 000 255 Fine control (16-bit)
33MS 54MS Function Value Percent/Setting
