TrackMan Baseball V2 TMC3J Installation instructions

TrackMan™TMC3J Installation and Safety Instructions
Issue 3, January 2019
Page 1 of 10
TrackMan™ Radar Unit
Installation and Safety Instruction
TrackMan Baseball V2, Type: TMC3J

TrackMan™TMC3J Installation and Safety Instructions
Issue 3, January 2019
Page 2 of 10
Contents
1INTRODUCTION......................................................................................................................3
2SAFETY INSTRUCTIONS..........................................................................................................4
2.1 Regulatory Notice.........................................................................................................4
2.2 Warning: Radiation Hazard..........................................................................................5
2.3 Caution: Safety precautions..........................................................................................6
3INSTALLATION INSTRUCTIONS ...............................................................................................7
3.1 System description........................................................................................................7
3.2 System specifications ...................................................................................................8
3.2.1 Radar.......................................................................................................................8
3.2.2 Junction Box...........................................................................................................8
3.3 TrackMan™ Radar Unit, model TMC3J......................................................................9
3.4 Setting up the system....................................................................................................9
4WARRANTY COMMENTS......................................................................................................10

TrackMan™TMC3J Installation and Safety Instructions
Issue 3, January 2019
Page 3 of 10
1 Introduction
This document provides instructions and warning in order to safely install and operate the
TrackMan Baseball Stadium Radar TMC3J Radar Unit
This document does not describe the TrackMan™ application software and how to operate it.
This is provided in separate document.

TrackMan™TMC3J Installation and Safety Instructions
Issue 3, January 2019
Page 4 of 10
2 Safety Instructions
2.1 Regulatory Notice
FCC compliance
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies also with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes:
1) l'appareil ne doit pas produire de brouillage, et
2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.

TrackMan™TMC3J Installation and Safety Instructions
Issue 3, January 2019
Page 5 of 10
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TC technician for help.
NOTICE
Never try to open or repair the device yourself. Any changes or modifications not expressly
approved by TrackMan A/S could void the user’s authority to operate the device.
Changes or modifications made to this equipment not expressly approved by (manufacturer
name) may void the FCC authorization to operate this equipment.
2.2 Warning: Radiation Hazard
Radiation Safety Warning.
This device radiates a low level of microwave electromagnetic radiation from the front
window and top when in use. The radiated power is significantly lower the international
safety standards for microwave frequencies. However, the user should maintain a minimum
distance of 20 cm from this device during operation.

TrackMan™TMC3J Installation and Safety Instructions
Issue 3, January 2019
Page 6 of 10
2.3 Caution: Safety precautions
Use the following safety instructions to ensure your own personal safety and to help protect
the TrackMan™ radar unit.
General
•Do not attempt to service the device yourself. Always follow installation instructions
closely.
•Only use cables and accessories approved by TrackMan A/S together with your
TrackMan™ Radar Unit.
•The Radar may become hot during normal operation of the TrackMan™ system. Use
care when handling the radar during or immediately after operation.
Power
•Only use the Junction Box supplied with the TrackMan™ Radar Unit.
•Before you connect the TrackMan™ Radar Unit to an electrical outlet, check the AC
adaptor voltage rating to ensure that the required voltage and frequency match the
available power source.
•To help prevent electric shock ensure a properly grounded power source.
TrackMan A/S accepts no liability for failure to comply with these requirements.

TrackMan™TMC3J Installation and Safety Instructions
Issue 3, January 2019
Page 7 of 10
3 Installation instructions
3.1 System description
The TrackMan™radar system is a standalone measurement system for the detection and
measurement of baseballl movements.
The system consists of:
•TrackMan™ Radar Unit model TMC3J
•Power junction Box model ConnectionBox ver. 5

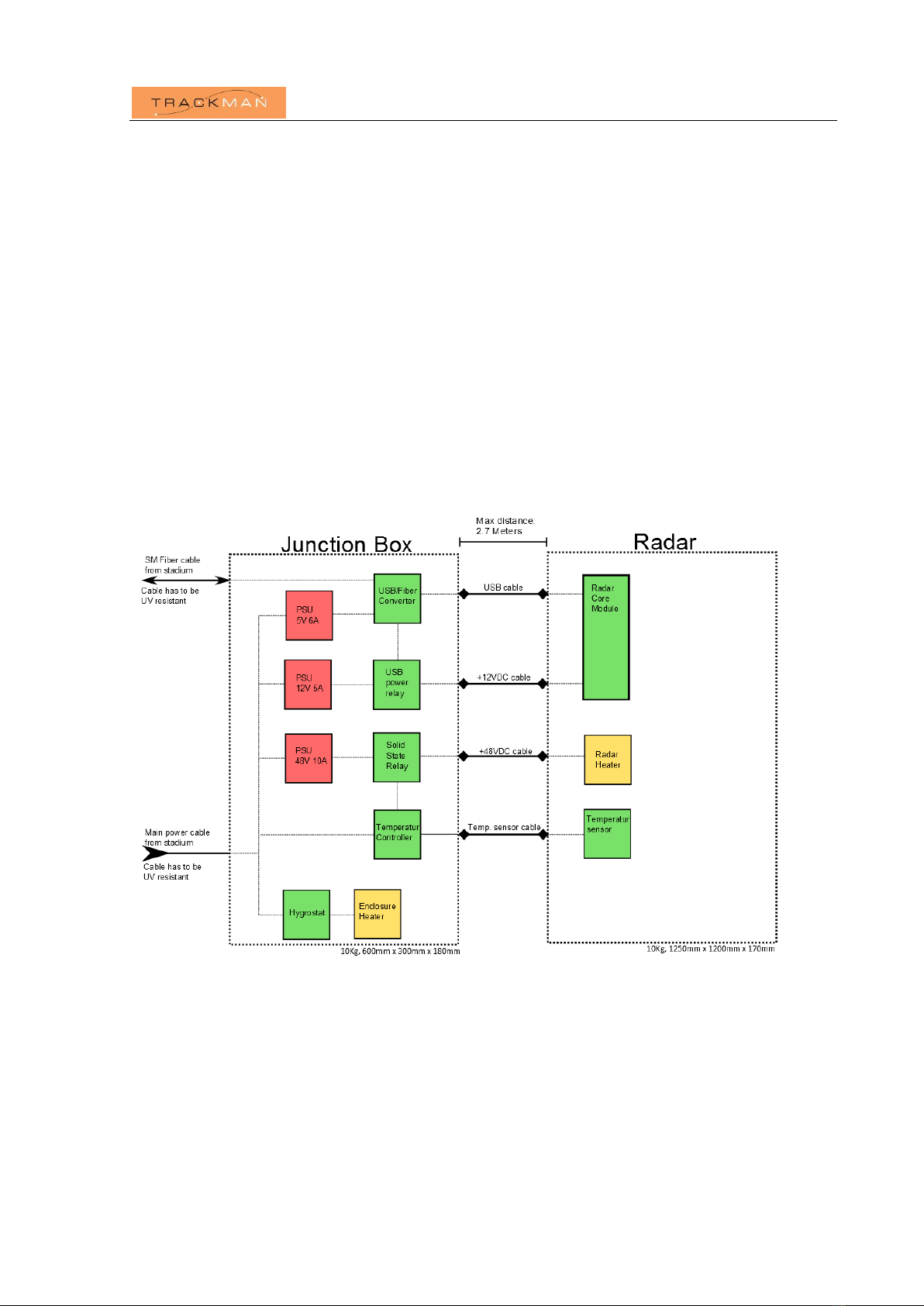

The following diagram depicts the TrackMan™system:
Figure 1: TrackMan™ system block diagram

TrackMan™TMC3J Installation and Safety Instructions
Issue 3, January 2019
Page 8 of 10
3.2 System specifications

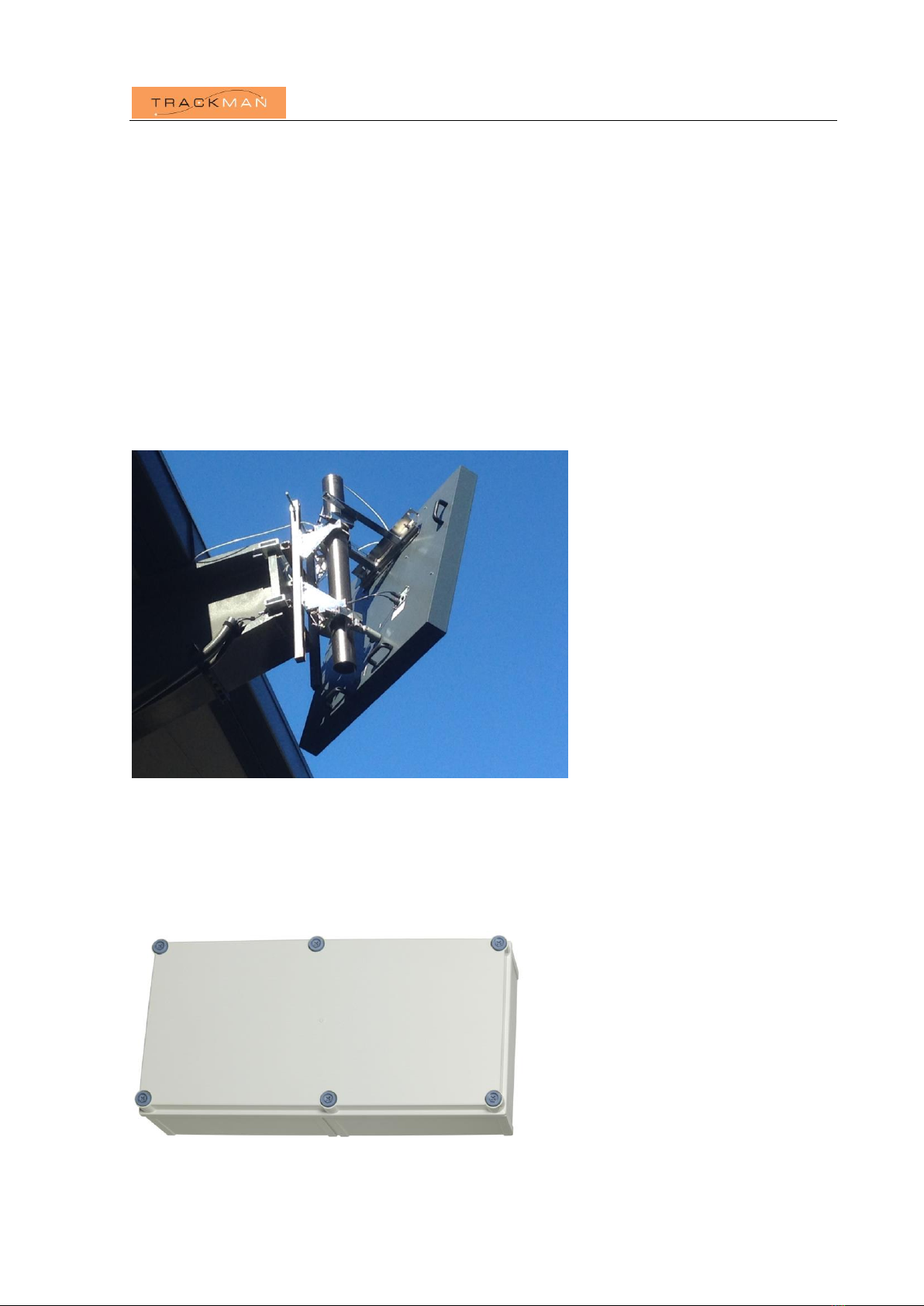

3.2.1 Radar.
The TrackMan™ radar unit is a robust construction, with chassis made of Metal back. The
front of the TrackMan™ is black plastic from where behind the microwave radiation is
transmitted and received.
The TrackMan™ Radar Unit also has a built-in digital camera, which looks out through a
window in the front.
3.2.2 Junction Box.
The TrackMan™ radar unit is an industrial installation plastic box and it includes all the
power supply components.

TrackMan™TMC3J Installation and Safety Instructions
Issue 3, January 2019
Page 9 of 10
3.3 TrackMan™ Radar Unit, model TMC3J
Operating Frequency
US + CDN Market:
10.500 - 10.550GHz
Operating frequency is fixed during manufacture
Transmitter power
+19dBm
Antenna gain
13 dB
Horizontal beam
65°
Vertical beam
30°
Dimensions
Width: 1250 mm
Depth: 180 mm
Height: 1200 mm
Mass
~10 kg
Main power supply
12VDC, 25W maximum
48VDC, 480 W maximum during heating
Data interface
USB2.0 high speed out of the radar.
Fiber or Ethernet out of the connection box.
The TrackMan™ Radar Unit consists of the following sub-assemblies and/or printed circuit
board assemblies:
•Radar analog signal processing
•Antennas for transmitting and receiving
•Digital camera
•GPS receiver
The TrackMan™ Radar Unit system is splash proof and designed to withstand rain.
3.4 Setting up the system
Setting up the system will only be done by TrackMan™ personnel or 3rd party personnel
educated by TrackMan™ personnel.

TrackMan™TMC3J Installation and Safety Instructions
Issue 3, January 2019
Page 10 of 10
4 Warranty Comments
The TrackMan™ Radar Unit contains NO user serviceable parts inside. In case of defect or
malfunctioning TrackMan™ Radar Unit, TrackMan A/S authorized personal ONLY must
repair the unit.
IMPORTANT The box is sealed to prevent unauthorized access to the inside of the
TrackMan™ Radar Unit. If the sealed is broken any warranty agreement will terminate
immediately. Warranty will also terminate immediately if:
•Use of non-approved cables between the TrackMan™ Radar Unit and the computer in
fixed installation.
•If the TrackMan™ Radar Unit is not installed or operated in compliance with this
manual.
For full description of the warranty and the scope hereof, reference is made to the warranty
agreement between the user and TrackMan A/S.
