Tradeflame 219145 User manual

LITHIUM ION
Soldering Kit
PART NO: 219145
PRODUCT MANUAL
FEATURES
zCordless, built in rechargeable 3.7V
30 W Panasonic Lithium Ion battery
(2900 mAh)
zInterchangeable tips
zCo-moulded ergonomic handle
zUSB 2.0 type A connector to USB
port
zPanasonic 18650 Lithium-Ion
Battery life warranty 1 year, CE &
UL & RoHS & REACH certicated
zFast start, ready to work in
8seconds.
zLED illumination on your application
zFull Charging time 4 hours
zCharging board protection:
overcharging / over discharging /
short circuit / ESD
zCE & FCC & RoHS certication
CONTENTS
zLithium Ion heating tool with conical
soldering iron tip installed,
z1 Heat blower (tip interchangeable)
z1 Hot knife (tip interchangeable)
z1 Solder tube
zBrass cleaning sponge
zSafety cap
zUSB 2.0 type A connector to USB
port
zHandy storage case
SPECIFICATIONS
zMax. Temp: 600°C (soldering tip),
900°C (heat blower)
zBattery capacity: 2900 mAH
zHeat up time: 8 Seconds
zOperating run time: 30 - 40 mins
zFull charge time: 4 hrs
WARNING
To avoid injury or damage only
ignite the torch when clear of face,
hand, clothing or combustible
materials.
The tips become extremely hot
during and after operation. Care
must be taken to avoid acciden-
talburns.
Ensure the ame is completely out
after use.
Protect from direct sunlight. Do
not expose to temperature above
50°C/122°F.
Contains ammable gas under
pressure.
Donot disassemble, puncture or
incinerate after use.
Keep out of reach of children.
1. Cap
B
B
2. Tool-less tip change 3. Power button 4. On / Off switch
5. Locking nut
6. Soldering tip 7. Knurled nut
8. Flat bevel safety stand9. Ergonomic handle 10. LED charging indicator
11. LED light
12. USB C charging port
13. USB C connector 14. USB 2.0 type A
15. Lithium Ion heating tool
16. Conical soldering iron
(tip interchangeable)
17. Heat blower
(tip interchangeable)
18. Hot knife
(tip interchangeable)
19. Solder tube
20. Brass cleaning
sponge

SAFETY WARNINGS
Your Tradeflame Lithium Ion Soldering Kit 219145 is a very safe tool and
complies with all the relevant safety regulations in Australia. Nevertheless,
like all electrical appliances, it must be handled with care. Read all safety
warnings, instructions, illustrations and specications provided with this
Tradeame Lithium Ion Soldering Kit. Failure to follow all instructions listed
below may result in electric shock, and/or serious injury. Never forget that the
tip and heater can reach high temperatures. Follow these simple safety rules
at all times. Keep Tradeame Lithium Ion Soldering Kit out of reach of children.
This is not a toy and not intended for use by children 12 years old or younger
without adult supervision. Keep your Tradeame Lithium Ion Soldering Kit well
away from all ammable material. To avoid burns, always assume that the tip
is hot. Be sure the hot soldering tip and heater does not come into contact with
the electric power cord. Before making any adjustment (removing or replacing
a tip, etc.) make sure the Tradeame Lithium Ion Soldering Kit is unplugged /
switched off and cool. Do not dip the Tradeame Lithium Ion Soldering Kit into
any liquid. Always work in a well-ventilated area. After use, unplug/switch off
the Tradeame Lithium Ion Soldering Kit, allow the tip to cool, and store in a
safe place. Safety goggles are recommended for preventing hot materials from
injuring eyes. Save all warnings and instructions for future reference.
WORK AREA SAFETY
zKeep work area clean and well lit. Cluttered or dark areas invite accidents.
zDo not operate Lithium Ion Soldering Kit in explosive atmo-liquids, gases or
dust. Lithium Ion Soldering Kits create sparks which may ignite the dust or
fumes.
zThis is not a toy and not intended for use by children 12 years old
or younger without adult supervision.
ELECTRICAL SAFETY
zIndoor use. Do not expose Lithium Ion Soldering Kit to rain or wet conditions.
Water entering a Lithium Ion Soldering Kit will increase the risk of electric
shock
PERSONAL SAFETY
zStay alert, watch what you are doing and use common sense when operating
a Lithium Ion Soldering Kit. Do not use a Lithium Ion Soldering Kit while you
are tired/distracted or under the inuence. A moment of inattention while
operating a Lithium Ion Soldering Kit may result in serious personal injury.
zUse personal protective equipment. Always wear eye protection. Protective
equipment such as a dust mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce personal injuries.
zPrevent unintentional starting. Ensure the switch is in the off position
before picking up or carrying the Lithium Ion Soldering Iron.
zDo not overreach. Keep proper footing and balance at all times. This enables
better control of the Lithium Ion Soldering Kit in unexpected situations.
zDress properly. Do not wear loose clothing or jewellery. Keep your hair and
clothing away from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
zDo not let familiarity gained from frequent use of the Lithium Ion Soldering
Kits allow you to become complacent and ignore Lithium Ion Soldering Kit
safety principles. A careless action can cause severe injury within a fraction
of a second.
MAINTENANCE/SERVICING
Serviceable components: N/A
Servicing instructions: N/A
USE AND CARE
zDo not force the Lithium Ion Soldering Kit. Use the correct Soldering Iron for
your application. The correct Lithium Ion Soldering Kit will do the job better
and safer at the rate for which it was designed.
zDisconnect the plug from the power source and/or turn off the battery,
from the Lithium Ion Soldering Kit before making any adjustments,
changing accessories, or storing Lithium Ion Soldering Kit. Such preventive
safety measures reduce the risk of starting the Lithium Ion Soldering Kit
accidentally.
zStore idle Lithium Ion Soldering Kit out of the reach of children and do
not allow persons unfamiliar with the Lithium Ion Soldering Kit or these
instructions to operate the Lithium Ion Soldering Kit. Lithium Ion Soldering Kit
are dangerous in the hands of untrained users.
zMaintain Lithium Ion Soldering Kit and accessories. Check for misalignment
or binding of moving parts, breakage of parts and any other condition that
may affect the Lithium Ion Soldering Kit’s operation.
zUse the Lithium Ion Soldering Kit, accessories and Lithium Ion Soldering
Kit bits etc. in accordance with these instructions, taking into account the
working conditions and the work to be performed. Use of the Lithium Ion
Soldering Kit for operations different from those intended could result in a
hazardous situation.
zKeep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and
control of the Lithium Ion Soldering Kit in unexpected situations.
zDo not expose a Lithium Ion Soldering Kit to re or excessive temperature.
Exposure to re or temperature above 130°C (265°F) may cause explosion.
zDo not attempt to use the Lithium Ion Soldering Kit on materials likely to melt
(plastic, synthetics or imitation leather)
SPECIFIC SAFETY RULES FOR LITHIUM ION SOLDERING KITS
zContact with a hot tip could ignite ammable materials. Contact with a hot
tip could ignite a re.
zWhile in use do not stand or store Lithium Ion Soldering Iron on its side.
Lithium Ion Soldering Iron could tip resulting in contact between hot tip and
ammable materials. Always set/store Lithium Ion Soldering Kit on stand
provided
zDo not place Lithium Ion Soldering Iron in coil stand.
zKeep hands clear of the tip serious burns can occur if skin contacts tip
zWork in well ventilated areas, as Lithium Ion Soldering Iron can produce
fumes and smoke.
zUse personal protective equipment when using
zThis Lithium Ion Soldering Kit is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
zTo reduce the risk of re, personal injury, and product damage due to a
short circuit, never immerse your Lithium Ion Soldering Iron, battery pack or
charger in uid or allow a uid to ow inside them. Corrosive or conductive
uids, such as seawater, certain industrial chemicals, and bleach or bleach-
containing products etc., can cause a short circuit.
zTo reduce the risk of injury, always wear safety goggles or glasses with side
shields. Keep hands and ngers behind nger guard. Serious burns could
occur if skin contacts a hot tip.)

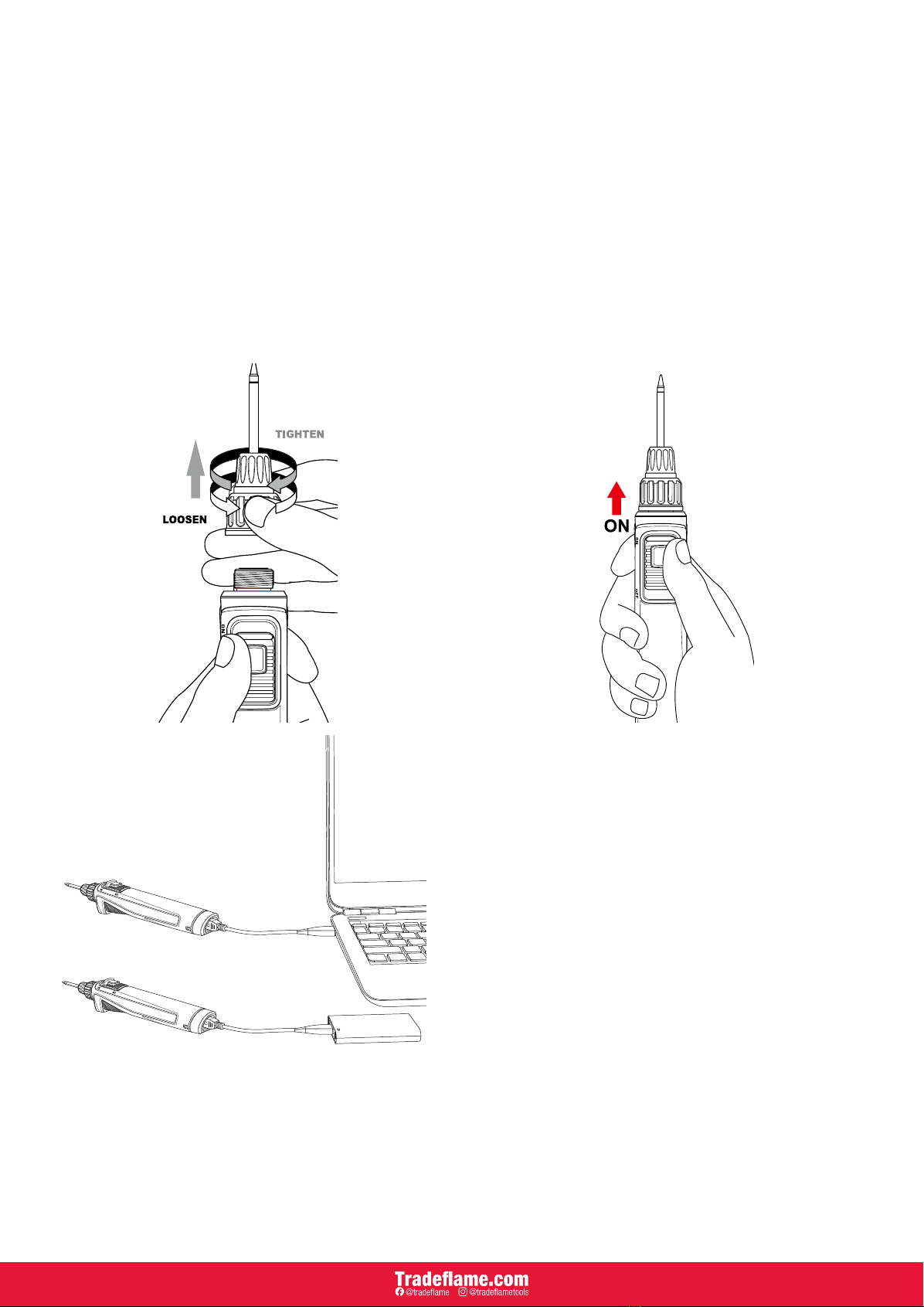

CHANGING THE TIP
Ensure the tip is cool and Lithium Ion Soldering Iron is switched off before
touching the tip as serious burns could occur to skin if touched.
1. Unscrew the tip by rotating locking nut counter-clockwise direction
2. Screw in new tip rotating locking nut clockwise (Fig.1)- making sure not to
over tighten

GETTING STARTED
1. Set up a safe work area.
2. Have a reproof container like a glass dish or metal lid to hold your various
tips while they are cooling
3. Slide on/off switch to on position (Fig.2)
4. Press and hold the Power Button. The LED light will illuminate indicating the
iron is on. Allow tip to reach working temperature (about 8 seconds)
5. Apply a small amount of solder to tapered surface of tip.
6. Tin wires by heating the bare ware and allowing a small amount of solder to
ow onto the tip of the wire
7. Touch the tapered surface of the tip (not the point) to the joint to be soldered.
Heat joint and allow heat form joint to melt solder.
8. Allow a small amount of solder to ow into the joint
9. To ensure a strong joint, do not touch or move the joint until it has cooled
completely.
NOTE: The tip assembly can be turned to any desired angle by turning black
Knurled Nut. Use pliers to adjust to avoid touching tip
CHARGING
1. Connect the Type C USB connector to the Micro USB port at the end of the
Soldering Iron
2. Connect USB A connector to a computer USB A port or USB A wall charger
zCharge battery for at least 3.5 hours before use
zThe LED indicator light will turn to green when fully charged (Fig. 3)
FIG. 2FIG. 1
FIG. 3
