Trane Technologies KIT15864 User manual

BACnet® Communication Interface
for ReliaTel™ Controllers (BCI-R)
For use with Voyager,™ Odyssey,™ and
Precedent™ rooftop units
Ordering Number: KIT15864
Installation Guide
April 2020 RF-SVN03F-EN
SAFETY WARNING
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of
heating, ventilating, and air-conditioning equipment can be hazardous and requires specific knowledge and training.
Improperly installed, adjusted or altered equipment by an unqualified person could result in death or serious injury.
When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that are
attached to the equipment.

© 2020 Trane RF-SVN03F-EN
Introduction
Read this manual thoroughly before operating or servicing
this unit.
Warnings, Cautions, and Notices
Safety advisories appear throughout this manual as
required. Your personal safety and the proper operation of
this machine depend upon the strict observance of these
precautions.
The three types of advisories are defined as follows:
WARNING Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTIONsIndicates a potentially hazardous
situation which, if not avoided, could
result in minor or moderate injury. It
could also be used to alert against
unsafe practices.
NOTICE Indicates a situation that could result in
equipment or property-damage only
accidents.
Important Environmental Concerns
Scientific research has shown that certain man-made
chemicals can affect the earth’s naturally occurring
stratospheric ozone layer when released to the
atmosphere. In particular, several of the identified
chemicals that may affect the ozone layer are refrigerants
that contain Chlorine, Fluorine and Carbon (CFCs) and
those containing Hydrogen, Chlorine, Fluorine and
Carbon (HCFCs). Not all refrigerants containing these
compounds have the same potential impact to the
environment. Trane advocates the responsible handling of
all refrigerants-including industry replacements for CFCs
and HCFCs such as saturated or unsaturated HFCs and
HCFCs.
Important Responsible Refrigerant
Practices
Trane believes that responsible refrigerant practices are
important to the environment, our customers, and the air
conditioning industry. All technicians who handle
refrigerants must be certified according to local rules. For
the USA, the Federal Clean Air Act (Section 608) sets forth
the requirements for handling, reclaiming, recovering and
recycling of certain refrigerants and the equipment that is
used in these service procedures. In addition, some states
or municipalities may have additional requirements that
must also be adhered to for responsible management of
refrigerants. Know the applicable laws and follow them.
WARNING
Proper Field Wiring and Grounding
Required!
Failure to follow code could result in death or serious
injury. All field wiring MUST be performed by qualified
personnel. Improperly installed and grounded field
wiring poses FIRE and ELECTROCUTION hazards. To
avoid these hazards, you MUST follow requirements for
field wiring installation and grounding as described in
NEC and your local/state electrical codes.
WARNING
Personal Protective Equipment (PPE)
Required!
Failure to wear proper PPE for the job being undertaken
could result in death or serious injury. Technicians, in
order to protect themselves from potential electrical,
mechanical, and chemical hazards, MUST follow
precautions in this manual and on the tags, stickers,
and labels, as well as the instructions below:
• Before installing/servicing this unit, technicians
MUST put on all PPE required for the work being
undertaken (Examples; cut resistant gloves/sleeves,
butyl gloves, safety glasses, hard hat/bump cap, fall
protection, electrical PPE and arc flash clothing).
ALWAYS refer to appropriate Safety Data Sheets
(SDS) and OSHA guidelines for proper PPE.
• When working with or around hazardous chemicals,
ALWAYSrefertotheappropriateSDSandOSHA/GHS
(Global Harmonized System of Classification and
Labeling of Chemicals) guidelines for information on
allowable personal exposure levels, proper
respiratory protection and handling instructions.
• If there is a risk of energized electrical contact, arc, or
flash, technicians MUST put on all PPE in accordance
with OSHA, NFPA 70E, or other country-specific
requirements for arc flash protection, PRIOR to
servicing the unit. NEVER PERFORM ANY
SWITCHING, DISCONNECTING, OR VOLTAGE
TESTING WITHOUT PROPER ELECTRICAL PPE AND
ARC FLASH CLOTHING. ENSURE ELECTRICAL
METERS AND EQUIPMENT ARE PROPERLY RATED
FOR INTENDED VOLTAGE.

WARNING
Follow EHS Policies!
Failure to follow instructions below could result in
death or serious injury.
• All Trane personnel must follow the company’s
Environmental, Health and Safety (EHS) policies
when performing work such as hot work, electrical,
fall protection, lockout/tagout, refrigerant handling,
etc. Where local regulations are more stringent than
these policies, those regulations supersede these
policies.
• Non-Trane personnel should always follow local
regulations.
Introduction
RF-SVN03F-EN 3
Copyright
This document and the information in it are the property of
Trane, and may not be used or reproduced in whole or in
part without written permission. Trane reserves the right
to revise this publication at any time, and to make changes
to its content without obligation to notify any person of
such revision or change.
Trademarks
All trademarks referenced in this document are the
trademarks of their respective owners.
Revision History
RF-SVN03E-EN
• Change made to figure (Generic BCI-R harness wiring
diagram)
RF-SVN03D-EN
• New section added: “About the BACnet Terminator”.
RF-SVN03C-EN
• Change made to step 3 in Terminator Wiring.
Change made to figure (Generic BCI-R harness wiring
diagram)

4 RF-SVN03F-EN
Table of Contents
Overview ............................... 5
BACnet Protocol ......................... 5
Field Kit Parts, Specifications, Dimensions, and
Components ............................ 6
Field Kit Parts ......................... 6
Specifications ......................... 6
Dimensions and Components ........... 7
Mounting and Installing the Controller ..... 8
Setting Addresses Using Rotary Switches 12
Field Wiring Procedures ................. 13
Connecting the Factory Wiring Harness .. 13
BACnet Wiring ....................... 13
Terminator Wiring .................... 14
About the BACnet Terminator ......... 15
Wiring the Air-Fi™Wireless Communications
Interface (WCI) ....................... 15
Configuring the BCI-R ................... 16
Using the BACnet Setup Tool .......... 16
Using Tracer TU ...................... 16
Understanding Rotary Switch Values and
BACnet Device IDs .................... 17
What To Do After Adding Options or Equip-
ment to the Unit ...................... 19
Clearing the Controller and Restoring Factory
Defaults to the BCI-R ................ 19
Updating the Application Code ........ 19
Managing Device Units on the Controller
Units Screen ......................... 20
LEDs and Switches ..................... 21
Additional Resources ................... 22

RF-SVN03F-EN 5
Overview
This installation document contains information about the
BACnet Communication Interface for rooftop air
conditioning units with ReliaTel unit control.
The following Trane products are supported:
• Voyager and Voyager Commercial constant volume
(CV) units.
• Voyager and Voyager Commercial variable air volume
(VAV) units.
• Precedent packaged air conditioning unit.
• Odyssey split system air conditioning equipment.
This controller allows the above named equipment the
capability to:
• Communicate on a BACnet communications network.
• Be part of a Tracer SC system controller network.
• Provide customers the flexibility to choose the best
possible vendor for their building subsystems.
• Easily incorporate Trane products into legacy non-
Trane systems in existing buildings.
The BCI-R controller is available as a factory-installed
option or field-installed kit. The features and functions
described in this manual apply to either option. The
following sections describe:
• A brief overview of the BACnet protocol.
• Field kit inspection and controller specifications.
• Controller mounting and installation.
• Rotary switch settings.
• Field-installed wiring.
• LEDs and switches.
BACnet Protocol
The Building Automation and Control Network (BACnet
and ANSI/ASHRAE Standard 135-2004) protocol is a
standard that allows building automation systems or
components from different manufacturers to share
information and control functions. BACnet provides
building owners the capability to connect various types of
building control systems or subsystems together for a
variety of reasons. In addition, multiple vendors can use
this protocol to share information for monitoring and
supervisory control between systems and devices in a
multi-vendor interconnected system.
The BACnet protocol identifies standard objects (data
points) called BACnet objects. Each object has a defined
list of properties that provide information about that
object. BACnet also defines a number of standard
application services that are used to access data and
manipulate these objects and provides a client/server
communication between devices. For more information
on BACnet protocol, refer to “Additional Resources,” p. 22.
BACnet Testing Laboratory (BTL) Certification
The BCI-R supports the BACnet communication protocol
and has been designed to meet the requirements of the
application-specific control profile. For more details, refer
to the BTL web site at www.bacnetassociation.org.

Field Kit Parts, Specifications, Dimensions, and Components
6 RF-SVN03F-EN
Field Kit Parts, Specifications, Dimensions, and
Components
Field Kit Parts
Prior to installation, open the box and verify that the
following parts are enclosed:
• One (1) BCI-R controller
• Four (4) screws
• One (1) USB service port cable
• Two (2) screws for the USB bulkhead port connector
• One (1) bushing for field wiring
• One (1) USB service port label
• Two (2) 4-wire cable harnesses
– X19051430020 (Voyager III)
– X19051278010 (Voyager II, Odyssey, and Precedent)
• One (1) BCI-R Integration Guide (BAS-SVP09-EN)
Important: Contact the Trane Parts Center nearest your
area should there be any damaged or
missing components.
Note: One copy of the appropriate service literature ships
inside the control panel of each unit.
Specifications
The following table provides specifications and
requirements for the BCI-R controller. All BCI-R controllers
are color-coded red for easy identification.
Table 1.
Storage
Temperature: -44°C to 95°C (-48°F to 203°F)
Relative humidity: Between 5% to 95% (noncondensing)
The BCI-R controller has been designed to withstand the effects of dust and corrosion.
Operating
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: Between 5% to 95% (noncondensing)
Power: 24 Vdc ±15%, maximum load 90 mA
Specifications and Requirements

Field Kit Parts, Specifications, Dimensions, and Components
RF-SVN03F-EN 7
Dimensions and Components
5.5 in (139.7 mm) width
3.5 in
(88.9 mm)
length
The maximum depth of the
controller is 1.5 in (38.1 mm)
P1
LED9
LED8
U1
654
C
B
A
321
D
F
G
H
E
U10
SW3 SW2 SW1
Q9
LED6
LED5 LED3 LED1
J1
J2
17
LED7 LED2LED4
J5
J3
-MT
0
5
1
2
3
4
6
7
8
9
0
5
1
2
3
4
6
7
8
9
9
8
7
6
4
3
2
1
5
0
2010.04
- MODBUS +
24VAC
-+
TX RXRX
TX
ADDRESS SETTING
X100 X10 X1
LINK
SERVICE MODBUS
STATUS
REV02 6400-2563-01C2010 TRANE
XNUMBER LABEL
BARCODELABEL
IMC BACNET
LINK TERMINATOR
SERVICE
A1
A1
1-
1-
1-
1-
1-
1-
1
1-
1-
1-
1-
1-
1-
+
1-
+
1
ON
+
-
+
+-
P1
LED9
LED8
U1
654
C
B
A
321
D
F
G
H
E
U10
SW3 SW2 SW1
Q9
LED6
LED5 LED3 LED1
J1
J2
17
LED7 LED2LED4
J5
J3
-MT
0
5
1
2
3
4
6
7
8
9
0
5
1
2
3
4
6
7
8
9
9
8
7
6
4
3
2
1
5
0
2010.04
- MODBUS +
24VAC
-+
TX RXRX
TX
ADDRESS SETTING
X100 X10 X1
LINK
SERVICE MODBUS
STATUS
REV 02 6400-2563-01C 2010 TRANE
X NUMBER LABEL
BARCODE LABEL
IMC BACNET
LINK
TERMINATOR
SERVICE
A1
A1
1-
1-
1-
1-
1-
1-
1
1-
1-
1-
1-
1-
1-
+
1-
+
1
ON
+
-
+
+-
USB service
tool port
Rotary switches
Link LEDs
Link select switch
Service button
Service LED
Status LEDs
Modbus Tx/Rx LEDs
Link Tx/R LEDs
Dimensions: The length and width
of the controller are shown here
Components: Status LEDs and other
commonly used components are
referenced in this figure
Power/communication
wire connectors
BACnet wire connector

Mounting and Installing the Controller
8 RF-SVN03F-EN
Mounting and Installing the Controller
Important: Read the following safety warnings prior to
installation. Procedures presented in this
guide should be performed only by
qualified HVAC technicians.
WARNING
Live Electrical Components!
During installation, testing, servicing and
troubleshooting of this product, it may be necessary to
work with live electrical components. Have a qualified
licensed electrician or other individual who has been
properly trained in handling live electrical components
perform these tasks. Failure to follow all electrical
safety precautions when exposed to live electrical
components could result in death or serious injury.
WARNING
Hazardous Voltage!
Disconnect all electric power, including remote
disconnects before servicing. Follow proper lockout/
tagout procedures to ensure the power can not be
inadvertently energized. Failure to disconnect power
before servicing could result in death or serious injury.
Notes: In addition to these instructions, refer to the
specific rooftop unit literature when installing
the controller.
To install the BCI-R controller:
1. Disconnect all power from the rooftop unit.
2. Mount the BCI-R controller using the supplied screws.
The following figures depict mounting positions for
various rooftop units.
3. Route and connect the wiring harness as described in
“Connecting the Factory Wiring Harness,” p. 13.
4. Set the rotary switches as described in “Setting
Addresses Using Rotary Switches,” p. 12.
5. Install the USB bulkhead port in the designated area of
the rooftop unit, by using the supplied screws.
Note: The USB bulkhead port is a remote extension of
the USB port located on the BCI-R module. Each
rooftop unit will have a designated port
location. As an example, Figure 1, p. 8, shows
where the port is located on Voyager II rooftop
units.
6. Complete wiring procedures as described in “Field
Wiring Procedures,” p. 13.

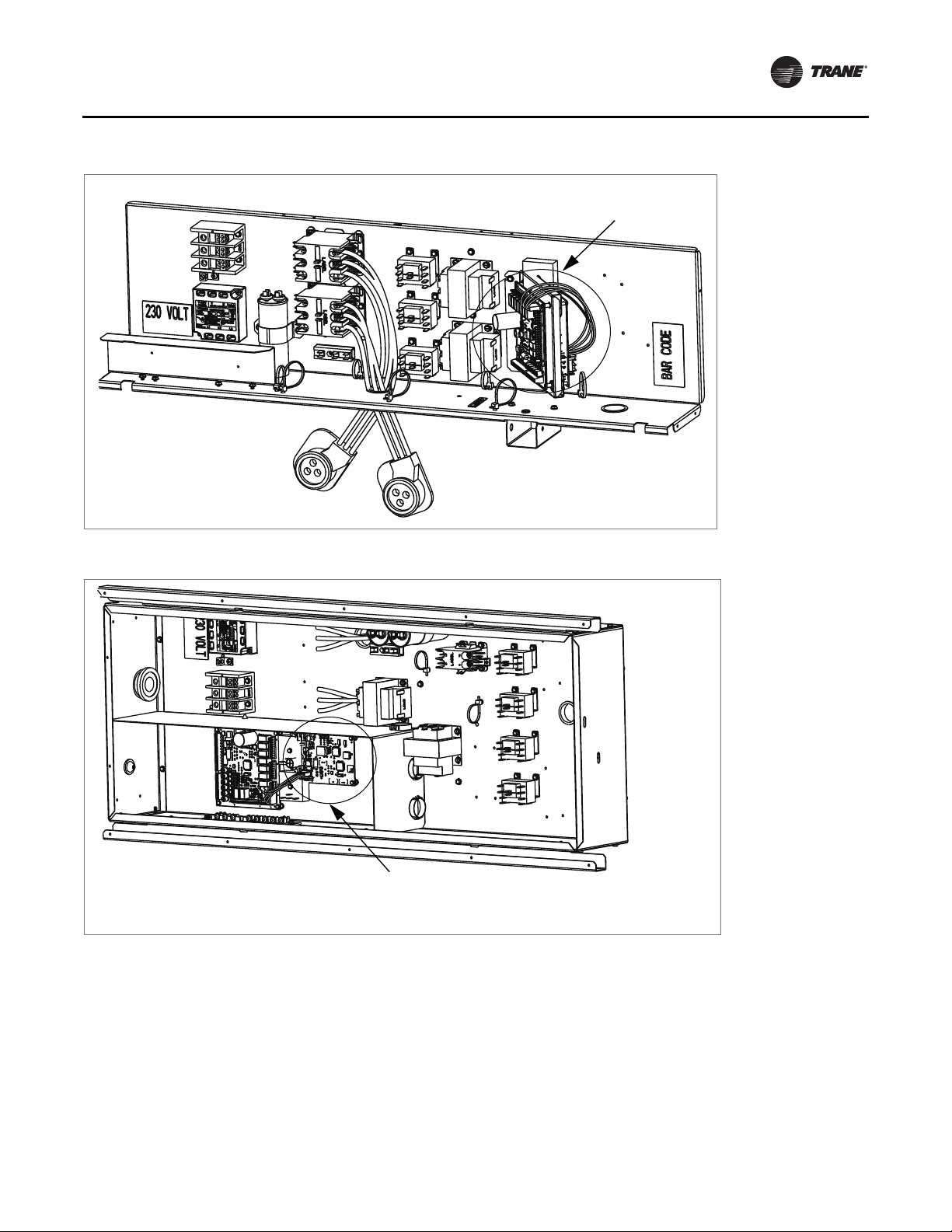

Figure 1. Voyager II (all units)
USB bulkhead port
BCI-R

Figure 2. Voyager III Commercial (all units)

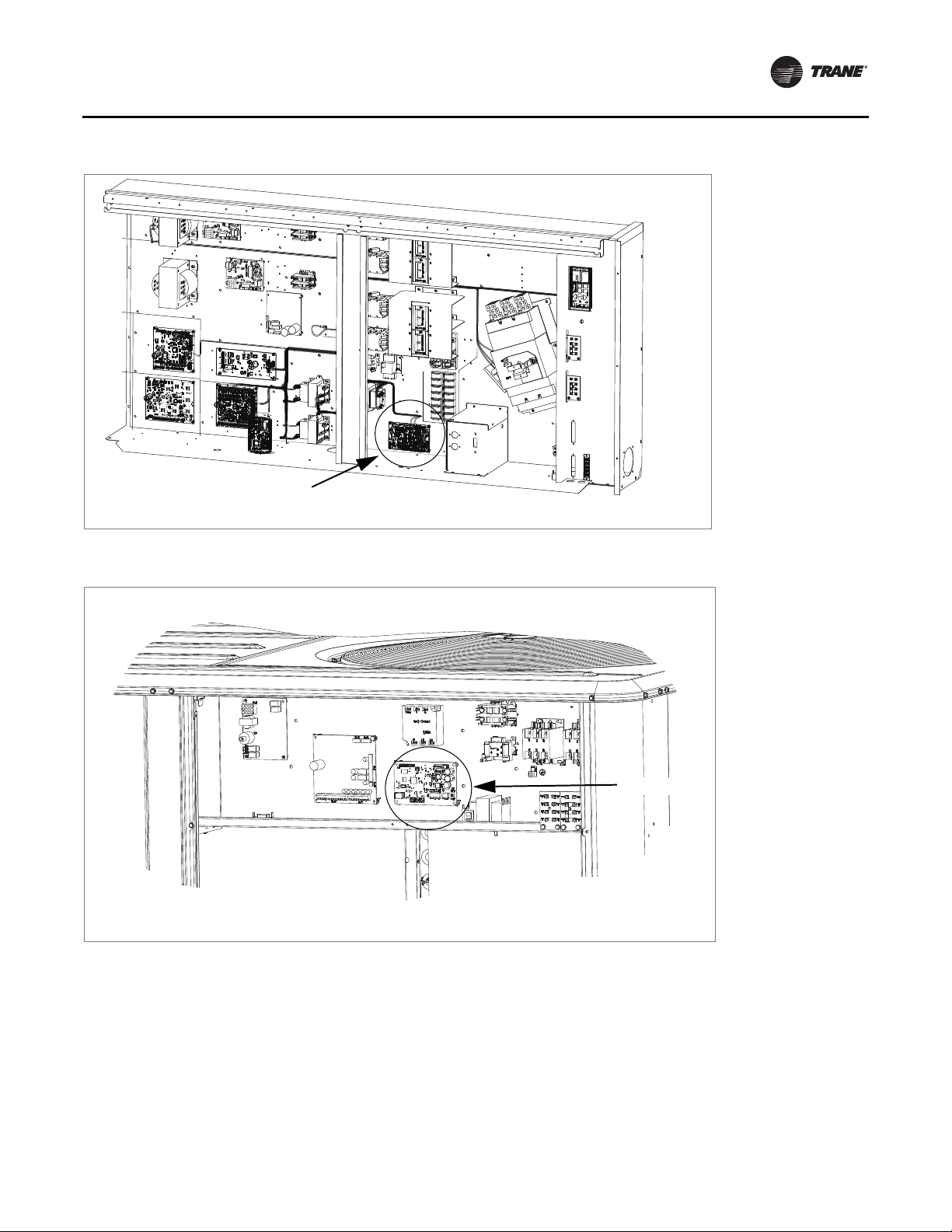

Figure 3. Precedent: (T/Y)SC(072-120)E, (T/Y)HC(048-072)E, WSC(060-090)E
Mounting and Installing the Controller
RF-SVN03F-EN 9
BCI-R
BCI-R

Figure 4. Precedent: (T/Y)SC(036-060)E, (T/Y) HC036E, WSC(036-048)E
Figure 5. Precedent: (T/Y)HC(092-120)E, WSC120E
Mounting and Installing the Controller
10 RF-SVN03F-EN
BCI-R
BCI-R

Figure 6. Odyssey (6-12.5 ton)
Figure 7. Odyssey (15-20 ton)
Mounting and Installing the Controller
RF-SVN03F-EN 11
BCI-R
BCI-R

Setting Addresses Using Rotary Switches
12 RF-SVN03F-EN
Setting Addresses Using Rotary Switches
There are three rotary switches on the front of the BCI-R
controller that are used to define a three-digit address
when the BCI-R is installed on a BACnet communications
network. The three-digit address setting is used in both the
rotary switch value and the BACnet device ID. The

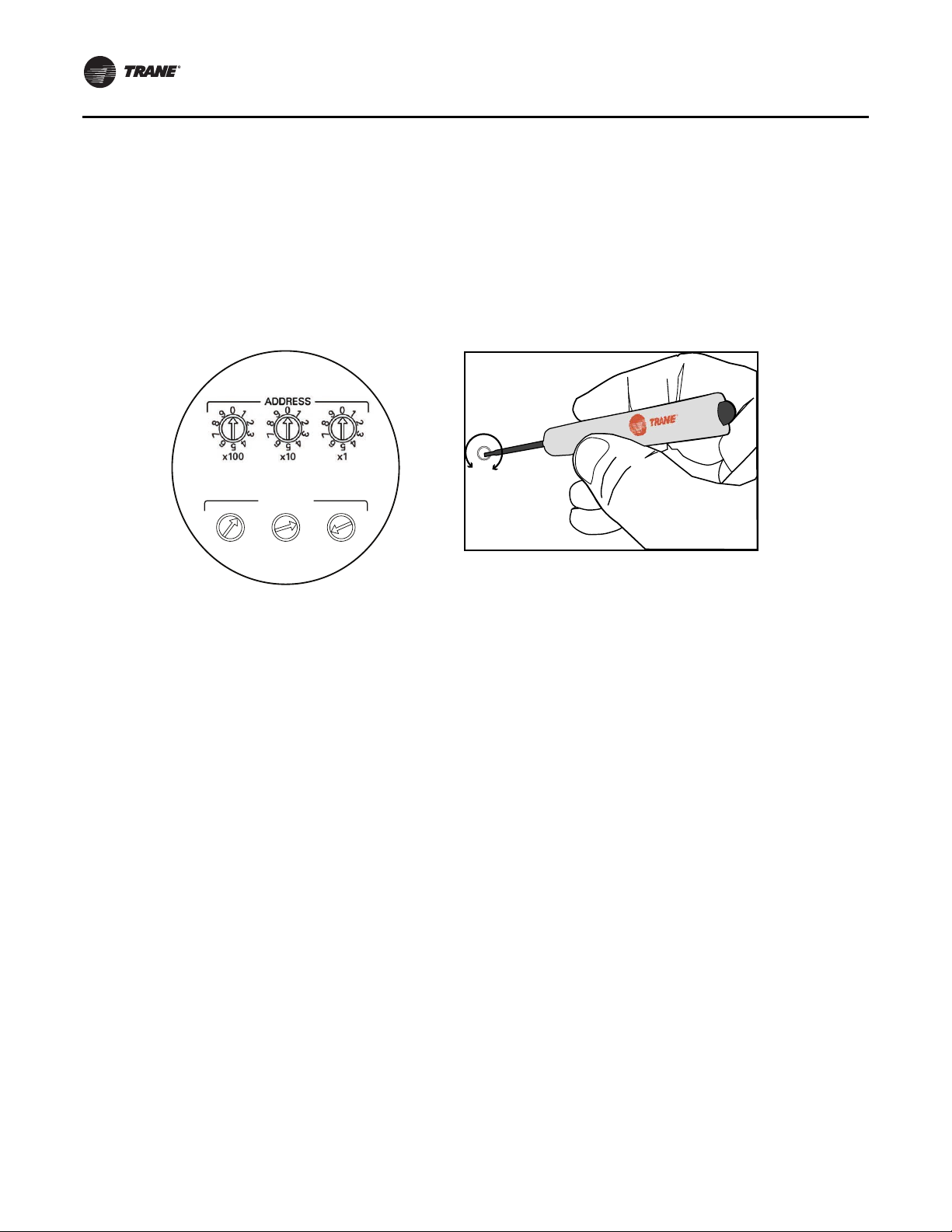

illustrations below show how to set rotary switch values.
For more information about rotary switches, see
“Understanding Rotary Switch Values and BACnet Device
IDs,” p. 17.
Note: All devices are MSTP masters with valid rotary
switch addresses of 001 to 127 for BACne
Figure 8. Setting the rotary switch value
t.
0
5
1
3
6
2
9
4
8
7

ADDRESS
0
1
2
3
4
5
6
7
8
9
x1
0
1
2
3
4
5
6
7
8
9
x10
0
1
2
3
4
5
6
7
8
9
x100
Use a 1/8 inch (3 mm)
flathead service screwdriver
to set rotary switches.
Important: Each device on the BACnet MS/TP link must have a unique rotary switch value; otherwise,
communication problems will occur.
Before
After
Setting the rotary switch value to 127
(before and after).

Field Wiring Procedures
RF-SVN03F-EN 13
Field Wiring Procedures
Important: Use 18 AWG, (24 pF/ft. max),
communication wire (Trane purple wire);
strip no more than 2 in. (5 cm) of the outer
conductor of shielded wire. For more
information, refer to the Unit Controller
Wiring Guide, BAS-SVN03-EN.
Connecting the Factory Wiring
Harness
1. Remove power from the entire unit to ensure that all
circuits are unpowered.
2. Connect the ReliaTel connection harnesses to J4 and
J1 as shown in Figure 9. You may need to refer to
specific rooftop unit wiring diagram for more details.
3. Restore power to the unit.

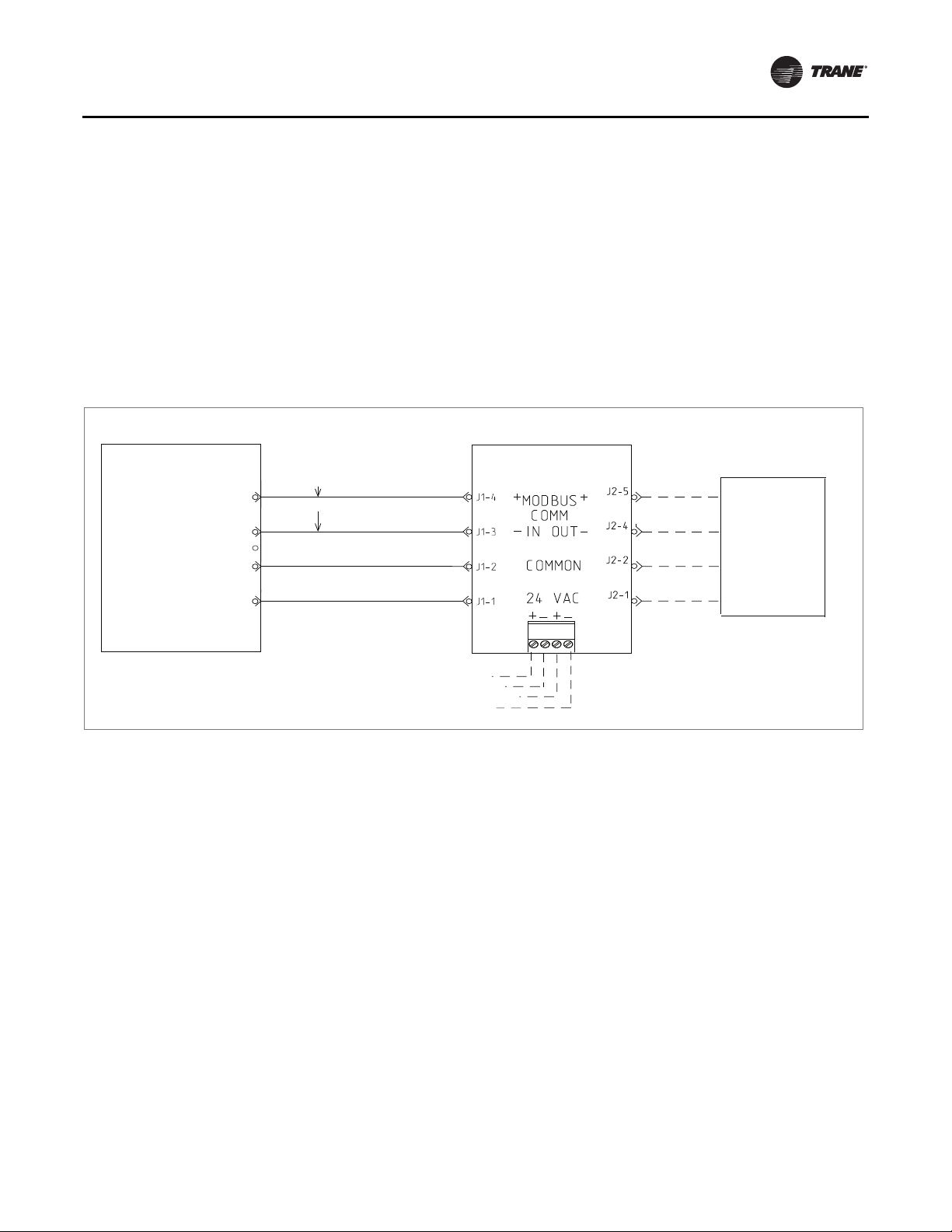

Figure 9. Generic BCI-R harness wiring diagram
Common
Common
5-Pin Connector 4-Pin Connector
(Black)
(Black)
(Blue)
(Red)
next device in
series
(see note)
ReliaTel controller
(RTRM)
BCI-R
24 VAC J4-1
J4-2
Empty J4-3
MODBUS
MODBUS J4-5
J4-4
+
_
Note: Refer to the unit
schematics for
proper connection.
BACnet Wiring
1. Remove power from the entire unit to ensure that all
circuits are unpowered.
2. On the BCI-R controller, set the link select switch to
BACnet.
3. Attach the communication link wiring to the BACnet
terminal block of the BCI-R controller.
4. Wire and tape the shields together or connect the
shields using a wire nut as shown in Figure 10, p. 14.
5. Restore power to the unit.
Note: Do not ground the shield at the BCI-R. The entire
grounding shield must be grounded only once per
segment. Typically, the entire shield will be
connected as one segment and grounded at the
building management controller. All four terminals
on the BCI-R terminal block will always be in use.

Figure 10. BACnet wiring
Q12
Q10
P1
Q18
Q17
LED9
LED8
SW3 SW2 SW1
J5
0
5
1
2
3
4
6
7
8
9
0
5
1
2
3
4
6
7
8
9
9
8
7
6
4
3
2
1
5
0
- +
ADDRESS SETTING
X100 X10 X1
BARCODE LABEL
IMC BACNET
LINK
TERMINATOR
SERVICE
1-
1-
1-
1-
1-
1-
1-
1
ON
X136
Shield wire
BACnet
terminal block
Field Wiring Procedures
14 RF-SVN03F-EN
Terminator Wiring
The BCI-R controller has a built in end-of-line termination
device (BACnet terminator) to be used in conjunction with
the BACnet terminal block.
1. Disconnect power from the entire unit to ensure that all
circuits are unpowered.
2. Run communication link wiring from the BACnet
terminal block to the BACnet terminator.
3. Connect the wires from the BACnet terminal block to
the Terminator terminal block maintaining polarity.
4. Restore power to the unit.
Figure 11. Wiring the BACnet terminator
Q12
Q10
P1
LED9
LED8
U1
SW3 SW2 SW1
0
5
1
2
3
4
6
7
8
9
0
5
1
2
3
4
6
7
8
9
9
8
7
6
4
3
2
1
5
0
ADDRESS SETTING
X100 X10 X1
BARCODE LABEL
IMC BACNET
LINK
SERVICE
1-
1-
1-
1-
1-
1-
1-
1-
1
ON
TERMINATOR
+
-
X136
Tape back shield
BACnet
terminator
About the BACnet Terminator
The BCI-R controller has a fully integrated BACnet
Terminator built into each board. Additional termination
devices are not necessary.
• Use the BACnet Terminator when the BCI-R is at the
end of the communications link.
• Do not use the BACnet Terminator terminals to provide
power to other terminal devices.
• The BACnet Terminator is self-powered from the BCI-
R board. Additional power connections are not
necessary.
• If the BCI-R is not at the end of the communications
link, the BACnet termination terminals should remain
unused.
Wiring the Air-Fi™Wireless
Communications Interface (WCI)
If a wireless receiver is used as a wireless communications
interface, follow these instructions.
Note: For more information regarding the WCI, refer to
“Installing the Air-Fi Wireless Interface,”
X39641264-01.
5. On the BCI-R controller, set the Link Select switch to
IMC (wireless communication).
6. Route the wires from the WCI through either:
a. The opening at the back of the back plate.
b. The hole in the bottom of the cover.

Field Wiring Procedures
RF-SVN03F-EN 15
7. Remove power from the entire unit to ensure that all
circuits are unpowered.
8. Connect the IMC wires (gray and blue) to the BCI-R
controller and the ground and the 24 Vdc/Vac wires
(black and red) as shown in Figure 12.
9. Restore power to the unit.

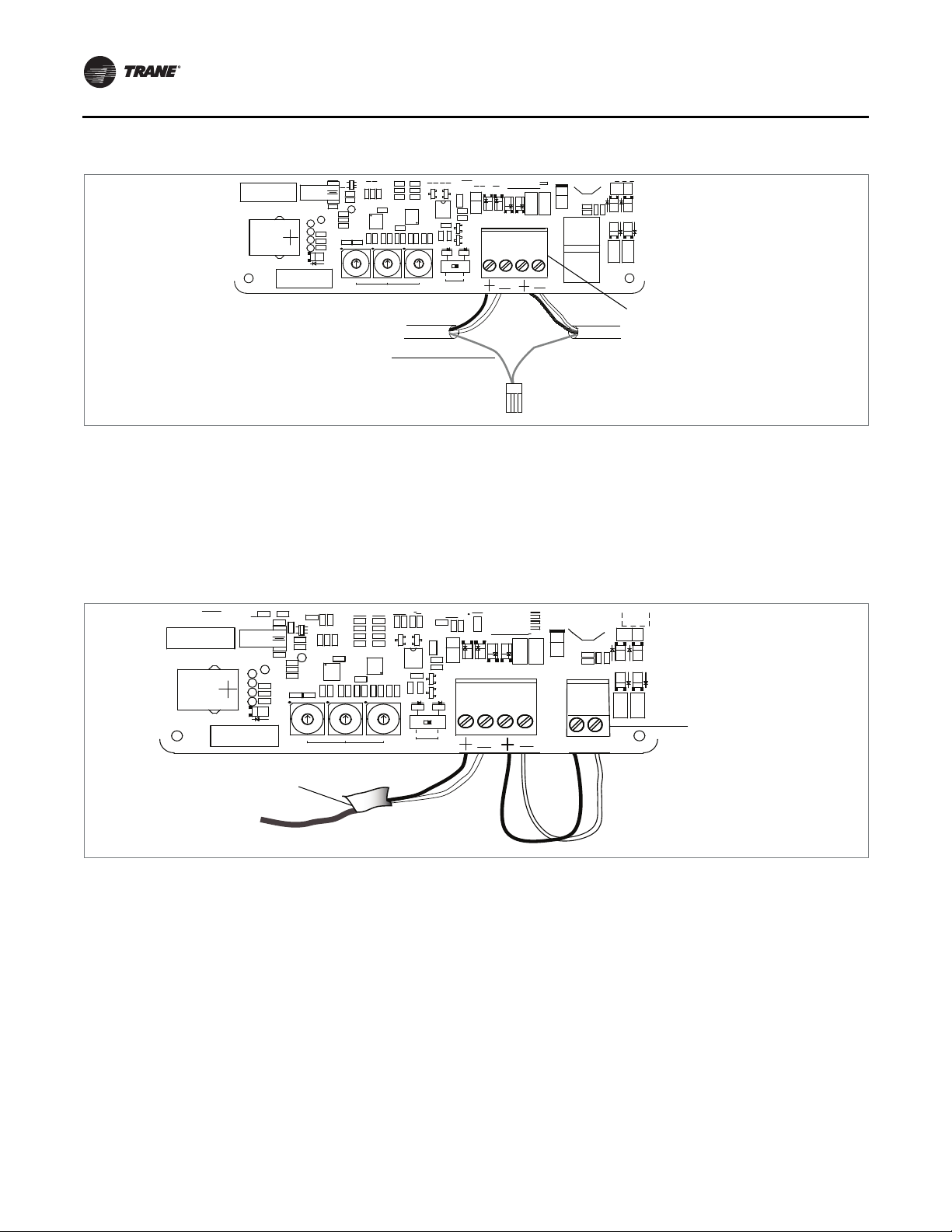

Figure 12. Wiring the Air-Fi Wireless Communication Interface (WCI)

Configuring the BCI-R
16 RF-SVN03F-EN
Configuring the BCI-R
The BCI-R can be configured with either the Tracer BACnet
Setup Tool or the Tracer TU service tool.
Note: The BCI-R controller is fully configured from the
factory for use with Tracer SC based systems.
Additional configuration, or the use of Tracer TU,
may be necessary. Additionally, the BCI-R self-
configures itself to match the unit type upon initial
power-up. However, you may want to change the
controller default name to one that is more
meaningful.
Using the BACnet Setup Tool
This section describes how to configure the BCI-R
controller using the Tracer BACnet Setup Tool. For
assistance with using the setup tool, click the help
icon located in upper right portion of the screen.
10. Open the Tracer BACnet Setup Tool.
The Controller Settings screen appears (Figure 13).
11. In the Protocol and Controller Units sections, change or
keep the default settings for the baud rate, software
device ID, and the device units.
12. Click save.
Figure 13. BACnet Setup Tool Controller Settings screen (connected to a UC400 as an example)
Using Tracer TU
This section describes how to first connect to the Tracer TU
software and then configure the
BCI-R controller. If Tracer TU is not installed, refer to the
“Tracer TU Service Tool Getting Started Guide” (TTU-
SVN02). Tracer TU software, Version 7.0 or higher, is
required.
To connect to Tracer TU:
1. Connect the USB cable directly from the laptop to the
BCI-R, or to an equipment control panel USB port
connected to the controller.
Important: If using a PC with multiple USB ports,
connect by using the same process outlined
below for the same piece of equipment.
This is normal operation. Observe existing
USB standards for cable length. (For more
information go to informational Web sites,
such as http://www.USB.org.)
2. Click either the Tracer TU desktop icon or the Tracer TU
program item in the Tracer TU group on the Start
menu.

Configuring the BCI-R
RF-SVN03F-EN 17
The Tracer TU splash screen appears briefly followed
by the Connect dialog box.

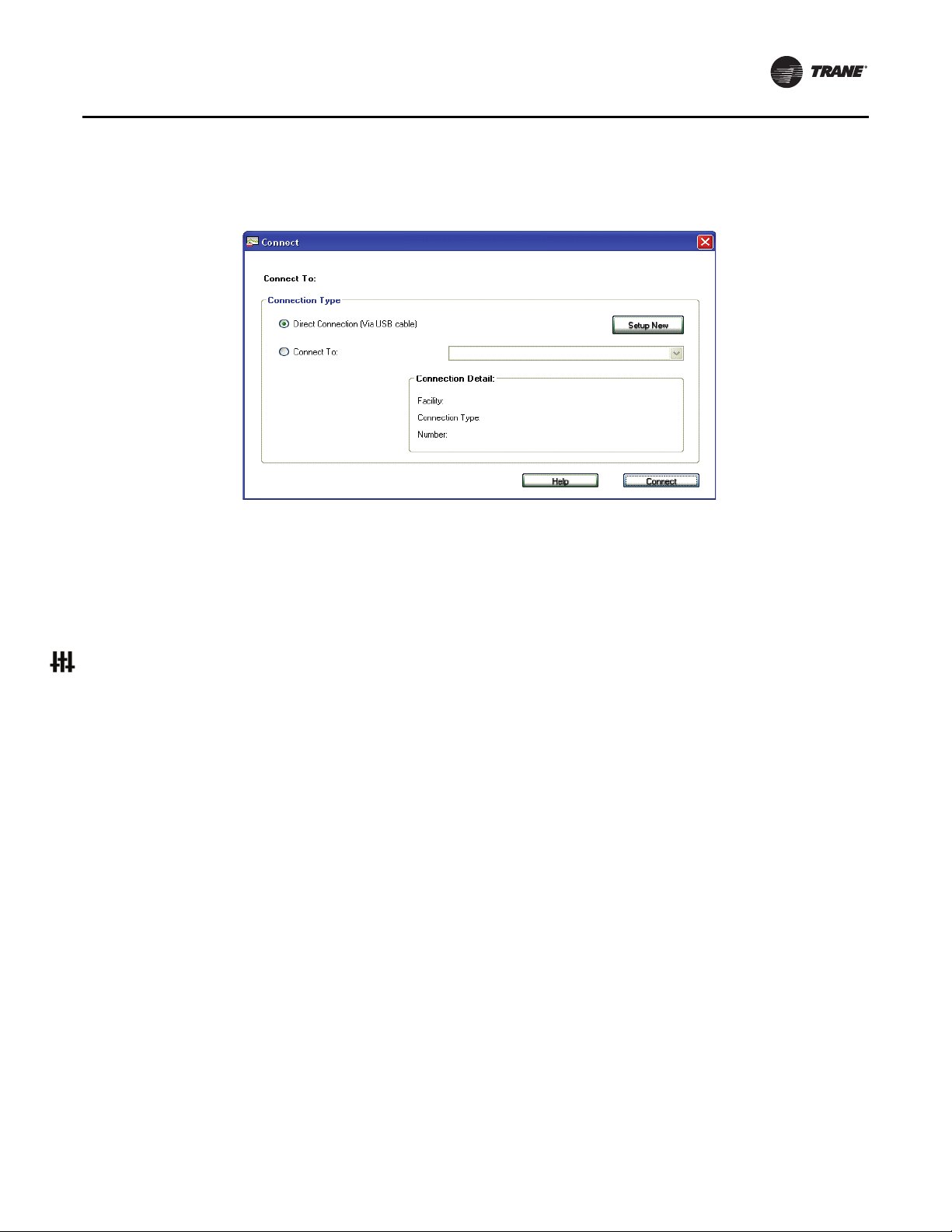

Figure 14. Connect dialog box
3. Select the Direct Connection (USB cable) radio button
if it is not already selected.
4. Click the Connect button and the Unit Summary page
will appear after successful connection.
To configure the BCI-R controller:
1. Select the Controller Settings Utility tab from the
vertical tab set located on the right side of the TU
window.
Note: The content of this screen is based on the type
of controller that is connected and the system
protocol used to communicate with the
controller.
2. Enter a meaningful name for the controller.
3. Click the Controller Units expanding box label to
display its contents.
4. Confirm the preferred units of measure for data
communicated across the BACnet link.
5. Click the Protocol expanding box heading to display its
contents.
6. Select the preferred Baud Rate in the drop-down list
box.
7. If a software Device ID is required, check the Use
Software Device ID box and enter a BACnet Device ID.
8. Click Save.
Understanding Rotary Switch
Values and BACnet Device IDs
Rotary Switch Values
The rotary switch value is the physical address of a device
on a network. It is often referred to as the MAC address.
The term is generic and is used to denote the physical
address of many types of networks.
For example, the rotary switch value of a BACnet MS/TP
network has a valid range of zero (0) to 255 and can be
represented by a single byte. The rotary switch value of an
Ethernet network is six bytes in length. Each device must
be assigned a unique rotary switch value. Failure to assign
a unique address to each device will result in
communication errors.
BACnet Device ID
The BACnet Device ID uniquely identifies each BACnet
device as a logical address. The valid range of this address
is 0 to 4194303. The logical address in an Internet Protocol
(IP) network is the IP address, which is four bytes in length
and is typically written in the format of 192.168.1.125.
Failure to assign unique address to each device will result
in communication errors.
Tracer SC uses the rotary switch value to create the BACnet
device ID. The Tracer SC adds an SC rotary switch address
and a link number to artificially create a unique BACnet
Device ID for each node.
Figure 15, p. 18 shows how Tracer TU displays the rotary
dial settings and the resulting BACnet device ID:
• The rotary switch values on the BCI-R are set to 30
(0,3,0).

Configuring the BCI-R
18 RF-SVN03F-EN
• The Tracer SC created a BACnet device ID of 101030.
• The Tracer SC address is “0,1,0”.
• The BCI-R is installed on link 1.
Figure 15. Example showing rotary switch value and BACnet device ID
BACnet device ID
Rotary switch value

Configuring the BCI-R
RF-SVN03F-EN 19
What To Do After Adding Options
or Equipment to the Unit
Restoring the BCI-R controller to factory defaults is
necessary if the unit setup has changed after the initial self-
configuration process. This process is called “clearing the
controller”.
For example, an economizer was added to the machine
after the initial installation. In order for the BCI-R controller
to recognize the economizer, it must be restored to factory
defaults.
The BCI-R controller self-configures upon initial power-up
to match the connected equipment type. This
configuration is then permanently stored in the memory of
the controller. Through this process, the controller
generates the correct list of BACnet points.
Clearing the Controller and Restoring
Factory Defaults to the BCI-R
Clearing the controller is necessary to collect equipment
information and reinstall the configuration.
Using the BACnet Setup Tool to clear the
controller and restore to factory defaults
1. Navigate to the Controller Settings screen.
2. Click within the light gray area at the bottom left of the
screen just above the "Connected" indicator.
The Clear Controller button appears at the top right of
the screen.
3. Click Clear Controller.
Amessage box appears stating that the configuration
will be reset (deleted).
4. Click OK.
When the controller is cleared, the Select Device Units
message box appears.
5. Click OK and then expand the Controller Units box on
the Controller Settings screen.
6. Select the units (SI, IP, or Custom).
Note: This selection defaults to Custom after clearing
the controller. If you want to use Custom,
ensure that all unit options are set correctly.
7. Click Save.
Using Tracer TU to clear the controller and
restore to factory defaults
1. Establish the connection between Tracer TU and the
BCI-R controller.
2. Select the Controller Settings Utility tab from the
vertical tab set located on the right side of the TU
window.
3. On the controller settings page, there is a gray bar at
the bottom with the Save/Cancel buttons. Move the
cursor near the left edge of the gray bar, keeping the
cursor inside the bar; click on this area. A Clear
Controller button will appear in the upper right portion
of the screen display.
4. Click the Clear Controller button and a pop-up window
will appear with a message that asks for confirmation
to reset the device. Click Yes.
5. A pop-up window will appear confirming that the
controller has been reset and that the controller will be
restarted. Click OK. The BCI-R controller is restored to
its factory default state after it restarts.
6. Follow the steps in “Configuring the BCI-R” to
reconfigure the controller.
Updating the Application Code
The application code in the BCI-R controller can be
upgraded in the field by using Tracer TU. Follow the
instructions in Tracer TU to upgrade the application code.

Configuring the BCI-R
20 RF-SVN03F-EN
Managing Device Units on the
Controller Units Screen
The BCI-R device units can be viewed and managed on the
Controller Units screen from either the BACnet Setup Tool
or Tracer TU.
When the BCI-R first powers up, or after the controller has
been cleared, a list of points (the role document) is created
from the information supplied to the BCI-R from the
ReliaTel RTRM module through the Modbus link.
Note: The BCI-R creates the role document immediately
(often within one second).
Immediately after the points are created, the device units
are set and saved and appear on the Controller Units
screen. The values that correspond to the device units are
set to default to SI values. In some cases, the Custom radio
button may be selected; however, the device units will still
default to SI.
If you are using Tracer TU to change the Device Units to IP
by clearing the controller, it is best to either unplug the
Modbus cable to the BCI-R, or to power down the entire
unit (the BCI-R). By doing this, the BCI-R will not see
Modbus traffic. This method will enable the Device Units
radio button selection, which allows you to make changes.
