Trane WSHP-DS-6 User manual

WSHP-DS-6
March 2000
Water Source
Heat Pump
Water-to-Water
Model WPWD
WSHP-DS-6

2
Introduction
The WPWD product is a heating
and cooling hydronic fluid water-to-
water heat pump capable of pro-
ducing water temperature up to
130 F or temperatures down to
25 F. This extended operating
range offers great opportunities in
commercial, residential and indus-
trial applications.
There are many load side applica-
tionsforwhichtheWPWDissuited.
Typical usages include:
qHydronic baseboard heating
qRadiant slab heating
qSpace heating or cooling with
Trane fan coils
qIce and snow removal
qHighvolumewaterheating(non
potable)
qBoiler replacement (@130 F)
In the heating mode, the water-to-
water unit efficiently extracts heat
from a water source (source side)
such as a well, lake, boiler/tower
loop or closed ground loop heat-ex-
changer, then transfers the heat to
another flow of water (load side).
The amount of heat added to the
load side is greater than the
amounttakenfromthesourceside.
The electrical energy supplied to
the compressor is added to the out-
put heat of compression.
The Trane water-to-water product
package includes:
qHigh efficient scroll compressor
qCompressor protection
qWatertorefrigerantcondensing
coil
qFreeze protection
qWater to refrigerant evaporator
coil
qExpansion valve
qFilter Drier
qReversing Valve
qInternal desuperheater
(optional)
©An American Standard Company

3
Introduction 2
Features and Benefits 4
Model Number Description 7
General Data 8
Application Considerations 9
Electrical Data 18
Performance Data 19
Dimensional Data 25
Wiring Diagram 28
Accessory Options 30
Mechanical Specifications 31
Table
of
Contents

4
General
Thewater sourceheatpump model
WPWD (water-to-water) offers a
range of capacities from 2 tons to 6
tons. All units are housed in one
standard compact cabinet.
Cabinet
The cabinet, which allows easy ac-
cess for installation and service, is
constructed of heavy gauge metal.
The cabinet finish is produced by a
corrosion resistant electrostatic
powder paint coating in the color
“soft dove”.

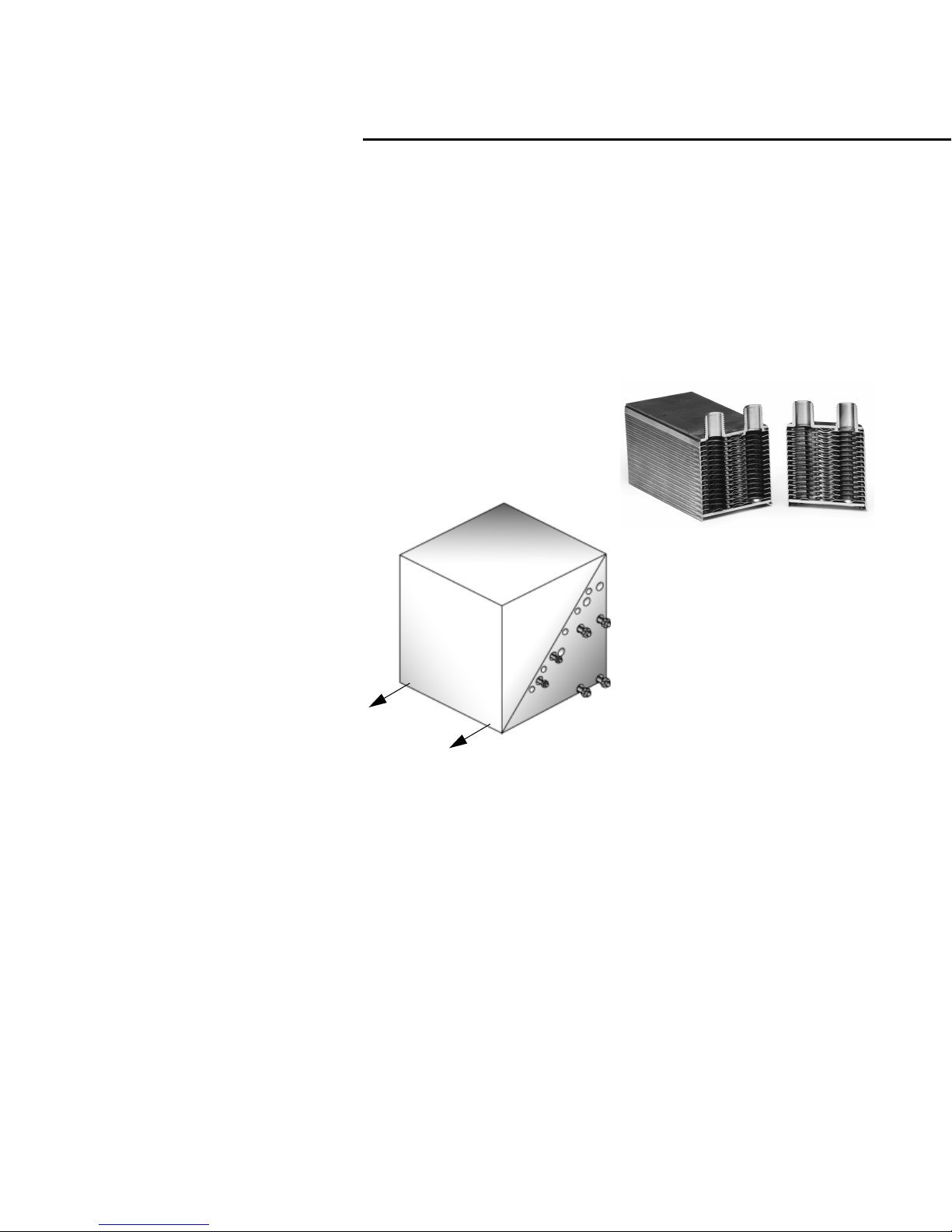

The top half of the diagonal cabinet
is removable for access to the inter-
nal components by removing two
screws. (See Figure 1).
Figure 1: Unit access
Insulation
To reduce condensation and com-
pressor noise, the cabinets are in-
sulated with 1/2-inch thick,
neoprene backed, acoustical fiber-
glass insulation.
Compressor
The model WPWD contains a high
efficiency scroll compressor for reli-
able and efficient operation. The
scroll compressor’s unique design
lends itself to having one of the low-
est sound levels in the industry.
The compressor is internally isolat-
ed and placed on a stiff base plate
designedtofurtherreducevibration
noise. As an added benefit, the
WPWD cabinet includes full length
channel stiffeners underneath the
unit.
Heat Exchanger
The water to refrigerant heat ex-
changers are made of stainless
steel brazed plate. This design pro-
vides a larger amount of surface
area for heat exchange between
the water and the refrigerant. (See
Figure 2 for cut-away).
.
Figure 2: Brazed plate heat ex-
changer
Piping
All low-side copper tubing in the re-
frigeration circuit is insulated to pre-
vent condensation at low entering
liquid temperatures.
Filter Drier
A filter drier is provided in each unit
for dehydration and cleaning of the
refrigeration circuit. This feature
adds to the unit life.
Expansion Valve
As standard, Trane provides a bal-
anced port thermal expansion
valve. This valve precisely meters
the refrigerant flow through the cir-
cuitry to achieve the desired heat-
ing or cooling over a wide range of
fluid temperatures.
Water Connections
All water connections feature
1-inch brass swivel connectors. Be-
cause the connectors are swivel, a
back-up wrench is not necessary
when tightening.
General
Features
and
Benefits

5
ControlsFeatures
and
Benefits
Lockout
Relay 50 VA Transformer
24 VAC Contactor
Compressor
Run Capacitor
2 Amp Fuse
(for use with
desuperheater
option)
Ground
10 Pole Terminal
Strip
Low Voltage
Thermostat
Low Voltage
High Voltage

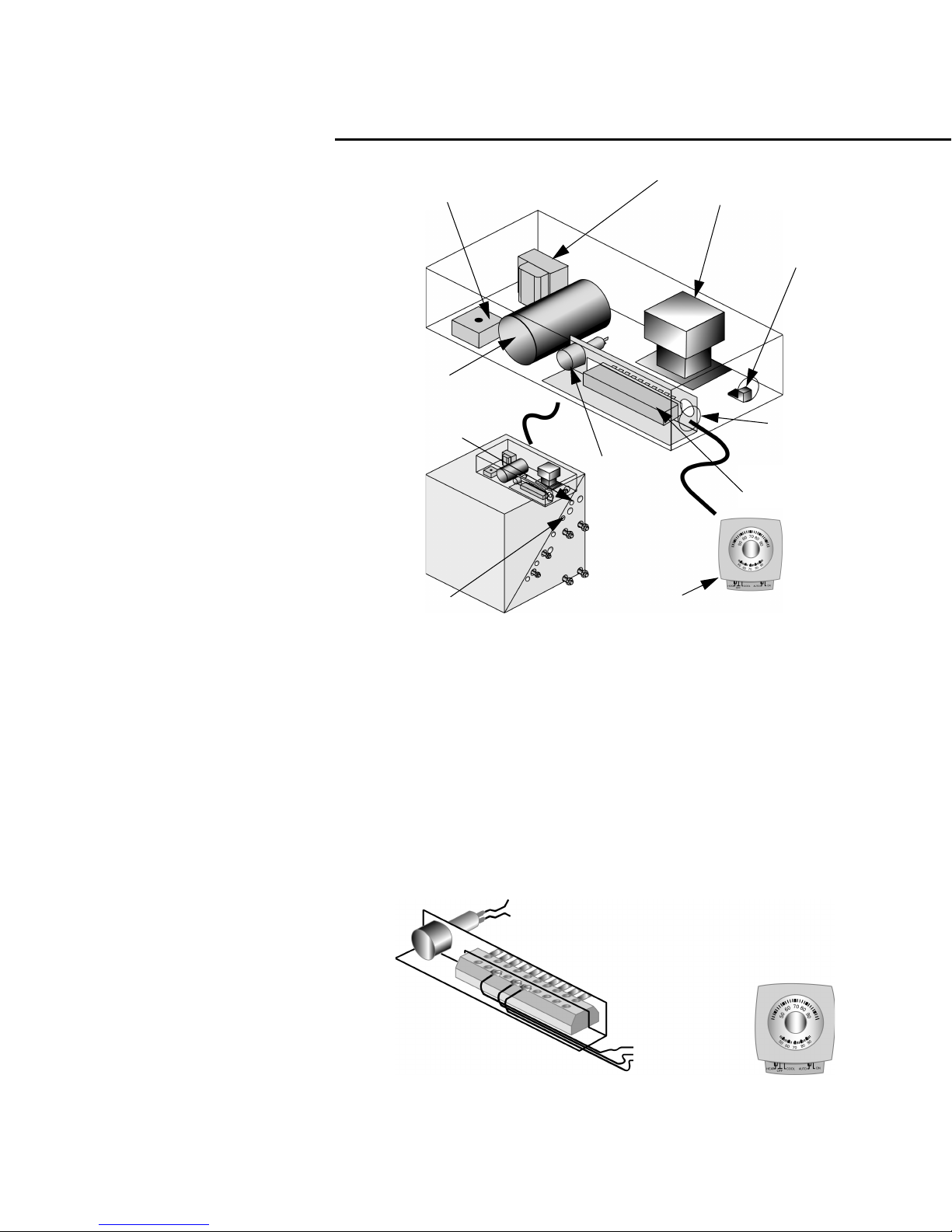

Figure 3: Controls
24 Volt Controls
All electrical controls and safety de-
vices are factory wired, tested, and
mounted in the unit. The control
package includes:
qCompressor contactor
q24 Volt transformer
qLockout relay
qCompressor run capacitor (1-
phase units only)
qReversing valve coil (For heat
pump only)
qFuse (for desuperheater)
A terminal strip with 1/4”fork con-
nections will be provided for field
thermostat control wiring. (See Fig-
ure 3).
Safety Devices
Each Trane water-to-water unit con-
tains safety devices to prevent com-
pressor damage. These include:
qLow pressure switch
qHigh pressure switch
qTemperature sensor (freezestat)
qInternal overload protection
Low Pressure Switch
The low pressure switch prevents
compressor operation under low
charge or in excessive loss of
charge situations. This device is set
to activate at refrigerant pressures
of 35 psig when a 35 F low temper-
ature detection thermostat is ap-
plied. An optional 7 psig pressure
switch is available when using a 20
F temperature low temperature de-
tection thermostat.
High Pressure Switch
For internal overload protection,
Trane provides a high pressure
switch. This de-energizes the com-
pressor when discharge pressure
become excessive.
Low Temperature
Detection Thermostat
The low water temperature detec-
tion thermostat is provided to pro-
tect the water-to-refrigerant heat
exchanger from freezing. This de-
vice prevents compressor opera-
tion if leaving water temperature is
below 35 F. An optional 20 F tem-
perature thermostat may be applied
for low water temperatures where
an appropriate antifreeze solution is
used.
Lockout Relay
When the safety controls are acti-
vated to prevent compressor short
cycling, the lockout relay (circuit)
canberesetatthethermostat,orby
cycling power to the unit.
Thermostat Hook-up
Low voltage and high voltage
knockouts are provided in the top
half of the unit. All control wiring to
the unit should be 24 Volt.
(See Figure 4 for termination
points).
24V Power
Compressor
Reversing Valve
(energized in clg)
Figure 4: Typical thermostat termination points

6

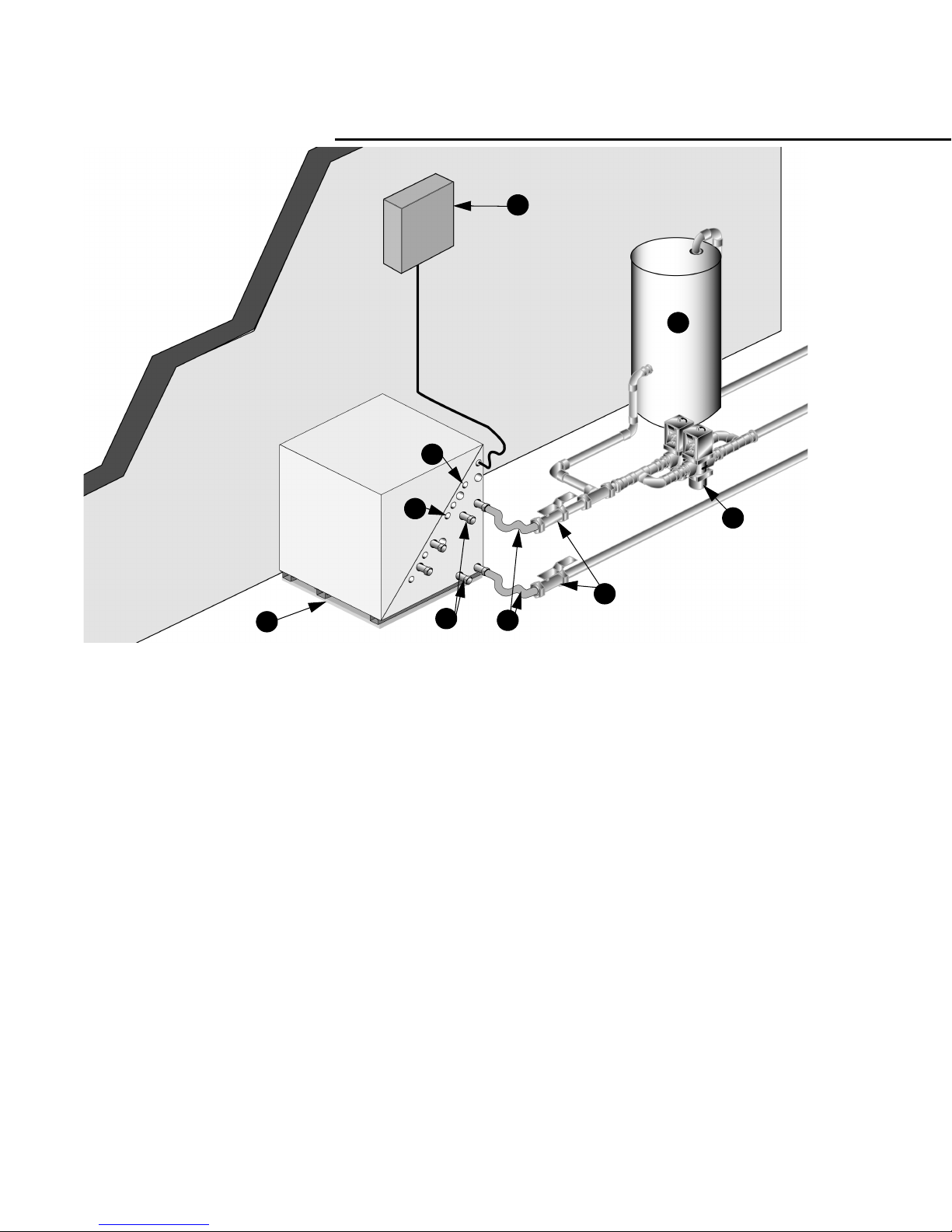

Cold water
(Supply)
Hot water
(Supply)
Water heater
hook-up kit with
drain valve
from Desuperheater
to Desuperheater
Desuper-out
Isolation
Valves
(by others)
Desuper-in
Desuperheater Option
The desuperheater option is a heat
recovery system packaged within
the water-to-water unit. This option
captures heat energy from the heat
pump for considerable cost savings
all year. Since it is active in either
operating mode, it can provide hot
water at a reduced cost while in
heating or virtually free hot water
while in cooling.
Standard equipment includes:
qDesuperheater (heat
exchanger)
qCirculating pump
qEntering water temperature
detector (125 F stops pump)
qDischarge refrigerant
temperature detector (145 F
starts pump)
qFuse
qWater heater hook-up kit
Theunitemploys acirculatingpump
tomovewaterthroughadoublewall
heat exchanger. It then returns the
heated water to the water tank. This
water is heated by superheated re-
frigerant discharge gas from the
compressor. This heat energy can
now be utilized as a cost savings in
water heating.
Circulating Pump
The pump is a circular, single stage
open system pump. Its specifica-
tions include:
q1/25 HP (horsepower)
q230 Volt / 60 Hertz / 1 phase
q90 Watts
q.40 Amps
q2865 rpm (revolutions per
minute)
q2 MF (microfarad) / 400 Volt
capacitor
The pump contains a minimum fluid
temperature rating of 50 F, a maxi-
mum fluid temperature (open sys-
tem) of 140 F, and a maximum
working pressure of 145 psi.
Heat
Recovery
Features
and
Benefits

7
Model Number
Description
Digits 1 & 2: Product Type
WP = Trane Commercial Water
Source Heat Pump
Digit 3: Product Configuration
W = Water-to-Water
Digit 4: Development Sequence D
Digits 5-7: Unit Nominal Capacity
024 = 24.0 MBh
036 = 36.0 MBh
042 = 42.0 MBh
048 = 48.0 MBh
060 = 60.0 MBh
072 = 72.0 MBh
Digit 8: Voltage / Hertz / Phase
1 = 208-230/60/1
3 = 208-230/60/3
4 = 460/60/3
5 = 575/60/3
6 = 220-240/50/1
7 = 265/60/1
9 = 380-415/50/3
Digit 9: Unit Arrangement
0 = Water-to-Water
Digit 10: Design Sequence C
Digit 11: Freeze Protection
1 = Brazed Plate Heat Exchanger
(source side)
with 35 F (1.67 C) Freezestat
2 = Brazed Plate Heat Exchanger
with 20 F (-6.67 C) Freezestat
Digit 12: Freeze Protection
1 = Brazed Plate Heat Exchanger
(load side)
with 35 F (1.67 C) Freezestat
2 = Brazed Plate Heat Exchanger
with 20 F (-6.67 C) Freezestat
Digit 13: Desuperheater Option
0 = No Desuperheater
1 = With Desuperheater
Digit 14: Open
0 = Open Digit
Digit 15: Open
0 = Open Digit
Digit 16: Sticker Option
T = Trane
1 5 10 15
C = Command-Aire

8
General
Data
Table G-1: Physical Data (English)
Model: WPWD 024 036 042 048 060 072
Unit Size
Width of cabinet (in) 23 23 23 23 23 23
Width of cabinet and connections (in) 24.8 24.8 24.8 24.8 24.8 24.8
Height (in) 24.3 24.3 24.3 24.3 24.3 24.3
Depth (in) 23.3 23.3 23.3 23.3 23.3 23.3
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll
R-22 Refrigerant (lbs) 3.25 3.375 3.50 4.00 4.25 4.25
Approximate Weight
(lbs) With crate (lbs) 163 183 203 214 244 277
Table G-2: Specifications (English)
Model: WPWD 024 036 042 048 060 072
Source and Load GPM 4.0 6.0 7.0 7.50 10 10
Source and Load Ft. Hd. 1.4 3.2 4.4 5.0 9.2 9.2
Cooling Load EWT 45 F (MBH) 18.24 26.74 31.3 35.55 45.98 51.01
Cooling Load EWT 45 F (EER) 15.0 15.7 15.7 15.4 15.5 14.9
Heating Load EWT 100 F (MBH) 25.38 33.34 39.69 42.87 57.15 67.47
Heating Load EWT 100 F (COP) 3.64 3.62 3.7 3.45 3.62 3.62
Note:
qSource EWT (entering water temperature) is at 75 F
qUnit selection should be based upon extended specifications at lowest or highest expected source and load
EWT (entering water temperature)
qRefer to pages 19-25 for extended performance tables.

9
Application
Considerations

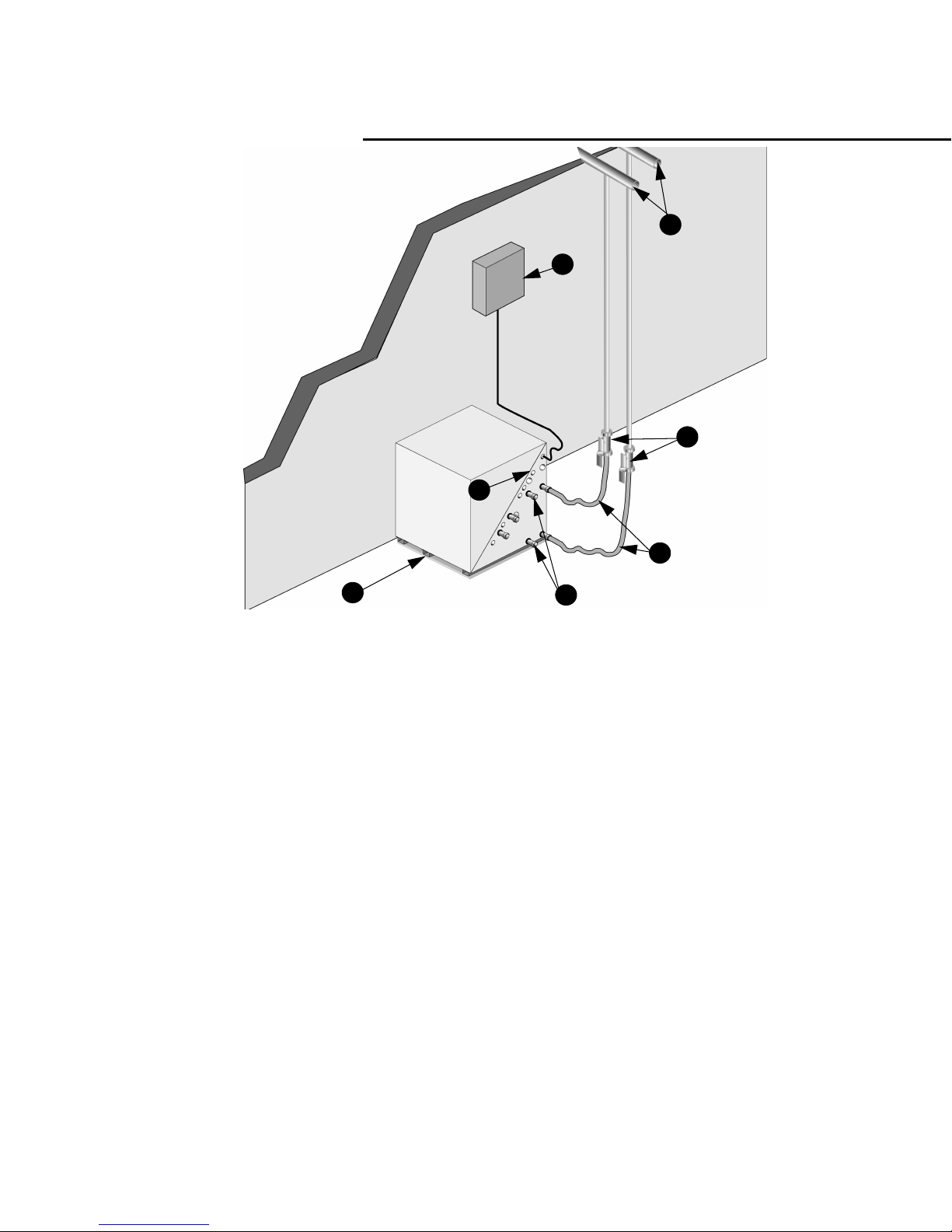

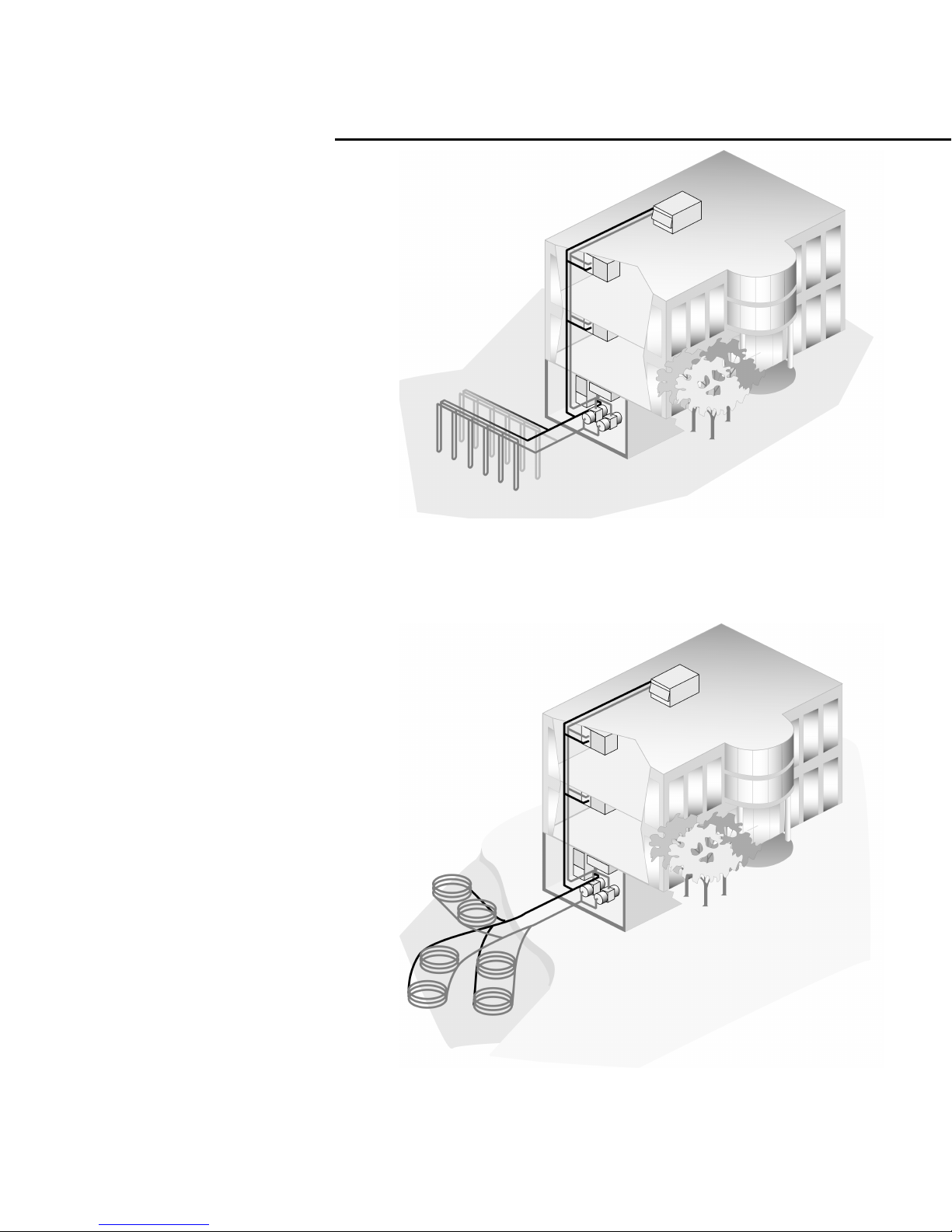

Closed Loop System
Closed loop systems (both ground source
and surface water) provide heat rejection
and heat addition to maintain proper water
source temperatures.
Operating and maintenace cost are low
because an auxillary fossil fuel boiler and
cooling tower are not required to maintain
the loop temperature. The technology has
advanced to the point where many electric
utilities and rural electric cooperatives are
offering incentives for the installation of
geothermal systems. These incentives are
offered because of savings to the utilities
due to reduced peak loads that flatten out
the system demand curve over time.
For ground source geothermal systems,
(See Figure 5), when building cooling
requirements cause loop water
temperatures to rise, heat is dissapated into
the cooler earth through buried polyethylene
pipe heat exchangers. If reversed, heating
demands cause the loop temperature to fall,
enabling the earth to add heat to meet load
requirements.
Where local building codes require water
retention ponds for short term storage of
surface run-off, a ground source surface
water system, (See Figure 6), can be very
cost effective. This system has all the
advantages as the geothermal system in
cooling dominated structures.
Another benefit of the ground source system
is that it is environmentally friendly. The loop
is made of chemically inert, non-polluting
polyethylene pipe. The heat pumps use
HCFC-22 refrigerant, which has a lower
ozone depletion potential than CFC-12.
Because the closed loop system does not
require a heat adder, there are no CO2
emissions. Less electric power consumed
reduces secondary emissions from the
power plant. Therefore, the system offers
advantages not seen by other central
furnace or heat pump systems.
Figure 5: Ground source geothermal system
Figure 6: Ground source surface water system

10
Application
Considerations
Open Loop System
Where an existing or proposed well can
provide an ample supply of suitable quality
water, ground water systems may be very
efficient. (See Figure 7)
Operation and benefits are similar to those
for closed loop systems. There are however
several considerations that should be
addressed prior to installation.
qAn acceptable way to discharge the
significant volume of used water from
the heat pump should be defined. It may
be necessary to install a recharge well to
return the water to the aquifer.
qWater quality must be acceptable, with
minimal suspended solids. To help
ensure clean water, a straining device
may be required.
Figure 7: Open Loop system
Figure 8: Cooling tower/boiler system
Cooling Tower/Boiler System
A cooling tower/boiler system (see Figure 8)
utilizes a closed heat recovery loop along
with multiple water source heat pumps in a
more conventional manner.
Typically, a boiler is employed to maintain
closed loop temperatures above 60 F and a
cooling tower to maintain closed loop
temperature below 90 F. All the units
function independantly, either by adding
heat, or removing heat from the closed
water loop, making this system more
efficient than air cooled systems.
The cooling tower/boiler system provides a
low installation cost to the owner than other
systems. A good selection for large building
design needs.

11
Source Side
vs.
Load Side
Application
Considerations
Source vs. Load
The model WPWD water-to-water
system contains two water to refrig-
erant heat exchangers. The two
heatexchangersenablethesystem
to be divided into a source and load
separation.
The “source side”heat exchanger
performs as in a standard water to
airheatpumpsystem.Thesourceis
typically supplied through a cooling
tower, boiler, closed loop, or open
wellsystem.Duringtherefrigeration
cycle, heat is transferred from the
source side heat exchanger to the
load side heat exchanger.
The “load side”heat exchanger
takes the place of a DX (direct ex-
pansion) air coil. It provides treated
fluid (hot or cold) to a mechanical
device. These mechanical devices
includedesignssuchasradiantslab
heating, hydronic coils, or fresh air
ventilation units.

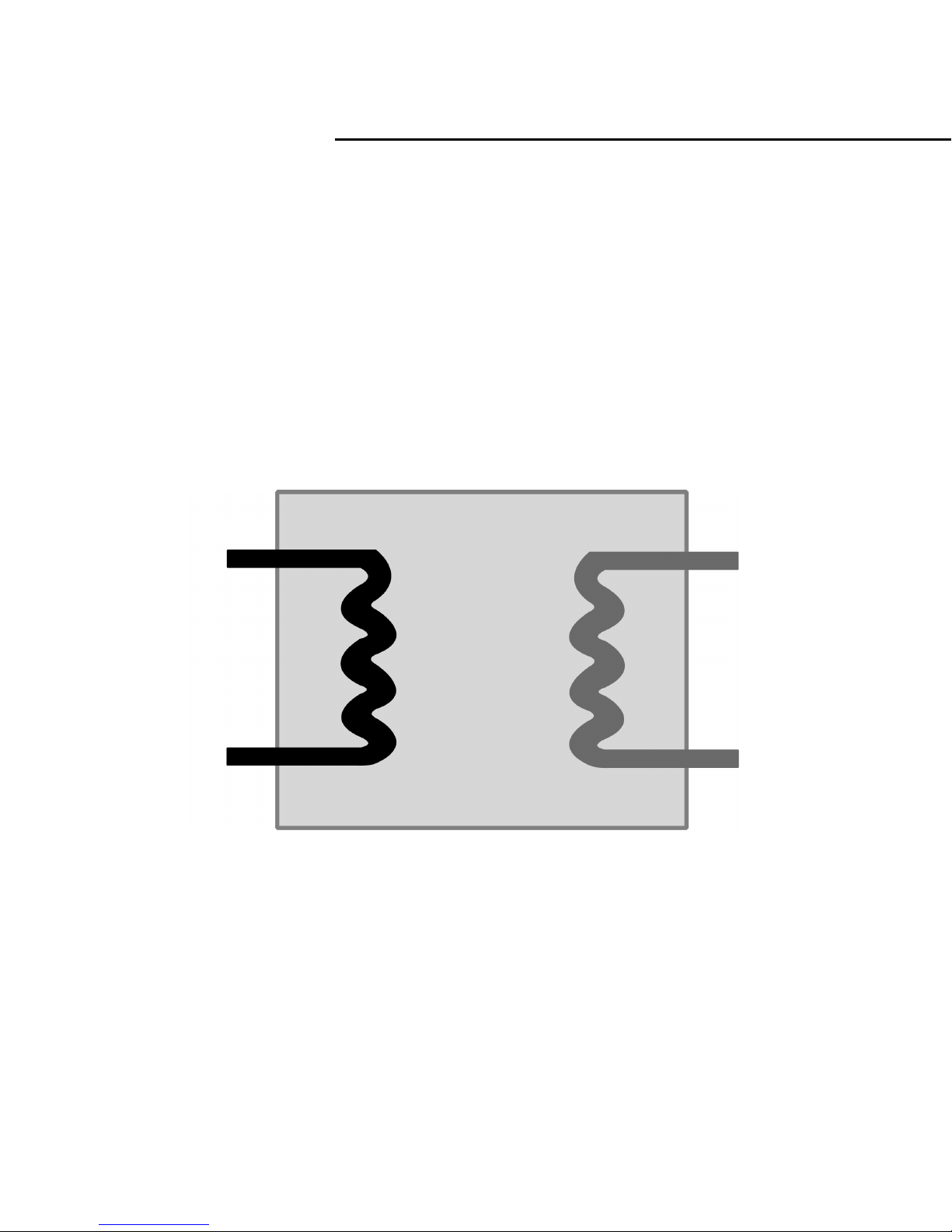

See Figure 9 for a basic schematic
of source side verses load side of a
water-to-water system.
Water-Out (Source Side)
Water-In
(Source Side)
TO or FROM a cooling
tower, boiler, ground
loop or open well
system
(Load Side)
Water-In
(Load Side)
TO or FROM a
mechanical device
such as hydronic coil,
concrete slab, or flooring
Refrigeration
Circuit
Water-Out
Fluid traveling Fluid traveling
Figure 9: Source/Load schematic

12
Closed Loop
Geothermal
Application
Considerations
(Closed) Ground Loop
Heat Exchanger
Geothermal Space
Heating / Cooling
Temperature
Refrigeration
Equipment
Hydronic Ice
Melting Via
Unit
a Water-to-Water
Geothermal
Integrated System
The Trane ground source heat
pump is highly efficient in service
station applications.
This integrated system design
takes advantage of the earths
relatively constant temperature
(45 F to 70 F) to space condition
the building. In addition,
appliances such as freezers, ice
makers and a display coolers may
be added to the loop for further
gains in the reduction of consumed
energy.
Cold climates may take an even
greater advantage of the heat
rejected by the stores refrigeration
equipment and space conditioning
heat pumps. This rejected heat
may be used by Trane’s water-to-
water heat pump(s) to heat water
for a car wash and melt ice off of a
driveway (allowing the car wash to
remain open all winter).
This integrated system also
eliminates thermal short circuiting
between the intakes and the
exhausts of an air cooled
refrigeration system.
Typical Benefits
qAnnual energy savings means
lower operational costs
qTakes advantage of the earths
constant temperature rather
than high fluctuation of ambient
temperature
qHeat energy rejected from the
space conditioner can be
utilized for ice or snow melting
of a parking lot in colder
climates
qTwo to three year estimated
payback on installation costs

13
Fresh Air
Ventilation
Application
Considerations
Water-Out
(source)
Water-In
(source)
Water-Out
(load)
Water-In
(load)
Exhaust
Air Fresh
Air
(Closed) Ground
Loop Heat
Exchanger
Geothermal Space
Heating and Cooling
Fresh Air Ventilation
with Water-to-Water Units
Water-to-Water
and Fresh Air
Ventilation
Geothermal energy systems take
advantage of the fact that
subsurface earth temperatures are
constant year-round, which makes
the earth an ideal heat source and
heat sink for heat pumps.
The above design goes further than
just space heating and cooling.
Fresh air ventilation is achieved by
using Trane water-to-water units
teamed with a hydronic outside air
unit, and exhaust air unit to meet
total building requirements.
In the cooling season, the
evaporator water from the heat
pumps is circulated through a
hydronic coil in the makeup air unit
to provide cooling and
dehumidification. The condenser
water is used to provide reheat
energy to temper the ventilated air
in accordance with the building
needs. After leaving the reheat
hydronic coil, the condenser water
is then returned to the building loop
for further heat rejection.
In heating, the water-to-water units
switch to hot water generation. The
water for ventilation air tempering
first circulates through the hydronic
coil to the exhaust air unit to pick
up heat from the building exhaust
airstream. The water then
circulates through the water-to-
water heat pumps for further heat
introduction before being used by
the makeup air unit hydronic coil to
heat the makeup air to maintain
building requirements. This
ventilation system incorporates its
own constant volume pumps to pull
system water off the loop and
return it. There is no need for
additional heat injection using
boilers for this system. (See Page
14 for mechanical example).
Typical Benefits
qAnnual energy savings means
lower energy costs
qBuilding comfort and climate
control

14
Fresh Air
Ventilation
Mechanical
Application
Considerations
HOT WATER
COIL
EXHAUST
AIR OUTSIDE
AIR
AIR
HANDLER
AIR
HANDLER
EXHAUST AIR TO HEAT PUMPS
EXHAUST AIR FROM TOILET RMS
WPWD
AUTOMATIC
AIR VENT
EXP TANK
DRAIN VA
HAND
PUMP
PRESSURE
RELIEF VA
WPWD
WPWD
WPWD
BALL VA
SUPPLY
RETURN


1
2
3
5
4
6
7
Central Pump
Application
 Ball valves should be installed
in the supply and return lines
for unit isolation and unit water
flow rate balancing (if an auto-
matic flow device is not
selected). This connection,
along with hoses, are also rec-
ommended for backflushing
and chemical cleaning of the
water to refrigerant heat
exchanger.
 Flexible hoses may be used
to connect the water supply
and return lines to the water
inlets and outlets. These hoses
reduce possible vibration
between the unit and the rigid
system.
Note: Hoses and or pipes
should be made of braided
stainless steel, and sized suit-
ably for the systems water
pressure and flow rate.
 Load side connections are
typically used to supply the ter-
minal devices with 45 F or
120 F fluid.
 The sound attenuation pad
should be slightly oversized for
unit. This field supplied product
is recommended for sound
absorption of unit.
 The low voltage control con-
nection provided on the unit is
large enough for attaching con-
duit.
 The central systems supply
and return lines should be
sized to handle the required
flow with a minimum pressure
drop.
Note: Pipe will sweat if low
temperature water is run
through the supply or return
lines. Trane recommends that
these lines be insulated to pre-
vent damage from condensa-
tion.
 The field supplied line voltage
disconnect should be
installed for branch circuit pro-
tection. The unit is supplied
with an opening for attaching
conduit.
Central
Pumping
System
Application
Considerations
General
A central pumping system involves
a single pump design usually locat-
ed within a basement or mechanical
room to fulfill pumping requirements
for the entire building system. With
a central pumping system, an auxil-
iary pump is typically applied to
lessen the likelihood of system
down-time if the main pump mal-
functions.
(See Figure 10 for unit installation of
a central pumping system).
Figure 10: Central pumping system installation

16
Well Water
Systems
Application
Considerations
7
6
2
3
4
5
Figure 11: Well water installation
1
98
Supply
Overflow
Return
General
A well water application involves an
open loop water supply. The water
is drawn from an open well or pond
into the unit. A straining device is
required with this application.
Similar to the closed loop design,
an open water supply usually
remains at a constant temperature
year round utilizing maximum
efficiency in unit design.
See Figure 11 for open well water
installation.
Well Water
Application
 Ball valves should be installed
in the supply and return lines
for unit isolation and unit water
flow rate balancing (if auto-
matic flow device is not
selected). This connection,
along with hoses, are also rec-
ommended for backflushing
and chemical cleaning of the
evaporator and the condenser.
 Flexible hoses may be used to
connect the water supply and
return lines to the water inlets
and outlets. These hoses
reduce possible vibration
between the unit and the rigid
system.
Note: Hoses and or pipes
should be braided stainless
steel, and sized suitable for the
system’s water pressure and
flow rate.
 Load side connections are
used to supply the terminal
device.
 The sound attenuation pad
should be slightly oversized for
the unit. This field supplied
product is recommended for
sound absorption of unit.
 The low voltage control con-
nection provided on the unit is
large enough for attaching con-
duit.
 The expansion tank should be
sized to maintain pressure on
the system.
 The line voltage disconnect
should be installed for branch
circuit protection. The unit is
supplied with an opening for
attaching conduit.
 The water regulating valve
assembly is used to maintain
refrigerant pressure in refriger-
ant circuit as the entering water
temperature varies or is cooler
than ideal.
 Schrader connections are
factory installed for ease of
attaching the water regulating
valve assembly.

17
Earth Coupled
Application
 Ball valves should be installed
in the supply and return lines
for unit isolation.
 Flexible hoses may be used
to connect the water supply
and return lines to the water
inlets and outlets. These hoses
reduce possible vibration
between the unit and the rigid
system.
Note: Hoses and or pipes
should be braided stainless
steel, and sized suitable for the
system’s water pressure and
flow rate.
 Load side connections are
used to supply the terminal
device.
 The sound attenuation pad
should be slightly oversized for
the unit. This field supplied
product is recommended for
sound absorption of unit.
 The low voltage control con-
nection provided on the unit is
large enough for attaching con-
duit.
 The ground loop pump mod-
ule is designed for circulating
commercial loops that require
a maximum flow rate of 20
gpm.
 The line voltage disconnect
should be installed for branch
circuit protection. The unit is
supplied with an opening for
attaching conduit.
 All polyethene pipe in the
closed loop design should be
insulated to eliminate the risk
of sweating.
Distributed
Pumping
System
Application
Considerations
General
A distributed pumping system con-
tains either a single or dual pump
module connected directly to the
units supply and return source side.
This design requires individual
pump modules specifically sized for
each water source heat pump. Cen-
tralized pumping is not required.
See Figure 12 for a distributed
pumping installation.
Figure 12: Distibuted pumping installation
8
6
7
3
5
4
2
1

18
Electrical
Data
Table E-1: Electrical Data
Model: WPWD 024 036 042 048 060 072
Voltage 208-230/60hz/1phase
Compressor RLA 11.4 15 18.4 20.4 28 32.1
Compressor LRA 56 73 95 109 169 169
Minimum Circuit Ampacity 16 21 25.8 28.6 39 45
Max Fuse Size 25 30 40 45 60 70
Aux Pump Amps 2.5 2.5 2.5 2.5 2.5 2.5
Desuperheater Min Cir Ampacity 14.3 18.8 23 25.5 35 40.1
Desuperheater Pump RLA 0.4 0.4 0.4 0.4 0.4 0.4
Voltage 208-230/60hz/3phase
Compressor RLA - 10.7 11.4 13.9 20 19.3
Compressor LRA -63 77 88 123 137
Minimum Circuit Ampacity -15 16 19.4 28 27
Max Fuse Size -20 25 30 45 40
Aux Pump Amps -2.5 2.5 2.5 2.5 2.5
Desuperheater Min Cir Ampacity - 13.4 14.3 17.4 25 24.1
Desuperheater Pump RLA -0.4 0.4 0.4 0.4 0.4
Voltage 460/60hz/3phase
Compressor RLA - 5 5.7 7.1 7.5 10
Compressor LRA -31 39 44 49.5 62
Minimum Circuit Ampacity - 7 8 10 10.5 14
Max Fuse Size -15 15 15 15 20
Aux Pump Amps -2.5 2.5 2.5 2.5 2.5
Desuperheater Min Cir Ampacity -6.3 7.1 8.9 9.4 12.5
Desuperheater Pump RLA -0.4 0.4 0.4 0.4 0.4
Voltage 575/60hz/3phase
Compressor RLA - - - - 6.4 7.8
Compressor LRA - - - - 40 50
Minimum Circuit Ampacity - - - - 9 11
Max Fuse Size - - - - 15 15
Aux Pump Amps - - - - 2.5 2.5
Desuperheater Min Cir Ampacity - - - - 8 9.8
Desuperheater Pump RLA - - - - 0.4 0.4
Voltage 265/60hz/1phase
Compressor RLA 9.6 14.3 16.4 17.1 - -
Compressor LRA 47 71 83 98 - -
Minimum Circuit Ampacity 13.5 20 23 24 - -
Max Fuse Size 20 30 35 35 - -
Aux Pump Amps 2.5 2.5 2.5 2.5 - -
Desuperheater Min Cir Ampacity 12 17.9 20.5 21.4 - -
Desuperheater Pump RLA 0.4 0.4 0.4 0.4 - -
