Transcend DrivePro Body 70 User manual

User’s Manual
2023/03（v1.0）
Body Camera DrivePro Body 70

Table of Contents
1. Package Contents
2. Getting Started
2-1 Function Buttons
2-2 Mounting the DrivePro Body
2-3 Function Button Description
2-4 LED Indicators
2-5 Charging the DrivePro Body
3. Recording Videos
3-1 Buffering Mode
3-2 Recording Mode
4. Taking Photos
5. Audio Recording
6. Advanced Feature
6-1 Bluetooth Team Sync
7. Using the DrivePro Body App
7-1 Downloading and Installing the DrivePro Body App
7-2 Connecting to the DrivePro Body App
7-3 DrivePro Body App Homepage
7-4 Playing Videos and Browsing Photos
7-5 Settings
8. Using the DrivePro Body Toolbox Software
8-1 System Requirements
8-2 Status
8-3 Settings
8-4 Tools
8-5 File Manager
8-6 Preference
9. Transferring Files to a Computer
10. Docking Station (Optional)
11. Cautions
12. IP68 Protection
13. Specifications
14. Frequently Asked Questions
15. EU Compliance Statement
16. Recycling and Environmental Protection
17. Warranty Policy

18. GNU General Public License (GPL) Disclosure
19. End-User License Agreement (EULA)
20. Federal Communications Commission (FCC) Statement
21. Eurasian Conformity Mark (EAC)

1. Package Contents
DrivePro Body 70 Belt holster Adapter
3.5mm to USB cable Clip mount Velcro holder
Quick Start Guide

2. Getting Started

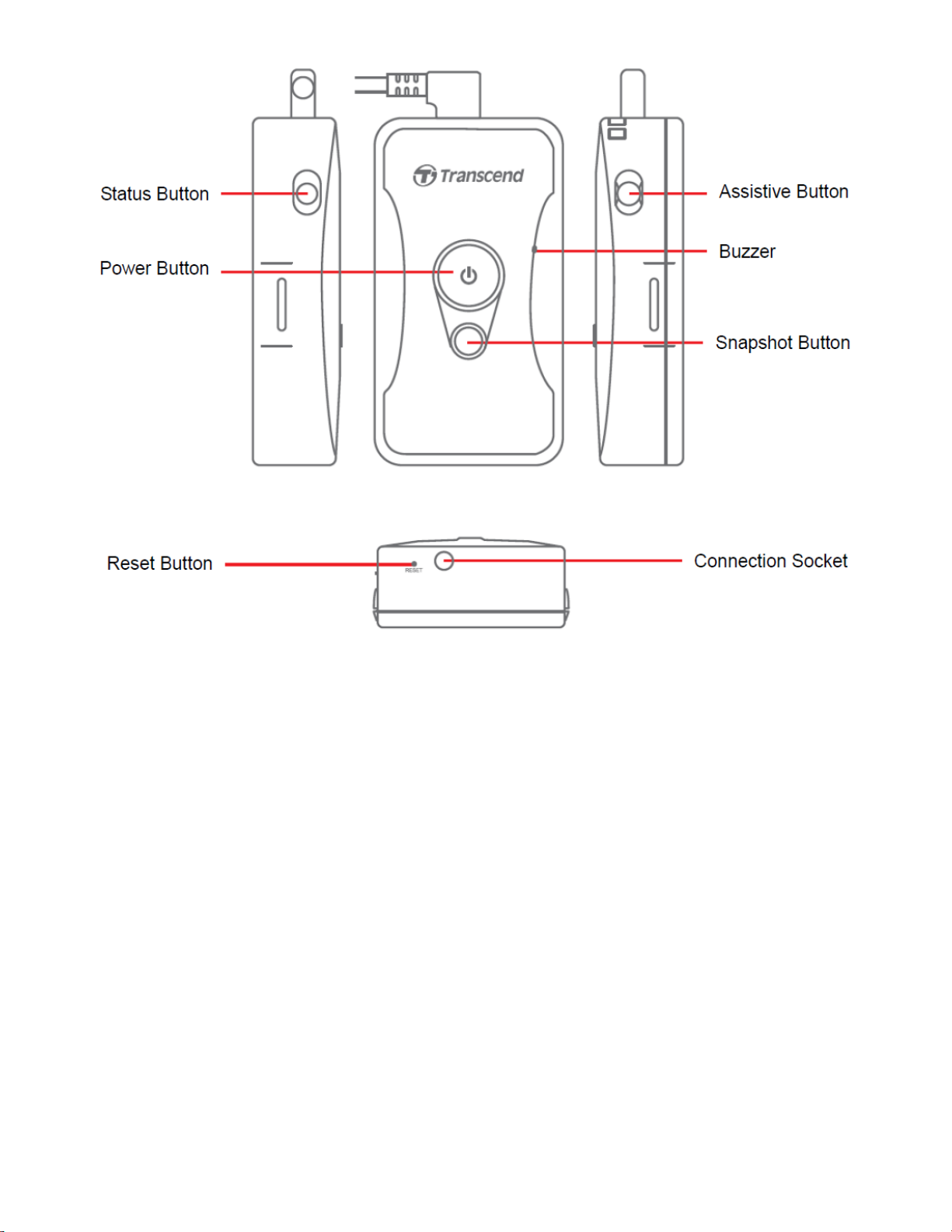

2-1 Function Buttons

2-2 Mounting the DrivePro Body

2-3 Function Button Description
Button Instruction Description
Power
Button
Long press once Power on/off
Short press twice Switch between Buffering mode and Recording mode.
Default: Buffering mode
Snapshot
Button
Long press once Audio recording
Short press once Take a snapshot.
＋Press for 5+ seconds
Reset, format and power off the device.
This function is disabled by default and can be enabled
using the DrivePro Body Toolbox.
Warning: All data will be permanently erased.
Status
Button
Press for 5 seconds Pair and connect to Bluetooth.
Short press once Check the battery and recording status.
Assistive
Button Long press once Turn on/off the light indicators and the buzzer (Stealth
Mode)
Short press twice Turn on/off the microphone (Silent Mode)

2-4 LED Indicators
Top View 1
Recording
LED Status LED Definition
Flashing Low battery
Connected to a computer / power source
LED Status LED Definition
Solid Charging
Checking the battery status
LED Status LED Definition
Solid > 67% remaining
Solid 31% to 67% remaining
Solid < 31% remaining

Top View 2
Recording
LED Status LED Definition
Flashing Memory almost full
Flashing quickly Bluetooth pairing
Flashing GPS positioning
Solid Checking status
in Buffering mode
Flashing steadily Checking status
in Recording mode
Flashing twice Checking status
in Audio recording mode
Solid Silent mode (Microphone off)
Connected to a computer
LED Status LED Definition
Flashing Transferring data

Front View
LED Status LED Definition
Solid Buffering mode
Flashing quickly Powering on
Flashing steadily Recording mode
Flashing twice Audio recording mode
Solid Browser /
Connected to a computer

2-5 Charging the DrivePro Body
Before use, please ensure that the battery is fully charged. Charge the DrivePro Body via the
adapter or by connecting the USB cable to the computer. A solid orange light of the battery
indicator is visible while charging and will turn off when fully charged.
To charge the DrivePro Body, you can either:
Connect the 3.5 mm to USB cable to the body camera and a wall outlet with the included
adapter.
Connect the 3.5 mm to USB cable to the body camera and a computer.
Connect the DrivePro Body to Transcend’s Docking Station (Optional).
"WARNING"
Do not use non-original 3.5 mm to USB cable to charge.


3. Recording Videos
3-1 Buffering Mode
Recording in Buffering mode can significantly save storage space as the files are not recorded
to the internal storage.
To power on and start Buffering mode (by default), long press the button; you will hear a
beep. The recording indicator will flash red when powering on and then turn solid blue in
Buffering mode.
To stop recording and power off, long press the button; you will hear a beep. The LED light
and the device will turn off.
To switch between Buffering mode and Recording mode, double-press the button. You will
hear two beeps.
"Note"
Buffered video length is adjustable via the DrivePro Body Toolbox.


3-2 Recording Mode
When an incident occurs, switch to Recording mode. The recorded file and up to 2 minutes of
footage before the incident will then be stored in internal memory.
To start Recording mode, double-press the button while DrivePro Body 70 is in Buffering
mode. You will hear two beeps, and the recording indicator will flash red. To stop recording,
long press the button again. After hearing a beep, the LED light and the device will turn off.
Video files recorded in Recording mode will be saved in the folder named “VIDEO” and
overwritten with loop recording enabled.
DrivePro Body 70 saves video files every 3 minutes automatically. (The default recording
length is 3 minutes).
4. Taking Photos
Short press the button to take photos while recording. When you hear a beep, it means the
snapshot has been taken. Pictures will be saved in the folder named “PHOTO.”
"Note"
Loop recording is disabled by default and can be enabled using the DrivePro Body
Toolbox.


5. Audio Recording
To start Audio recording mode, long press the button. Audio Recording files will be saved
in the folder named “AUDIO.”
6. Advanced Feature
6-1 Bluetooth Team Sync
“Bluetooth Team Sync” is a function based on Bluetooth technology. Within an acceptable
range of Bluetooth, as long as a body camera enters Recording mode from Buffering mode,
other body cameras of the same team will also enter Recording mode.
"Note"
1. Bluetooth Team Sync is disabled by default and can be enabled using the DrivePro
Body Toolbox.
2. This feature is available on DrivePro Body 30/60/70.


7. Using the DrivePro Body App
Developed for iOS and Android devices, the DrivePro Body App lets you watch live-view
videos and adjust the camera settings wirelessly on your smart devices.
DrivePro Body App
7-1 Downloading and Installing the DrivePro Body
App
1. Search for DrivePro Body App on the App Store or Google Play.
2. Download and install the DrivePro Body App.
Once the installation is complete, the App will be displayed on your device's home screen.

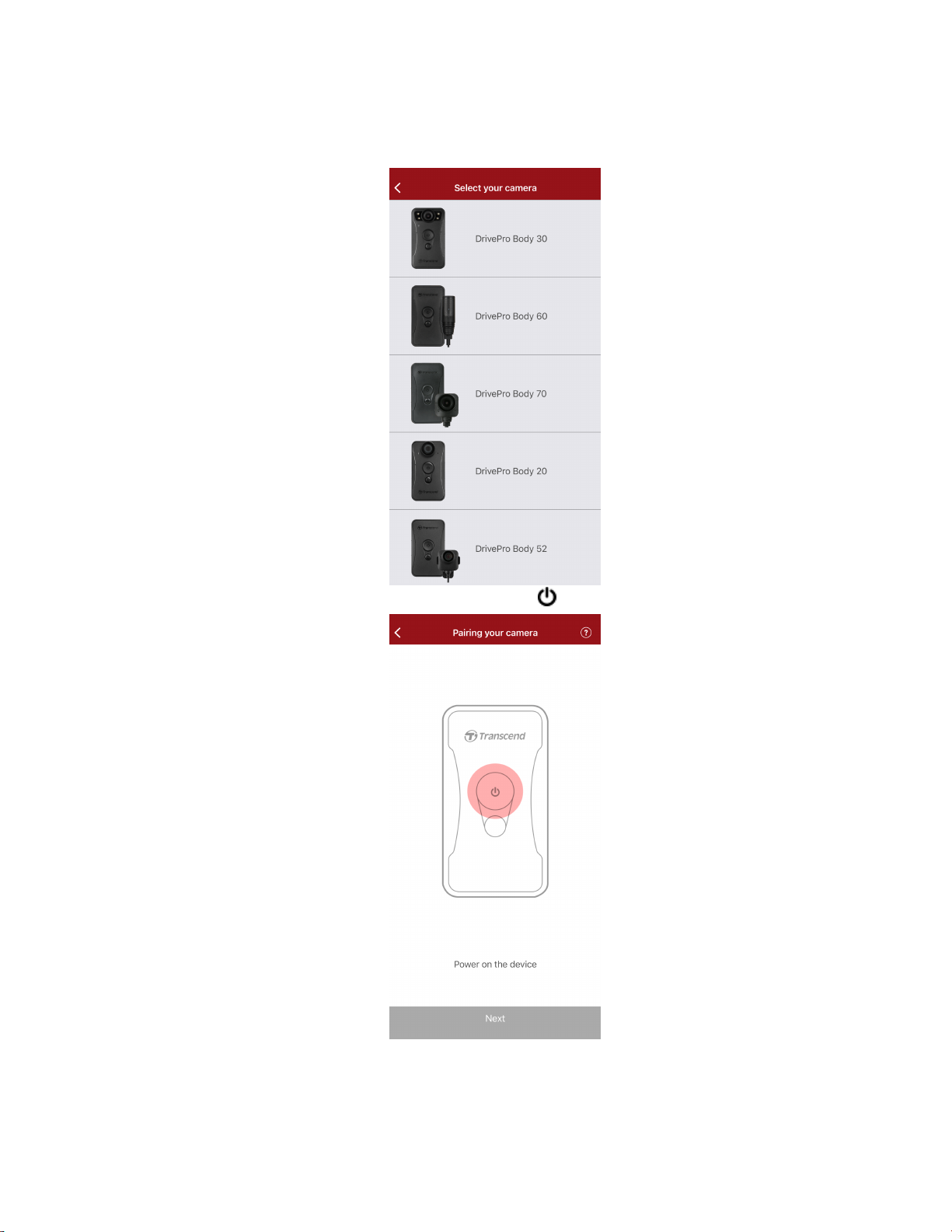

7-2 Connecting to the DrivePro Body App
1. Tap “DrivePro Body” App and turn on Bluetooth to pair. Select “DrivePro Body 70” on the
App.
2. Power on the DrivePro Body by long pressing the button. Tap “Next” to continue.

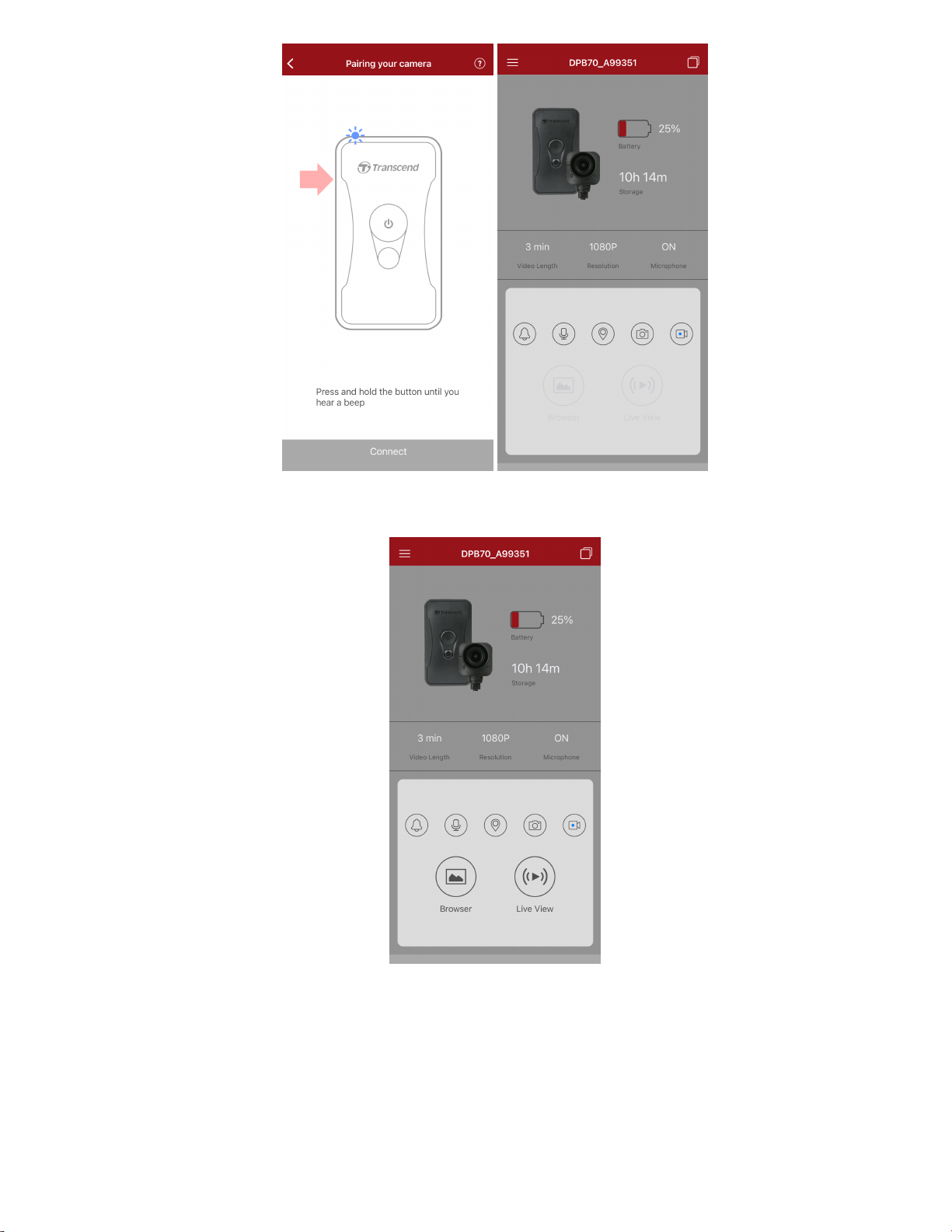

3. Long press the Status button until you hear a beep. Tap “Connect” on the App to connect
to Bluetooth. After hearing three beeps, you can take snapshots, switch recording modes,
or adjust settings via the App.

4. Tap “Browser” or “Live View” to connect to Wi-Fi named “DPB70_XXXXXX” with the
default password “12345678”.

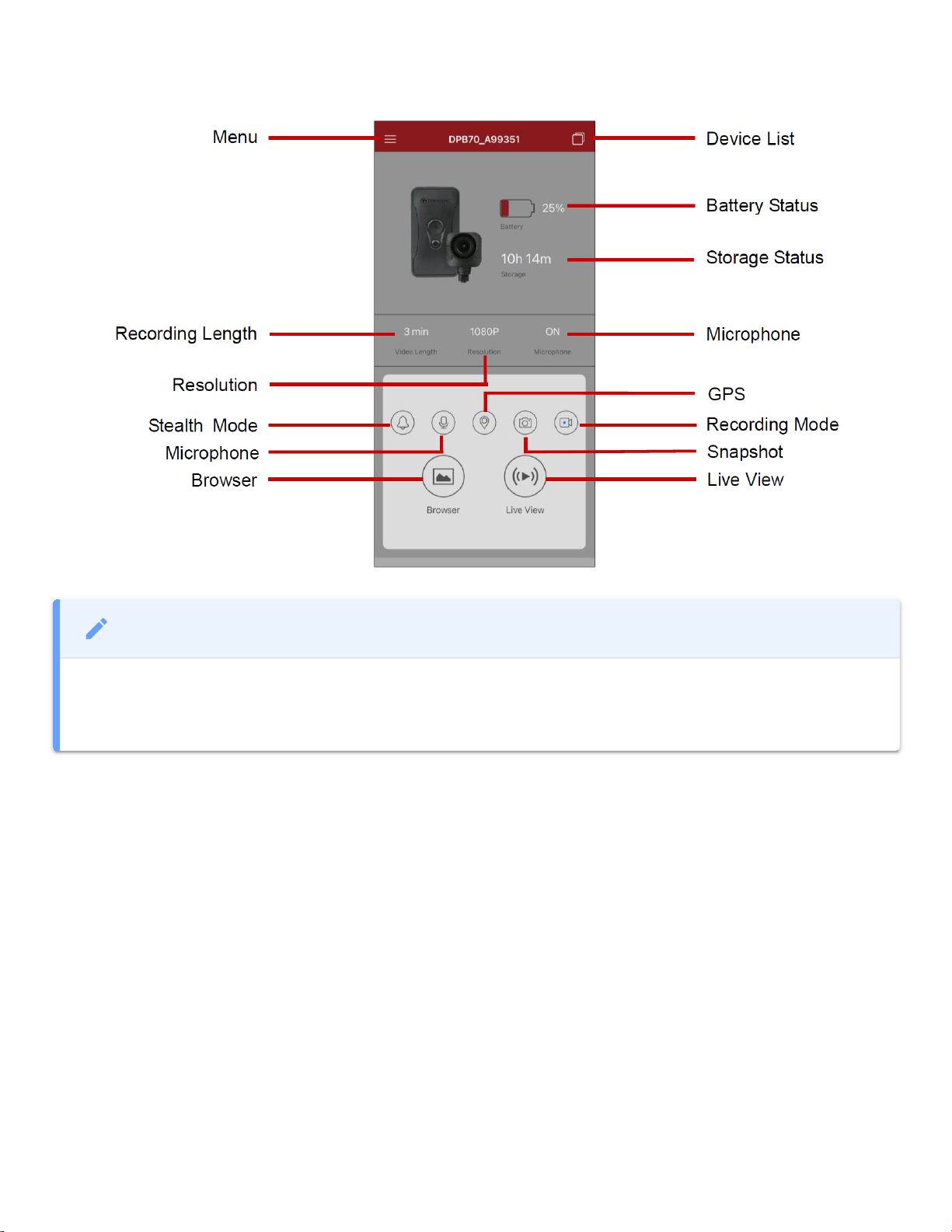

7-3 DrivePro Body App Homepage
"Note"
The camera stops recording when you tap “Browser” or “Settings” on the DrivePro Body
App, and the front LED turns solid red.


7-4 Playing Videos and Browsing Photos
1. To play videos and browse photos, tap “Browser” on the Homepage or on the top left
corner first, then tap .
2. Tap the icons on the bottom to watch videos, browse pictures, or listen to audio
recordings.
