Transcom TS-1000-11-SFP User manual
SHENZHEN TRANSCOM TEHCNOLOGY LIMITED / 303, Building 4, Fantasia MIC Plaza,Nanshan District,Shenzhen,China.
Tel: +86 755 88278677 / Fax: +86 755 26029402 / Web: www.sz-transcom.com

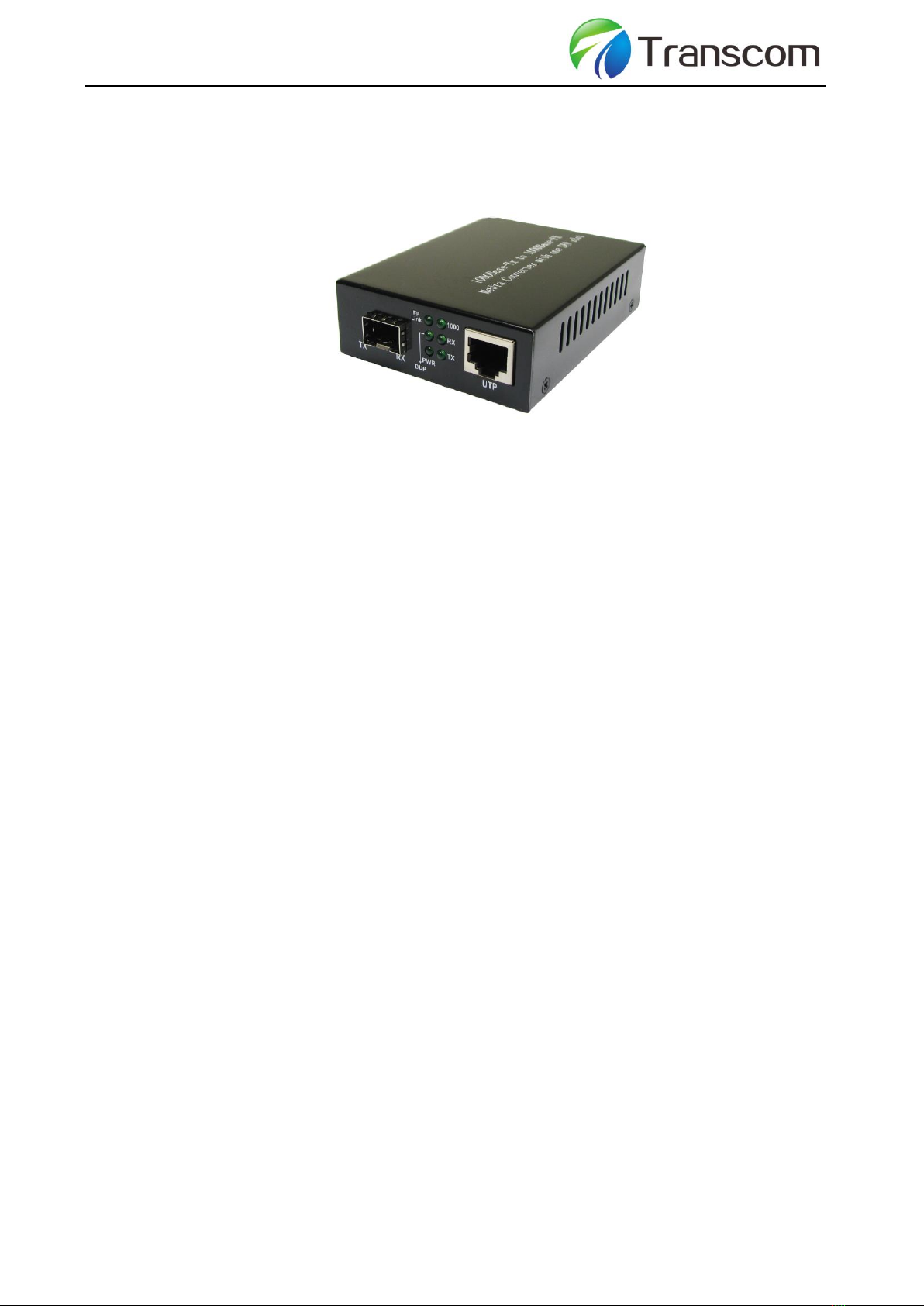

Gigabit Ethernet Converter 1 Tx port &1 SFP slot
Copyright Statement
This publication may not be reproduced as a whole or in part, in any way whatsoever unless prior consent has been
obtained .
FCC Warning
This series converters have been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These standards are designed to provide reasonable protection against harmful interference
when these devices are operated in a commercial environment. These devices generate, use, and can radiate radio
frequency energy and may cause harmful interference to radio communications unless installed in accordance with this
User’s Guide. Operation of these devices in a residential area is likely to cause harmful interference which will make
the user responsible for the appropriate remedial action at his / her own expense.
CE Mark Warning
These are Class A products. In a domestic environment these products may cause radio interference in which case the
user will need to consider adequate preventative methods.
1. Packing list
The box should contain the following items:
- Gigabit ethernet converter 1 Tx port & 1 SFP slot
- AC-DC Power Adapter (for external power units)
- User’s guide
- Warranty Card
Please notify your sales representative immediately if any items are missing or damaged.
2. Overview
This series converters are designed to meet the massive needs for Gigabit network deployment and able to extend a
SHENZHEN TRANSCOM TEHCNOLOGY LIMITED / 303, Building 4, Fantasia MIC Plaza,Nanshan District,Shenzhen,China.
Tel: +86 755 88278677 / Fax: +86 755 26029402 / Web: www.sz-transcom.com
copper based Gigabit network via fiber cable to a maximum distance up to 80KM.
This series converters are fully compliant with IEEE802.3z & 802.3ab standards. It can be installed into a Standard
Converter Chassis. The installation & operation procedures are simple & straightforward. Operation status can be locally
monitored through a set of Diagnostic LED located in the front panel.
Features
1000Base-T to 1000BASE-SX/LX Converter
Standard : IEEE 802.3z & 802.3ab
Interface: 1 x RJ-45 connector
1 x SFP Slot
MDI/MDIX Auto-Crossover supported
LED: Power , DUP,FP-LINK,RX,1000,TX
Plug-and-Play installation
Support Link Alarm
Support Jumbo Frame (64-9216 Byte)
Support Voltage Monitor
3. Installation
• Attach fiber cable from the converter to the fiber network. The fiber connections must be matched –transmit
socket to receive socket.
• Attach a UTP cable from the 1000BASE-T network to the RJ-45 port on the converter.
• Connect the power adapter to the converter and check that the Power LED lights up. The TP-Link and RX LEDs will
light up when all the cable connections are satisfactory.
SHENZHEN TRANSCOM TEHCNOLOGY LIMITED / 303, Building 4, Fantasia MIC Plaza,Nanshan District,Shenzhen,China.
Tel: +86 755 88278677 / Fax: +86 755 26029402 / Web: www.sz-transcom.com
4. LED Description
LED
function
status
Description
DUP
UTP port duplex
LED
ON
Full duplex
OFF
Half duplex
FP-LINK
Fiber port
link/action status
LED
ON
Fiber link is ok.
OFF
Fiber link is fail.
PWR
Power LED
ON
Power is ON.
OFF
Power is Fail.
RX
UTP port
link/action status
LED
ON
The TP link in ok
Blink
Data is been received or transmitted
OFF
The TP link in fail
1000
UTP port speed
LED
ON
1000M speed
OFF
Power is fail
TX
UTP port
link/action status
LED
ON
The data send out
5. Technical Specifications
1000Base-T to 1000Base-SX/LX Media Converter With SFP Slot
1. Standard Protocol: IEEE802.3 10 Base-T standard
IEEE 802.3u 100Base-TX/FX standard
2.Connector:one RJ-45connector,one SFP slot
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter: outside: 5V DC 1A
built-in: 110-265V AC 48VDC
5. Environmental temperature: 0℃-60 ℃
6. Relative humidity: 5%-90%
7. TP cable: Cat5 UTP cable
8. Fiber :50/125,62.5/125um multi-mode fiber ; 9/125,10/125um single-mode fiber.
9. Dimensions:
External power supply: 26mmx 71mm x 94mm
SHENZHEN TRANSCOM TEHCNOLOGY LIMITED / 303, Building 4, Fantasia MIC Plaza,Nanshan District,Shenzhen,China.
Tel: +86 755 88278677 / Fax: +86 755 26029402 / Web: www.sz-transcom.com
Cautions:
1. This product is suitable for indoor application.
2. Put on the dust cover of fiber interface when not used.
3. It is forbidden to stare at the TX fiber-transfer end with naked eyes.
