TRANSIENT VIY5-1500 User manual

VIY5-1500
Ground Penetrating Radar
User Manual
Part 1. Equipment

© Transient Technologies LLC 2021
Transient Technologies LLC
ofce 604, 13 Evgena Sverstuka str.
Kyiv 02002, Ukraine
Phone: [phone]
E-mail: [e-mail]
Web-site: www.viy.ua
VIY® – registered trademark of Transient Technologies LLC
All pictures in this User Manual are given for reference purpose only, and may differ from
actual product appearance.
Product design and specication may be changed by manufacturer without notication.

Contents
General information ................................................................................................. 4
VIY5-1500 Ground Penetrating Radars........................................................................... 4
Package options ............................................................................................................... 4
The VIY5-1500 set consists of ....................................................................................... 4
List of Equipment and Accessories ................................................................................. 4
Main components description................................................................................. 5
Connecting telescopic pole TP-2..................................................................................... 6
Getting Started.......................................................................................................... 8
Connecting antenna unit to a laptop .............................................................................. 8
Mounting the laptop shelf on the operator’s backpack ................................................ 9
GPR parameters setting and GPR calibration ............................................................... 11
Specications ........................................................................................................... 12
Limited Warranty ...................................................................................................... 13

4
General information
General information
VIY5-1500 Ground Penetrating Radars.
Ground Penetrating Radar (GPR) is designed for non-destructive scanning and inspecting of different
structures and underground objects.
VIY5-1500 GPR can be applied by contractors and other specialist for scanning structures from concrete,
brics and others building materials.
VIY5-1500 Ground Penetrating Radar (GPR) has antenna with central frequencies of 1500 MHz.
Package options
The VIY5-1500 set consists of
• 1500 MHz antenna unit
• Backpack
• Telescopic pole TP2
• User manual
9Laptop is not included in any GPR set and should be purchased separately
List of Equipment and Accessories

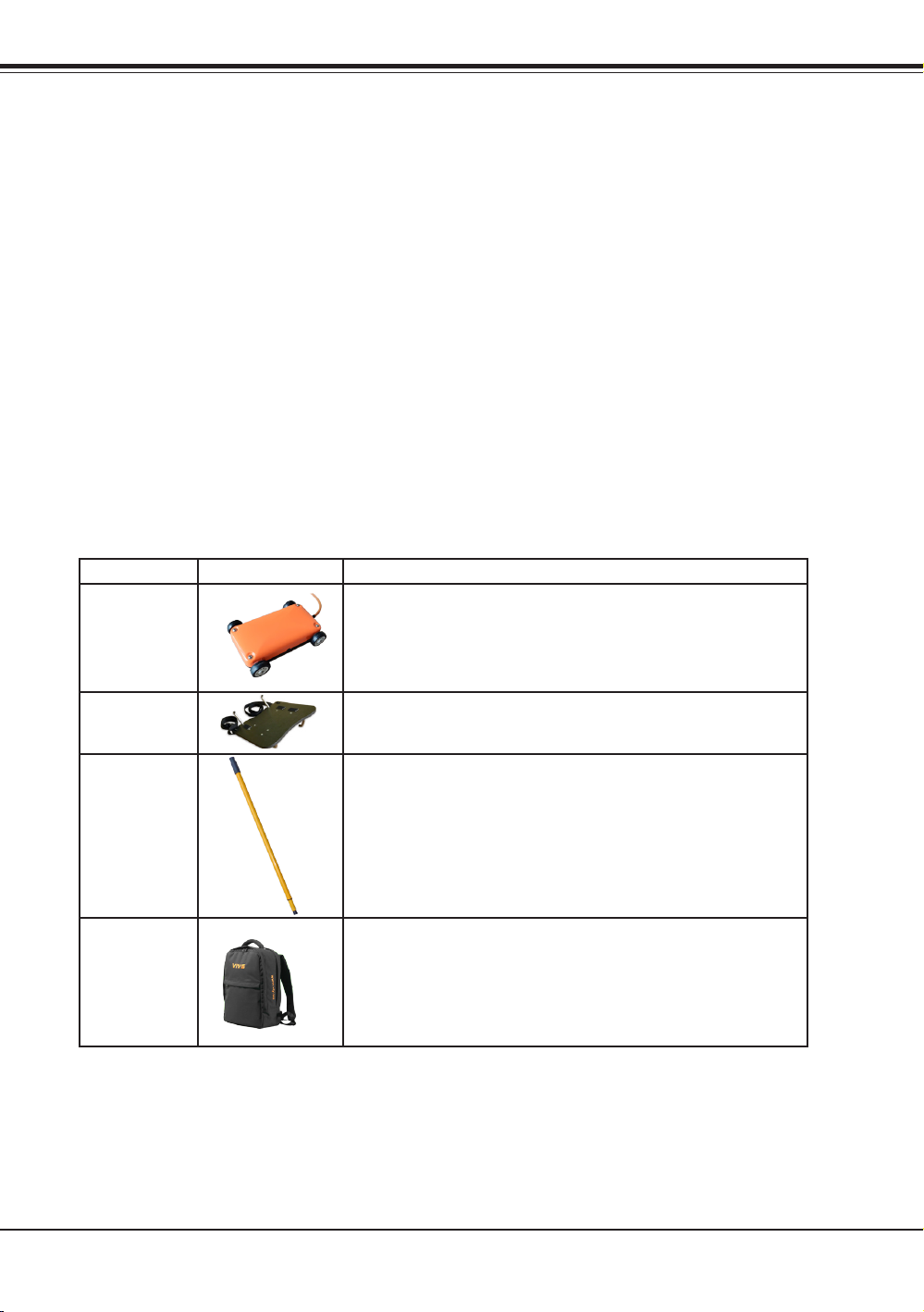

Item View Description
AB5-1500 900 MHz antenna unit with digital output. Built-in inclinometers.
Supports optional connection of GPS and measuring wheels.
Laptop holder Laptop holder, designed for fastening the laptop to the operator’s
backpack.
GPR telescopic
pole TP-2
The pole for moving of antenna forward and backward.
Can be easily mounted to antenna.
Designed to be used with VIY5-1500 GPR
Backpack The backpack for GPR antenna, accessories, laptop, and Battery
Box.

5
4
Main components description
General information
Main components description
GPR consists of antenna unit connected via USB to a computer (laptop). Operator controls antenna unit
through VIY software.
GPR antenna has four wheels. All wheels are connected and are odometers wheels.
GPR antenna does not have battery, it is powered by USB cable when it connected to the laptop.

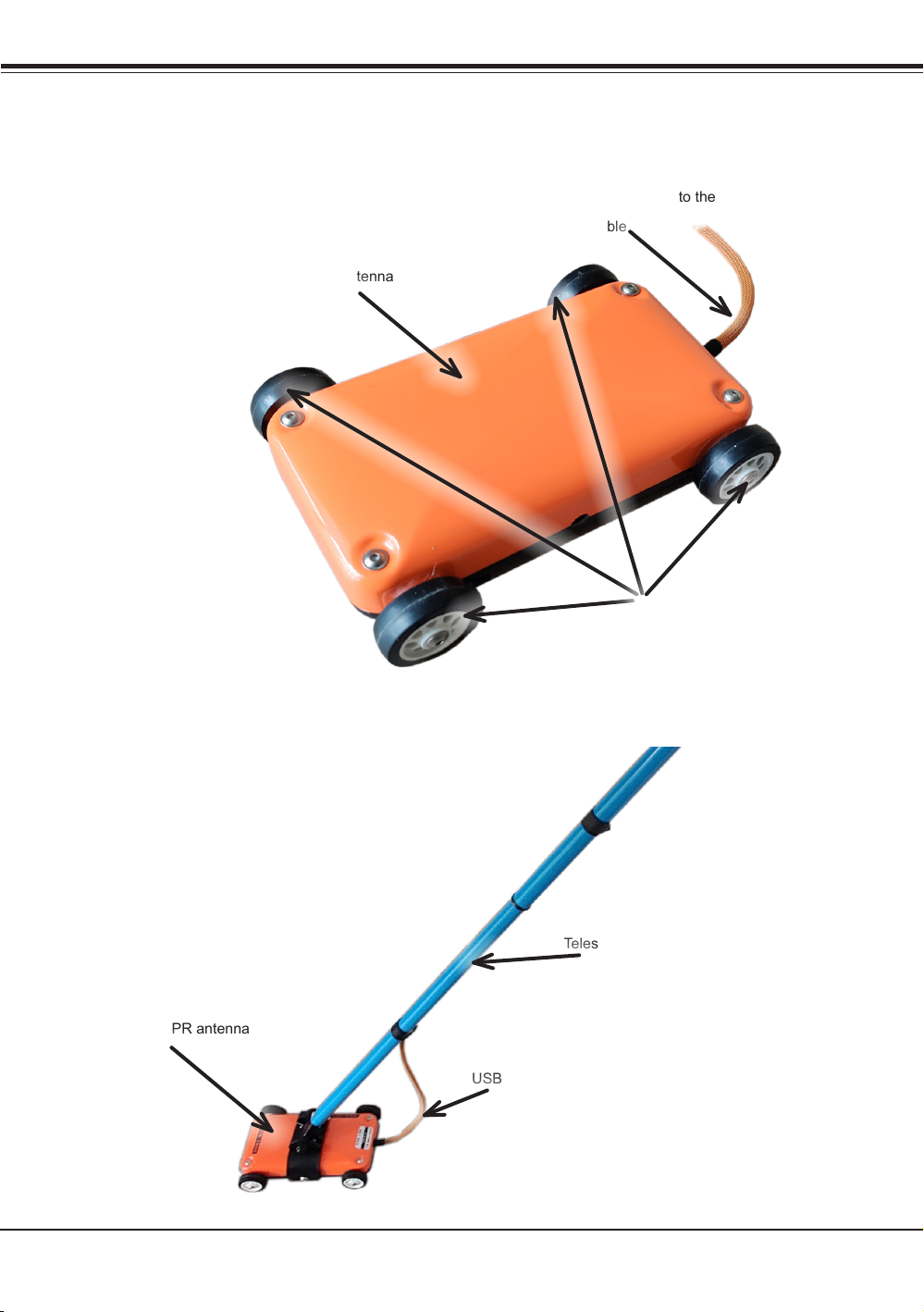

Picture below shows general view of the VIY5-1500 GPR with a transportation pole TP-2.
Odometer wheels
USB cable
GPR antenna
USB cable
GPR antenna
Telescopic pole TP-2

6
Main components description
Connecting telescopic pole TP-2
9Use the supplied wrench to screw/unscrew the screws.

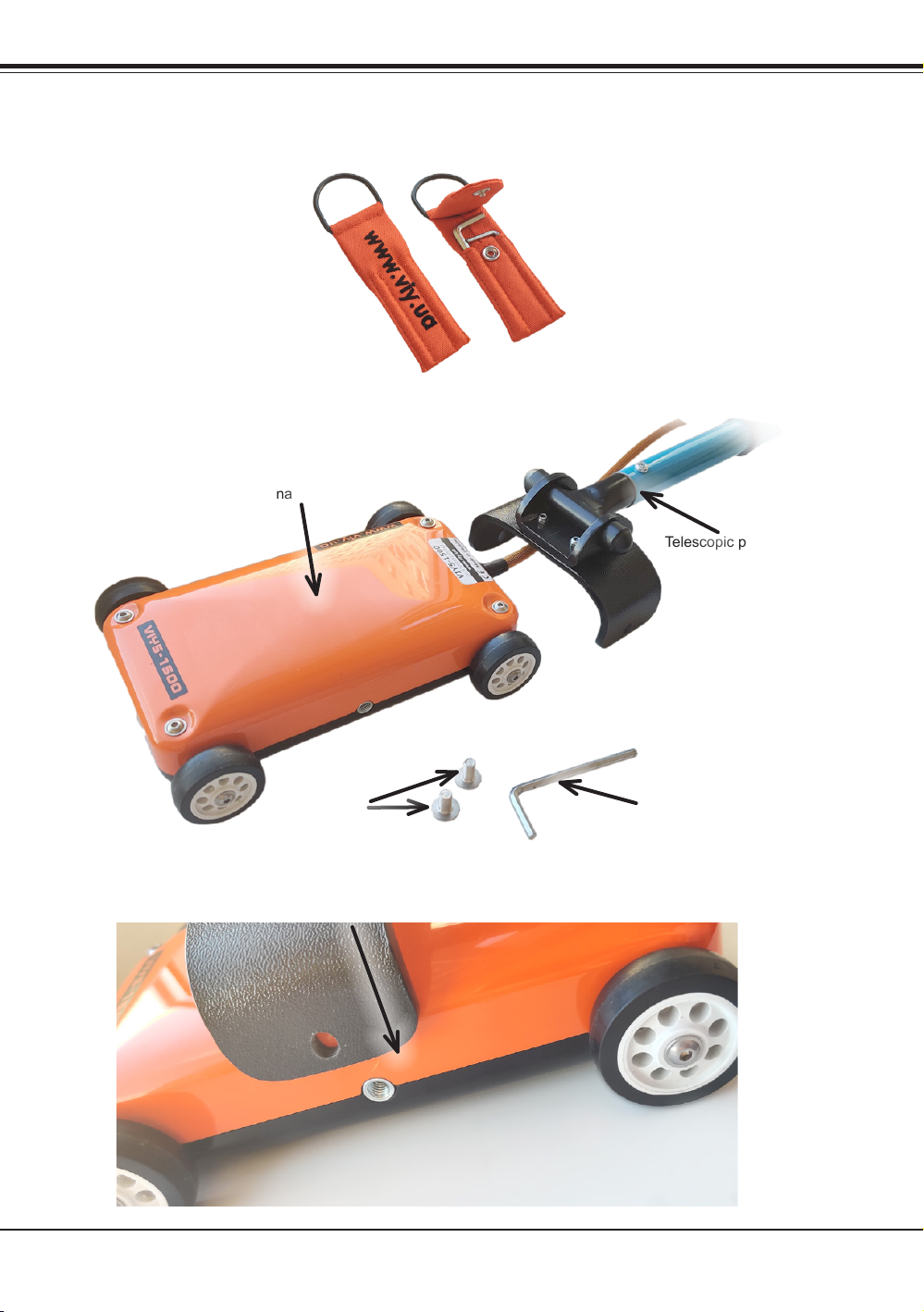

Prepare GPR antenna, telescopic pole TP-2, two screws, and wrench.
Slide the pole bracket onto the antenna
GPR antenna
Telescopic pole
Screws Wrench

7
6
Main components description
Main components description

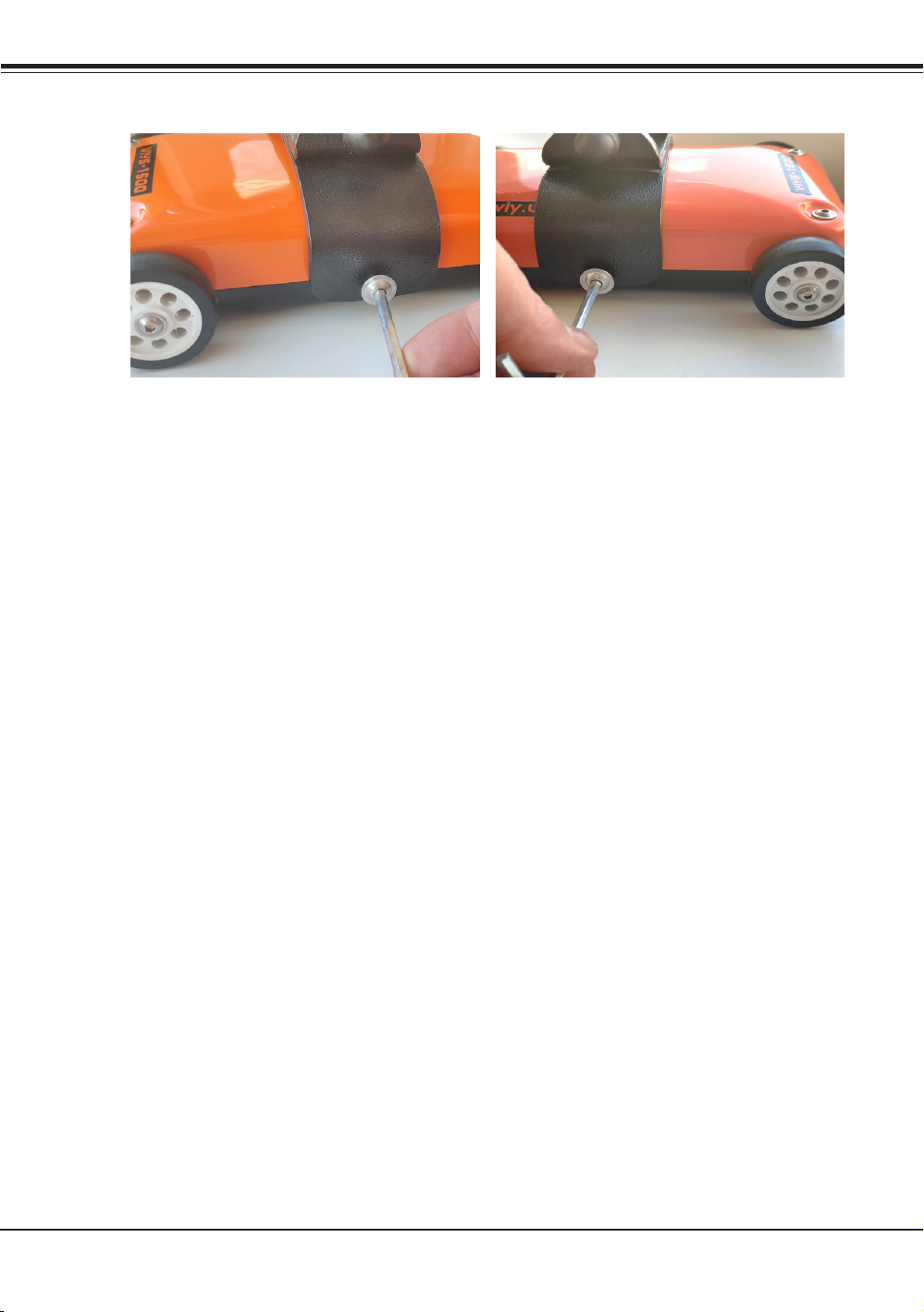

Then tighten the screw on one side.
Then on the other side.

8
Getting Started
Getting Started
Connecting antenna unit to a laptop

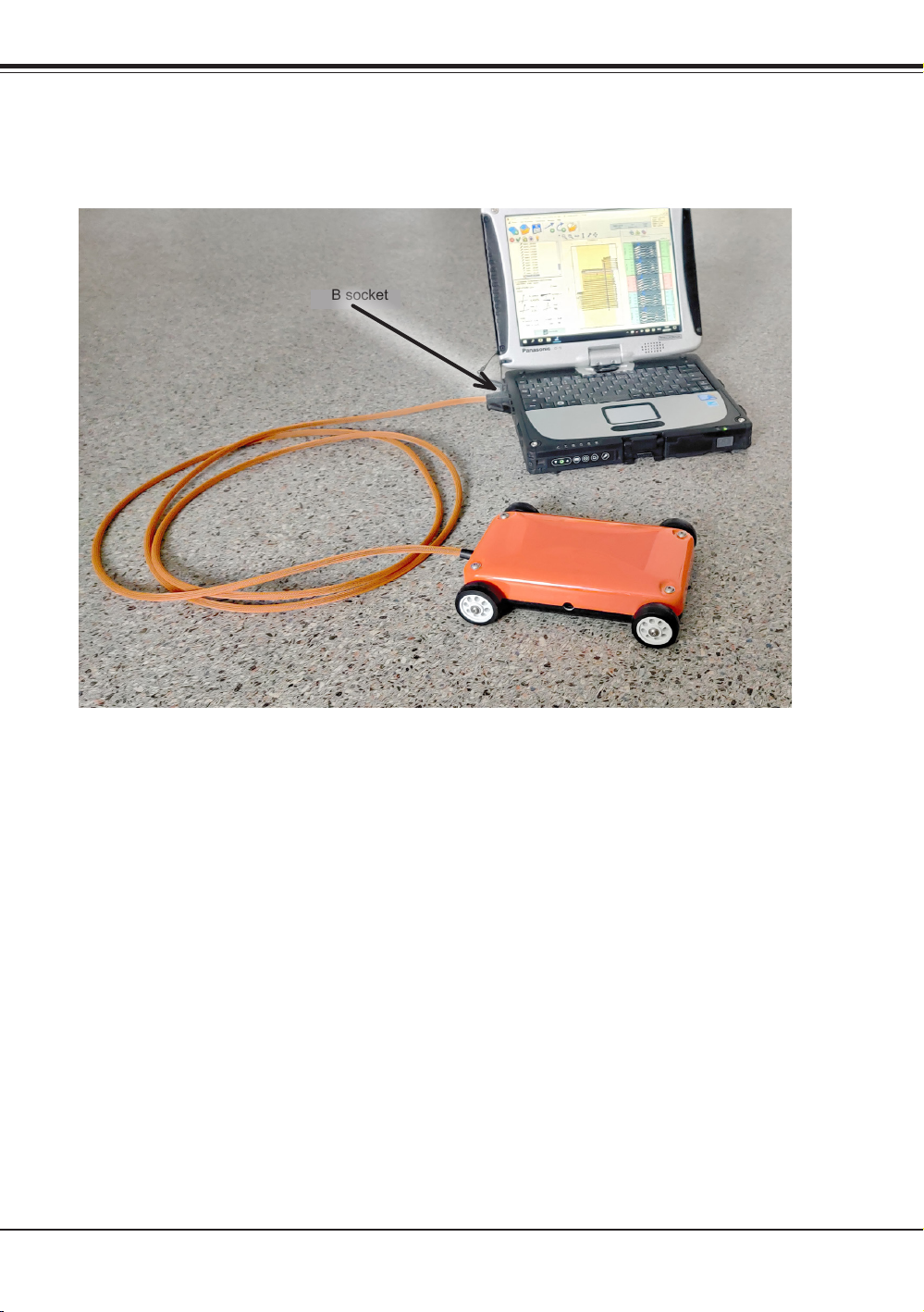

Connect USB plug into laptop’s USB socket.
GPR is ready to work!
USB socket

9
8
Getting Started
Getting Started
Mounting the laptop shelf on the operator’s backpack
If GPR is used together with telescopic pole, the laptop can be mounted on the special portable shelf that
should be fastened to the operator’s backpack.
To mount the laptop shelf follow the next steps:
• Take the laptop shelf out of the backpack.
• Stick the Velcro tape on the top of shelf and on the laptop bottom in some places (the Velcro tape is
included in GPR set).

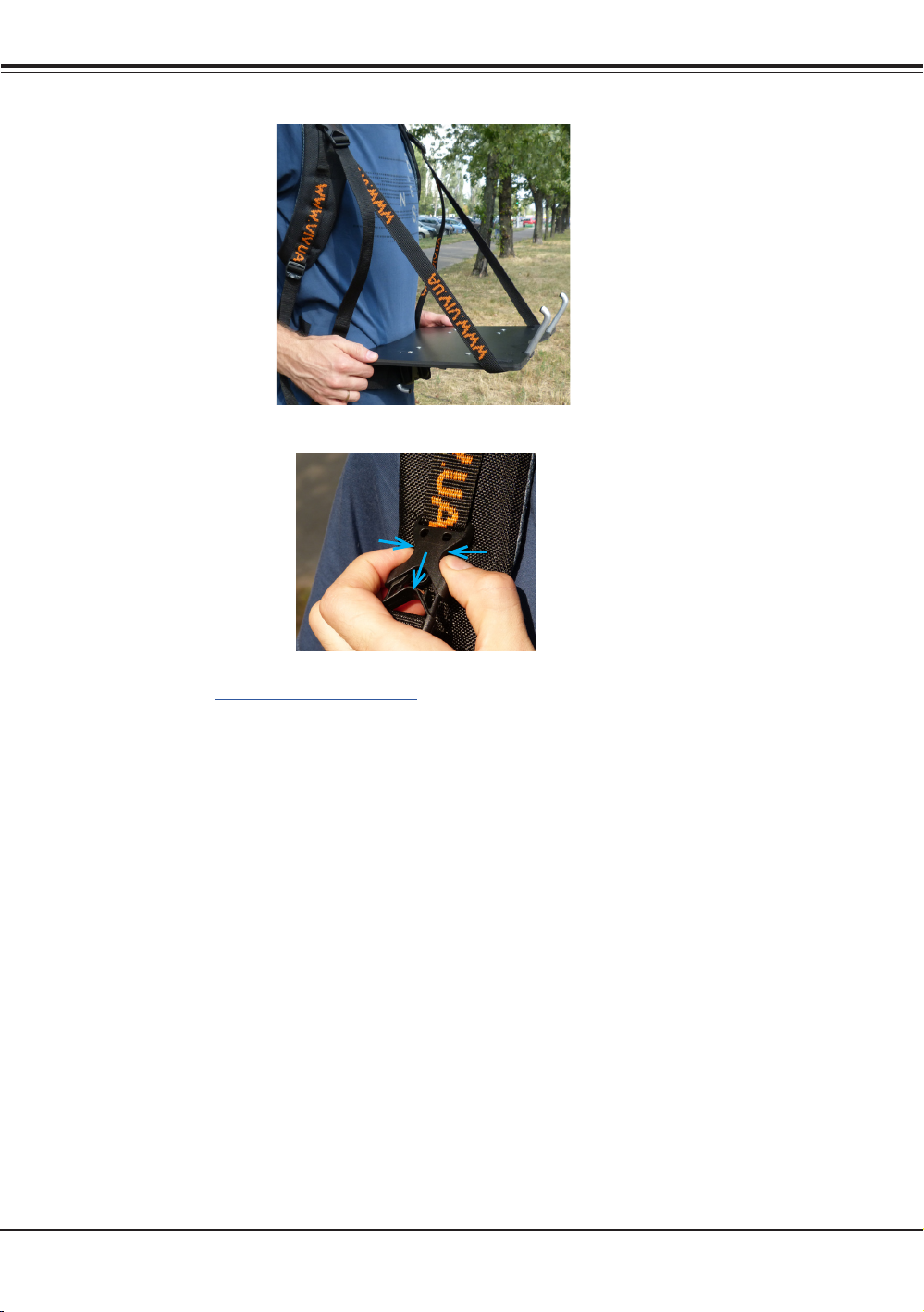

• Turn the shelf over and pull out the metallic holders (in direction shown by an arrow below).

10
Getting Started
• Turn the metallic holders 90 degree aside and put them into slots as shown on the picture below.
• Put the backpack on, adjust the backpack side stripes and fasten the backpack belt.
• Fasten operator’s shelf locks to the corresponding locks on the backpack’s stripes
• Tuck the lower holders of the shelf behind the operator’s backpack belt.
Slots

11
10
Getting Started
Getting Started
• Mount the laptop on the shelf, fastening it on the shelf with Velcro tape.
• When the work is nished, fold the shelf in the back order and pack it to the backpack.
GPR parameters setting and GPR calibration
Please read User Manual part 2. Software to nd instructions about setting up all the main GPR
parameters, its calibration and directions of using Synchro and Planner software.

12
Specications
Specications
Model of GPR VIY5-1500
Antenna unit, MHz 1500
Max sounding depth, meters (depending on soil
properties)
0.5
Survey window, nsec 8, 12, 16, 20
Spatial resolution, meters, (not worse) <0.03 m
Maximum number of samples per trace 1000
Data acquisition rate, traces per second* up to 150
Dynamic range not less than 135 dB
Interface USB2
Trigger mode single, internal, external
Analogue-to-Digital Converter range 18 bit
Weight of antenna, kg 0,6
Dimensions of antenna, L x W x H 190 x 140 x 40 mm
Operating temperature range -20°C to 40°C
Environmental rating IP65
Continuous operation time Limited only working time of the laptop
* Data acquisition rate depends on samples per trace and trace stacking.

13
12
Limited Warranty
Specications
Limited Warranty
1. Warranty.
Transient Technologies LLC warrants the enclosed hardware products to be free from defects in
material and workmanship for a period of 12 (twelve months) from the date of original retail purchase.
2. Repair Procedures, Exclusive Remedy.
Transient Technologies LLC will, at its option, repair or replace products not conforming to this limited
warranty at no charge. This is the sole and exclusive remedy available for breach of warranty or under
any other legal theory with respect to Transient Technologies LLC product. If you nd a product to
be defective, please contact your authorized Transient Technologies LLC representative or directly
to head ofce of Transient Technologies LLC. When you receive authorization, return the product as
directed, including proof of purchase and date, at your expense and risk. Product repairs not covered by
warranty, and product updates, will be provided at a set rate.
3. Limitations.
This warranty is to be avoided if the product is damaged by importer or abnormal use or by accident,
if the product is altered or modied in any way, or if any attempt is made to repair the product without
authorization from Transient Technologies LLC. It is solely the purchaser’s responsibility to determine
the suitability of these products for each particular application. Transient Technologies LLC products
are in all events not suitable, and are not authorized, for use with systems potentially injurious to life or
health. This warranty is not assignable.
4. No Other Warranties.
EXCEPT AS PROVIDED IN THIS LIMITED WARRANTY. TRANSIENT TECHNOLOGIES HARDWARE
is PROVIDED ‘AS IS’. ALL OTHER WARRANTIES AND REPRESENTATIONS, ORAL OR WRITTEN,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED AND DO NOT
APPLY, THERE ARE NO WARRANTIES WICH EXTEND BEYOND THE DESCRIPTION OF THE FACE
HEREOF. Except as required by law, no representative, agent, or employee of Transient Technologies
LLC is authorized to make warranties, representations, or obligations inconsistent with or in addition
to those set forth in this limited warranty. TRANSIENT TECHNOLOGIES LLC DOES NOT WARRANT
FOR THE CONTENTS AND SERVICES OF OTHER SITES, WHICH YOU MAY ACCESS FROM
HYPERLINKS ON TRANSIENT TECHNOLOGIES LLC WEBSITES, TRANSIENT TECHNOLOGIES
LLC INSTALLATION CD OR ANY MATERIAL.
5. No Damages.
IN NO EVENT WILL TRANSIENT TECHNOLOGIES LLC BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTIAL, OR CONSEQUENTIAL, DAMAGES RESULTING FROM ANY BREACH OF
WARRANTY OR UNDER ANY OTHER THEORY, even if advised of the possibility of such damages.
In event Transient Technologies LLC be liable for sums in excess of the purchase price of the product.
Transient Technologies LLC is thus not liable for lost prots or goodwill; downtime; damage or
destruction of any program, data, equipment, or other property; cost of recovering, reprogramming, or
reproducing any program, data, or equipment; personal injury or loss; or any other damages.
6. General.
This agreement is the entire agreement between you and Transient Technologies LLC; supersedes
any prior or different agreements, representations, or proposals; and may be changed only by written
agreement with Transient Technologies LLC . Waiver by any default or breach of this agreement will not
constitute a waiver of any subsequent default or breach of the same or different kind. The invalidity of
any provision of this agreement shall not affect the validity of the other provisions hereof.
