Water Cartage Unit
AquaModule™
AquaModule™

TTi’s AquaModule™ HandBook
2Call 1800 816 277www.tti.com.au 2
Table of Contents
Introduction 3
Safety 4
General 4
Specifications 6
General Information 7
Description Overview 7
Maintenance 11
Troubleshooting 12
Risk Assesment 13
Mounting Instructions for Chassis Frame 14

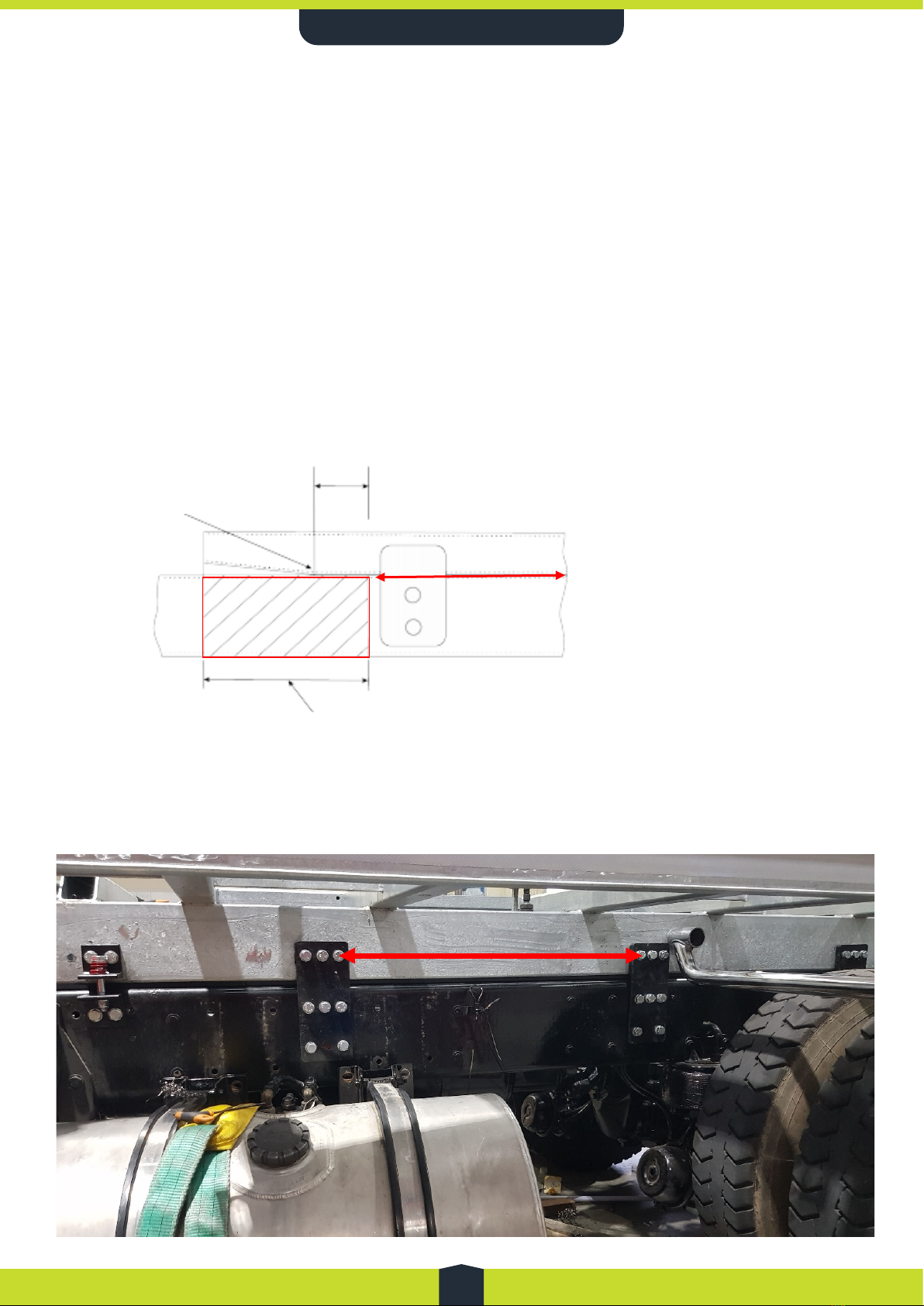

Fish Plate Mounting Instructions 14
Spring Mounting Instruction (Optional) 15
Warranty Policy 16
Warranty Limitations 17
Warranty Registration Card 18

TTi’s AquaModule™ HandBook
3Call 1800 816 277www.tti.com.au 3
Introduction
Please read your operators handbook carefully before commissioning and using
your Storm unit. Keep your handbook in a safe place.
Congratulations on your purchase of a Trans Tank International Storm Dust Suppression
Unit!
The Trans Tank International Dust Suppression System is a truck-mounted tank and
water dispenser system designed to suppress dust on unmade roads, construction
sites and other places where dust needs to be controlled. These quality built units
are supplied to you complete, tested and ready for use. TTi recommends that only
water be used in the Dust Suppression Unit.
This manual contains specific instructions for operation, driving stability &
maintenance. If properly maintained and driven safely, the Dust Suppression Unit will
provide many years of service. Trans Tank International warrant that this equipment
has been designed and built for its intended purpose of a dust suppression system
dispensing water. It is the responsibility of the owner to ensure that the equipment
is operated according to this document, in accordance with Australian Worksafe
requirements, applicable road rules and local council regulations.
Trans Tank International will not be held liable for any loss, injury or death resulting
from the failure to observe all safe working regulations as required by law.

TTi’s AquaModule™ HandBook
4Call 1800 816 277www.tti.com.au 4
Safety
General
The following pages outline important safety information. As safety is a priority at
TTI we have included some basic safety requirements. These safety and warning
instructions MUST be followed to ensure the safe operation of your equipment.
Explanation of key terms used in this operator’s manual are:
Danger - You will be killed or seriously hurt if you don’t follow instructions
Warning - You can be seriously hurt if you don’t follow instructions
Caution - You can be hurt if you don’t follow instructions
Note - Used for information that is important but not hazard related
General
• Water tanks are not designed for use with diesel fuel or any flammable liquid.
• Do not use this machine in ambient temperatures exceeding 50 degrees Celsius.
Warnings
• Any unauthorised modifications to this equipment may affect its function and
create a serious safety risk and will void any warranty
• Keep clear of overhead obstructions – especially power lines as contact can be
fatal.
• Never attempt to clean parts, or nozzles, by blowing with mouth
• Ensure equipment is securely fastened, or attached, to vehicle at all times
• Ensure that hydraulic isolation valve is always open before operation
The Operator
All operators of this equipment should be adequately trained in the safe operation
of this equipment. It is important that all operators have read and fully understand
the operator’s manual prior to using this equipment.
All new operators should be trained in an area without bystanders or obstructions
and become familiar with all controls, valves and systems prior to operation. Only
persons in good physical and mental health should operate this DSU. Do not allow
anyone under the influence of drugs or alcohol to operate this DSU.

TTi’s AquaModule™ HandBook
5Call 1800 816 277www.tti.com.au 5
Personal Protective Equipment [PPE]
Always wear close fitting clothing and safety equipment designed for the job.
Exposure to loud noise over an extended period can cause impairment or loss
of hearing. Be active in the conservation of your hearing and wear appropriate
hearing protection at all times.
Fluids Under Pressure
DO NOT disconnect any hoses, nozzles or filters while equipment is operating.
Disconnecting these components while under pressure may result in uncontrolled
fluid discharge which may be hazardous. If any components are removed for repair,
when the repair is complete ensure that all fittings and lines are secured before re-
applying pressure.
Safety Decals
Understanding safety decals and their purpose assists in the safe operation of your
water cart. Safety decals are there for your protection and it is the responsibility of
the owner operator to replace damaged and/or missing safety decals. Regularly
review safety decals with operators.
Vehicle Safety
Observe vehicle manufacturers instructions & warnings. It is the operator’s
responsibility to ensure that the dust suppression system is safe and securely mounted
on the carrying vehicle.
Warning: Do not exceed the carrying & braking capacities as specified by the
vehicle manufacturer
Weight of Liquids
Liquids have different densities and this affects the maximum volume a tank can
hold. The total weight of any tank should not exceed the weight of a full tank
of water. Water has a density of 1 ie. 1 Litre of water weighs 1Kilogram.Certain
fertilizers have a higher density Eg. Liquid nitrogen has a density of ~1.28. Thus the
total volume of liquid nitrogen in a 5000L tank should not exceed 3900 (5000/1.28 =
3906)

TTi’s AquaModule™ HandBook
6Call 1800 816 277www.tti.com.au 6
Specifications
TANK UV resistant polyethylene tank c/w LiquidLocker™ baffling
system
STANDARD
EQUIPMENT
LiquicLocker™ Baffle Safety System
Multi-Purpose Spring Rewind Hose Reel
Rotating Beacon
Pressure Regulator
Bottom Fill Kit
Sight Level Tube
OPTIONS 1,5” and 3” spray heads - solenoid operated
3” Dribble bar – solenoid operated
Open mesh Funnel for stand pipe use
In-cab control system
Pressure bar with bete spray nozzles
Water Canon
Front mounted spray heads
Mid-Mount Batter Sprays
Hose Reel Hydrant Fill
Port
Discharge
Valve
Suction
StandPipe Valve Tank Valve Suction
Valve

TTi’s AquaModule™ HandBook
7Call 1800 816 277www.tti.com.au 7
General Information
Description Overview
The unit is designed to carry and distribute water using a hydraulic powered water
pump & various water dispensing systems. A number of features incorporated in
the design are intended to ensure safe operation but it is the owner/operator’s
responsibility to ensure that this equipment is mounted securely and operated safely
at all times.
1. In-cab controls allow for safe operation of the various water dispensing systems,
the adjustment of the water pump flow rate, as well as the Amber flashing
beacon.
2. A pressure regulator is fitted to the pump discharge flange to control line pressure
& prevent pump cavitation. The factory-set regulator feeds excess water back to
the tank and is set to relieve at 80 psi.
3. Batter sprays [if fitted] are mounted to the pressurised spray bar by means of
camlock or roll-groove fittings in order to facilitate removal for cleaning or
replacement. All pressurised spray bar pipes are supplied with removable end
caps to facilitate cleaning internally should this be necessary.
4. The LiquidLocker™ system provides improvements in braking performance &
dynamic stability and controllability.
5. Frame (if supplied) The chassis frame of the Storm™ is a fully welded, all steel
construction which has been hot dip galvanised for corrosion resistance.
6. All TTi tanks are constructed from UV resistant, virgin polyethylene. Due to
the rotational moulding process, there can be a small variance in the overall
dimensions of the tank, therefore calibration markings should be used as a guide
only. A sight level tube is fitted to the tank.
7. Machine limitations All equipment is subject to operating limitations, it is the
operator’s responsibility to ensure that this equipment is being operated within
these limitations and appropriately to the operating conditions at hand.
8. Driving stability warning: To maintain stability while operating this unit,
• Ensure truck tyres are inflated to their proper pressure at all times. Underinflated
tyres can cause excessive lateral motion of the tyre, and may cause a rollover.
• Allow extra room for braking and turning when the tank is full.

TTi’s AquaModule™ HandBook
8Call 1800 816 277www.tti.com.au 8
Beacon Switch
Button
Pump Speed Dial
Spray Functions
Note: PTO must be engaged
for spray water truck operation
PTO Button
Water Dispensing Operation (In-Cab Controlled)
The Storm™ Water Truck is controlled from the vehicle cab using the in-cab control
box which allows the operator or driver to control the pump and valves while in
motion.
Pressure Bar (if fitted)
80mm Pressure bar has end caps for complete flushing.
The solenoid controlled pressure bar is activated by the
switch on the in-cab control. It is used for primary for
road cleaning.
Spray Heads
These electric over air spray heads are individually
controlled by a solenoid and feature a fully adjustable
spray pattern. Depending on the model your unit may
have 1.5” or 3” spray heads or a combination. The
heads are mounted on the spray bar with roll groove
fittings for easy adjustment.
Dribble Bar (if fitted)
80mm Dribble bar has end caps for complete flushing.
The solenoid controlled dribble bar is activated by the
switch on the in-cab control. It is used for primary dust
suppression.
Functions:

TTi’s AquaModule™ HandBook
9Call 1800 816 277www.tti.com.au 9
Water Dispensing Operation
(Rear of Truck Operation)
Hose Reel Hydrant Fill
Port
Discharge
Valve
Suction
StandPipe Valve Tank Valve Suction
Valve
20m Hose Reel
The 20 metre hose reel is fitted with an adjustable
nozzle, which permits control from off through to jet mist
spray.
Note:
Press green button to engage pump for hose reel
operation
Working Light Operation
Flick the switch to operate the light.
(The light is only operational when truck park lights are
on)

TTi’s AquaModule™ HandBook
10 Call 1800 816 277www.tti.com.au 10

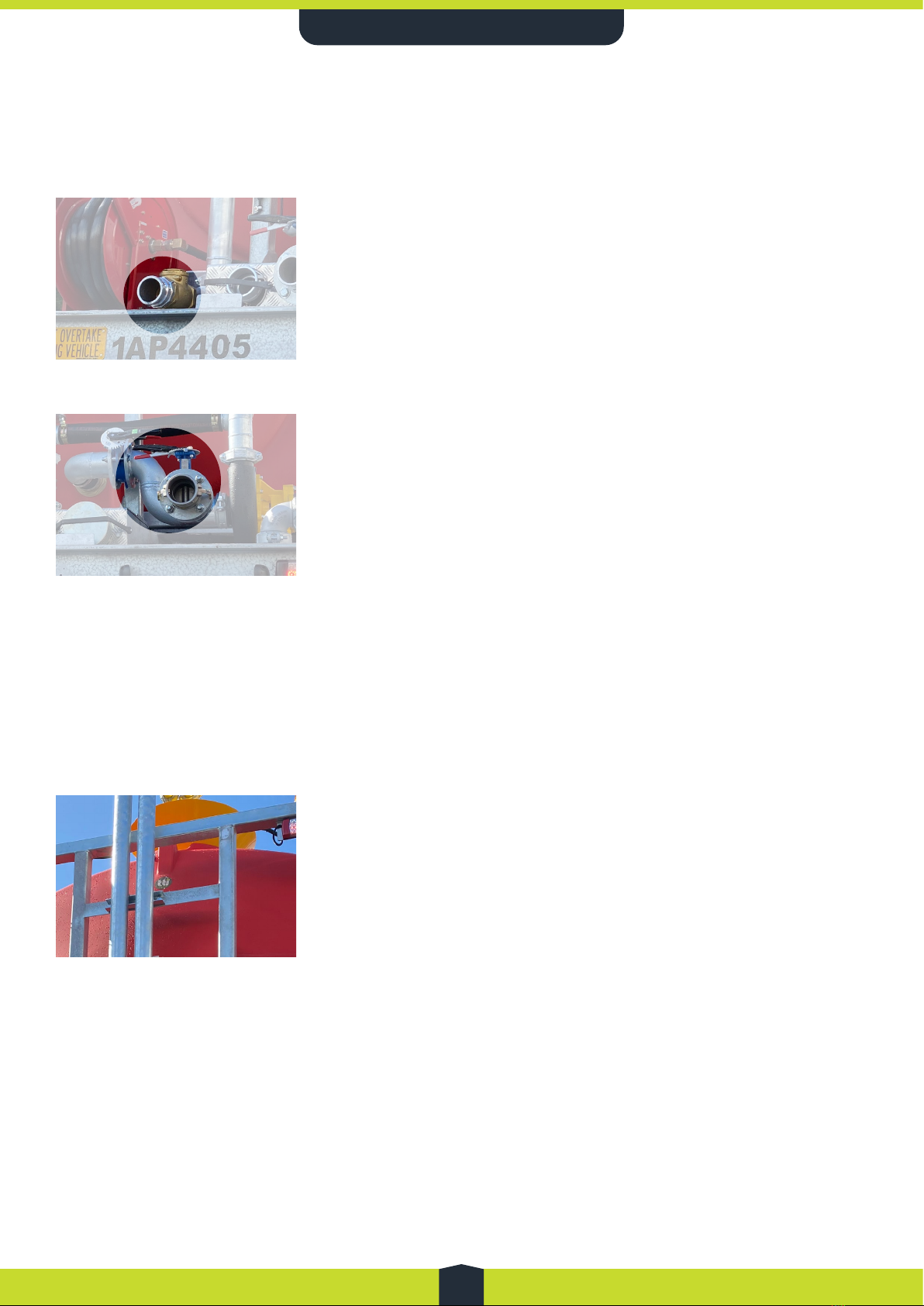

Hydrant Fill Operation
Attach the hydrant supply hose to the hydrant port.
Open hydrant slowly to ensure correct operation. Water
will flow through top hydrant filling system on unit.
When operation is complete, disconnect hose.
Bottom Fill Kit Operation
Attach the suction fill hose to the suction port.
Attach the other end of the hose to the Suction Valve
with the camlock fittings, and open the suction valve.
Open the suction valve, close the tank valve, and open
the suction standpipe valve.
Engage the pump by pressing the green button at rear
of unit.
When operation is complete:
Disengage pump by pressing green button again. Reverse
taps to original position.
Standpipe Operation
If your unit is fitted with an open mesh funnel, the tank
simply needs to be positioned below the stand pipe and
the stand pipe opened.
Filling the Tank

TTi’s AquaModule™ HandBook
11 Call 1800 816 277www.tti.com.au 11
Maintenance
• Periodically [at least annually] check all hoses, nozzles and fittings for any sign
of wear. Replace any parts which are worn or defective
• If hose reel has not been used for any length of time. Unwind it fully to check that
hose is in good order, pressurise the line & check operation of spray nozzle etc.
Rewind & lock reel on completion as per hose reel instruction above
• Check oil level in motor weekly & drain & replace oil according to manufacturer’s
recommendations in manual supplied
• If your Storm is to be stored for any length of time, ensure tank and spray bars are
empty & no lines vare under pressure
• Ensure the air filter on the motor is cleaned daily during heavy use

TTi’s AquaModule™ HandBook
12 Call 1800 816 277www.tti.com.au 12
Troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION
Engine will not
crank
»Dead battery
»Melted Fusible Link
»Loose Connections
Faulty Ignition Switch
»Faulty magnetic switch,
relay, neutral start switch or
clutch switch
»Mechanical problem in
engine
»Problem in theft deterrent
system
»Check battery state-of-
charge
»Replace fusible link
»Clean and tighten
connections
»Check switch operation,
replace as needed
»Check and replace as
needed
»Check Engine
»Check service manual for
system tests
Engine cranks too
slowly to start
»Weak Battery
»Loose or corroded
connections
»Faulty starter motor
»Mechanical problems with
engine or starter
»Check battery and charge as
needed
»Clean and tighten
connections
»Test Starter
»Check engine and starter,
replace worn out parts
Starter keeps
running
»Damaged pinion or ring
gear
»Faulty plunger in magnetic
switch
»Faulty ignition switch or
control circuit
»Binding ignition key
»Check gears for wear or
damage
»Test starter pull-in and hold-in
coils
»Check switch and circuit
components
»Check key for damage
Starter spins, but
engine will not
crank
»Faulty over-running clutch
»Damaged or worn pinion
gear or ring gear
»Check over-running clutch for
proper operation
»Check gears for damage and
wear; replace as needed
Starter does
not engage/
disengage
properly
»Faulty magnetic switch
»Damaged or worn pinion gear
or ring gear
»Bench test starter
»Check gears for damage and
wear; replace as needed

TTi’s AquaModule™ HandBook
13 Call 1800 816 277www.tti.com.au 13
Risk Assesment
Product Information Risk Assessment Sheet
TTi - Storm Unit
TASK HAZARDS RISK CONTROL MEASURES
Partially fill the tank
with water, start the
motor & test the
spray unit
Manual handling;
slips, trips or falls;
petrol; fumes;
fingers jammed
Medium
Concentrate on task; follow safe manual
handling techniques:
• Don’t lift on your own if > 20kg, bend
knees & keep back straight; Keep
fingers clear;
• Keep unit at least 8m away from
overhead powerlines;
• Fire extinguisher nearby;
• Follow warning stickers on tanks;
Wear PPE for petrol & fumes-mask &
gloves.
Check weather
conditions & select
the appropriate PPE
to suit the chemicals
to be used
Manual handling;
slips, trips or falls Low
• Put on PPE as per the chemical
requirements in the Material Safety
Data Sheet-coveralls, gloves, safety
footwear, glasses & respirator;
• Follow safe manual handling
techniques:-don’t lift on your own
if >20kg, bend knees & keep back
straight.
Mix chemicals
(if applicable)
Fill spray tank/fire
fighting units
As above; spray
drift, chemical
spillage, emission
of vapors or
flammability;
weather;
untrained visitors
Medium
• As above;
• User trained in the state’s chemical
mixing & administration course eg
Chem. Cert;
• Follow the relevant Environment
Protection Authority requirements;
fire extinguisher present;
• Keep visitors away from the job
unless wearing full PPE.
Use spray or fire
fighter units.
As above; loss
of load; heat
& cold; noise;
exceed load limit
of vehicle; hose
entanglement;
exhaust fumes;
terrain & slopes;
run over by unit
High
• As above
• Wear clothes to suit heat & cold;
• Wear hearing protection if noise > 85
dBa;
• Follow the manufacturer’s safe
operation instruction for the vehicle
and the spray unit
• Don’t overload - water weighs 1kg
for every 1 litre
• Secure load to vehicle;
• Keep hose tidy;
• Put unit brakes on.
Clean up,
maintenance &
storage
As above Low
• As above;
• Continue to wear PPE for clean up;
• Store unit in a dry, well ventilated
area.

TTi’s AquaModule™ HandBook
14 Call 1800 816 277www.tti.com.au 14
Mounting instructions for Chassis Frame
Required Components
o4 - 5 x fishplate pairs
o2 x spring mount (optional)
oM14 grade 8.8 fastener (minimum) – 122 Nm tightening torque
oM14 nyloc nut
oHi-tensile washer
oRubber pad (continuity)
Fish plate mounting instruction
•No mounting solution in the front transition area.
•Bolt mounts intervals of 900mm from one fishplate to another.
FRONT TRANSITION
AREA
The first fishplate or front spring mount have
to be fitted in 250mm after the front
transition area.
Mounting Instructions for Chassis Frame
Required Components:
• 4 - 5 x Fishplate Pairs
• 2 x Spring Mount (Optional)
• M14 grade 8.8 fastener (Minimum) - 122 Nm Tightening Torgue
• M14 Nyloc Nut
• Hi-Tensile Washer
• Rubber Pad (Continuity)
Fish Plate Mounting Instructions:
• No mounting solution in the front transition area.
• Bolt mounts intervals of 900mm from one fishplate to another
Mounting instructions for Chassis Frame
Required Components
o4 - 5 x fishplate pairs
o2 x spring mount (optional)
oM14 grade 8.8 fastener (minimum) – 122 Nm tightening torque
oM14 nyloc nut
oHi-tensile washer
oRubber pad (continuity)
Fish plate mounting instruction
•No mounting solution in the front transition area.
•Bolt mounts intervals of 900mm from one fishplate to another.
FRONT TRANSITION
AREA
The first fishplate or front spring mount have
to be fitted in 250mm after the front
transition area.
50mm or more
Kick up point
or sub frame
Front
Do not fix in this area of
the chassis frame
The first fish plate or front spring
mount have to be fitted in 250mm
after the front transistion area.

TTi’s AquaModule™ HandBook
15 Call 1800 816 277www.tti.com.au 15
Top – mounting to the subframe
Bottom – mounting to the truck
chassis (body)
*Bottom fishplates must extend at
least halfway down the web of the
chassis to prevent flexing. See
image 1 below.
Image 1
Top – mounting to the subframe
Bottom – mounting to the truck
chassis (body)
*Bottom fishplates must extend at
least halfway down the web of the
chassis to prevent flexing. See
image 1 below.
Image 1
Top - mounting to the subframe
Bottom - mounting to the truck
chassis (body)
*Bottom fishplates must extend
at least halfway down the
web of the chassis to prevent
flexing. See image 1 below.
Spring Mounting Instruction (Optional)
Front spring bracket should be mounted after the front transistion area.
• Approximate 20 - 30mm gap between top and bottom L bracket
• M16 grade 8.8 (minimum)
• Compress mounting spring of 8mm

TTi’s AquaModule™ HandBook
16 Call 1800 816 277www.tti.com.au 16
Warranty Policy
1. Warranty Policy
TTI will, at its option, repair or replace, without charge, any part covered by this
warranty which is found to be defective in material and/or workmanship within
one (1) year* after date of sale to the original retail purchaser unless the product is
used for rental purposes, in which case this warranty is limited to ninety (90) days.
Upon request, the customer will make the defective part available for inspection
and/or return the defective part to TTI, transportation charges prepaid. All parts
and components are covered by this warranty except the following, which are
warranted separately by their respective manufacturers: engines, gearboxes,
pumps & regulators. TTi does not assume any warranty obligation, liability or
modification for these items, which are covered exclusively by the stated warranty
of the respective manufacturers.
2. What this Warranty Does Not Cover
2.1 This warranty does not cover defects caused by depreciation or damage caused
by incorrect mounting, normal wear, accidents, improper maintenance, improper
use or abuse of the product, alterations or failure to follow the instructions and
warnings provided.
2.2 The customer shall pay any charges for making service calls, clean up time and
transport charges.
2.3 The use of non-genuine parts on equipment supplied by TTi will automatically
negate any warranty.
3. How to Obtain Service Under This Warranty
Warranty service can be arranged by contacting your dealer or by contacting
Trans Tank International, Call 03 5866 3266 or P O Box 137, Nathalia VIC, 3638. Proof
of warranty registration and date of purchase may be required to verify warranty
coverage. Any defective parts returned to us must be accompanied by a Return
Goods Note. This form can be obtained by contacting Product
4. Parts Warranty
12 Months on running gear

TTi’s AquaModule™ HandBook
17 Call 1800 816 277www.tti.com.au 17
Warranty Limitations
a] There is no other express warranty. Any warranty that may be implied from this
purchase including merchantibility and finess for a particular purpose is hereby
limited to the duration of this warranty and to the extent permitted by law. Any and
all implied warranties are excluded.
b] TTI will not be liable for any incidental, consequential or special damages and/
or expenses in connection with the purchase or use of this equipment, to the extent
permitted by law.
c] Only the warranty expressed in this limited warranty shall apply and no dealer,
distributor, or individual is authorized to amend, modify, or extend this warranty
in any way. Accordingly, additional statements, whether oral or written, do not
constitute warranties by TTi, and should not be relied upon.
Whilst every care has been taken in the preparation of these instructions, no liabilities
can be accepted with regard to errors or omissions. Product specifications are
subject to change in line with our commitment to continuous improvement.

TTi’s AquaModule™ HandBook
18 Call 1800 816 277www.tti.com.au 18
Warranty Registration Card
To validate your warranty, please complete registration on-line at:
www.tti.com.au/warranty-registration
Alternatively if you are unable to register on-line fill in all the details below, copy
and email to warr[email protected] or post to the address on the back cover.
I have read and understood the instructions in this booklet.
[located on side of tank]
Model:
Serial Number:
Date Purchased:
Purchaser’s Name:
Post code:
Purchaser’s Address:
Phone #: Mobile #:
Email Address:
Purchaser’s Signature:
/.
/.
/.
/.

www.tti.com.au
Test and Quality
Checklist
Date:
Tester:
Engine No:
Job No:
Tank No:
Item Comp NotesN/A
Hydraulic Oil Level
Tank Pins Bar, Wedges, Spacer and
Fasteners are Tighted
No Air and Water Leak Detected - Air
Pressure set between 85 to 100 PSI
Indicator Lights of the Unit
Identify with the Vehicle
Canon Movement and
Joystick Sync (Canon optional)
Hydraulic Pump Works
with the Speed Dial
Run all Functions - Worked
Tank Lid Fitted and Hydrant
Fill Height Conrmed
Manual and Paperwork Supplied
Stickers Fitted
Truck Cab Inspected & Cleaned
Quality Check & Tested
Completed by:
Team Leader Conrmation
Completed by:
Additional Customer Notes:
Storm™

www.tti.com.au
1800 816 277
[e-mail]
PO Box 137, Nathalia, VIC, 3638
Murray Valley Hwy, Nathalia, VIC 3638
