TRASSIR TR-D2121CL3W User manual

Outdoor Full Time Color Camera
TR-D2121CL3W
Specification
-40°
Full Time
Color
Technical support
www: helpdesk.trassir.com
mail: helpd[email protected]
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
Note: read user manual before using
Website: www.trassir.com
For any inquiry: inf[email protected]
TR-D2121CL3W
1/2.8" CMOS 2МP
FullHD(1920x1080)
FullHD@25fps
1/2 ~ 1/1 000 s
FTC
0.0015Lux (F1.0) / 0Lux (LED on)
up to 35 m
(neutral white)
2.8 / 4.0
2.8 mm: 105˚ / 54˚
4.0 mm: 81˚ / 44˚
Pan: 0˚-360˚
Tilt: 0˚-105˚
Rotation: 360˚
Real WDR (120dB)
3D DNR
Н.265+ / Н.265 / H.264+ / H.264
up to 8Mbps
MicroSD up to 128GB
Built-in microphone
Built-in speaker
Yes
Human detection
Line crossing
Intrusion detection
12V DC
DC: 4.44 W
Metal
184.7 x 159.3 x 68
480 / 590
IP66
TVS 4000V
-40°C … +60°C
Model
Image sensor
Resolution
Frame rate
Electronic shutter speed
Day/Night mode
Sensitivity
LED range
Lens (mm)
Field of view (horiz./vert.)
Axes setting
WDR
Digital noise reduction
Video compression
Bitrate
Local storage
Audio
Corridor mode
IVS
Power supply
Power consumption
Case material
Dimensions (mm)
Weight Net/Gross (g)
Ingress protection
Lightning protection
Working temperature

Manual setting of network parameters
In order to connect to the IP camera, the PC should be in the same local
network as the camera. The IP address of the camera, the PC and any
other device on the network should not match.
The IP camera has the following default settings:
- IP address: 192.168.1.188
- Subnet mask: 255.255.0.0
- Gateway: 192.168.1.1
- HTTP-port: 80
- username: admin
- password: admin
PC network settings example:
- IP address: 192.168.1.10;
- Subnet mask: 255.255.0.0.
There are 3 options to set up your camera:
1. Change IP address of a camera manually.
Start your browser, connect to IP camera and enter your
username and password. Choose appropriate menu item and change
network settings of IP camera.
2. Set up camera IP address using fast configuration utility that can
be downloaded from www.trassir.com.
3. Change IP camera settings using TRASSIR professional software.
You can find detailed camera settings instructions in User Manual that
can be downloaded from trassir.com.
Introduction
Congratulations on purchasing TR-D2121CL3W IP camera.
Please read User Manual before using the camera.
Key features
• Supports H.265+
• Wide Dynamic Range (Real WDR 120dB)
• LED range up to 35 m
• Built-in video archive (Edge Storage) - local recording
on MicroSD card* up to 128GB with Hotswap support
• Two-way audio (built-in microphone and speaker)
• TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, UPnP,
SMTP, NTP, ONVIF protocols
• Power supply 12V DC
• Lightning protection: TVS 4000V**
___________________________
* MicroSD Card is not included into camera package
** Device must be grounded
Camera package
1. IP camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
2. User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
3. Mounting kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
Attention!
The power supply should meet the following requirements: output
voltage, current, polarity, and working temperature. When using the
camera in thunderstorm conditions, make sure there is a lightning rod or
unplug the power connector.
Pay attention to the temperature requirements for IP camera operation.
Avoid using the device in excessively high or low temperatures.
Do not install the camera near heaters. Do not point the camera lens at
the sun or at bright objects as this can damage the image sensor.

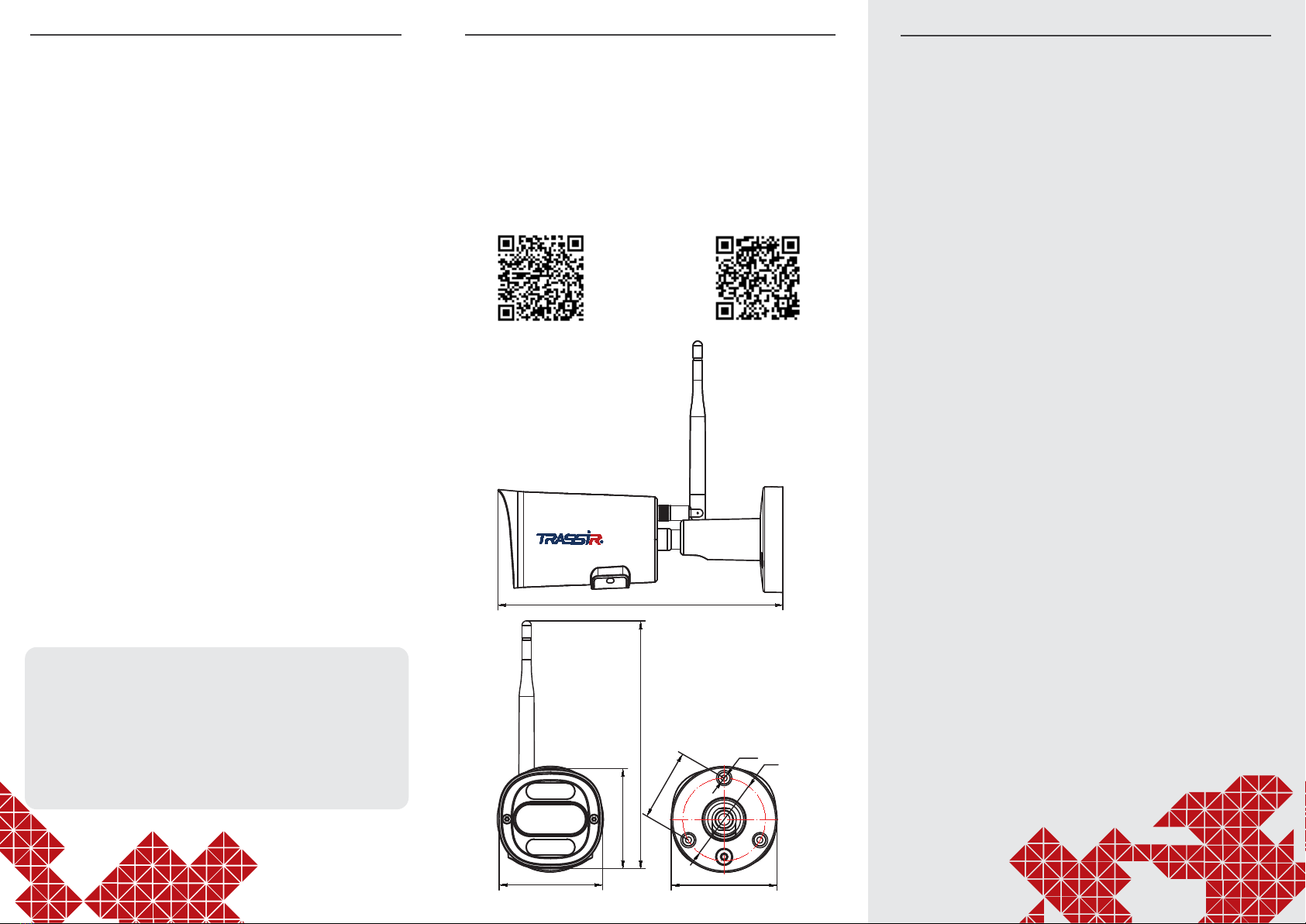

Dimensions
881-5.10.22
184,7
159,3
64,5
66,5 68
46
3х∅4
∅53
Quick start
1. Plug in power the adapter. The camera will turn on in a minute.
2. Create user account at cloud.trassir.com.
3. Download TRASSIR app for your smartphone from Google Play or
AppStore.
4. Launch TRASSIR app and sign in to your account.
5. Settings > Add camera > TRASSIR >
then follow the instructions in the application.
* IP camera WiFi password: 12345678
GooglePlayAppStore
