JAI AP-3200T-10GE User manual

User Manual
Thank you for purchasing this product.
Be sure to read this manual before use.
This manual includes important safety precautions and instructions on how to operate the unit. Be sure
to read this manual to ensure proper operation.
The contents of this manual are subject to change without notice for the purpose of improvement.
© 2020 JAI
Digital 3CMOS Progressive Scan
RGB Color Camera
Document Version: 1.0
AP-3200T-10GE_Ver.1.0 _Sep.2020
AP-3200T-10GE

— 2 —
Notice
The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan and may only
be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the use of its product and
assumes no responsibility for any errors which may appear or for damages resulting from the use of the
information contained herein. JAI Ltd., Japan reserves the right to make changes without notice.
Company and product names mentioned in this manual are trademarks or registered trademarks of their
respective owners.
Warranty
For information about the warranty, please contact your factory representative.
Certifications
CE compliance
As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC (Electromagnetic
compatibility), JAI Ltd., Japan declares that complies with the following provisions applying to its standards.
EN 55032:2015(CISPR32:2015)
EN 55035:2017(CISPR35:2016)
FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning
Changes or modifications to this unit not expressly approved by the party responsible for FCC compliance could
void the user’s authority to operate the equipment.
AP-3200T-10GE

—3 —
Contents
AP-3200T-10GE
Notice/Warranty/Certifications
2
Usage Precautions
6
Features
7
Parts Identifications
8
Preparation
14

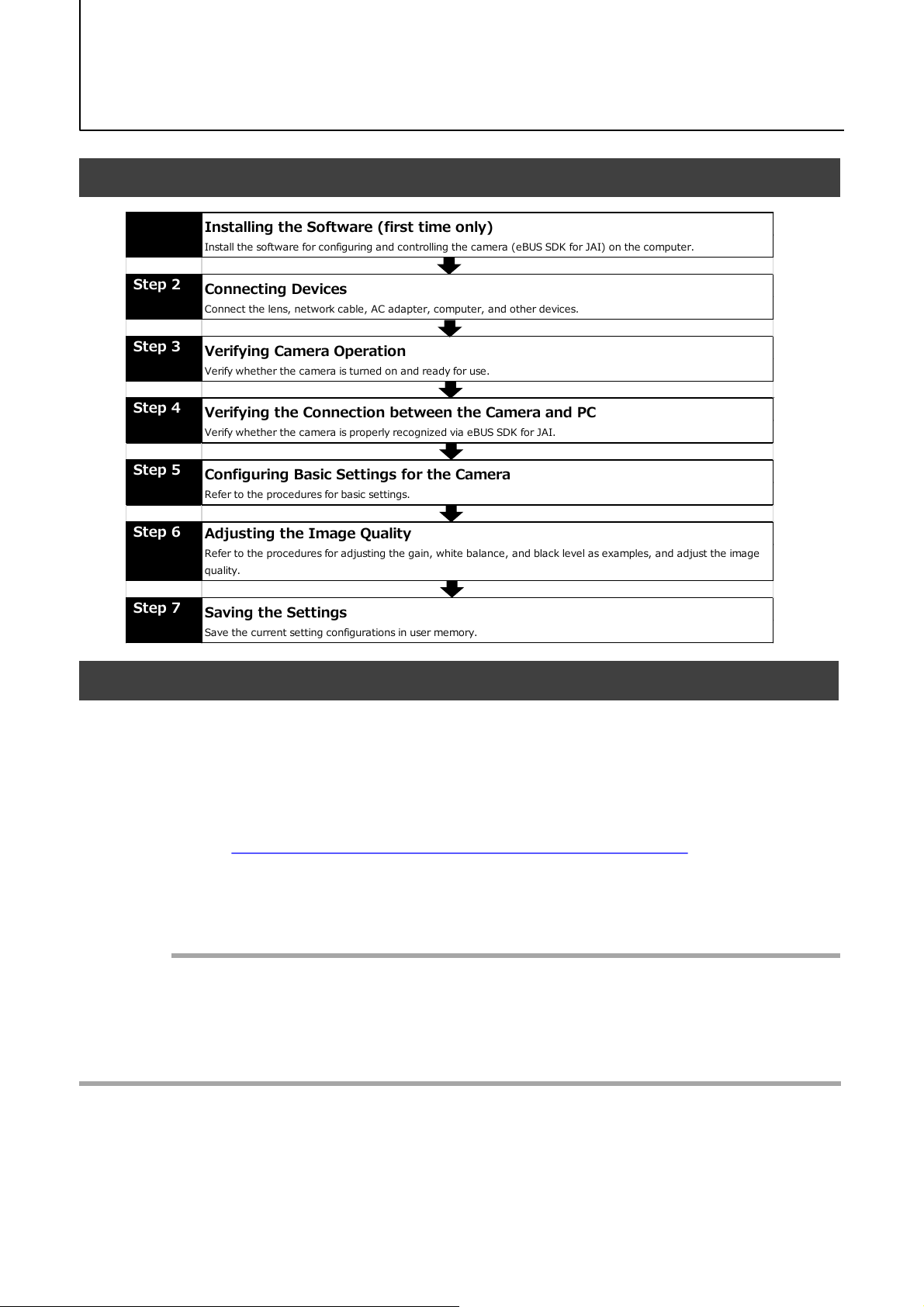

Preparation Process
14
Step 1: Installing the Software (first time only)
14
Step 2: Connecting Devices
15
Step 3: Verifying Camera Operation
17
Step 4: Verifying the Connection between
the Camera and PC
17
Step 5: Configuring Basic Settings for the Camera
20
Step 6: Adjusting the Image Quality
21
Step 7: Saving the Settings
24
Main Functions
25
Acquisition Control
25
Exposure Mode
26
Trigger Control
27
GPIO (Digital Input/Output Settings)
28
Timing chart
30
Calculate the maximum frame rate (approximate)
33
Gain Control
35
White Balance
37
ALC (Automatic Level Control) Function
38
Gamma Function
39
LUT (Lookup Table)
40
Blemish Compensation
41
Shading Correction
42
Binning Function
43
ROI Function (Single ROI) 44
ROI Function (Multi ROI) 45
Sequencer Function 46
Color Space Conversion 48
Edge Enhancer, Color Enhancer 49
Chunk Data Function 50
Counter And Timer Control Function 51
Pulse Generator 53
Setting List 54
Feature Properties 55
Miscellaneous 67
Troubleshooting 67
Specifications 68
Maximum Frame Rate Reference 70
Spectral Response 70
Dimensions 71
Comparison of the Decibel Display and
Multiplier Display 72
User’s Record 73
Index 74
Revision history 75

DeviceControl
17
55
ImageFormatControl
43
44
AcquisitionControl
25
26
27
30
31
32 33 34 58
AnalogControl
22
23
35
36
37
61
AutoLevelControl
38
39
62
ImagingControl
49
57
62
LUTControl
39
40
62
DigitalIOControl
10
11
12
13
15
28 29 59
CounterAndTimerControl
51
52
64
UserSetControl
24
66
SequencerControl
46
47
64
ColorTransformationControl
48
62
TransportLayerControl
21
56
PulseGenerator
53
60
ChunkData Control
50
66
Shading
42
43
63
BlemishControl
41
63
MultiROIControl
45
58
ActionControl
64
EventControl
65
TestControl
66
—4 —
■Table of contents by function
■About Technical Note
Some additional technical information is provided on the JAI website as
Technical Notes. In this manual, if a technical note is available for a particular
topic, the icon is shown.
Please refer to the following URL for Technical notes.
https://www.jai.com/support-software/technical-notes
Technical notes
AP-3200T-10GE

—5 —
Supplement

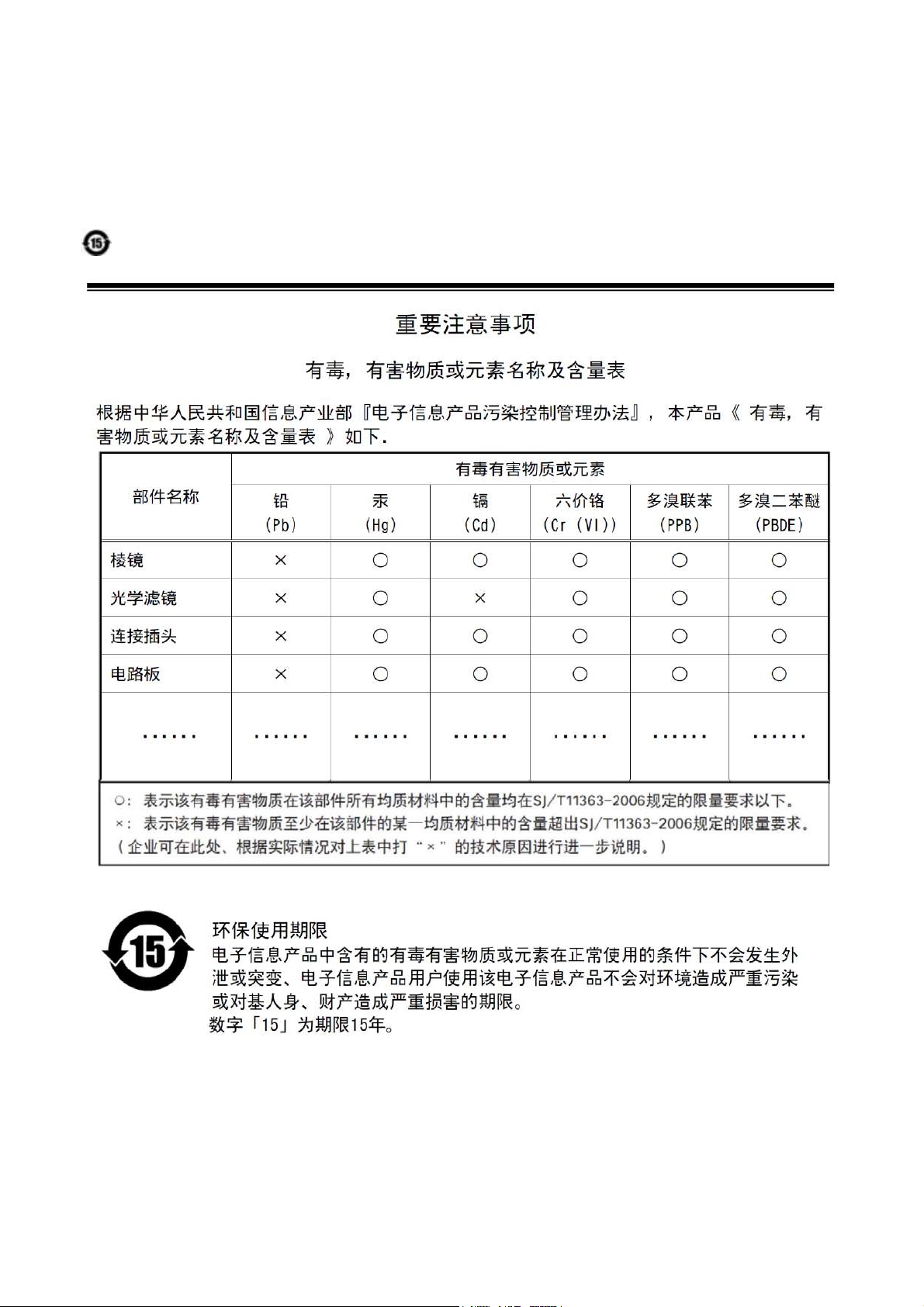

The following statement is related to the regulation on “ Measures for the Administration
of the control of Pollution by Electronic Information Products “ , known as “China RoHS “.
The table shows contained Hazardous Substances in this camera.
mark shows that the environment-friendly use period of contained Hazardous
Substances is 15 years.
AP-3200T-10GE

—6 —
Usage Precautions
Notes on cable configurations
The presence of lighting equipment and television receivers nearby may result in video noise.
In such cases, change the cable configurations or placement.
Notes on attaching the lens
Avoiding dust particles
When attaching the lens to the camera, stray dust and other particles may adhere to the sensor surface
and rear surface of the lens. Be careful of the following when attaching the lens.
• Work in a clean environment.
• Do not remove the caps from the camera and lens until immediately before you attach the lens.
• To prevent dust from adhering to surfaces, point the camera and lens downward and do not allow the
lens surface to come into contact with your hands or other objects.
•Always use a blower brush to remove any dust that adheres.
Never use your hands or cloth, blow with your mouth, or use other methods to remove dust.
Phenomena specific to CMOS image sensors
The following phenomena are known to occur on cameras equipped with CMOS image sensors.
These do not indicate malfunctions.
• Aliasing
When shooting straight lines, stripes, and similar patterns, vertical aliasing (zigzag distortion) may appear
on the monitor.
• Blooming
When strong light enters the camera, some pixels on the CMOS image sensor may receive much more
light than they are designed to hold, causing the accumulated signal charge to overflow into surrounding
pixels. This “blooming” phenomenon can be seen in the image, but does not affect the operation of the
camera.
• Fixed pattern noise
When shooting dark objects in high-temperature conditions, fixed pattern noise may occur throughout
the entire video monitor screen.
• Defective pixels
Defective pixels (white and black pixels) of the CMOS image sensor are minimized at the factory according
to shipping standards. However, as this phenomenon can be affected by the ambient temperature,
camera settings (e.g., high sensitivity and long exposure), and other factors, be sure to operate within the
camera’s specified operating environment.
Notes on exportation
When exporting this product, please follow the export regulations of your country or region.
Notes on temperature conditions
The guaranteed operating temperature and humidity of this camera are -5℃ to +45℃, 20% to 80%
(non-condensing). Please make sure the following temperature condition is met when operating the unit.
1) The camera's internal temperature sensor detects temperatures of 101°C or less during operation.
If the above temperature conditions are exceeded, take measures to dissipate heat according to your
installation environment and conditions.

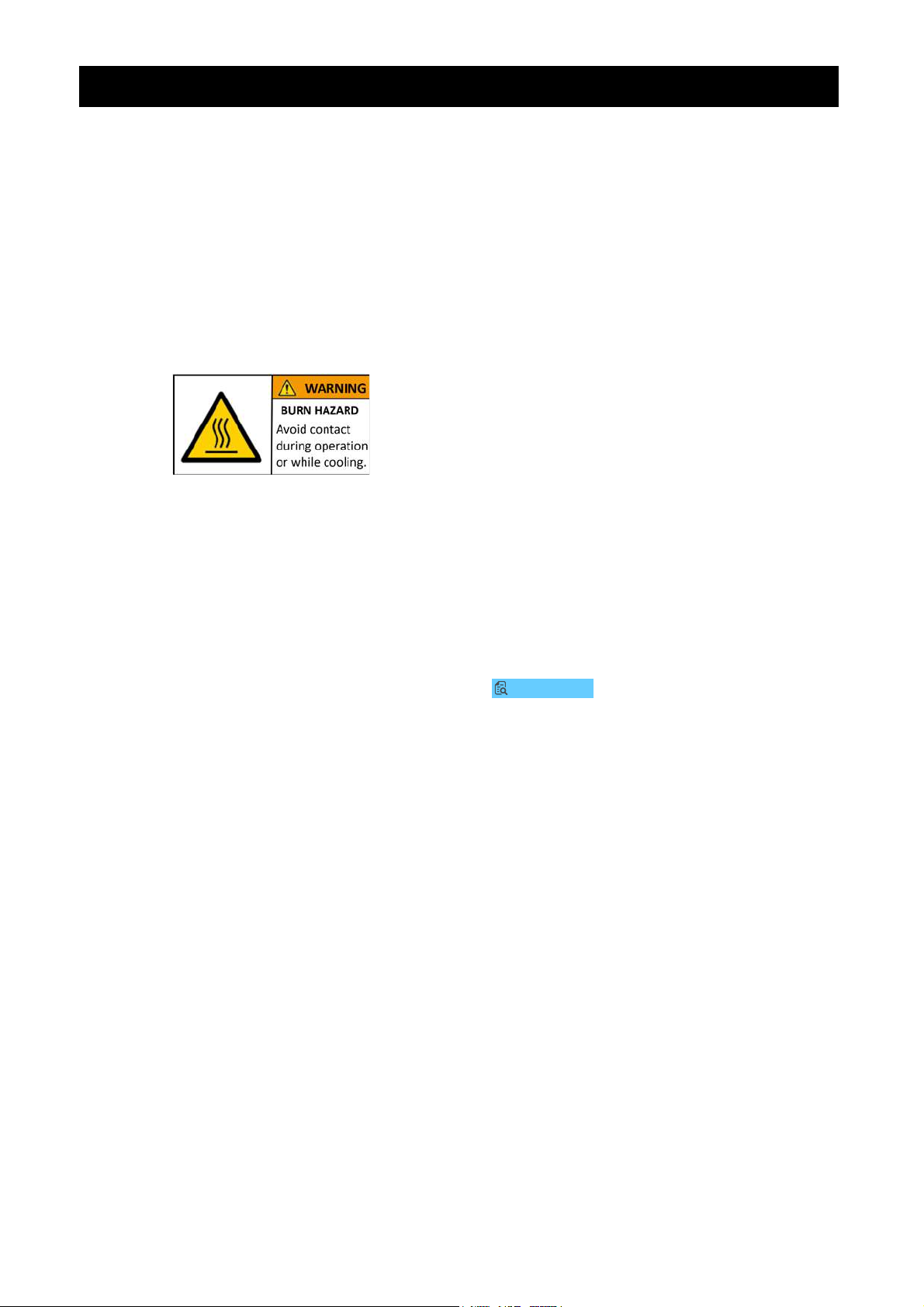

Depending on the operating environment, the surface of the camera
may become very hot during operation.
Do not touch the camera during operation and while it is being cooled.
Also, make sure that the cable surface and other easily deformable
items do not contact the surface of the camera.
Technical notes How to clean a sensor
AP-3200T-10GE

Features
The AP-3200T-10GE is an industrial progressive scan camera that uses three 1/1.8-inch
global shutter CMOS image sensors with 2064×1544 effective pixels.
It allows maximum frame rates of 106.29 fps at full resolution.
Enhanced color reproduction is achieved via the newly-developed compact-designed
1/1.8-inch 3CMOS C-mount F4 prism optical system in addition to the internal color
matrix circuit. Even higher definition imaging is made possible by the shading correction
and gamma correction circuits.
The ROI and vertical binning functions allow for even faster readout speeds.
The gain and exposure time can be configured individually for each CMOS sensor. A color
space conversion function is also supported.
Feature overview
• 1/1.8-inch 3CMOS progressive RGB color camera
• Lens mount: C-mount (flange back: 17.526 mm)
• Effective pixels: 2064 (H) ×1544 (V); pixel size: 3.45 ×3.45 um
• Maximum frame rates of 106.29 fps at full resolution possible
• 24-bit or 30-bit RGB output
(36-bit RGB output possible in video process bypass mode)
• Gamma correction circuit that uses lookup tables
• Color matrix that allows faithful color reproduction
• Color space conversion function (sRGB, Adobe RGB, HSI, XYZ) support
• The camera supports the following Ethernet standards.
(1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T)
• Internal test signal for settings configuration
• Compliance with GigE Vision and GenICam standards

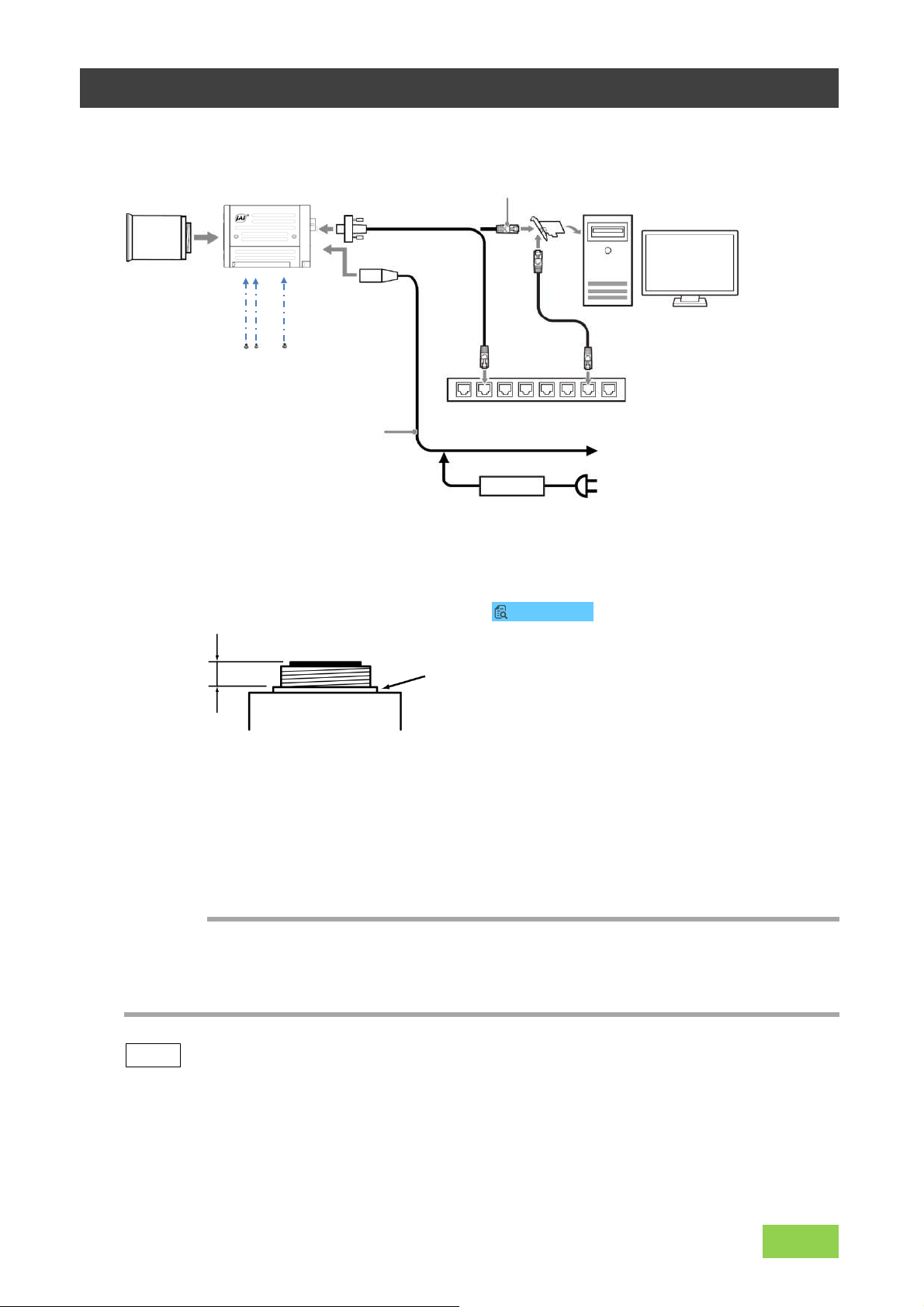

Connection example
—7 —
AP-3200T-10GE
Camera
Switching hub
AC Adapter
External Trigger
PC

Parts Identification
①Lens mount（F-mount）
Mount a C-mount lens, microscope adapter, etc. here.
❖Before mounting a lens, be sure to refer to “Step 2:Connecting Devices” and confirm
the precautions for attaching a lens and the supported lens types.
②POWER/TRIG LED
Indicates the power and trigger input status.
LED status and camera status
—8 —
LED Light Status
POWER/
TRIG LED
（Lit amber）Camera initializing.
（Lit green）Camera in operation.
（Blinking green）During operation in trigger mode, trigger signals are
being input.
❖The blinking interval is not related to the actual input interval of
the external trigger.
AP-3200T-10GE
①
③
②
⑥
⑧
⑧
⑦
⑨⑨
⑩
⑩

—9 —
AP-3200T-10GE
③RJ-45 connector
The camera supports the following Ethernet standards.
(1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T)
Depending on the Ethernet standard to be used, the cable type and the maximum
cable length are limited.
For details, refer to "Step 2 Connecting Devices".
④
⑤
LED Light Status
(Lights off) No network communication
(Blinking green)
(Tx) Network communication in progress.
(Blinking yellow)
(Rx) Network communication in progress.
ACT
LED Light Status
(Lights off)
Network Link is not established.
(Blinking green
slowly)
1000Base-T Link is established.
(Interval 1sec)
(Blinking green
quickly）
2.5GBase-T Link or 5GBase-T Link is established.
(Interval 200 msec)
(Lit green）
10GBase-T Link is established.
LINK
⑤ACT LED
Indicates the network communication status.
④LINK LED
Indicates the link status of the network.

—10 —
Digital I/O
Control
AP-3200T-10GE
⑥DC IN/TRIG connector（12-pin round）
Connect the cable for a power supply (optional) or for DC IN / trigger IN here.
Pin No.
Input/Output
Signal Description
1GND
2Power In DC In DC 10 V ～ 25 V
3In Opto In 2-
4In Opto In 2+
5In Opto In 1-
6In Opto In 1+
7Out Opto Out 1-
8Out Opto Out 1+
9Out TTL Out 1 Line 1
10 In TTL In 1 Line 4
11 Power In DC In DC 10 V ～ 25 V
12 GND
Line 5
Line 2
Line 6

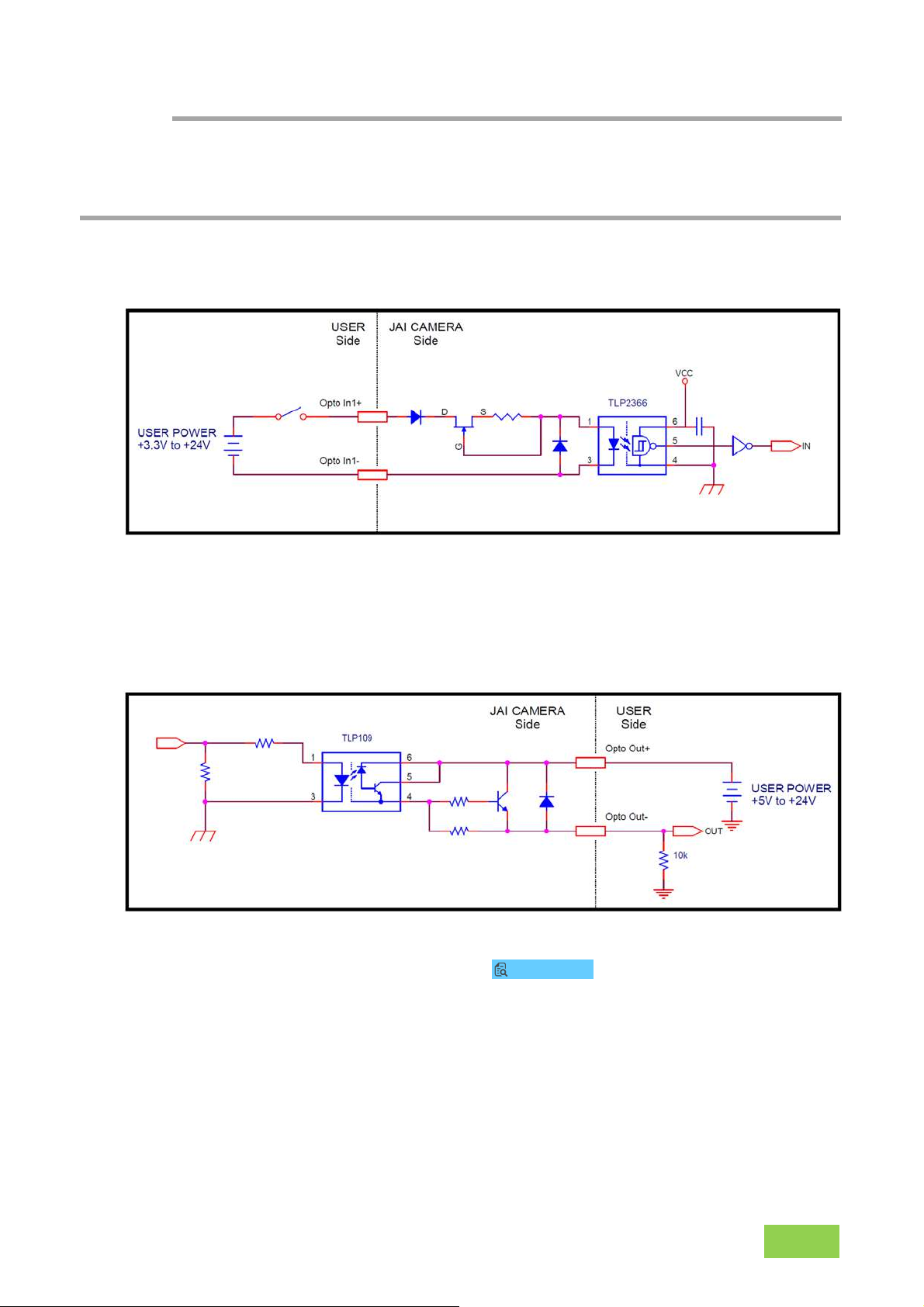

TTL signal specification
TTL out signal specification (Typ.)
Output voltage：Low 0.0V
High 5.0V
Input/Output current：+/-32mA
TTL in signal specification (Typ.)
Input voltage：Low 0.0～0.8V
High 2.0～5.5V
Note
Be sure to use a power supply that can support the maximum power
consumption of this camera.
This camera cannot be powered by PoE (Power over Ethernet).
Compatible connectors
Camera side : HR10A-10R-12PB（71）（Hirose Electric or equivalent ）
Cable side : HR10A-10P-12S (plug) (Hirose Electric or equivalent ）

■Recommended external input circuit diagram (reference example)
■Recommended external output circuit diagram (reference example)
—11 —
(*1)
(*2)
Opto In 1 :
(*1) Pin6 (Opto In 1＋)
(*2) Pin5 (Opto In 1－)
Opto In 2 :
(*1) Pin4 (Opto In 2＋)
(*2) Pin3 (Opto In 2－)
Digital I/O
Control
Technical notes OPTO-In circuit characteristics
AP-3200T-10GE
Caution
About Opto In.Check the recommended external input circuit diagram (reference
example) and connect correctly. If you connect Opto In 1 and Opto In 2 in reverse,
camera may be damaged.

■Characteristics of the recommended circuits for Opto OUT
OUTPUT LINE RESPONSE TIME
—12 —
TDR(Time Delay Rise) (μs) 0.48
RT(Risc Time) (μs) 3.08
TDF(Time Delay Fall) (μs) 3.16
FT(Fall Time) (μs) 52.4
Item
Result (Typ)
For the operating conditions of applied voltage (User Power) +12V, load resistance
10kΩ, and cable length 1m, the timing is shown in the table below.
*) Since it varies depending on the applied voltage, load resistance, cable length,
etc., check the actual environment before use.
Digital I/O
Control
Camera
Output
Signal
Output
Line
Voltage
Please note that the recommended load resistance of Opto output is 10 kΩ (rated 1/10
W) or more. The 270 Ω resistor shown in the circuit diagram is the MINIMUM resistance
that should be used. The response speed from On (High) to Off (Low) depends on the
voltage applied to Opto output and the value of the load resistance. Higher load
resistance results in slower response. If the response at 10 kΩ is slower than desired,
you can try reducing the load resistance in order to increase the response speed but DO
NOT go below the minimum 270 Ω value.
The load resistance loss can be calculated as follows.
load resistance loss ≒(voltage applied to Opto output ) / (load resistance)
Caution
2
AP-3200T-10GE

⑦AUX connector（10-pin）
Camera side：3260-10S3 (55) (Hirose Electric or equivalent)
Cable side ：3240-10P-C (50) (Hirose Electric or equivalent)
⑧Camera locking screw holes （M3, 5 mm depth）
Use these holes when attaching an MP-41 tripod adapter plate (optional) or
mounting the camera directly to a wall or other structural system.
—13 —
⑨Camera locking screw holes （M3, 5 mm depth）
Use these holes when mounting the camera directly to a wall or other structural
system.
Digital I/O
Control
AP-3200T-10GE
⑩Camera locking screw holes （M3, 5 mm depth）
Use these holes when mounting the camera directly to a wall or other structural
system.
Pin No. Input/Output Signal Description
1
OUT TTL OUT2 Line8
2
NC
3
IN TTL_IN2 Line10
4
NC
5
GND GND
6
NC
7
OUT OptOut2(-)
8
OUT OptOut2(+)
9
GND GND
10
GND GND
Line3

—14 —
AP-3200T-10GE
Step 7
Saving the Settings
Save the current setting configurations in user memory.
Step 3
Verifying Camera Operation
Verify whether the camera is turned on and ready for use.
Step 4
Verifying the Connection between the Camera and PC
Verify whether the camera is properly recognized via eBUS SDK for JAI.
Step 5
Configuring Basic Settings for the Camera
Refer to the procedures for basic settings.
Installing the Software (first time only)
Install the software for configuring and controlling the camera (eBUS SDK for JAI) on the computer.
Step 1
Step 2
Connecting Devices
Connect the lens, network cable, AC adapter, computer, and other devices.
Step 6
Adjusting the Image Quality
Refer to the procedures for adjusting the gain, white balance, and black level as examples, and adjust the image
quality.
Preparation
Preparation Process
Step 1: Installing the Software (first time only)
When using the camera for the first time, install the software for configuring and
controlling the camera (eBUS SDK for JAI) on the computer.
❖When you install eBUS SDK for JAI, eBUS SDK for JAI player will also be installed.
Download the eBUS SDK for JAI from the JAI website.
URL https://www.jai.com/jp/support-software/jai-software
Install eBUS SDK for JAI on the computer.
Caution
eBUS SDK for JAI was released in April 2018 and is the latest software for setting and
controlling JAI cameras.
When JAI SDK and eBUS SDK for JAI are installed on the same machine, conflicts can
occur. Therefore, JAI strongly recommends that JAI SDK is uninstalled before installing
eBUS SDK for JAI.
1
2

—15 —
Technical notes Lens Selection Guide
AP-3200T-10GE
Step 2: Connecting Devices
①Lens
Camera body
③LAN cable
②Direct connection
(or direct connection)
④Network card
Switching hub
⑤DC IN/trigger IN
connection cable
or
⑥AC adapter (not supplied)
①Lens
・C-mount lenses with lens mount protrusions of 4 mm or less can be attached.
Lens mount protrusion
Lens
4 mm or less
・The diagonal of the camera’s CMOS image sensor is 8.89 mm, the size of
standard 1/1.8-inch lenses. To prevent vignetting and to obtain the optimal
resolution, use a lens that will cover the 8.89 mm diagonal. Some lens
manufacturers offer lenses with an 8.89 mm format. If not, a 1/1.8-inch lens
is recommended.
・The maximum performance of the camera may not be realized depending on the
lens.
・Attaching a lens with a mount protrusion of 4 mm or longer may damage the lens
or camera.
Caution
Note
The following formula can be used to estimate the focal length.
Focal length ＝WD /（1 ＋W/w）
WD ：Working distance （distance between lens and object）
W ：Width of object
w：Width of sensor（7.12 mm on this camera）
Digital I/O
Control

—16 —
②Direct connection（or MP-41 tripod adapter plate）
When mounting the camera directly to a wall or other device, use screws that
match the camera locking screw holes on the camera (M3, depth: 5 mm).
Use the supplied screws to attach the tripod adapter plate.
For heavy lenses, be sure to support the lens itself. Do not use configurations
in which its weight is supported by the camera.
Caution
Cat5e Cat6/Cat6e Cat6A Cat7
1000Base-T 100m 100m 100m 100m
2.5GBase-T 100m 100m 100m 100m
5GBase-T 100m 100m 100m
10GBase-T 55m 100m 100m
③LAN cable
Connect a LAN cable to the RJ-45 connector.
・The camera supports the following Ethernet standards.
(1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T)
・The longest cable length varies depending on the type of LAN cable and the
Ethernet standard. Below, the table shows the relationship diagram between LAN
cable type and Ethernet standard. Correctly select the LAN cable type according to
the Ethernet standard to be used.
■About the longest cable length
・Refer to the specifications of the cable for details on its bend radius.
Ethernet standard
LAN cable type
-
-
Secure the locking screws on the connector
manually, and do not use a driver. Do not
secure the screws too tightly. Doing so may
wear down the screw threads on the camera.
(Tightening torque: 0.147 Nm or less)
Secure manually.
Do not secure too tightly.
Caution
AP-3200T-10GE

—17 —
AP-3200T-10GE
④Network card
Install this in the computer that will be used to configure and operate the camera.
Refer to the instruction manual of the network card, and configure settings on the
computer as necessary.
⑤DC IN / trigger IN connection cable
⑥AC adapter (power supply)
Connect the AC adapter and the round connector of the connection cable to the
DC IN / TRIG IN connector on the camera.
Step 3: Verifying Camera Operation
When power is supplied to the camera while the necessary equipment is connected, the
POWER/TRIG LED at the rear of the camera lights amber, and initialization of the camera
starts. When initialization is complete, the POWER/TRIG LED lights green.
Verify whether power is being supplied to the camera by checking the rear LED.
When properly turned on
Lit green
•For details on how to read the LEDs, see “LED status and camera status” in the
“Parts Identification” section.
Step 4: Verifying the Connection between the Camera and PC
Verify whether the camera is properly recognized via Control Tool.
Connecting the Camera to Control Tool
1Startup eBUS Player for JAI
eBUS Player for JAI startup screen appears.
eBUS Player for
JAI
Device
Control

—18 —
AP-3200T-10GE
Push Select / Connect button
2Select the camera you want to configure.
The connected camera is listed.
Please select one camera.
eBUS Player for JAI
File Tools Help
Select / Connect Disconnect
N/A
N/A
XXXXXXXXXXX
JAI Corporation
AP-300T-10GE
JAI_DEMO
IP address
MAC address
GUID
Vendor
Model
Name
Source
Mode
Play Stop
Communication control
Device control
Image stream control
Connection
Acquisition Control
Parameters and Controls
eBUS Player for JAI
Interface Information
Device Information
Available Devices
Intel(R) Ethernet Connection I219-LM XX:XX:XX:XX:XX:XX
Intel(R) Dual Band Wireless-AC 8260 XX:XX:XX:XX:XX:XX
Bluetooth XX:XX:XX:XX:XX:XX
Microsoft Virtual WiFi Miniport Adapter #2 XX:XX:XX:XX:XX:XX
Microsoft Virtual WiFi Miniport Adapter XX:XX:XX:XX:XX:XX
Intel(R) USB 3.0 eXtensible Host Controller
AP-300T-10GE [XXXXXXXXXXXX]
GiGE
Set IP Address… Select from IP Address…
Show unreachable Network Devices
OK Cancel

—19 —
3Check that the settings of the selected camera are displayed.
Push the Device control button.
The screen shown below will be displayed. In this window you can adjust
various settings of the camera.
This completes the procedure for verifying whether the camera is properly
recognized and whether control and settings configuration are possible.
AP-3200T-10GE
eBUS Player for JAI
File Tools Help
Select / Connect Disconnect
N/A
N/A
XXXXXXXXXXX
JAI Corporation
AP-300T-10GE
JAI_DEMO
IP address
MAC address
GUID
Vendor
Model
Name
Source
Mode
Play Stop
Communication control
Device control
Image stream control
Stream: 0 images N/A FPS N/A Mbps Display: N/A FPS
Error count: 0 Last error: N/A
Warnings: N/A
Connection
Acquisition Control
Parameters and Controls
DeviceControl
DeviceVendorName
JAI Corporation
DeviceModelName
AP
-300T-10GE
DeviceManufactureInfo
See the possibilities
DeviceVersion
XXXXX
DeviceFirmwareVersion
XXXXX
DeviceFpgaVersion
XXXXX
DeviceSerialNumber
XXXXX
DeviceUserID
JAI_DEMO
DeviceTemperature
XXXXX
DeviceReset
ー
ImageFormatControl
SensorWidth
2064
SensorHeight
1544
SensorDigitizationTaps
Twelve
WidthMax
2064
HeightMax
1544
Width
2064
Height
1544
Offset X
0
Offset Y
0
×
Device Control
Beginner
Visibility

—20 —
This section explains how to change settings by describing the procedure for changing
the output format as an example.
Set the output format
Set the size, position, and pixel format of the image to be captured.
The factory default settings are as follows. Change the settings as needed.
The factory default settings (Sensor 0/Stream 0)
Item Default
ImageFormatControl Width 2064
Height 1544
OffsetX 0
OffsetY 0
PixelFormat RGB8
1The following example shows how to change the [ImageFormatControl]
-> [Width] setting.
If you select the [Width] item, you can change the value as shown below.
Note
Depending on the setting items, you need to change the visibility.
If necessary, switch between Visibility (Beginner / Expert / Guru).
Step 5 Configuring Basic Settings for the Camera
AP-3200T-10GE
DeviceControl
DeviceVendorName
JAI Corporation
DeviceModelName
AP-300T-10GE
DeviceManufactureInfo
See the possibilities
DeviceVersion
XXXXX
DeviceFirmwareVersion
XXXXX
DeviceFpgaVersion
XXXXX
DeviceSerialNumber
XXXXX
DeviceUserID
JAI_DEMO
DeviceTemperature
XXXXX
DeviceReset
ー
ImageFormatControl
SensorWidth
2064
SensorHeight
1544
SensorDigitizationTaps
Twelve
WidthMax
2064
HeightMax
1544
Width
2064
Height
1544
Offset X
0
Offset Y
0
×
Device Control
Beginner
Visibility
